Part of the New Holland Parts Manuals.
This 430-page Ford 445D Parts Catalog covers the 345C, 345D, 445C, 545C, and 545D Tractor Loaders built 1992-2000, and every page here is about finding the right part fast. You get exploded views for all 187 systems, from front wheel assemblies through cab and attaching parts, each paired with a numbered parts list so you match what's on the bench to what's on the diagram. Cross-references separate emissionized from non-emissionized engine variants, 4x4 from 4x8 transmission cases, and Michigan versus Grammer seat assemblies, so you're not stuck guessing which oil pan or drivetrain seal fits your serial number. Order the wrong axle seal twice and you've lost a day; this catalog gets you the correct part number the first time, down to specifics like the M149 x 176 x 16 oil seal on page 51. Bookmarked by system for quick jumps, it opens fine on a phone or tablet right at the parts counter.
What's Inside This Ford Ford 345C-545D Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| Fuel System | Fuel Tank & Related Parts, Fuel Sedimenter & Filter Assembly, Fuel Filter Assembly, Fuel Injector Assembly, Fuel Injection Pump, Air Cleaner Assembly for Non-Emissionized Engine, Air Cleaner for Emmisionized Engines | |
| Cooling System | Radiator & Fan, Water Pump | |

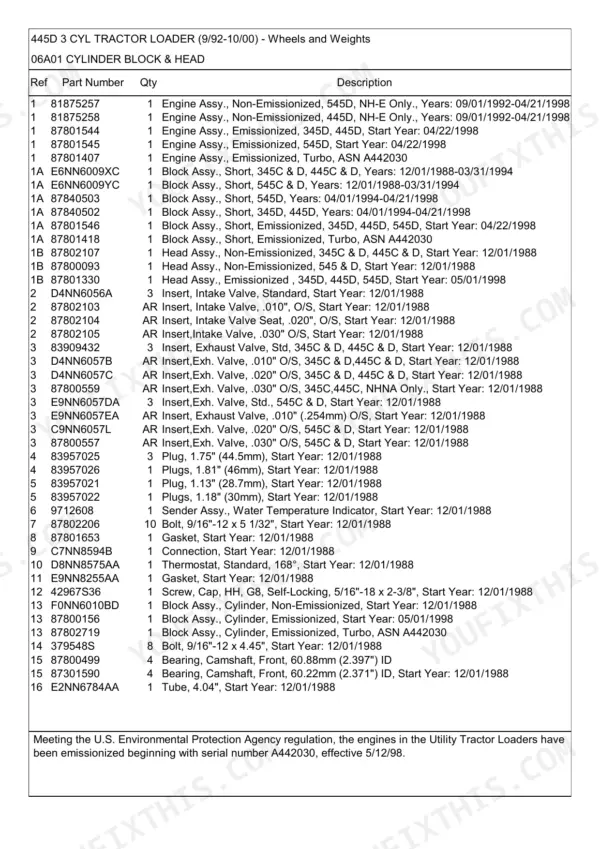

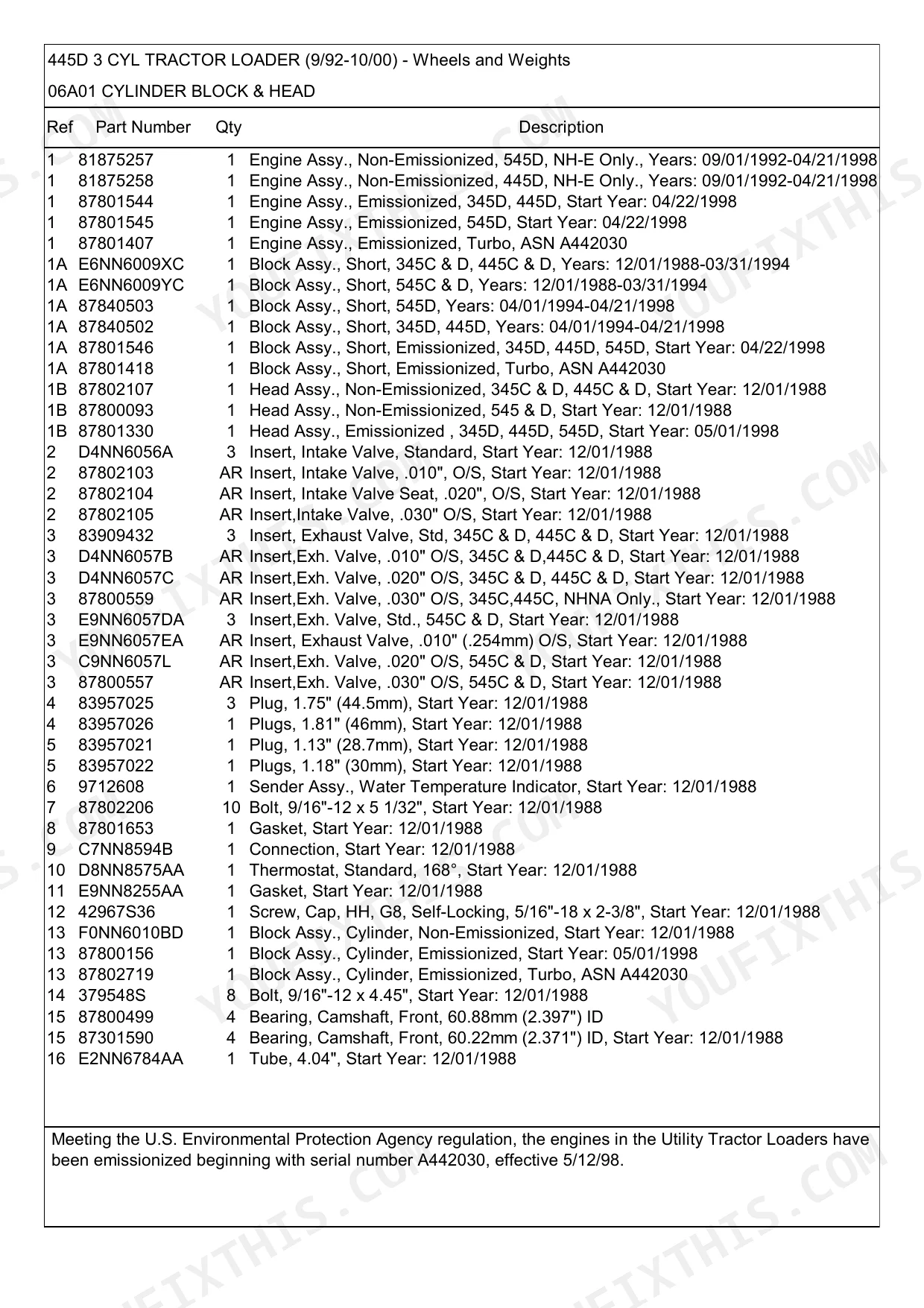

| Engine | Rear Axle Oil Cooler, Cylinder Block & Head, Crankshaft & Flywheel, Camshaft, Pistons & Connecting Rods, Oil Pump & Pan, Oil Cooler & Hoses, Transmission Oil Cooler, Engine Hood, Engine Grille | |
| Electrical System | Switch, Headlamp Assembly, Rear Lamps L/Cab - N.A. Only, Lamp Assembly, Implement Lamp Assembly L/Cab - N.A. Only, Implement Lamp, Battery & Support, Alternator Assembly, Horn Accessory Kit, Worklamp, Tail Light | |

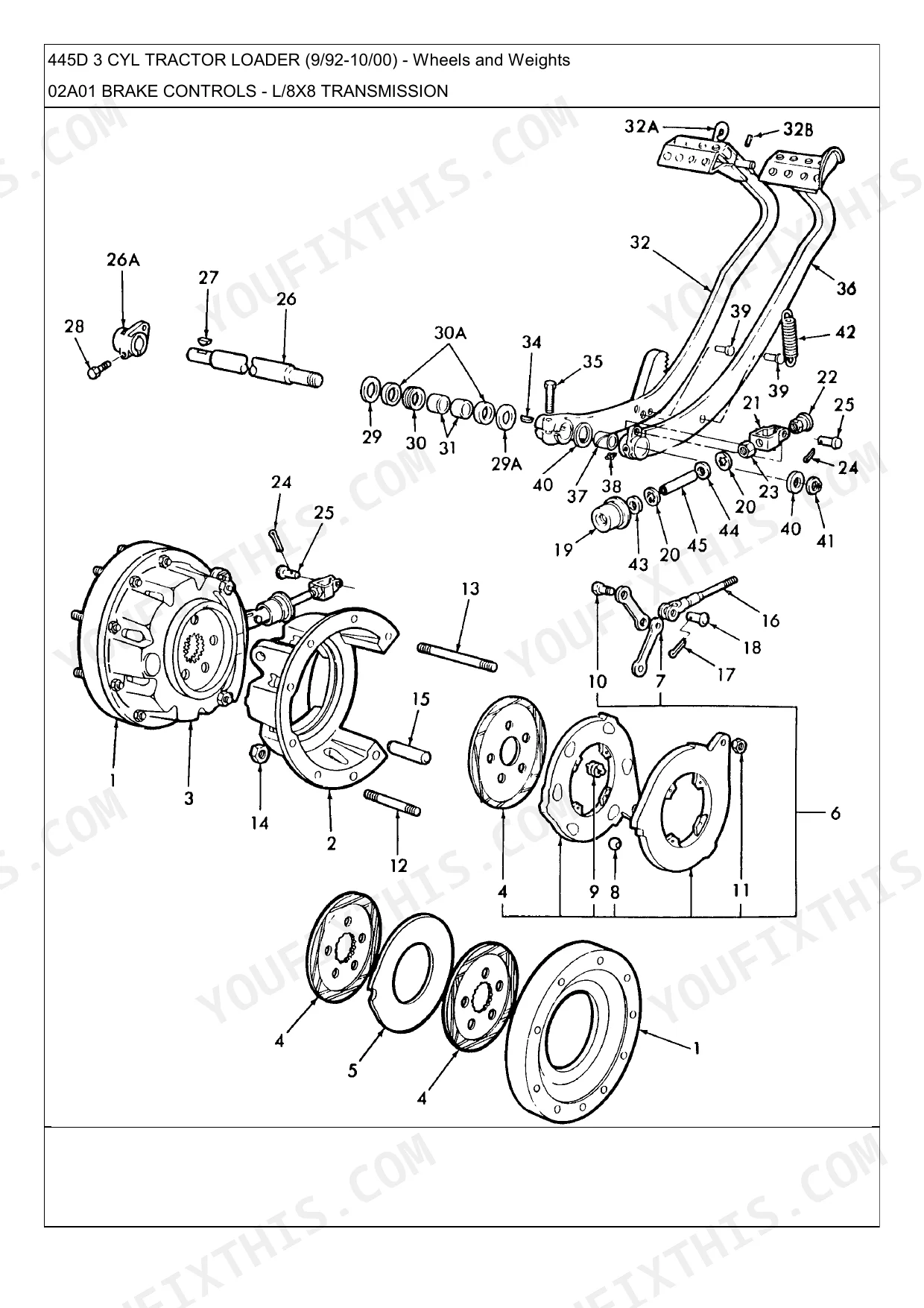

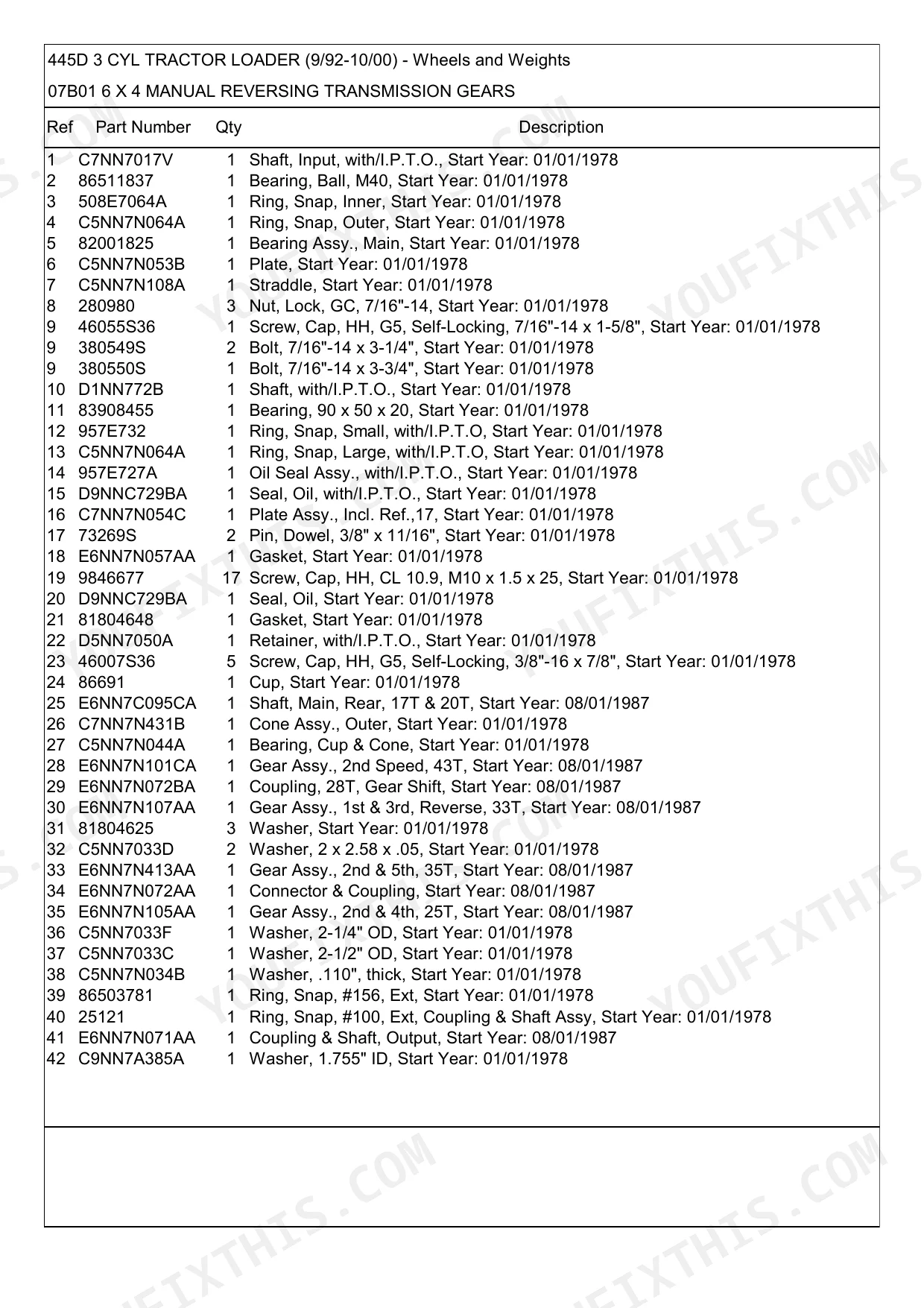

| Clutch & Transmission | Brake Controls - L/8X8 Transmission, X 4 Manual Reversing Transmission Case & Shift Lever, X 2 Transmission Case & Shift Levers, X 4 Manual Reversing Transmission Gears, X 2 Transmission Gears, Clutch Controls, Single Clutch Assembly, Transmission Valve, Transmission Case, Transmission Rear Cover, Transmission Front Cover, Transmission Valve & Housing, Transmission Clutch & Input Shaft, Transmission Countershaft & Gears - 4 X 4, Transmission Output Shaft & Gears, Shift Fork & Rail | |
| PTO | Differential Lock & PTO Control, Independent PTO Assembly, FWD Related Parts L/PTO, PTO Guard, PTO Shaft & Gears, PTO Cover Assembly | |
| Rear Axle, Differential & Brakes | Standard Rear Wheels, 24" Rear Wheel Weights, Brake Pedals, Handbrake Lever W/Twin Cable, Rear Axle, Differential Lock Linkage | |

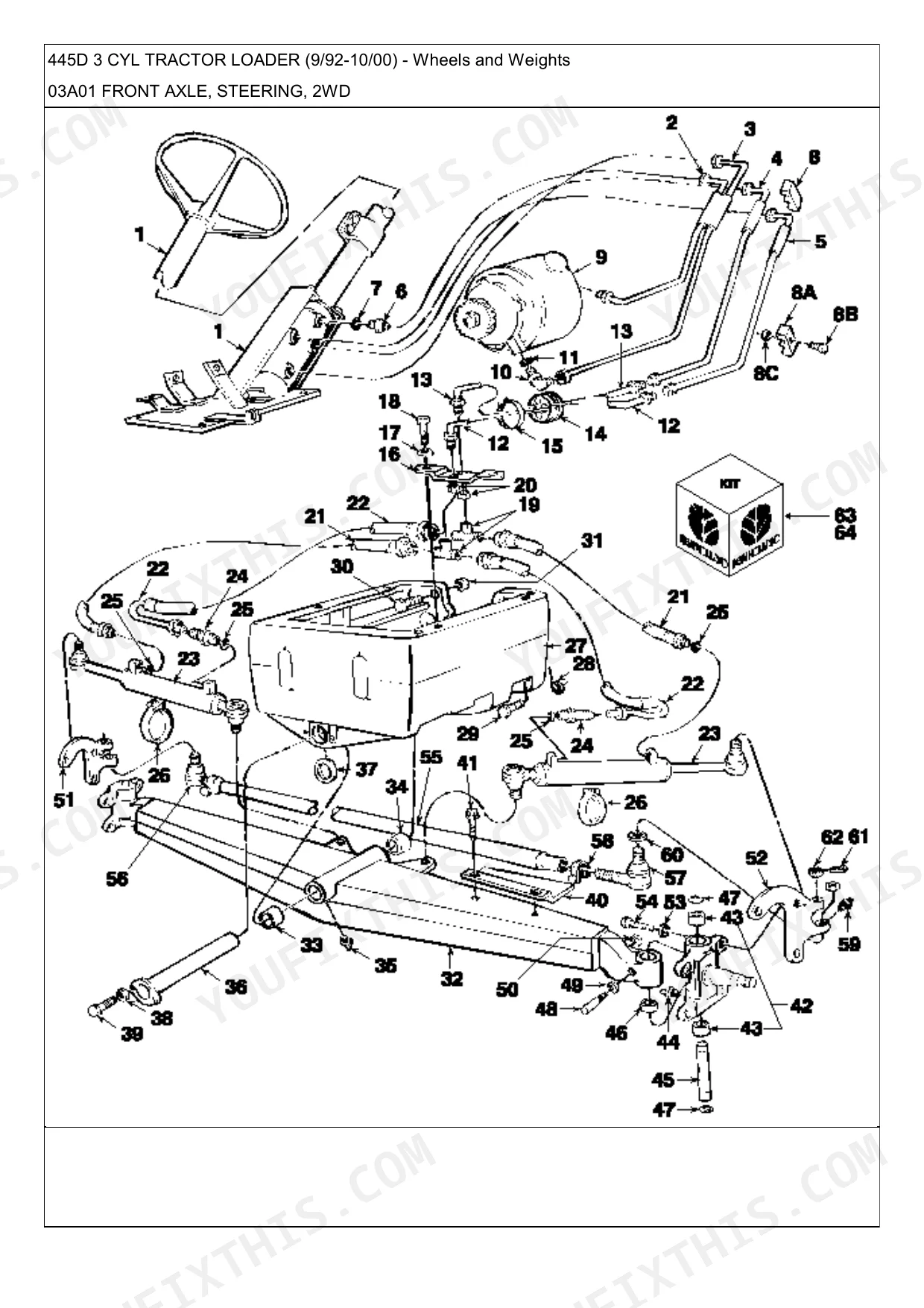

| Front Axle & Steering | Front Wheel Assembly, Front Axle, Steering Column & Motor, Power Steering Pump & Reservoir, Power Steering Cylinder Assembly - Trw, Power Steering Cylinder Assembly - "Cascade", 4WD Front Axle, 4WD Differential Box, 4WD Bevel Gear & Pinion Set, 4WD Reduction Gears, 4WD Steering Arms & Tie Rod, 4WD Driveshafts, 4WD Drive Shafts & Shields, 4WD Gearbox Assembly, 4WD Front Support, 4WD Transfer Case | |
| Hydraulics & 3-Point Hitch | Hydraulic Lift Cover, Hydraulic Lift Shaft & Related Parts, Hydraulic Lift Cylinder, Hydraulic Reservoir & Pump Drive, Hydraulic Reservoir, Flow Control Valve Piping, Flow Control Valve, Hydraulic Lift Linkage, Swinging Drawbar Assembly, Valve Assembly, Lift & Draft Control - W/Cab, Hydraulic Lift Control, Remote Controls, Remote Control Valve & Coupler, Control Valve, Coupling Assembly - Remote Control | |
| Loader, Backhoe & Attachments | Stabilizer Kit - W/Loader | |

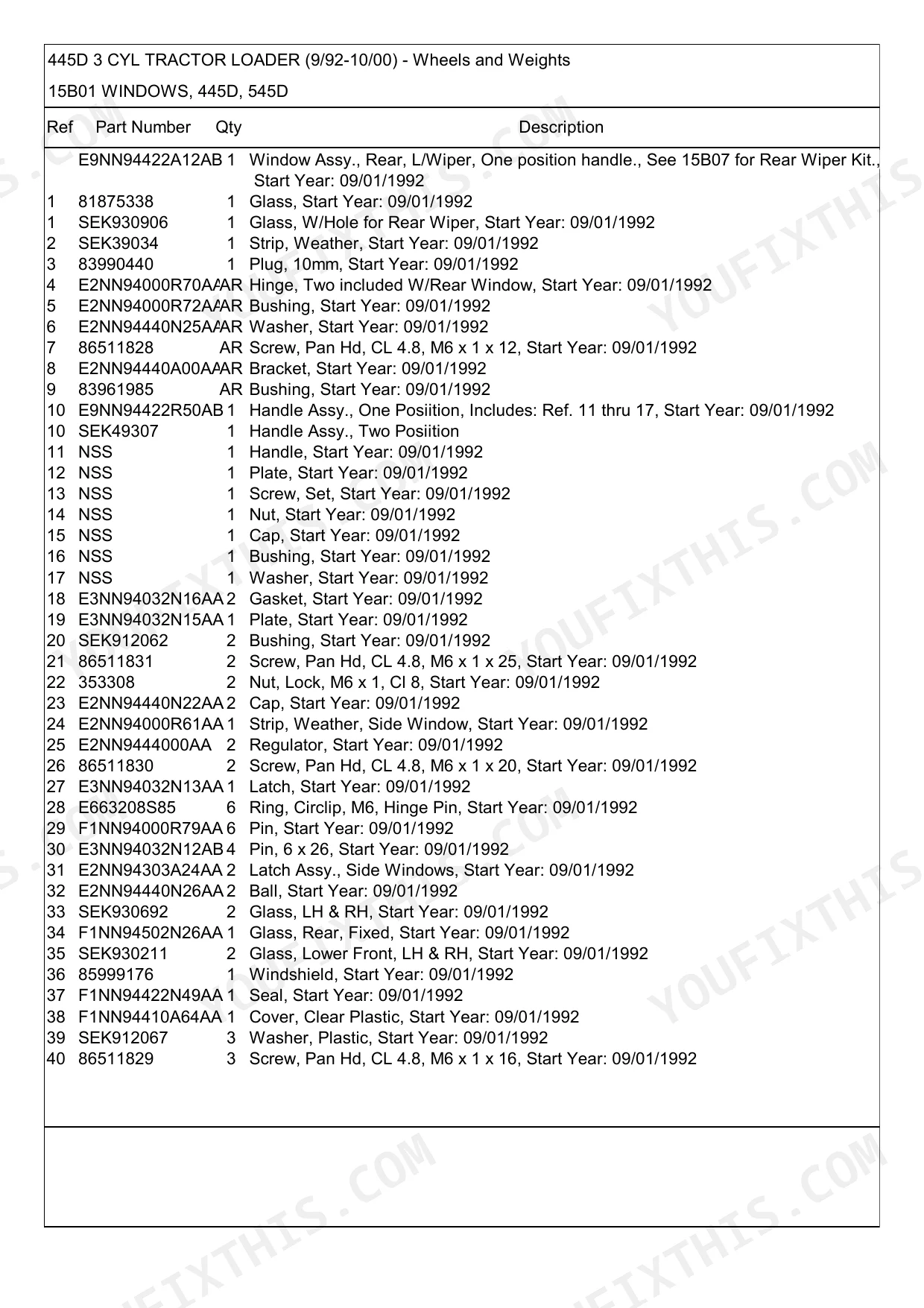

| Body & Operator Station | Seat Assembly, Fenders, Cab & Attaching Parts | |
| Decals & Accessories | Accessories | |
| Other Components | Front End Weights, Center Housing, Manifold Assembly, Box Assembly - Lift Leveling, Plugs - Block, Manifold & Exhaust System, Reverse Idler Shaft & Gear, Water Filter, Diesel Cold Start, Throttle Controls, Electrical System, Kit, Starting Motor Assembly - 5" Dia., D.I.A., Instrument Cluster, Platform |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Nut, Jam, G2 | 5/16"-24 | p. 73 |
| Pin, Split (Cotter) | 1/8" x 3/4" | p. 73 |
| Solenoid, Proportional Valve, w/Bolts | 2 | p. 220 |
| Solenoid, Lock-Up Valve, w/Bolts | 1 | p. 220 |
| Starter Motor, Incl. Ref. 1 thru 18, Start Year | 12/01/1988 | p. 306 |
| Armature Assy., Start Year | 12/01/1988 | p. 306 |
| Kit, Repair Cylinder | 345C, 345D | p. 425 |
| Kit, Cylinder Repair | 345C, 345D | p. 428 |
| 345C & D, 445C & D, 545C | ||
| Rim Size | 5.50x16 | p. 2 |
| 345C & D, 445C, 545C & D | ||
| Rim Size | 8.00x16 | p. 2 |
Ford Ford 345C-545D Common Problems This Manual Covers
Ford 445D loader cylinder leaking oil, need the correct seal kit part number
Turn to the Power Steering Cylinder Assembly exploded view on page 423. The cylinder repair kit for 345C and 345D is listed on page 425. Match your machine's serial number range against the parts index before ordering, since Trw cylinder variants carry different kit numbers across the 423-425 breakout.
Manual Section: Power Steering Cylinder Assembly - Trw p. 423Front axle oil seal keeps weeping, can't tell which seal assembly fits the axle housing
Reference the Rear Axle exploded view starting page 66. Page 67 lists the Seal Assy. covering production dates 12/01/1988 through 09/30/1995; machines built after 10/01/1995 use the Cassette-style Seal Assy. instead. Confirm your build date before ordering to avoid mismatched seal diameters.
Manual Section: Rear Axle, Differential p. 66Electronic shift solenoid not engaging, unsure which valve body part number to order
Check the Transmission Valve & Housing exploded view on page 218. Page 220 lists two Solenoid, Proportional Valve assemblies (with bolts, qty 2) plus one Solenoid, Lock-Up Valve assembly. Cross-reference the 8x8 transmission parts index to confirm you're pulling the 8x8 valve housing variant, not the 4x4 breakout on page 197.
Manual Section: Transmission Valve & Housing, 8 X 8 p. 218Clutch pedal linkage worn out, need pins, bushings, and springs off the exploded diagram
Open the Clutch Controls parts breakout on page 183. Page 184 lists the Bracket Assy. Clutch Pedal (qty 1), two bushings, one clutch spring, and a 3/8"-16 x 2" hex bolt with matching 3/8"-16 lock nut. Order the full linkage set together since the bracket assembly indexes to those specific fastener sizes.
Manual Section: Clutch Controls p. 183Starter motor cranking weak, tracking down the armature and solenoid part numbers
Go to the Starting Motor Assembly exploded view on page 305. Page 306 lists the Armature Assy., Solenoid Assy., and Brush Assy. as separate line items, all tied to the 5" dia. starter effective start year 12/01/1988. Verify your starter's build date against that reference before ordering, since earlier units use a different housing casting.
Manual Section: Starting Motor Assembly - 5" Dia. p. 305Can't identify the correct clutch disc thickness for a 8x8 transmission rebuild
Locate the Clutch & Input Shaft exploded view on page 221. Page 201 lists three disc thickness options for the 4x4 clutch: 2.30mm, 2.44mm, and 2.60mm; use the parts index to confirm which disc variant matches your input shaft casting before ordering, since mixing thicknesses on the same hub causes uneven pack clearance.
Manual Section: Clutch & Input Shaft, 8 X 8 p. 221Frequently Asked Questions
What are the replacement specifications for Hydraulic seal kits for loader cylinders?
For loader cylinders, replacement seal kits are available. For example, a seal kit for 345C, 345D cylinders is part number EEPN3N713A, available from 12/01/1988. Another seal kit for "Cascade" cylinders is part number 85999102, also from 12/01/1988. p. 41
What are the replacement specifications for Clutch linkage components?
Replacement components for the clutch linkage include the Clutch Release Shaft (part number E1NN7503BB, Start Year: 12/01/1988) and the Fork (part number C7NN7N515K, Start Year: 12/01/1988). A complete Clutch Release Lever kit is also available (part number EDPN7591B, Start Year: 12/01/1988). p. 184
What are the dimensions for the O-Ring used in the front axle steering system?
The front axle steering system uses various O-rings, including part number 9617873 with dimensions of 0.468" ID x 0.078" Thk, and part number 129270 with dimensions of 0.414" ID x 0.072" Thk. Both are 90 Duro and were introduced in 12/01/1988. p. 26
What are the dimensions for the O-Rings used in the steering column and motor assembly?
The steering column and motor assembly uses O-rings such as part number 279167, which has dimensions of 1.864" ID x 0.066" Thk. Another O-ring, part number 272429, is 90 Duro with dimensions of 0.208" ID x 0.070" Thk. p. 33

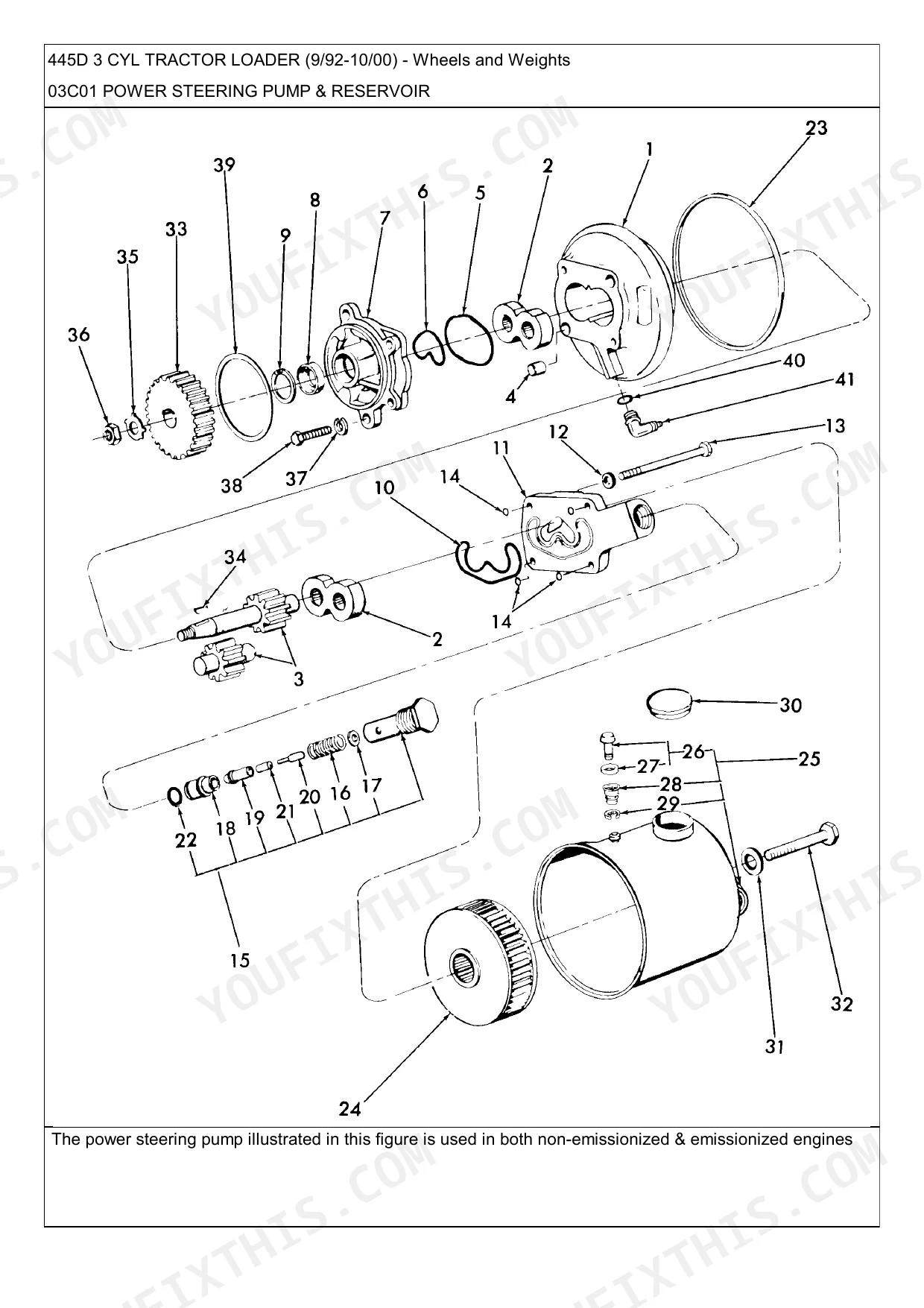

What are the specifications for the Power Steering Pump and Reservoir Assembly?
The power steering pump and reservoir assembly (part number E7NN3K514CA) has a capacity of 2.74 U.S. Gallons and operates at 1600 PSI at 1000 RPM. It was introduced in 12/01/1988. p. 38
How will I receive this Ford 445D & variants Parts Catalog?
Immediate download of the complete 430-page searchable Parts Catalog. Access it on any device, from a laptop at your desk to a phone in the field.
Can I print specific sections of this Ford 445D & variants Parts Catalog?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.
