This is the factory service manual for the New Holland 7630 and 8030 tractors, document 73403953, covering machines from serial number Z7CA27168. It works through the tractor system by system: engine, clutch, transmission, front and rear axles, PTO, brakes, hydraulics, hitches, steering and electrical. The engine section gives the specifications and clearances for both the four-cylinder and the six-cylinder turbocharged intercooled engines, and the hydraulic and steering sections give the pump flows and the exact safety valve adjustment pressures, which differ depending on whether the tractor has auxiliary front drive.

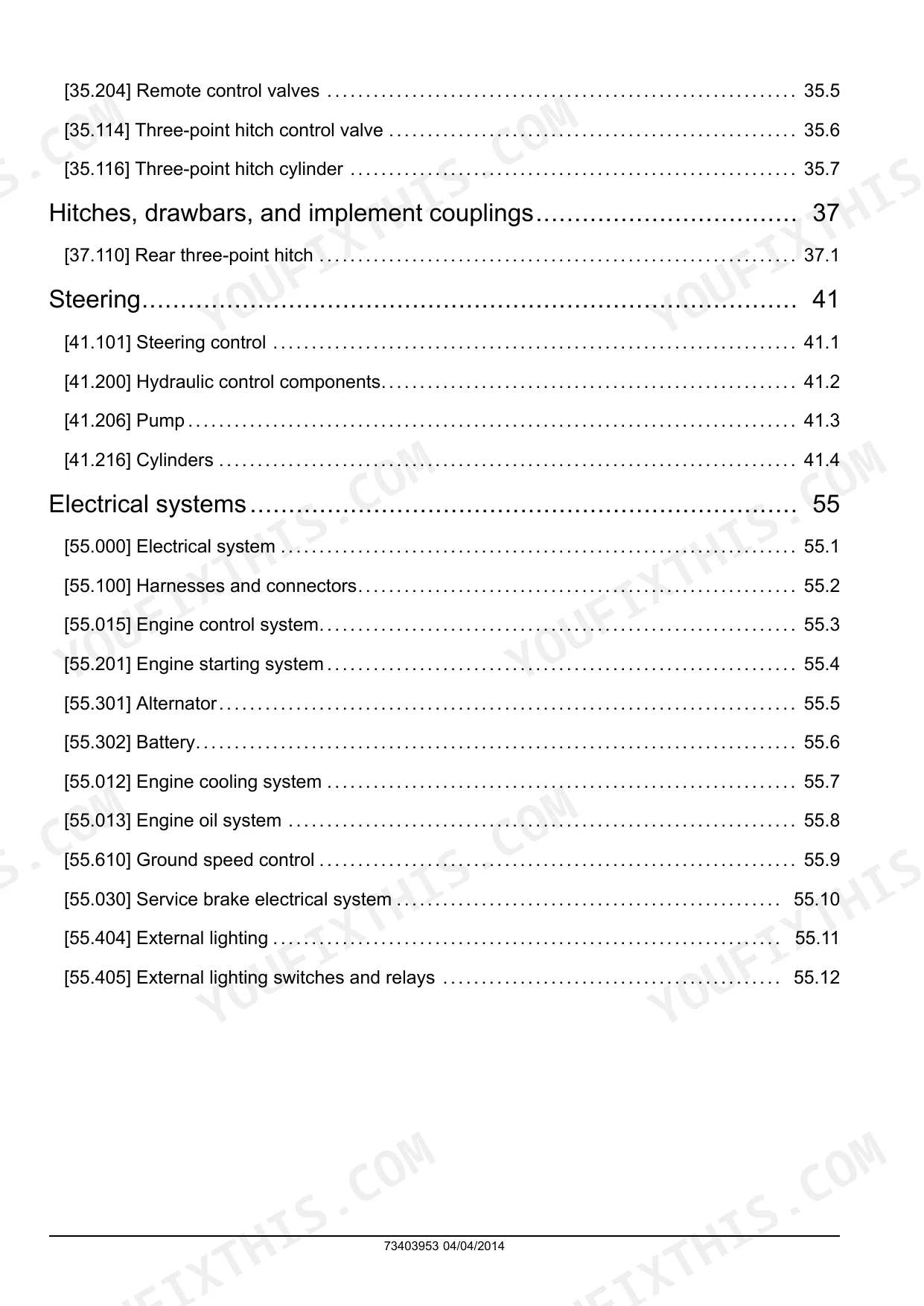

What's Inside This New Holland 7630, 8030 Manual
| System | Pages | Key Topics |
|---|---|---|

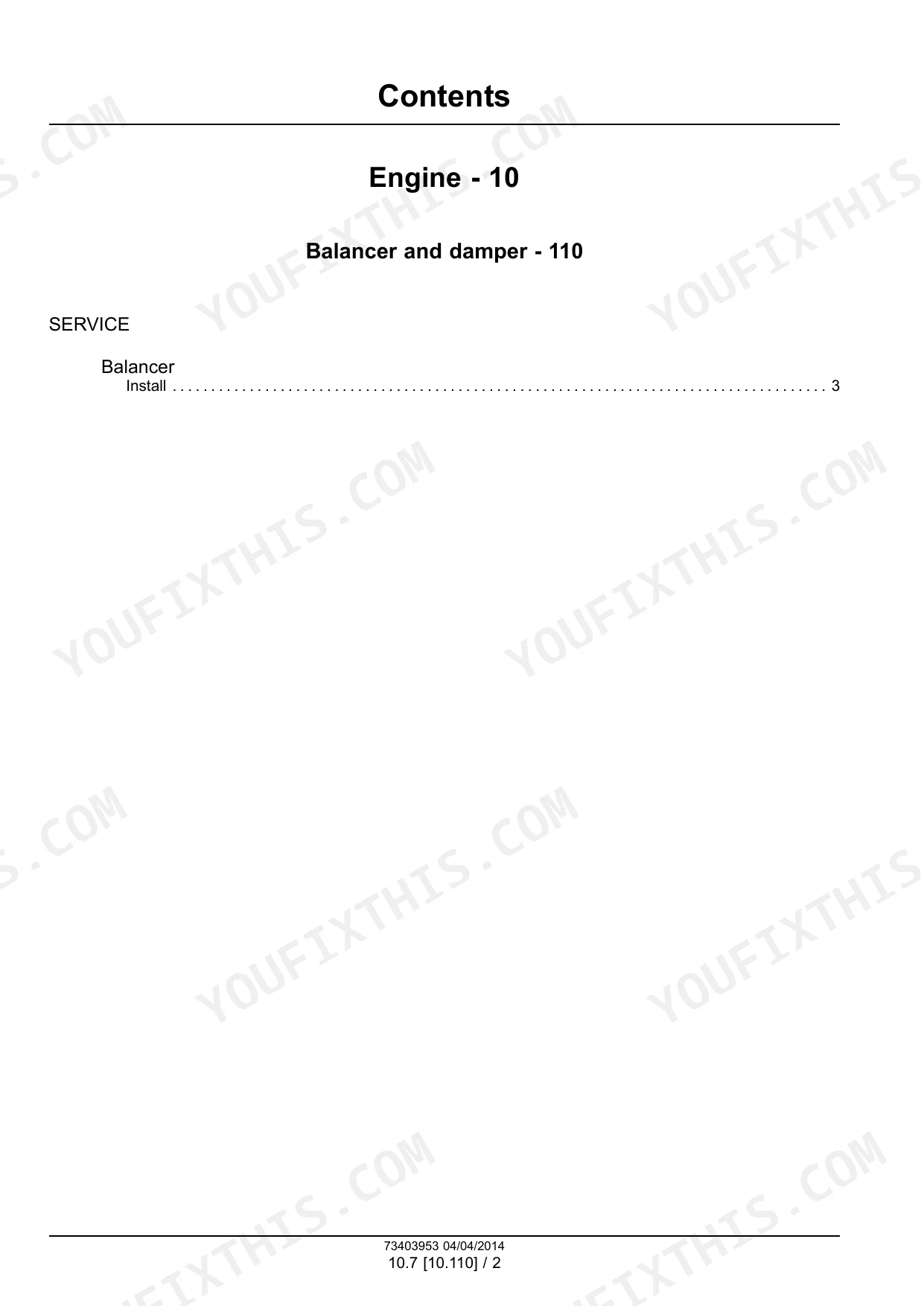

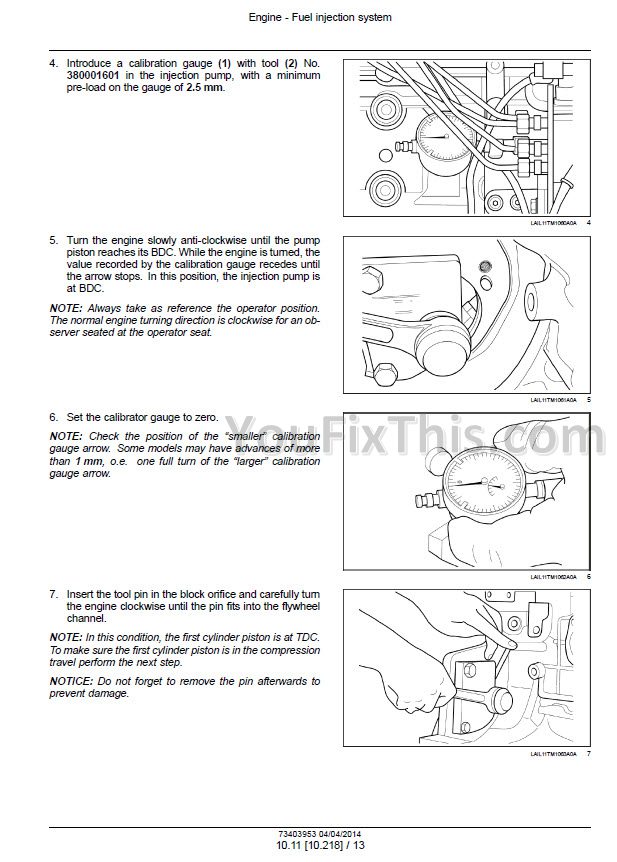

| Engine | 17-220 | 4-Cylinder 4485 Cm3 and 6-Cylinder 6728 Cm3 Turbocharged Intercooled Diesels, Bosch Common Rail Injection, Cylinder Heads and Valve Drive, Connecting Rods and Pistons, Crankshaft and Flywheel, Balancer and Damper, Turbocharger, Cooling and Lubrication, Engine Overhaul |
| Clutch | 221-252 | Clutch and Components, Hydraulic Release Control, Pedal Free Play, Clutch Removal and Refitting |

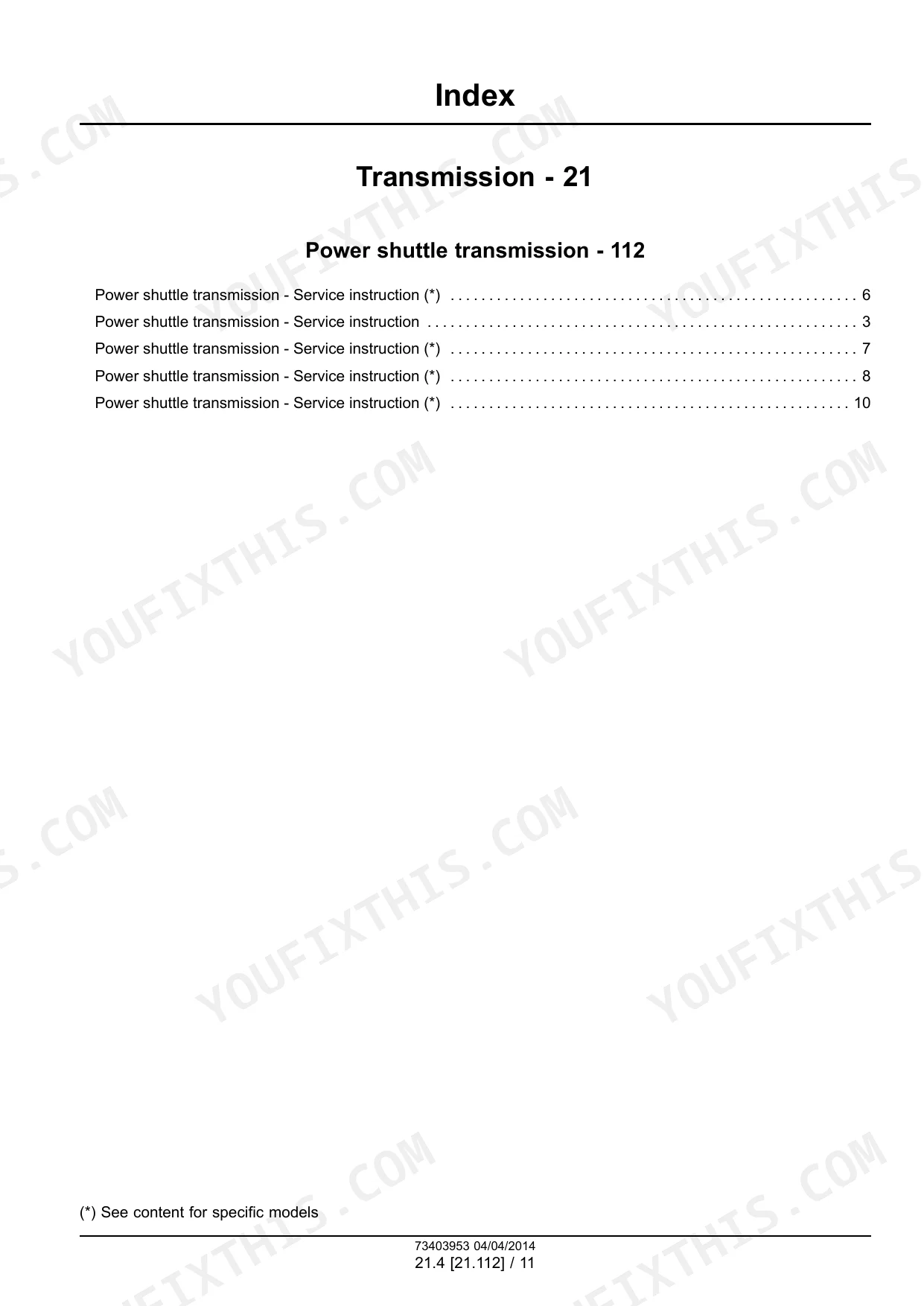

| Transmission | 253-428 | Mechanical Transmission External and Internal Components, Shift Controls, Synchronisers and Shafts, Transmission Diagnostics and Overhaul |
| Front Axle System | 429-545 | Powered Front Axle, Front Bevel Gear Set and Differential, Final Drive Hub and Steering Knuckle, Axle Rebuild |
| Rear Axle System | 546-622 | Powered Rear Axle, Rear Bevel Gear Set and Differential, Planetary and Final Drives, Final Drive Hub and Steering, Backlash and Preload |
| Power Take-Off (PTO) | 623-681 | Rear Mechanical PTO Clutch, Rear Electro-Hydraulic PTO, Two-Speed Rear PTO, PTO Gearbox and Overhaul |
| Brakes and Controls | 682-713 | Mechanical Service Brakes, Hydraulic Service Brakes, Parking Brake, Pedal Adjustment and Bleeding |
| Hydraulic Systems | 714-898 | High-Flow and Low-Flow Gear Pumps with Their Rated Flows, Pump Control Valves, Combination Pump Units, Safety Valve Adjustment Pressures, Remote Control Valves, Lift Circuit, Pressure Testing |
| Hitches, Drawbars and Implement Couplings | 899-950 | Rear Three-Point Hitch and Lift Links, Drawbars and Towing Attachments, Implement Coupling and Setting |
| Steering | 951-1012 | Gear-Type Steering Pump, Orbitrol Steering Unit and Its Safety Valve Settings, Steering Cylinders, Steering Column, Circuit Fault Finding |

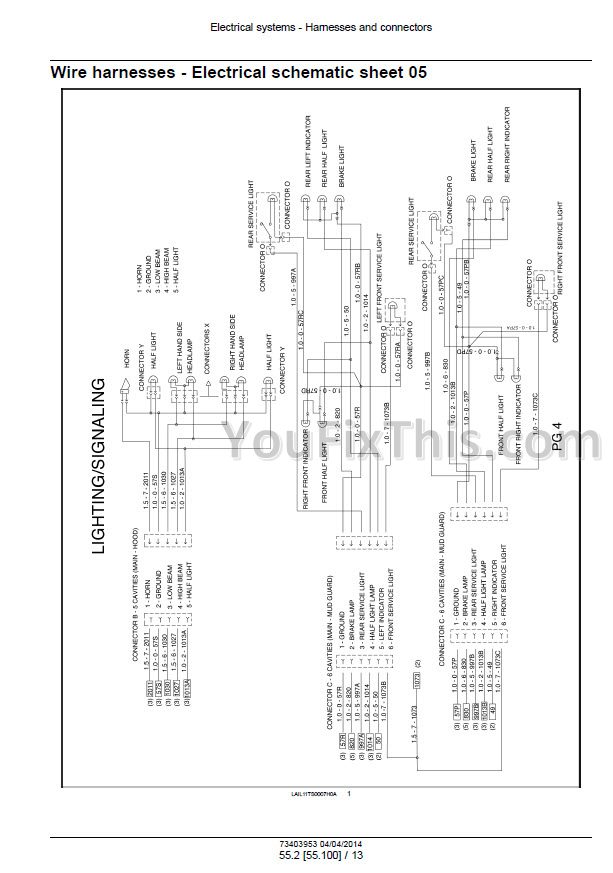

| Electrical Systems | 1013-1144 | Engine Starting System, Charging Circuit, Wiring Schematics and Connector Views, Instruments and Lighting, Fuses and Relays, Circuit Test Procedures |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| 4-cylinder engine | ||
| Total displacement | 4485 cm3, turbocharged with intercooler | |
| 6-cylinder engine | ||
| Total displacement | 6728 cm3, turbocharged with intercooler | |
| Both engines | ||
| Bore and stroke | 104 mm (4 in) x 132 mm (5 in) | |
| Injection type | Bosch high pressure common rail, direct injection | |
| Valve clearance | Intake 0.20 to 0.30 mm, exhaust 0.45 to 0.55 mm | |
| High flow hydraulic pump | ||
| Flow | 56 l/min at 2374 engine rpm | |
| Low flow hydraulic pump | ||
| Flow | 35.2 l/min at 2374 engine rpm | |
| Hydraulic system | ||
| Safety valve adjustment pressure | 176 to 183 bar | |
| Steering pump | ||
| Type and flow | Gear pump, 35 l/min | |
| Tractors without auxiliary front drive | ||
| Orbitrol steering safety valve | 145 to 183 bar | |
| Tractors with auxiliary front drive | ||
| Orbitrol steering safety valve | 166 to 172 bar | |
| Hydraulic pump | ||
| Maximum capacity (includes filter) | 66 l/min (17.4 US gpm) | |
New Holland 7630, 8030 Common Problems This Manual Covers
Steering is heavy, vague, or feels different from another tractor of the same model.
Check which safety valve figure applies before you adjust anything. The steering motor safety valve lives in the orbitrol at the base of the steering column, and the manual gives two different settings: 145 to 183 bar on tractors without auxiliary front drive, and 166 to 172 bar on tractors with it. Confirm the steering pump is making its 35 l/min first, then set the valve to the figure that matches your build.
Manual Section: SteeringThe lift or the remote valves are slow, or a function fades under load.
Measure the pump before you strip a valve. The high flow pump should deliver 56 l/min at 2374 engine rpm and the low flow pump 35.2 l/min at the same speed, and the hydraulic safety valve is adjusted to 176 to 183 bar. The hydraulic section covers the pump control valves and the combination pump units along with the remote control valves, so you can separate a tired pump from a valve that has drifted.
Manual Section: Hydraulic SystemsThe engine starts hard, smokes, or is down on power.
Work the numbers first. Both engines are turbocharged with an intercooler and use Bosch high pressure common rail injection, so a boost or a rail pressure problem behaves very differently from a mechanical one. Run the compression test the engine section describes, then check the valve clearances, 0.20 to 0.30 mm on the intake and 0.45 to 0.55 mm on the exhaust. Only then move to the injection system and the turbocharger, both of which have their own chapters.
Manual Section: EngineFrequently Asked Questions
Which tractors does this manual cover?
The 7630 and the 8030, from serial number Z7CA27168 onward. Both are covered together because they share the chassis, the transmission, the axles, the hydraulics and the electrical system. The engine specification table gives both the four-cylinder 4485 cm3 and the six-cylinder 6728 cm3 engine, and both are turbocharged with an intercooler and run Bosch high pressure common rail injection.
What are the engine specifications?
Bore is 104 mm (4 in) and stroke 132 mm (5 in) on both engines, giving 4485 cm3 from four cylinders and 6728 cm3 from six. Valve clearance is 0.20 to 0.30 mm on the intake and 0.45 to 0.55 mm on the exhaust. Valve timing opens 18.5 degrees before top dead centre and closes 29.5 degrees after bottom dead centre on the intake side. Injection is Bosch high pressure common rail.
What hydraulic pump flows and pressures should I see?
The high flow hydraulic pump gives 56 l/min at 2374 engine rpm and the low flow pump 35.2 l/min at the same speed. The hydraulic safety valve is adjusted to 176 to 183 bar. The steering has its own gear pump flowing 35 l/min.
Does the steering pressure depend on the tractor build?
It does, and this catches people out. The steering motor safety valve sits in the orbitrol at the base of the steering column, and it is adjusted to 145 to 183 bar on tractors without auxiliary front drive, but to 166 to 172 bar on tractors with it. Set the wrong figure and the steering feels wrong even though nothing has failed.
How big is the manual and can I search it?
It is 1144 pages in English, a searchable and printable PDF. Search the text, print the pages you need for the bench, and keep the rest on a laptop in the workshop.
What format is this New Holland 7630, 8030 manual in?
You get a 1144-page searchable PDF (91 MB) that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Am I able to print pages from this New Holland 7630, 8030 manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
