Part of the New Holland Repair Manuals.
This is New Holland service manual 51697921, published November 2019, for the 9050L, 9070L and 9070M grape harvesters. The general specification table also lists the 9050LH and 9070LH.
It covers the FPT four-cylinder Tier 4B engine with SCR, the hydrostatic drive, brakes, hydraulics, steering, cab climate control, and the wiring sheets with fault codes. The harvest systems each get their own section: shaking, conveyors and noria, extractors, the Opti-grape sorting table and destemmer, hopper augers and bins, and the stalk chopper.
The electronic module section includes a calibration error table, and the fault code section closes with a printed index.
What's Inside This New Holland 9050L, 9070L, 9070M Manual
| System | Pages | Key Topics |
|---|---|---|
| Contents | 1-8 | Manual Identification, Model Names, Publication Number, System Contents |
| Introduction | 9-186 | Machine Identification, Safety Rules, Product Overview, General Specifications, Maintenance Chart, Consumables, Hydraulic Contamination |
| Engine | 187-386 | Engine Removal and Installation, Fuel Tanks, Aftercooler, Cooling System, SCR Exhaust Treatment, Intake and Exhaust, Fan Drive, Lubrication and Filters |
| Hydrostatic Drive | 387-588 | Pump and Motor Components, Hydrostatic Transmission, HP Control Unit, Charge Pressure, Wheel Motors, Noria Drive, Hydraulic Diagrams |

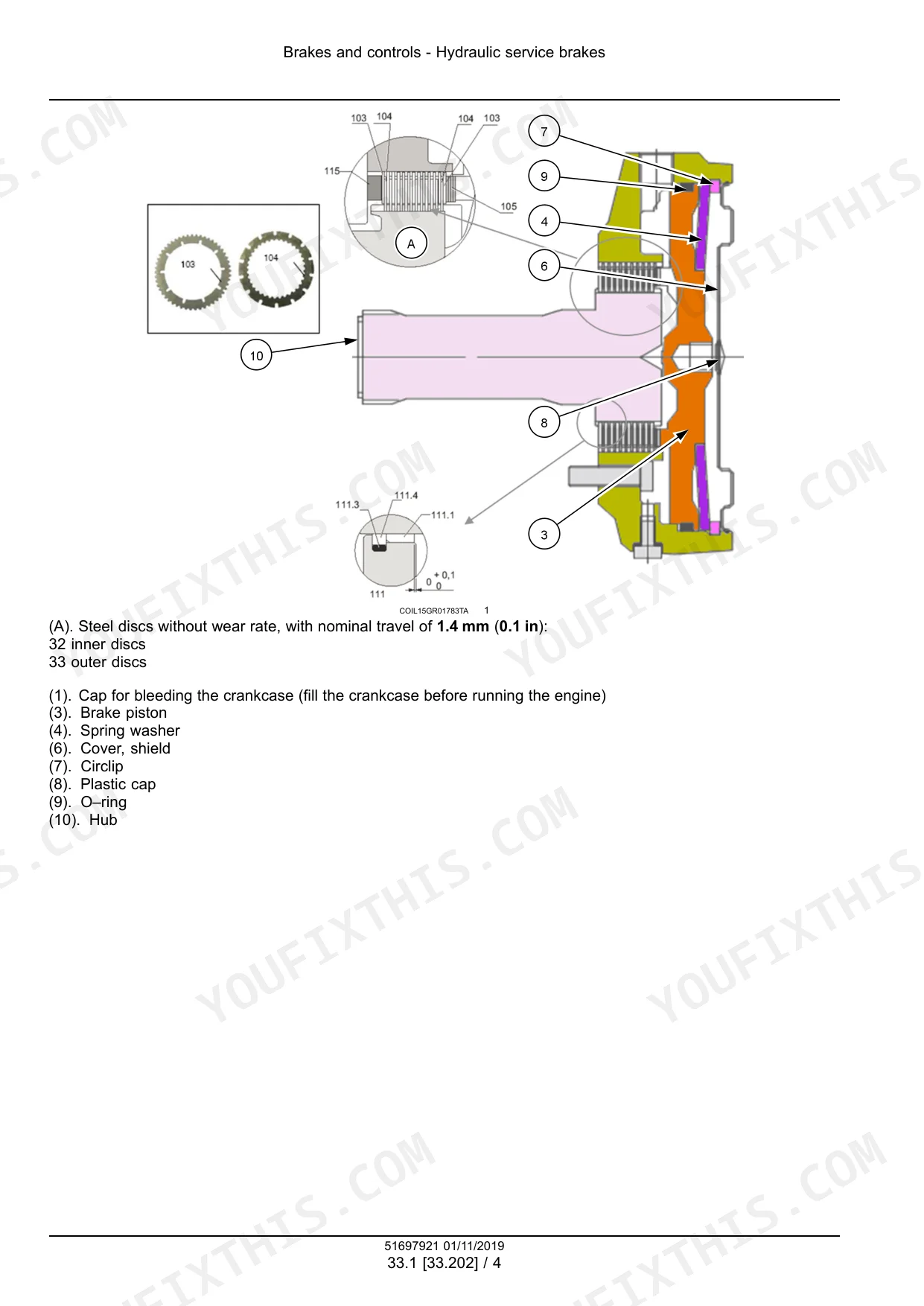

| Brakes and Controls | 589-610 | Hydraulic Service Brakes, Parking Brake Operation, Brake Release, Brake Removal, Brake Assembly |
| Hydraulic Systems | 611-926 | Hydraulic Schematics, Fixed and Variable Pumps, Reservoir and Filters, Machine Leveling, Shaking Circuit, Cleaning Circuit, Destemmer and Sorting Table |
| Frames, Steering and Wheels | 927-1008 | Frame and Wheel Arms, Lifting Cylinders, Clearance Limits, Machine Weights, Steering Control, Wheel Alignment, Tire Inflation, Wheel Nut Torque |

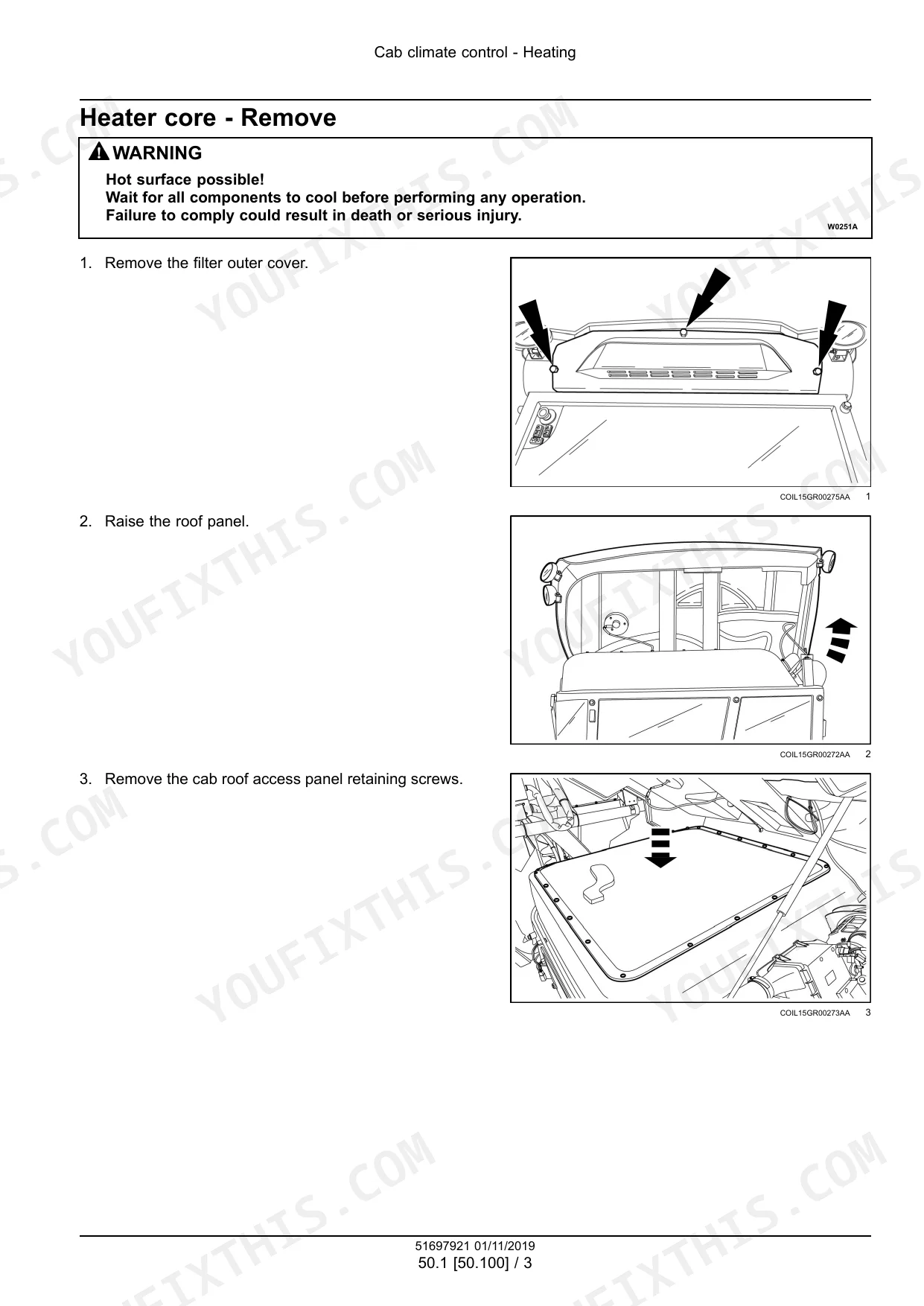

| Cab Climate Control | 1009-1116 | Heating, Air Conditioning, Compressor Clutch, Refrigerant Charging, Leak Detection, Cab Pressurization |
| Electrical Systems - General, Diagnostics and HVAC Controls | 1117-1473 | Electrical Standards, Sensors, Fuses, CAN Bus, IntelliView IV, EST Diagnostics, Software Configuration, HVAC Controls |
| Electrical Systems - Harnesses and Wiring Schematics | 1474-2101 | Electrical Schematic Sheets, Starting and Charging, Power Distribution, Engine Control, Harvesting Head Control, Destemmer and Opti-Grape, Connector Pinouts |

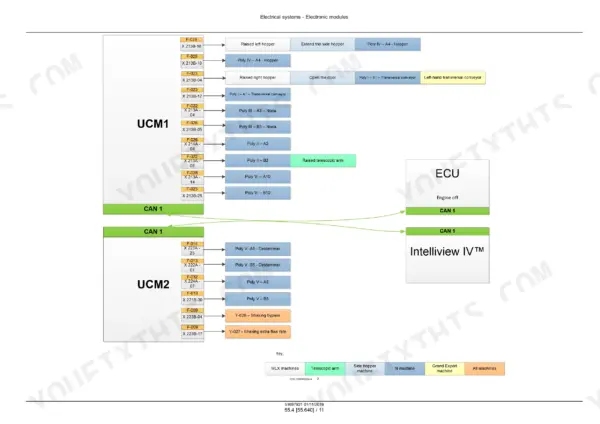

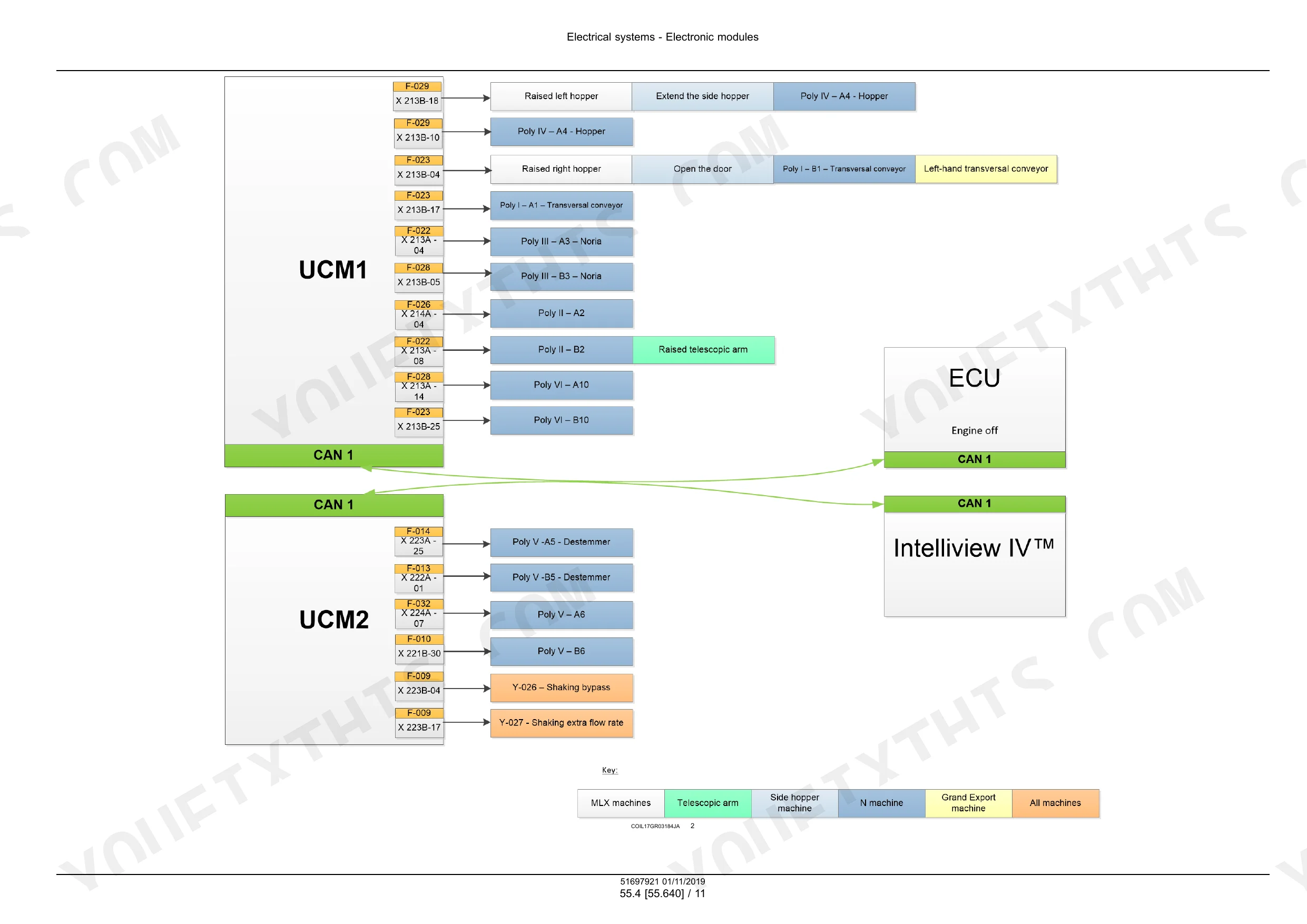

| Electrical Systems - Electronic Modules and Controls | 2102-2655 | Electronic Modules, Hydrostatic Controls, Cab and Harvesting Controls, Shaking Controls, Lighting and Instruments, SCR Electrical System, Battery and Starting |
| Electrical Systems - Fault Codes (Engine ECU) | 2656-4343 | Engine Sensor DTCs, Fuel Rail Faults, Boost Faults, ECU Supply Faults, CAN Communication Faults, SCR and DEF Faults, Inducement Strategy |
| Electrical Systems - Fault Codes (UCM, RHC, LCP and SCR) | 4344-5801 | Drive Pressure Faults, Leveling Sensor Faults, Noria Faults, Shaker Faults, Cleaning and Destemmer Faults, Controller Supply Faults, SCR Alarms |
| Electrical Systems - Fault Code Index | 5802-5848 | Engine DTC Lookup, UCM1 and UCM2 Code Lookup, MFH Code Lookup, LCP Code Lookup, SCR Alarm Lookup |
| Fruit Harvester Shaking | 5849-6040 | Shaking Frame, Shaking Control, Connecting Rods, Front Plates, Shakers, Adjustable Width System |
| Product Feeding | 6041-6184 | Conveyor Belts, Conveyor Frame, Noria Operation, Noria Chains and Buckets, Drive Sprockets, Noria Frame and Guides |

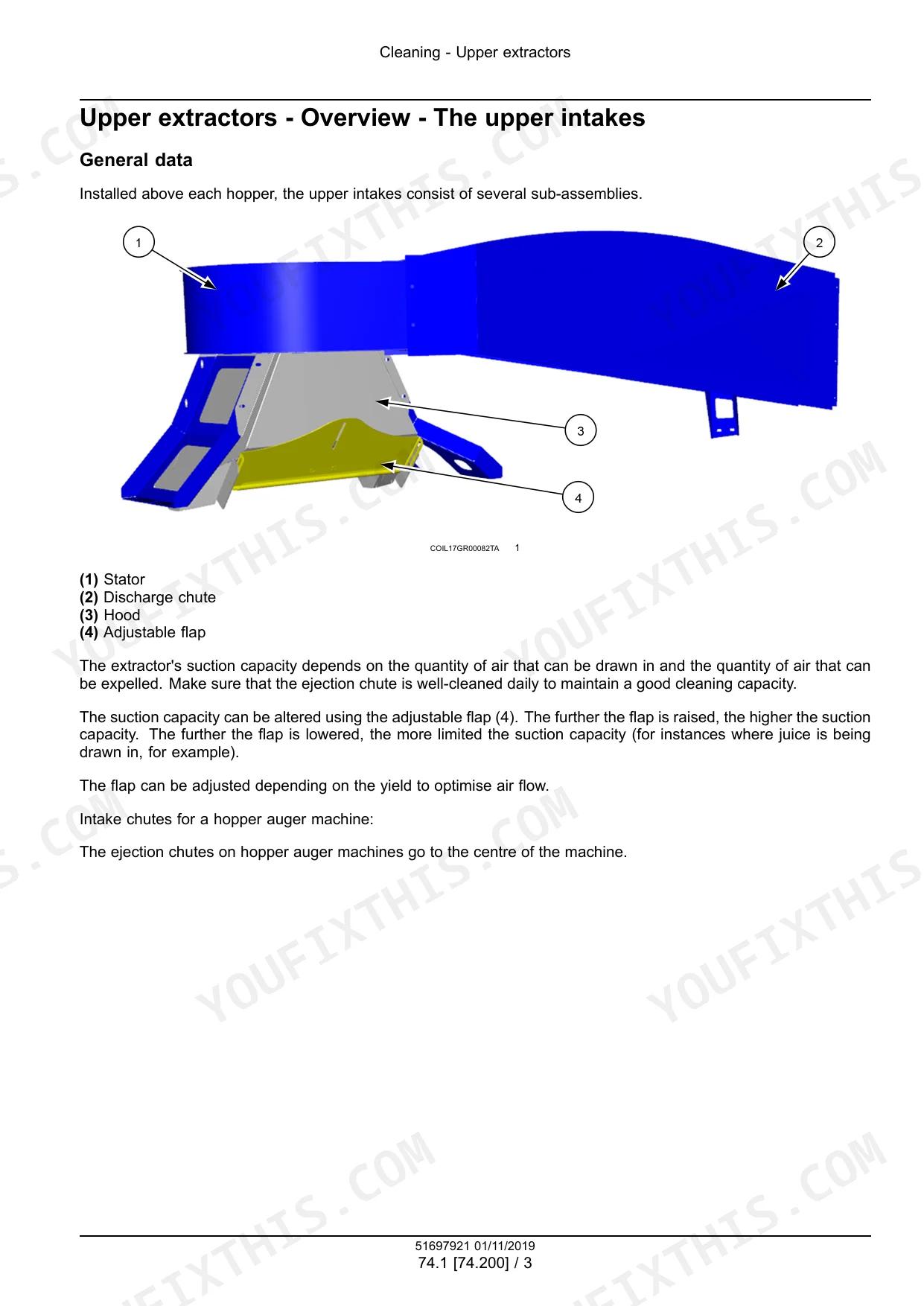

| Cleaning | 6185-6220 | Upper Extractors, Lower Extractors, Extractor Flaps, Extractor Maintenance, Hydraulic Extractor Drive |
| Secondary Cleaning/Destemmer | 6221-6340 | Opti-Grape Sorting Table, Sieve Conveyors, Destemmer Rotors, Destemmer Adjustment, Gates and Actuators |

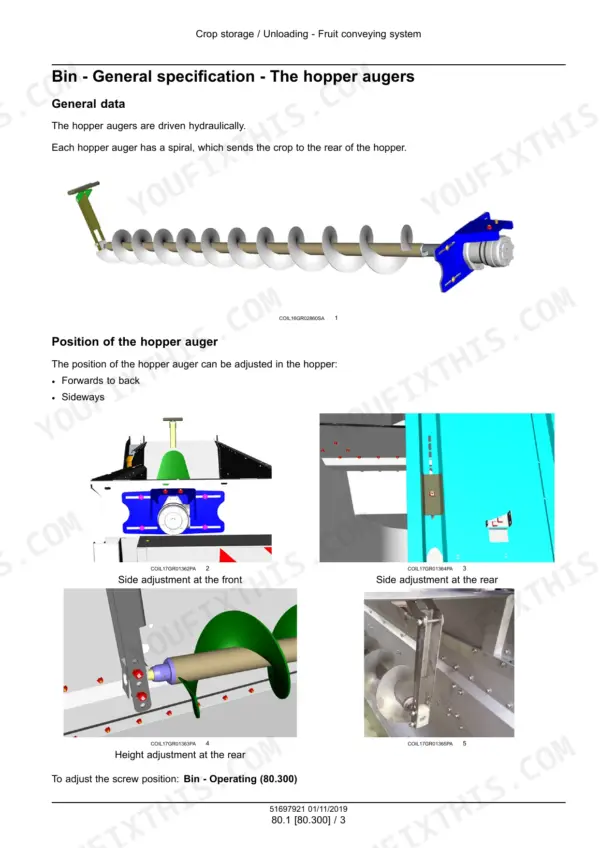

| Crop Storage / Unloading | 6341-6356 | Fruit Conveying System, Hopper Augers, Bin Operation, Conveyor Belt Tension, Conveyor Belt Centering |

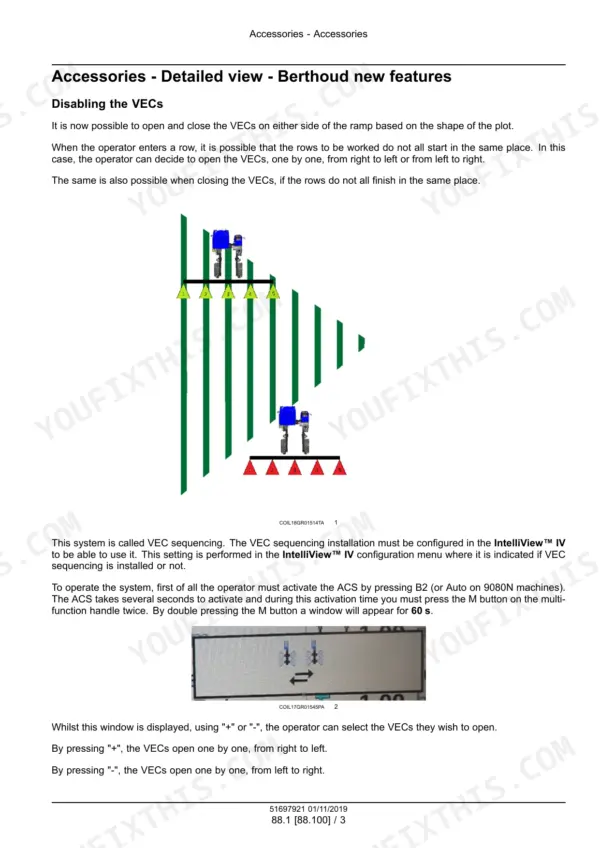

| Accessories and Tools | 6357-6412 | Berthoud Accessories, Chassis Lifter, Hydraulic Diagrams, Magnet Kit, Telescopic Arm, Water Kit, Washing System |
| Platform, Bodywork and Residue Handling | 6413-6461 | Machine Shields, Engine Hood Removal, Inspection Doors, Stalk Chopper, Vine Shoot Ejectors, Chopper Blades |
| Special Tool Index | 6462-6463 | Air Conditioning Recovery Tools, Refrigerant Charging Tools, Leak Detectors, Fuel Pressure Gauge, Tool References |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Engine type, 9050L / 9050LH | F4HFE413X*B001 | p. 83 |
| Engine type, 9070M / 9070L / 9070LH | F4HFE413W*B001 | p. 83 |
| Engine output power, 9050L / 9050LH | 106 kW at 2100 RPM | p. 83 |
| Engine output power, 9070M / 9070L / 9070LH | 121 kW at 2100 RPM | p. 83 |
| Engine displacement | 4485.0 cm³ (273.7 in³) | p. 83 |
| Cylinder bore | 104.0 mm (4.1 in) | p. 83 |
| Stroke | 132.0 mm (5.2 in) | p. 83 |
| Fuel tank capacity | 270.0 L (71.3 US gal) | p. 83 |
| DEF/AdBlue tank capacity | 41.0 L (10.8 US gal) | p. 83 |
| Maximum speed, road position | 25 km/h (15.5 mph) | p. 84 |
| Maximum speed, field position | 12 km/h (7.5 mph) | p. 84 |
| Drive variable-flow pump displacement | 130.0 cm³ (7.9 in³) | p. 84 |
| Front wheel motor displacement | 1043.0 cm³ (63.6 in³) | p. 84 |
| Cleaning system load-sensing pump displacement | 71.0 cm³/rev (4.3 in³/rev) | p. 84 |
| Power supply voltage | 12 V | p. 85 |
| Alternator | 120 A | p. 85 |
| Battery | 180 A·h | p. 85 |
| Charge pressure switch alarm (S-013) | 17.0 bar (246.5 psi) | p. 429 |
| Noria motor pressure limiter, forward travel | 150.0 bar (2175.0 psi) | p. 516 |
| Rear wheel motor mounting tightening torque | 500.0 N·m (368.8 lb ft) | p. 935 |
New Holland 9050L, 9070L, 9070M Common Problems This Manual Covers
Calibration error 15: out of adjustment during forward travel calibration
Error 15 means the forward travel calibration came out of adjustment. The calibration error table points you at the hydraulic pump. Check the drive pump before you rerun calibration, using the Hydrostatic Drive section for the pump, HP control unit and charge pressure checks.
Manual Section: Electrical systems - Electronic module - Troubleshooting p. 2256Calibration error 27: upper intake does not respond
Error 27 shows up when the upper intake does not respond during calibration. Check the intake control and the intake control speed sensor, as the calibration error table directs. Use the harness sheets in Electrical Systems - Harnesses and Wiring Schematics to trace the sensor circuit and connector pinouts.
Manual Section: Electrical systems - Electronic module - Troubleshooting p. 2258Calibration error 25: sensor offline, signal input cannot be measured
Error 25 means the sensor is offline and the module cannot measure its signal input. Check the sensor supply voltage first, as the calibration error table directs. Then trace the feed and ground on the numbered sheets in Electrical Systems - Harnesses and Wiring Schematics.
Manual Section: Electrical systems - Electronic module - Troubleshooting p. 2258Calibration error 38: hydraulic oil temperature below 35 °C
Error 38 blocks calibration because the hydraulic oil is below 35 °C. Run the machine until it reaches normal operating temperature, then repeat the calibration as the electronic module troubleshooting table describes.
Manual Section: Electrical systems - Electronic module - Troubleshooting p. 2259Frequently Asked Questions
Which New Holland grape harvesters does this service manual cover?
Publication 51697921, dated November 2019, covers the 9050L, 9070L and 9070M grape harvesters. The general specification table also lists the 9050LH and 9070LH. No overall serial number range is printed, so match it by model name. p. 1
What engines and power ratings does the New Holland 9050L/9070L/9070M use?
All models use a Fiat Power Train (FPT) four-cylinder in-line engine certified to Tier 4B (Tier 4 final). The 9050L and 9050LH run engine type F4HFE413X*B001, rated 106 kW at 2100 RPM. The 9070M, 9070L and 9070LH run F4HFE413W*B001, rated 121 kW at 2100 RPM. Displacement is 4485.0 cm³ (273.7 in³), with a 104.0 mm (4.1 in) bore and 132.0 mm (5.2 in) stroke. p. 83
What are the fuel and DEF/AdBlue tank capacities of the New Holland 9050L/9070L/9070M?
The fuel tank holds 270.0 L (71.3 US gal). The DEF/AdBlue tank holds 41.0 L (10.8 US gal). The fault code section lists SCR 001 - (Level 1) DEF/AdBlue Level Low, and the Engine ECU fault code section explains the inducement strategy. p. 83
What are the road and field speeds of the New Holland 9050L/9070L/9070M?
Top speed is 25 km/h (15.5 mph) in road position and 12 km/h (7.5 mph) in field position. Drive comes from a 130.0 cm³ (7.9 in³) variable-flow pump feeding the wheel motors. The Hydrostatic Drive section covers the pump, the HP control unit and charge pressure. p. 84
Does the New Holland 9050L/9070L/9070M manual include wiring diagrams, hydraulic schematics and fault codes?
Yes. The electrical schematics come as numbered sheets with component lists, for example sheet 12 A - Engine control. The hydraulic diagrams include the complete machine diagram, the engine fan diagram and the shaking schematic. The FAULT CODES - DTC section has a printed index, with entries like DTC 11C-Max - Water detected in fuel - Shorted to high source. p. 1479
