Part of the New Holland Repair Manuals.
What's inside: the New Holland service manual for the CSX7000 series combine harvesters - CSX7040, CSX7050, CSX7060, CSX7070 and CSX7080 - publication 84210989A, 24 April 2009, 1,650 pages. It is organised the CNH way, by FUNCTION rather than by assembly, and knowing that is half of using it: Distribution Systems covers the hydraulic and pneumatic power systems and then the electrical power system, which is the single largest chapter in the book; Power Production is the engine, its coolant and starting systems; Power Train covers the mechanical and hydrostatic transmissions and the process drive; Travelling covers front and rear axles, the 2WD-4WD hydrostatic system, hydraulic steering and the service and parking brakes; then Body and Structure, Frame Positioning, Tool Positioning and Crop Processing - feeding, reel and header feeding, cleaning, the tailings return system and storing. The manual is built around symptom tables: problem, possible cause and correction, each correction pointing at a numbered testing procedure, with a fault-code section behind them. That is how it diagnoses - it does not print schematic sheets.
What's Inside This New Holland CSX7040-CSX7080 Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction | 1-30 | Service Manual Structure, How to Use This Manual, Safety |

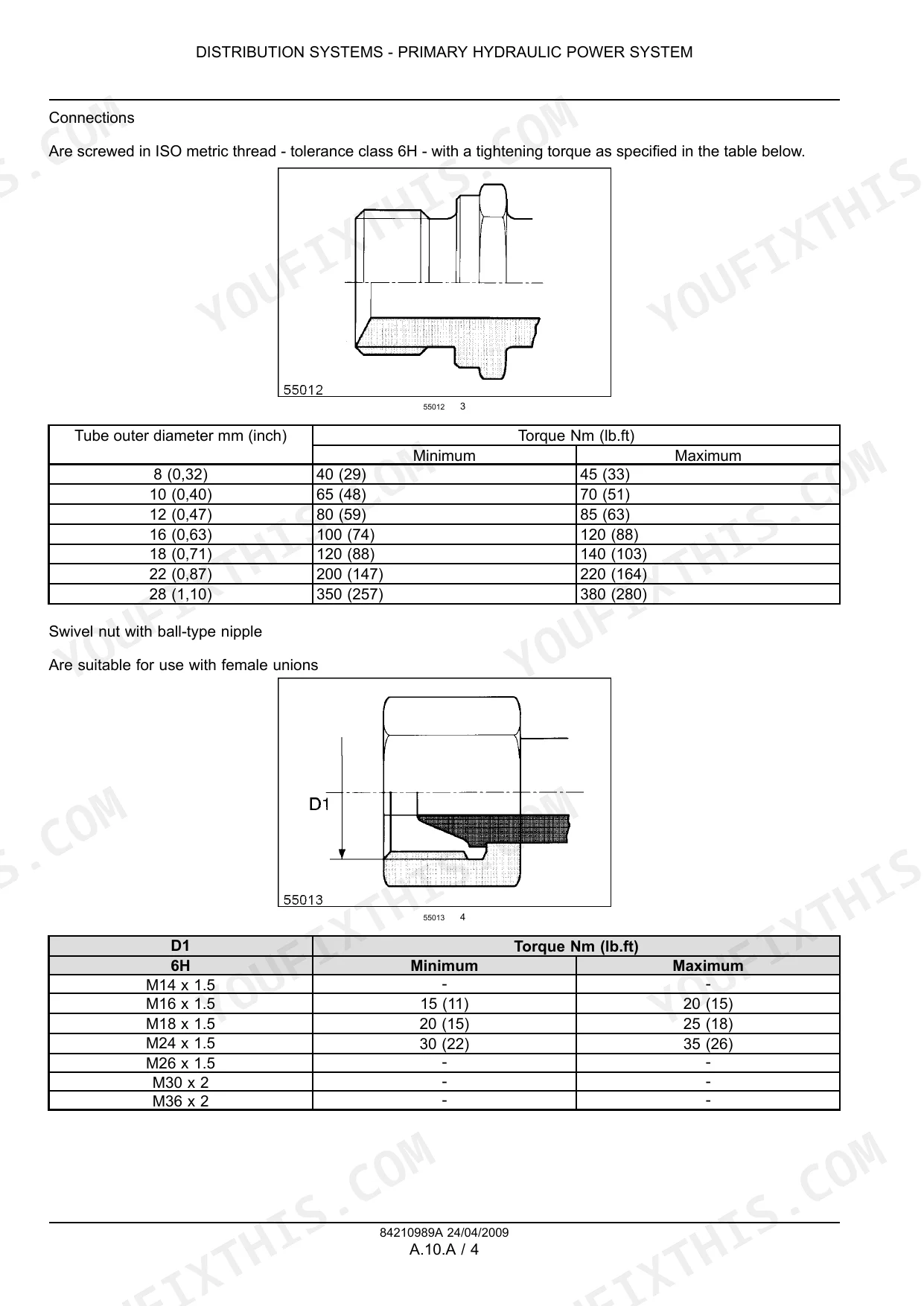

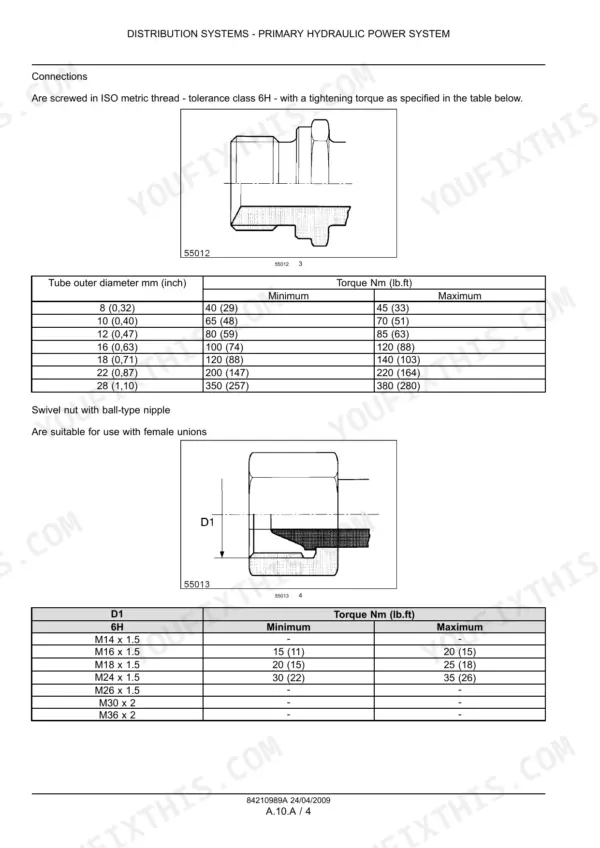

| Distribution Systems - Hydraulic and Pneumatic Power | 31-90 | Primary Hydraulic Power System, Pneumatic System |

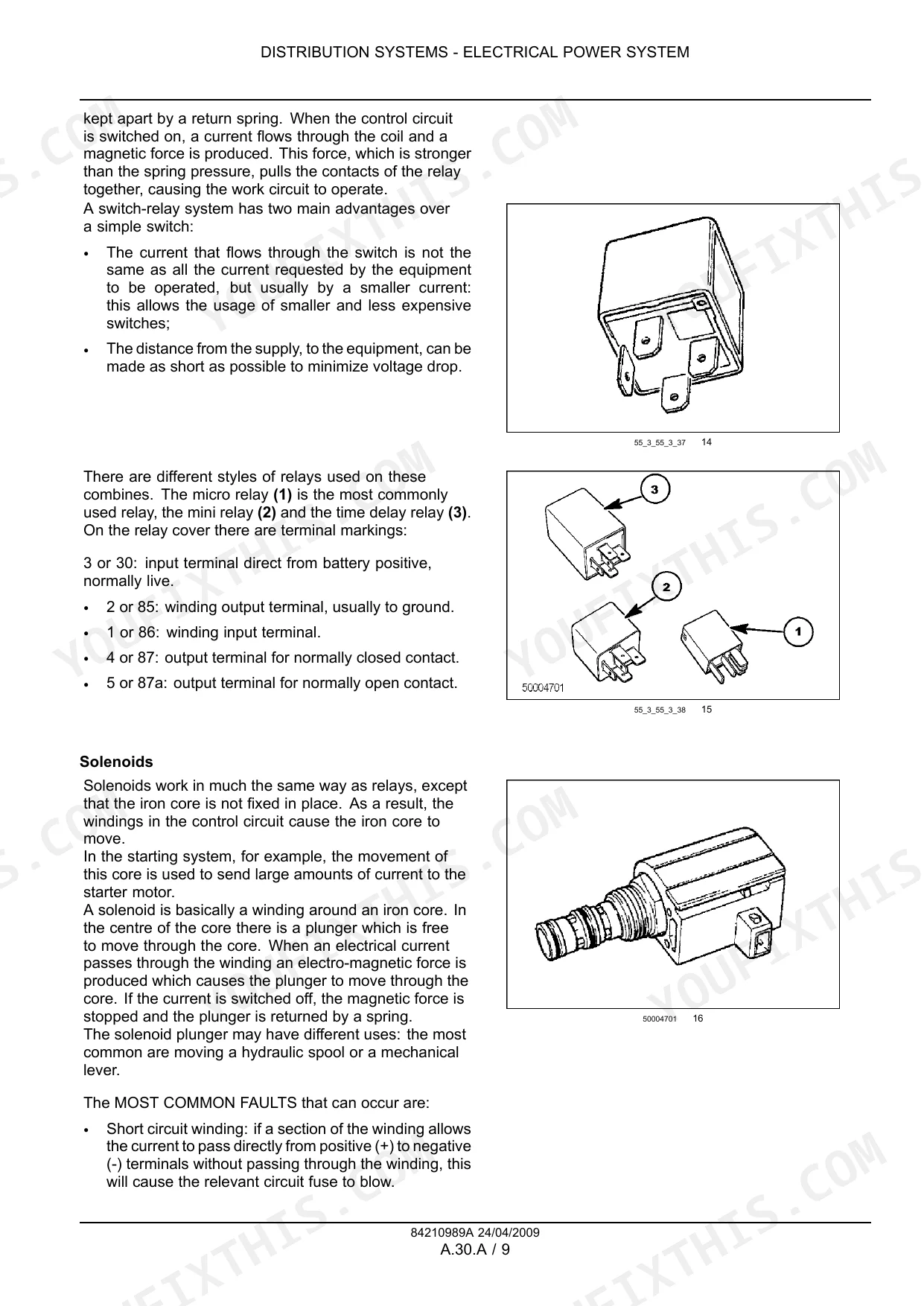

| Distribution Systems - Electrical Power System | 91-563 | Electrical Power Distribution, In-Line Harness Connectors, Fuse Printed Circuits, Component Testing |
| Distribution Systems - Lighting System | 564-650 | Electronic System, Fault Codes |

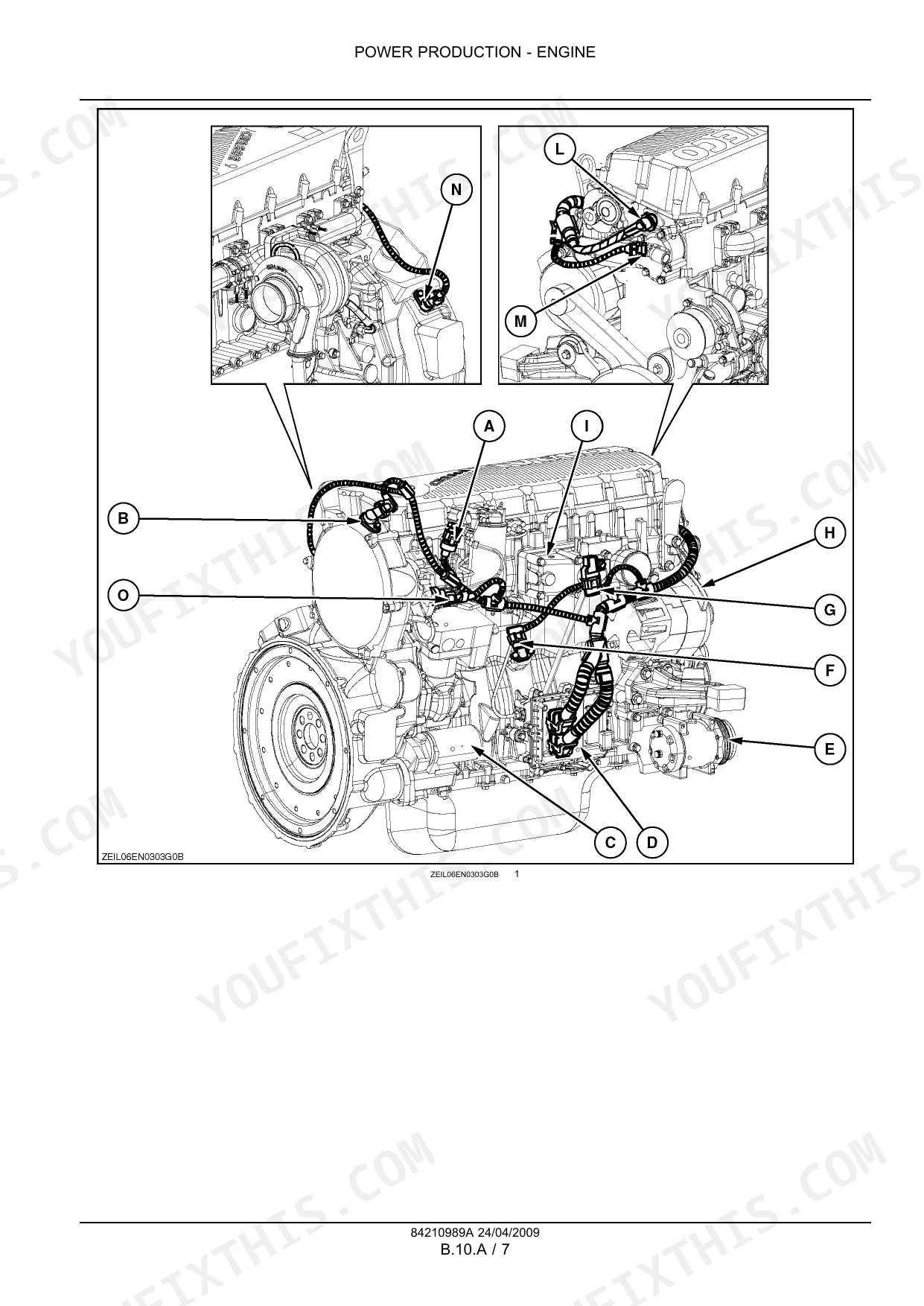

| Power Production | 651-716 | Engine, Engine Coolant System, Starting System |

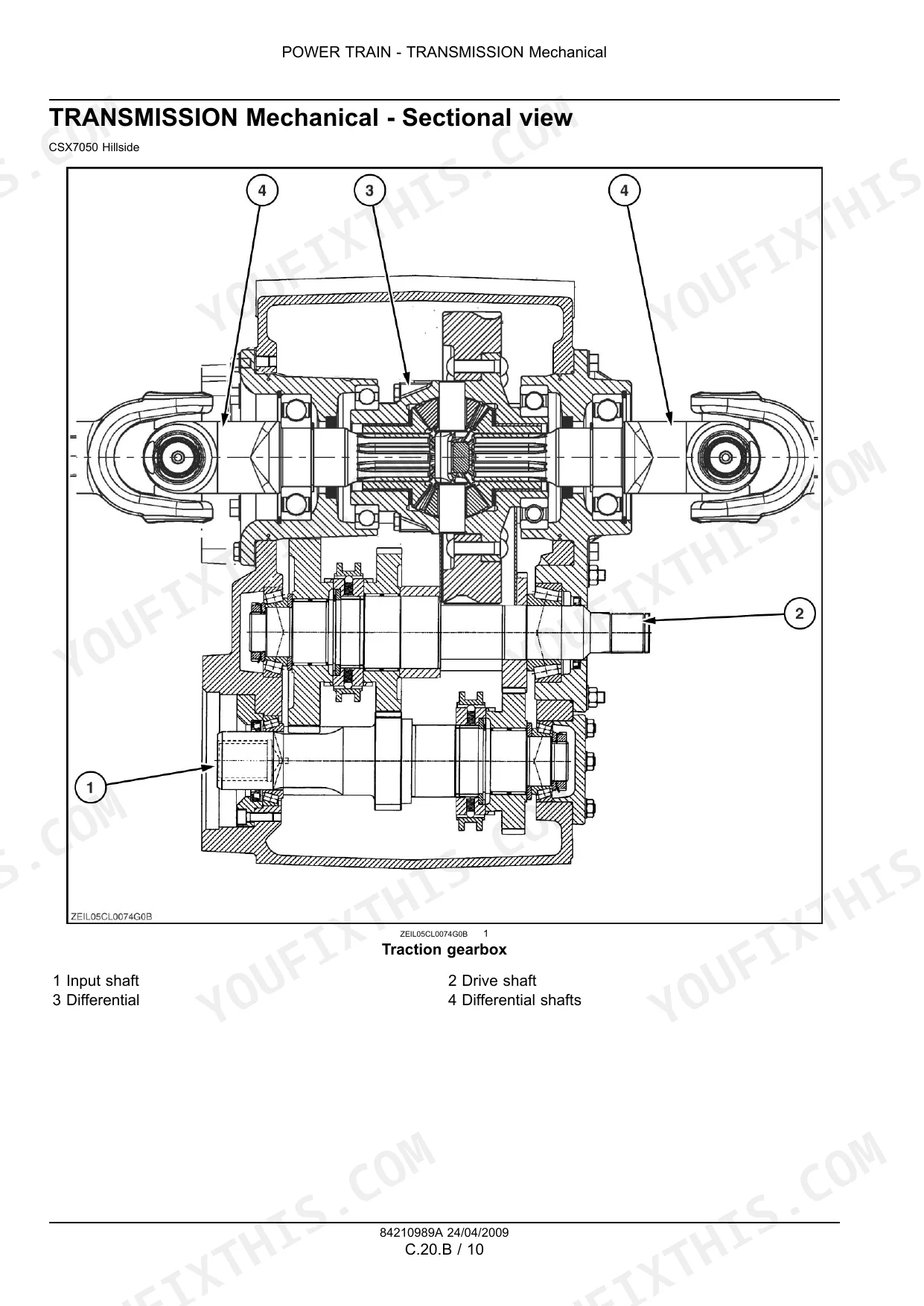

| Power Train | 717-899 | Transmission Mechanical, Transmission Hydrostatic, Process Drive Primary Process Drive |

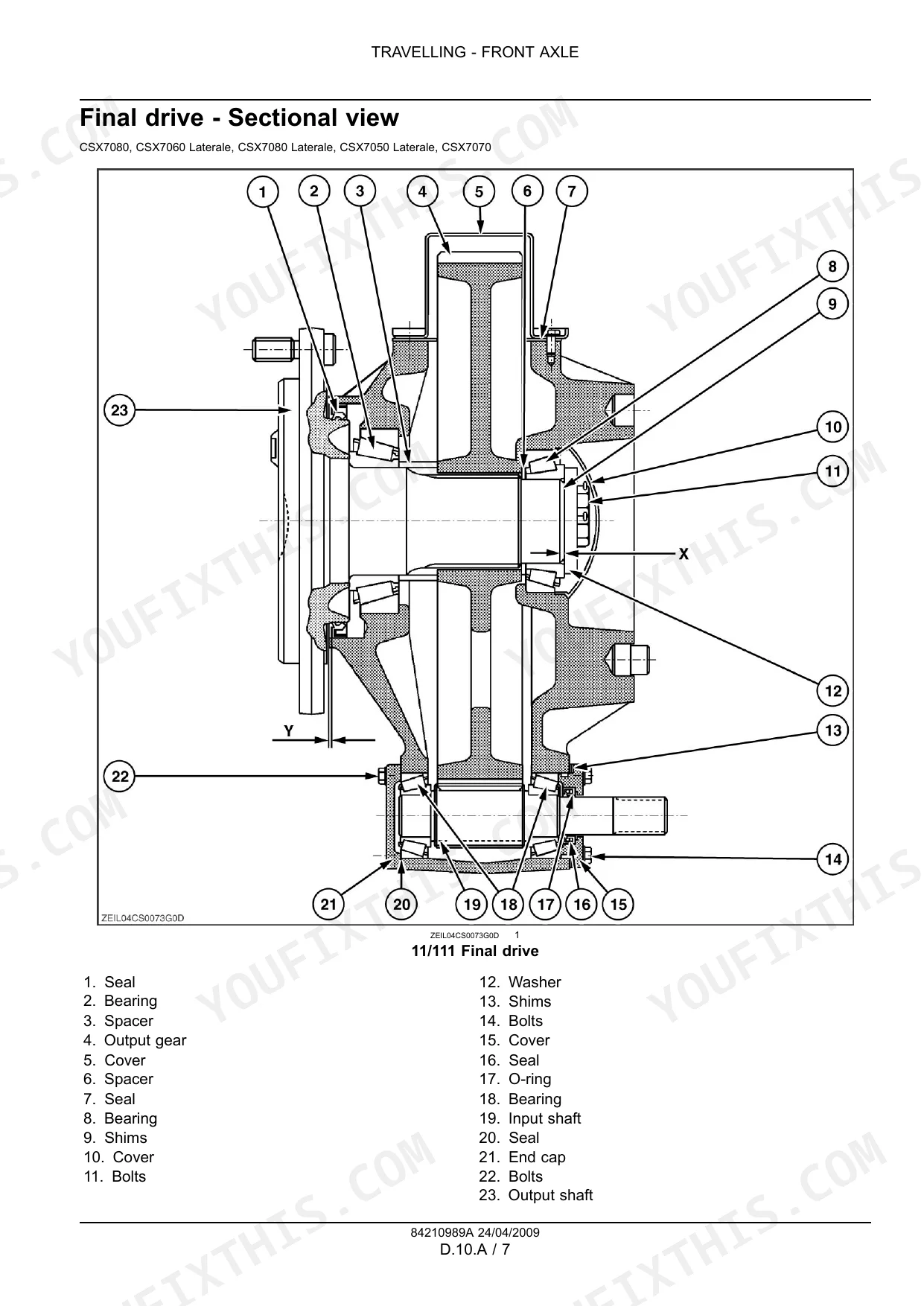

| Travelling | 900-1048 | Front Axle, Rear Axle, 2Wd-4Wd System Hydrostatic, Steering Hydraulic, Service Brake Hydraulic, Parking Brake Mechanical |
| Body and Structure | 1049-1165 | User Controls and Seat, User Platform |
| Frame Positioning | 1166-1220 | Frame Levelling |
| Tool Positioning | 1221-1242 | Lifting, Levelling |
| Crop Processing | 1243-1457 | Feeding Reel Feeding, Feeding Header Feeding, Feeding Feeder Housing, Threshing Conventional Threshing, Separating Beating, Separating Rotary Separator |

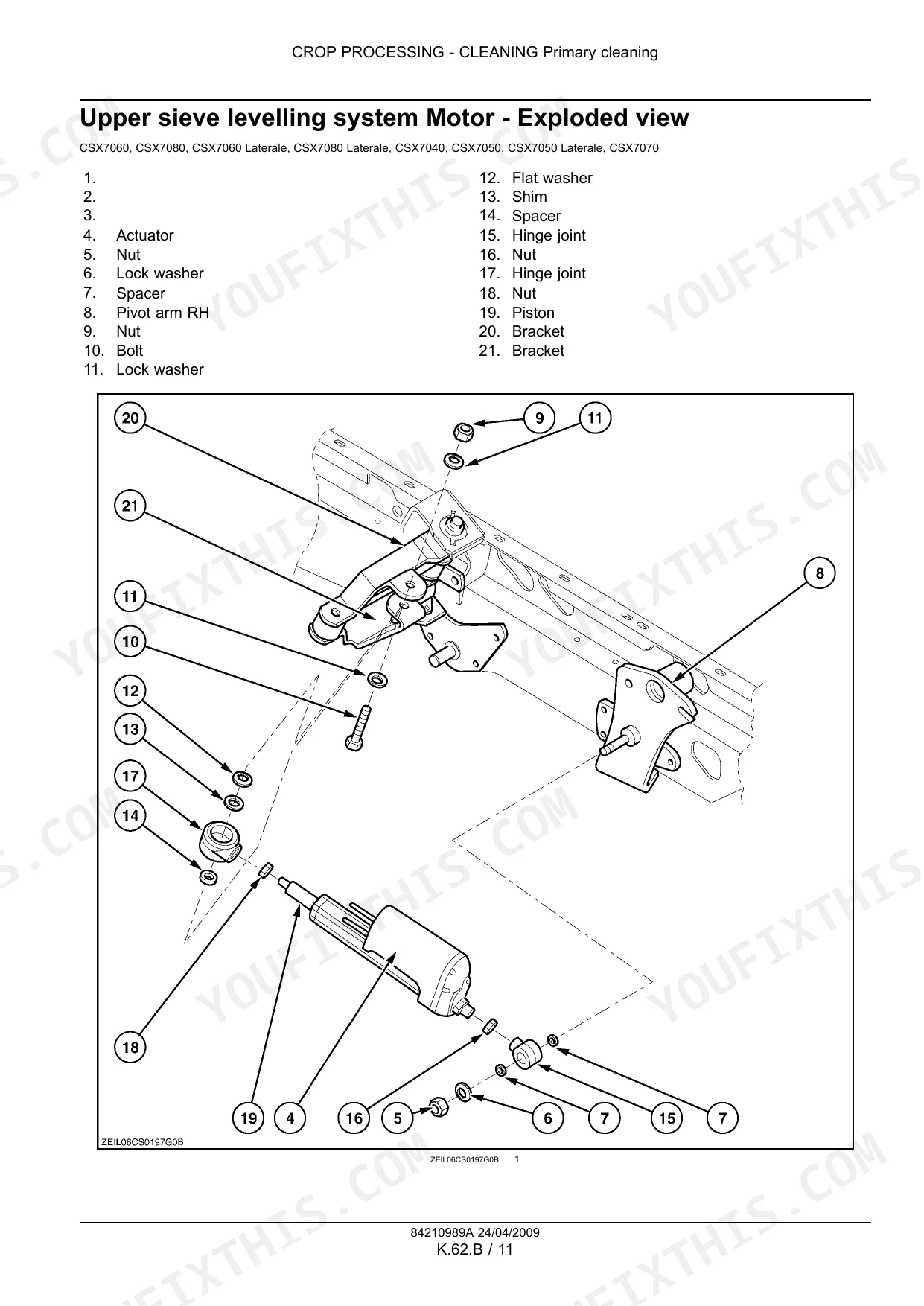

| Crop Processing - Cleaning Primary Cleaning | 1458-1650 | Cleaning Tailings Return System, Storing and Handling Grain Storing, Unloading Grain Unloading |
New Holland CSX7040-CSX7080 Common Problems This Manual Covers
Machine loses drive or creeps when the hydro lever is in neutral, or ground speed drops under load.
Work the symptom tables in the Power Train section covering the hydrostatic transmission. They step through possible causes - charge pressure, control linkage, pump and motor condition - with cross-referenced testing procedures so you measure before you pull the pump.
Manual Section: Power Train - Transmission Hydrostatic p. 717Intermittent electrical faults: gauges drop out, functions die over rough ground, fuses feed dead circuits.
The Electrical Power System chapter maps power distribution, in-line harness connectors and the fuse printed circuits, then gives component testing procedures. Follow the feed from the fuse board through each connector to find the corroded or backed-out pin.
Manual Section: Distribution Systems - Electrical Power System p. 91Grain loss out the back or dirty sample in the tank, tailings return running constantly.
Start with the Cleaning Primary Cleaning section and its tailings return coverage. The symptom tables tie cleaning shoe, sieve and tailings faults to corrections and testing procedures, and separator issues route back to the threshing and rotary separator chapters.
Manual Section: Crop Processing - Cleaning Primary Cleaning p. 1458Feeding trouble at the header: reel or feeder housing bogging, uneven crop flow into the threshing drum.
The Crop Processing feeding chapters cover reel feeding, header feeding and the feeder housing as separate sections. Use their symptom tables to separate a drive or slip clutch problem from a setup problem before you start changing adjustments blind.
Manual Section: Crop Processing - Feeding Feeder HousingFrequently Asked Questions
My CSX is throwing fault codes on the monitor. Does this manual actually explain them?
Yes. The Lighting System / Electronic System chapter includes a dedicated fault code section. You look up the code, and the manual points you to the related testing procedure so you can check the actual circuit or sensor instead of guessing and swapping parts. p. 639
How is troubleshooting laid out? I don't want a parts book dressed up as a service manual.
It is not a parts book. Every major system has symptom tables: the problem you see in the field, the possible causes, and the correction, each cross-referenced to a numbered testing procedure. You work from the symptom down to the component with a meter or gauge in hand.
Does it cover the hydrostatic transmission and the 2WD-4WD system, or just the gearbox?
Both. The Power Train section covers the mechanical transmission, the hydrostatic transmission and the primary process drive. The Travelling section handles the 2WD-4WD hydrostatic system separately, along with front and rear axles, hydraulic steering and both service and parking brakes. p. 717
Which models and years does this apply to?
The CSX7040, CSX7050, CSX7060, CSX7070 and CSX7080, model years 2009 and later. It is one manual for the whole series - the machines share their platform, so procedures are common with model differences noted where they matter.
Can I trace electrical problems with it? Wiring faults are what kill me on these machines.
The Electrical Power System chapter is one of the biggest in the book. It covers power distribution, in-line harness connectors, the fuse printed circuits and component testing procedures, so you can isolate a bad connector or feed circuit methodically instead of wiggling harnesses until something changes. p. 91
