You have the E10SR parked with one track loose and a crew waiting on the trench, and the question is whether the sag is adjustment or a worn idler. Pages 319 to 368 of this New Holland service manual walk the travel system apart: crawler, lower roller, front idler, sprocket, travel motor, slewing bearing.
It is the New Holland service manual for the E10SR mini crawler excavator, publication 84363846, covering serial numbers PA03-05001 and up with the Yanmar 2TNV70-WYB engine. 674 pages in English, split across specifications, hydraulic and electrical systems, component rebuilds, attachments, the upper slewing structure, troubleshooting, and the Yanmar engine chapters for fuel, cooling, lubrication, starter and alternator.
Every hour the machine sits idle costs more than this manual does. Download the PDF once and it stays yours for as long as you own the machine, on the shop laptop, the phone in the cab, or printed for the bench.
What's Inside This New Holland E10SR Manual
| System | Pages | Key Topics |
|---|---|---|
| Service Manual | 1-3 | Specification, Maintenance, System, Disassembly, Troubleshooting, Engine |
| General Safety Information | 4-8 | Safety Precautions |
| Outline | 9-18 | International Unit Conversion System |
| Specifications | 19-36 | Components Name, Machine Dimensions, Performance Specifications, Machine Weight, Engine Specifications |
| Attachment Dimensions | 37-58 | Boom, Arm, Bucket, Dozer, Swing |

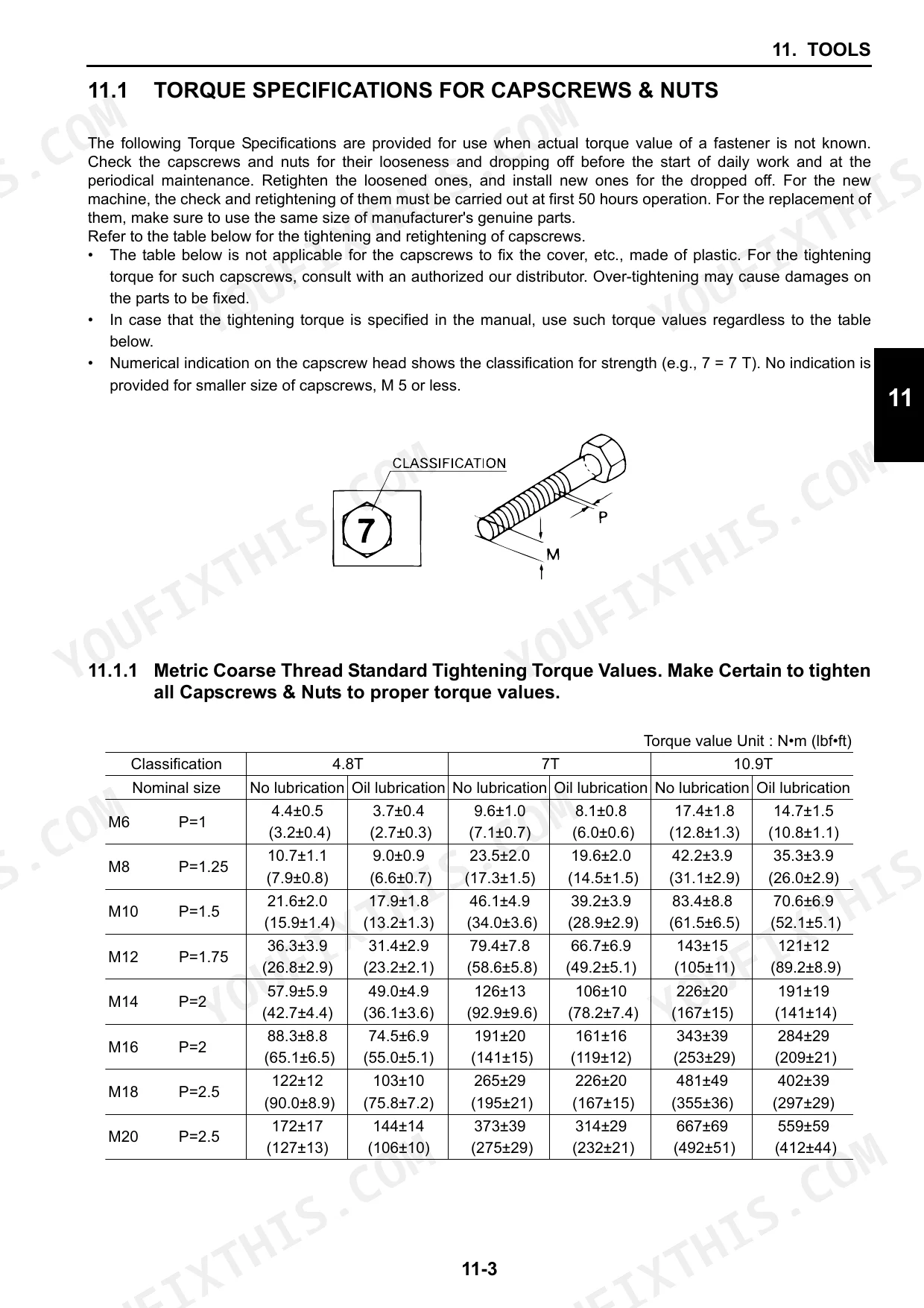

| Tools | 59-70 | Torque Specifications, Screw Size, Joints and Hoses, Tube Fittings, Plugs, Special Spanners |

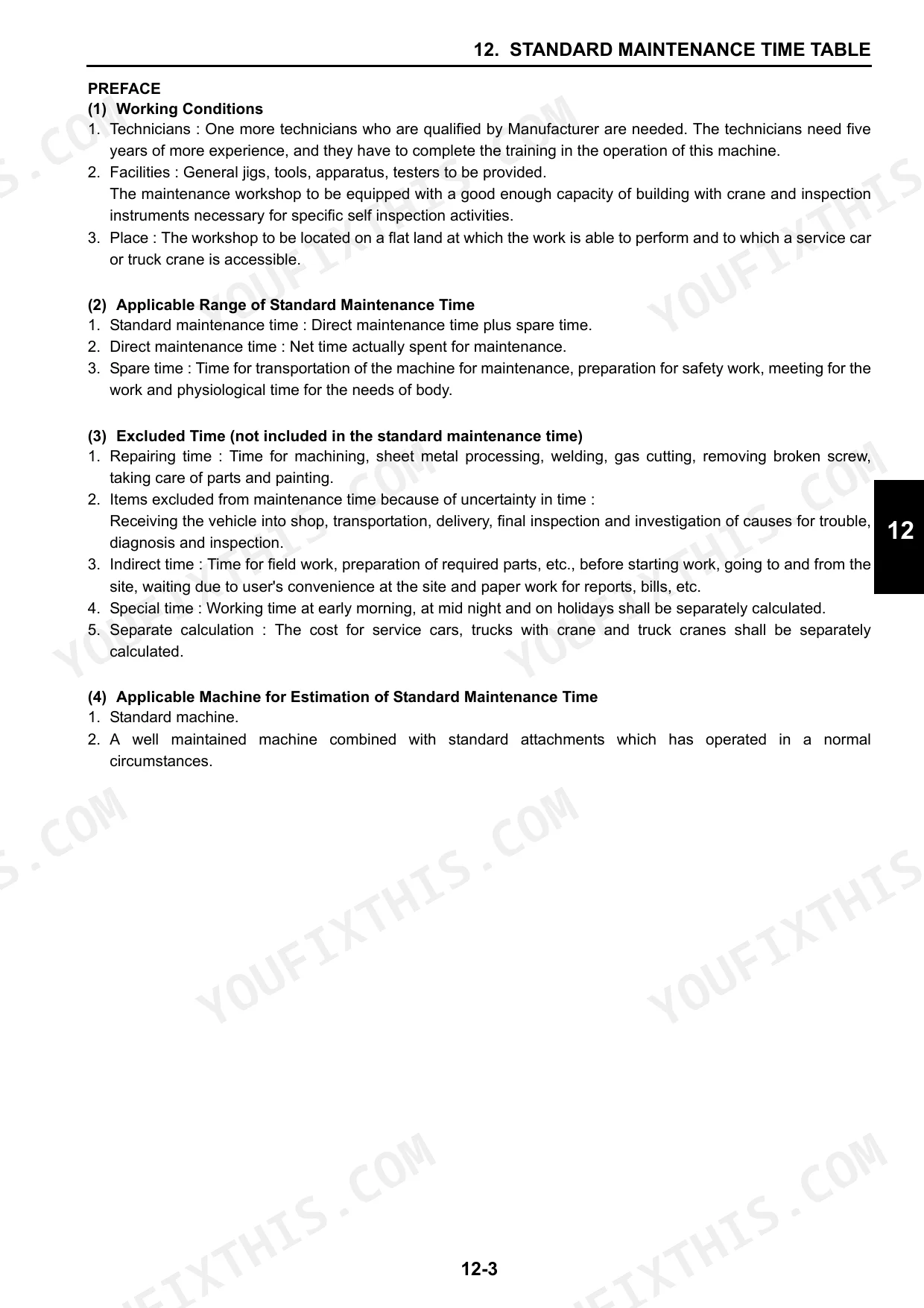

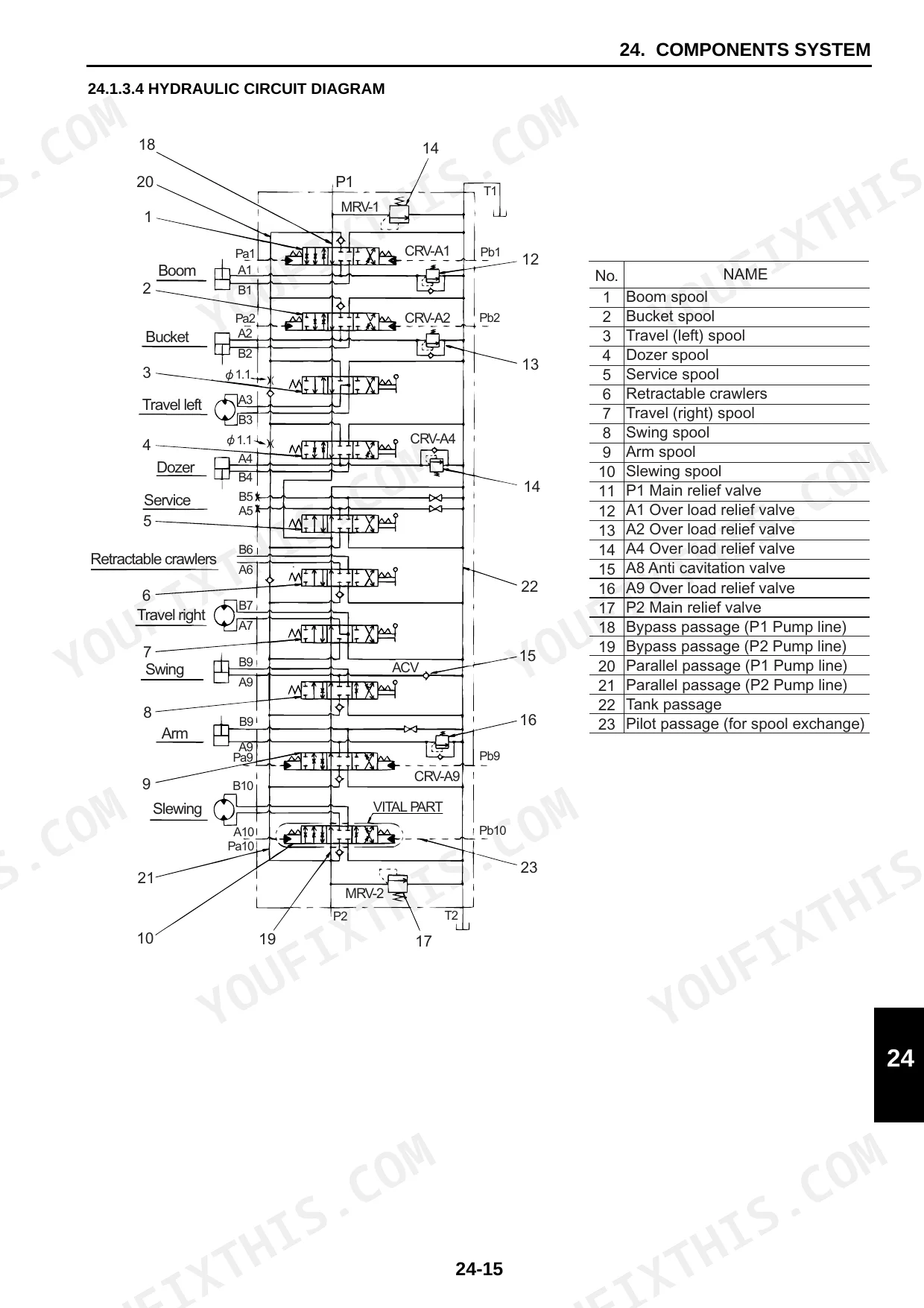

| Standard Maintenance Time Table | 71-82 | Attachment, Canopy and Guard, Upper Structure, Under Carriage |
| Maintenance Standard and Test Procedure | 83-104 | Performance Inspection, Engine Speed Measurement, Hydraulic Pressure Measurement, Travel Performance, Swing Performance, Attachment Operating Performance |
| Hydraulic System | 105-108 | Hydraulic Circuits, Component Models, Hydraulic Circuit Operation, Schematic Piping |
| Electrical System | 109-114 | Circuit Diagram, Harness Connection, Electrical Equipment, Harness List, Component Harness Arrangement |
| Components System | 115-176 | Hydraulic Pump, Pilot Valve, Control Valve, Slewing Motor, Travel Motor, Swivel Joint |
| Attachments | 177-208 | Boom, Arm, Bucket, Dozer, Swing, Cylinder |
| Upper Slewing Structure | 209-318 | Canopy, Battery, Control Box, Hydraulic Oil Tank, Slewing Motor, Swivel Joint |
| Travel System | 319-368 | Crawler, Lower Roller, Front Idler, Sprocket, Travel Motor, Slewing Bearing |

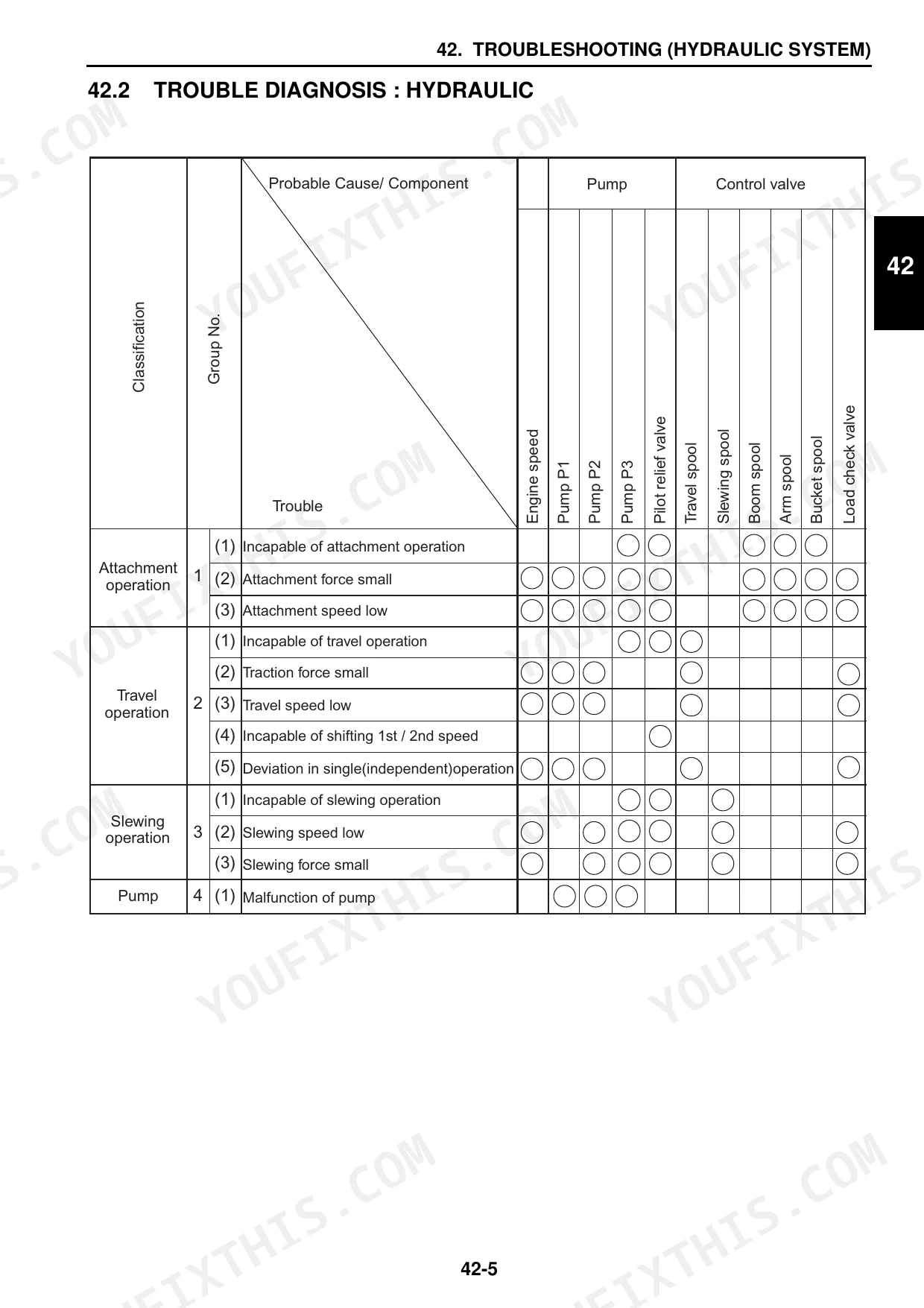

| Troubleshooting | 369-402 | Hydraulic System, Electrical System, Engine System, Attachment Operation, Travel Operation, Slewing Operation |
| Engine | 403-410 | Cylinder Head, Camshaft, Crankshaft, Pistons, Cylinder Block, Fuel System |
| Yanmar Warranties | 411-418 | Limited Warranty, Emission System Warranty, Warranty Coverage, Warranty Limitations, Warranty Modifications |
| Safety | 419-438 | Scald Hazard, Explosion Hazard, Fire Hazard, Entanglement Hazard, Burn Hazard, Shock Hazard |
| General Service Information | 439-466 | Component Identification, Emission Control Labels, Diesel Fuel, Engine Oil, Engine Coolant, Specifications |
| Periodic Maintenance | 467-566 | Periodic Maintenance Schedule, Periodic Maintenance Procedures, After Initial 50 Hours, Every 250 Hours, Every 500 Hours, Every 1000 Hours |
| Fuel System | 567-596 | Fuel Injection Pump, Stop Solenoid, Fuel Injection Lines, Fuel Injectors, Fuel System Diagram, Fuel System Components |
| Cooling System | 597-606 | Cooling System Diagram, Engine Coolant Pump Components, Engine Coolant System Check, Engine Coolant Pump, Thermostat, Radiator Cap |
| Lubrication System | 607-618 | Oil Pump Service Information, Lubrication System Diagram, Checking Engine Oil Pressure, Trochoid Oil Pump, Oil Pump Components, Oil Pump Disassembly |
| Starter Motor | 619-638 | Starter Motor Information, Starter Motor Specifications, Starter Motor Troubleshooting, Starter Motor Components, Removal of Starter Motor, Installation of Starter Motor |
| Alternator | 639-660 | Dynamo Information, Alternator Information, Alternator Specifications, Alternator Troubleshooting, Alternator Components, Alternator Wiring Diagram |
| Electric Wiring | 661-674 | Electric Wiring Precautions, Electric Wire Resistance, Battery Cable Resistance, Electrical Wire Sizes, Conversion of AWG to European Standards |

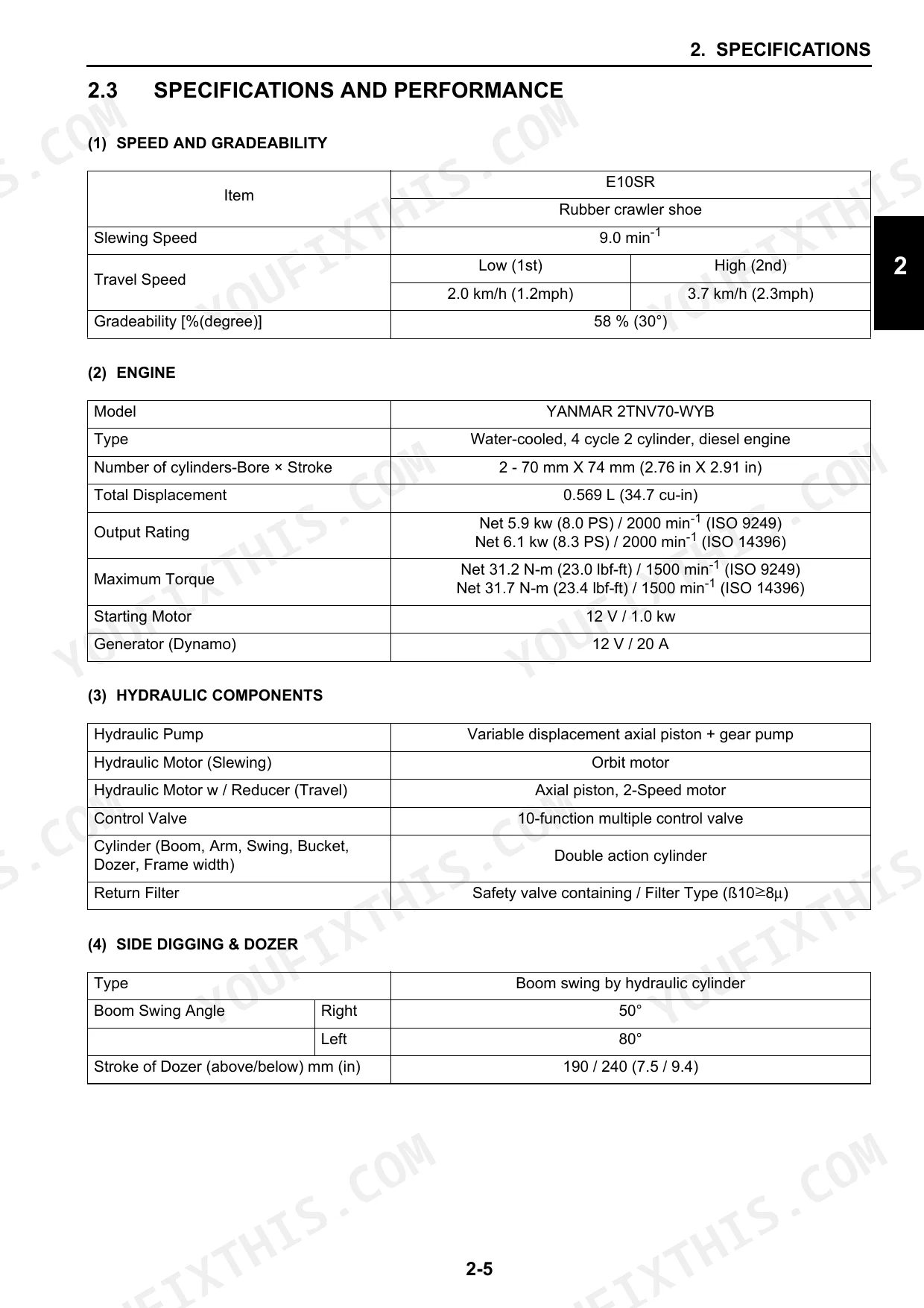

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Maximum Torque | Net 31.2 N-m (23.0 lbf-ft) / 1500 min-1 (ISO 9249), Net 31.7 N-m (23.4 lbf-ft) / 1500 min-1 (ISO 14396) | p. 23 |
| Starting Motor | 12 V / 1.0 kw | p. 23 |
| Return Filter | Safety valve containing / Filter Type (ß10≥8µ) | p. 23 |
| Battery | PA72S00004P1 | p. 112 |
| Boom working light tightening torque | 9.8-17 N·m (7.2-12.5 lbf·ft) | p. 172 |
| Battery Weight | 10kg (22 lbs) | p. 170 |
| Standard bolt torque (JIS strength classification: 7T) | 60% of Standard Torque Chart for unlisted bolts, 80% of Standard Torque Chart for aluminum alloy | p. 481 |
| Fuel filter replacement interval | Every 500 hours | p. 483 |
| Maximum air intake restriction | 0.90 psi (6.23 kPa; 635 mm Aq) | p. 482 |
| Slewing Speed | 9.0 min-1 | p. 23 |
| Travel Speed (Low) | 2.0 km/h | p. 23 |
| Travel Speed (High) | 3.7 km/h | p. 23 |
New Holland E10SR Common Problems This Manual Covers
Track sag and undercarriage wear
Loose track tension chews idlers and sprocket teeth long before the chain itself is worn out, and on soft ground a slack chain will throw itself off the front idler. The Travel System section covers crawler, lower roller, front idler, sprocket and travel motor service.
Manual Section: Travel System p. 319Slow or weak hydraulic power
When boom and arm speeds fall off under load, guessing between pump wear, a sticking control valve spool and a drifting relief setting costs a day of work. The Maintenance Standard and Test Procedure section gives the pressure measurement method, and hydraulic system pressure is specified at 20.6 MPa.
Manual Section: Maintenance Standard and Test Procedure p. 33Starter drags or will not crank
Worn starter brushes drop cranking speed until a warm engine starts and a cold one will not. The Starter Motor section sets brush length at 0.55 in. (14 mm) standard with a service limit of 0.44 in. (11.1 mm), so measure before buying a whole motor.
Manual Section: Starter Motor p. 624Bucket pin and bushing slop

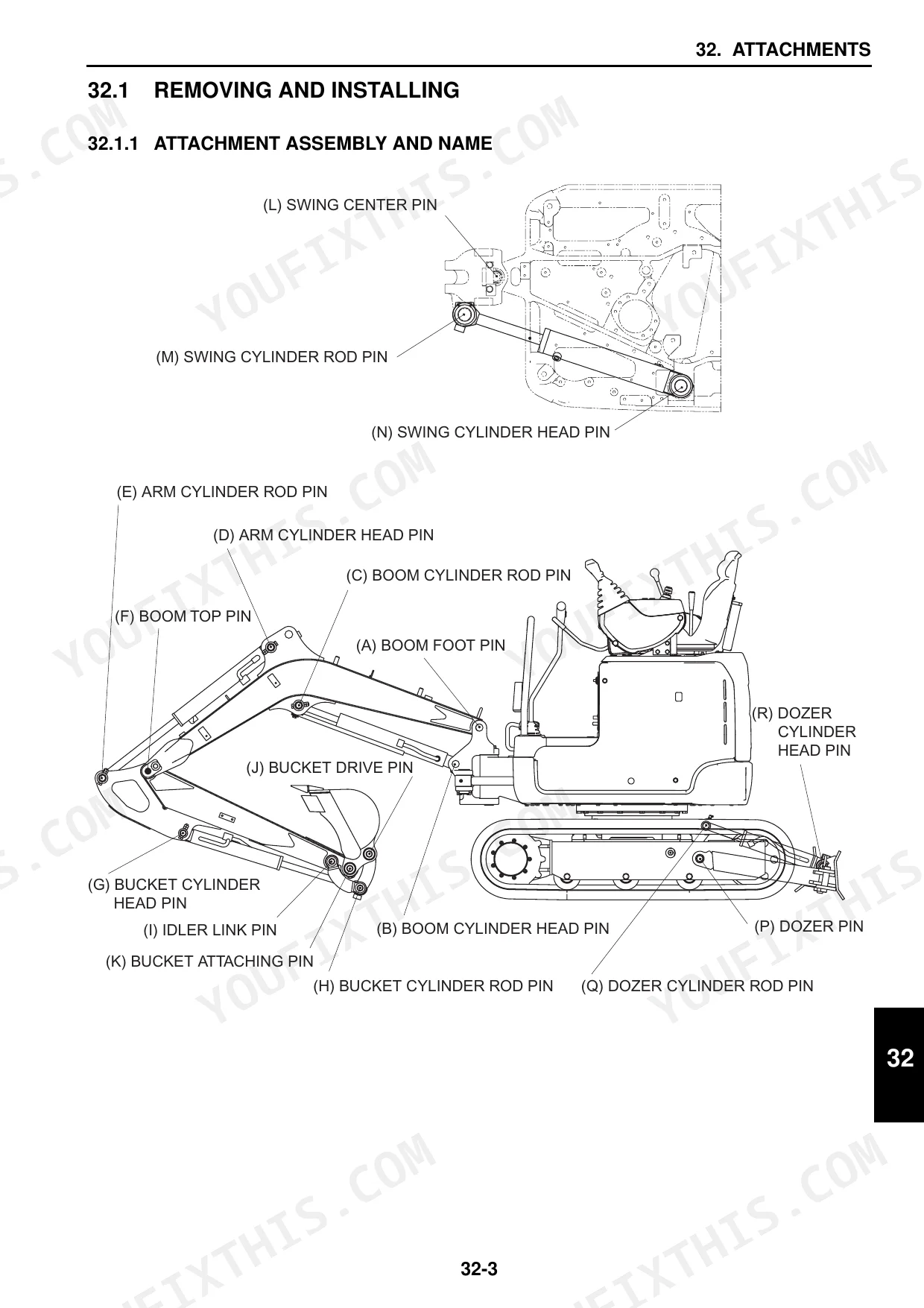

Worn bucket pins and bushings show up as a bucket that wanders at the cut and as ovaled bores in the boss. The Attachments section covers boom, arm, bucket, dozer, swing and cylinder removal and rebuild, including the cylinder seal work that goes with a drifting ram.
Manual Section: Attachments p. 177Engine running hot in trench work
Radiator cores on a compact excavator pack with dust and silt, and a tired thermostat or coolant pump turns that into a shutdown mid shift. The Cooling System section covers the coolant system check, coolant pump, thermostat and radiator cap.
Manual Section: Cooling System p. 597Cranks but will not fire
Dirty fuel is the usual reason a Yanmar 2TNV70-WYB spins over without catching. The fuel filter is called out for replacement every 500 hours, and the Periodic Maintenance section gives both the interval and the procedure behind it.
Manual Section: Periodic Maintenance p. 483Flat battery every Monday morning
A machine that needs a jump after sitting is usually a charging fault rather than a bad battery. The Alternator section covers alternator specifications, troubleshooting, components and wiring, and the Electrical System section gives the harness list you need to trace the circuit.
Manual Section: Alternator p. 639Frequently Asked Questions
Which machine and serial numbers does this manual cover?
The New Holland E10SR mini crawler excavator, publication 84363846, serial prefix PA03-05001 and up, built around the Yanmar 2TNV70-WYB diesel. Machine dimensions, weights and performance figures sit in the Specifications section, and boom, arm, bucket, dozer and swing geometry follows in Attachment Dimensions. p. 1
Does it include hydraulic pressure test procedures?
Yes. The Maintenance Standard and Test Procedure section covers hydraulic pressure measurement, engine speed measurement, travel, swing and attachment operating performance, and hydraulic system pressure is specified at 20.6 MPa. Those readings tell you whether a weak circuit is the pump, the control valve or a relief setting. p. 33
Are the service intervals and fluid specs in here?
The Periodic Maintenance section holds the maintenance schedule and the step by step procedures behind it, organized by running hours on the meter. The fuel filter, for example, is called out for replacement every 500 hours. Diesel fuel, engine oil and coolant requirements sit in General Service Information. p. 483
Are wiring diagrams included?

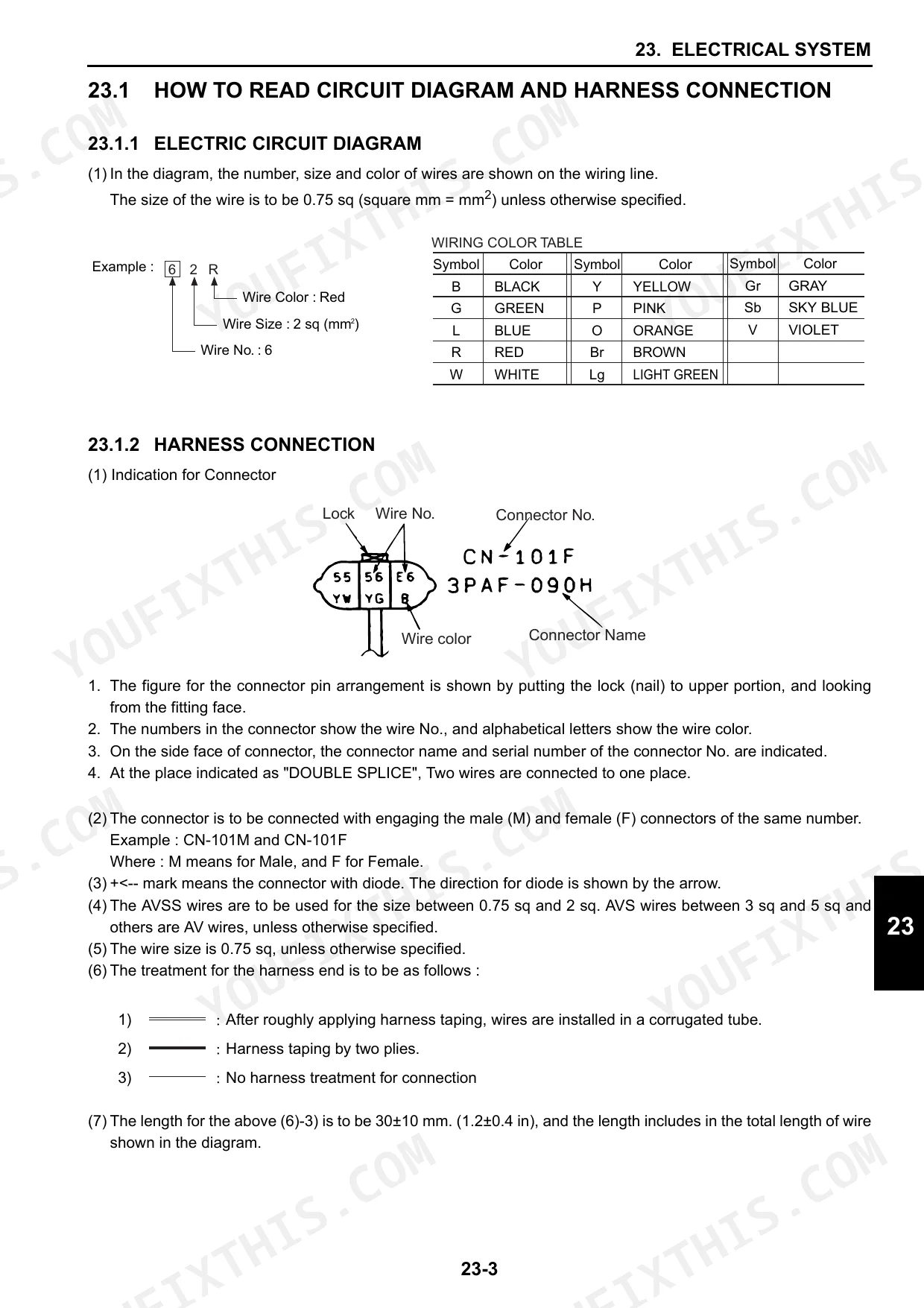

Partly. The Electrical System section explains how to read the circuit diagrams and connector codes, with the electrical equipment list and the harness and cable list. The Yanmar engine material at the back carries an alternator wiring diagram on page 648, and Electric Wiring adds wire resistance, battery cable resistance, wire sizing and AWG conversion. p. 111
How will I receive this New Holland E10SR Service Manual?
Delivery is instant: a 674-page searchable PDF is yours the second checkout clears. Laptop, tablet, or phone, all fine.
Can I print a copy of this New Holland E10SR Service Manual for the shop?
Print away. There is no DRM and no page limit. Many buyers print one chapter at a time and leave the rest on a tablet.
