Within the hour you could be draining the crankcase on the NEF six, or probing a harness connector with a meter while a fault code sits on the display. This book covers both jobs on the New Holland Speedrower 220 and 260 Tier 4B (final) windrowers.
This is part number 47824875, 1st edition English, January 2015, written for North American machines. The one book covers draper ready and non-draper ready units. It runs from the F4HFE613A*B001 engine and SCR exhaust treatment through the splitter gearbox, hydrostatic drive, axles, brakes, hydraulics, cab climate control and electrical calibrations.

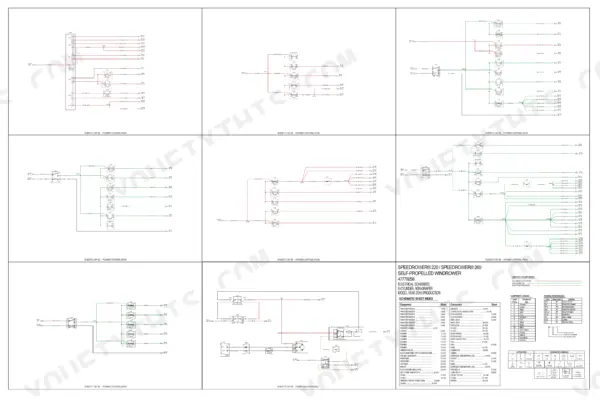

The fold-out schematics are at the back of the book: electrical 47779258 and 47779280, and hydraulic 47886002 and 47885981.
What's Inside This New Holland Speedrower 220, Speedrower 260 Manual

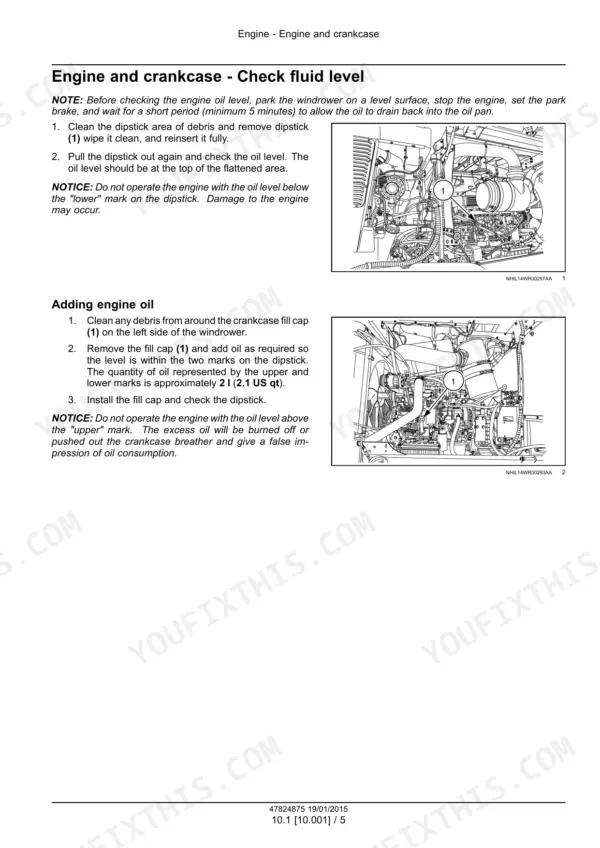

| System | Pages | Key Topics |
|---|---|---|
| Introduction, Safety and Specifications | 1-43 | Contents, Safety Rules, Emergency Exit, Tightening Torques, Capacities, Lubrication, Machine Specifications, Product Identification |
| Engine | 44-181 | Engine and Crankcase, Air Cleaners, Fuel Filters and Tanks, Fuel Injection, Intake and Exhaust, Aftercooler, Engine Cooling, SCR Exhaust Treatment |
| Transmission | 182-195 | Hydraulic Pump Drive, Splitter Gearbox Exploded View, Splitter Gearbox Removal and Installation |
| Front Axle System | 196-223 | Planetary Hubs, Final Drives, Front Mechanical Drive Removal and Installation, Disassembly and Assembly |
| Rear Axle System | 224-257 | Suspended Rear Axle, Air Spring, Wheel Hubs and Shafts, Wheel Supports, Axle Extensions, Axle Tubes and Pivot Pins |
| Hydrostatic Drive | 258-307 | Two-Speed and Three-Speed Hydrostatic Systems, Ground Drive Motors, Ground Drive Relief Testing, Pump and Motor Components |

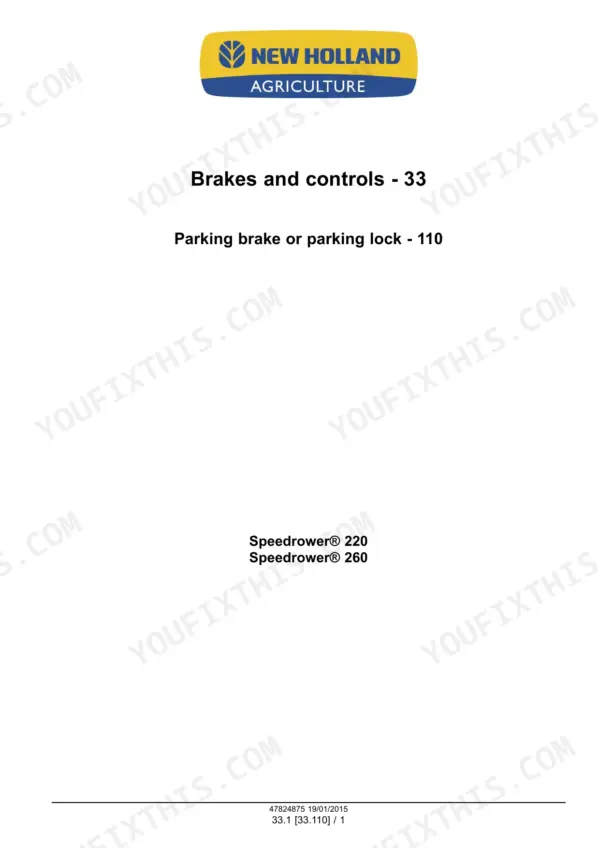

| Brakes and Controls | 308-329 | Parking Brake Operation, Exploded View, Removal, Disassembly, Assembly, Installation, Bleeding |
| Hydraulic Systems | 330-579 | Hydraulic Circuit Schematics, Main Lift System, Charge Pump, Auxiliary Hydraulic Pump, Header Height Control, Header Tilt, Header Hydraulic Drive |
| Steering | 580-589 | Steering Wheel Removal and Installation, Telescoping Lock Knob, Steering Column Splines |

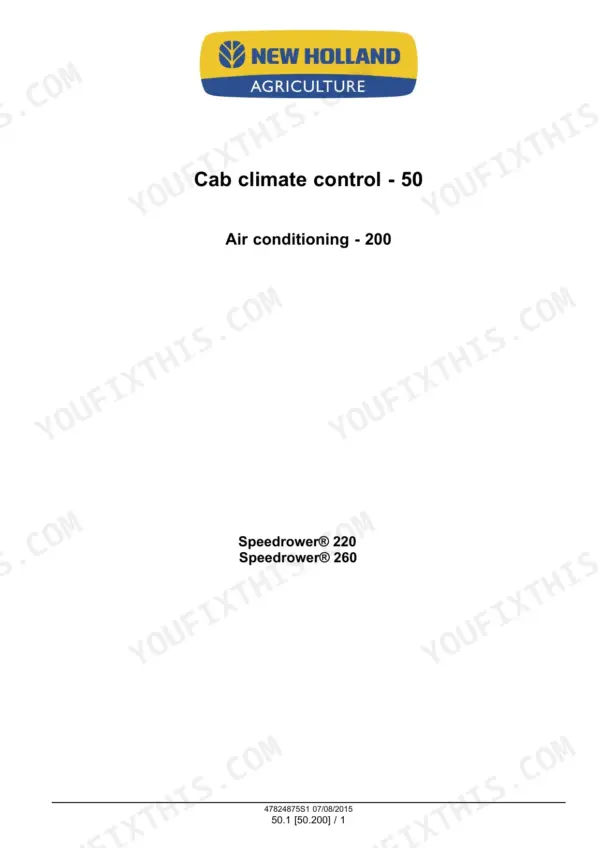

| Cab Climate Control | 590-673 | Refrigerant Specifications, Refrigeration Cycle, Compressor and Clutch, Refrigerant Recovery, UV Leak Detection, Cab Air Flow, Troubleshooting |

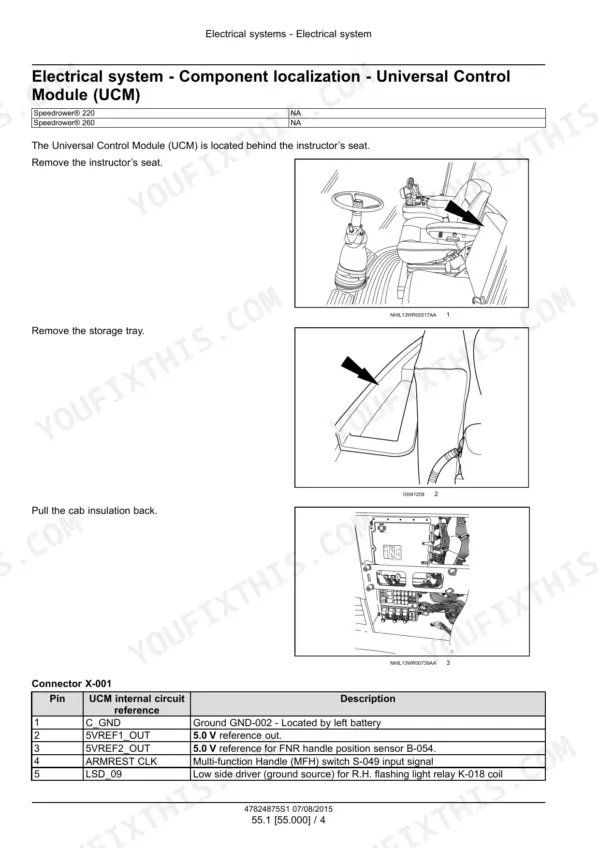

| Electrical System | 674-854 | UCM Localization, Starting System, Fuse and Relay Panel, MFH Calibration, Propulsion Calibration, PTO and Reel Calibration, Autoguidance Calibration |
| Hydrostatic Drive Control System | 855-860 | Steering Neutral, Neutral Centering Spring, Propulsion Cylinder Voltage, Color Touch Display Diagnostics |
| Harnesses and Connectors | 861-1708 | Power Distribution Schematics, Starting and Charging Circuits, Propulsion Circuits, Header and HVAC Circuits, Engine and CAN Schematics, Connector Pinouts |

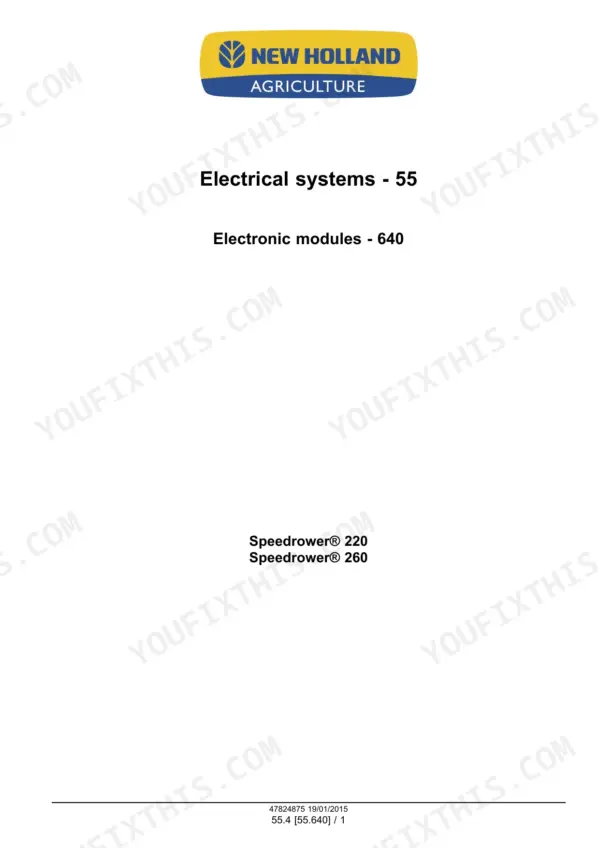

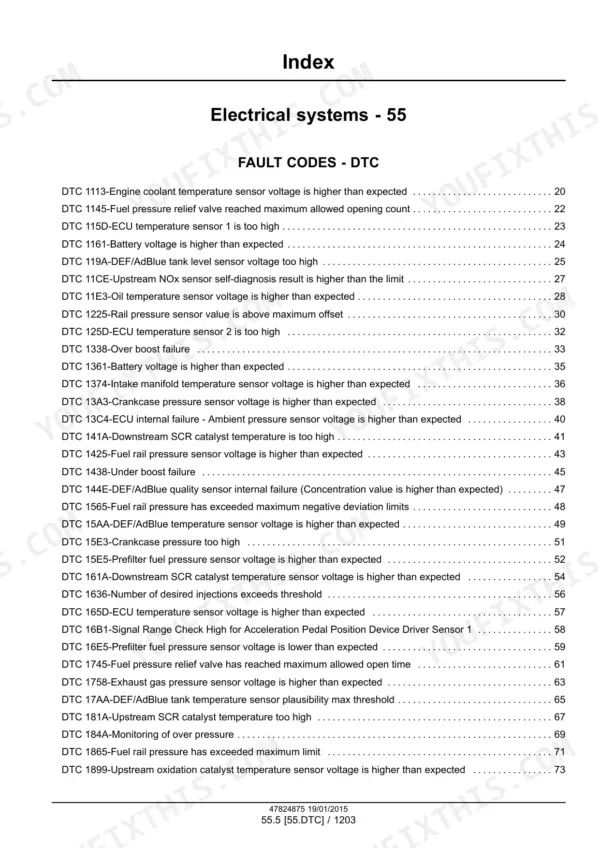

| Electronic Modules | 1709-1716 | Auxiliary Relay Testing, SCR Sensor Power Supply, Fuse Testing, Voltage and Continuity Checks |
| Fault Codes | 1717-2918 | ECU Fault Codes, UCM Fault Codes, Coolant Sensors, Fuel Rail Pressure, DEF/AdBlue and NOx, MFH Sensors, Propulsion Solenoids |
| Fault Code Index | 2919-2939 | Fault Code Index by Code and Description |
| Platform, Cab, Bodywork and Decals | 2940-3016 | Pneumatic Operator Seat, Steering Column, Cab Mounts, Cab Roof, Display Consoles, Stereo and Speakers, Cab Doors |
| Special Tool Index | 3017-3020 | Fuel Pressure Gauges, Fuel Leakage Test Kit, NEF Diagnostic Harness Kit, Hydraulic Pressure Gauges, Refrigerant Recovery Equipment |
| Electrical Schematics 47779258 and 47779280 | 3021-3036 | Non-Draper and Draper Electrical Schematics, Power Distribution, Starting and Charging, Propulsion, Header Control, HVAC, Lighting |
| Hydraulic Schematics 47886002 and 47885981 | 3037-3040 | Non-Draper Ready and Draper Ready Hydraulic Schematics, Charge Pump, Lift and Tilt Cylinders, Accumulators, Ground Drive, Draper and Reel Drive |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Engine code (Speedrower 220 and 260) | F4HFE613A*B001 | p. 2 |
| Engine power, Speedrower 220 | 157 kW (210 Hp) | p. 35 |
| Engine power, Speedrower 260 | 187 kW (250 Hp) | p. 35 |
| Rated engine speed | 2200 RPM | p. 35 |
| Torque at rated RPM, Speedrower 220 | 682 N·m (503 lb ft) | p. 35 |
| Torque at rated RPM, Speedrower 260 | 810 N·m (597 lb ft) | p. 35 |
| Engine crankcase oil, with filter | 16 l (16.9 US qt) | p. 33 |
| Cooling system capacity | 25.7 L (27.2 US qt) | p. 33 |
| Engine flywheel gearbox oil | 2.5 l (2.6 US qt) | p. 33 |
| Hydraulic system reservoir | 41.6 l (11 US gal) | p. 33 |
| Total hydraulic system, draper units | 68.1 l (18 US gal) | p. 33 |
| Planetary final drives oil | 0.89 l (0.94 US qt) | p. 33 |
| Air conditioning refrigerant HFC-134A | 1.9 kg (4.2 lb) | p. 33 |
| Fuel tanks | Two tanks at a total of 454 L (120 US gal) | p. 35 |
| Radiator cap pressure | 103.4 kPa (15 psi) | p. 35 |
| Windrower weight, non-draper, Speedrower 220 | 5613 kg (12370 lb) | p. 36 |
| Windrower weight, non-draper, Speedrower 260 | 5672 kg (12500 lb) | p. 36 |
| Rear axle air spring working pressure | 172 - 276 kPa (25 - 40 psi) | p. 227 |
| Rear axle extension bolts torque | 960 N·m (708 lb ft) | p. 227 |
| Rear wheel to wheel hub torque | 115 N·m (85 lb ft) | p. 227 |
New Holland Speedrower 220, Speedrower 260 Common Problems This Manual Covers
The engine does not start
The Engine troubleshooting table lists an empty fuel tank as the first cause, and the fix is to refuel. The machine has two fuel tanks holding 454 L (120 US gal) in total. Check the fuel level before you suspect the injection system or start pulling apart the starting circuit.
Manual Section: Engine - Troubleshooting - The Engine Does Not Start p. 68The engine overheats
The Engine troubleshooting table points to a malfunctioning thermostat, and the fix is to replace it. Refill the cooling system to its 25.7 L (27.2 US qt) capacity. The same table also lists a faulty water pump, a slack water pump drive belt and a low coolant level; so check the belt tension and coolant level as well.
Manual Section: Engine - Troubleshooting - The Engine Overheats p. 68Noisy charge pump
The Charge pump troubleshooting entry lists plugged fluid filters as the cause, and the fix is to clean or replace them. Do this before you condemn the pump itself. The same table also lists low fluid supply, fluid that is too heavy and a plugged suction line, so check the fluid level, the fluid type and the suction line too.
Manual Section: Charge pump - Troubleshooting - Noisy charge pump p. 484Little or no air flow into the cab
The Air conditioning testing section names dirty filters as the cause, and the fix is to clean them. Do this before you suspect the compressor and clutch. The cab air flow section shows how air moves through the system.
Manual Section: Air conditioning - Testing - Little or no air flow into cab p. 664Frequently Asked Questions
Which New Holland Speedrower windrowers does this service manual cover?
It covers the Speedrower 220 and Speedrower 260 Tier 4B (final) self-propelled windrowers sold in North America. This is New Holland service manual 47824875, 1st edition English, January 2015. It covers draper ready and non-draper ready machines. Both models use engine F4HFE613A*B001. p. 1
What engine power and rated speed do the Speedrower 220 and 260 have?
The Speedrower 220 is rated 157 kW (210 Hp) and the Speedrower 260 is rated 187 kW (250 Hp). Both are rated at 2200 RPM. Torque at rated RPM is 682 N·m (503 lb ft) for the 220 and 810 N·m (597 lb ft) for the 260. p. 35
What fluid capacities does the manual give for engine service and refueling?
Engine crankcase oil with filter is 16 l (16.9 US qt), and the cooling system holds 25.7 L (27.2 US qt). The two fuel tanks hold 454 L (120 US gal) in total. The hydraulic system reservoir is 41.6 l (11 US gal). The planetary final drives take 0.89 l (0.94 US qt). The air conditioning system takes 1.9 kg (4.2 lb) of HFC-134A. p. 33
Does the manual give tightening torques for specific machine parts?
Yes. On the rear axle, the axle extension bolts are torqued to 960 N·m (708 lb ft). The rear wheel to wheel hub torque is 115 N·m (85 lb ft). p. 227
Does the manual include electrical and hydraulic schematics and fault codes?
Yes. The book ends with fold-out electrical schematics 47779258 (6-cylinder, non-draper) and 47779280 (6-cylinder, draper). It also has fold-out hydraulic schematics 47886002 (non-draper ready) and 47885981 (draper ready). The Harnesses and connectors chapter has electrical schematic sheets, and the Hydraulic systems chapter has hydraulic schematic frames. The FAULT CODES chapter lists engine and UCM codes with an index. Examples are DTC 1161-Battery voltage is higher than expected and E0040-03- MFH position sensor - Shorted to high source. p. 3021
