Part of the New Holland Repair Manuals.
Strip, measure and rebuild a New Holland TS6 Tier 4B (final) tractor with service manual 47924635, 1st edition English, December 2015. One book covers the TS6.110, TS6.110 HC, TS6.120, TS6.120 HC, TS6.130 and TS6.140, PIN NT00001M and above, North America.
You know the moment. The PTO output shaft bearing retainer is back on, and you need the bolt torque before you go further. The book gives it: 190 - 230 N·m (140 - 170 lb ft). It also covers the 8 x 8 Mechanical Shuttle, 8 x 8 Power Shuttle and 16 x 8 Power Shuttle with DualPower, plus hydraulic schematic frames, fault codes and fold-out wiring.
Check your PIN against NT00001M before you buy.
What's Inside This New Holland TS6.110–TS6.140 Series Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction, Safety and Specifications | 1-44 | Model Applicability, Safety Rules, Shop and Assembly, Hydraulic Contamination, Special Tools, Dimensions, Fluid Capacities, Product Identification |

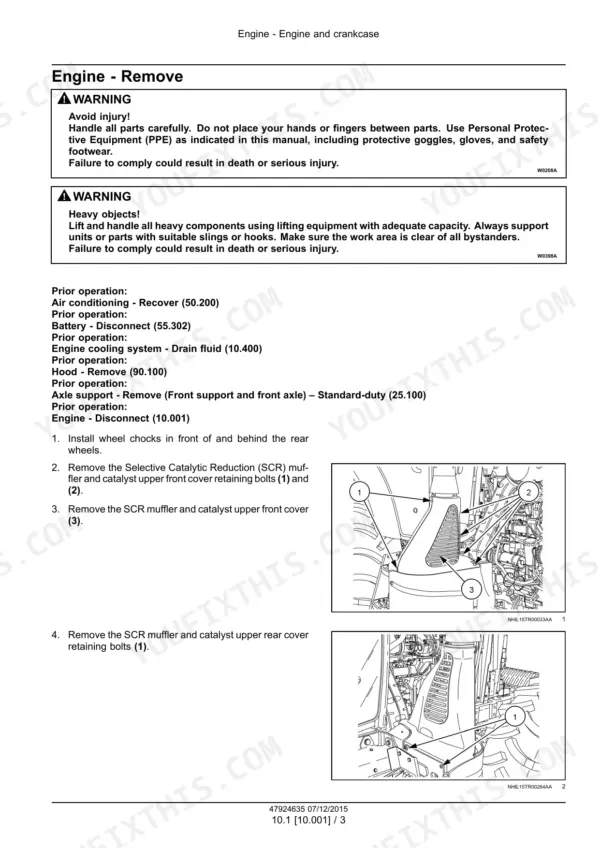

| Engine | 45-214 | Engine Removal and Installation, Air Cleaners, Fuel Filters and Tanks, Intake and Exhaust, Aftercooler, Cooling System, SCR Exhaust Treatment |

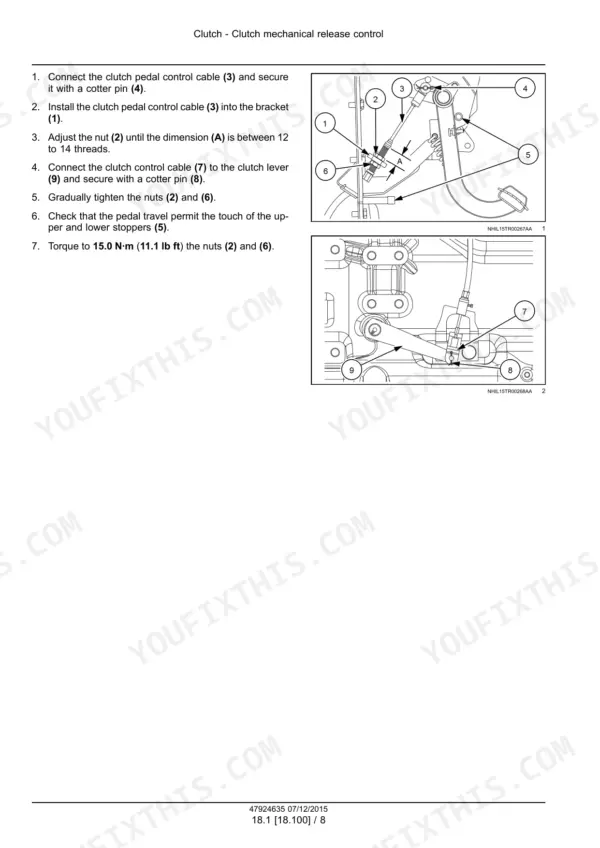

| Clutch | 215-256 | Mechanical Release Control, Clutch Disc, Pressure Plate, Flywheel Damper, Adjustment, Troubleshooting |
| Transmission | 257-510 | Transmission Cooler, Power Shuttle, Mechanical Shuttle, DualPower, External Controls, Clutch Packs, Creeper |
| Four-Wheel Drive (4WD) System | 511-562 | Electro-Hydraulic Control, Transfer Gearbox, Bearing Adjustment, Lubrication, Drive Shaft |
| Front Axle System | 563-788 | Powered Front Axle, Bevel Gears and Differential, Final Drive Hubs, Steering Knuckles, Non-Powered Front Axle, Track Width |
| Rear Axle System | 789-880 | Powered Rear Axle, Bevel Gears and Differential, Planetary Final Drives, Oil Filling, Bearing Adjustment, Troubleshooting |
| Power Take-Off (PTO) | 881-942 | Two-Speed Rear PTO, Clutch Pack, Brake Band, Pressure Regulation, Shaft End-Play, Assembly Torque |

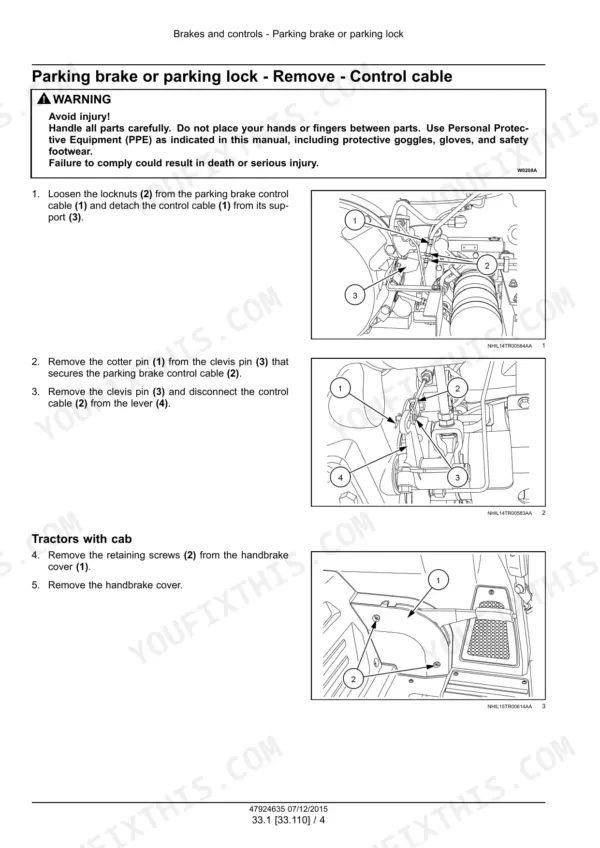

| Brakes and Controls | 943-1004 | Parking Brake, Control Cable, Parking Brake Discs, Hydraulic Service Brakes, Brake Fluid, Bleeding |
| Hydraulic Systems | 1005-1184 | Hydraulic Schematic Frames, Pump Control Valves, Fixed Displacement Pumps, Hitch Cylinder, Remote Control Valves, Combination Pump Units |
| Hitches, Drawbars and Implement Couplings | 1185-1234 | Rear Three-Point Hitch, Draft Control, Position Control, Disassembly and Assembly, Linkage Adjustment |
| Steering | 1235-1286 | Steering Control, Tie Rods, Steering Pump, Steering Cylinders |

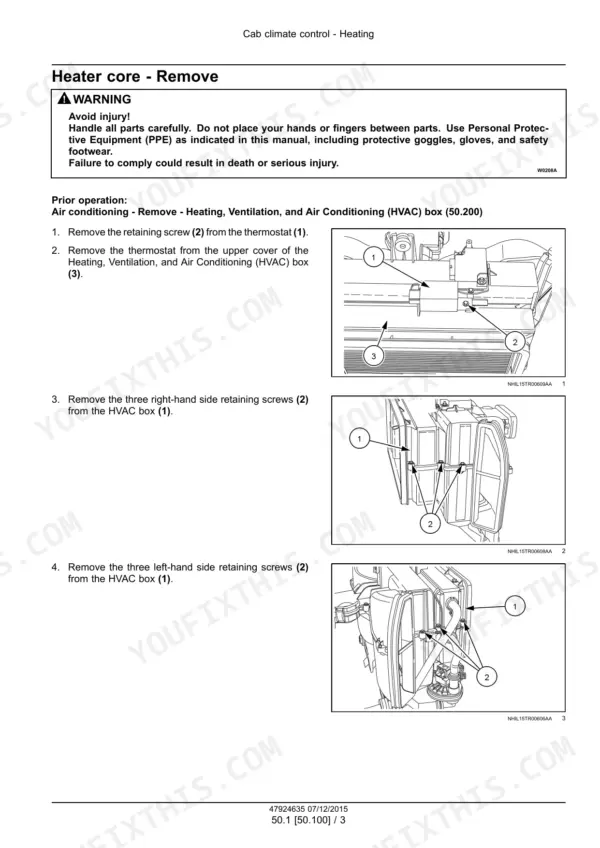

| Cab Climate Control | 1287-1360 | Heater Core, Heater Control Valve, Air-Conditioning Compressor, Refrigerant Testing, Recovery and Charging, Condenser, Evaporator |

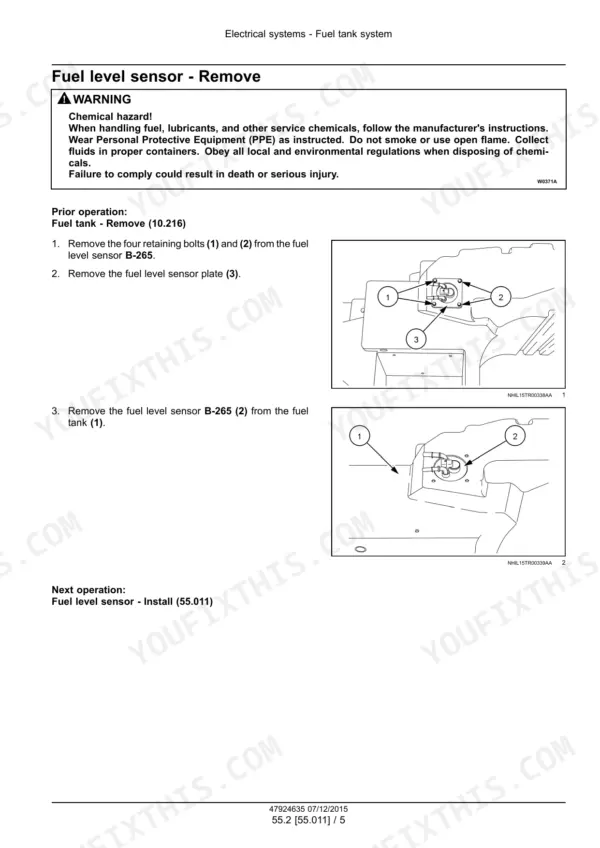

| Electrical Control Systems | 1361-1479 | Fuel Tank and Engine Control Electrics, Transmission Control, Parking Brake, 4WD and Rear Axle Controls, Rear PTO Control, HVAC Controls |
| Harnesses and Connectors | 1480-1991 | Electrical Schematic Sheets, Circuit Color Index, Connectors, Component Locations, CAN Bus, Trailer Socket |
| Starting, Charging, Lighting and Instruments | 1992-2145 | Engine Starting System, Cold Start Aid, Alternator, Battery, External Lighting, Switches and Relays, Warning Indicators and Instruments |

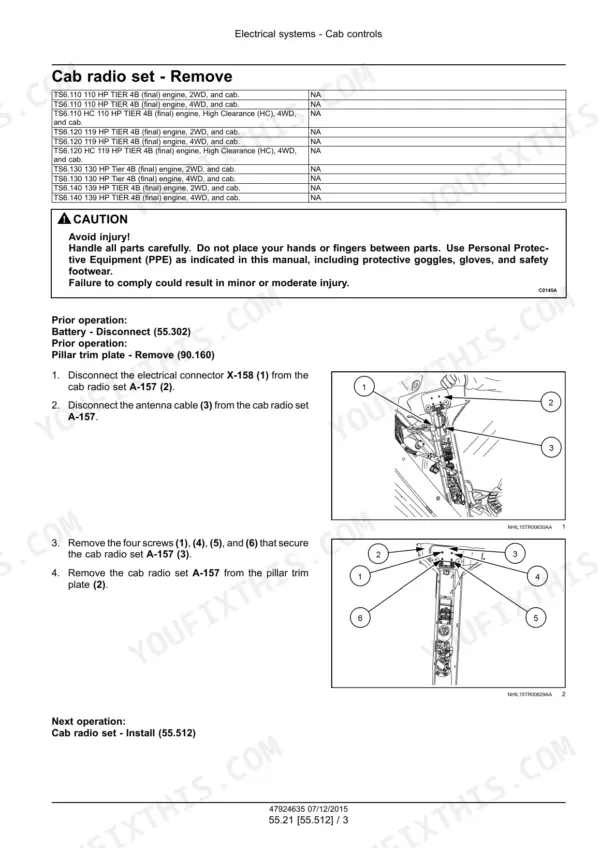

| Cab Electrical, Electronic Modules and SCR Electrical | 2146-2317 | Cab Harnesses, Cab Controls, Cab Transmission Controls, Cab Lighting, Wiper and Washer System, Electronic Modules, SCR Electrical System |
| Fault Codes | 2318-2994 | Foot Throttle Sensor, Fuel Level Sensor, ECU Fault Codes, CAN Diagnostics, SCR Inducement Diagnostics |
| Platform, Cab, Bodywork and Decals | 2995-3129 | Engine Hood and Panels, Operator Platform, Operator Protections, Pneumatic Seat, Cab, Interior Trim, Doors and Glazing |
| Special Tool Index | 3130-3133 | Exhaust Service Tools, Clutch Tools, Transmission Linkage Tools, Front Axle Tools, Bearing Tools, Hitch Adjustment Tools |
| Electrical Schematics 47815869 and 47815870 | 3134-3141 | Cab and ROPS Electrical Schematics, Power Distribution, Starting, Engine Controls, Transmission, Lighting, HVAC, Component Locations |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Engine power, TS6.110 and TS6.110 HC | 110 HP | p. 3 |
| Engine power, TS6.120 and TS6.120 HC | 119 HP | p. 3 |
| Engine power, TS6.130 | 130 HP | p. 3 |
| Engine power, TS6.140 | 139 HP | p. 3 |
| Fuel tank capacity | 217.6 L (57.5 US gal) | p. 36 |
| DEF/AdBlue tank capacity | 30 L (7.9 US gal) | p. 36 |
| Cooling system capacity | 18 L (4.8 US gal) | p. 36 |
| Engine oil capacity, including filter | 10 L (2.6 US gal) | p. 36 |
| Brake fluid capacity | 0.5 L (1.06 US qt) | p. 36 |
| Front axle housing oil, HC models | 18 L (4.8 US gal) | p. 36 |
| Rear axle final reduction housing oil, HC models (each) | 4 l (1.1 US gal) | p. 36 |
| High-pressure hydraulic circuit, maximum pressure | 182 bar (2639 psi) | p. 1014 |
| PTO pressure regulating valve | 1172 - 1379 kPa (170 - 200 psi) @ 2100 RPM | p. 886 |
| PTO relief valve | 290 - 345 kPa (42 - 50 psi) @ 800 RPM | p. 886 |
| PTO output shaft bearing retainer bolts torque | 190 - 230 N·m (140 - 170 lb ft) | p. 886 |
| Hydraulic lift pump drive gear nut torque | 50 - 56 N·m (37 - 41 lb ft) | p. 1011 |
| Parking brake jam nut torque | 30 N·m (22 lb ft) | p. 948 |
| Maximum speed, Power Shuttle, standard | 30 km/h (18.6 mph) | p. 273 |
| Maximum speed, Power Shuttle, option for 4WD | 40 km/h (24.9 mph) | p. 273 |
| Ground clearance, HC models | 640 mm (25.2 in) | p. 35 |
New Holland TS6.110–TS6.140 Series Common Problems This Manual Covers
Noisy rear axle
The Powered rear axle troubleshooting table puts lack of oil first, so check the level before you pull anything apart. Refill to the oil specification in the book. On HC models, each rear final reduction housing takes 4 l (1.1 US gal). If the noise is still there with the level right, move on to the bevel gear, differential and bearing adjustment procedures in the same chapter.
Manual Section: Powered rear axle - Troubleshooting - Noisy rear axle p. 825Clutch does not engage gently
The Clutch troubleshooting table names a faulty clutch disc as the cause, and the fix is a new disc. The Clutch chapter covers the mechanical release control, clutch disc, pressure plate and flywheel damper. Then go through the adjustment procedure before the tractor goes back to the field.
Manual Section: Clutch - Troubleshooting - Clutch does not engage gently p. 243Power Shuttle tractor does not move
The Power shuttle transmission troubleshooting table lists low system pressure as the cause, so check system pressure before you suspect the clutch packs. Use the test procedure in the Transmission chapter and compare your gauge reading to the value in the book. Only once pressure is confirmed should you move on to the clutch packs and external controls.
Manual Section: Power shuttle transmission - Troubleshooting - Tractor does not move p. 402Aggressive clutch engagement on Power Shuttle
The Power shuttle transmission troubleshooting table blames a seizing inching pedal cable, and the fix is a new cable. Follow the external controls procedures in the Transmission chapter to route the new cable correctly. Then check that the pedal returns freely before the next field job.
Manual Section: Power shuttle transmission - Troubleshooting - Aggressive clutch engagement p. 403Frequently Asked Questions
Which New Holland TS6 tractors does this service manual cover?
It covers the TS6.110, TS6.110 HC, TS6.120, TS6.120 HC, TS6.130 and TS6.140 Tier 4B (final) tractors with PIN NT00001M and above, North America. This is New Holland part number 47924635, 1st edition English, December 2015. The standard models are listed in 2WD and 4WD, with ROPS or cab. The High Clearance (HC) models are 4WD only, with ROPS or cab. Power is 110 HP on the TS6.110, 119 HP on the TS6.120, 130 HP on the TS6.130 and 139 HP on the TS6.140. p. 1
What are the fuel, DEF and engine oil capacities of the New Holland TS6.110–TS6.140 Series?
On the TS6.110, TS6.120, TS6.130 and TS6.140, the fuel tank holds 217.6 L (57.5 US gal). The DEF/AdBlue tank holds 30 L (7.9 US gal). Engine oil is 10 L (2.6 US gal) including the filter, so buy enough for the filter change too. The cooling system takes 18 L (4.8 US gal). p. 36
What hydraulic and PTO pressures does the manual give?
The high-pressure hydraulic circuit runs at a maximum of 182 bar (2639 psi). For the two-speed rear PTO, the pressure regulating valve should read 1172 - 1379 kPa (170 - 200 psi) @ 2100 RPM. The relief valve should read 290 - 345 kPa (42 - 50 psi) @ 800 RPM. Note the engine speed for each test. A reading taken at the wrong RPM can send you chasing a good valve. p. 1014
Which transmissions and speed options are covered?
The book covers three transmissions: the 8 x 8 Mechanical Shuttle, the 8 x 8 Power Shuttle and the 16 x 8 Power Shuttle with DualPower. Power Shuttle top speed is 30 km/h (18.6 mph) as standard, with a 40 km/h (24.9 mph) option for 4WD. The 16 x 8 transmission and the 40 km/h (24.9 mph) transmission are not available on High Clearance models. If you run an HC, skip those sections. p. 273
Does the manual include electrical and hydraulic schematics and fault codes?

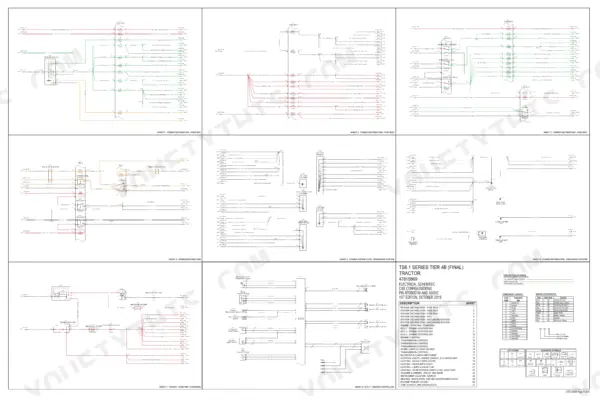

Yes. The book ends with fold-out electrical schematics: 47815869 for cab tractors and 47815870 for ROPS tractors. The Harnesses and connectors chapter has electrical schematic sheets with legends. The Hydraulic systems chapter has hydraulic schematic frames with legends. The FAULT CODES chapter gives a diagnostic procedure for each code. Two examples are 3001-Foot throttle sensor - signal not plausible, and 14051-Fuel level sensor short to Vcc or open circuit. p. 3134
