Part of the New Holland Repair Manuals.
This is the full factory repair manual for the New Holland T5040, T5050, T5060 and T5070 tractors, the same service information a dealer technician works from. All four share the 4-cylinder 4485 cc diesel engine, and the manual covers the whole tractor: the engine and BOSCH injection, cooling and lubrication, the clutch and both the mechanical and Power Shuttle transmissions, the four-wheel-drive front axle, the rear axle and PTO, the brakes including the trailer air brakes, the three-point hydraulic lift and remote valves, hydrostatic steering, the cab and air conditioning, and a full electrical section with the wiring diagrams. Every section carries the specifications, torques, fault finding and step-by-step overhaul procedures, so you can put a fault right instead of guessing.
What's Inside This New Holland T5040, T5050, T5060, T5070 Repair Manual
| System | Pages | Key Topics |
|---|---|---|
| General and Specifications | General Instructions, Safety, Standard Torque Values, Engine and Machine Specifications, Capacities, Model Coverage T5040 to T5070 | |
| Engine | 4-Cylinder 4485 Cc Diesel Engine, Cylinder Head and Block, Pistons and Crankshaft, Timing, Valve Gear, Troubleshooting, Overhaul | |
| Fuel and Injection System | Bosch Injection Pump and All-Speed Governor, Injectors, Fuel Tank and Supplemental Tank, Air Cleaner, Bleeding, Fault Diagnosis | |

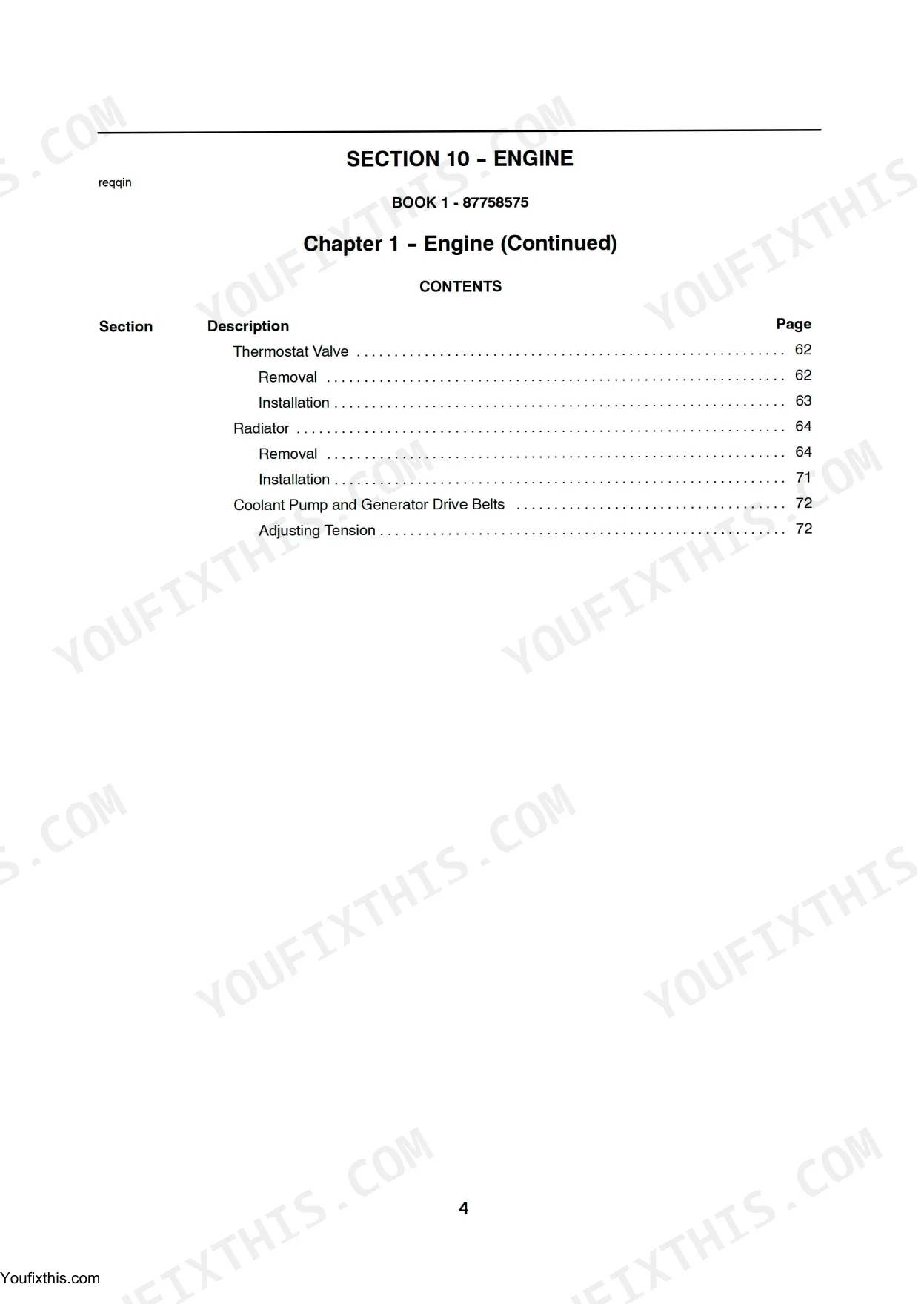

| Cooling and Lubrication | Cooling System and Radiator, Water Pump, Thermostat, Engine Oil Pump and Sump, Filtration, Fault Diagnosis, Service | |

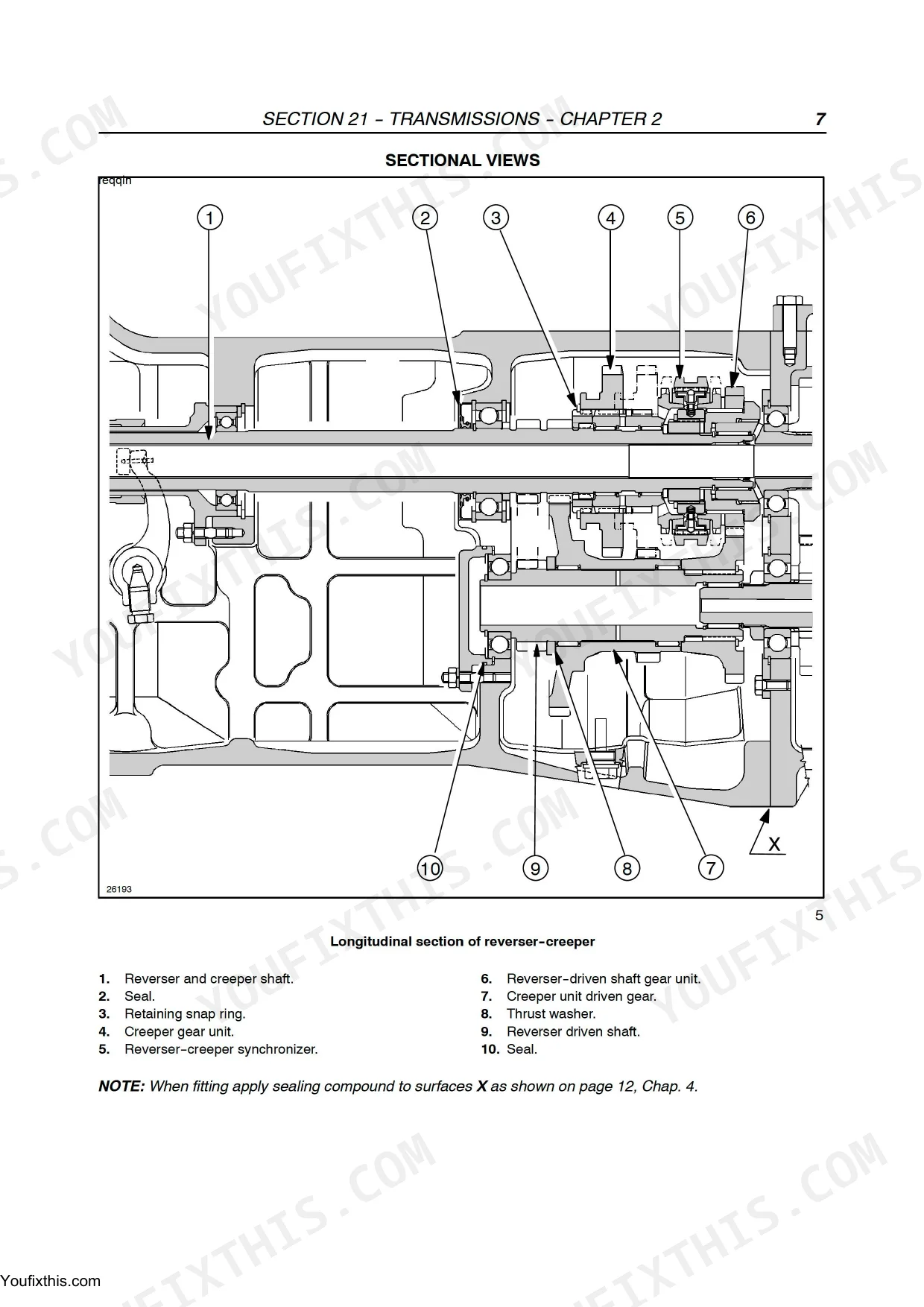

| Clutch and Transmission | Clutch, Mechanical and Power Shuttle Transmissions, Range and Synchroniser Gears, Description and Operation, Fault Diagnosis, Overhaul | |

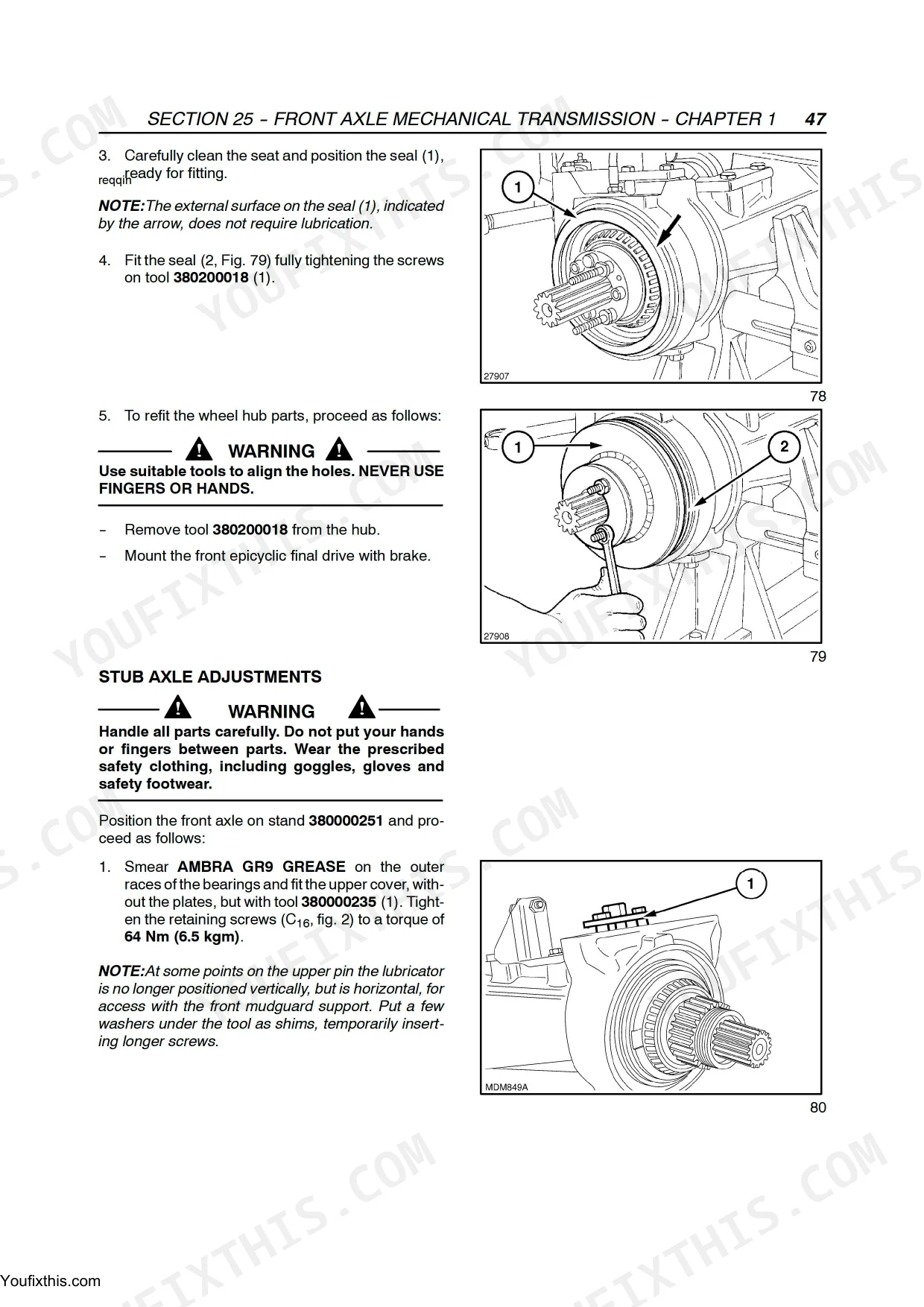

| Front Axle and Four-Wheel Drive | Four-Wheel-Drive Front Axle, 4WD Engagement and Control, Differential and Final Drives, Wheel Hubs, Fault Diagnosis, Overhaul | |
| Rear Axle and Differential | Diff Lock, Final Drives, Description and Operation, Fault Diagnosis, Overhaul | |
| Power Take-Off | PTO Clutch and Shafts, PTO Speeds, Engagement, Description and Operation, Fault Diagnosis, Housing Overhaul | |
| Brakes | Service and Parking Brakes, Hydraulic Brake Circuit, Air Brake System for Trailers, Fault Diagnosis, Bleeding and Overhaul | |

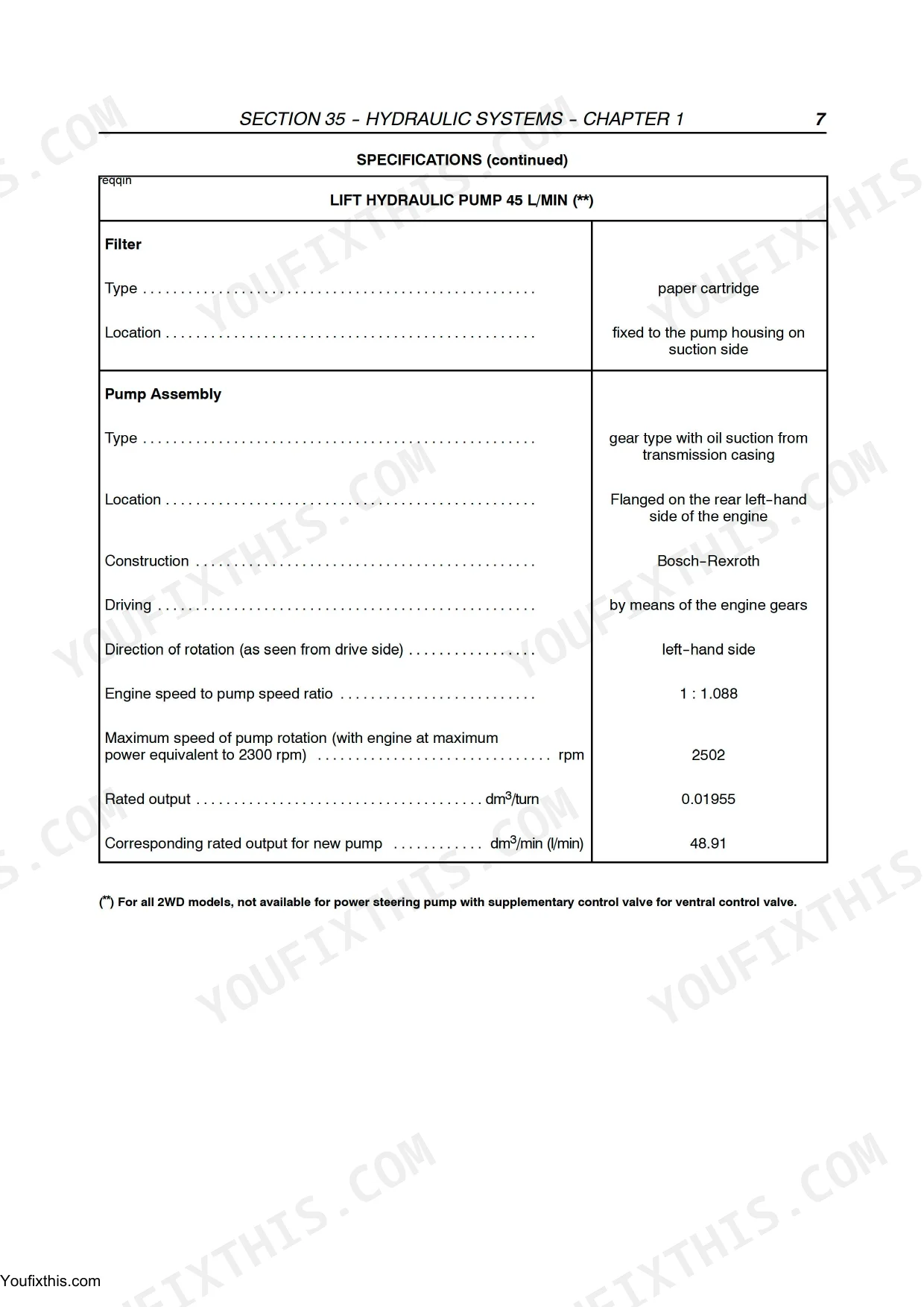

| Hydraulic System | Three-Point Hitch Lift, Draft and Position Control, Remote Control Valves, Pump, Pressure Testing and Adjustment, Overhaul | |
| Steering | Hydrostatic Power Steering, Steering Pump and Cylinder, Description and Operation, Fault Diagnosis, Overhaul | |
| Cab, Air Conditioning and Electrical System | Cab Heating and Air Conditioning, Wiring Diagrams, Starting and Charging Systems, Battery, Instruments, Sensors, Diagnostics |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All models | ||
| Engine | 4-cylinder diesel, 4485 cc, 16.5:1 compression | |
| Maximum Power Speed | 2300 rpm | |
| Fuel Tank Capacity | 127 liters (33.5 gal) | |
| Rear Transmission Oil Capacity | 50 L (mechanical) / 60 L (Power Shuttle) | |
| T5040 | ||
| Maximum Power Output | 76 hp | |
| T5050 | ||
| Maximum Power Output | 86 hp | |
| T5060 | ||
| Maximum Power Output | 97 hp | |
| T5070 | ||
| Maximum Power Output | 106 hp | |
| T5040-T5070 | ||
| Maximum Torque | 324 Nm (T5040) to 425 Nm (T5070) at 1300 rpm | |
New Holland T5040, T5050, T5060, T5070 Common Problems This Manual Covers
Tractor is stuck in four-wheel-drive or cannot engage 4WD.
A failed 4WD control module or actuator is the usual cause. The Front Axle and Four-Wheel Drive section covers the engagement control and actuator with the fault diagnosis, electrical checks and overhaul to restore normal 4WD switching.
Manual Section: Front Axle and Four-Wheel DriveTransmission slips or will not shift into a gear.
Damaged synchroniser teeth or an incomplete clutch release are the usual causes. The Clutch and Transmission section covers the clutch adjustment, the synchro and gear inspection and the overhaul with the reassembly torques.
Manual Section: Clutch and TransmissionHydraulic system cannot lift heavy loads.
Usually air in the hydraulic lines or contaminated oil, sometimes a tired pump. The Hydraulic System section covers the lift and remote valve pressure tests, bleeding and the pump overhaul to restore full lift capacity.
Manual Section: Hydraulic SystemEngine is down on power or runs rough.
The Engine and Fuel and Injection sections cover the BOSCH injection pump and injector testing, the compression test and the valve gear and top-end overhaul to find and fix a down cylinder or worn injection.
Manual Section: EngineFrequently Asked Questions
The tractor is stuck in four-wheel-drive or the 4WD will not engage - what does the manual cover?
That is usually a failed 4WD control module or actuator. The Front Axle and Four-Wheel Drive section covers the 4WD engagement, control and actuator with the fault diagnosis and overhaul to get the drive switching properly again.
The three-point hydraulic lift will not raise a heavy load - where do I start?
Usually air in the lines or contaminated oil. The Hydraulic System section covers the lift, draft and position control and the remote valves with the pressure tests and bleeding, plus the pump overhaul if it is worn.
Does it cover the mechanical and Power Shuttle transmissions?
Yes. The Clutch and Transmission section covers both the mechanical and Power Shuttle transmissions, the range and synchroniser gears, with the fault diagnosis and full overhaul including the shift and synchro problems.
Does this manual include the wiring diagrams for the T5040, T5050, T5060 and T5070?
Yes. The Cab, Air Conditioning and Electrical System section carries the wiring diagrams, the starting and charging systems, instruments, sensors and diagnostics, so you can trace an electrical fault properly.
What engine power do these models make?
All four use the same 4-cylinder 4485 cc diesel: the T5040 makes 76 hp, the T5050 86 hp, the T5060 97 hp and the T5070 106 hp, all at 2300 rpm. The full engine and torque data are in the General and Specifications section.
How will I receive this New Holland T5040, T5050, T5060, T5070 Repair Manual?
Immediate download of the complete 1752-page searchable Repair Manual (482 MB). Access it on any device, from a laptop at your desk to a phone in the field.
Can I print specific sections of this New Holland T5040, T5050, T5060, T5070?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
