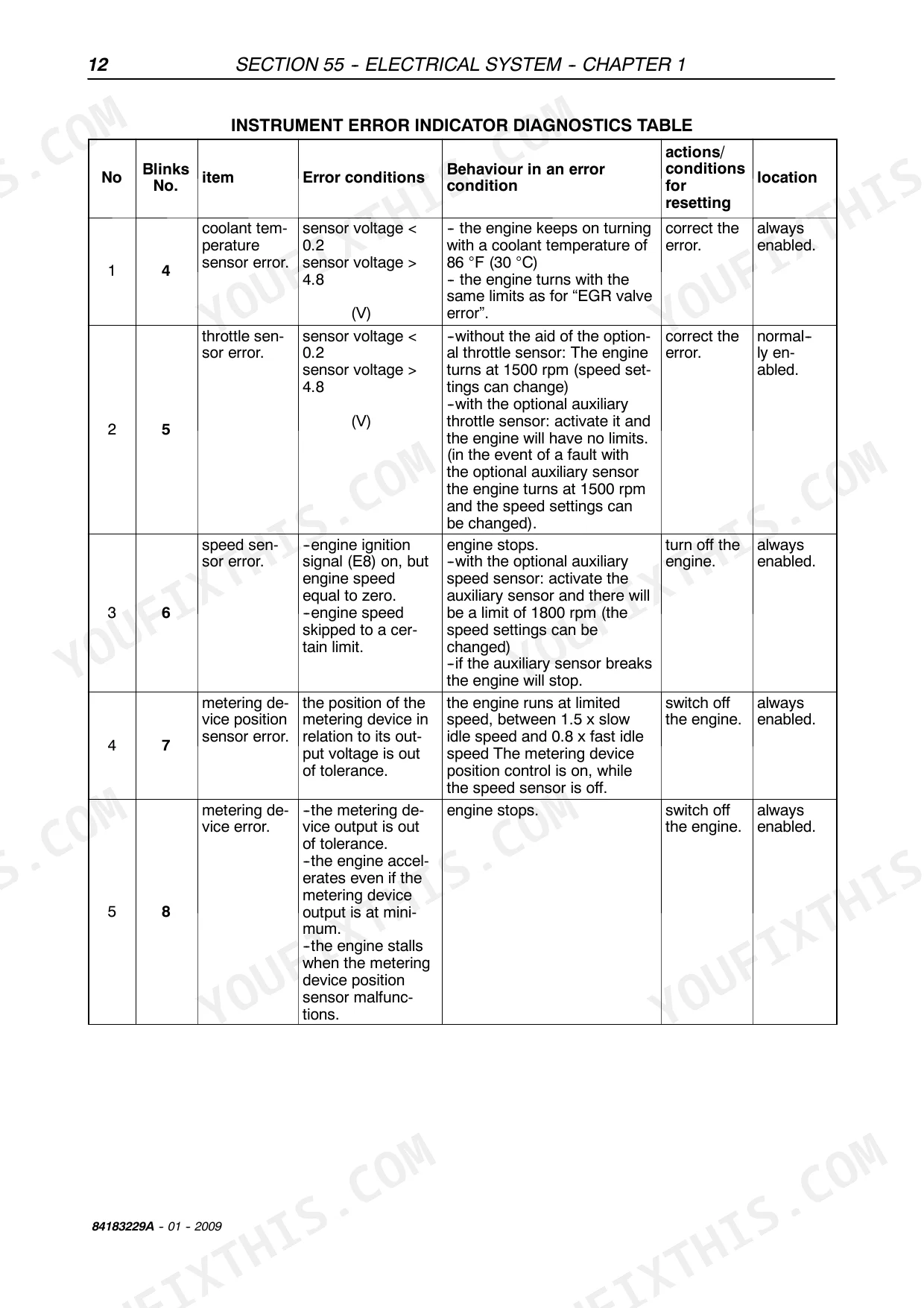

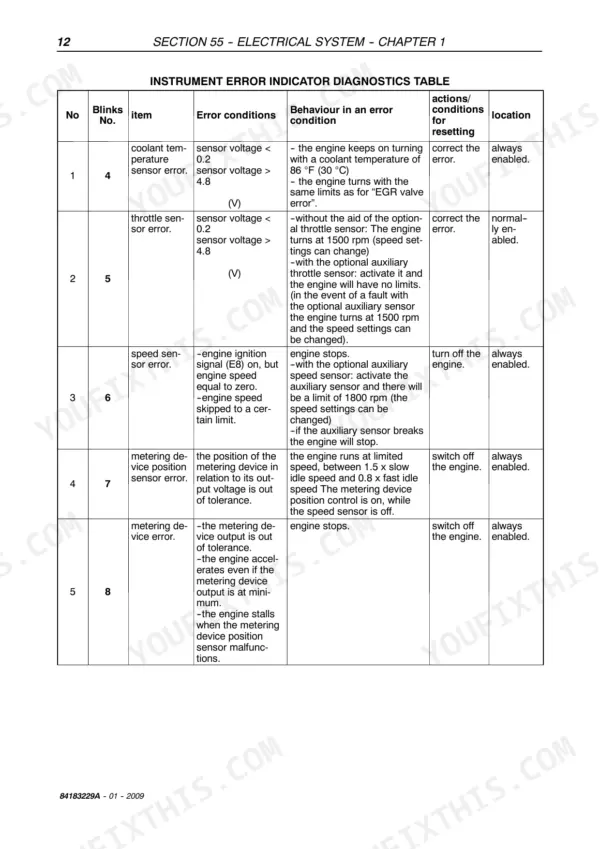

Looking for a New Holland T3030 service manual PDF? This 615-page factory service manual (OEM #84183229B) also covers the T3010, T3020, and T3040 tractors, from the engine block to the cab glass. Inside: wiring harness diagrams for the starting, charging, and instrumentation circuits, hydraulic lift and hydrostatic steering schematics, an error code section, and troubleshooting charts that walk you from symptom to fix. You also get step-by-step procedures for the clutch, transmission, front and rear axles, brakes, PTO, and cab air conditioning. Set cylinder head bolt torque between 85.3 and 91.2 Nm, and swap the PTO clutch driven plates once they wear past the 7.2 to 7.8 mm spec. The download is not just the service manual: three editions of the Operator's Manual (2007, 2009 and 2012) and a 627-page supplement covering the cab platform, climate control and the electrical system come with it. No more guessing from a forum thread while your tractor sits idle. Bookmarked and text-searchable; download it, pull it up on your phone, and get wrenching.
What's Inside This New Holland T3010, T3020, T3030, T3040 Manual
| System | Pages | Key Topics |
|---|---|---|
| General | 12-17 | General Instructions, Battery, Shimming, Rotating Shaft Seals, Sealing Compounds, Bearings |

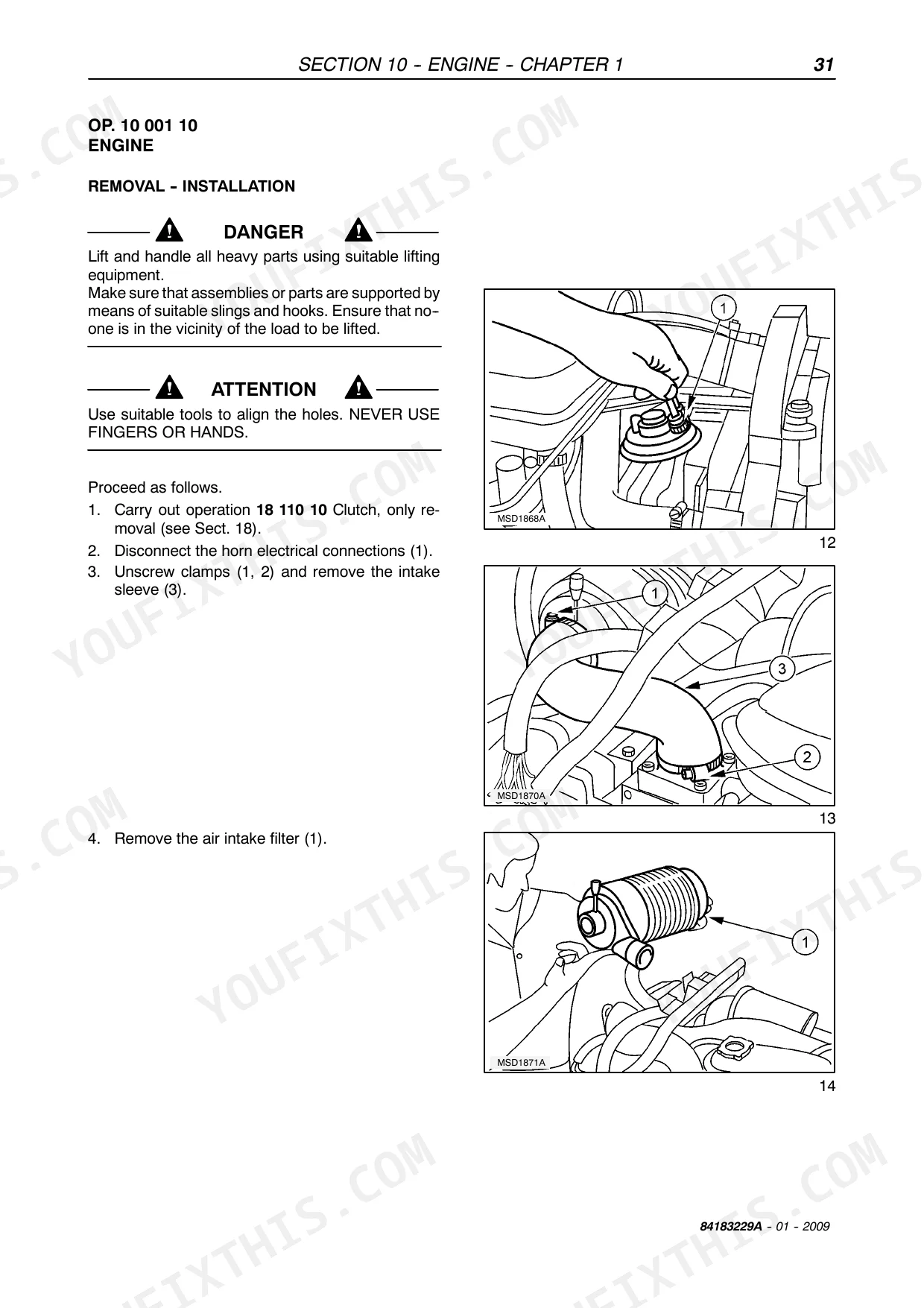

| Engine | 18-155 | General Specifications, Lubrication Circuit, Cooling Circuit, Injection Pump, Turbocharger, Cylinder Head |
| Clutch | 156-175 | General Specifications, Torque Settings, Clutch Adjustments, PTO Clutch Lever Adjustment |
| Transmissions | 176-203 | Mechanical Transmission, Gearbox Casing, Clutch Casing, Transmission Adjustment |
| Front Mechanical Transmission | 204-235 | Front Axle, Front Axle Differential, Bevel Drive, Front Reduction Unit, Axle Steering Cylinder |

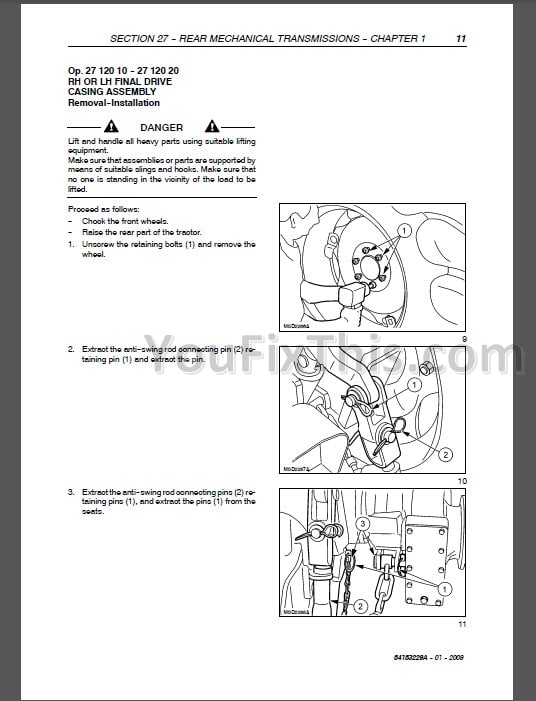

| Rear Mechanical Transmission | 236-259 | Rear Transmission, Gearbox Casing, Final Drive Casing, Drive Wheel Shaft, Bevel Drive Adjustments |
| Mechanical Power Take--Off | 260-269 | Mechanical Power Take-Off, Specifications, Torque Settings, Mechanical Power Take-Off Disassembly |
| Braking System | 270-281 | Specifications, Torque Settings, Brake Removal, Brake Installation, Brake Adjustments |

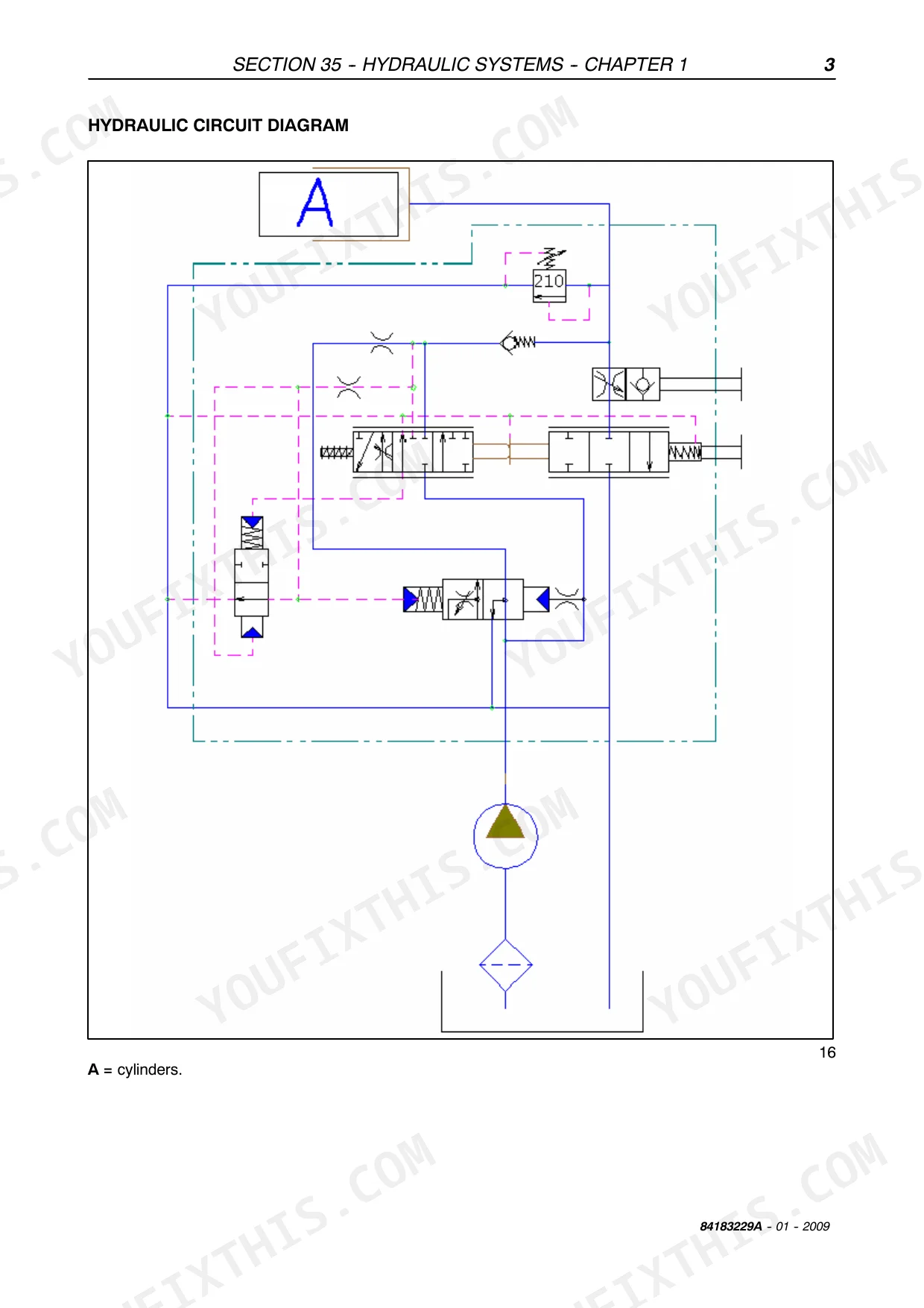

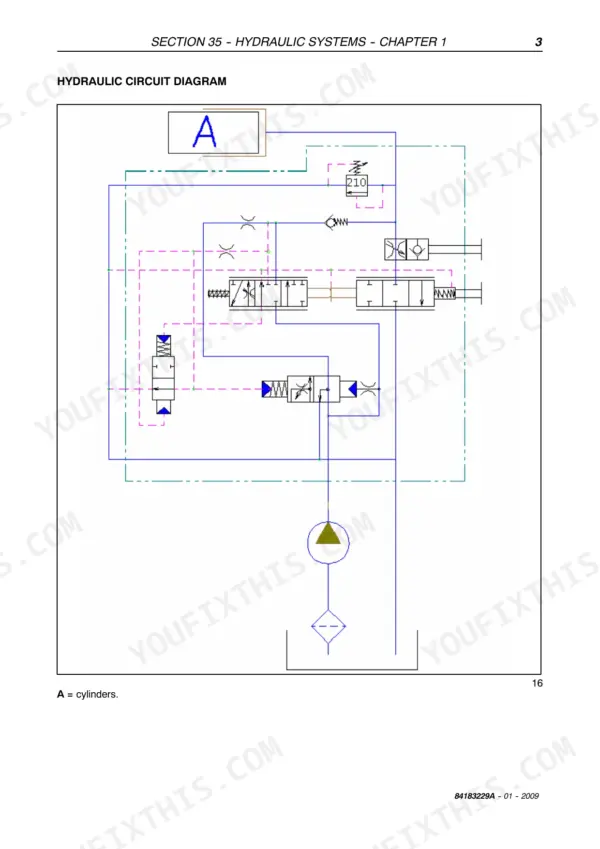

| Hydraulic Systems | 282-305 | Rear Mechanical Hydraulic Lift, Control Levers, Hydraulic Lift Control Valve, Open Centre Auxiliary Control Valves, Reaction Springs |
| Steering | 306-317 | Hydrostatic Steering, Gear Pump, Steering Cylinder, Pressure Adjustment Valve, Control Valve Body |
| Cab Air Conditioning System | 318-385 | Compressor, Condenser, Filter/Dryer, Thermostatic Expansion Valve, Evaporator, Thermostatic Switch |

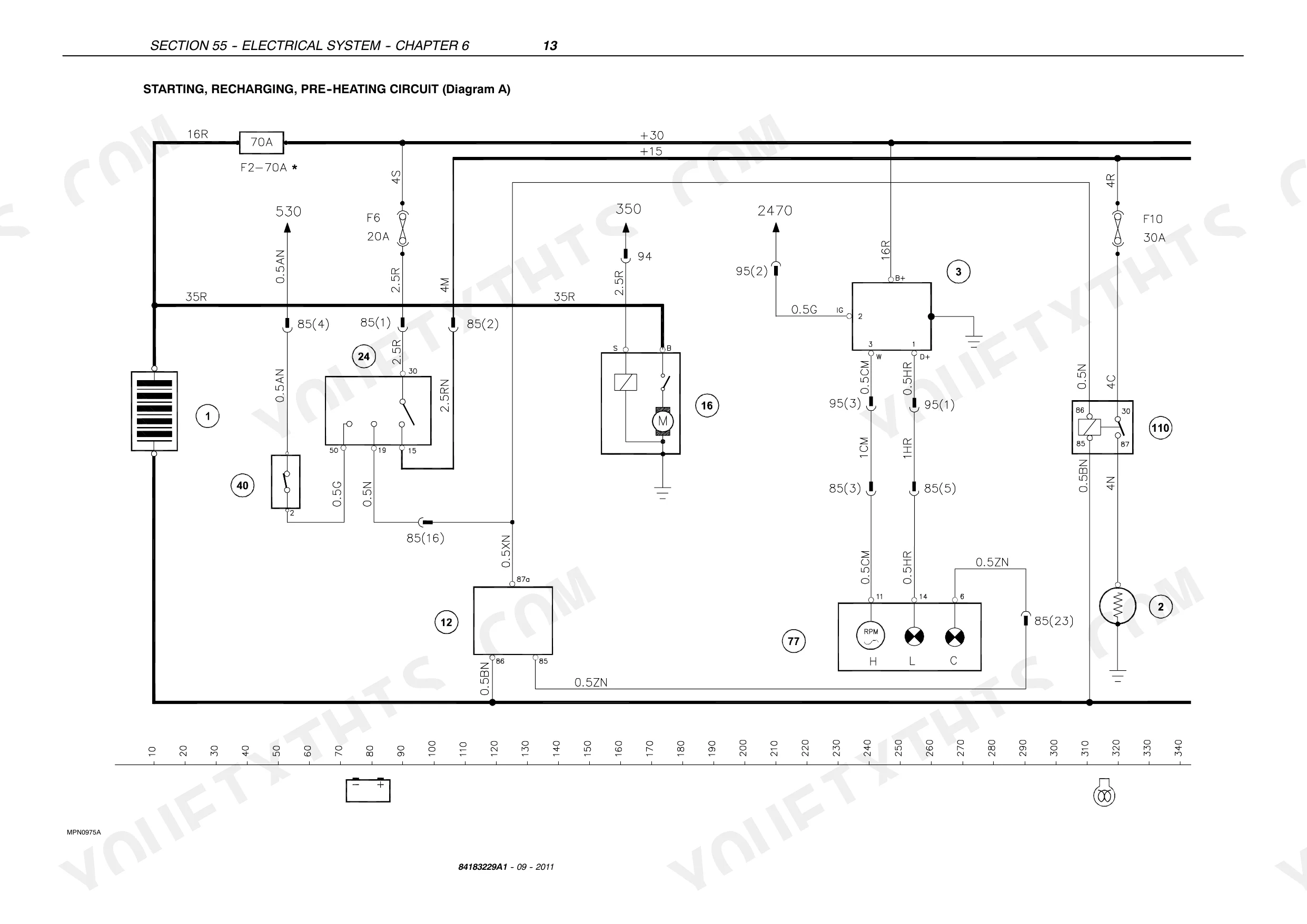

| Electrical System | 386-589 | Analog Instrumentation, Starting System, Charging System, Battery, Electrical Circuits, Wiring Harnesses |
| Cab | 590-615 | Bonnet, Side Panels, Instrument Panel Lower Guard, Cab Assembly, Platform, Cab Windows |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||

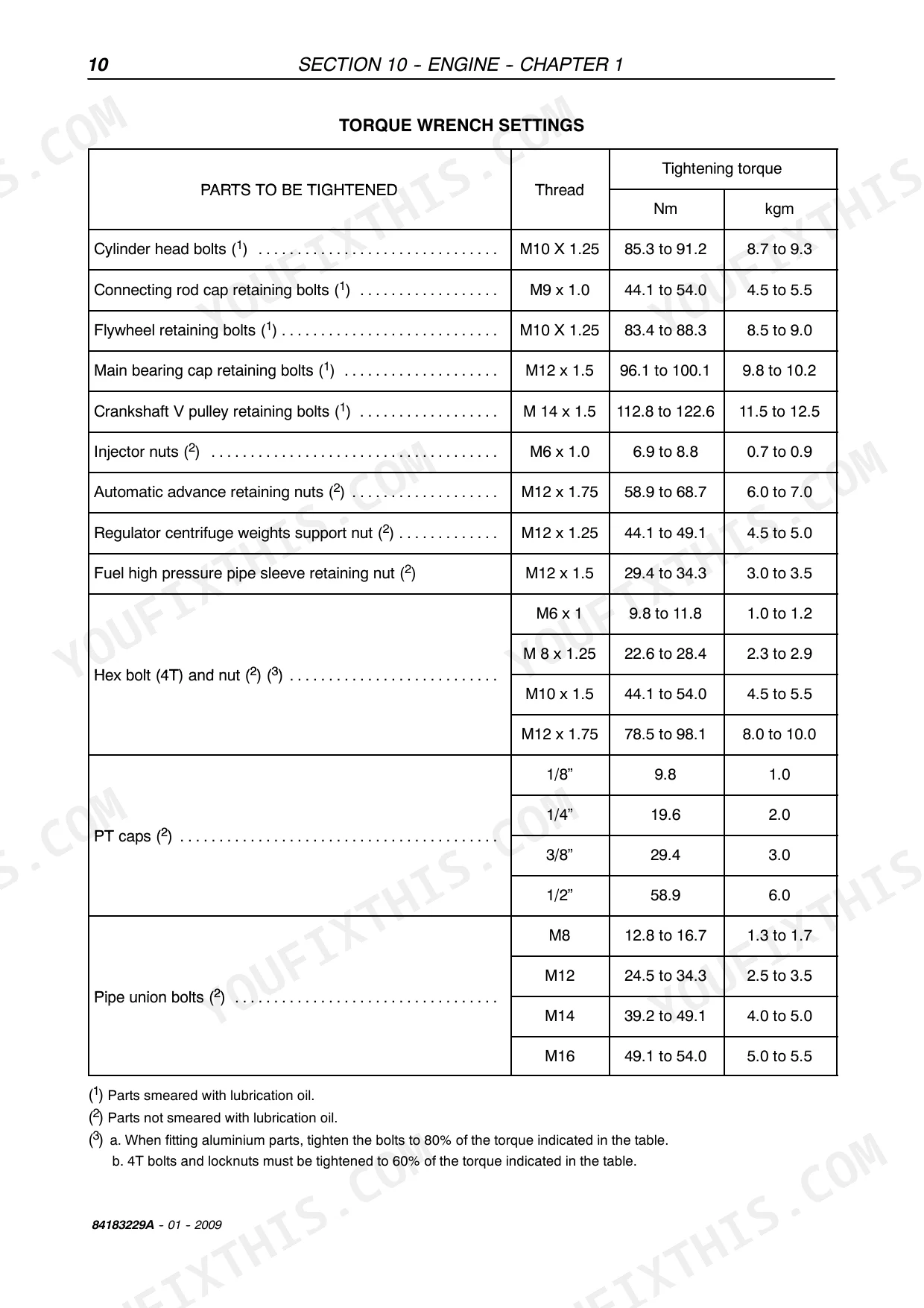

| Cylinder head bolts | 85.3 to 91.2 Nm | p. 27 |
| Clearance between the external rotor and the internal rotor - Clearance at wear limit | 0.15 mm | p. 24 |
| Driven plate thickness for PTO clutch | 0.2834 to 0.3070 in. (7.2 to 7.8 mm) | p. 156 |
| PTO clutch pedal idle travel | 0.9842 to 1.1811 in. (25 to 30 mm) | p. 175 |
| arm lift safety travel | 10 to 15 mm | p. 291 |
| Starter motor power | 1.2 kW | p. 408 |
| Maximum current absorbed without load | 60 A at 11.7 V and 7000 rpm | p. 408 |
| Voltage | 12 V | p. 426 |
| Capacity | 60 Ah | p. 426 |
| T3010 | ||
| Engine Oil Capacity (T3010) | 6.7L | p. 20 |
| Coolant Tank Capacity (T3010) | 2.0L | p. 20 |
| T3020, T3030, T3040 | ||
| Engine Oil Capacity (T3020/T3030/T3040) | 7.4L | p. 21 |
New Holland T3010, T3020, T3030, T3040 Common Problems This Manual Covers
New Holland T3040 engine won't start or cranks slowly, worse on cold mornings
Test the battery first; it must hold 12 V and the full 60 Ah rated capacity listed on page 426 under load. Clean and tighten both ground straps before condemning the starter. Bench-test the 1.2 kW starter motor next; maximum no-load draw is 60 A at 11.7 V and 7000 rpm per the specs on page 408.
Manual Section: Electrical System p. 426Rear hydraulic lift raises slowly, jerks under load, or arms drop with implement attached
Check hydraulic oil level and condition before touching anything else; milky or dark oil means water or clutch debris, so drain and refill. Bleed air from the suction side and clean the intake screen. Verify lift arm safety travel measures 10 to 15 mm per the adjustment procedure on page 291, and reset the control valve linkage if it doesn't.
Manual Section: Hydraulic Systems p. 291PTO slips and loses speed under load, hard to select PTO speed
Measure PTO clutch pedal idle travel first and adjust the linkage until you get 25 to 30 mm as specified on page 175. If slipping continues after adjustment, split the tractor and measure the driven plate; replace it if worn below the 7.2 to 7.8 mm thickness range on page 156. Check the facings for oil contamination while you're in there.
Manual Section: Clutch p. 175Clutch slips on hills, pedal feels stiff, sticks and drags when shifting
Check pedal free play and linkage adjustment before pulling anything apart; a dragging or slipping clutch on these tractors usually needs adjustment, not parts. If you do split the tractor, inspect the release bearing and pressure plate fingers, and torque the clutch housing retaining nuts to 117 to 129 Nm on reassembly per the chart on page 156.
Manual Section: Clutch p. 156Engine overheats and loses power during heavy fieldwork, black smoke under load
Work through the engine troubleshooting chart that starts on page 40. Blow out the air filter element and radiator core, check fan belt tension, and pressure-test the cooling system for leaks. If the head gasket is weeping, resurface the head and retorque the cylinder head bolts to 85.3 to 91.2 Nm per the torque specs on page 27.
Manual Section: Engine p. 40Frequently Asked Questions
What are the torque specifications for the cylinder head bolts on the T3010, T3020, T3030, and T3040 tractors?
The cylinder head bolts for these tractor models must be tightened to a torque value between 85.3 and 91.2 Nm (8.7 to 9.3 kgm). p. 27
What is the correct procedure for checking the alternator drive belt tension on a tractor without a cab?
To check the tension, apply a load of 98 to 118 N (22.04 to 26.45 lbf) to the center of the belt run. The belt should deflect by 10 to 15 mm (0.39 to 0.59 in). p. 421
What is the recommended lubrication oil for the engine on these tractors?
The recommended lubrication oil for the engine is AMBRA SUPER GOLD. p. 20
What is the valve clearance for the intake and exhaust valves on the T3010, T3020, and T3030 engines?
The valve clearance for both intake and exhaust valves, when the engine is cold, should be between 0.15 and 0.25 mm. p. 24
What is the procedure for checking the working pressure of the hydraulic lift?
To check the working pressure for auxiliary control valves, insert the union 380000554 into a quick-fit female half-coupling and connect it to a 0 to 250 kg/cm2 pressure gauge. The pressure should be between 2682 and 2755 psi (185 to 190 bar). p. 298
Will this New Holland T3010–T3040 Series Service Manual download right away?
Yes, instant download after payment. The download is not only the service manual: it also carries three editions of the Operator's Manual for these tractors and the separate supplement New Holland issued for the cab platform, climate control and electrical system. Open any of them on a laptop, tablet or phone.
Can I print a copy of this New Holland T3010–T3040 Series manual for the shop?
Yes. No DRM, nothing blocks printing, so run off the pages you need on whatever printer you have.
