Looking to completely rebuild your engine? This 52-page Yanmar TF Series service manual pdf breaks down every internal component for the TF50, TF50-H, TF60, TF60-H, and TF70. You get high-quality exploded views of the cylinder head assembly, complete teardown instructions for the crankshaft, and a dedicated troubleshooting guide for diagnosing engine knocks or poor starting. Open to the service standards section to check exact tolerances for the fuel injection pump and piston rings. Verify the lubricating oil pump outer rotor clearance sits strictly between 0.120 and 0.161 mm, then torque the cylinder head bolts to exactly 9.50 - 10.50 kg-m. Quit wasting hours hunting down engine specs on forums. Download this bookmarked file straight to your phone and get the right numbers in seconds.
What's Inside This Yanmar TF series Manual
| System | Pages | Key Topics |
|---|---|---|
| External Views | 5 | Tf (Radiator), Tf-H (Hopper), Tf-L (Lighting Device), Tf-E (Electric Starting) |
| Sectional Views | 6 | - |

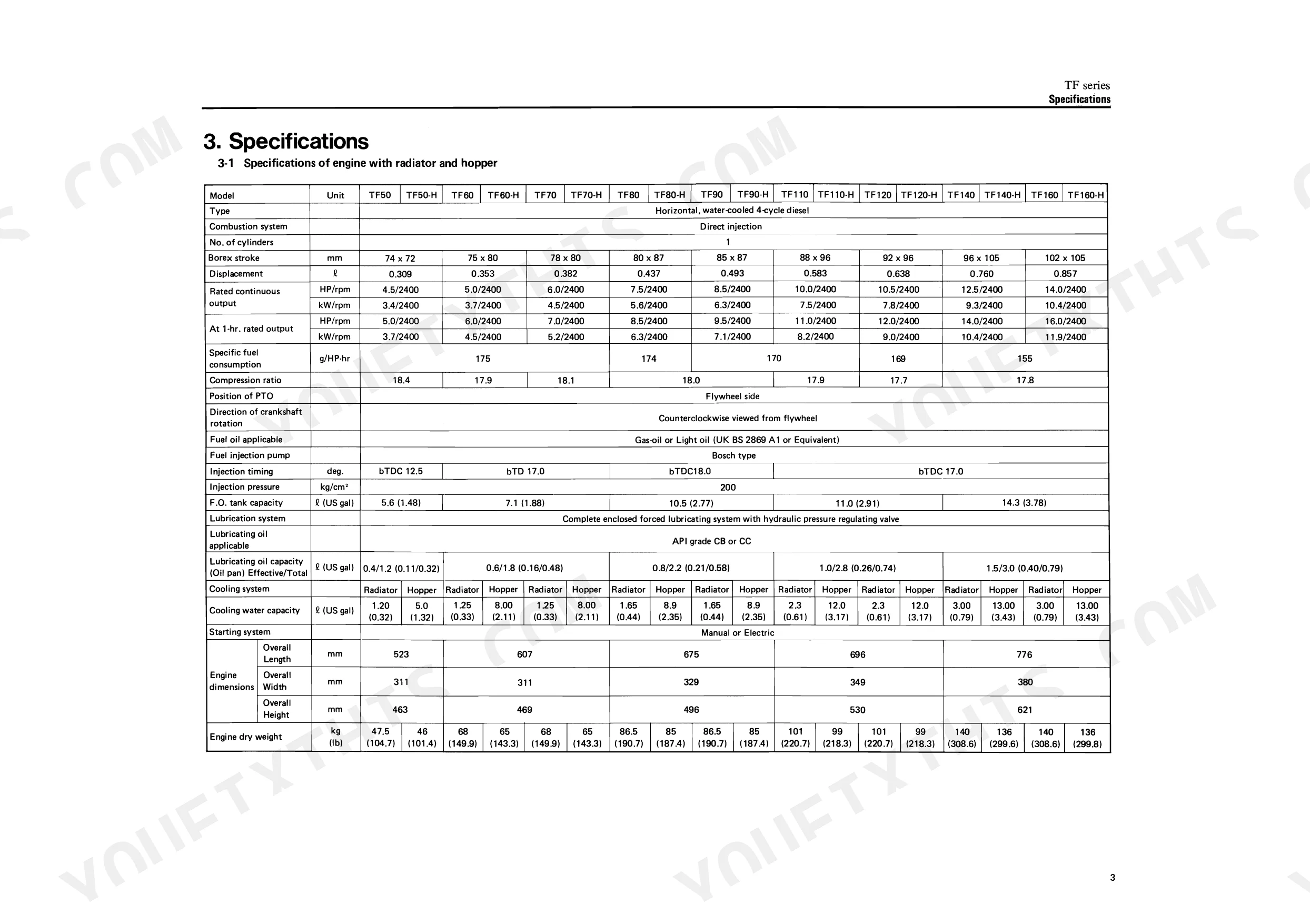

| Specificatios | 7-8 | Specifications of Engine with Radiator and Hopper, Specifications of Engine with Electric Starter and Lighting Device |

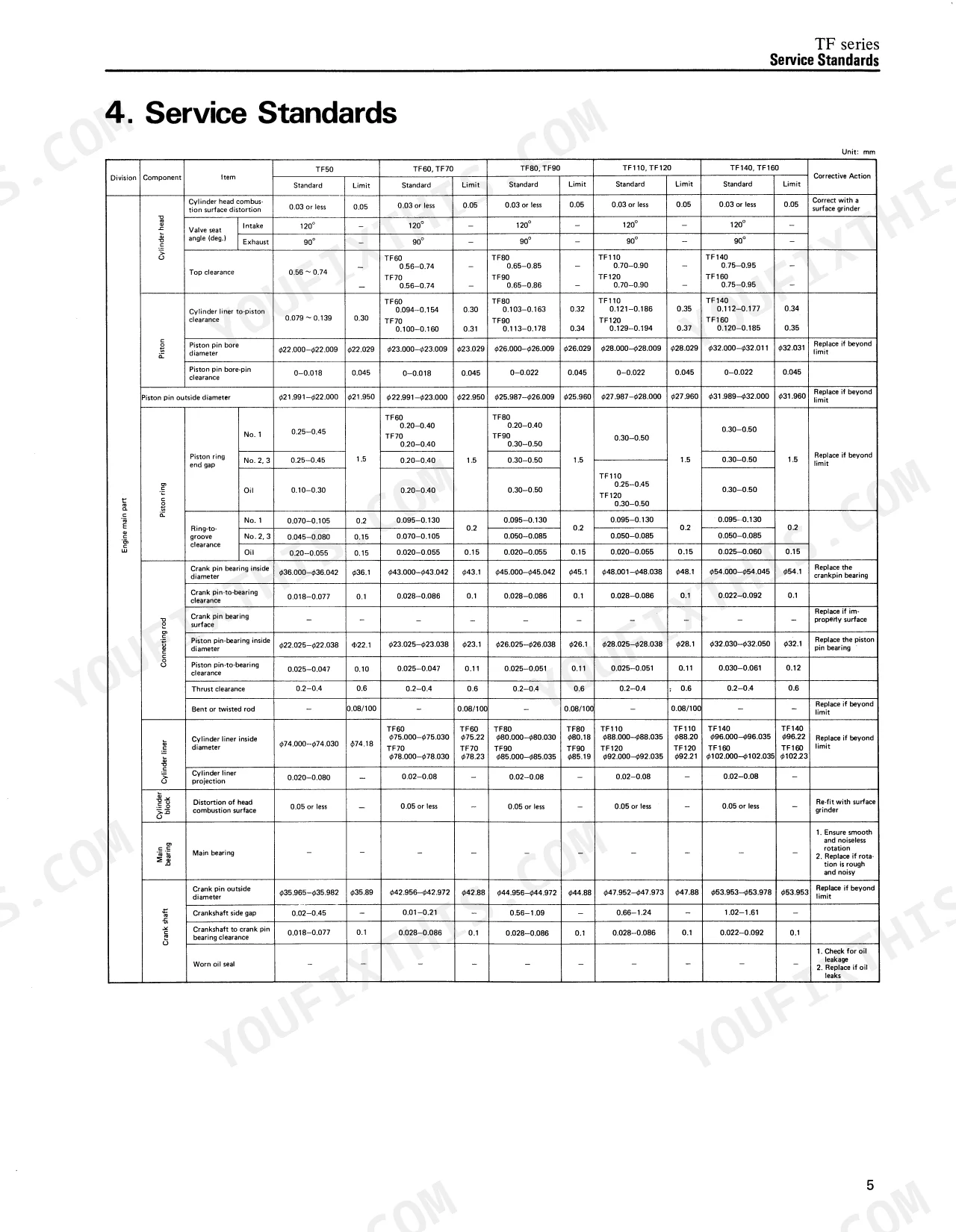

| Service Standards | 9-11 | Cylinder Head, Piston, Crank Shaft, Cam Shaft, Fuel System, Electric Appliances |
| Main Bolt/Nut Tightening Torques | 12 | Balance Weight Bolt, Connecting Rod Bolt, Cylinder Head Clamp Bolt, Flywheel End Nut, Fuel Injection Pump Delivery Valve Holder, Standard Bolt Tightening Torque |

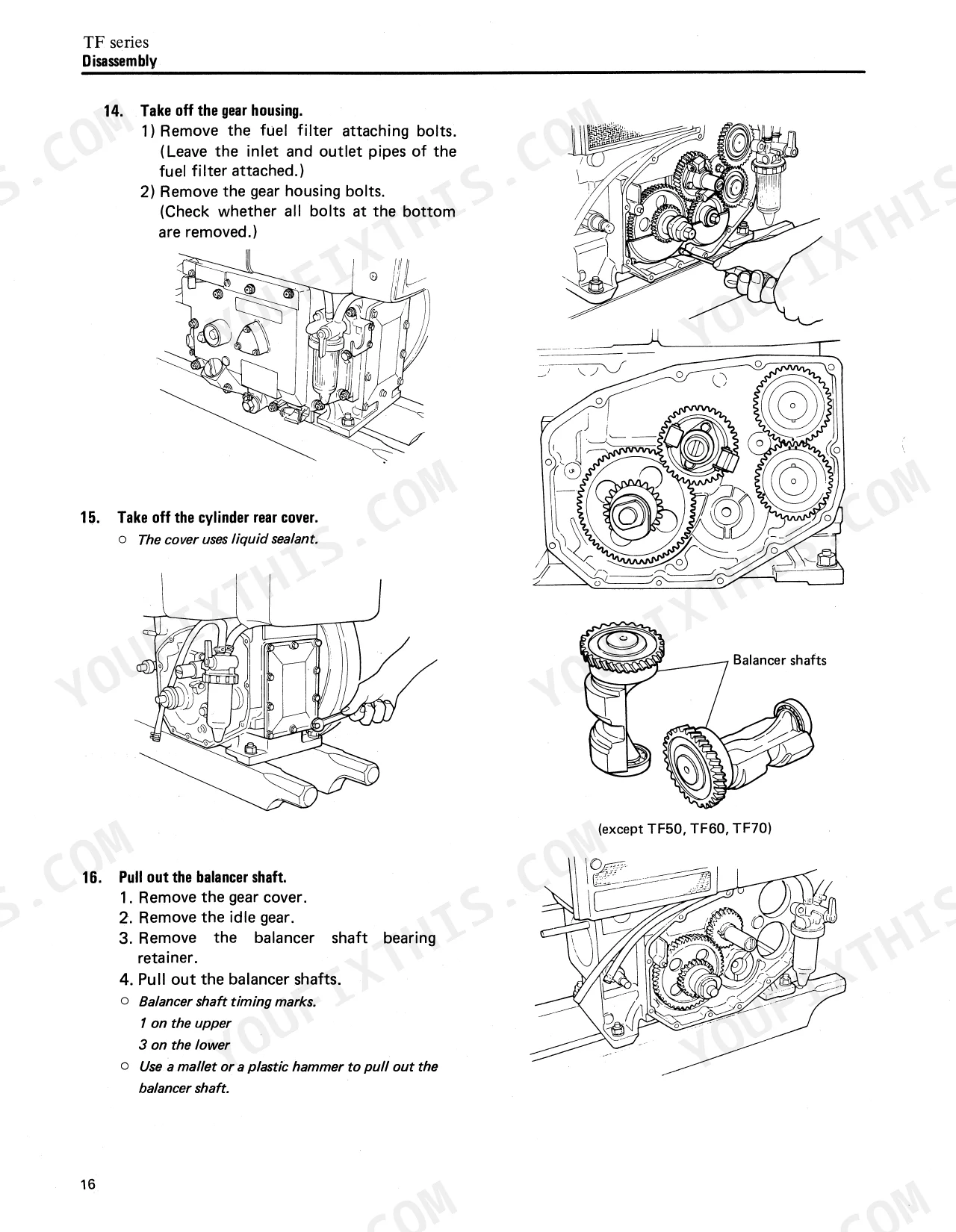

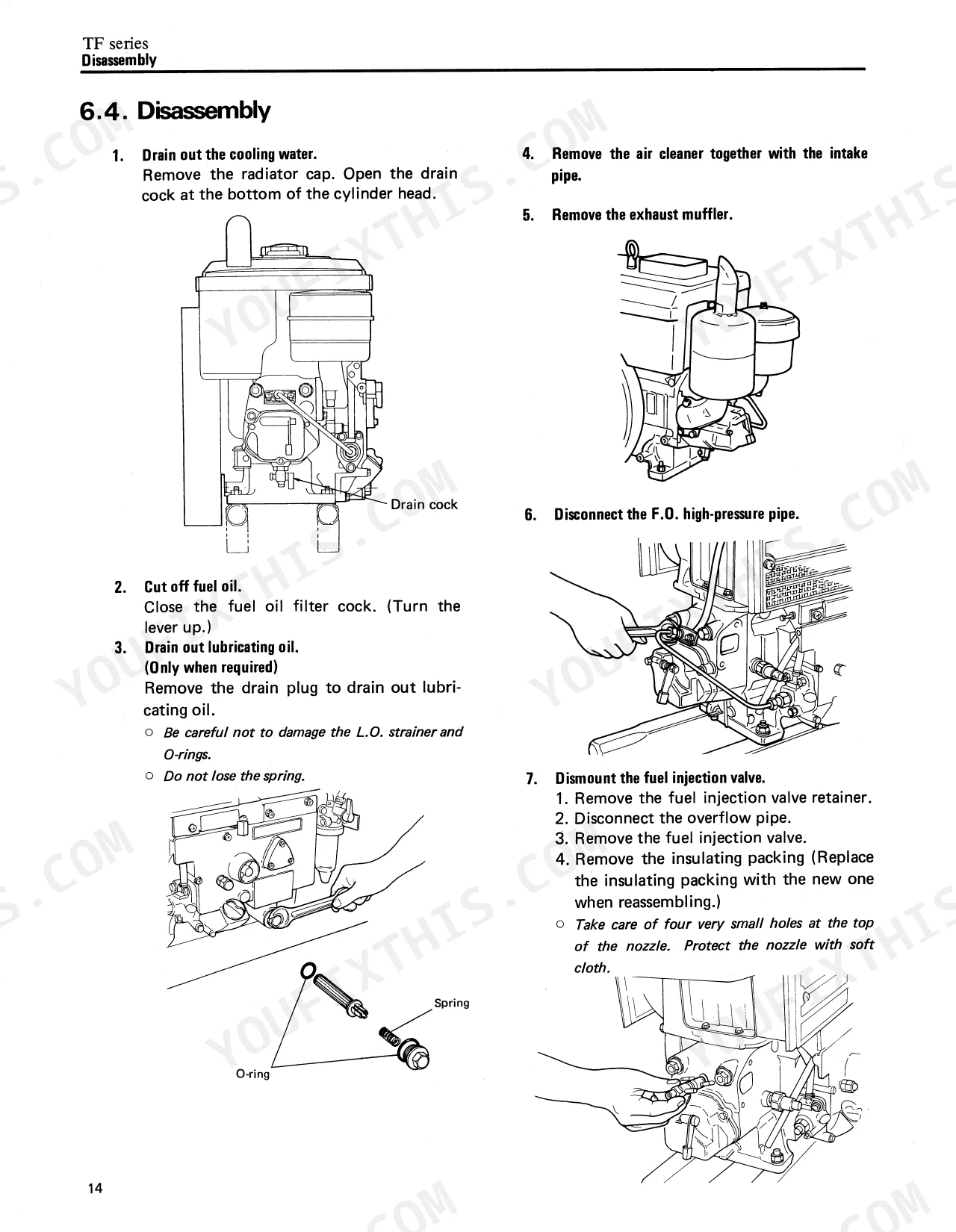

| Disassembly and Reassambly | 13-27 | Preparation for Disassembly and Reassembly, Disassembling/Assembing Tools, Meters, Instruments and Service Accessories, Disassembly, Reassembly |
| Inspection and Servicing | 28-44 | Cylinder Head, Intake and Exhaust Valves, Cylinder Liner, Piston, Crankshaft, Connecting Rod, Camshaft, Tappet |
| Maintenance Schedule | 45 | Fuel System, Lubricating Oil System, Cooling Water System, Air Cleaner, Items Associated with Cylinder Head, Fuel Injection Valve |

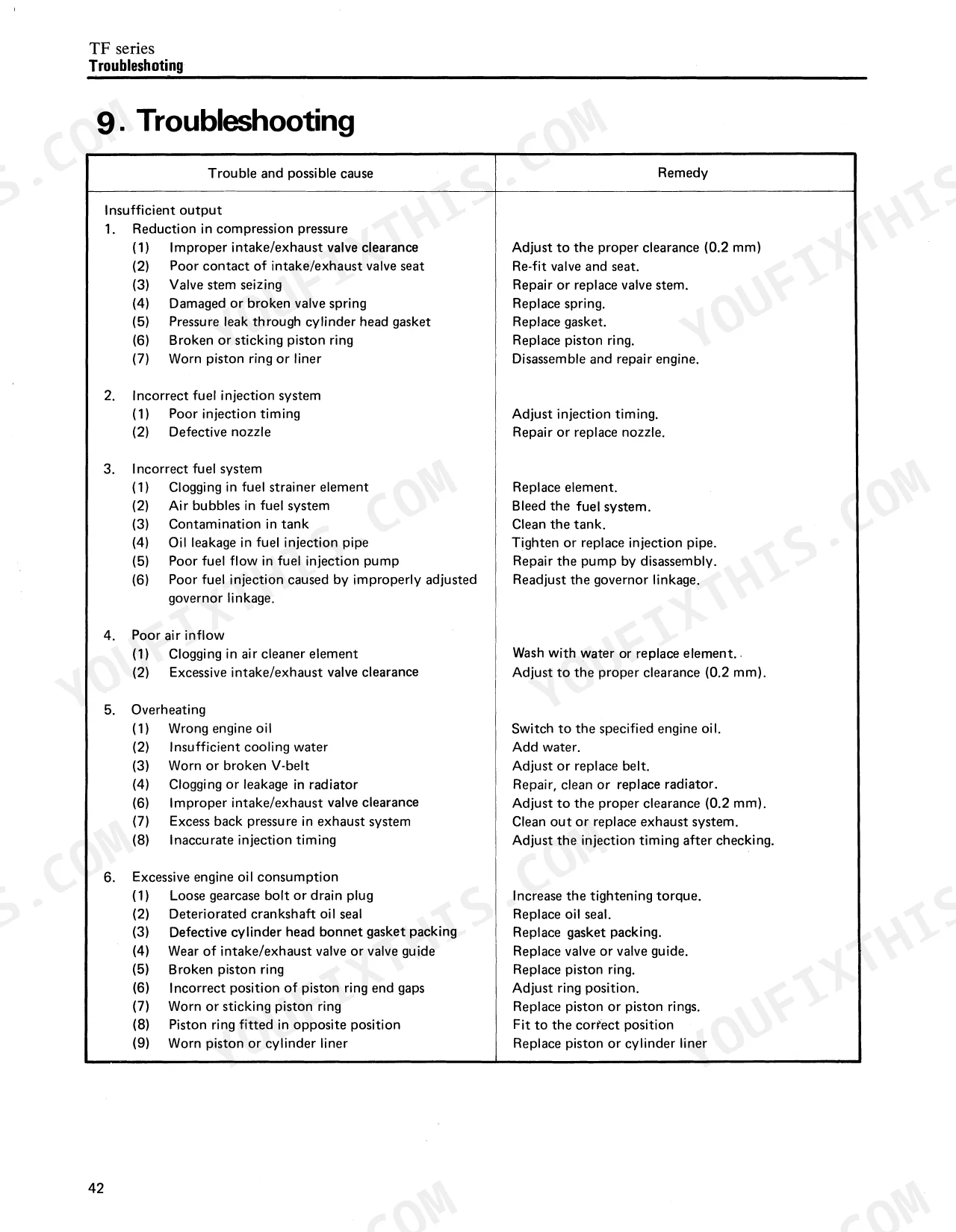

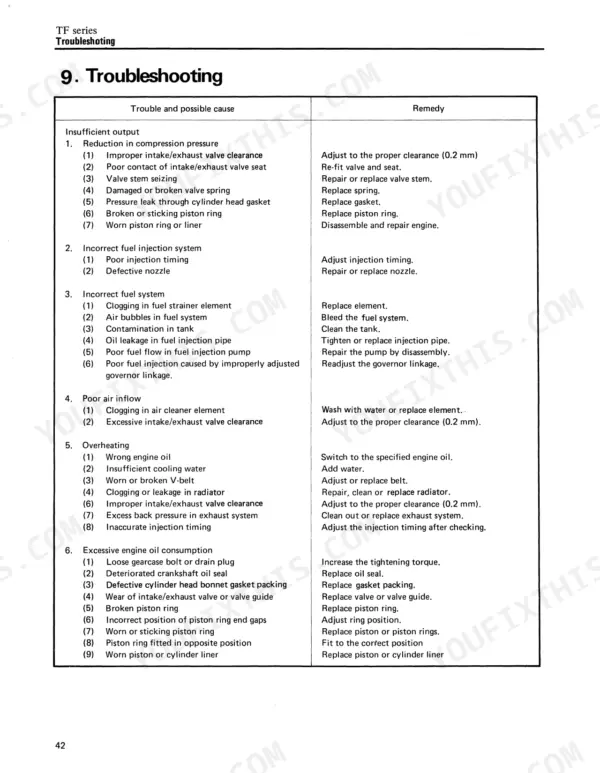

| Troubleshooting | 46-51 | Insufficient Output, Overheating, Excessive Engine Oil Consumption, Poor Starting, Engine Knock, Fault Diagnosis by Exhaust Smoke |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Cylinder head bolt tightening torque (TF50, TF60, TF70, TF80, TF90) | 9.50 - 10.50 kg-m | p. 27 |
| Cylinder head bolt tightening torque (TF110, TF120) | 13.10 - 14.10 kg-m | p. 27 |
| Fuel filter element cleaning interval | Every 300 hours of service | p. 43 |
| Fuel filter element replacement interval | Every 600 hours of service | p. 43 |
| Lubricating oil pump outer rotor to pump body clearance (TF50 Standard) | 0.120-0.161 mm | p. 44 |
| Lubricating oil pump outer rotor to pump body clearance (TF60, TF70, TF80, TF90 Standard) | 0.100-0.151 mm | p. 44 |
| Fuel pump clamping nut tightening torque (TF50) | 2.30-2.90 kg-m | p. 12 |
| Fuel injection pump delivery valve holder tightening torque (TF50-TF120) | 4.00-4.50 kg-m | p. 12 |
| Starting motor type and output | 12 V-1.2 kW | p. 11 |
| Starting motor brush spring force (Standard) | 1.4-1.8 kg-mm | p. 11 |
| TF50 Rated Continuous Output | 4.5 HP/2400 rpm | p. 7 |
| TF50 Connecting Rod Bolt Torque | 2.20-2.40 kg-m | p. 12 |
Yanmar TF series Common Problems This Manual Covers
Yanmar TF series engine cranks but will not start or starts poorly after long storage. p. 47
Check the fuel injection pressure according to page 41. Verify the pressure reaches 200-210 kg/cm². If the reading is low, remove the fuel injection valve and inspect the components. Ensure the case nut is torqued to 7.00-7.50 kg-m as shown on page 42 before reinstalling.
Manual Section: Poor StartingEngine bogs down under heavy load or exhibits surging and loss of power. p. 46
Inspect the fuel delivery system and verify the internal cleaning of the fuel filter was done at the recommended interval of every 300 hours of service, as noted on page 43. Drain the bowl, clean the element, and bleed the lines to restore proper fuel flow.
Manual Section: Insufficient OutputRapid coolant temperature rise under normal operating load or sudden and severe engine overheating. p. 51
Test the cooling fan belt tension and adjust if necessary. Measure the V-belt standard deflection amount as detailed on page 44 to ensure it falls exactly between 15-20 mm. Replace the belt if it appears glazed or cracked to prevent continuous slip and high temperatures.
Manual Section: Cooling System OverheatingRough combustion, continuous misfiring, and poor performance accompanied by excessive black exhaust smoke. p. 49
Measure the intake and exhaust valve clearance using a feeler gauge. Adjust the clearance to exactly 0.15 mm as specified on page 10. If the smoke persists, verify the cylinder head clamp bolts are tightened to 9.50 - 10.50 kg-m according to the torque chart on page 27.
Manual Section: Fault Diagnosis by Exhaust Smoke (Running Issues)Frequently Asked Questions
How do I bleed air from the fuel system on a YANMAR TF series engine?
The manual indicates that bleeding the fuel system is a remedy for air bubbles in the fuel pipe, which can cause the engine to be difficult to start or not start without exhaust smoke. However, it does not provide a step-by-step procedure for how to perform the bleeding operation.
What are the torque specs for the cylinder head bolts on a YANMAR TF engine?
The cylinder head bolt tightening torque varies by model: TF50, TF60, TF70, TF80, TF90 models require 9.50-10.50 kg-m; TF110, TF120 models require 13.10-14.10 kg-m; and TF140, TF160 models require 19.00-21.00 kg-m. These torques are specified for reassembly.
How do I adjust valve clearance on a YANMAR TF series diesel engine?
Valve clearance should be adjusted to 0.2 mm for TF60-160 models and 0.15 mm for TF50 models, using a thickness gauge. This adjustment is performed during reassembly and after every 300 hours of operation.
What are the replacement specifications for fuel filters?
The fuel filter element should be replaced regularly after every 600 hours of service, or earlier if it shows signs of internal contamination, deformation, or damage. The filter should also be cleaned every 300 hours.
What is the recommended lubricating oil change interval for a YANMAR TF engine?
For the initial oil change after purchase, the oil should be changed after 40 hours for CB models and 50 hours for CC models. Subsequent oil changes are recommended every 80 hours for CB and every 100 hours for CC models.
Is this Service Manual a digital download?
Instant PDF download. You get the full 52-page searchable Service Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Can I print specific sections of this Service Manual?
No copy protection at all. The PDF is DRM-free, so print whatever sections you need to take to the shop. Standard letter or A4 paper works.
Document Quality
This document is a scanned PDF with an OCR layer, allowing you to search and copy the full text. The text quality is generally crisp and readable, though some pages show minor scan artifacts like faint vertical lines or slight blur. Diagrams and illustrations are raster images, which will pixelate upon high zoom, but their labels are consistently readable. Pages are mostly clean, with some slight skewing visible on a few pages. All pages contain relevant content.
