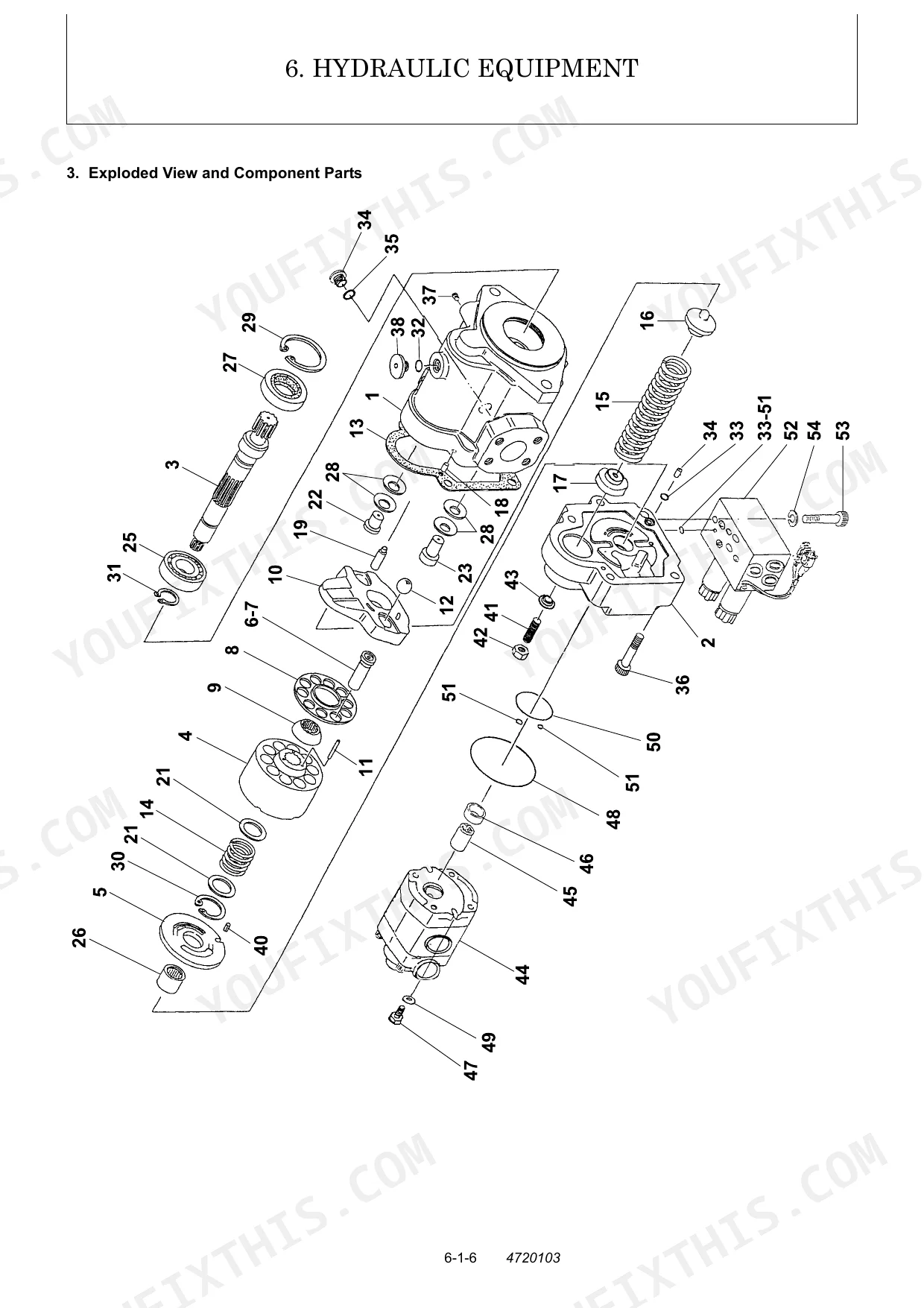

All 477 pages of this Yanmar ViO30-2, ViO35-2 service manual PDF focus on one thing: getting your excavator back to factory condition. Open this digital reference to find complete hydraulic schematics detailing circuit operations, clear wiring diagrams for the electrical equipment, and detailed exploded views of the undercarriage systems. You get dedicated sections for engine service data, fuel injection troubleshooting, and proper seal handling techniques. Lock down the boom cylinder U nut between 1030 and 1130 N-m, and properly fasten the travel motor to the track frame at 78.5 to 98.1 N-m. Every hour in the shop costs money. Download the file, jump straight to any section using the built-in bookmarks on your tablet, and finish your repair right the first time.

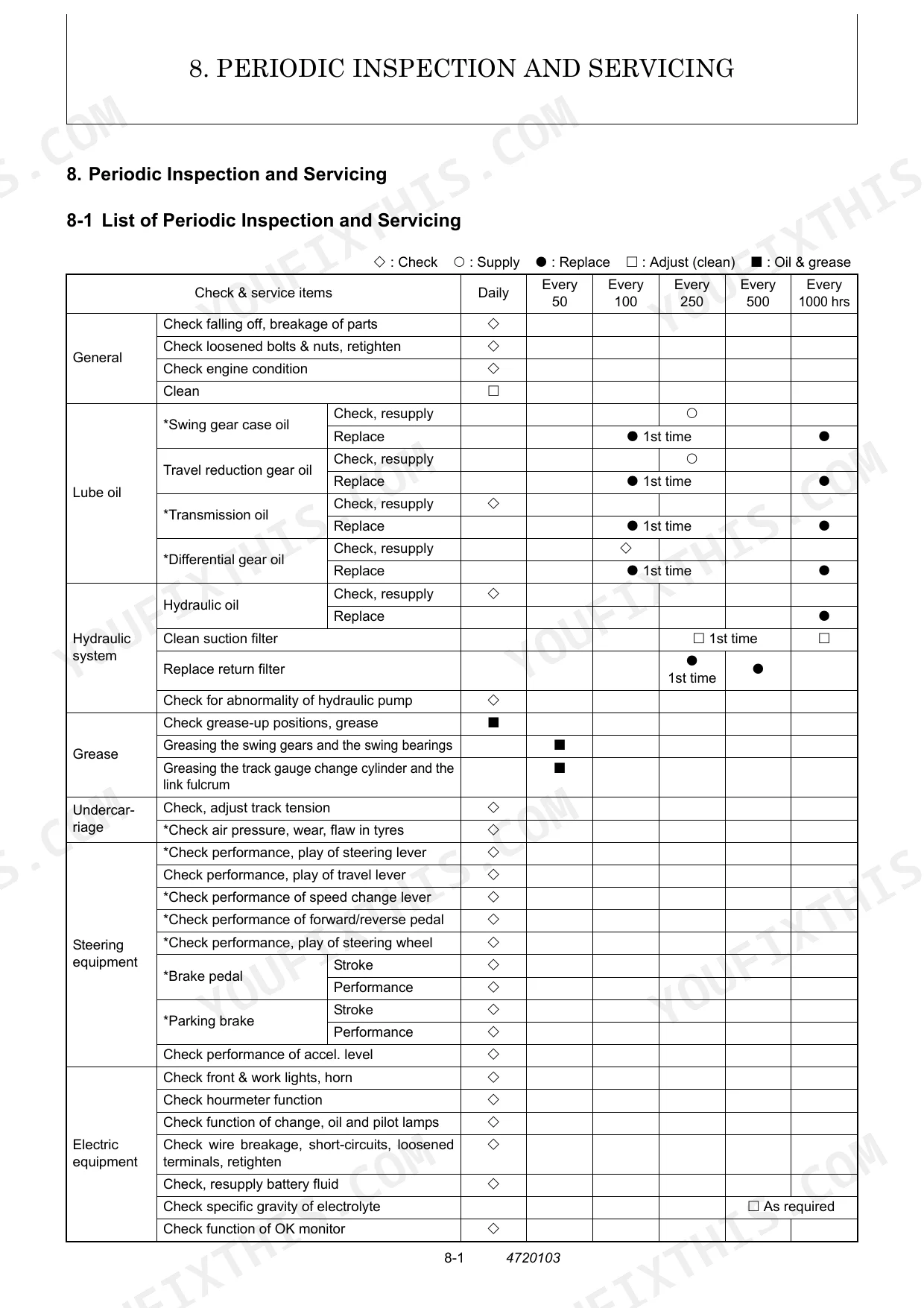

What's Inside This Yanmar ViO30-2, ViO35-2 Manual
| System | Pages | Key Topics |
|---|---|---|
| General Cautions for Maintenance Work | - | Correct Work, Safety Precautions, Preparations, Cautions for Disassembly and Reassembly, Cautions for Removal and Installation of Hydraulic Equipment |

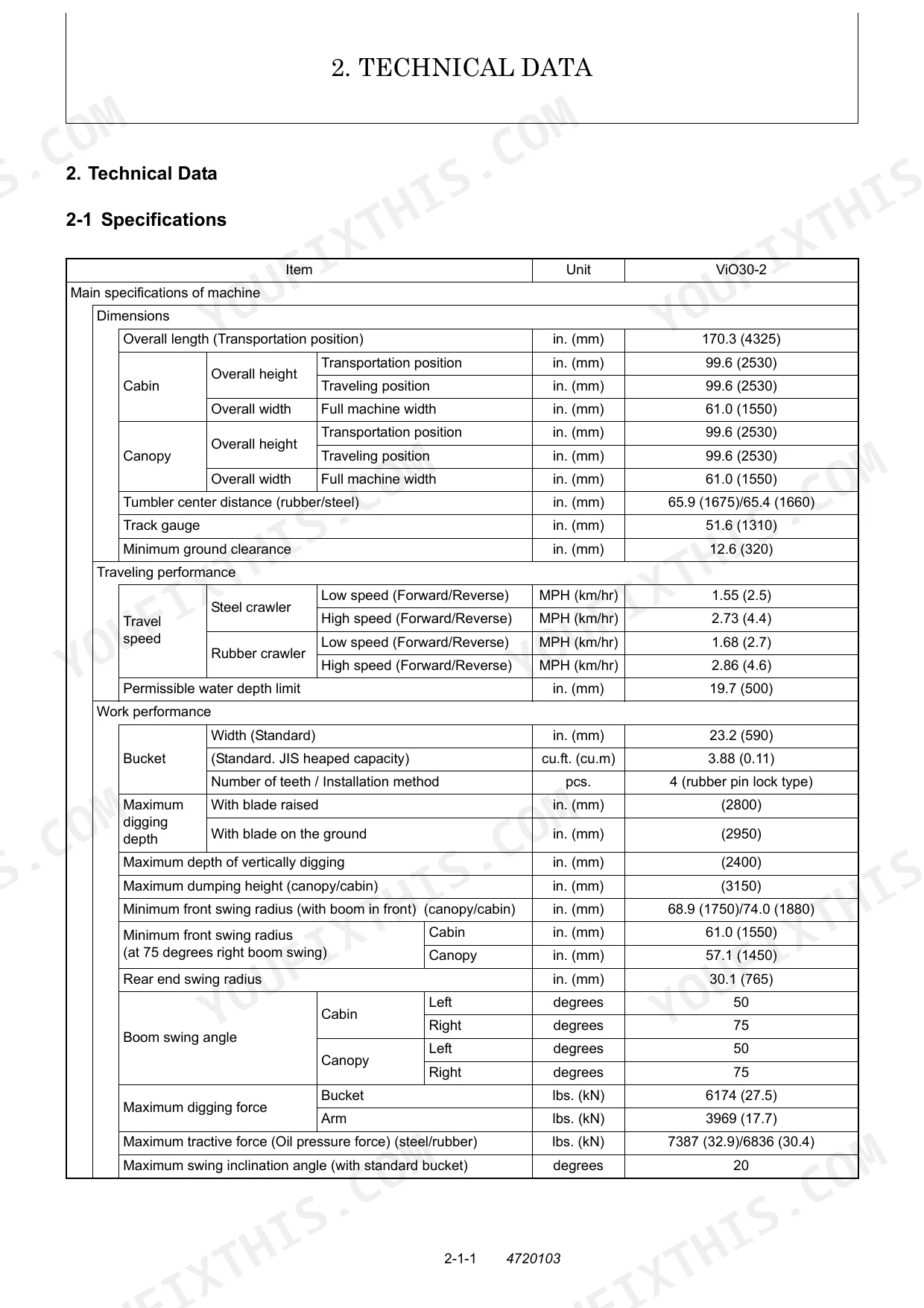

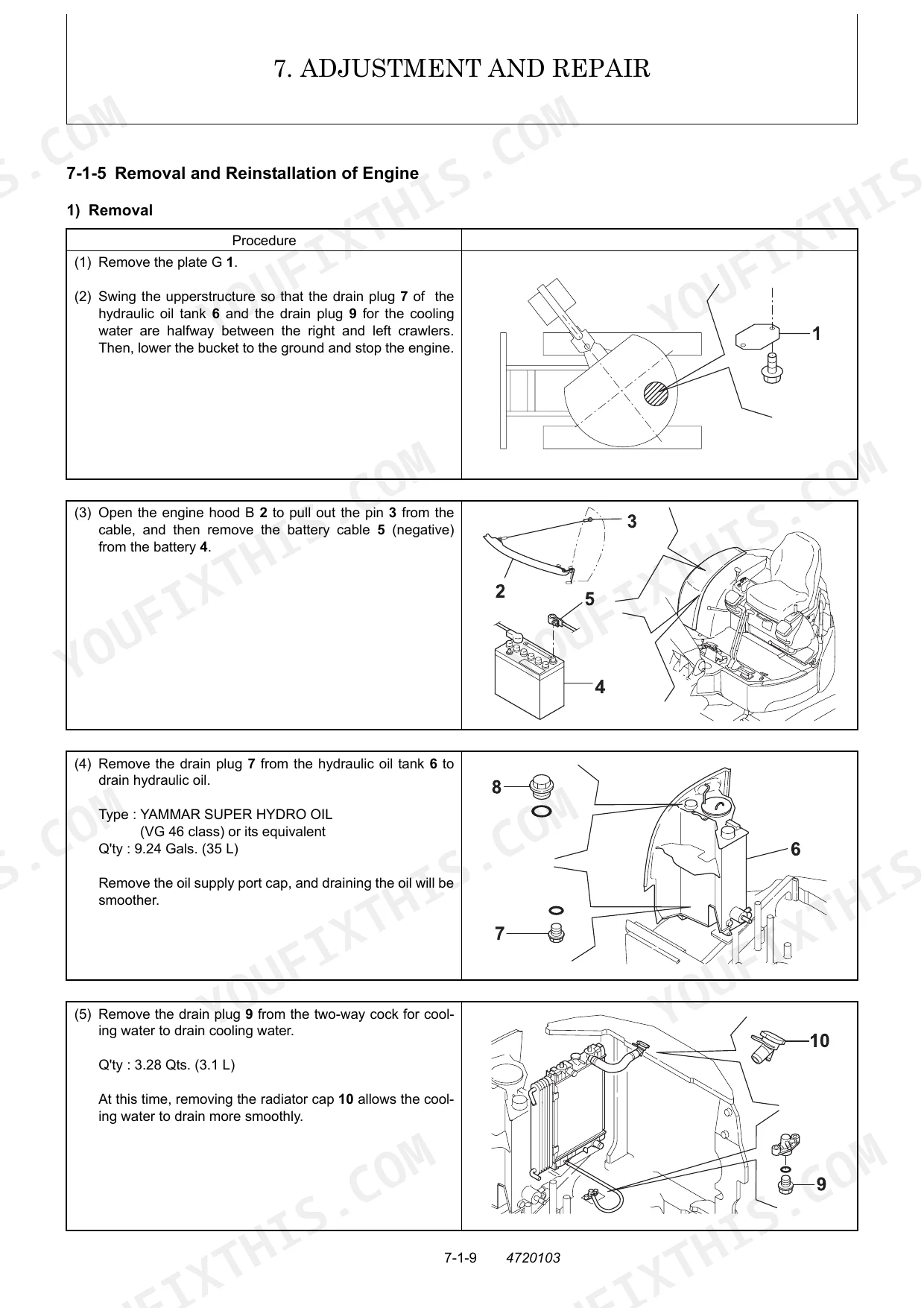

| Technical Data | - | - |
| Service Standards | - | Machine Performance, Engine, Undercarriage, Controls, Hydraulic Equipment, Implement |
| Engine | - | Measurement, Inspection and Adjustment, Measurement Procedure, Service Data and Corrective Action, Precautions for Reassembly, Fuel Injection System, Electrical Equipment |
| Hydraulic System | - | Outline, Hydraulic Circuit Schematic, Circuit Operation, Pressure Adjustment |

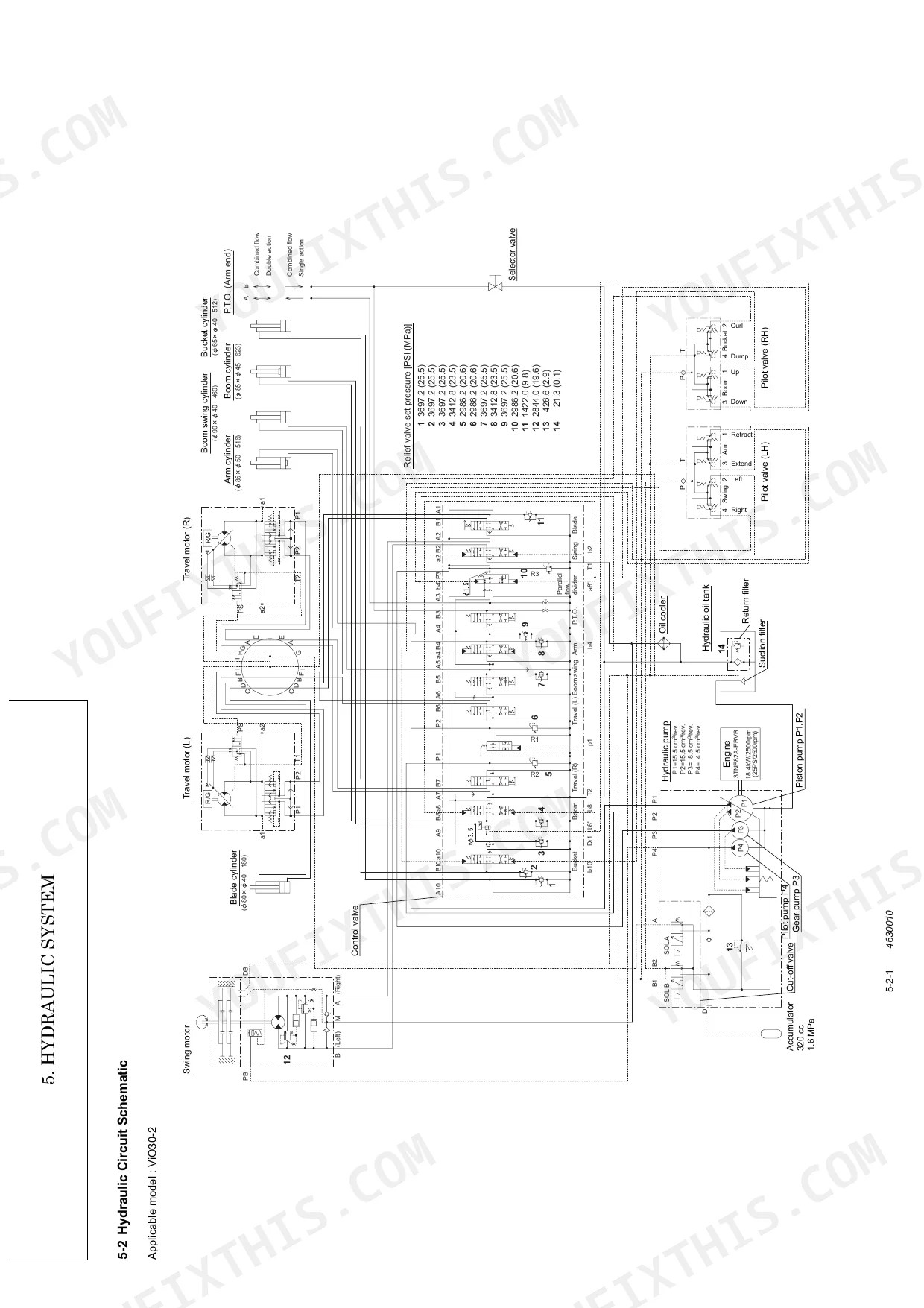

| Hydraulic Circuit Schematic | - | - |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| ViO30-2 | ||
| Boom cylinder U nut tightening torque | 759.5 to 831.9 ft•lbf (1030 to 1130 N•m) | p. 65 |
| Oil seal after press-fitting dimension | 0.177 in. (4.5 mm) | p. 265 |
| Boom speed (Up) allowance | 2.3 sec | p. 49 |
| ViO35-2 | ||
| Travel motor × Track frame (ViO35-2) bolt tightening torque | 57.9 to 72.3 ft•lbf (78.5 to 98.1 N•m) | p. 71 |
| All Models | ||
| Hose clip 16 tightening torque | 1.81 to 2.52 ft•lbf (2.45 to 3.4 N•m) | p. 71 |
| Hose clip 60 & 70 tightening torque | 3.62 to 4.34 ft•lbf (4.9 to 5.88 N•m) | p. 71 |
| Hose clip 70, 48 tightening torque | 1.45 to 2.17 ft•lbf (1.96 to 2.94 N•m) | p. 334 |
| Oil seal capacity to resist pressure | 42.7 PSI (0.3 MPa) | p. 181 |
| V-belt slack | 0.39 to 0.59 in. (10 to 15 mm) | p. 79 |
| Battery type | 65B24L | p. 37 |
| Battery voltage - 5 hrs rate capacity | 12-40 V-Ah | p. 37 |
| Battery cable terminals Nut M6 tightening torque | 2.17 to 2.89 ft•lbf (2.94 to 3.92 N•m) | p. 70 |
Yanmar ViO30-2, ViO35-2 Common Problems This Manual Covers
Yanmar ViO30-2 hydraulic functions become weak, slow, or inconsistent after the machine warms up. p. 26
Check the hydraulic oil tank capacity on page 28 to ensure it holds 11.1 Gals (42 L). Verify the system relief set pressure reaches 2986 PSI (20.6 MPa) as shown on page 26. Inspect all hoses and fittings for leaks and replace contaminated fluid immediately.
Manual Section: Hydraulic Pump TroubleshootingEngine overheating, excessive coolant loss, or white smoke coming from the exhaust pipe.
Inspect coolant hoses for dry rot or damage. Tighten hose clips 70 and 48 to 1.45 to 2.17 ft·lbf (1.96 to 2.94 N·m) following the specifications on page 334. Drain and fill the cooling system if the fluid appears degraded or contaminated.

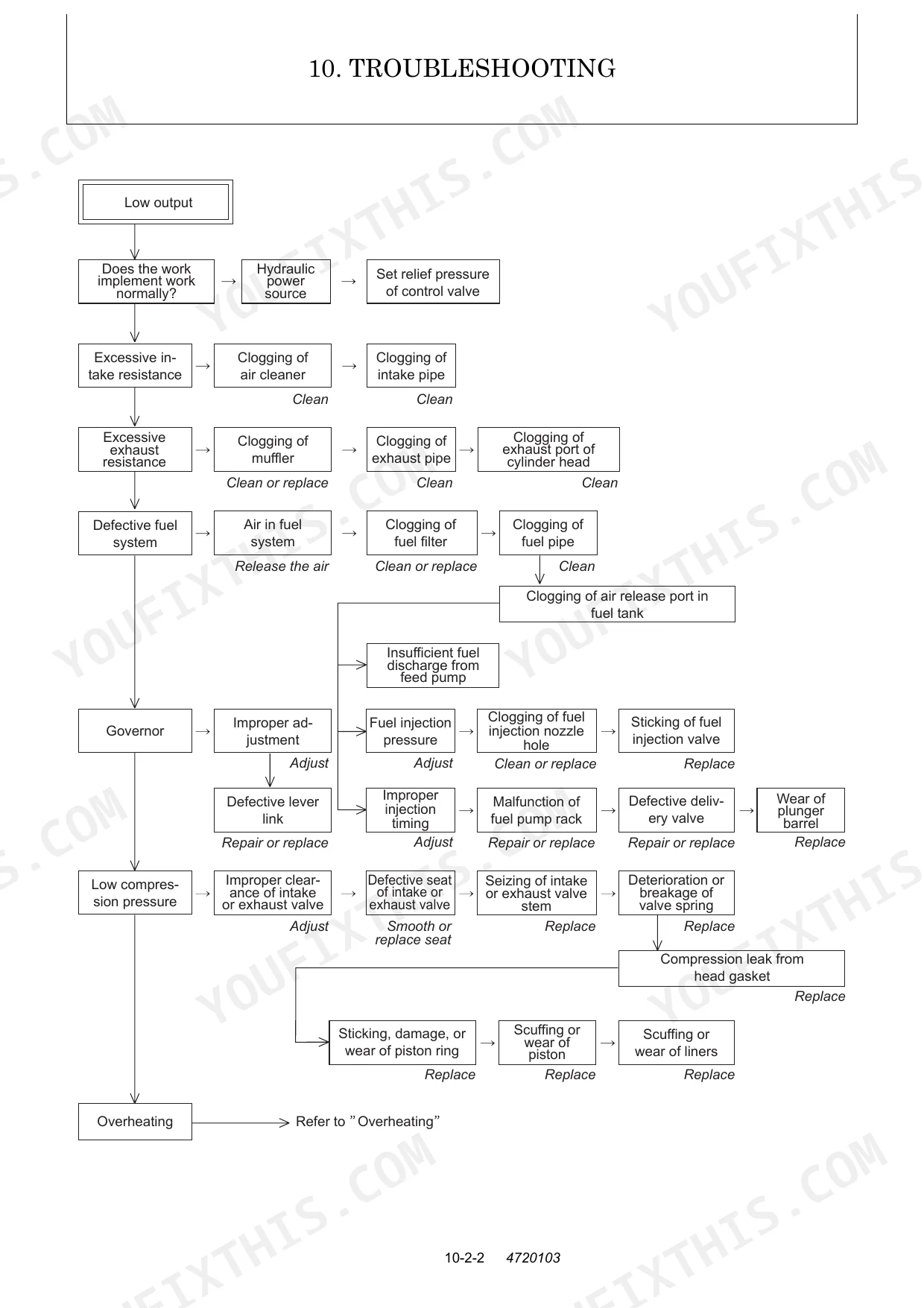

Manual Section: Machine and Engine Troubleshooting (Low Output, Overheating, Black/White Smoke Emission)Fan belt squealing noise, severe slippage, or battery failing to charge during operation. p. 79
Measure the V-belt slack to confirm it is within 0.39 to 0.59 in. (10 to 15 mm) as directed on page 79. Adjust the alternator position to correct tension. Test the 65B24L battery shown on page 37 if charging issues persist after belt adjustment.
Manual Section: Electrical Equipment on Panel Troubleshooting (Starter Motor, Battery, Work Implement, Hydraulic Cylinder, Swing, Travel, Gauges, Buzzer)Significant oil leaks around the hydraulic pump seals, drive shafts, or structural joints. p. 181
Clean the mating surfaces and inspect the worn components. Verify the oil seal capacity to resist pressure maintains 42.7 PSI (0.3 MPa) as specified on page 181. Remove damaged seals carefully and press-fit the new replacements to prevent further fluid loss.
Manual Section: Hydraulic Pump TroubleshootingFrequently Asked Questions
What are the replacement specifications for hydraulic hoses?
Yanmar Construction Machinery uses two types of hydraulic hoses: standard parts specified in Yanmar Industrial Standards (YIS) and special parts for respective models. Specifications include hose diameter and recommended working pressure, such as 0.25 in. (6.3 mm) with 2489 PSI (17.2 MPa) for SAE J517, 100R1 type hoses. The part code consists of 11 digits, detailing hose material, type, diameter, length, and fittings.
What are the replacement specifications for hose clamps?
The manual provides tightening torque specifications for various hose clips and bands. For example, a 'Hose clip 48,70 (Intake hose installation)' requires a tightening torque of 1.63 to 1.85 ft·lbf (2.2 to 2.5 N·m). Other hose clips like 'Hose clip 13' have a torque of 0.74 to 1.11 ft·lbf (1.0 to 1.5 N·m), and 'Hose clip 60 & 70' requires 3.62 to 4.34 ft·lbf (4.9 to 5.88 N·m).
What is the engine oil capacity for the Yanmar ViO30-2/ViO35-2?
The engine oil pan capacity for the Yanmar ViO30-2/ViO35-2 is 4.2 Qts. (4.0 L). This is the prescribed amount of oil to be refilled.
What is the standard valve clearance for a cold engine on the Yanmar ViO30-2/ViO35-2?
For a cold engine, the standard intake valve clearance is 0.0079 in. (0.2 mm). The exhaust valve clearance for a cold engine is also 0.0079 in. (0.2 mm).
How quickly can I access this manual after buying?
You get a 477-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Can I print this manual?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.

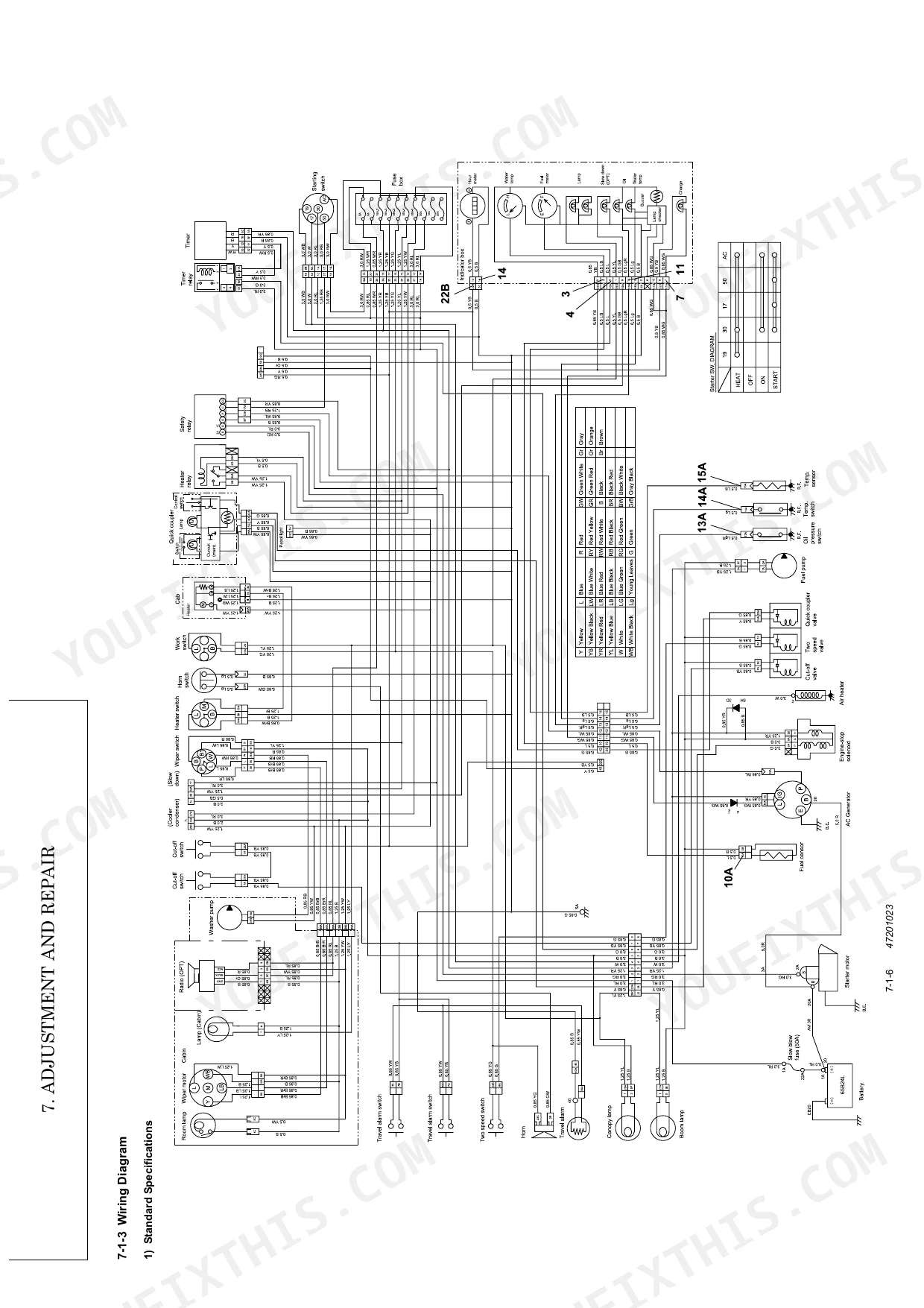

Can I find wiring schematics in this Yanmar ViO30-2, ViO35-2 manual?
Complete wiring diagrams are included, covering all electrical circuits, harness routing, and connector pinouts for the Yanmar ViO30-2, ViO35-2.
Document Quality
This document is a scanned PDF with an accurate OCR layer, allowing you to search the full text and copy content. The text throughout is crisp and consistently readable, with no blurry or faded sections. Diagrams and illustrations are raster images, but their labels remain clear and legible. Pages are generally clean, with no notable scan artifacts, stains, or skewed content, though there are several blank pages interspersed between chapters and sections.
