Track sag on a ViO50-1 shows up as a thrown rubber crawler at the worst possible spot on the site, and this manual gives you the fix: lift that side with the boom and set the clearance at the second track roller. That is the level this Yanmar service manual works at, actual procedures with actual numbers.
It covers the ViO50-1 excavator and its 4TNE88-B-VA diesel across 477 pages: full engine teardown from cylinder block to timing gear, hydraulic circuit schematics and pressure adjustment, disassembly of the pump, control valve, pilot valve, swing motor and travel motor, plus undercarriage, swing bearing and controls adjustment, servicing standards, tightening torques and a troubleshooting chart.
Delivered as a PDF download (Yanmar publication 42598120). Print the pages you need and take them to the machine; grease on paper beats grease on a laptop.
What's Inside This Yanmar ViO50-1 Manual

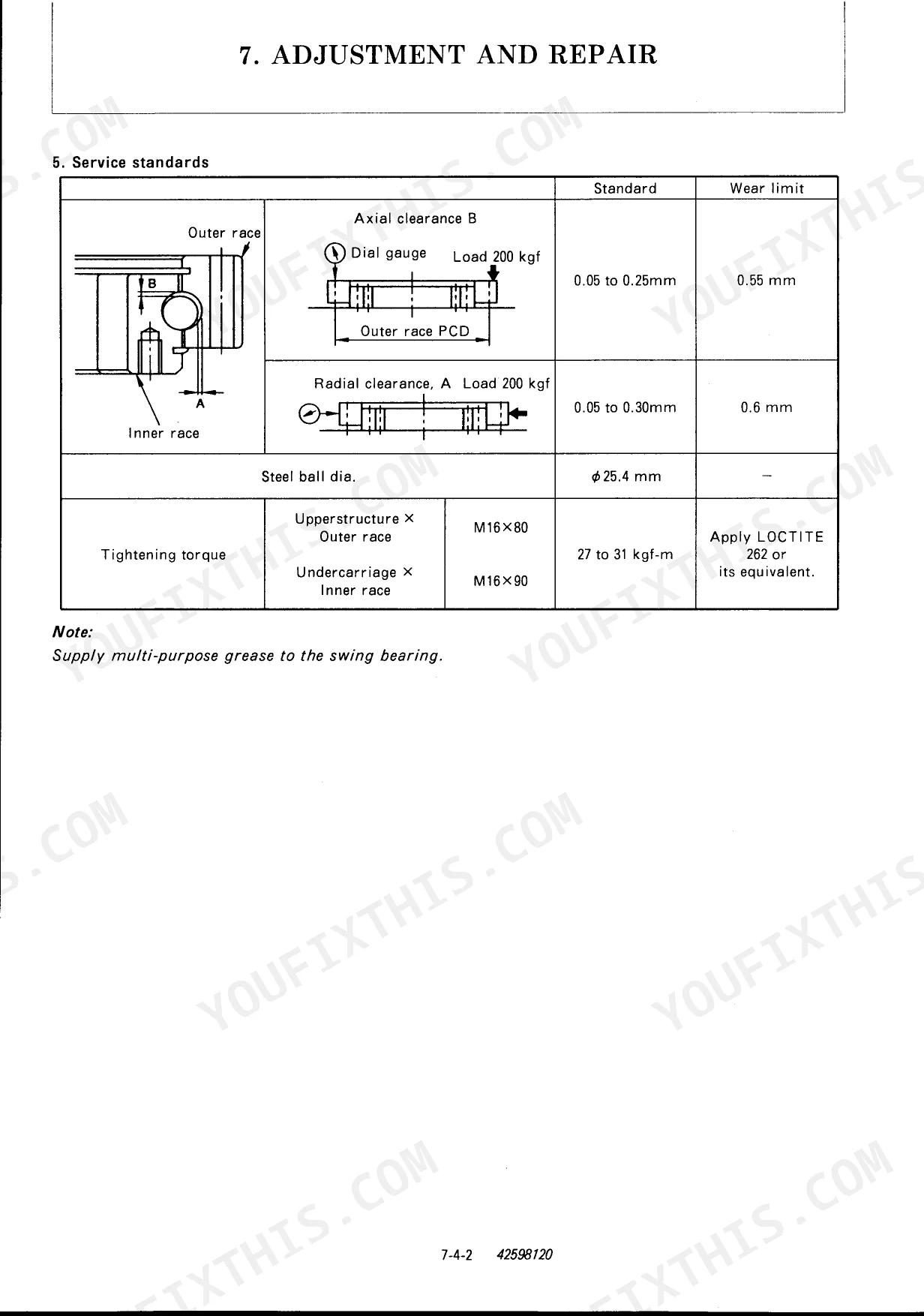

| System | Pages | Key Topics |
|---|---|---|
| ViO50-1 | 1 | - |
| General Cautions for Maintenance Work | 6-15 | 1-1 Correct Work, 1-2 Safety Precautions, 1-3 Preparations, 1-4 Cautions for Disassembly and Reassembly, 1-5 Cautions for Removal and Installation of Hydraulic Equipment |
| Technical Data | 16-27 | 2-1 Specifications, 2-2 Machine Dimensions and Working Ranges, 2-3 Component Weights, 2-4 Lifting Capacities |
| Servicing Standards | 28-45 | 3-1 Machine Performance, 3-2 Engine, 3-3 Undercarriage, 3-4 Controls, 3-5 Hydraulic Equipment, 3-6 Work Implements, 3-7 List of Tightening Torque |
| Engine | 46-166 | 4-1 Cylinder Block, 4-2 Cylinder Head, 4-3 Piston and Piston Pin, 4-4 Connecting Rod, 4-5 Crankshaft and Main Bearing, 4-6 Camshaft and Tappets, 4-7 Timing Gear, 4-8 Service Data |
| Hydraulic System | 167-207 | 5-1 Outline, 5-2 Hydraulic Circuit Schematic, 5-3 Circuit Operation, 5-4 Pressure Adjustment |
| Hydraulic Equipment | 208-365 | 6-1 Hydraulic Pump, 6-2 Control Valve, 6-3 Pilot Valve, 6-4 Swing Motor, 6-5 Travel Motor |
| Adjustment and Repair | 366-433 | 7-1 Electric Equipment of the Machine, 7-2 Undercarriage, 7-3 Controls, 7-4 Swing Bearing, 7-5 Hydraulic Equipment, 7-6 Engine Hood and Cabin |
| Periodic Inspection and Servicing | 434-436 | List of Periodic Inspection and Servicing |
| Fuel, Lube Oil and Grease Recommended | 437-438 | Fuel, Lube Oil and Grease Recommended by Yanmar |
| Troubleshooting | 439-475 | 10-1 Non-Breakdowns, 10-2 Troubleshooting |
| Reference Data | 476-477 | 11-1 Specifications for Attachment |
Quick Reference Specifications

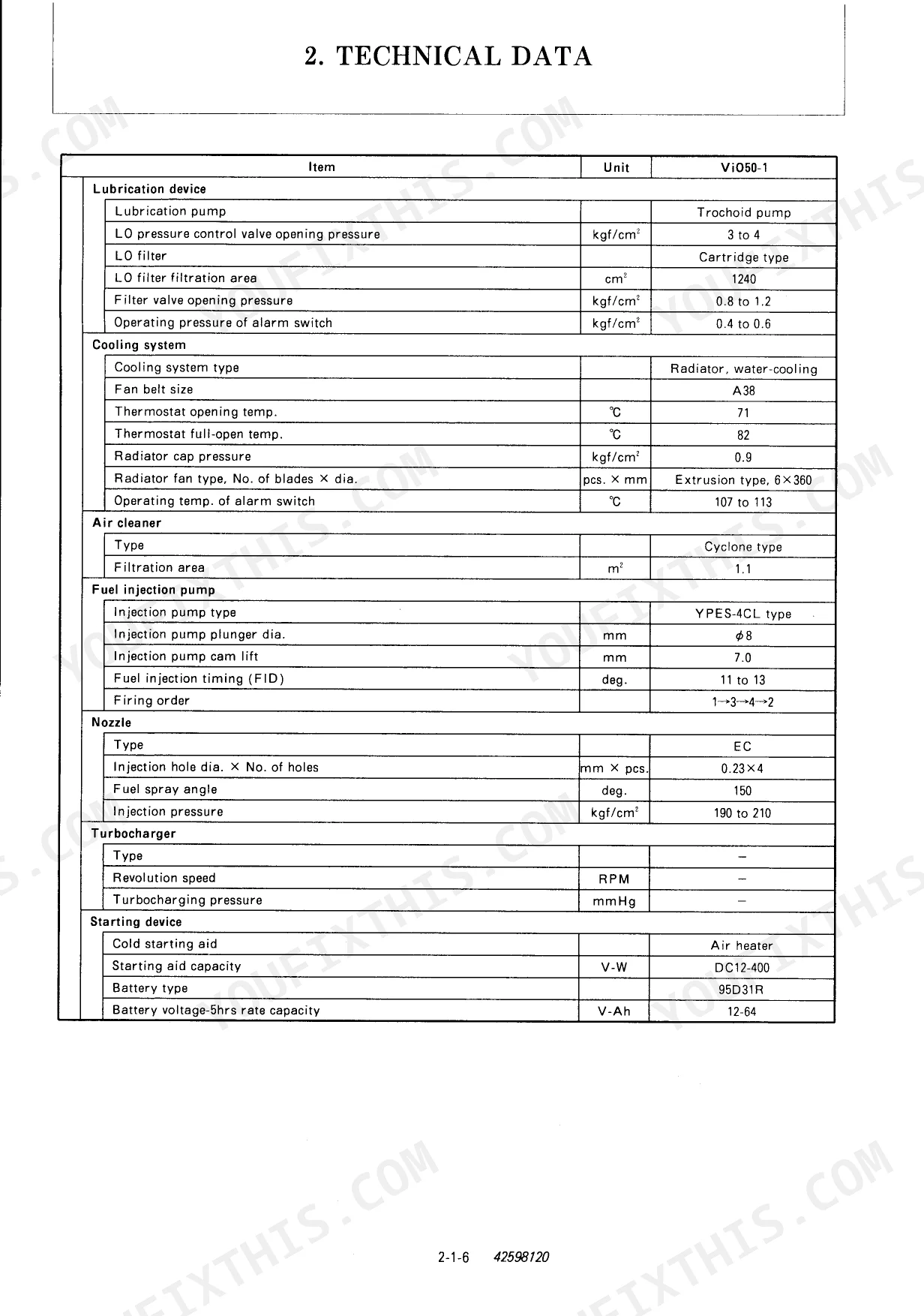

| Specification | Value | Page |
|---|---|---|
| General bolt tightening torque (M6x1 to M20x2.5) | 1.0 to 41.0 kgf-m | p. 45 |
| Crawler tension adjustment clearance (Rubber Crawler Models) | 8 to 13 mm | p. 377 |
| Crawler tension adjustment clearance (Steel Crawler Models) | 135 to 140 mm | p. 378 |
| Circuit relief valve set pressure (Boom, Arm, Bucket, Boom swing, Blade) | 150 to 260 kgf/cm² | p. 203 |
| Swing brake valve set pressure | 210 kgf/cm² | p. 204 |
| O-ring normal storage/replacement interval | 4 to 5 years | p. 410 |
| Thermostat Opening Temperature | 71°C | p. 82 |
Yanmar ViO50-1 Common Problems This Manual Covers
Engine loses power, then stalls
A ViO50-1 that pulls fine cold and dies under load usually has a fuel delivery restriction, often a contaminated tank or clogged filters. The troubleshooting section walks the fuel and engine symptoms in order so you replace the part that is actually at fault.
Manual Section: Troubleshooting p. 439Rubber crawler sags or derails
Loose track tension lets the crawler climb off the idler when you spin on uneven ground. The undercarriage repair procedure sets the correct clearance for both rubber and steel crawler machines, measured with one side lifted on the boom.
Manual Section: Adjustment and Repair p. 366Weak blade and swing functions
Owners report blade and swing going soft while dig functions stay strong, which points at circuit relief pressure rather than the pump. The manual lists set pressures for each circuit relief valve and the pressure adjustment procedure to test and correct them.
Manual Section: Hydraulic System p. 167Slow tracking on one side

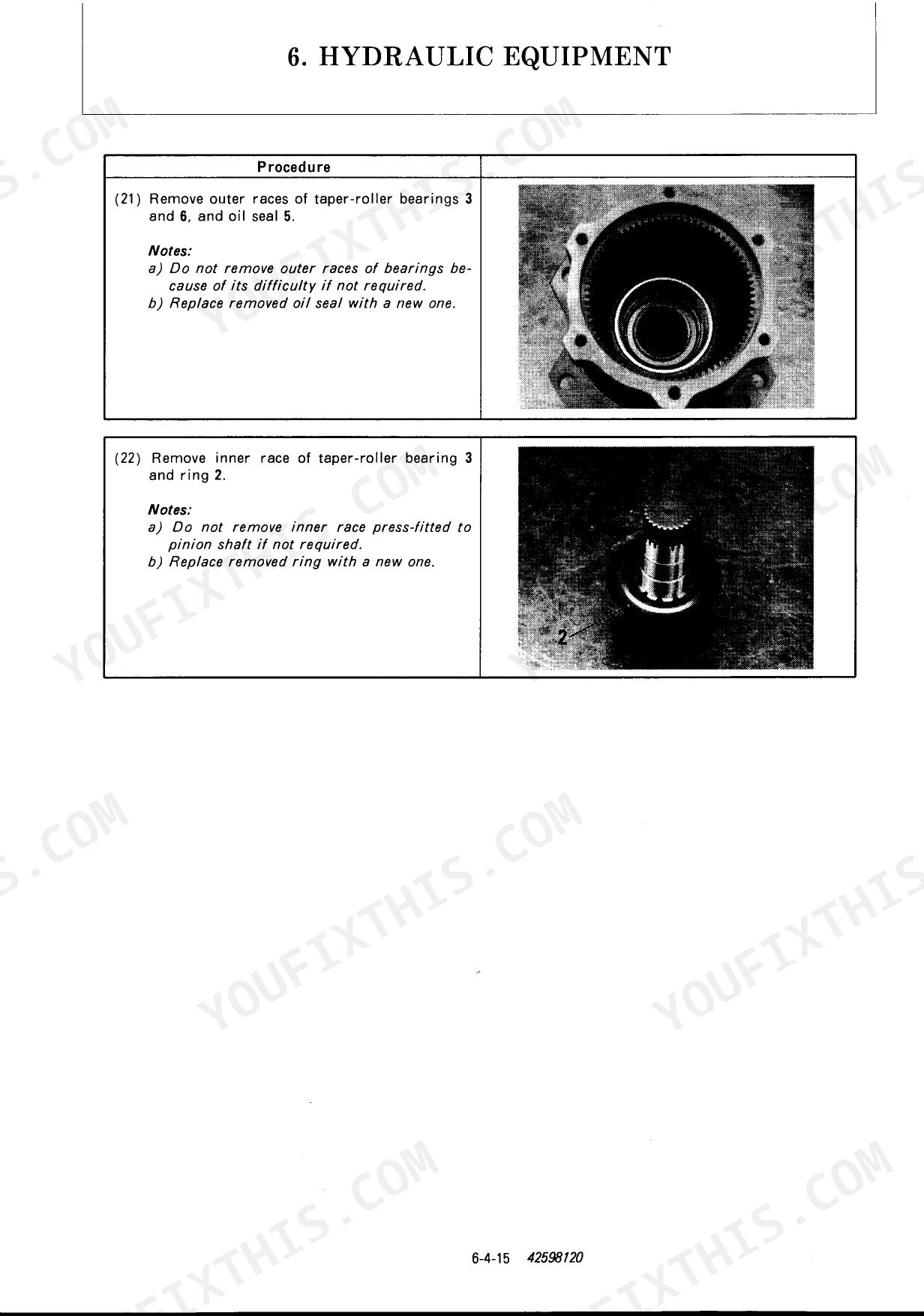

One track lagging the other on a straight travel run means the travel motor or its brake valve needs attention. The hydraulic equipment section covers full disassembly, inspection and reassembly of the travel motor and swing motor.
Manual Section: Hydraulic Equipment p. 208Hydraulic leaks after hose work
Hoses that weep or blow out shortly after a repair usually come down to damaged O-rings, wrong torque or bad routing during reassembly. The maintenance cautions chapter covers removal and installation of hydraulic equipment, piping and seals so the fix stays fixed.
Manual Section: General Cautions for Maintenance Work p. 6Engine running hot
Overheating on the 4TNE88-B-VA sends you to the cooling side of the engine chapter, which includes the service data to check components like the thermostat against specification instead of swapping parts blind.
Manual Section: Engine p. 46Sloppy bucket pins and bushings

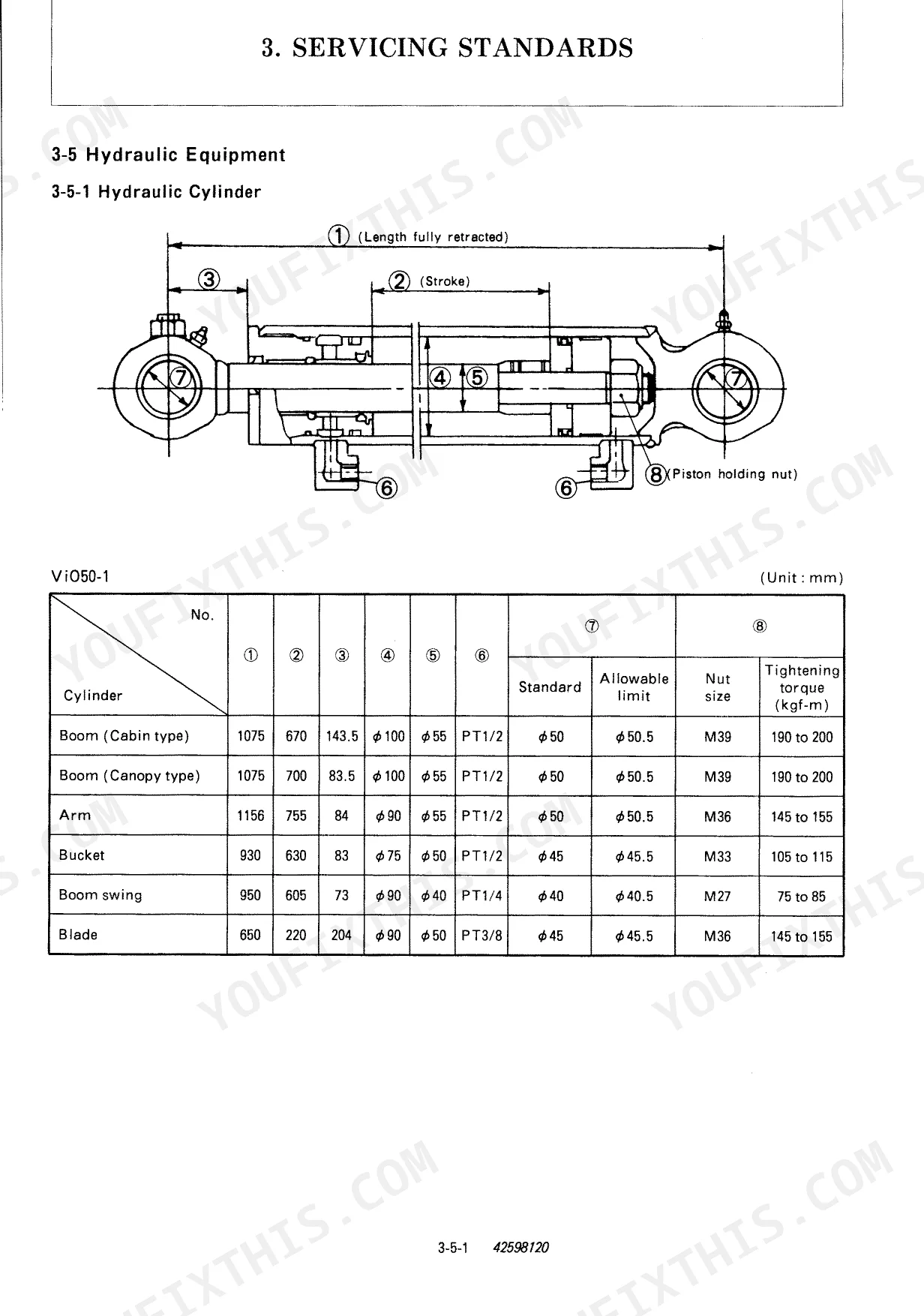

Play at the bucket makes fine grading miserable and only gets worse. The servicing standards chapter gives wear limits for work implements and the undercarriage, so you can measure and decide what actually needs replacing.
Manual Section: Servicing Standards p. 28Frequently Asked Questions
Which machine and engine does this manual cover?
It covers the Yanmar ViO50-1 excavator with the 4TNE88-B-VA diesel engine. It is the English-language factory service manual, Yanmar publication 42598120, 477 pages.
Does it cover a full engine rebuild?

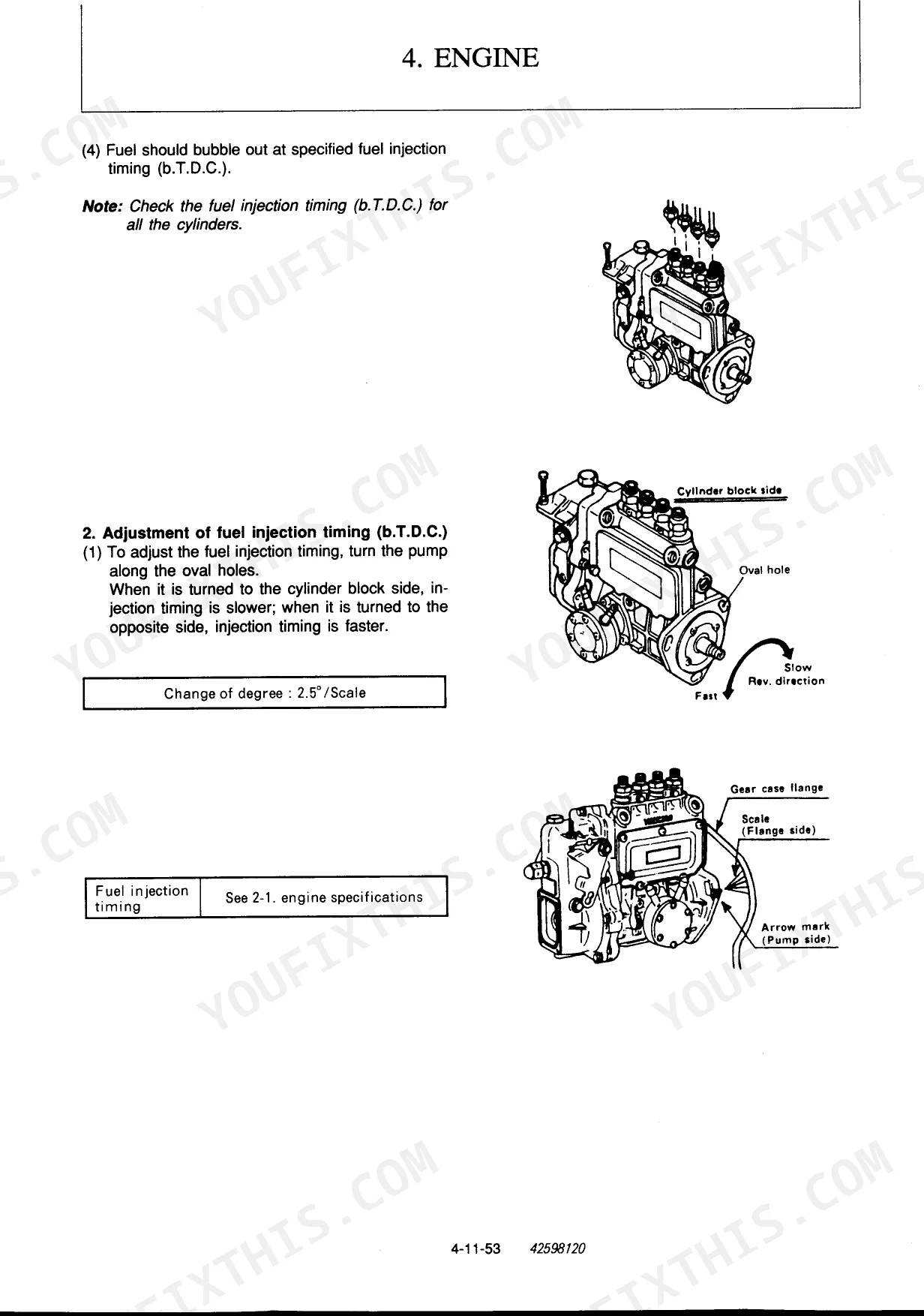

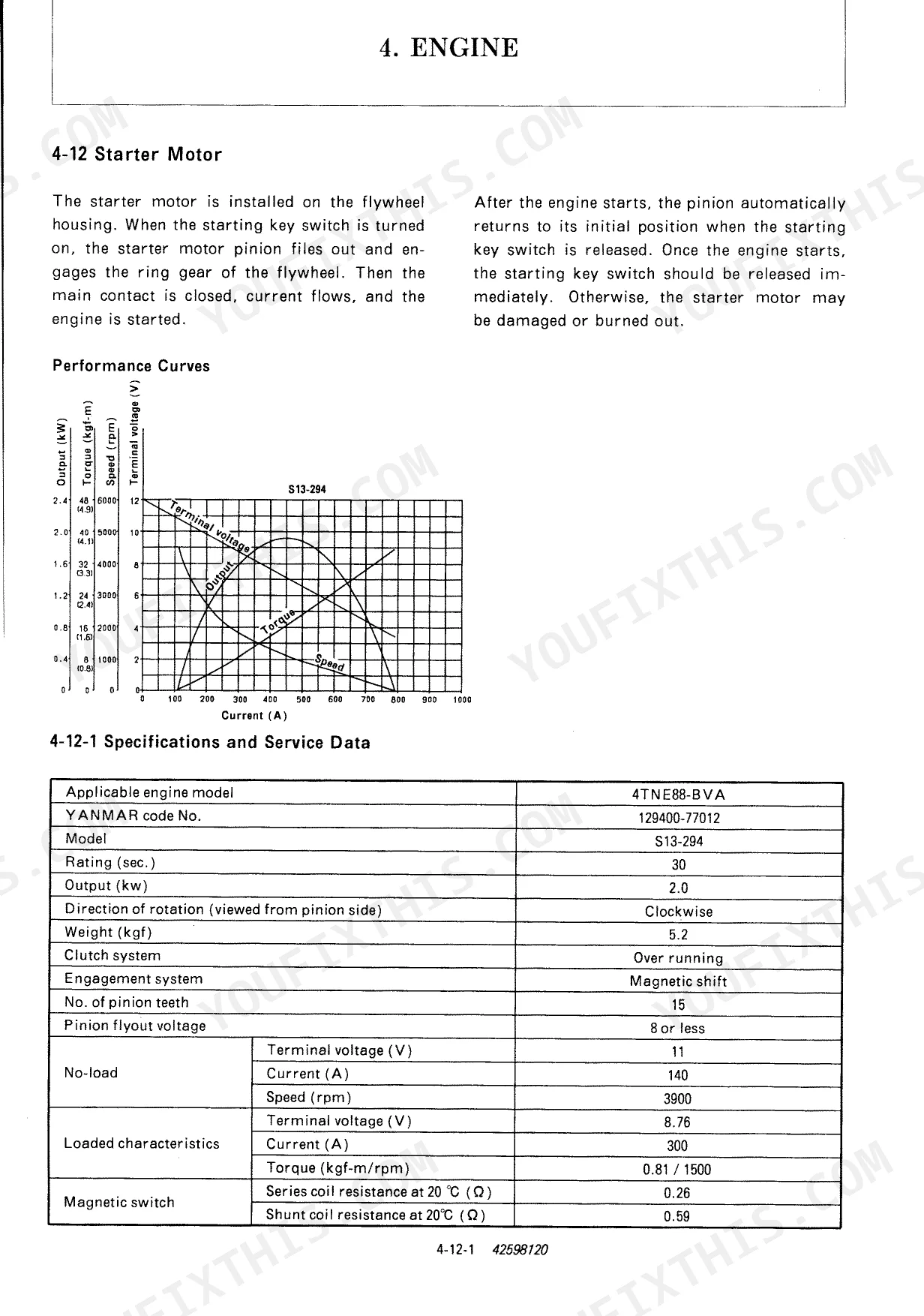

Yes. The Engine section runs over a hundred pages and covers the cylinder block, cylinder head, pistons and pins, connecting rods, crankshaft and main bearings, camshaft and tappets, timing gear, plus service data for measuring wear against limits. p. 46
How do I adjust track tension on the ViO50-1?
The Adjustment and Repair section shows the procedure: lift one side with the boom and set the clearance, 8 to 13 mm on rubber crawler machines measured at the second track roller, 135 to 140 mm on steel crawler machines. p. 366
Are hydraulic pressure settings and test procedures included?

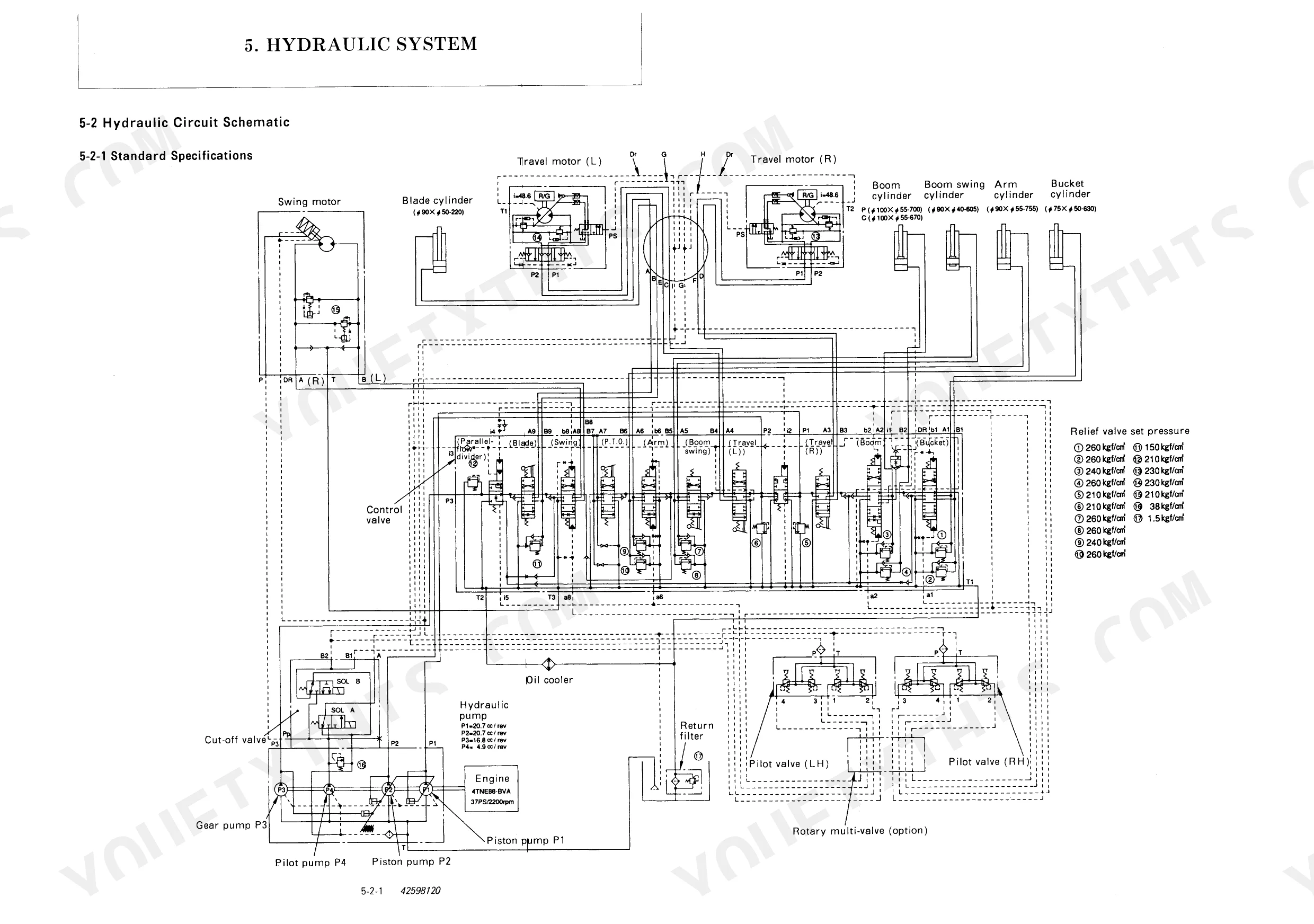

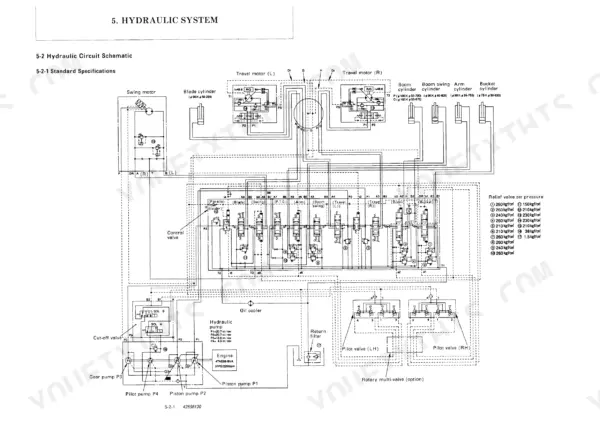

Yes. The Hydraulic System section has the full circuit schematic, circuit operation and pressure adjustment, with set pressures for each circuit relief valve (150 to 260 kgf/cm2 depending on the function) plus the swing brake and cut-off valves. p. 167
What do I get after purchasing this Yanmar Vio50-1 manual?
This is a 477-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Can I print specific sections of this Service Manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
Can I find wiring schematics in this Yanmar Vio50-1 manual?
Yes. This manual includes wiring diagrams for the electrical system.
