You'll have this book open on the tailgate while the 2150 sits half-folded in the yard and you try to work out which valve block is the problem. It's the factory Case IH service manual for the Early Riser 2150 12/16 Row 30 front fold trailing planter.
Every hour the planter sits, the seedbed keeps drying out. The manual covers tractor remote and optional PTO pump hydraulics, the lift and fold valve block, DeltaForce down-pressure, vacuum and bulk fill fan, markers, liquid fertilizer, vDrive meter drives, UCM and row module electronics, fault codes and row unit service.
The electrical schematic sheets and foldout hydraulic schematics let you trace the failed component before you call the parts counter. That way you order the right part the first time and get back in the field.
What's Inside This Case IH 2150 12/16 Row Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction and Specifications | 1-57 | Safety, Electrical Testing, Torque, Hydraulic and Horsepower Requirements, Row and 16 Row Specifications, Capacities, Product Identification |
| Power Take-Off (PTO) [31] | 58-65 | PTO Service Instructions, PTO Pump, Oil Cooler and Fan References |
| Hydraulic Systems [35] and Hydraulic Schemas | 66-139 | Torque Tables, Tractor Remote Relief, Component Locations, Hydraulic Symbols, Lift and Fold, Direct Drive and PTO Drive Schemas |
| PTO Pump, Reservoir, Cooler and Relief Valves | 140-201 | PTO Pump Flow Test, Pump Rebuild, Oil Reservoir, Filters and Cooler, Case Drain Pressure Switch, Relief and Unloading Valves |
| Seeding and Planting Hydraulic Circuits [35.744] | 202-297 | DeltaForce Common Pressures, Hydraulic Drive Motors, Down-Pressure and Wing Down-Force Cylinders, Valve Blocks |
| Vacuum, Marking and Liquid Fertilizer Hydraulic Circuits | 298-461 | Vacuum and Alternator Motor Control Valve Block, Marker Valve Block and Cylinders, Liquid Fertilizer Pump Drive |
| Hydraulic Seeding Fan System [35.912] | 462-517 | Bulk Fill Fan Operation, Speed Sensor, Troubleshooting Notes, Fan Hydraulic Motor Service |
| Frame Folding and Lifting Hydraulics | 518-648 | Valves and Solenoid Coils, Folding Control Valve and Flow Divider, Folding Cylinder, Lift and Fold Valve Block, Wheel Lift Cylinders, Wing Hook |
| Pneumatic System, Hitches, Frames and Wheels | 649-721 | Compressor and Filter, Pneumatic Cylinder, Drawbar Clevis, Hitch Assembly, Wheel Hub Service and Wheel Installation |
| Electrical Systems [55] Technical Data | 722-750 | Solenoid Coil Data, Oil Thermostat and Cooler Fan, Pressure Sensors, Case Drain Switch, Alternator Data |

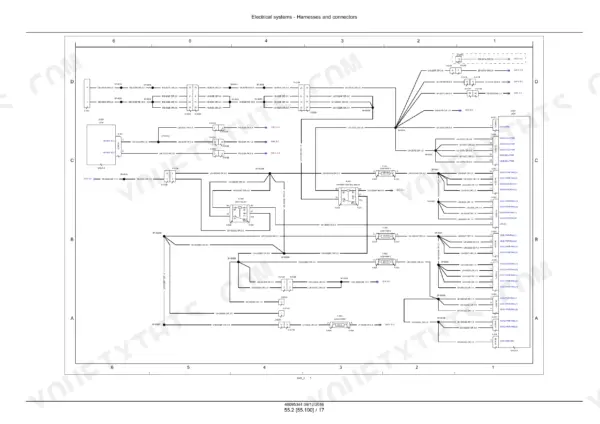

| Electrical Schematic Sheets | 751-797 | Power Distribution, Ground, CAN Networks, Toolbar, Case Drain, Frame, Folding and Markers, Bulk Fill Sheets |
| Fuse and Relay Box, Connectors and Component Localization | 798-1075 | Fuses and Relays, Connector Face Diagrams, Component Localization and Descriptions |

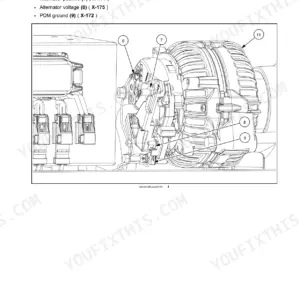

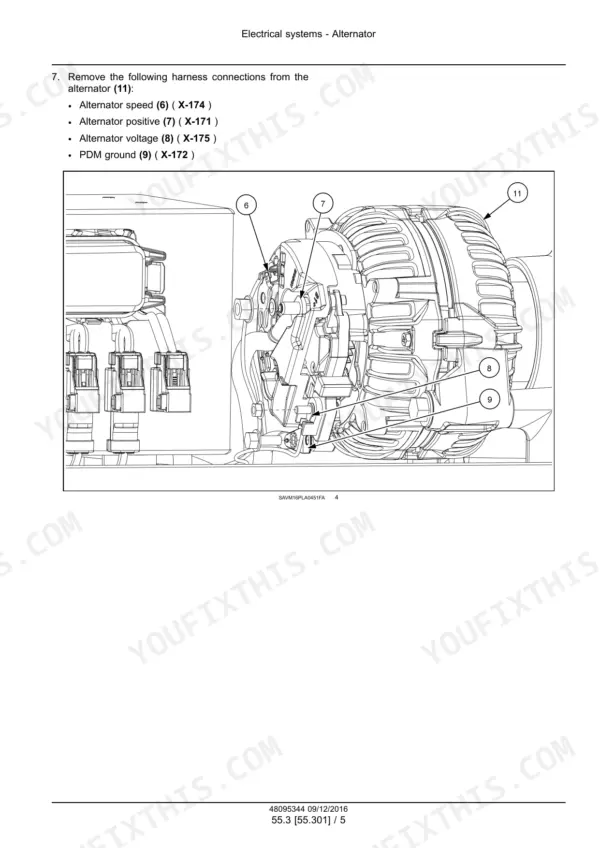

| Alternator, Battery, Seeding and Fertilizer Control | 1076-1153 | Alternator, Battery Cover, Seed and Fan Speed Sensors, Liquid Fertilizer Flow Sensor, CAN Modules, Tractor Harness, Toolbar Position Sensor |

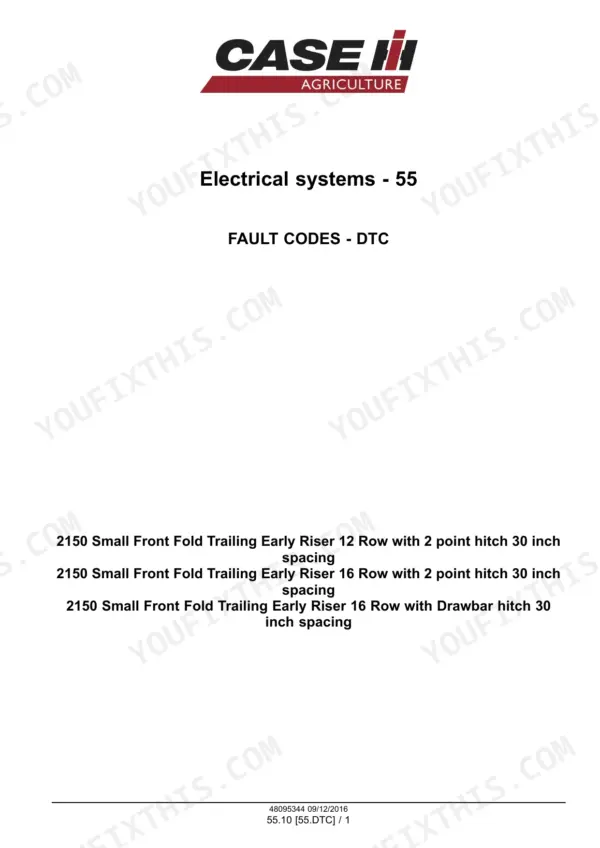

| Fault Codes [55.DTC], Configuration and Frame | 1154-1297 | Fault Code Contents, Configuration and Calibration Faults, Bin Level and Row Cleaner Solenoids, Frame Solenoid Faults |
| Fault Codes [55.DTC], Valves, Display and Drives | 1298-1423 | Valve and Relay Faults, Wheel Speed Sensors, Display and Row Faults, Bulk Fill, Down Pressure, Granular Chemical, Alternator and Liquid Pump Faults |
| Fault Codes [55.DTC], UCM Power | 1424-1485 | UCM Power Faults |
| Fault Codes [55.DTC], Load Sensor and Row Modules | 1486-1545 | Load Sensor and Hydraulic Down Force Errors, Seed Meter and Gyro Faults, Row Module and Speed Belt Faults |

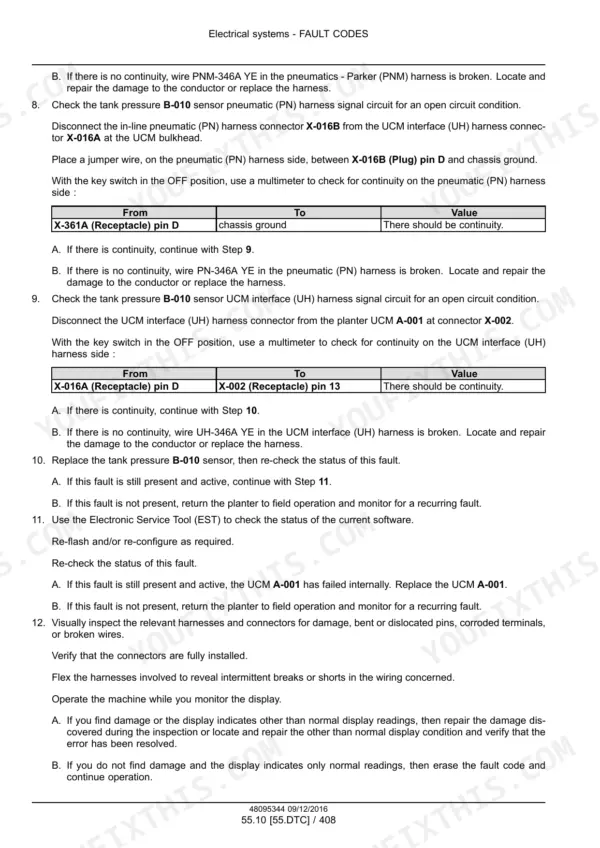

| Fault Codes [55.DTC], CAN and Sensors | 1546-1629 | Planter CAN Offline, Sensor and Battery Voltage Faults, Case Drain Fault, Fault Code Index |
| Metering System [61] | 1630-1707 | Seed Hopper, Seed Meter and Disc, vDrive Electric Drive, Seed Tube |

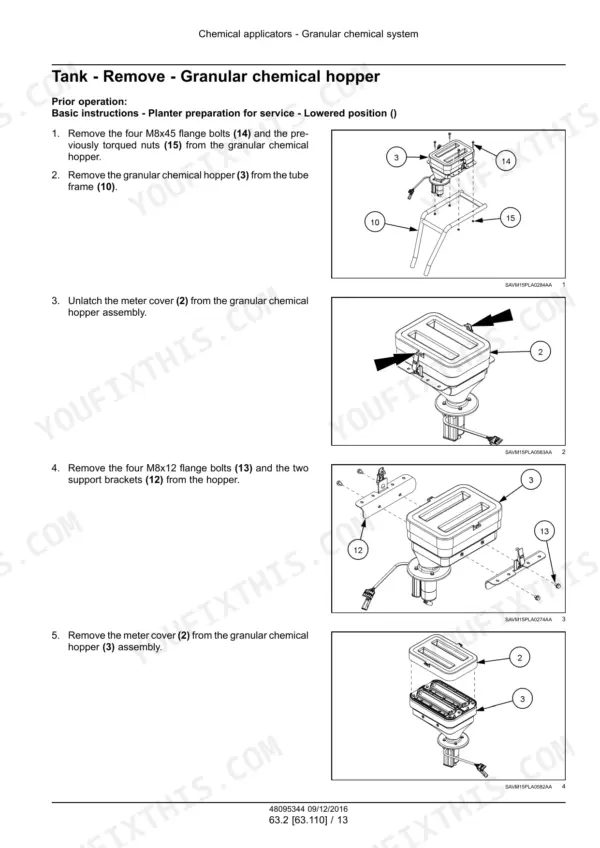

| Chemical Applicators and Residue Managers | 1708-1795 | Liquid Fertilizer Pump, Manifold and Section Valves, Granular Chemical Meter, Residue Managers |
| Planting [79], Product Delivery, Fan, Vacuum and Marking | 1796-1855 | Product Handling and Delivery Drive, Planting Troubleshooting Tables, Fan, Vacuum and Marker Service |
| Planting Tool [79.105] | 1856-1989 | Gauge Wheel, Press Wheel, Row Unit, Opener Disk Inspection, Seed Shoe, Covering Disk, Depth Control |

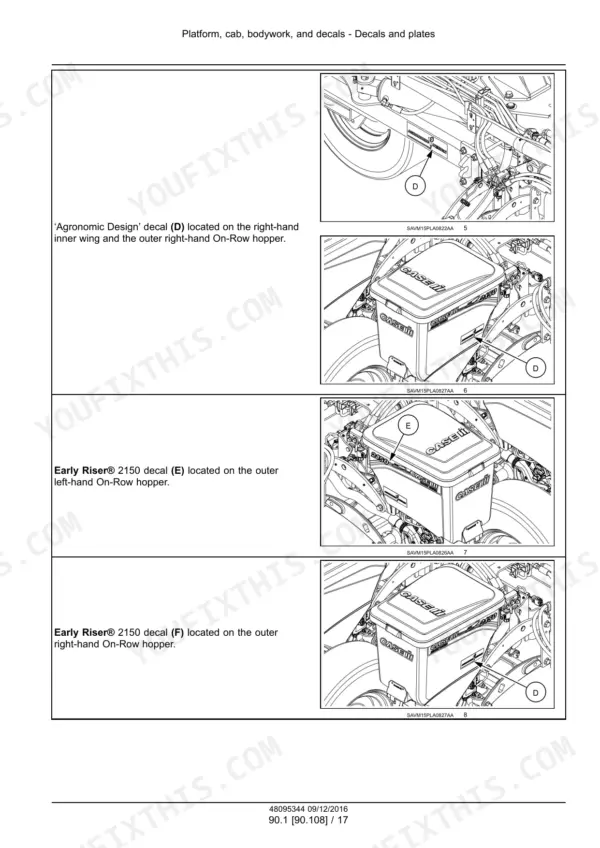

| Decals, Plates and Special Tools | 1990-2013 | Decals and Plates, Publisher Notice, Special Tool Index |
| Foldout Electrical and Hydraulic Schematics | 2014-2019 | Full Electrical Schematic Sheets and Hydraulic Schematics |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Tractor remote minimum relief pressure | 18616 kPa (2700 psi) | p. 69 |
| Tractor engine horsepower range, 12 Row / 16 Row | 155 - 310 Hp / 180 - 380 Hp | p. 47 |
| Tractor hydraulic pump requirement | High flow or twin-flow hydraulic pump (50 US gpm minimum) | p. 47 |
| Maximum case drain port back pressure | 170 kPa (26 psi) | p. 47 |
| Case drain pressure switch setting (falling) | 5.0 bar +/- 0.6 (72.5 psi +/- 7.3) | p. 746 |
| Tire inflation pressure, wing and center wheels | 517.1 kPa (75.0 psi) | p. 48 |
| Wheel lug bolt torque | 331.0 - 447.0 N·m (244.1 - 329.7 lb ft) | p. 48 |
| 12 Row planter weight, empty | 8292 kg (18280 lb) | p. 49 |
| 16 Row planter weight, empty | 9090 kg (20040 lb) | p. 51 |
| Bulk hopper capacity | 1.76 m³ (50 Bu) | p. 49 |
| PTO pump reservoir capacity | 11.4 L (3.0 US gal) | p. 52 |
| PTO pump flow test at 15168 kPa (2200 psi) | 23 - 24 US gpm | p. 142 |
| PTO-driven pressure relief valve setting | 16550 kPa ± 345 kPa (2400 psi ± 50 psi) | p. 193 |
| DeltaForce supply system pressure | approximately 19.30 MPa (2800 psi) | p. 205 |
| Center carrying wheel to frame bolts, M20 x 65 | 587 - 794 N·m (433 - 586 lb ft) | p. 716 |

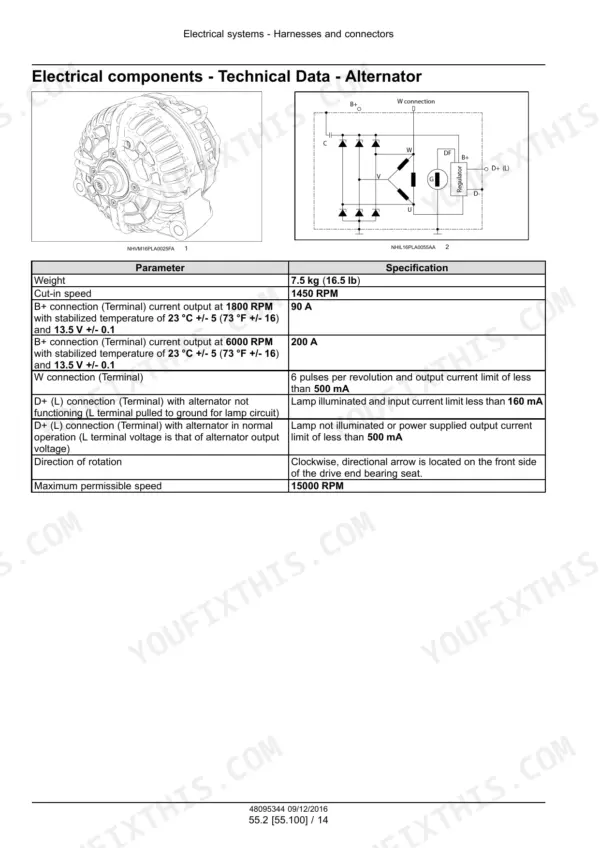

| Alternator output at 6000 RPM | 200 A | p. 749 |
| Bulk fill fan solenoid coil resistance at room temperature | 5 - 8.5 Ω | p. 470 |
Case IH 2150 12/16 Row Common Problems This Manual Covers
Planter is not planting seed
Start with the obvious: make sure the hoppers have seed and the seed tube isn't plugged or damaged. Next, look for an obstruction at the meter, a damaged meter drive, a worn seed disc or a wrong baffle setting. Clean any plugged vacuum manifold or hose and confirm you actually have vacuum. Last, check the planting start and stop heights in frame setup on the display, and make sure the planter isn't in overlap. The planting troubleshooting tables in Planting [79] go through this list.
Manual Section: Planting - Not planting seed p. 1831Low seed population
Inspect every drive system for failed, worn or misaligned parts, and check wheel height so the toolbar sits level. Run the distance calibration if wheel speed is off, and readjust the wheel speed sensor. Slow down if you're planting too fast. Raise vacuum to the recommended level and find any leaks. Then check for seed bridging in the hopper, seed sticking to the disc, a worn disc or a worn vacuum seal. Metering system [61] covers the meter, disc and vDrive.
Manual Section: Planting - Low seed population p. 1831Uneven seed depth
If ground speed is too fast for the seedbed, slow down or add row unit down pressure. Unplug a partially plugged seed shoe and clean any dirty seed tubes. Replace a worn furrow firming point or worn opener disks. Level the toolbar front to rear in planting position. Set the covering disk spring pressure correctly, and back off the closing disk spring tension if it's too high. Planting tool [79.105] covers opener disk inspection, the seed shoe and depth control.
Manual Section: Planting - Uneven seed depth p. 1833Frame does not raise to full up position
First, confirm plant mode or the raise position is selected on the display. Raise engine RPM so the pump puts out enough flow, and service the tractor hydraulics if they aren't working correctly. Check the remote lever detent, because a detent set too low or a faulty one will stop the lift, and the tractor must have a 2500 psi relief valve. Remove extra weight if the planter is overloaded, and lengthen a short remote timer setting. Frame folding and lifting hydraulics covers the lift and fold valve block and the wheel lift cylinders.
Manual Section: Planting - Planter frame does not raise to full up position p. 1835Frequently Asked Questions
What relief pressure does my tractor remote need for the Case IH 2150 12/16 Row planter?
The tractor remote needs a minimum relief pressure of 18616 kPa (2700 psi). p. 69
How much tractor power and how many hydraulic remotes does the 2150 12/16 Row need?
The 12 Row needs 155 - 310 Hp and 3 remotes. It only comes with the 2-point hitch, so there is no drawbar version. The 16 Row needs 180 - 380 Hp, with 3 remotes on the 2-point hitch or 4 on the drawbar hitch. Both sizes need a high flow or twin-flow hydraulic pump rated at 50 US gpm minimum. Keep case drain port back pressure at or below 170 kPa (26 psi). p. 47
What does the optional PTO hydraulic pump on the 2150 12/16 Row deliver, and how much oil does its reservoir hold?
At 1000 RPM PTO speed, with fluid at 26.6 °C (80 °F) and 15858 kPa (2300 psi), the pump delivers 83.3 - 89.3 L/min (22.0 - 23.6 US gpm). For the flow test, warm the oil above 37.8 °C (100 °F) and run rated PTO speed. A healthy pump shows 23 - 24 US gpm at 15168 kPa (2200 psi). The reservoir holds 11.4 L (3.0 US gal) of CASE IH AKCELA HY-TRAN ULTRACTION. p. 143
What tire pressure and lug bolt torque do the 2150 12/16 Row wheels need?
The wing and center toolbar wheels run Firestone VF 245/70R19.5 AD2 Radial tires at 517.1 kPa (75.0 psi). Torque the wheel lug bolts to 331.0 - 447.0 N·m (244.1 - 329.7 lb ft). Both specs are the same on the 12 Row and the 16 Row. p. 48
How much does the 2150 12 Row or 16 Row planter weigh empty?
Empty, the 12 Row weighs 8292 kg (18280 lb) and the 16 Row weighs 9090 kg (20040 lb). Those weights include the bulk hopper system, residue managers and two-stage closing. Transport width is 3759 mm (148 in) with two-stage closing or 3632 mm (143 in) with v-closing. p. 49
