A diagnostic code flashing on the digital cluster with a field half worked is why this book exists: the Case IH 9310, 9330 Operator Manual PDF, OEM number 9-26030, 232 pages written for both tractors. Instrument and control identification runs through a long early stretch, so every indicator lamp and switch on your console has a name and a meaning. Field operation carries its own large section, covering drawbar clevis preparation, three-point hitch operation, and the tire, wheel spacing and ballast tables that decide whether you pull or spin. Hydraulic oil reservoir capacity reads 18 U.S. Gallons (68 Litres), checked at 10 hours or daily, with the filter changed at 1500 hours or annually; the 150 amp main breaker sits in the lower right corner of the cab. Guess an inflation pressure and you scrap a tire. Bookmarks and searchable text put you on the right page fast, before the weather turns.
What's Inside This Case IH 9310, 9330 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety/Decals | 6-14 | Safety Rules, Decals |

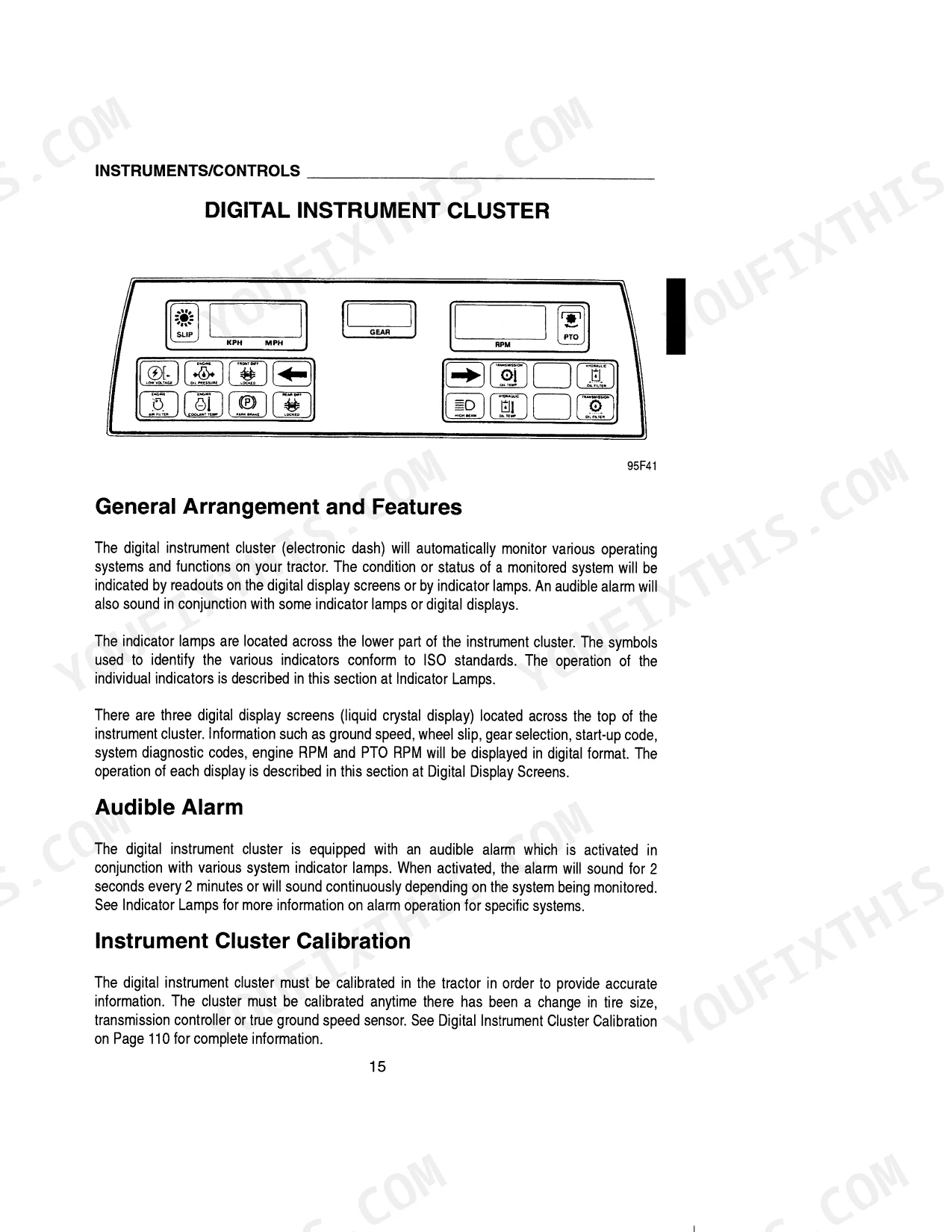

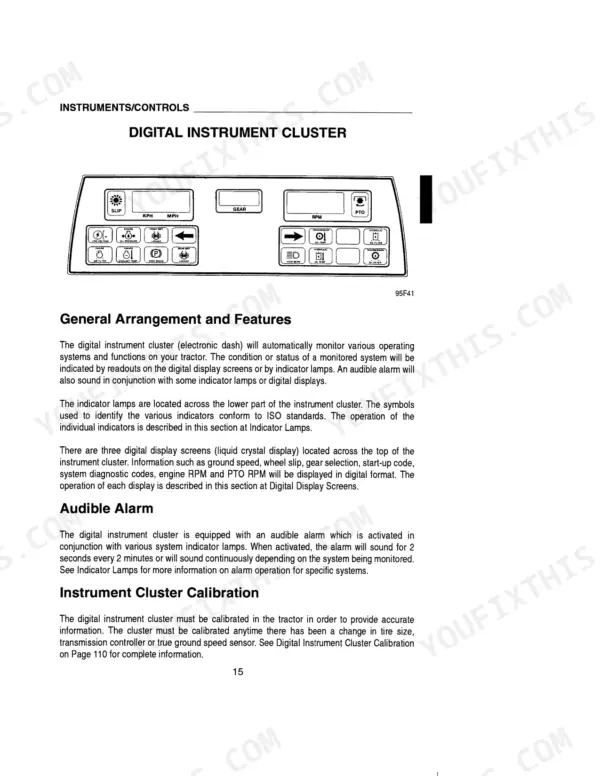

| Instruments/Controls | 15-42 | Digital Instrument Cluster, Indicator Lamps |

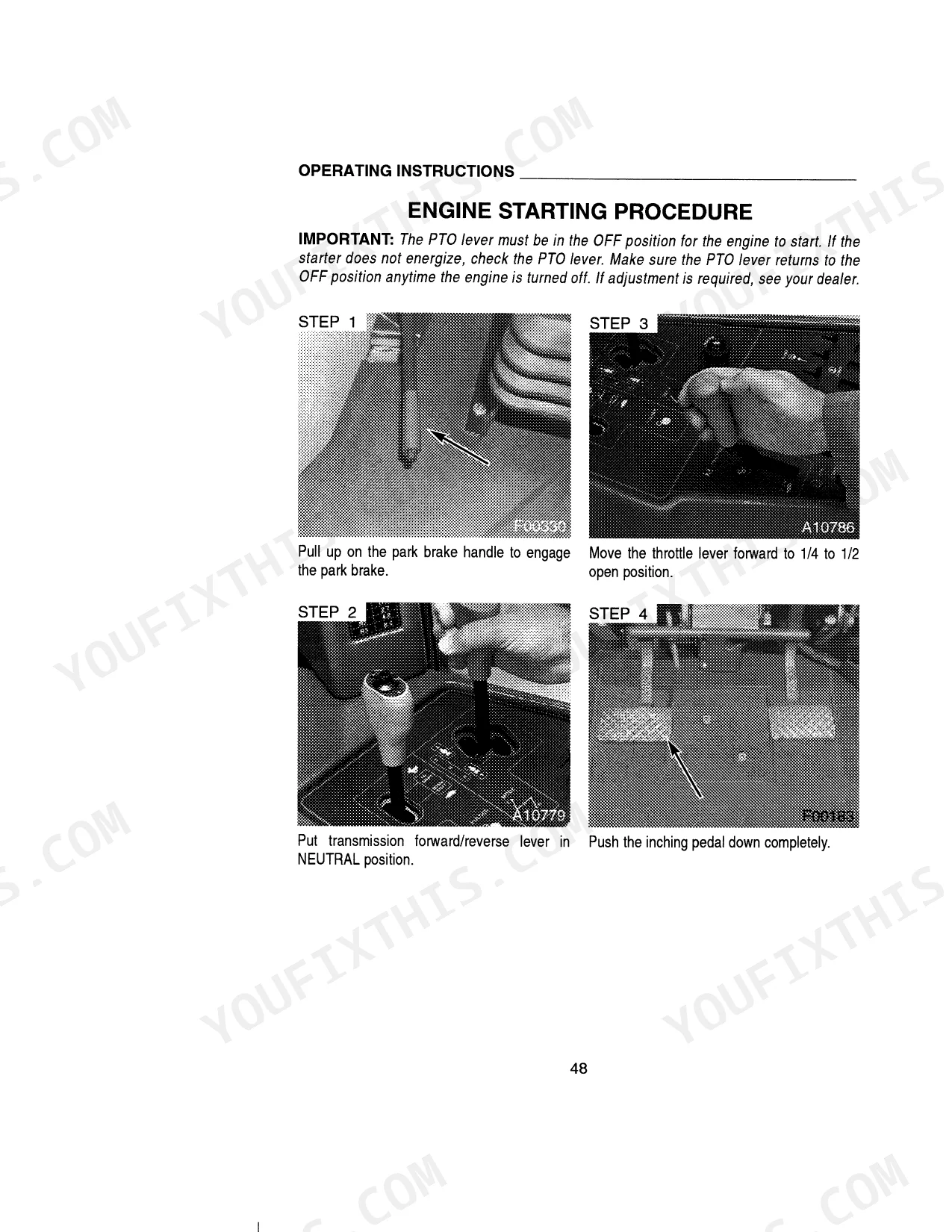

| Operating Instructions | 43-77 | Before Starting the Engine, Engine Starting Procedure |
| Field Operation | 78-113 | Drawbar Clevis Preparation, Three Point Hitch Operation |
| Tires/Wheels/Spacing/Ballast | 114-142 | Tire Inflation Specifications, Tractor Ballast |

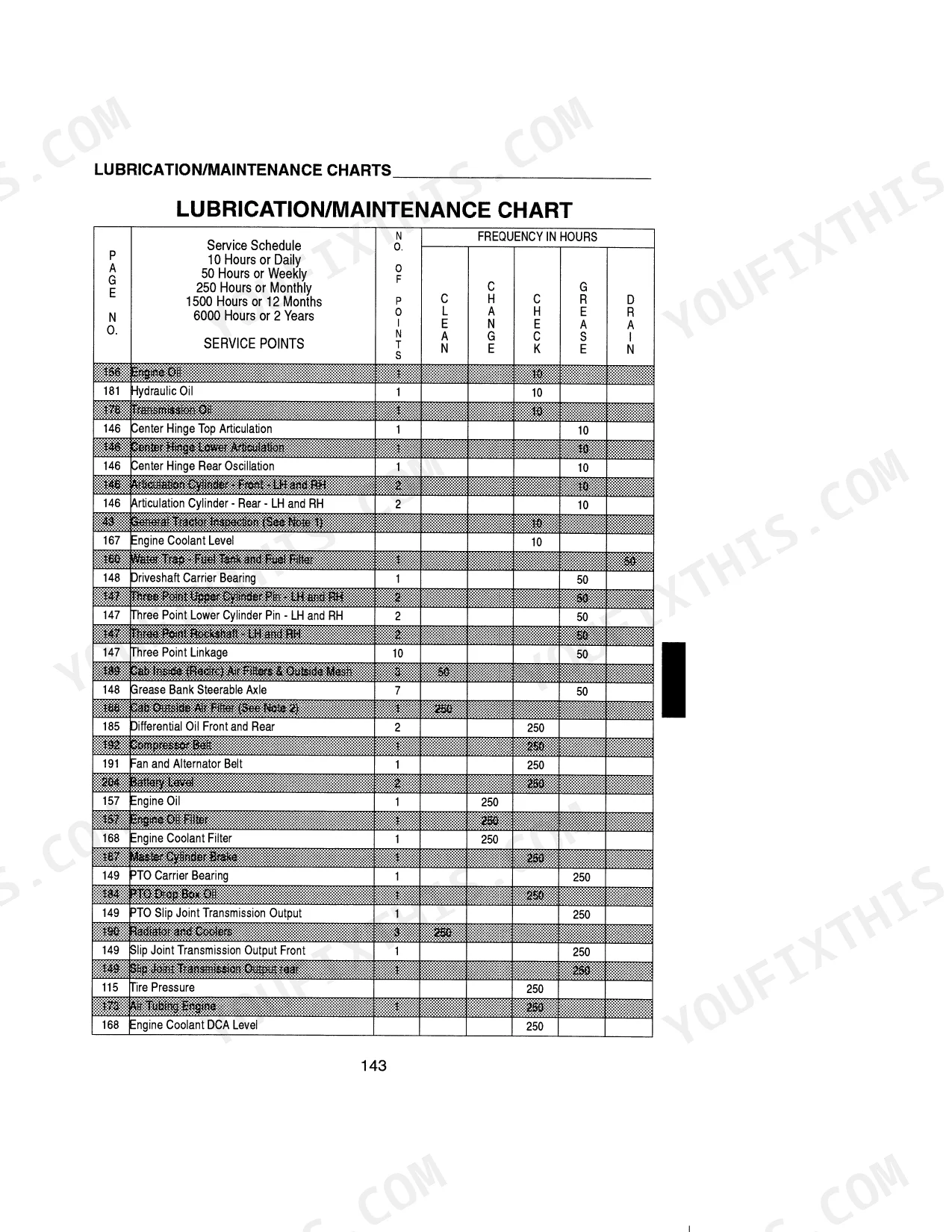

| Lubrication/Filters/Fluids | 143-189 | Lubrication/Maintenance Chart, Fuel System |
| Maintenance/Adjustments | 190-200 | Cooling System, Tractor Diagnostic Codes |
| Electrical System | 201-215 | Electrical Specifications, Batteries |

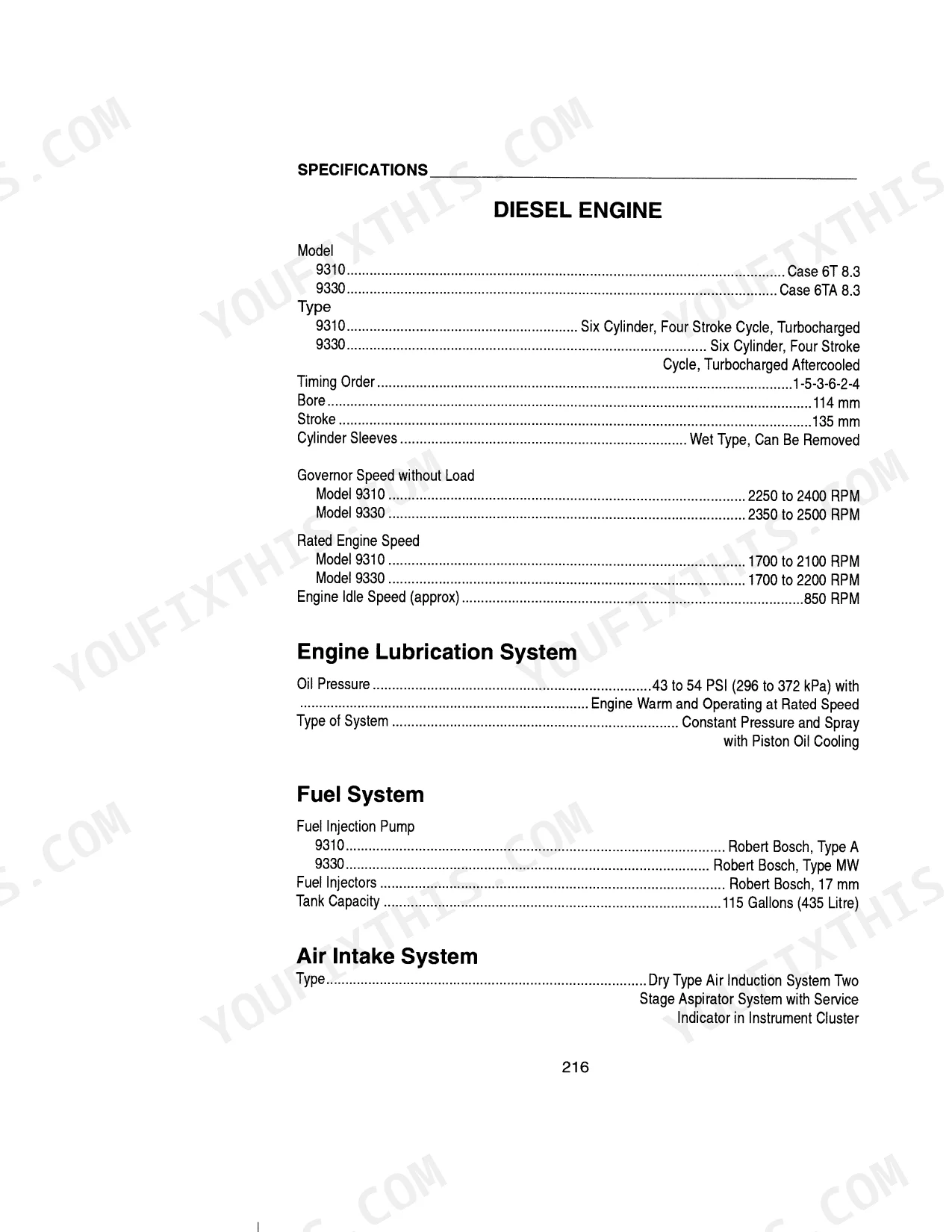

| Specifications | 216-220 | Diesel Engine, Power Train |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Main circuit breaker amperage | 150 amp | p. 111 |
| Auxiliary power amperage | 10 amps | p. 111 |
| Hydraulic Oil Reservoir Capacity | 18 U.S. Gallons (68 Litres) | p. 180 |
| Hydraulic Oil Level Check Interval | 10 Hours or daily | p. 180 |
| Hydraulic Oil Filter Change Interval | 1500 Hours or annually | p. 180 |
| Engine Oil Capacity (with filter) | 5-1/2 Gallons (21 Litres) | p. 147 |
| Differential Oil Capacity (Rear) | 32-1/2 Quarts (30.7 Litres) | p. 147 |
| Wheel Bolt Torque (Split Bushing to Hub Bolts) | 266 to 294 lb ft (361 to 399 Nm) | p. 123 |
| Wheel Bolt Torque (Wheel Disc Bolts to Split Bushing Hub) | 600 lb ft (813 Nm) | p. 123 |
| Intake Valve Clearance | 0.30 mm | p. 199 |
| 9310 | ||
| Cooling System Capacity (Model 9310) | 6-5/8 Gallons (25.1 Litres) | p. 147 |
| 9330 | ||
| Cooling System Capacity (Model 9330) | 7-3/8 Gallons (27.9 Litres) | p. 147 |
Case IH 9310, 9330 Common Problems This Manual Covers
Case IH 9310 hydraulic oil temperature indicator lights up during heavy tillage, three-point hitch lifts slow
Check the indicator lamp meanings starting on page 15 before you shut down. Verify hydraulic reservoir level daily against the 18 U.S. Gallon (68 Litres) capacity listed on page 180, and confirm the filters and reservoir vent have been changed within the 1500 hour or annual interval. Clean debris off the oil cooler screen.
Manual Section: Instruments/Controls p. 20Engine coolant temperature warning comes on pulling a heavy load in hot weather
Throttle back and idle the engine down before shutting it off. Verify the coolant level once the system is cool, filling to the 6-5/8 Gallon (25.1 Litres) capacity listed on page 147 for the 9310. Blow chaff and dust backward through the radiator core and confirm the fan belt is tight.
Manual Section: Engine Coolant Temperature Indicator p. 21Low voltage indicator flashing and transmission drops itself into neutral in the field
Check the error code reference on page 200, where anything under 9.5 volts sets the low voltage condition. Clean and tighten both battery terminals and the frame ground strap, then reset the 150 amp main breaker at the lower right corner of the cab, noted on page 111. Test alternator output before returning to the field.
Manual Section: Low Voltage Indicator p. 18Three-point hitch will not raise or drops the implement with no warning light
Read the hitch diagnostic code on page 100 first: code 0 means the system reads normal and the fault is mechanical or hydraulic. Verify hydraulic oil level, which the maintenance schedule calls for every 10 hours or daily on page 180. If codes persist, use the hitch control bypass on page 100 to raise the implement and finish the pass.
Manual Section: Electronic Hitch Diagnostic Codes p. 100Transmission oil temperature indicator glows and shifting hesitates between gears under load
Drop one gear and raise engine speed to reduce lugging, then let the tractor cool at fast idle. Check the transmission diagnostic codes listed on pages 200 through 202 and write down any E code before it clears. Verify transmission and hydraulic oil levels, and clean chaff packed around the cooler and transmission housing.
Manual Section: Transmission Diagnostic Codes p. 200Steering feels intermittent or an error code shows on the display while turning at road speed
Stop and read the steering error code display covered on page 59 before moving again. Inspect steering harness connectors for green corrosion and loose pins, and check that the 150 amp main breaker at the lower right cab corner, listed on page 111, has not tripped. Verify front tire inflation and wheel bolt torque at 266 to 294 lb ft (361 to 399 Nm) per page 123.
Manual Section: Steering Error Code Display p. 59Frequently Asked Questions
How do I reset the transmission control system on a Case IH 9310 or 9330 tractor?
To reset the transmission control system, turn the key switch to the OFF position and place the transmission forward/reverse mode lever in NEUTRAL. Then, start the tractor engine in the normal manner. p. 69

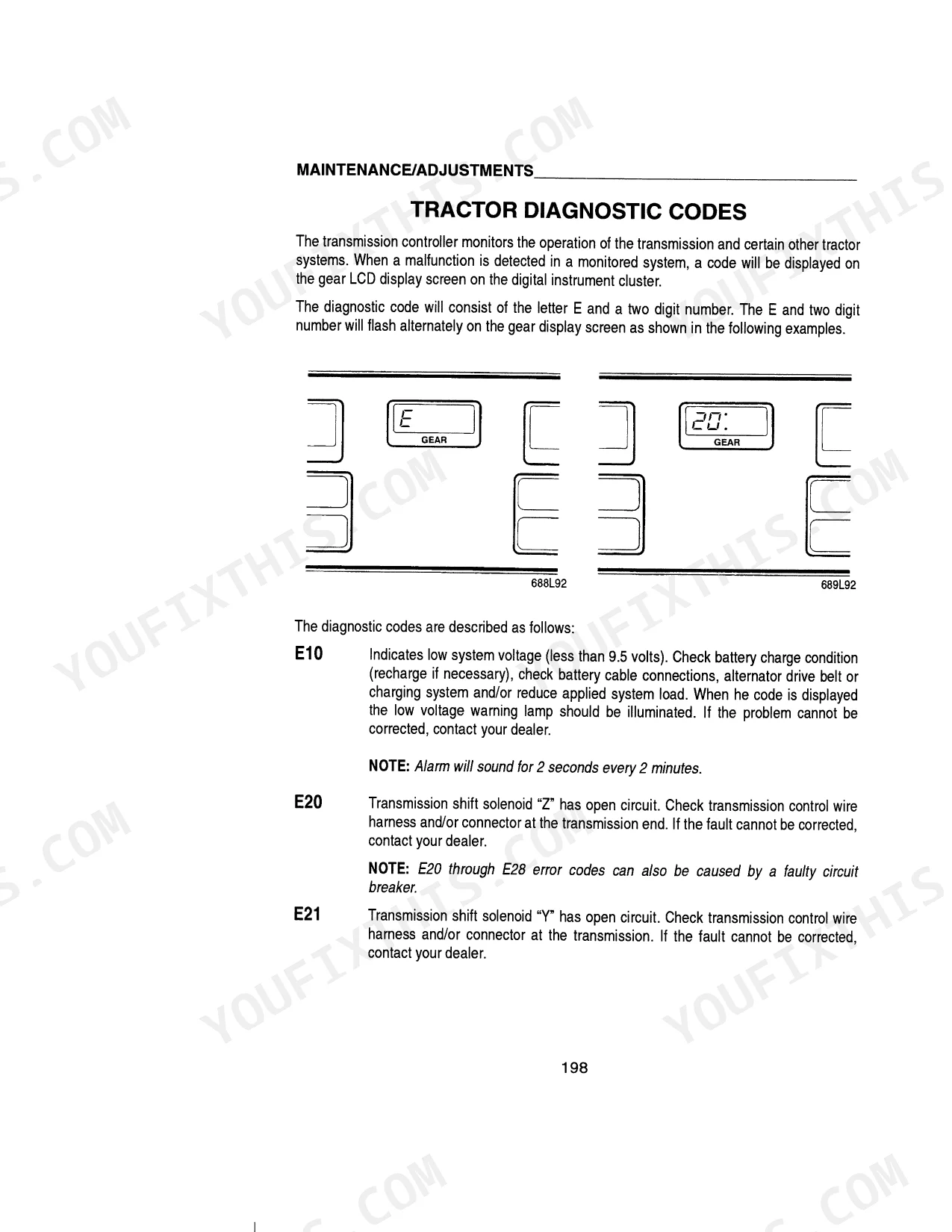

What is the meaning of error code E10 on the transmission display?
Error code E10 indicates a low system voltage of less than 9.5 volts. You should check the battery charge condition, battery cable connections, alternator drive belt, or the charging system, and reduce the applied system load. p. 200
What is the wheel disc bolt torque specification on a Case IH 9310, 9330 tractor?
The wheel disc bolts must be tightened to a torque of 600 lb ft (813 Nm) wet. These bolts must be tightened after the first 3 hours of operation and every 10 hours thereafter until the torque is maintained. p. 126
What is the recommended valve clearance for the Case IH 9310, 9330 engine?
The engine valve clearance for intake valves is 0.30 mm and for exhaust valves is 0.60 mm. These adjustments should be performed when the engine is cold. p. 199
What is the capacity of the cooling system for the Model 9310 and 9330 tractors?
The cooling system capacity for the Model 9310 is 6-5/8 U.S. Gallons (25.1 Litres), and for the Model 9330, it is 7-3/8 U.S. Gallons (27.9 Litres). p. 168
What exactly do I receive with this Case IH 9310 Operator Manual?
This is a 232-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Can I print this Case IH 9310 manual?
Yes. The PDF is DRM-free, so printing works from any reader and any printer.
