Power takeoff, three-point hitch, remote hydraulics, ballasting, and the programmable instrument cluster all get walked end to end across the 445 pages of the Case IH MX285 operator manual PDF, OEM number 6-31483, which also covers the MX210, MX230, and MX255. Field operation takes the largest block in the book, running from implement hookup through PTO speed selection, drawbar preparation, loader work, and remote valve setup. A full lubrication and maintenance chart tells you which fitting gets grease and at what hour interval, and the tire average rolling radius chart feeds straight into radar calibration. Fill the engine with 21 liters after a filter change, and check that the deaeration tank pressure cap still holds 15 PSI (103 kPa). Some nights it is you, a work lamp, and nobody to ask. Bookmarked and text-searchable, this one is yours to keep for as long as you own the tractor.
Complete the set for your MX210, MX230, MX255…
What's Inside This Case IH MX210, MX230, MX255, MX285 Operator Manual

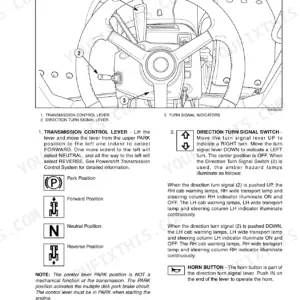

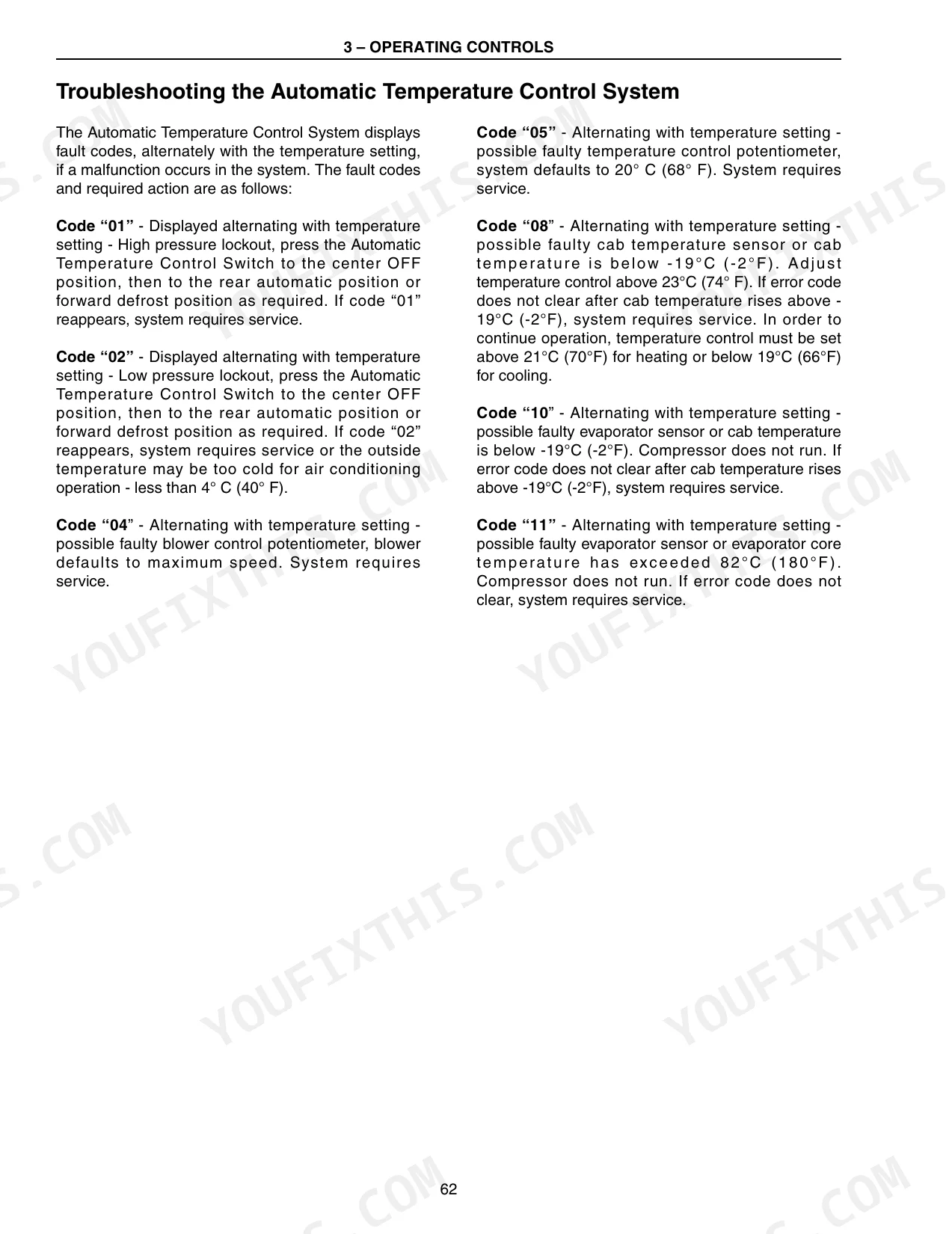

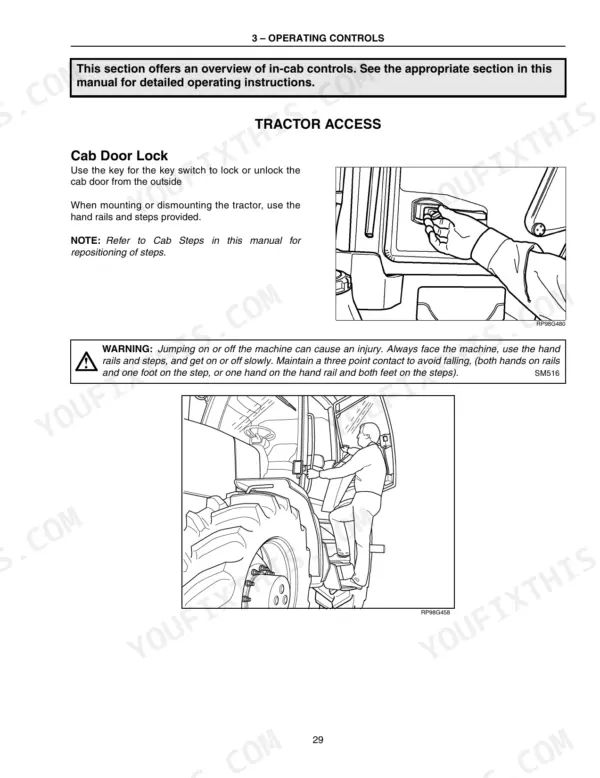

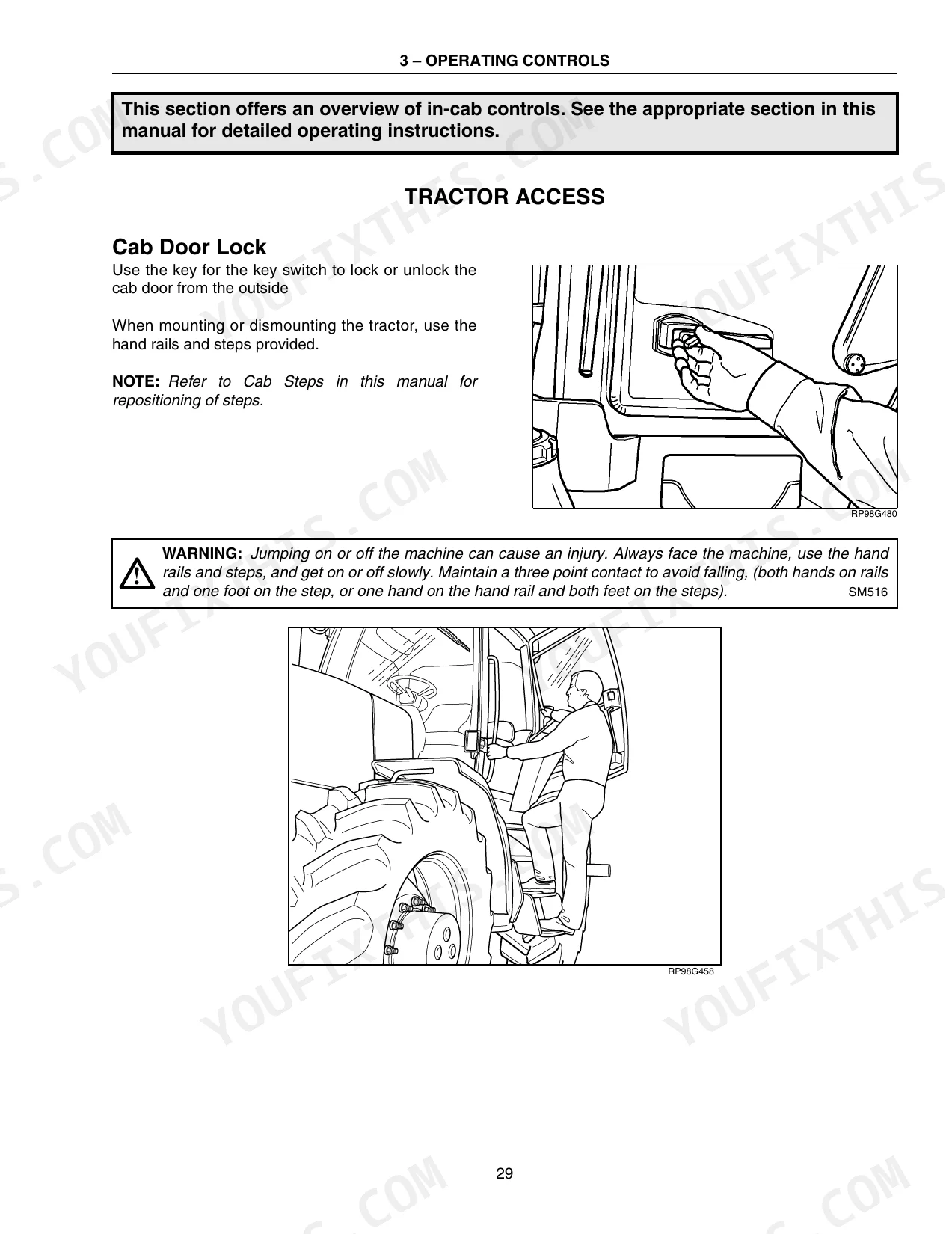

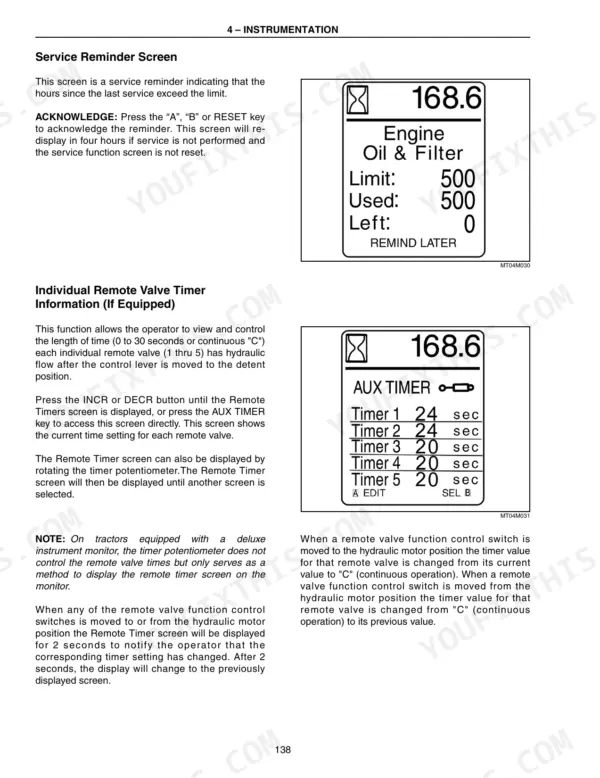

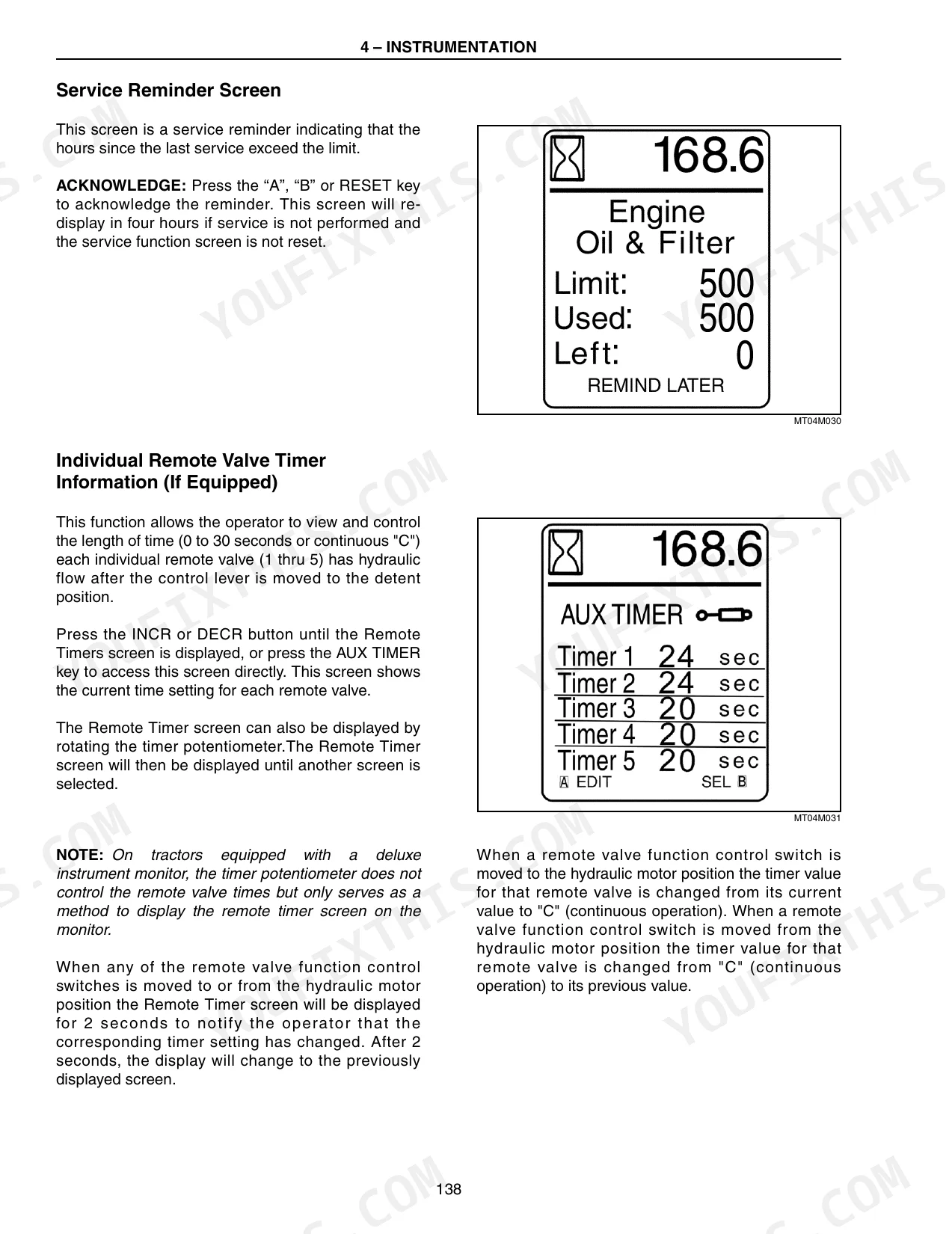

| System | Pages | Key Topics |
|---|---|---|
| To the Owner | 7-14 | Statement of Tractor Intended Use, Operator’s Manual Storage Compartment, Product Identification and Serial Numbers, Machine Components, Business Band Radios |
| Safety/Decals | 15-34 | Safety Rules, Personal Safety, Instructional Seat Safety, Maintenance Safety, Fire Safety, Battery Safety, Machine Operation and Roll-Over Safety, Hazardous Chemicals |
| Operating Controls | 35-72 | Tractor Access, Operator Seats with Air Suspension, Instructional Seat, CD Player – 6-Disc, Steering Column Controls, Foot Pedals, Center Console Controls |
| Instrumentation | 73-115 | Tractor Instrumentation, Instrument Cluster, Functional Data and Programmable Display, Programming the Display Monitor, Warning Displays, Performance Monitor |
| Instrumentation (Later Version) | 116-146 | Instrument Cluster, Programming the Display Monitor, Changing Tire Radius, Tire Average Rolling Radius Chart, Radar Sensor Calibration, Radar Calibration Procedure, Old Hours |

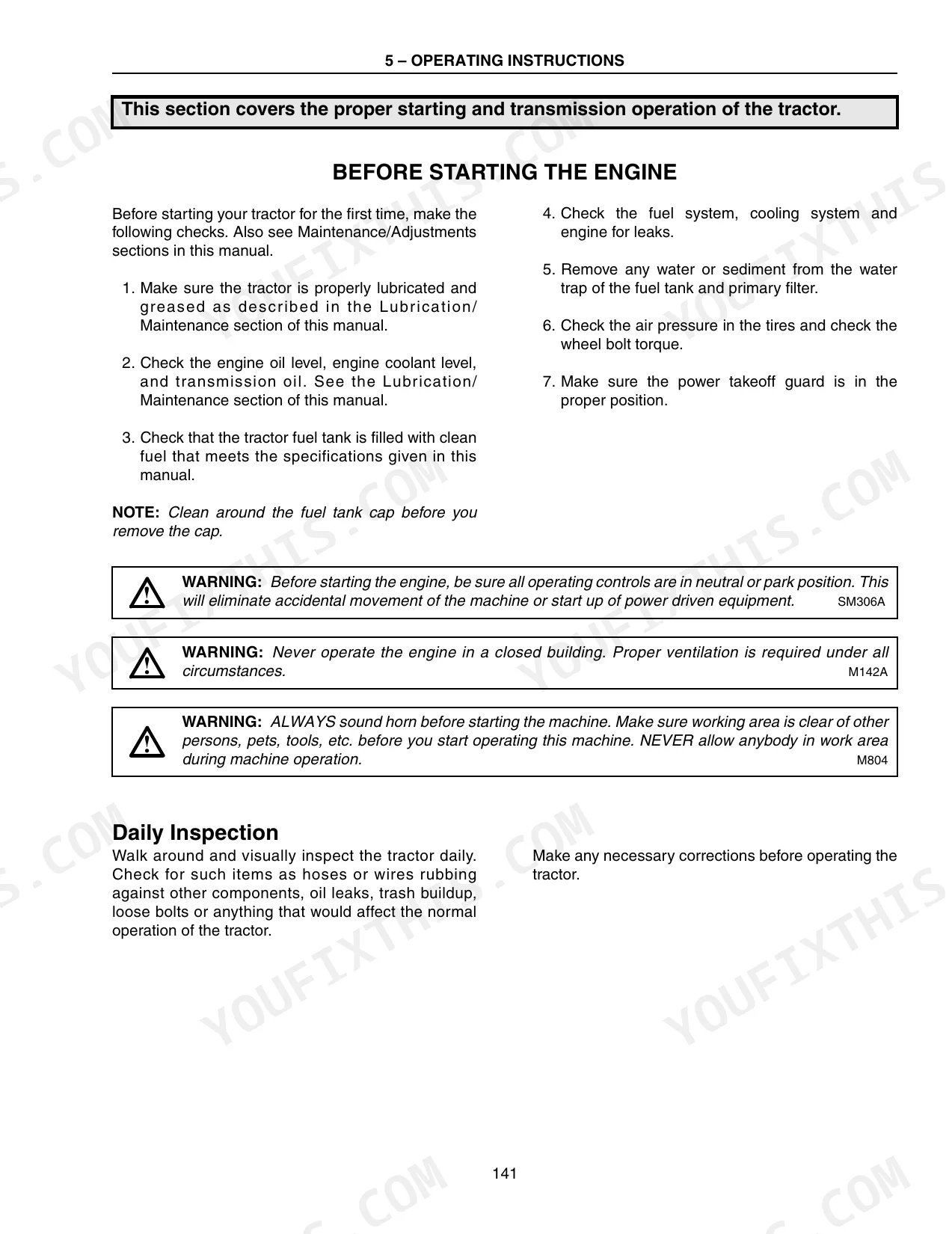

| Operating Instructions | 147-178 | Before Starting the Engine, Service Indicator Lamps and Bar Graph Displays, Seat Belts, Normal Engine Starting Procedure, Stopping the Engine, Cold Temperature Operation |
| Field Operation | 179-268 | Power Takeoff, Three Point Hitch, Hitch Operation, Drawbar Preparation, Front Hitch, Remote Hydraulics, Loader Operation, Chemical Tank Mounting |
| In-Field Performance | 269-346 | Differential Lock, MFD Operation, Ballasting Your Tractor for Optimum Performance, Wheel Slip, Power Hop, 2WD Front Axle, Mechanical Front Drive Tractors |

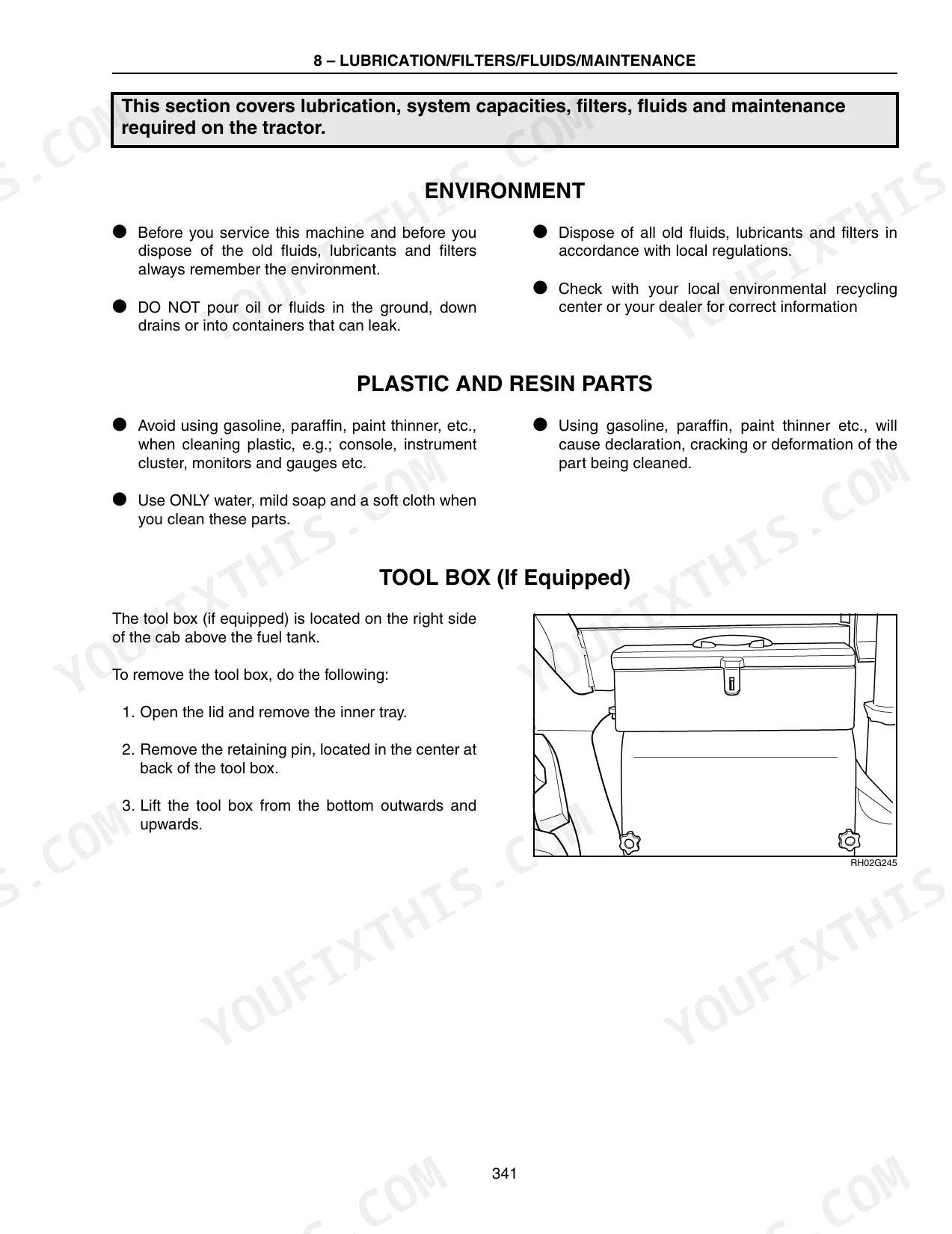

| Lubrication/Filters/Fluids/Maintenance | 347-406 | Environment, Plastic and Resin Parts, Tool Box, System Capacities, Hood and Service Door Access, Lubrication/Maintenance Chart |
| Electrical System | 407-428 | Radio Regional Programming, Battery System Servicing, Bulb and Lamp Replacement |
| Specifications | 429-438 | Diesel Engine, Power Train, Travel Speeds, Maximum Recommended Operating Weights |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Pressure Cap, Deaeration Tank | 15 PSI (103 kPa) | p. 430 |
| Engine Oil Capacity (No Filter Change) | 19 L | p. 348 |
| Engine Oil Capacity (With Filter Change) | 21 L | p. 348 |
| Trans / Hydraulic System Capacity | 172 L | p. 348 |
| MX210 & MX230 | ||
| Cooling System Capacity (MX210 & MX230) | 22.7 L | p. 348 |
| Fuel Tank Capacity (MX210 & MX230) | 492 L | p. 348 |
| MX255 & MX285 | ||
| Cooling System Capacity (MX255 & MX285) | 24.6 L | p. 348 |
| Fuel Tank Capacity (MX255 & MX285) | 606 L | p. 348 |
Case IH MX210, MX230, MX255, MX285 Common Problems This Manual Covers
Case IH MX285 dies intermittently or flashes controller communication faults after hitting field bumps
Check the non-critical warning displays starting on page 97 to confirm which controller dropped off the bus. From there the fault usually sits in that circuit's wiring, so inspect the harness and pull every connector you can reach to look for corrosion before reseating it.
Manual Section: Non-Critical Warning Displays (Programmable Display) p. 97Engine shuts down on its own with the oil pressure warning showing on the instrument cluster
Stop and check the critical warning display list on page 129 before restarting. Let the engine sit ten minutes, then verify oil level on the dipstick. Refill to the full mark using 21 L total at a filter change, 19 L without. If the level is right and the light stays on, suspect the oil pressure sender.
Manual Section: Critical Warning Displays - Level 1 (Instrumentation) p. 129Hydraulic remotes will not kick out of detent or the cylinder creeps during operation
Verify the remote lever returns fully to neutral and that the detent releases the lever as it should. Inspect the switch and the electrical connectors on the back of the valve stack for moisture and corrosion, then check the trans/hydraulic level; the system holds 172 L, so a low reading points to a leak under the cab.
Manual Section: Field Operation p. 179Tractor runs warmer than normal under light load or the coolant temperature warning appears
Clean chaff off the radiator and oil cooler screens first, blowing from the fan side out. Test the deaeration tank pressure cap; it must hold 15 PSI (103 kPa) per the specifications on page 430. Verify the coolant level cold: 22.7 L fills an MX210 or MX230 system, and a weak cap will boil off coolant every long day.
Manual Section: Specifications p. 430Engine loses power during long afternoon runs, or water has collected in the fuel system
Drain the water trap at the fuel filter base until clean fuel runs out. Follow the maintenance chart beginning on page 347 for filter intervals. Top the tank at the end of each day; the MX255 and MX285 hold 606 L, and a full tank keeps condensation from forming overnight.
Manual Section: Lubrication/Filters/Fluids/Maintenance p. 347Engine cranks but will not start, or the neutral icon box flashes and the transmission drops out
Confirm the shuttle control is in neutral and the range lever is out of gear, since the startup interlock blocks cranking otherwise. Review the transmission disengages troubleshooting on page 163 for the flashing neutral icon. Then check the seat switch and battery voltage; a weak battery in cold weather trips diagnostic warnings before you reach the field.
Manual Section: Transmission Disengages Troubleshooting p. 163Frequently Asked Questions
How do I reset a fault code on the Case IH MX210 or MX230?
For non-critical faults, pressing the RESET key on the display will clear the fault. However, if the cause of the fault is not corrected, the fault will display again after 10 minutes. p. 97
What are the battery replacement specs for a Case IH MX210, MX230, MX255, MX285 tractor?
The tractor requires two 12-volt, 1000 CCA low-maintenance batteries connected in parallel, which are Group Size 31. p. 109
What is the procedure for replacing the fuel filter on the MX210 and MX230 tractors?
After cleaning the filter head and area, drain the fuel using the drain plug (2). Remove the filter using a clamp wrench, install the new filter with a new gasket, and tighten it by hand 1/2-turn, then loosen and tighten again 1/2 to 3/4 turn by hand. p. 79
What is the torque spec for the front wheel mounting bolts on the MFD axle of a Case IH MX210, MX230, MX255, MX285?
The front wheel bolt hardware must be torqued to 190-217 Nm (140-160 LB FT) after the unit is serviced or after wheel tread spacing is adjusted. p. 307
What is the engine oil capacity for the MX210 and MX230 tractors?
The engine oil capacity for the MX210 and MX230 is 19 L (5 Gal) without a filter change and 21 L (5-1/2 Gal) with a filter change. p. 348
Is this Case IH MX210–MX285 Series Operator Manual a digital download?
One searchable PDF covering 445 pages, delivered instantly. No disc, no shipping, no waiting on the post.
Does this Case IH MX210–MX285 Series manual allow printing?
Yes. The PDF is DRM-free, so printing works from any reader and any printer.
