Running an MX210 or MX240 through a season goes easier with the Case IH MX210, MX240 Operator Manual PDF (OEM 6-36200ENG) open beside you, 328 pages that walk the tractor from cold start through ballasting to shutdown. Field operation takes up the single largest block of the book: PTO hookup, three point hitch setup, hitch operation, drawbar preparation and remote hydraulics, each laid out in the order you'd actually do it in the yard. Programming the display monitor and reading warning lamps get their own treatment, and the lubrication chart tells you what interval each grease point wants. Refill figures come straight from the factory table: 21 litres of engine oil with a filter change, 172 litres through the transmission and hydraulic system, 492 in the fuel tank. A guessed capacity can cook a wet clutch. Bookmarked, text searchable, and yours to keep as long as you own the tractor.
Complete the set for your MX210, MX240
What's Inside This Case IH MX210, MX240 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| To the Owner | 7-12 | Statement of Tractor Intended Use, Operator Manual Storage Compartment, Product Identification and Serial Numbers, Machine Components |
| Safety/Decals | 13-30 | Safety Rules, Personal Safety, Instructional Seat Safety, Maintenance Safety, Fire Safety, Battery Safety, Machine Operation and Roll-Over Safety, Hazardous Chemicals |

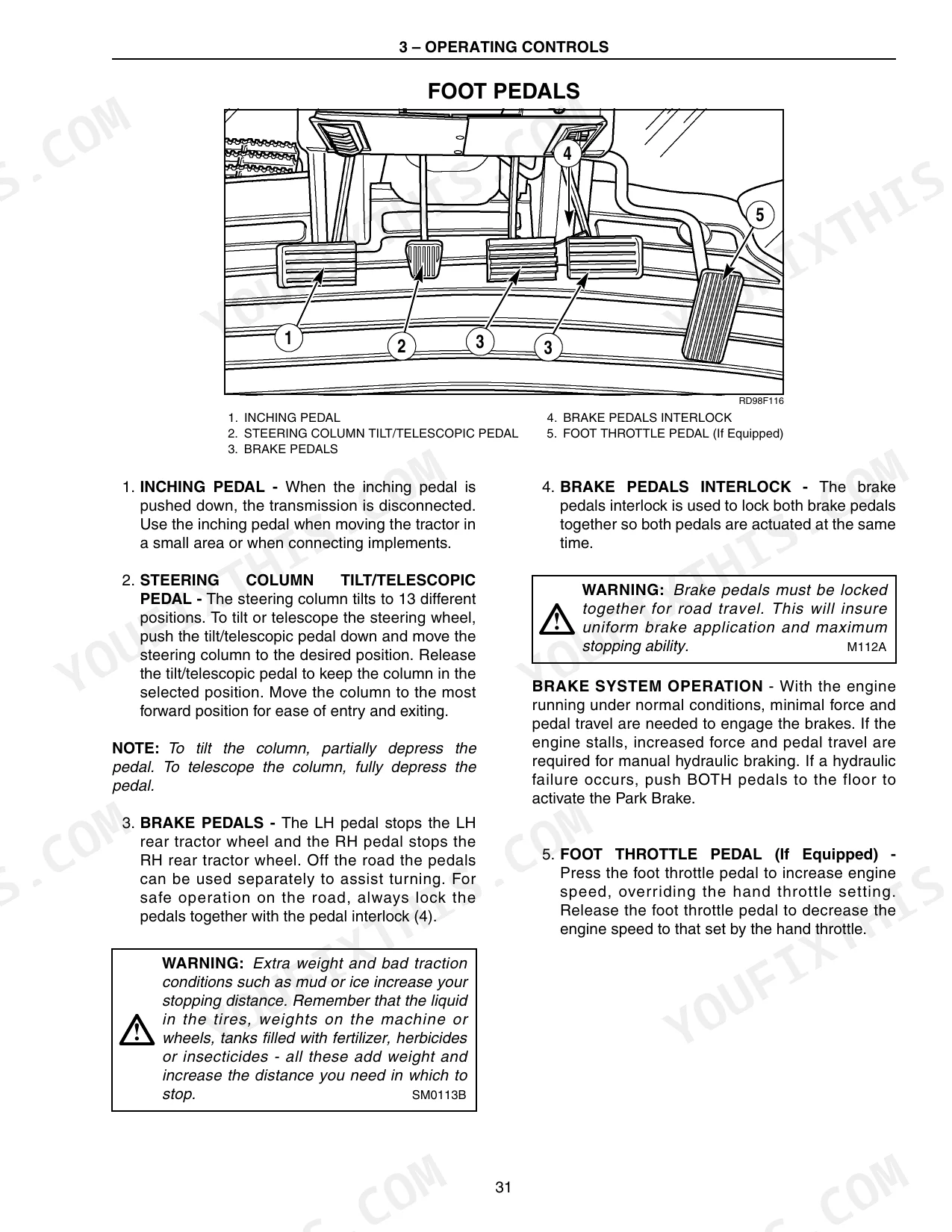

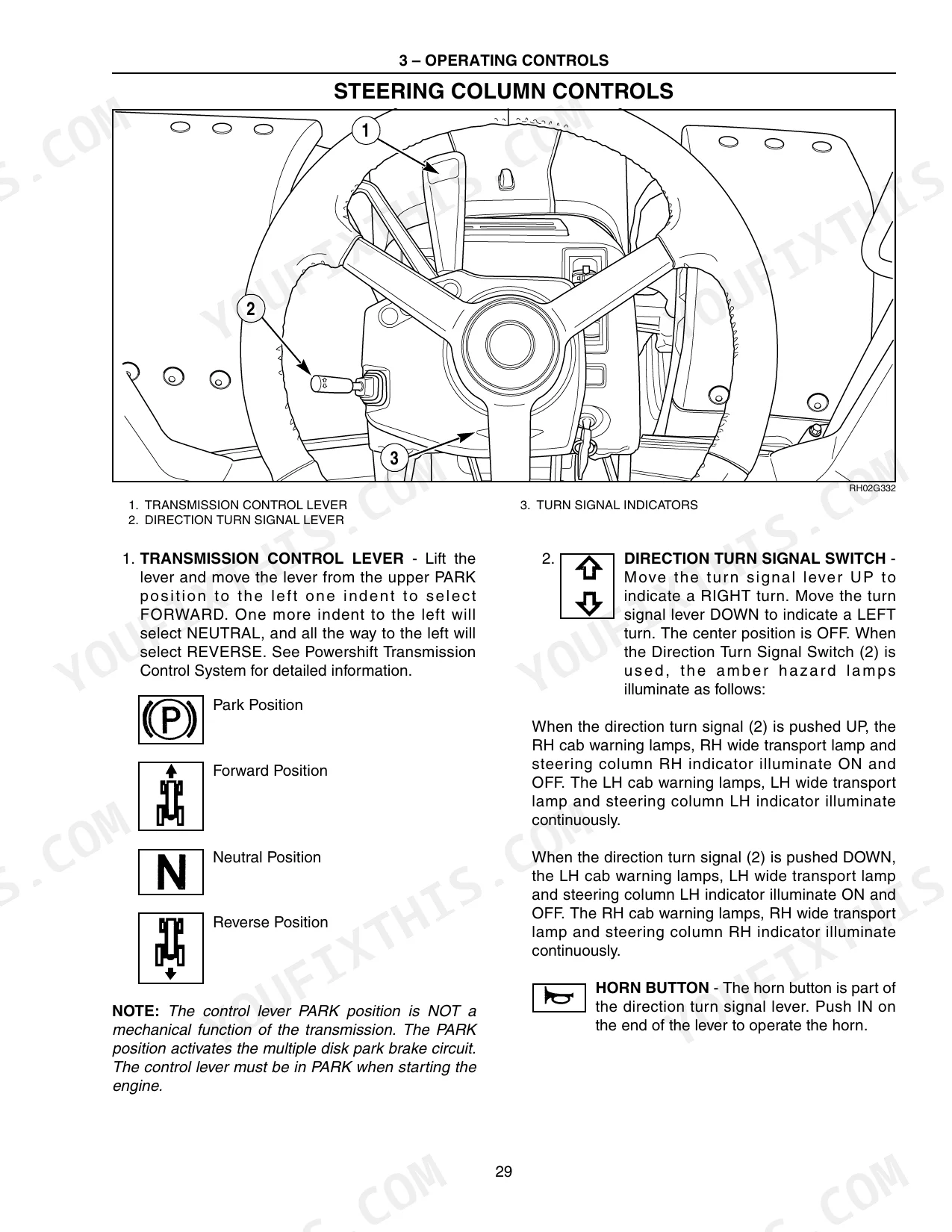

| Operating Controls | 31-60 | Tractor Access, Operators Seat with Air Suspension, Instructional Seat, Cd Player – 6-Disc, Steering Column Controls, Foot Pedals, Center Console Controls |
| Instrumentation | 61-86 | Tractor Instrumentation, Instrument Cluster, Functional Data and Programmable Display, Programming the Display Monitor, Warning Displays |

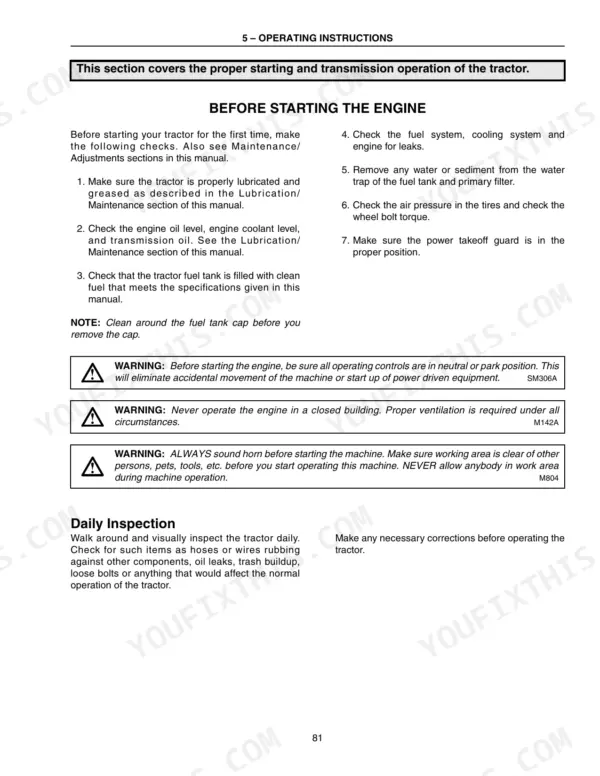

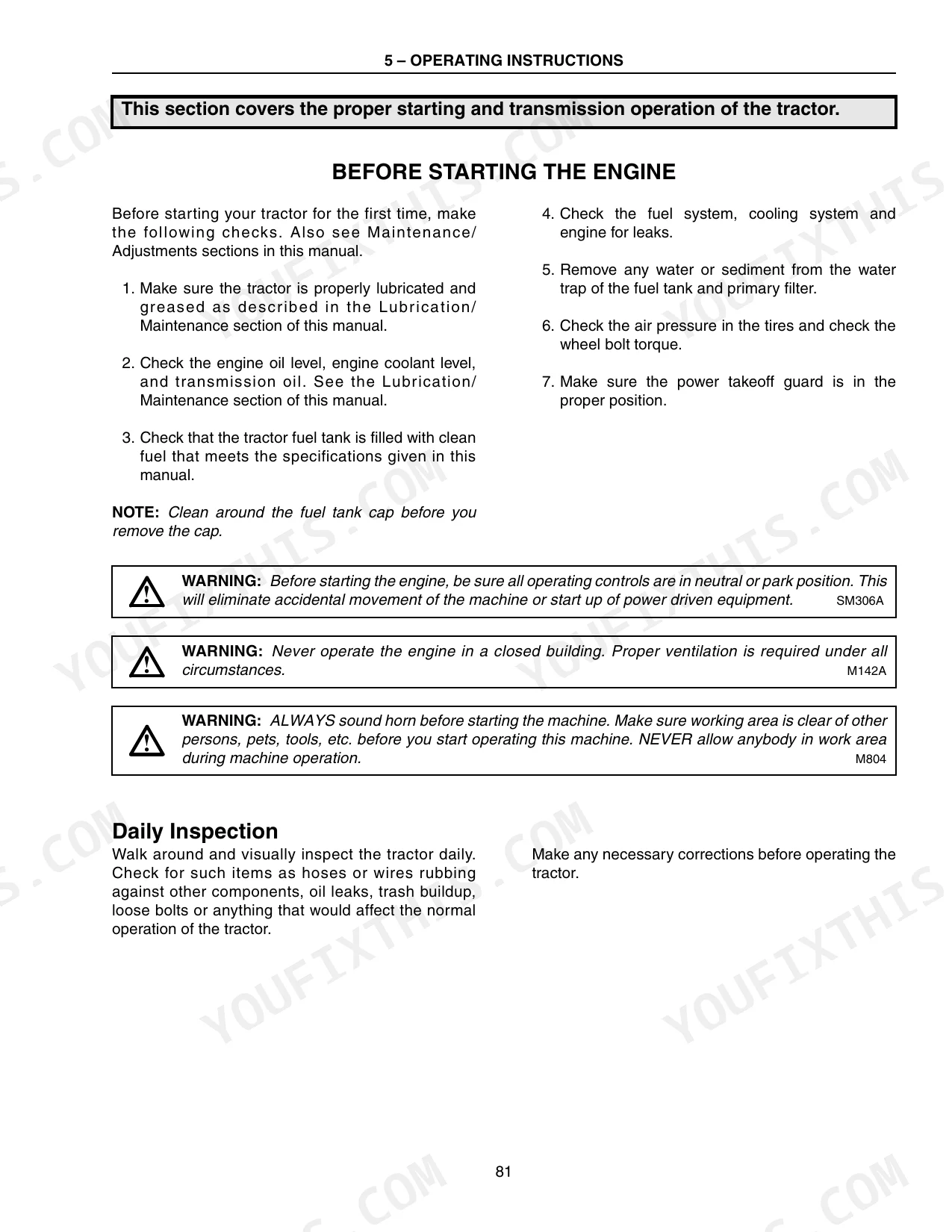

| Operating Instructions | 87-108 | Before Starting the Engine, Service Indicator Lamps and Bar Graph Displays, Seat Belts, Normal Engine Starting Procedure, Stopping the Engine, Cold Temperature Operation |
| Field Operation | 109-178 | Power Takeoff, Three Point Hitch, Hitch Operation, Drawbar Preparation, Remote Hydraulics, Chemical Tank Mounting, Auxiliary Power Connections, Monitor Mounting |
| In-Field Performance | 179-238 | Differential Lock, MFD Operation, Ballasting Your Tractor for Optimum Performance, Wheel Slip, Power Hop, Mechanical Front Drive Tractors, MFD Steering and Oscillation Stops |

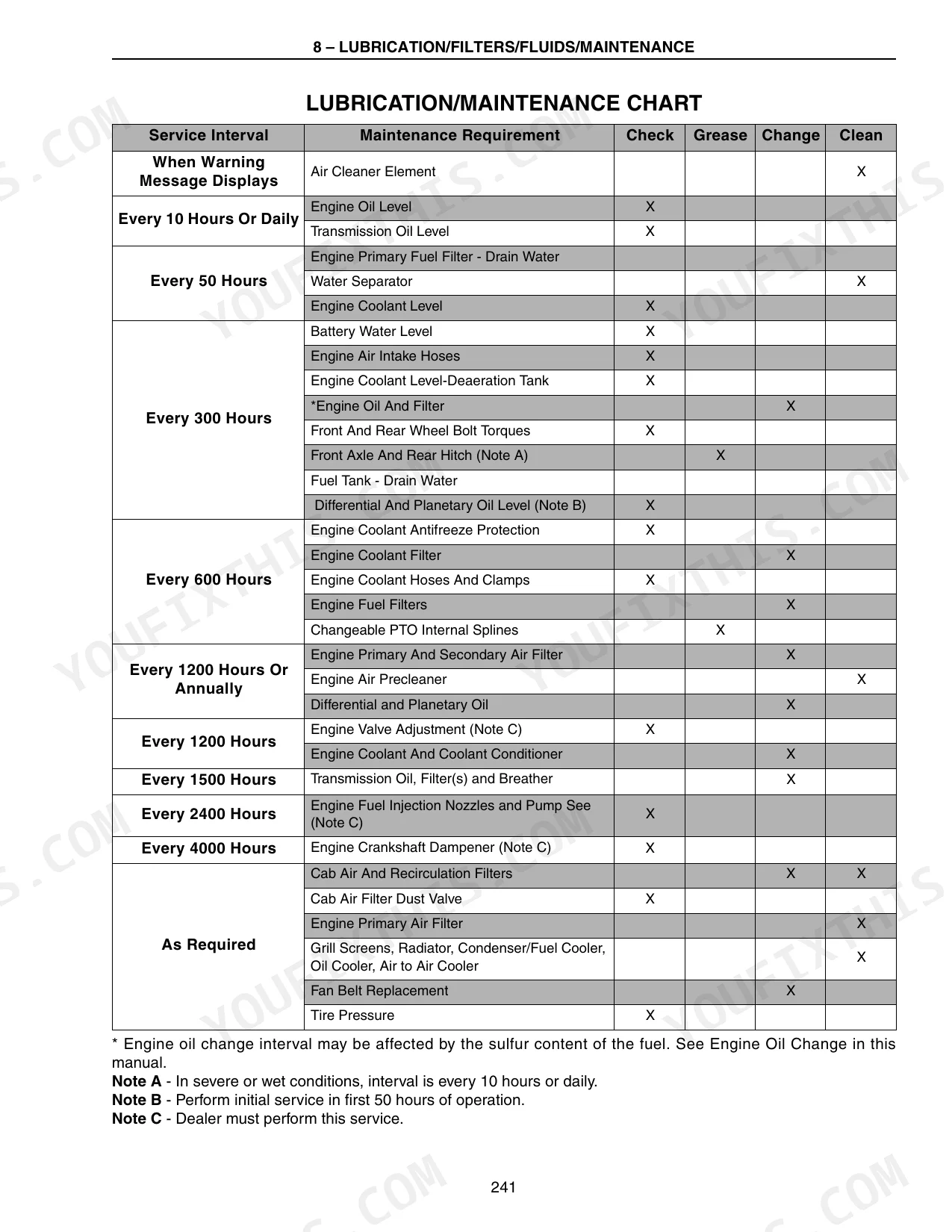

| Lubrication/Filters/Fluids/Maintenance | 239-290 | Environment, Plastic and Resin Parts, Tool Box, System Capacities, Hood and Service Door Access, Lubrication/Maintenance Chart |
| Electrical System | 291-312 | Radio Regional Programming, Battery System Servicing, Bulb and Lamp Replacement |

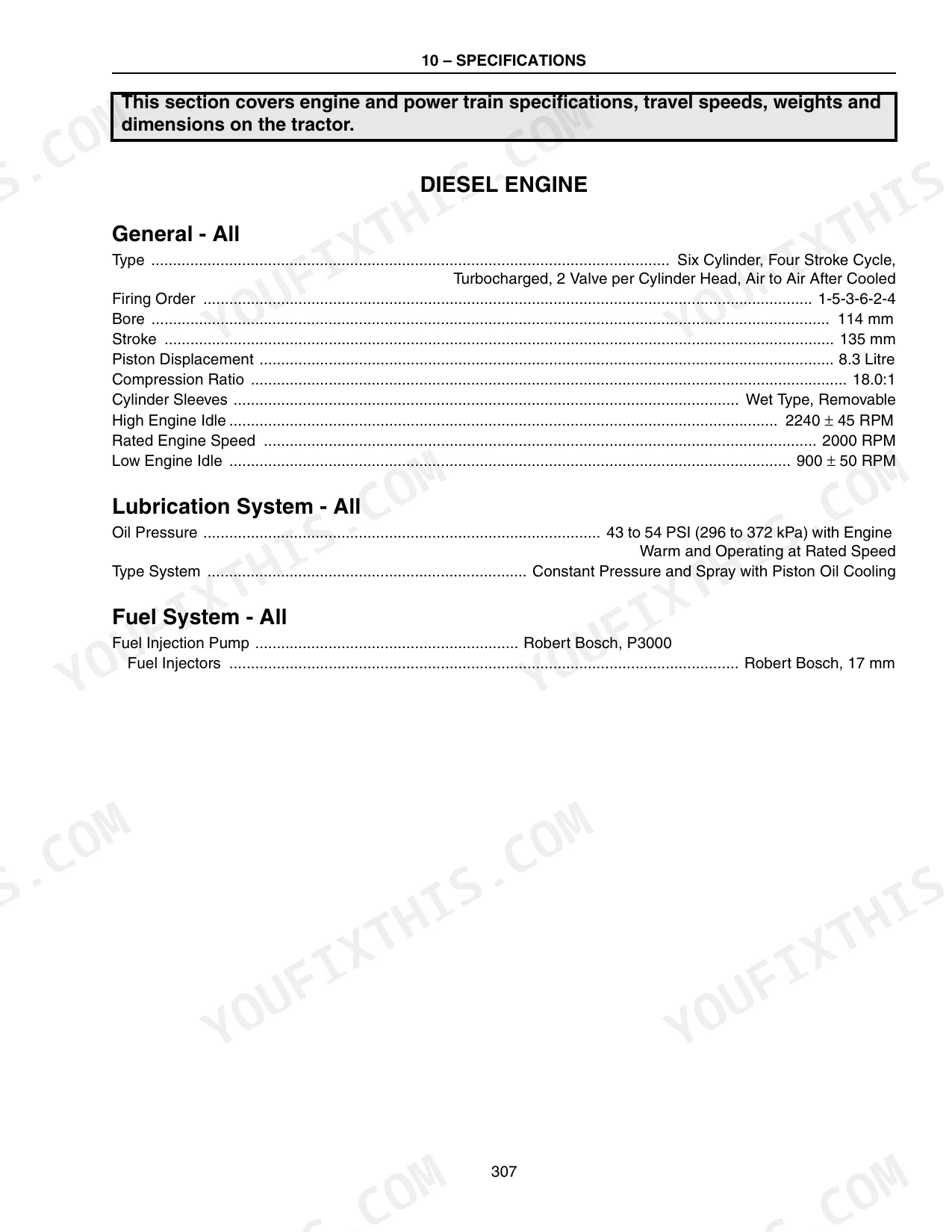

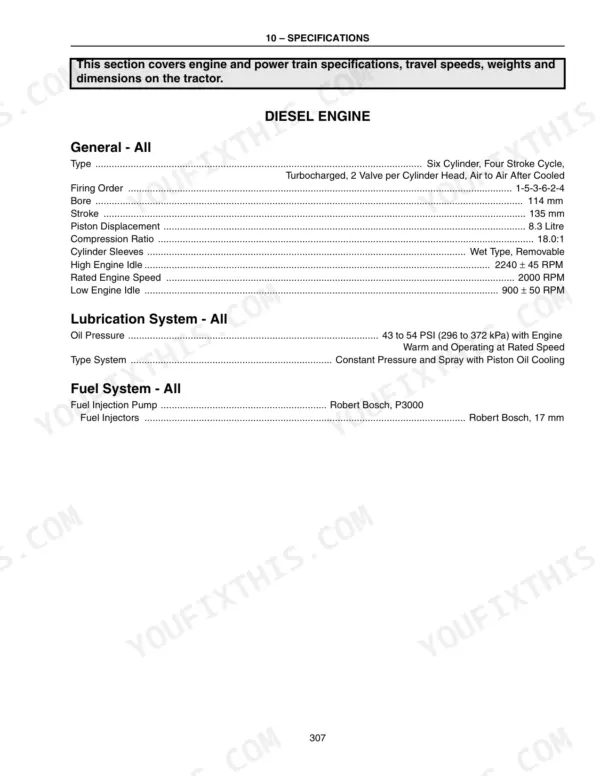

| Specifications | 313-320 | Diesel Engine, Power Train, Travel Speeds, Maximum Recommended Operating Weights |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Engine Oil Capacity (With Filter Change) | 21L | p. 240 |
| Cooling System Capacity (MX210 & MX240) | 22.7L | p. 240 |
| Transmission / Hydraulic System Capacity | 172L | p. 240 |
| Fuel Tank Capacity (MX210 & MX240) | 492L | p. 240 |
| Differential Oil Capacity (MFD) | 12.3L | p. 240 |
| Planetary Oil Capacity (MFD - Each) | 1.32L | p. 240 |
| Rear Axle - Single: 6 bushing bolts, tightening torque | 300-350 Nm | p. 227 |
| Rear Axle - Single: 10 hub bolts, tightening torque | 530-570 Nm | p. 227 |
| Front Wheel Mounting Torque (Disc to Front Axle Hub Nuts) | 385 TO 425 Nm | p. 216 |
| Front Wheel Mounting Torque (Disc to Rim Nuts) | 310 Nm | p. 216 |
| Maximum Tractor Operating Weight (MX240) | 12 020 kg | p. 319 |
| Maximum Front Axle Operating Weight (MX240 MFD) | 4540 kg | p. 319 |
Case IH MX210, MX240 Common Problems This Manual Covers
Case IH MX210 engine cranks but runs rough, stalls under load in the field
Check the fuel system air removal procedure and bleed the lines before blaming the pump. Verify the tank holds clean fuel (capacity is 492L) and swap the fuel filters at the interval shown in the maintenance schedule. Watch the critical warning displays on page 81 while loading the engine.
Manual Section: Fuel System Air RemovalFlashing neutral icon on the display and transmission drops out of gear
Check the transmission disengages troubleshooting on page 103 and confirm the shuttle lever is fully in neutral before restarting. Verify the seat switch registers operator presence per the diagnostic warning displays on page 84. Then check transmission oil level; the transmission and hydraulic system holds 172L, and a low level trips the same icon.
Manual Section: Transmission Disengages Troubleshooting p. 103Non-critical fault codes popping up intermittently on hitch, PTO, and remote circuits
Look up each code in the non-critical warning displays on page 82 and write down which controller reported it. Clean and dielectric-grease the battery terminals using the battery servicing steps on page 296, since low voltage triggers phantom controller communication faults. Verify charging voltage before chasing individual harness connectors.
Manual Section: Non-Critical Warning Displays p. 82Engine turns over slowly or will not start on cold mornings
Follow the cold temperature operation steps in the operating instructions on page 87 and use the grid heater before cranking. Test battery state of charge per page 296; a weak pack cranks slow and sets false codes. If you jump it, connect the auxiliary battery exactly as page 298 shows. Verify coolant mix rating.
Manual Section: Battery System Servicing p. 296Front axle whine and hard steering during heavy tillage with MFD engaged
Check the MFD operation section starting on page 179 and disengage MFD on hard surfaces. Measure differential oil level; the MFD differential holds 12.3L and each planetary takes 1.32L per page 240. Re-torque front wheel disc to hub nuts to 385 to 425 Nm per page 216 before you go back to the field.
Manual Section: In-Field Performance p. 179Hydraulic filter and air filter warning icons come on during long field days
Check the informational warning displays on page 85 to confirm which filter is calling out. Clean the air filter element and service the hydraulic filter on the schedule listed. Verify system oil level after any filter change, since the transmission and hydraulic system takes 172L per page 240, and recheck the icons at operating temperature.
Manual Section: Informational Warning Displays p. 85Frequently Asked Questions
How do I clear an error code on a Case IH MX210?
For non-critical warnings, you can press the RESET key on the display to clear the faults. However, if the cause is not corrected, the fault will display again after 10 minutes. p. 82
What are the torque specifications for the rear axle wheel bolts on a Case IH MX240?
The torque specification for the 10 hub bolts on the rear axle is 530-570 Nm (390-420 lb ft). p. 227
What is the engine oil capacity for the MX210 and MX240?
The engine oil capacity for the MX210 and MX240 is 19 Liters (5 Gallons) for a no-filter change, and 21 Liters (5-1/2 Gallons) when changing the filter. p. 240
How often should the transmission oil and filters be changed?
The transmission oil and filters should be changed every 1500 hours of operation. p. 247
What exactly do I receive with this Case IH MX210 Operator Manual?
This is a 328-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Can I print a copy of this Case IH MX210 Operator Manual for the shop?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
