Hydrostatic drive work on an Axial-Flow 7120, 8120 or 9120 runs through a Bosch - Rexroth closed circuit pump with Electric Displacement Control. Page 546 gives main reliefs at 419 bar (6076 psi) and charge relief at 30 bar (435 psi). Case IH manual 84526978, dated March 2013 and replacing 84163559, prints those figures beside the pump and motor components and the powered rear axle problem solving.
Chasing a hydro or wiring fault with the crop standing and rain on the way is bad enough without guessing at pressures. The book also covers the main gearbox, the 4 speed transmission and differential, both axles and the load sensing hydraulics. It goes on to the header, rotor, cleaning shoe, grain tank unload, wiring schematics and the fault code sections.
Keep it on a tablet in the cab or on the shop bench, wherever the combine is parked, and get back in the field.
What's Inside This Case IH Axial-Flow 7120–9120 Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction, Torque Charts and General Specifications | 1-53 | Safety Rules, Minimum Tightening Torques, Standard Torque Data for Hydraulics, General Specification per Model, Overall Dimensions, Capacity Chart, Biodiesel Fuels, Product Identification |
| Engine | 54-205 | Engine and Crankcase with FPT Cursor Fault Code Cross Reference, Engine Troubleshooting and Engine Remove and Install, Air Cleaners, Lift Pump, Aftercooler, Engine Cooling System, Fan and Drive, Rotary Screen, Engine Air Compressor |
| Main Gearbox and Drive | 206-279 | Main Gearbox and Drive Removal, Disassembly and Assembly |
| Transmission | 280-383 | Mechanical Transmission Lubrication System, Mechanical Transmission Torques and Special Tools, External Controls, Gearbox Internal Components, Differential |
| Front and Rear Axles | 384-495 | Powered Front Axle, Final Drive Hub, Steering Knuckles and Shafts, Planetary and Bull Gear Final Drives, Powered Rear Axle, Non-Powered Rear Axle |
| Hydrostatic Drive | 496-651 | Transmission and Steering Hydrostatic Control, Hydrostatic Transmission Specification and Capacity, Pump and Motor Components, Rear Hydrostatic Transmission (Powered Rear Axle) Problem Solving |
| Front PTO and Brakes | 652-717 | Front Power Take-Off, Parking Brake, Hydraulic Service Brakes |

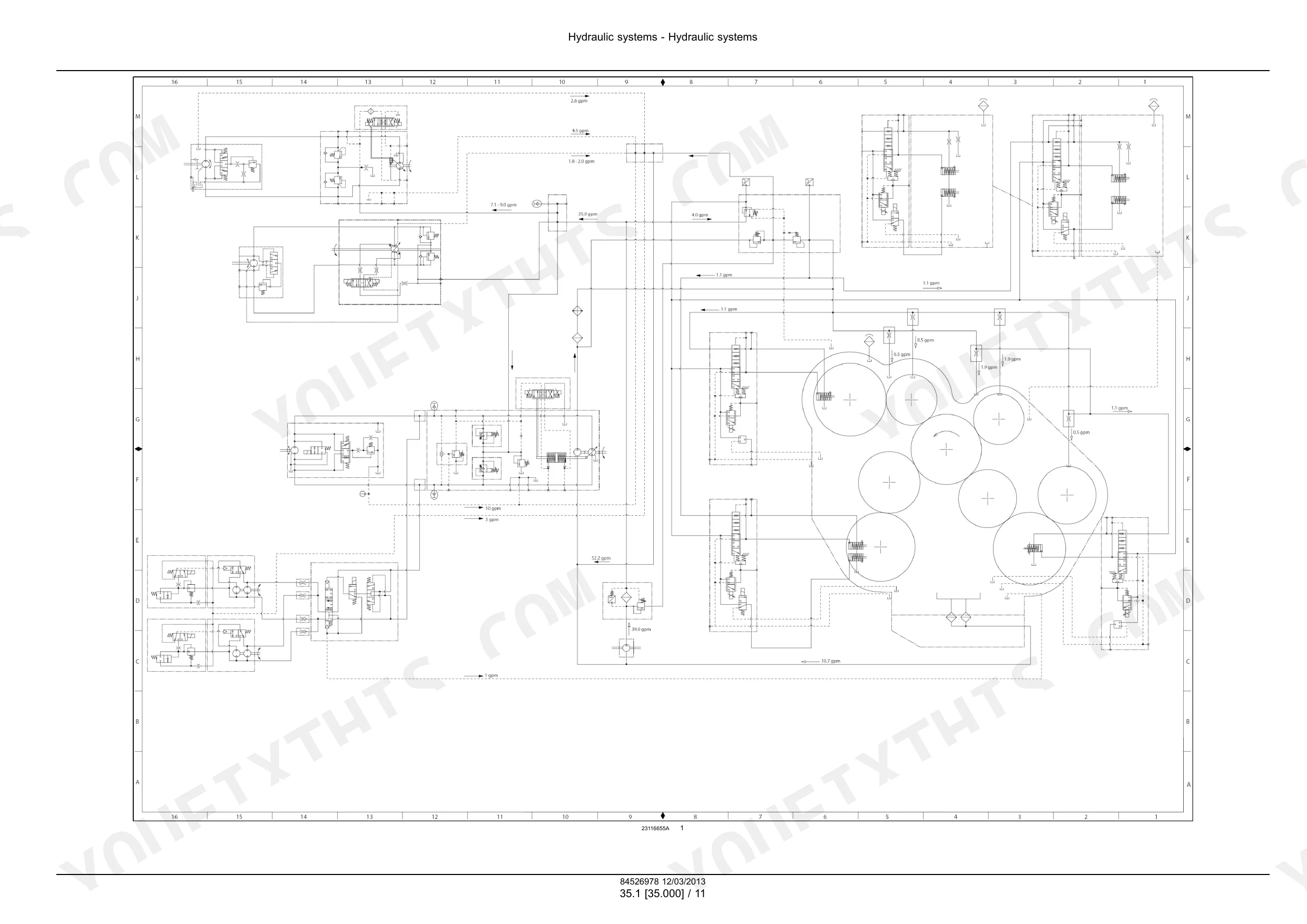

| Hydraulic Systems | 718-935 | Hydraulic Schematics, General Specification, Control Pressure Flow Test, Pump Control Valves, Variable Displacement Pump, Auxiliary Pump, Reservoir, Cooler and Filters, Safety and Main Relief Valves, Main Control Valve, Header Height and Tilt, Grain Tank Unload, Reel and Crop Processor Hydraulics |
| Steering, Wheels and Tracks | 936-1163 | Steering Control and Hydraulic Components, Front Wheels, Tracks, Track Frame and Driving Wheels, Track Tension Units, Track Rollers |
| Cab Climate Control | 1164-1285 | Heating, Ventilation, Air Conditioning Troubleshooting, Fault Codes and Pressure Test Chart |
| Electrical System and Electronic Controls | 1286-1474 | Electrical System, Fuel Injection, Engine Cooling, Oil and Intake Electrical, Engine Control, Hydrostatic Drive and Transmission Control, Hydraulic System Control, HVAC Control |

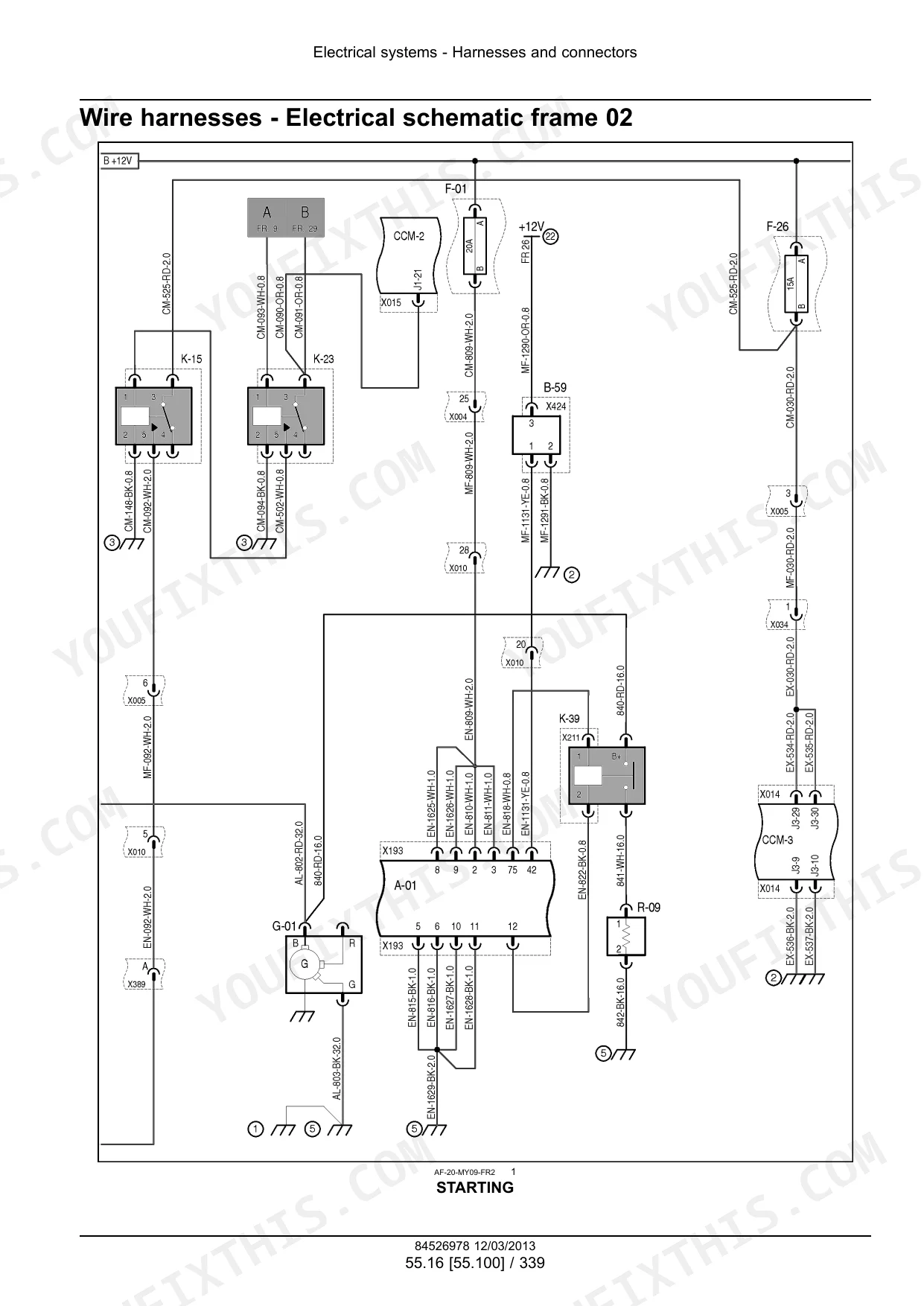

| Wire Harnesses, Connectors and Schematic Frames | 1475-2106 | Harness and Connector Views, Connector Pin Tables, Electrical Schematic Frames |
| Starting, Charging, Lighting, Instruments and Modules | 2107-2572 | Engine Starting System Problem Solving, Cold Start Aid, Alternator, External Lighting, Warning Indicators, Alarms and Instruments, Harvest and Cab Controls, Wipers, Electronic Modules, Cab Header Controls, Precision Farming, Sieve Control, Gps |
| Fault Codes: Module Communication and Machine Controllers | 2573-3225 | Fault Code Index, Module Not Detected or Communication Lost (D0100-2011), Machine Controller Codes From E0001-03 Onward |
| Fault Codes: Engine Controller | 3226-3462 | Engine ECU Fault Codes From E1541-02 to E1745-03 with Context, Cause, Failure Modes and Test Steps |
| Fault Codes: Residue Handling Module and Header | 3463-3617 | Residue Handling Module and Header Control Fault Codes, Fault Code Section Index |
| Headers and Product Feeding | 3618-3809 | Attachment and Header Frame, Floating Roll and Feed Chain, Feeder Housing, Stone Trapping System, Feeder Drive System with CVT Torques, Header Drive System |
| Threshing and Separation | 3810-3985 | Concave Control, Threshing Mechanism Drive, Rotor, Rotor Housing, Discharge Beater, Rotary Separator |
| Residue Handling and Cleaning | 3986-4189 | Straw Chopper and Drive, Chaff Spreader, Self-Leveling Frame, Cleaning Drives, Grain Pan, Upper and Lower Shaker Shoe, Fan Housing, Tailings Return System |
| Crop Storage and Unloading | 4190-4413 | Clean Grain Elevator, Grain Tank, Grain Tank Unload Drive System, Grain Tank Unload |
| Platform, Cab and Bodywork | 4414-4574 | Machine Shields and Guards, Protections and Footboards, Pneumatically Adjusted Operator Seat, Cab, Cab Interior |
| Fold-Out Schematics | 4575-4590 | Electrical Schematic Sheets and Hydraulic / Hydrostatic Schematic Sheets |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Engine gross power (ISO TR14396) | 260 kW (353.5 Hp) Cursor 9 l (Axial-Flow 7120) / 298 kW (405.2 Hp) Cursor 10.3 l (Axial-Flow 8120) / 343 kW (466.4 Hp) Cursor 13 l (Axial-Flow 9120) | p. 38 |
| Engine rated speed | 2100 RPM | p. 38 |
| Main hydraulic system | 57 l (15.1 US gal), CASE IH AKCELA HY-TRAN ULTRA HYDRAULIC TRANSMISSION OIL | p. 48 |
| Traction gearbox | 19 l (5.0 US gal), CASE IH AKCELA GEAR 135 H EP 80W-90 | p. 48 |
| Fuel tank | 1000 l (264.2 US gal) | p. 39 |
| Grain tank capacity | 10570 l (300.0 Bu) (Axial-Flow 7120) / 11630 l (330.0 Bu) (Axial-Flow 8120, Axial-Flow 9120) | p. 38 |
| Rotor speed range | 220 - 1180 RPM | p. 36 |
| Cleaning fan speed range | 300 - 1150 RPM | p. 38 |
| PFC pump flow | 152 l/min (40.2 US gpm) | p. 723 |
| PFC pump high pressure standby | 207 - 214 bar (3001.5 - 3103.0 psi) | p. 723 |
| PFC pump low-pressure standby | 26 - 28 bar (377.0 - 406.0 psi) | p. 723 |
| Hydrostatic pump | Bosch - Rexroth, 125 cm³/rev (7.6 in³/rev) | p. 546 |
| Hydrostatic main reliefs | 419 bar (6076 psi) | p. 546 |
| Hydrostatic charge relief | 30 bar (435 psi) | p. 546 |
| Hydraulic and hydrostatic total system capacity (approximate) | 136.5 l (144.2 US qt) without Powered Rear Axle / 147 l (155.3 US qt) with Powered Rear Axle | p. 521 |
| Feeder gearbox mounting bolts M16 x 60 | 174 - 220 Nm (129 - 162 lb ft) | p. 3688 |
| Axial-Flow 7120 | ||
| Engine oil (Cursor 9L) | 25 l (6.6 US gal), CASE IH AKCELA NO. 1 ENGINE OIL SAE 15W-40 | p. 48 |
| Axial-Flow 8120 | ||
| Engine oil (Cursor 10.3L) | 32 l (8.5 US gal), CASE IH AKCELA NO. 1 ENGINE OIL SAE 15W-40 | p. 48 |
| Axial-Flow 9120 | ||
| Engine oil (Cursor 13L) | 35 l (9.25 US gal), CASE IH AKCELA NO. 1 ENGINE OIL SAE 15W-40 | p. 48 |
Case IH Axial-Flow 7120–9120 Common Problems This Manual Covers
Engine will not crank when the key is turned to Start

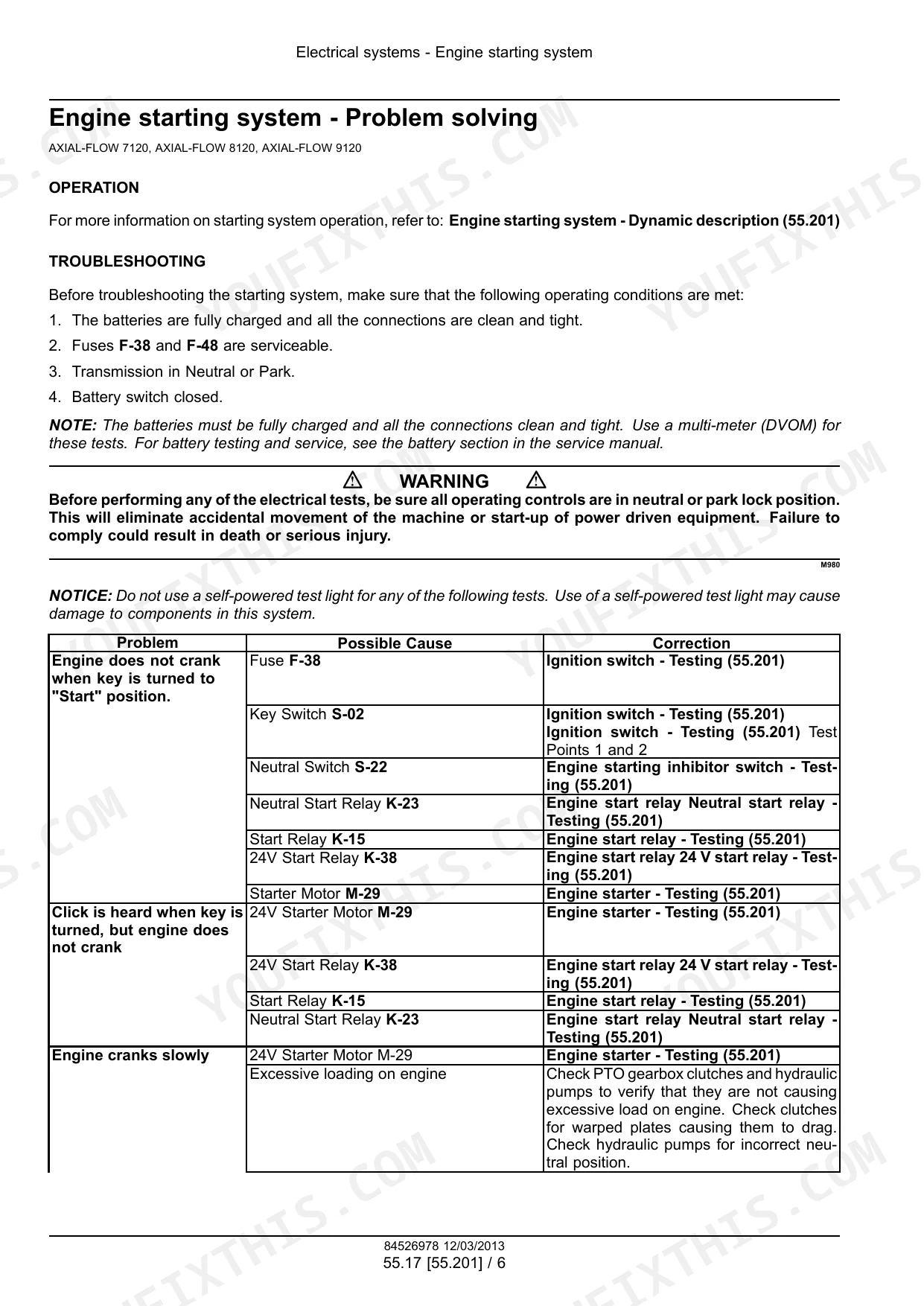

Before troubleshooting, the starting system chart on page 2112 wants fully charged batteries with clean, tight connections, fuses F-38 and F-48 serviceable, the transmission in Neutral or Park and the battery switch closed. It lists fuse F-38, key switch S-02, neutral switch S-22, neutral start relay K-23, start relay K-15, 24V start relay K-38 and starter motor M-29, each with its own test procedure.
Manual Section: Starting, charging, lighting, instruments and modules p. 2112Header drops or leaks down while harvesting

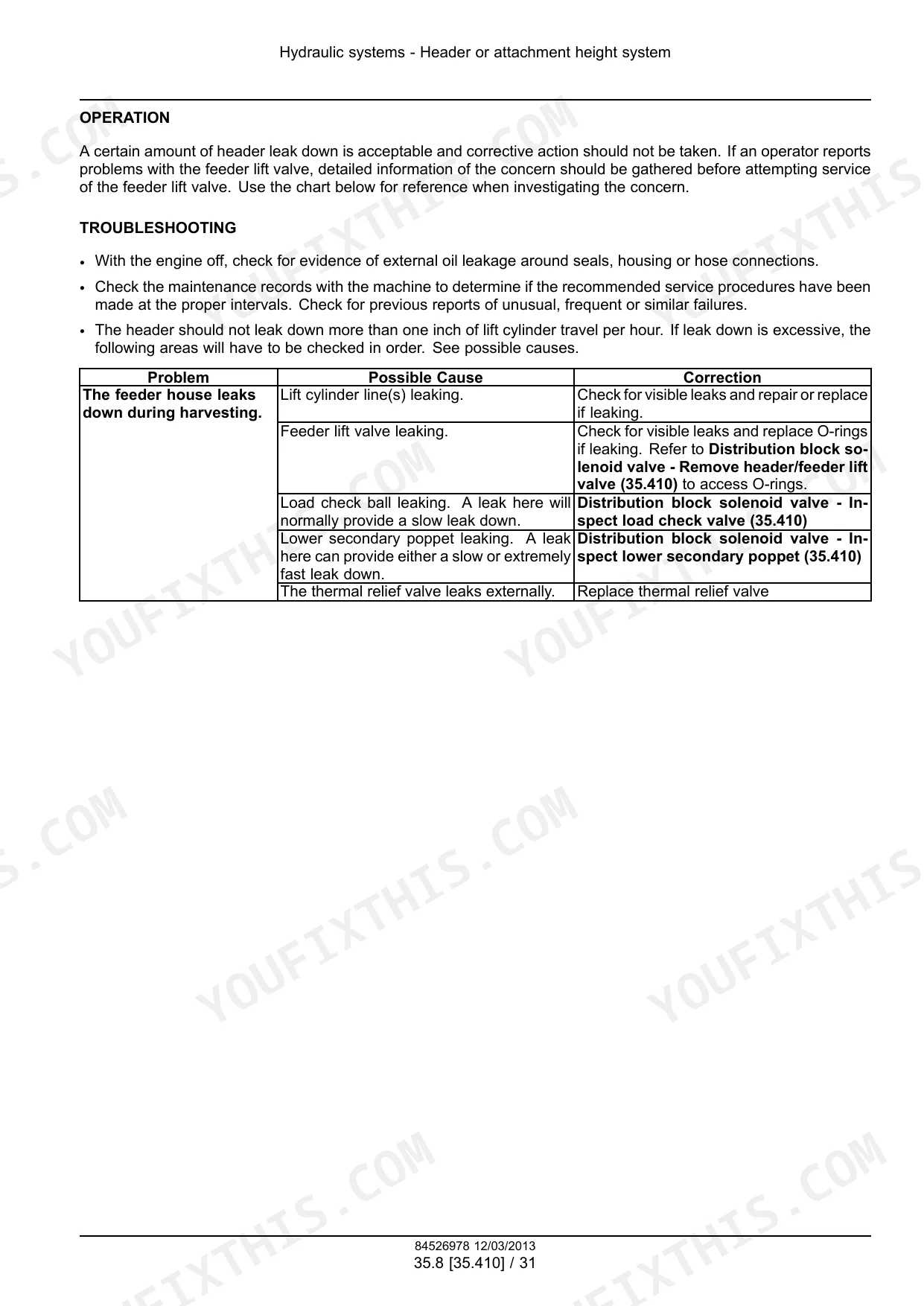

Page 865 in the hydraulic systems section says the header should not leak down more than one inch of lift cylinder travel per hour. If it does, check these areas in order: lift cylinder line(s), the feeder lift valve (replace O-rings), the load check ball, the lower secondary poppet, then a thermal relief valve leaking externally.
Manual Section: Hydraulic systems p. 865Powered rear axle is sluggish
The powered rear axle problem solving chart on page 643 lists these causes: transmission gearing too low (the system works better in a higher gear), incorrectly plumbed main high pressure lines, a weak high pressure relief valve in the hydrostatic pump, excessive case leakage from the wheel motors or selector valve, inadequate charge pressure, and optional flow regulators sticking internally.
Manual Section: Hydrostatic drive p. 643No cooling from the cab air conditioning
The No cooling chart on page 1275 in the cab climate control section lists these causes: A/C Mode switch not on, loss of refrigerant (pressure test), poor air flow through the evaporator, a loose or broken compressor belt, a compressor clutch that will not engage (A/C control relay test), a faulty expansion valve, or a faulty compressor and/or compressor clutch.
Manual Section: Cab climate control p. 1275Frequently Asked Questions
What do Case IH Axial-Flow 7120, 8120 and 9120 error codes mean?
Control module codes print like E0001-03 (Control Module CM1, page 2626), module communication codes like D0100-2011 and cluster alarms like A0000. A0000 is Engine Coolant Temperature HIGH Max Engine Power Limited (page 2259). D0100-2011 is an individual module Not Detected or Communication Lost alarm (page 2602). The causes listed for it are loss of module power or ground, or CAN faults such as bad or open CAN HI / CAN LO wiring. The fault code sections open with an index. p. 2602
What does fault code E1745-03 mean on an Axial-Flow 7120?
E1745-03 is Fuel Flow Setpoint too low - Shorted to high source, set by the engine ECU (page 3456). The ECU has picked up either fuel system leakage or a metering unit jammed closed. The metering unit is the high pressure pump regulator solenoid/valve. Listed causes are an inaccurate rail pressure sensor, a defective high pressure pump, metering unit reflux too low, fuel system leakage or the metering unit jammed closed. Page 62 cross-references it to FPT DTC 158. p. 3456
What are the torque specs for Axial-Flow 20 Series components?

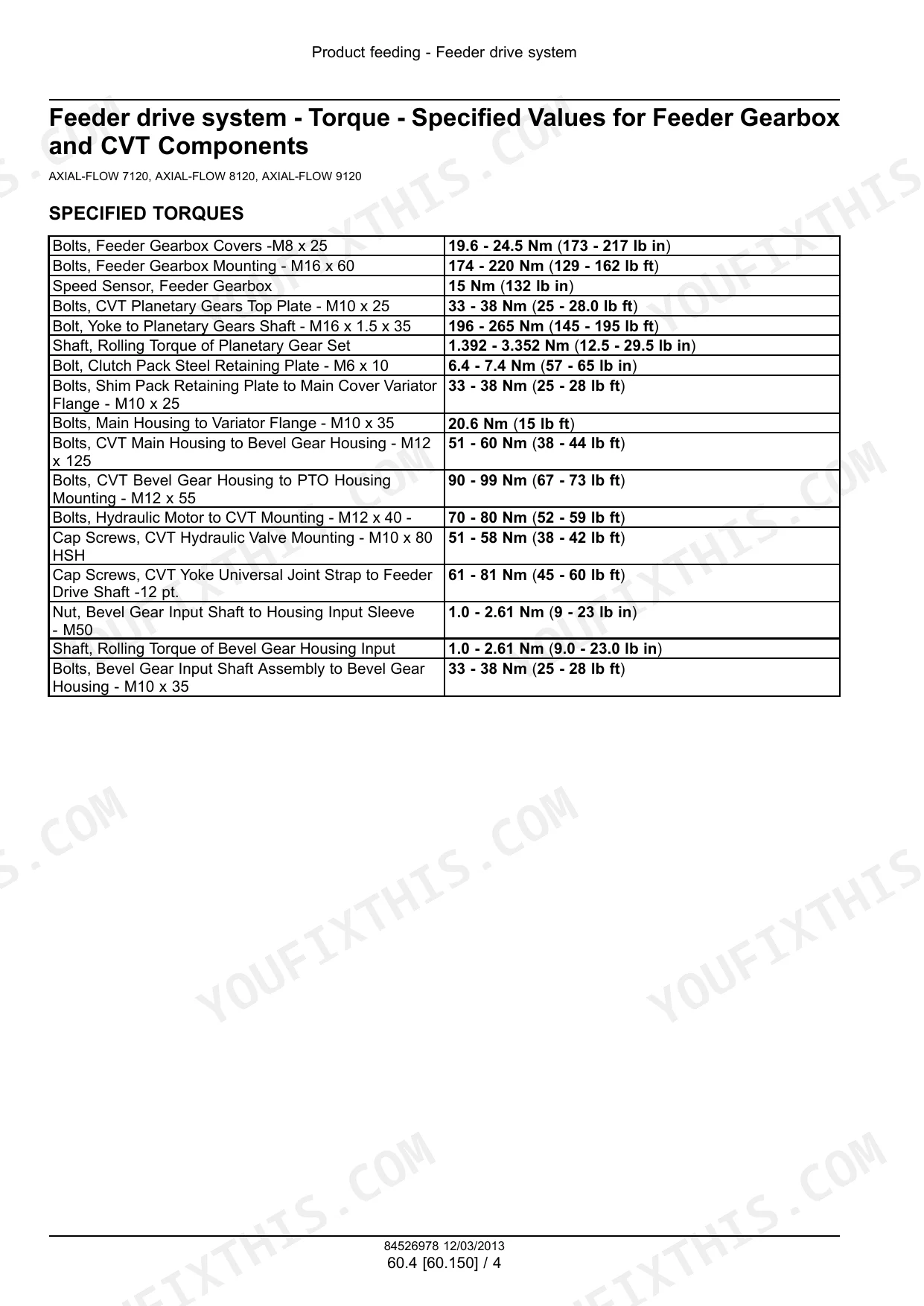

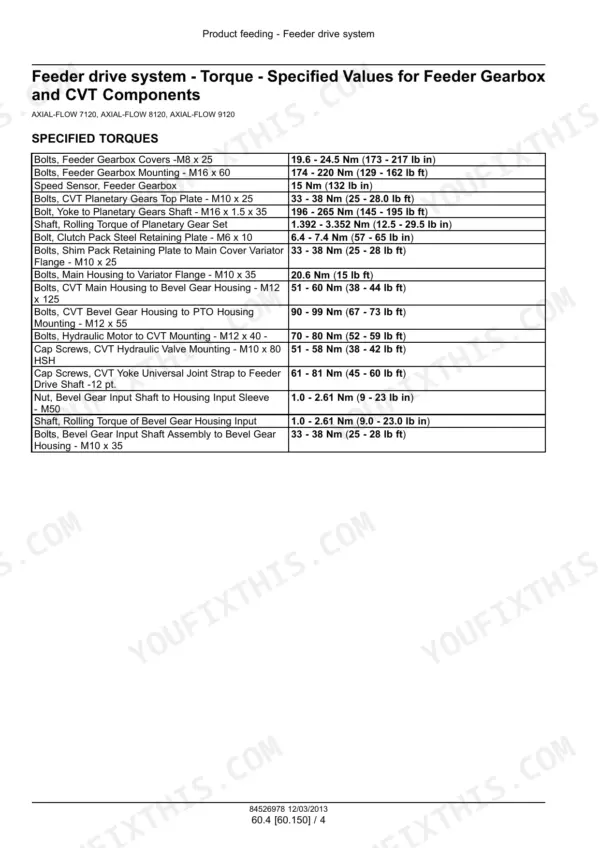

The mechanical transmission table on page 299 gives 150 - 170 Nm (111 - 125 lb ft) for both the nut on the drive shaft and the nut on the input shaft. The shifting disc housing insert is 190 - 210 Nm (140 - 155 lb ft), top cover bolts 45 - 55 Nm (33 - 41 lb ft) and the drain plug 90 - 110 Nm (66 - 81 lb ft). On page 3688 the feeder gearbox mounting bolts M16 x 60 are 174 - 220 Nm (129 - 162 lb ft). Minimum tightening torques and standard hydraulic torque data are in the introduction. p. 299
How much oil do the engine, hydraulics and gearboxes take?
Page 48 lists CASE IH AKCELA NO. 1 ENGINE OIL SAE 15W-40: 25 l (6.6 US gal) for the 7120 Cursor 9L, 32 l (8.5 US gal) for the 8120 10.3L and 35 l (9.25 US gal) for the 9120. The traction gearbox takes 19 l (5.0 US gal) of AKCELA GEAR 135 H EP 80W-90. The rotor gearbox takes 7 l (1.8 US gal). Page 521 gives the total hydraulic and hydrostatic system as approximately 136.5 l (144.2 US qt) without the Powered Rear Axle and approximately 147 l (155.3 US qt) with it. p. 48
How much engine work does the manual cover?

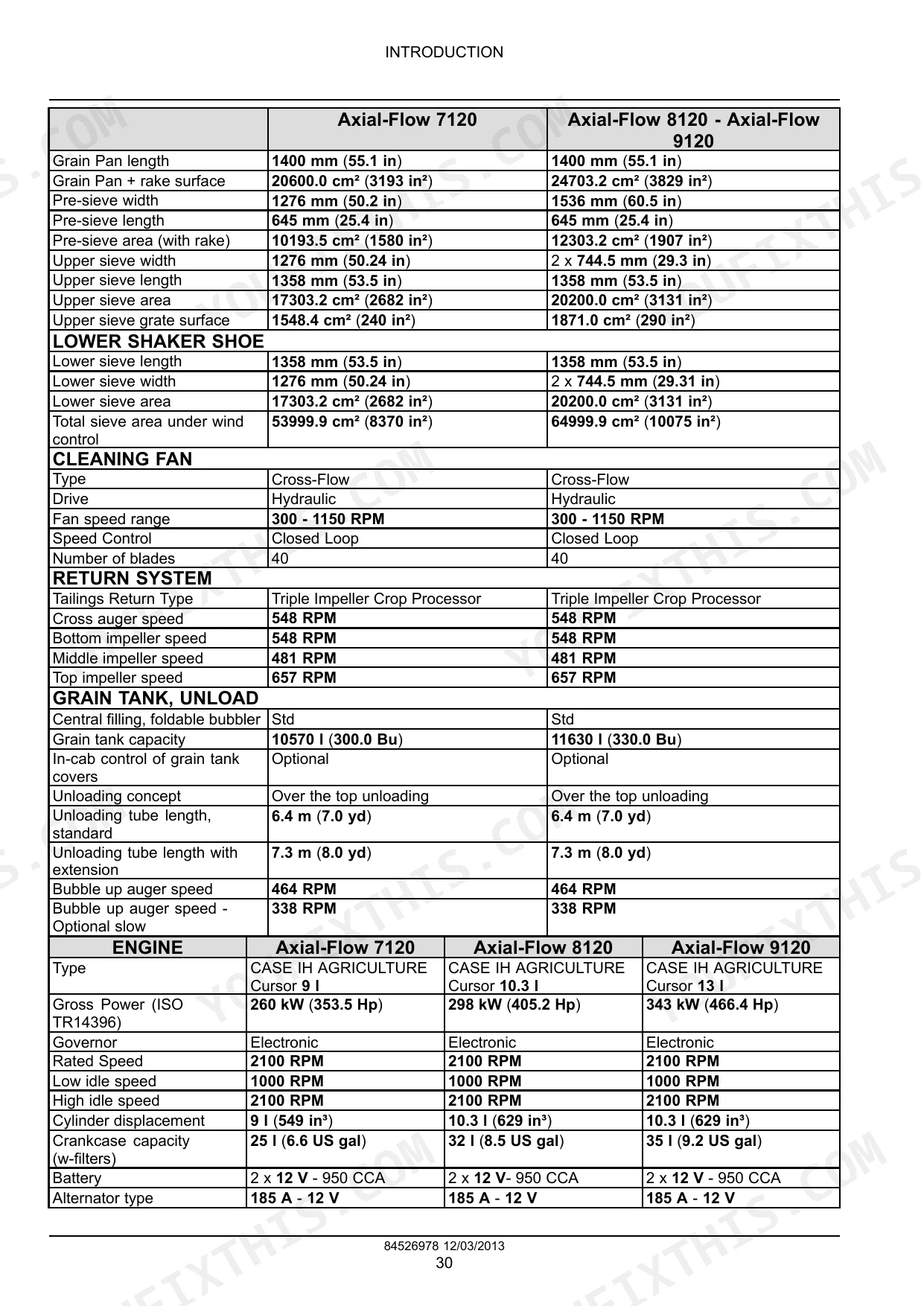

The engine section covers the FPT Cursor fault code cross reference, troubleshooting, engine remove and install, air cleaners, lift pump, aftercooler, cooling system, fan and drive, rotary screen and air compressor. It is a combine service manual, not a head-and-piston engine book. Page 38 rates the 7120 Cursor 9 l at 260 kW (353.5 Hp), the 8120 Cursor 10.3 l at 298 kW (405.2 Hp) and the 9120 at 343 kW (466.4 Hp). On pages 59-60 a display code like E1541-02 is matched to FPT DTC 119, as read with the EST tool. p. 38
