All 383 pages of this Case IH Coffee Express 100 Service Manual (OEM #48025808A) focus on one machine: the 2016 Coffee Express Harvester, from hydraulic motor circuits to shaking control calibration. Inside, you get a full hydraulic section covering system schematics, blower flow and pressure tests, and a complete troubleshooting diagnostic sequence, plus wiring diagrams for the shaking control system, cab harvesting controls, and all harnesses and connectors. The electrical systems section alone spans the cab controls, connector pinouts, and harvest monitoring circuits. Fill the shaker box to exactly 3.25 l and the intensity box to 1.75 l before startup; wheel reducers on the Model 605 W2 take 1.3 l. Your machine is down and every hour costs money. Get the factory answer on the first try. Bookmarked and keyword-searchable, this PDF lets you jump straight to the hydraulic schema, torque tables, or wiring diagram the moment you need it.
What's Inside This Case IH Coffee Express 100 Manual
| System | Pages | Key Topics |
|---|---|---|

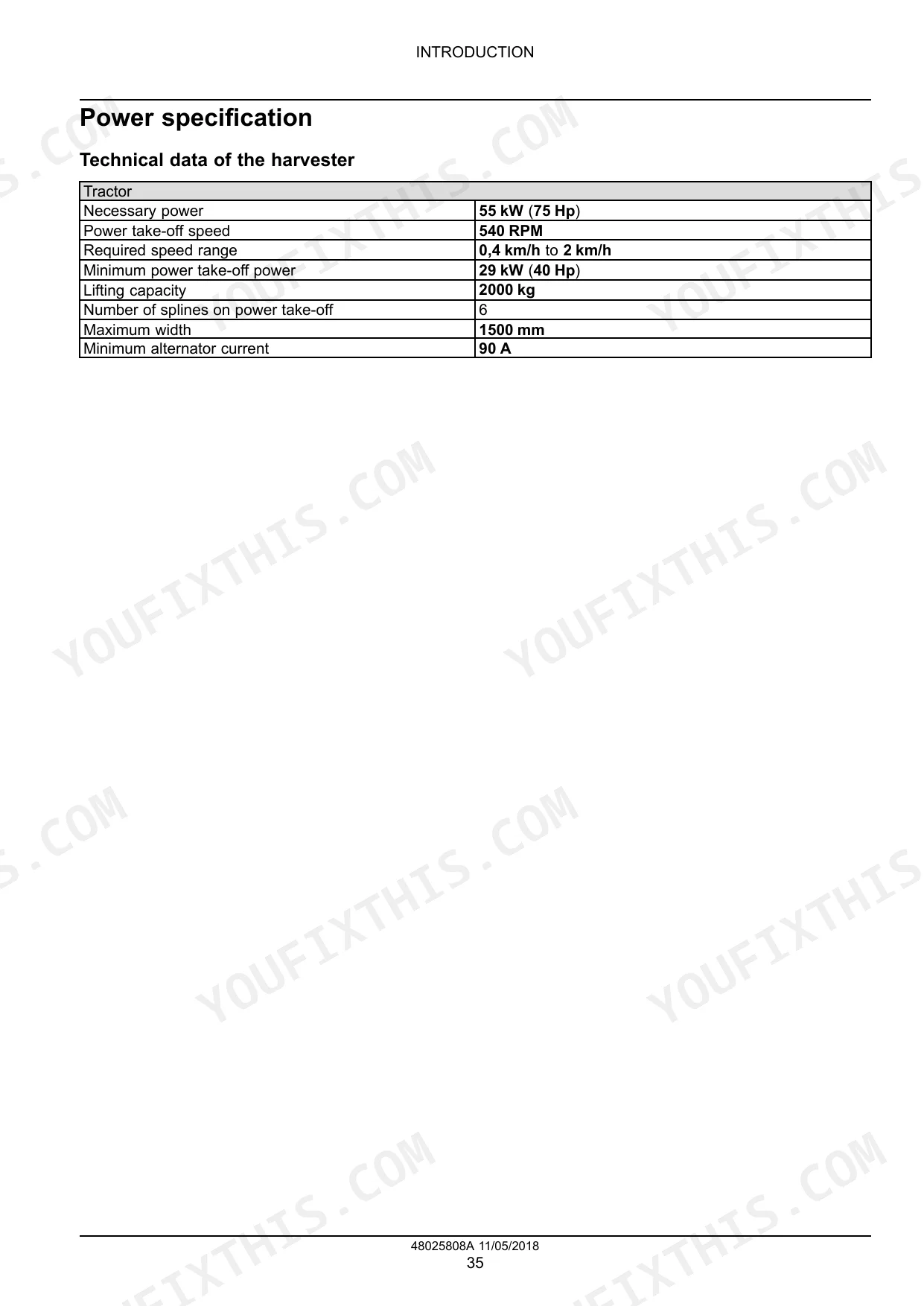

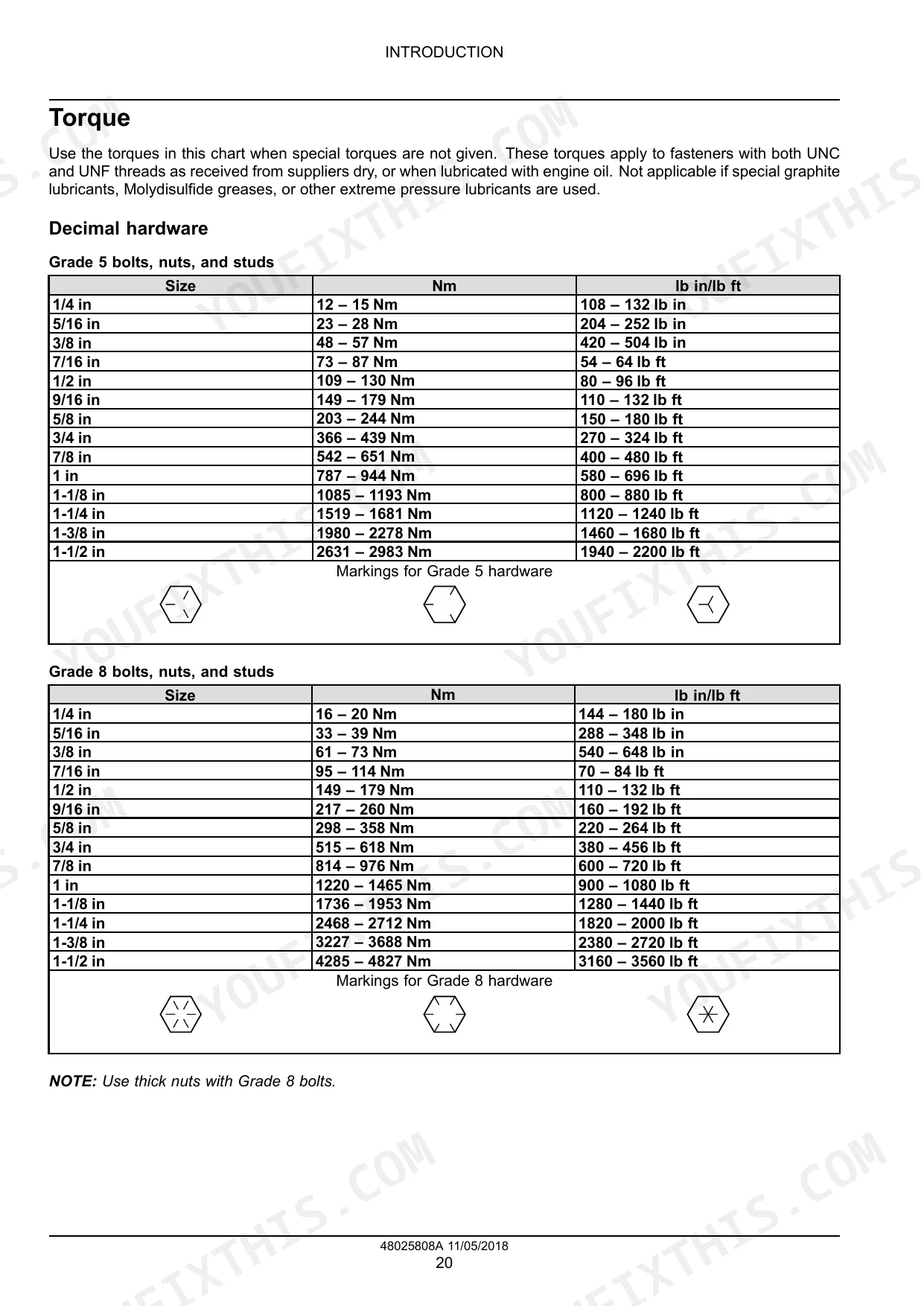

| Introduction | 5-42 | Advice, International Symbols, Foreword, Safety Rules, Torque, Frame - Special Tools, Power Specification, Consumables |

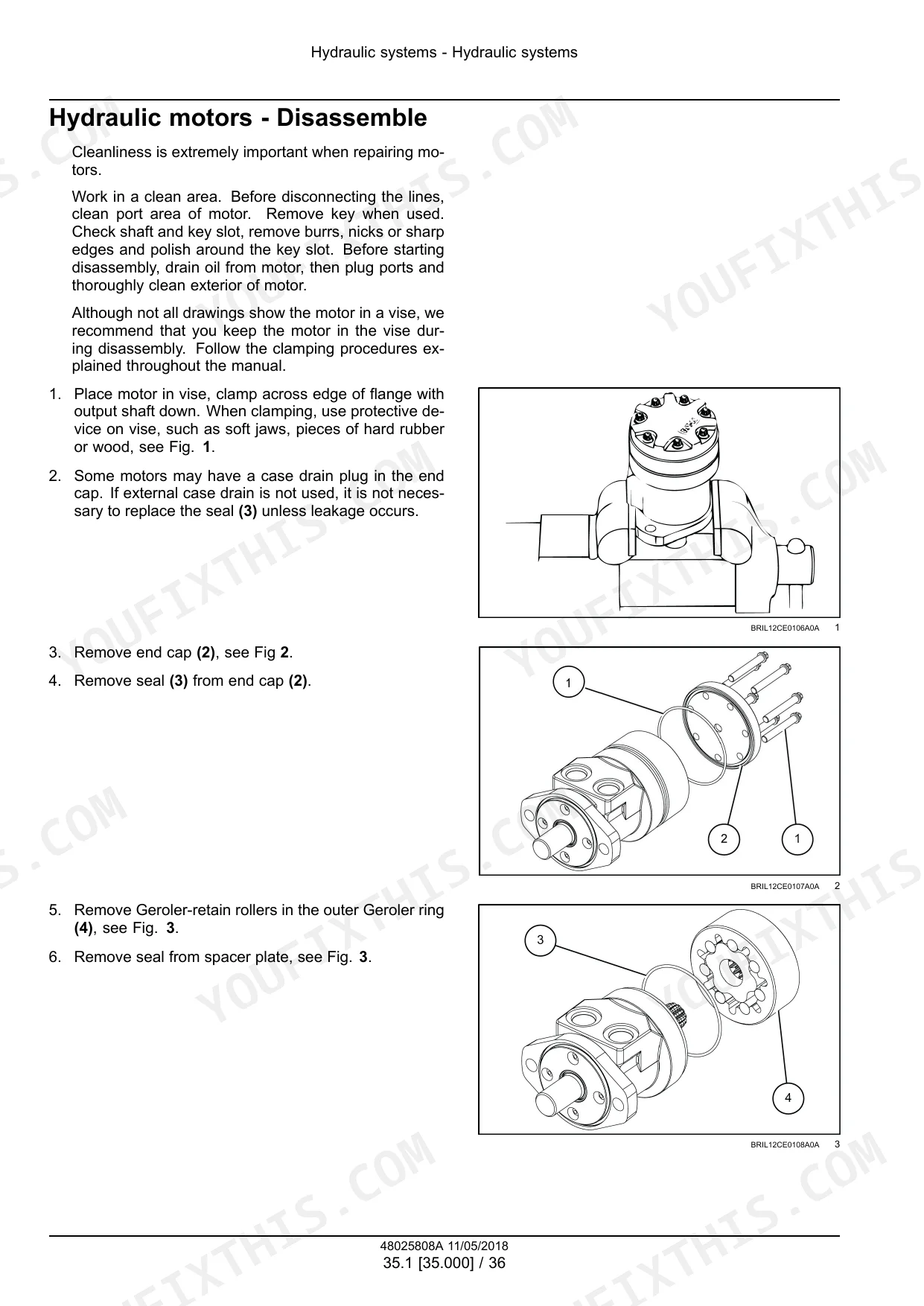

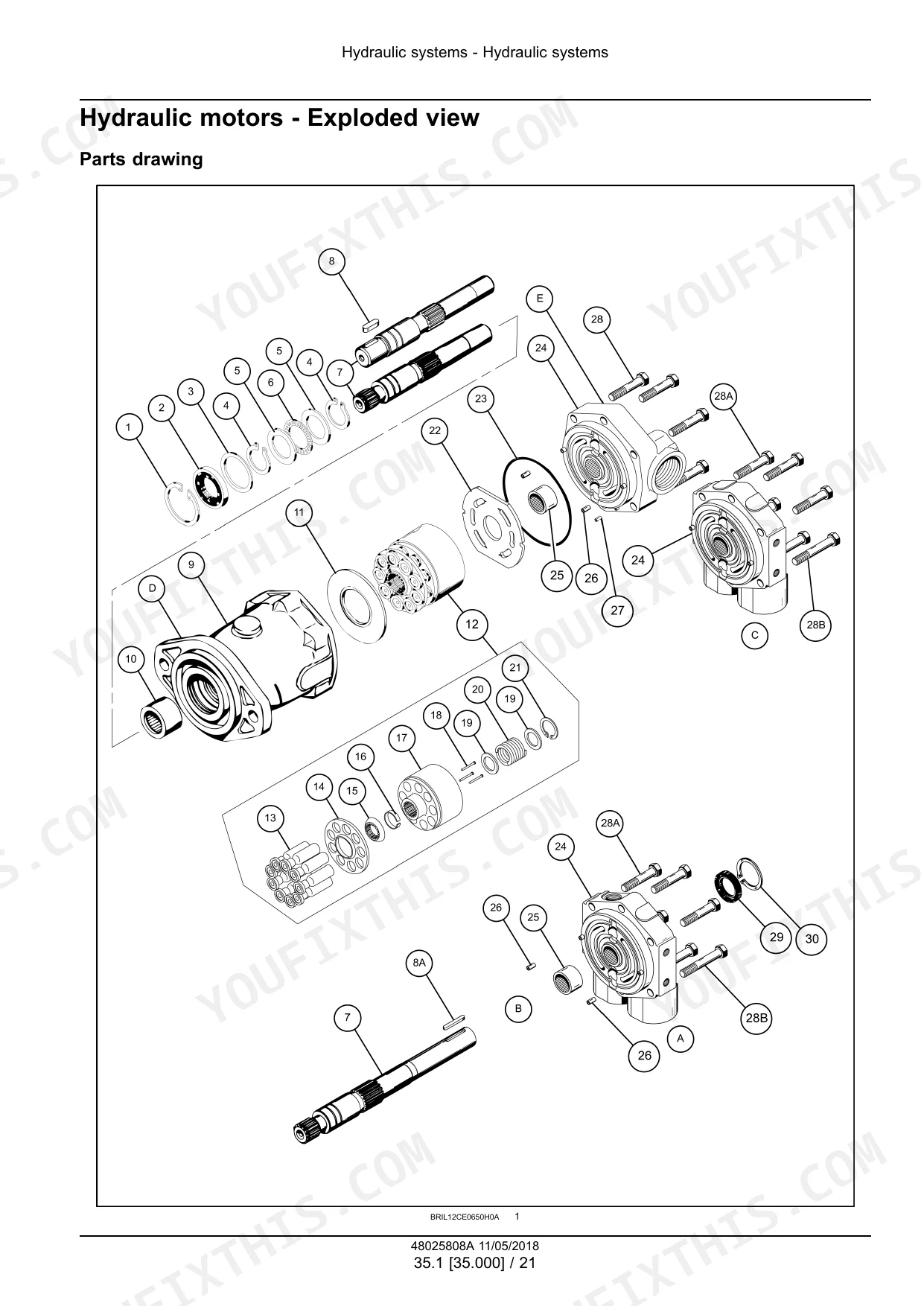

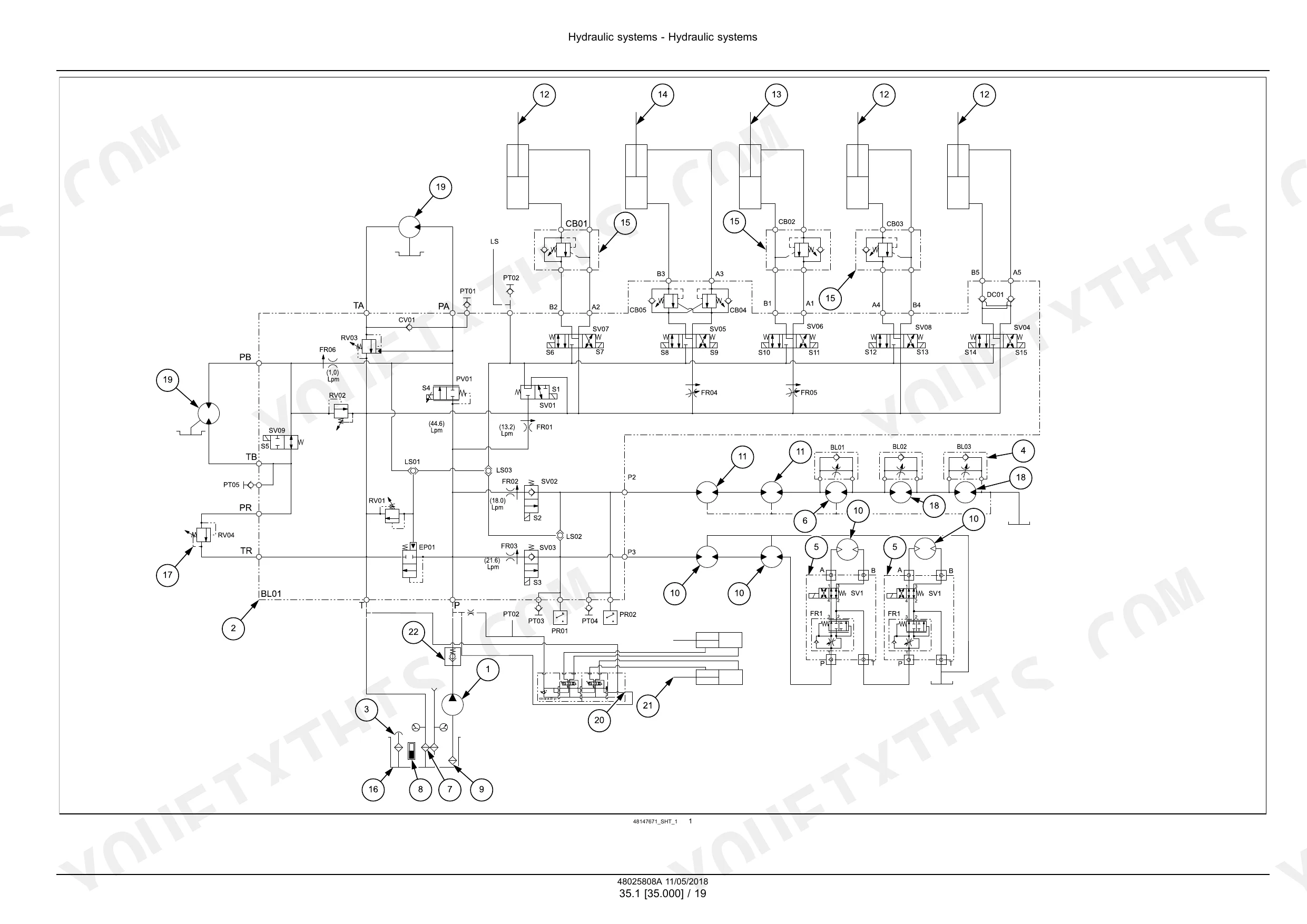

| Hydraulic Systems | 43-102 | Hydraulic Systems Overview, Hydraulic Schema, Hydraulic Motors, Blower Flow Test, Blower Pressure Test, Troubleshooting Diagnostic |
| Hitches, Drawbars, and Implement Couplings | 103-110 | Rear Three-Point Hitch |
| Frames and Ballasting | 111-284 | Frame |

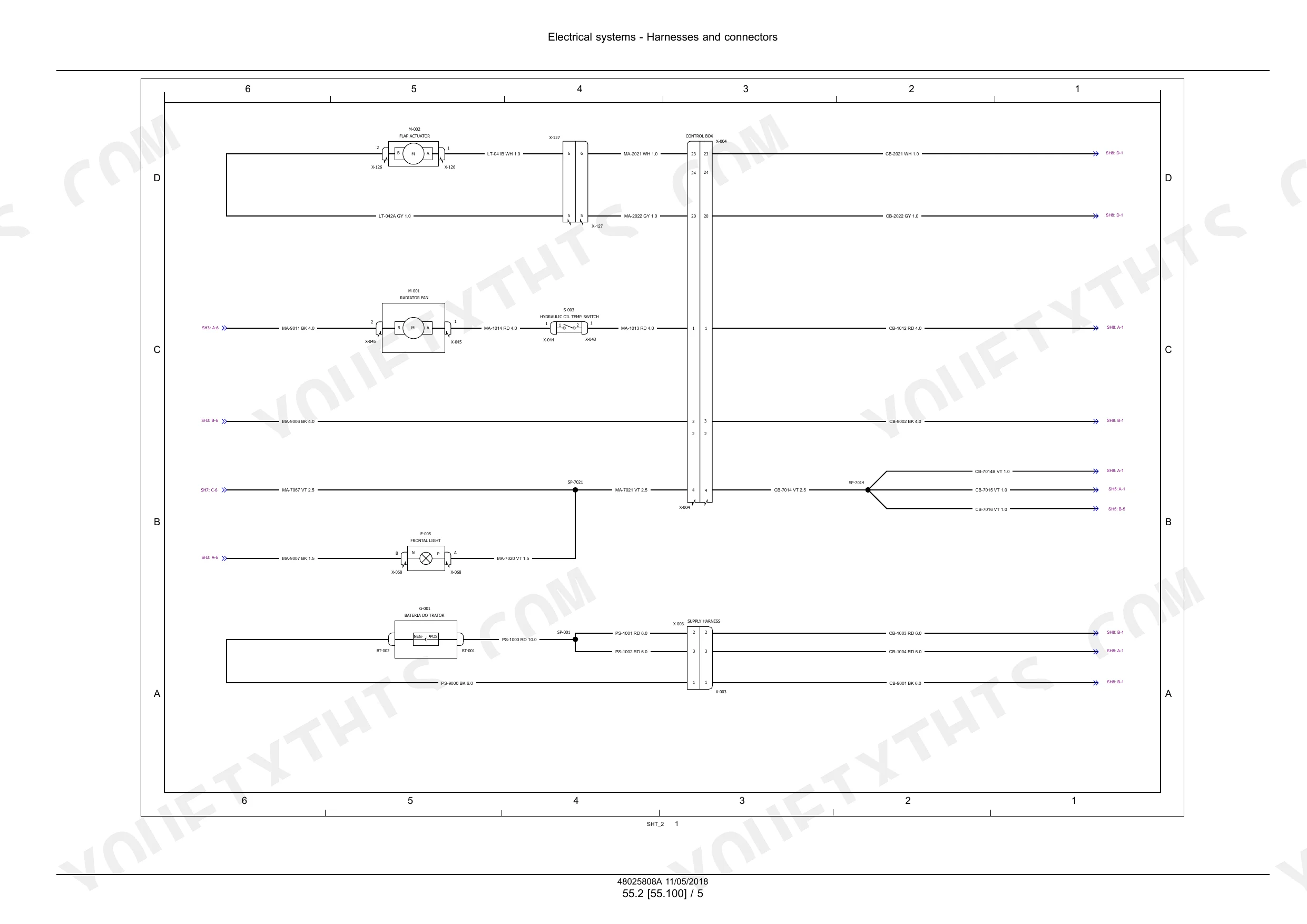

| Electrical Systems | 285-372 | Shaking Control System, Harnesses and Connectors, Cab Harvesting Controls |
| Cleaning | 373-381 | Primary Blower Assembly |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Shaker box capacity | 3.25 l | p. 40 |
| Intensity box capacity | 1.75 l | p. 40 |
| Reverse box capacity | 1.75 l | p. 40 |
| Wheel reducers capacity (Model 605 W2) | 1.3 l | p. 40 |
| Wheel reducers capacity (Model 603 W2) | 0.5 l | p. 40 |
| Hydraulic system reservoir capacity | 55.0 l | p. 40 |
| Hydraulic system total capacity | 156.0 l | p. 40 |
| Hydraulic motors - Displacement | 6.100 cm³/rev | p. 54 |
| Hydraulic motors - Rated Speed | 5000.0 RPM | p. 54 |
| Hydraulic motors - Continuous Differential Motor Pressure | 138.0 bar | p. 54 |
| Hydraulic motors - Intermittent Differential Motor Pressure | 172.5 bar | p. 54 |
| Hydraulic motors - Torque/1000 psi | 59 IN.LBS | p. 54 |
Case IH Coffee Express 100 Common Problems This Manual Covers
Case IH Coffee Express hydraulic motor leaking at shaft seal, oil pooling under blower drive
Remove the blower hydraulic motor and inspect the shaft seal for wear or damage. Clean all mating surfaces before installing new seals. Verify motor displacement is 6.100 cm³/rev and that operating pressure does not exceed 138.0 bar continuous differential. Reinstall per assembly sequence, torque all fasteners to spec on page 23, then run a flow test to confirm no weeping at the seal face.
Manual Section: Hydraulic Motors - AssembleShaker rollers out of sync, uneven coffee cherry knock-off on both sides
Stop the machine and secure it before touching any rotating parts. Check chain tension on both shaker units and inspect for stretched or damaged links. Synchronize the shaker rollers following the timing adjust procedure, then verify chain tension is within spec. After adjustment, top off the shaker box to 3.25 l with the correct lubricant per page 40 before returning to operation.
Manual Section: Frames and Ballasting - Timing adjustBlower system low airflow, fruit debris not clearing from harvesting channel
Test the triple pump flow rate using the procedure before pulling any components. If flow is low, check the hydraulic reservoir level (reservoir capacity 55.0 l, total system capacity 156.0 l per page 40) and inspect for clogged filters or collapsed lines. Run a pressure test per to isolate whether the issue is pump output or a restriction downstream in the blower circuit.
Manual Section: Hydraulic systems - Flow test - BlowersConveyor system stops intermittently, hydraulic motor spins but belt won't move
Check the safety switch fault codes first using the troubleshooting table. Inspect the hydraulic motor drive coupling for slippage and verify the motor is receiving adequate flow; rated speed is 5000 RPM at 6.100 cm³/rev displacement. If motor pressure reads below 138.0 bar under load, trace the hydraulic schematic to identify the pressure drop location before disassembly.

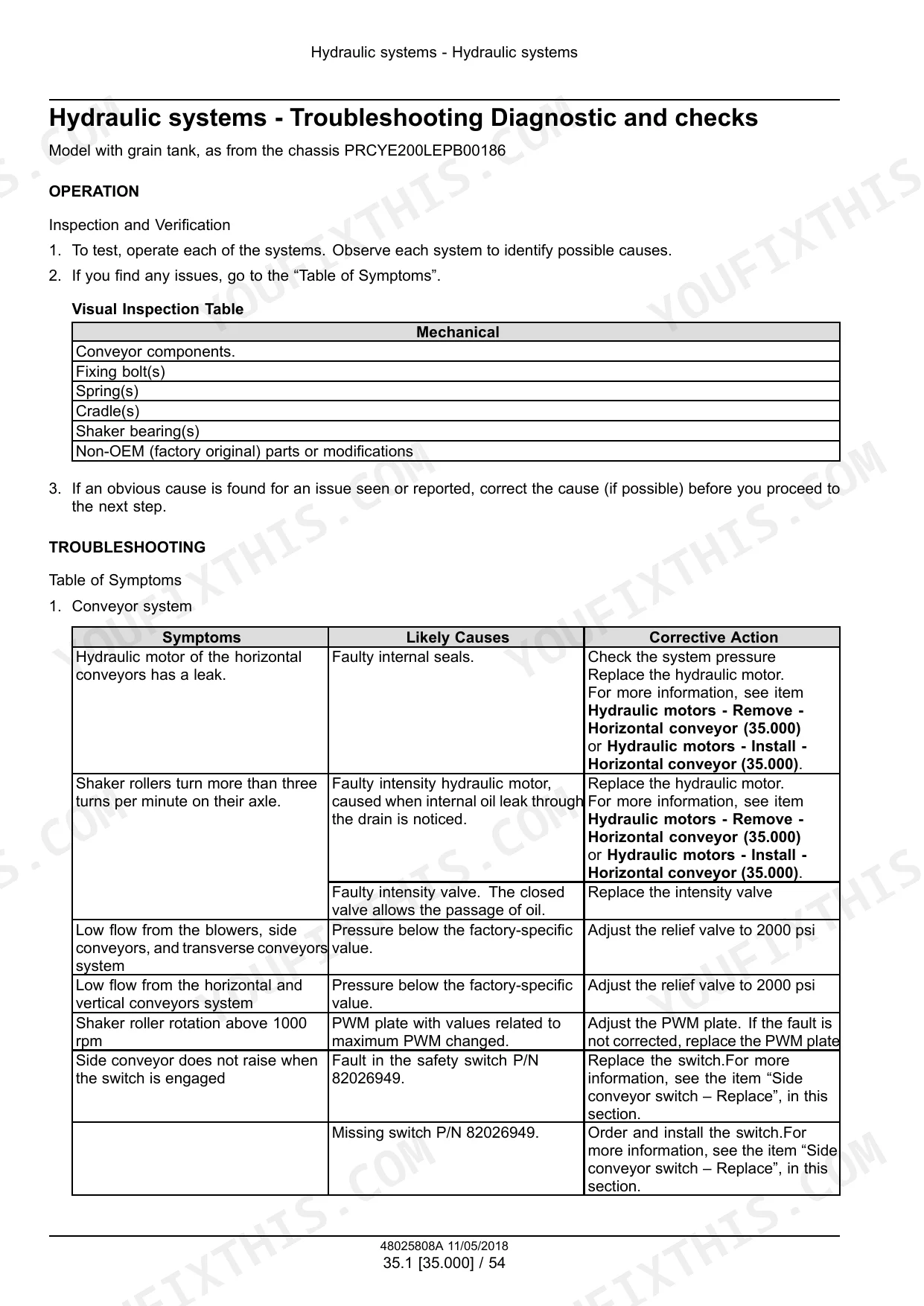

Manual Section: Hydraulic systems - Troubleshooting Diagnostic and checksShaking agitation intensity erratic, PWM signal unstable after electrical connector service
Connect a laptop via USB to the agitation control plate and run the calibration software per the procedure. Verify port settings match the manual, then read and record the current PWM values before making any changes. If values are outside the calibrated range, reset parameters step by step through the software interface. Inspect harness connectors for corrosion or pushed-back pins before assuming the plate itself is faulty.
Manual Section: Electrical systems - Shaking electrical cylinder - Configure - Procedure for calibrating the plates responsible for agitationShaker rod broken or bent, harvest rollers rattling loudly during field operation
Shut down the harvester and lock out all power before entering the shaker area. Inspect all shaker rods for cracks, bends, or loose mounts per the maintenance checks. Replace any damaged rods and check the elastic coupling condition at the same time. After replacing rods, synchronize the shaker rollers and re-tension chains per before resuming harvest.
Manual Section: Frames and ballasting - Service instruction - Maintaining the shaker rollersFrequently Asked Questions

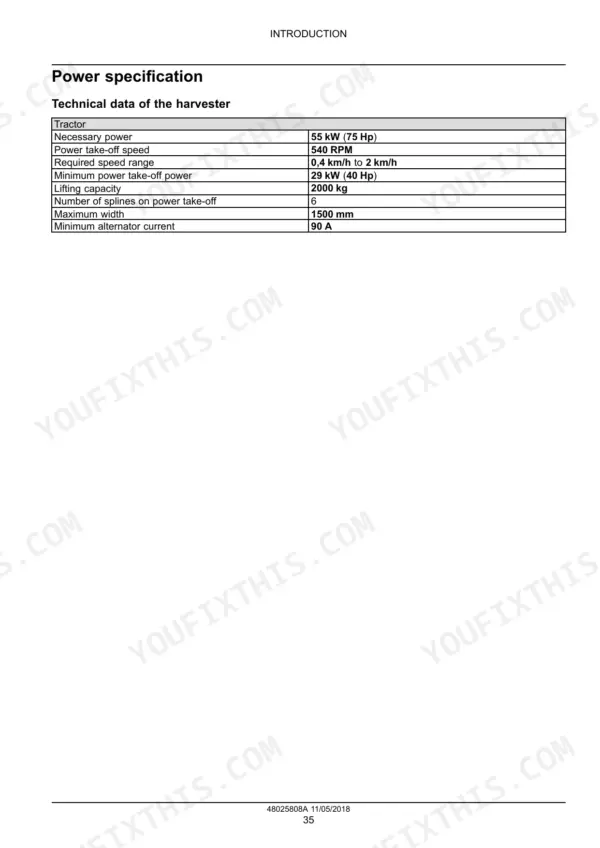

What is the minimum power required at PTO for CASE IH Coffee Express 100?
The minimum power take-off power required for the CASE IH Coffee Express 100 is 29 kW (40 Hp). This information is found in the technical data section of the manual.
How do you fix case IH Coffee Express hydraulic motor leaking at shaft seal, oil pooling under blower drive?
Remove the blower hydraulic motor and inspect the shaft seal for wear or damage. Clean all mating surfaces before installing new seals. Verify motor displacement is 6.100 cm³/rev and that operating pressure does not exceed 138.0 bar continuous differential. Reinstall per assembly sequence, torque all fasteners to spec on page 23, then run a flow test to confirm no weeping at the seal face.
How do you fix shaker rollers out of sync, uneven coffee cherry knock-off on both sides?
Stop the machine and secure it before touching any rotating parts. Check chain tension on both shaker units and inspect for stretched or damaged links. Synchronize the shaker rollers following the timing adjust procedure, then verify chain tension is within spec. After adjustment, top off the shaker box to 3.25 l with the correct lubricant per page 40 before returning to operation.
How do you fix blower system low airflow, fruit debris not clearing from harvesting channel?
Test the triple pump flow rate using the procedure before pulling any components. If flow is low, check the hydraulic reservoir level (reservoir capacity 55.0 l, total system capacity 156.0 l per page 40) and inspect for clogged filters or collapsed lines. Run a pressure test per to isolate whether the issue is pump output or a restriction downstream in the blower circuit.
What do I get after purchasing this Case IH Coffee Express 100 Service Manual?
This is a 383-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Are there any print restrictions on this Service Manual?
The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.

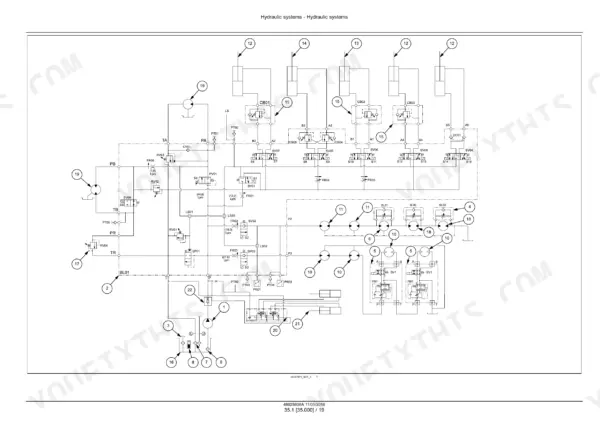

Does this Case IH Coffee Express 100 Service Manual include hydraulic system diagrams?
Full hydraulic system diagrams are included, covering circuits, valve locations, and hydraulic component specs for the Case IH Coffee Express 100, Express Harvester, Express 100 Model year 2016.
