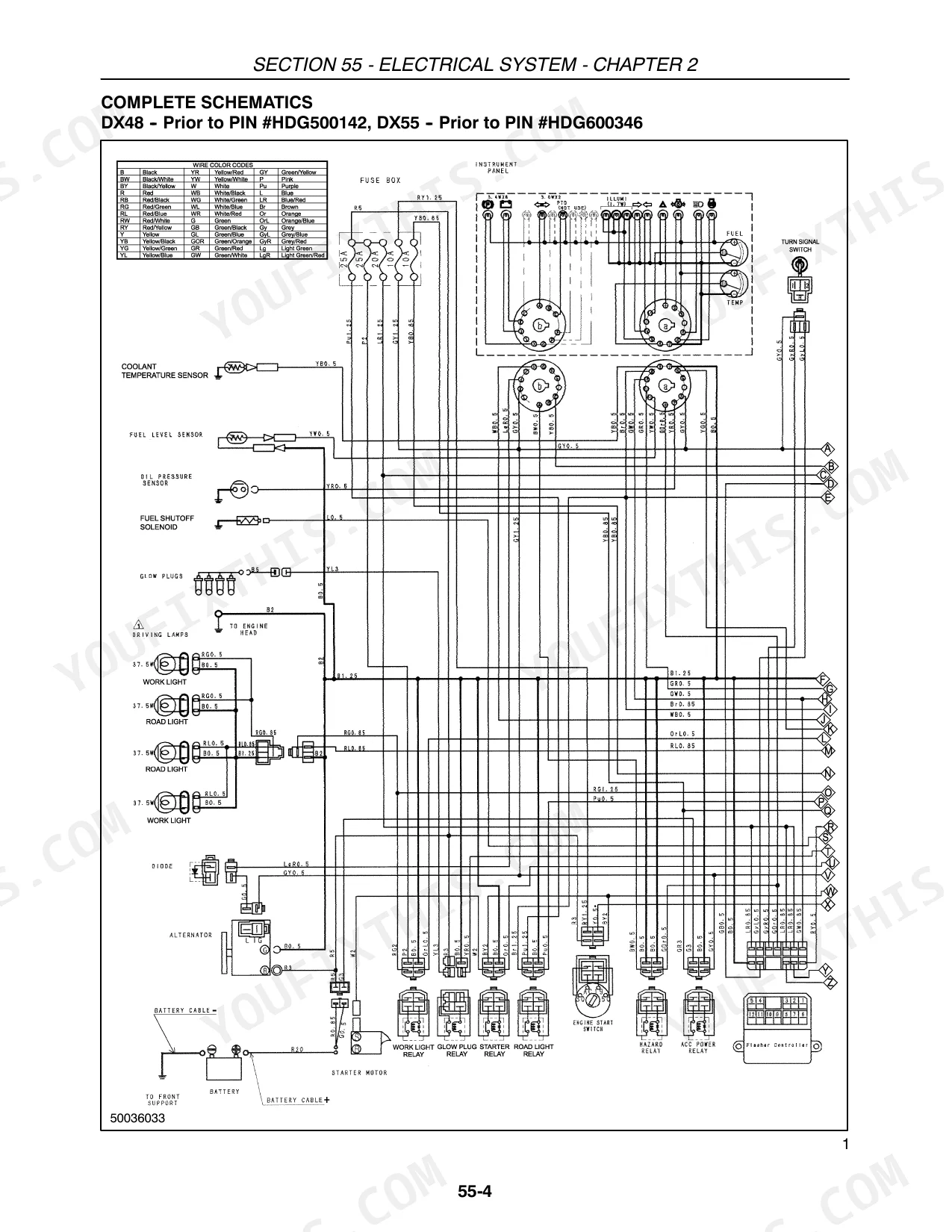

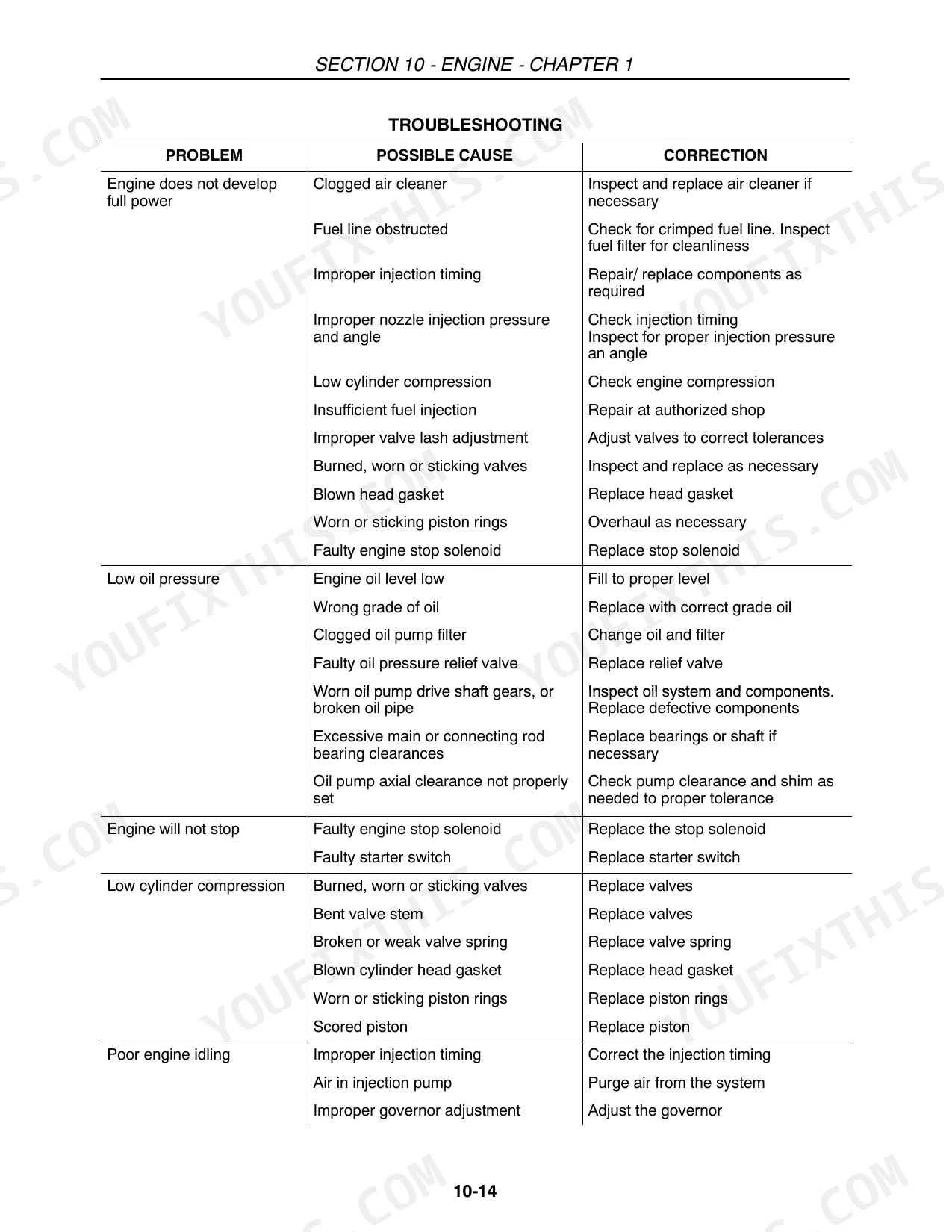

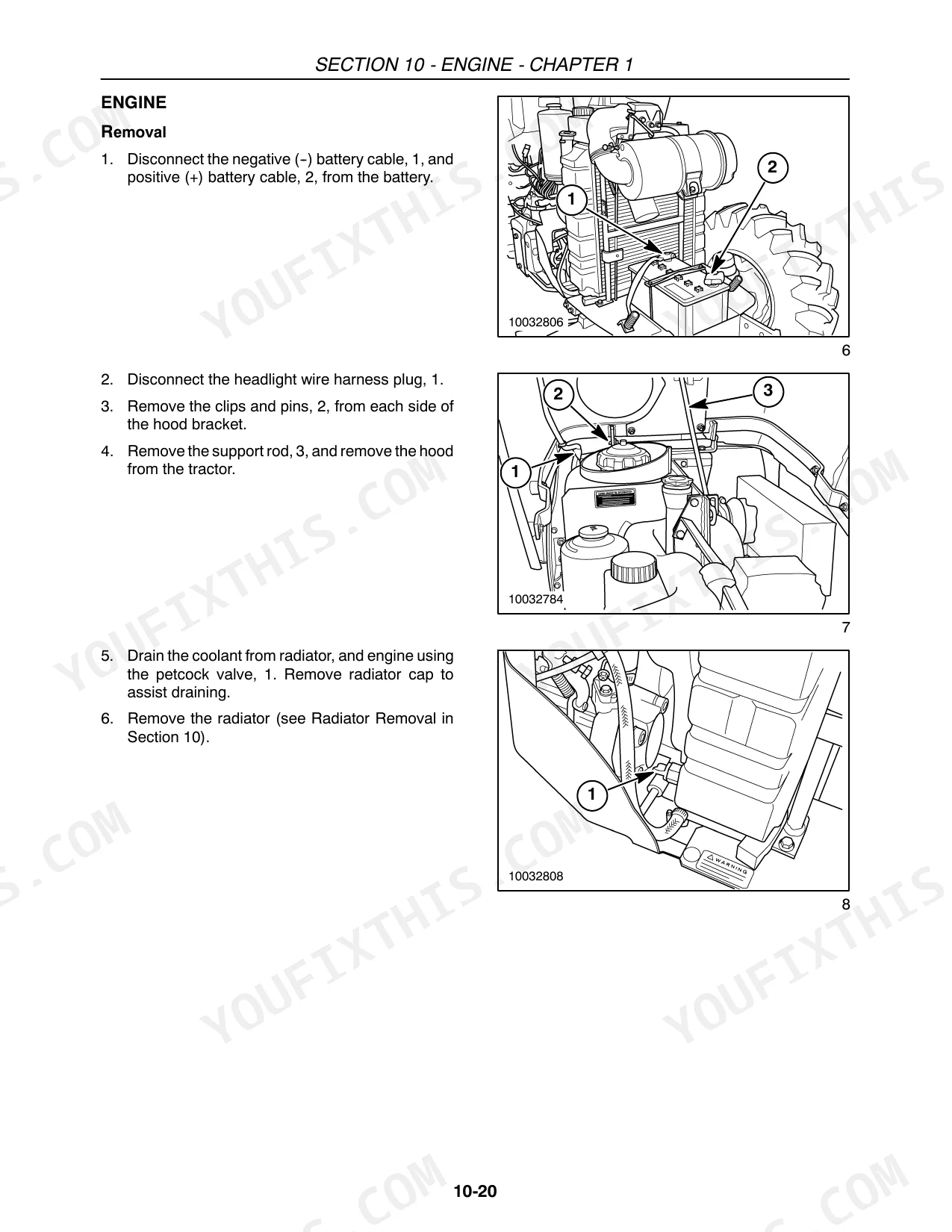

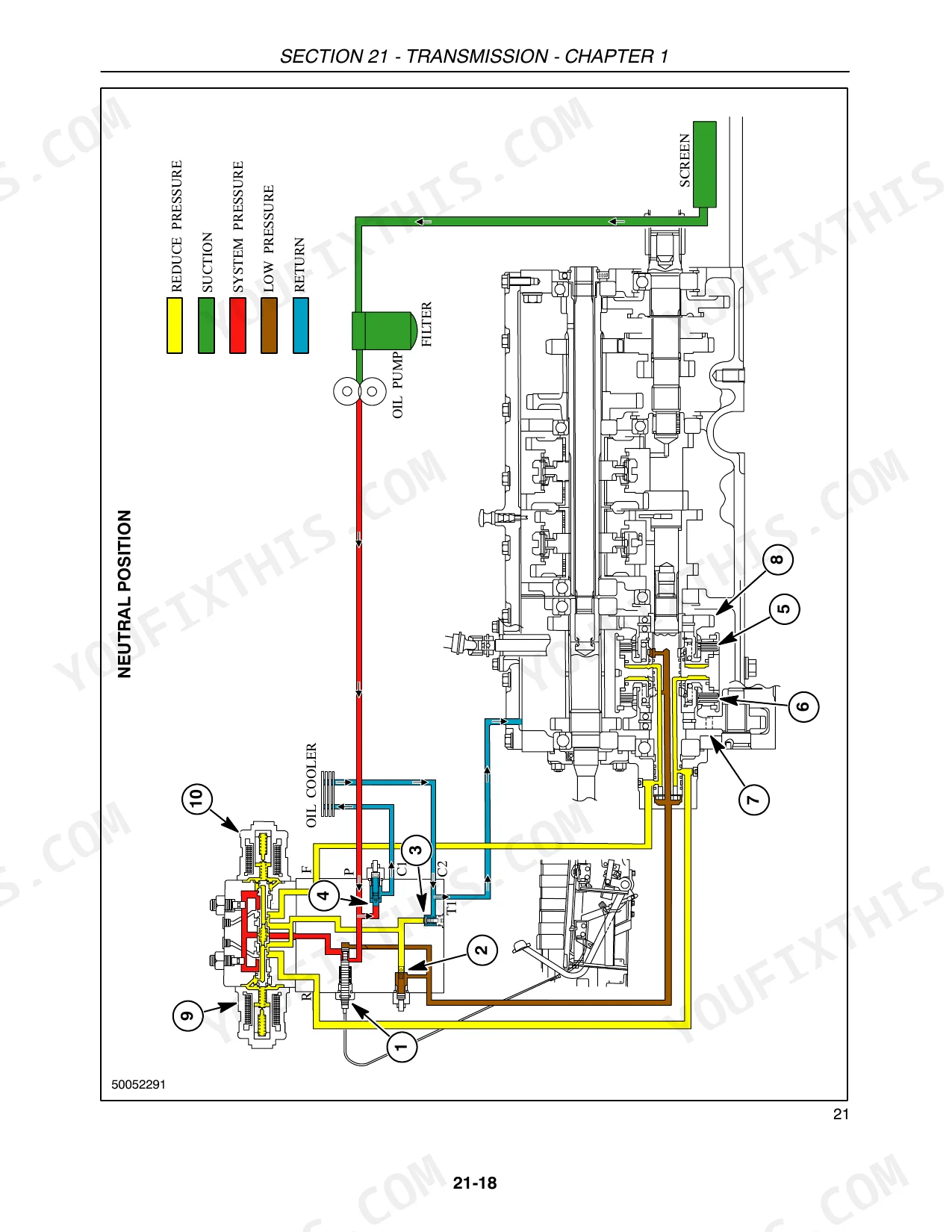

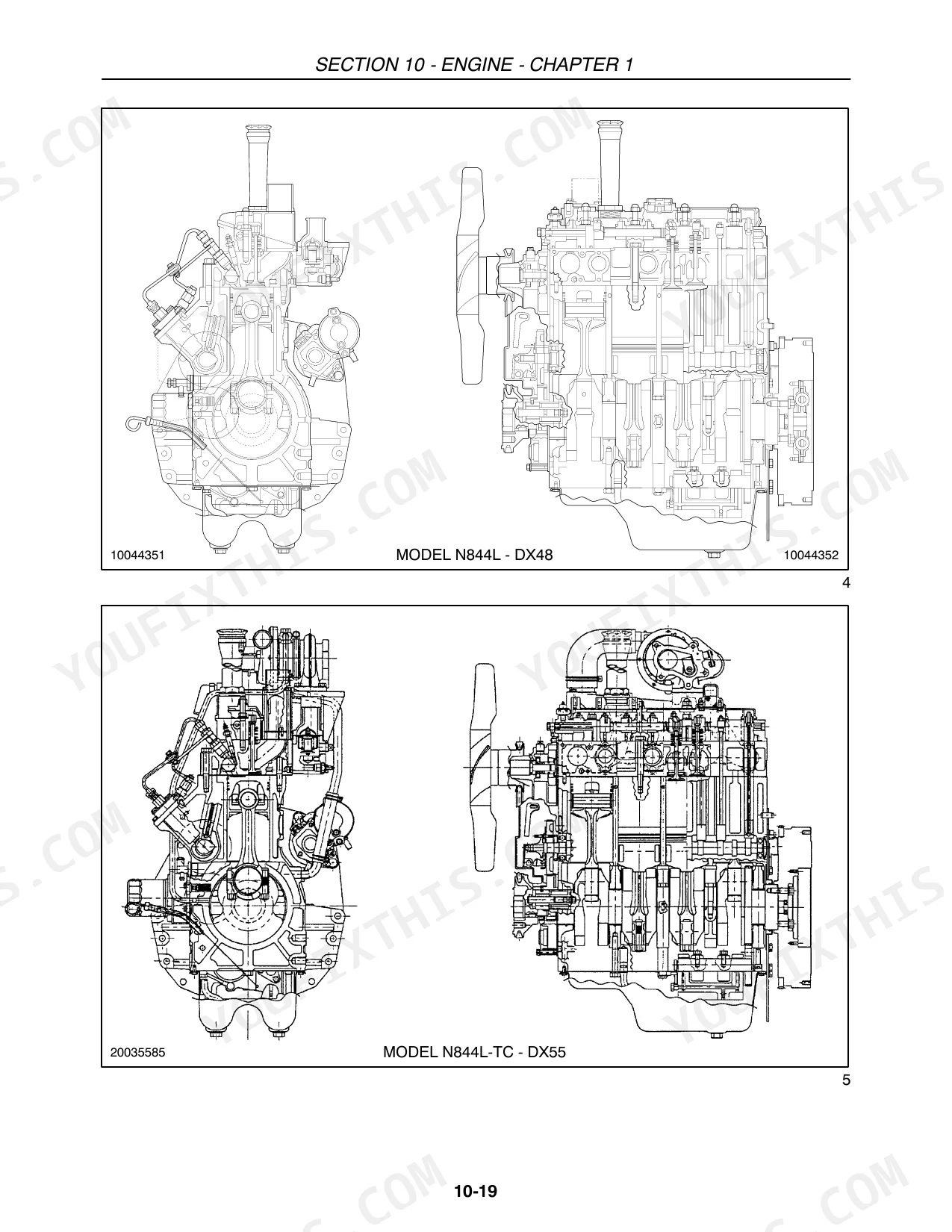

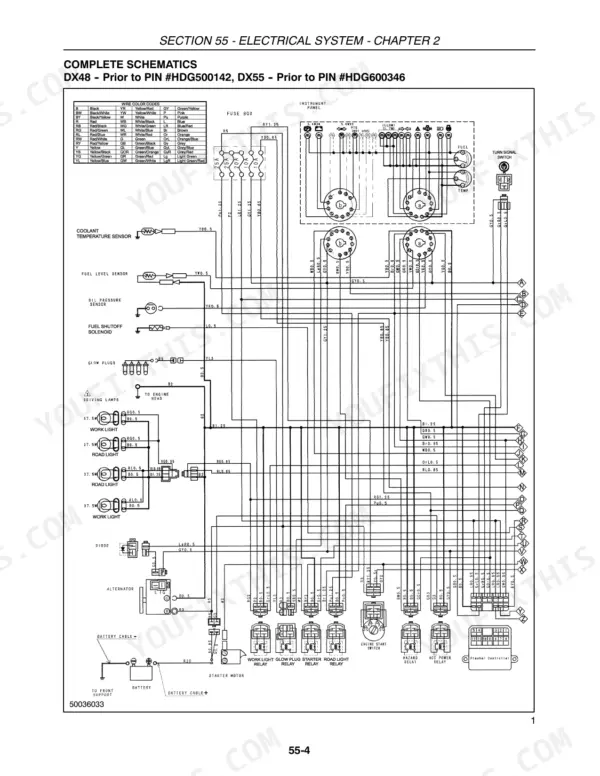

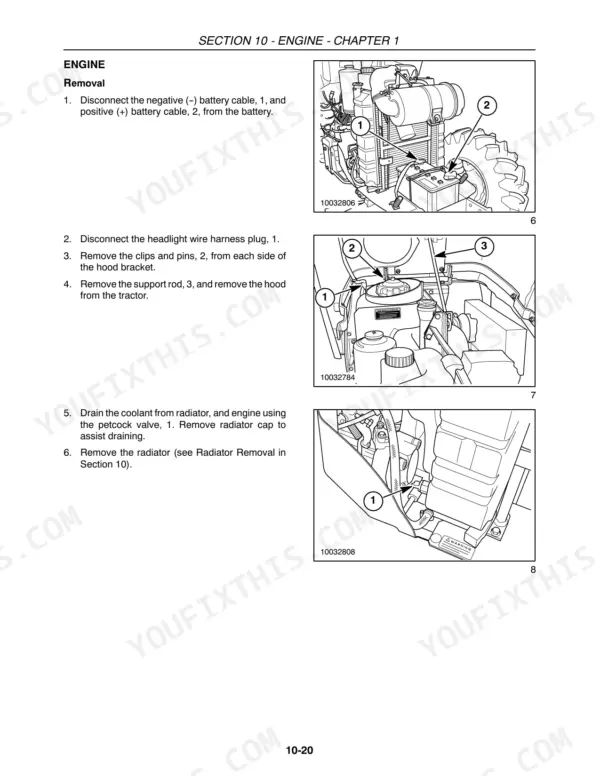

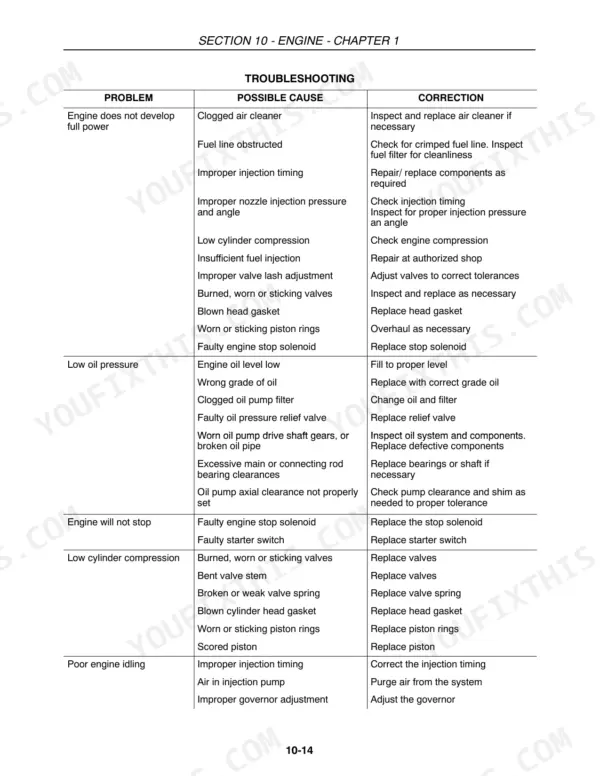

Need the factory repair data for your Case IH DX48 or DX55? This 1,068-page repair manual (OEM #87367137) covers both compact tractors from the ground up: engine, EHSS transmission, clutch, front axle, differential, PTO, brakes, hydraulics, steering, wheels, electrical, and platform. Inside you get hydraulic schematics with full fluid flow diagrams for every operating position, wiring diagrams mapping every circuit across both models, and a complete troubleshooting section covering the EHSS transmission, PTO pressure, steering, and electrical shiftability with solenoid testing and breakout box procedures. Torque connecting rod cap bolts to 49-54 N·m, then fill the crankcase to 7.0 liters; the cooling system holds 8.0 liters. Your machine is down. Bookmarked by section, searchable by keyword; open it on your tablet and start wrenching.
What's Inside This Case IH DX48, DX55 Repair Manual
| System | Pages | Key Topics |
|---|---|---|

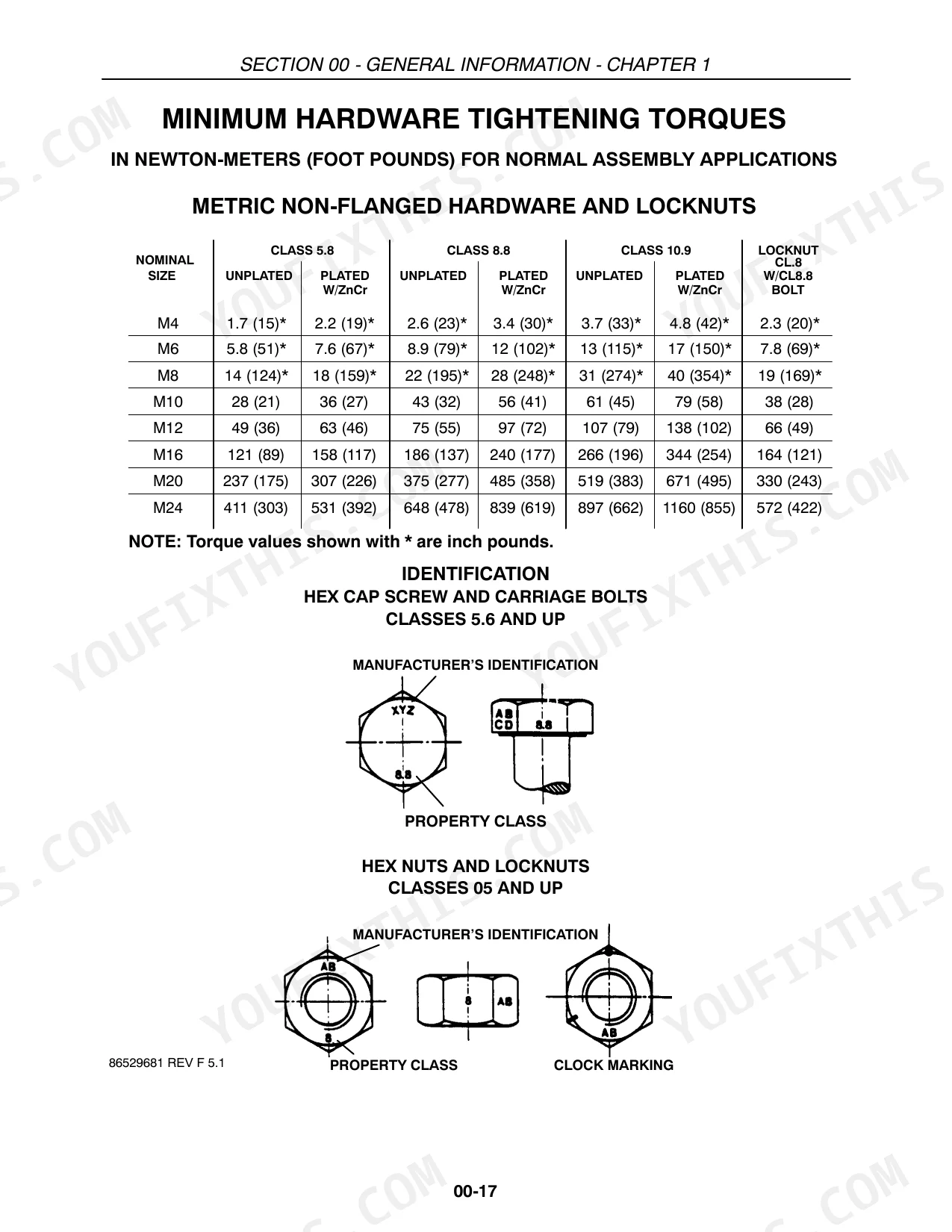

| General Information | 41-78 | Precautionary Statements, Safety, Safety Decals, Instruction Decals (Decal Placement Guide), Ecology and the Environment, Universal Symbols, Minimum Hardware Tightening Torques |
| Engine | 79-220 | Specifications, Metric Bolt Torque Specifications, Special Tools, Compression Test and Tools, Operation -- General Information, Troubleshooting |
| Clutch | 221-250 | Specifications, Metric Bolt Torque Specifications, Bolt Torques, Special Tools, Operation, Troubleshooting, Overhaul |
| Transmission | 251-532 | Specifications, Metric Bolt Torque Specifications, Special Tools |
| FWD Driveline | 533-540 | Operation -- Front Wheel Drive Gearbox, Lubrication, Troubleshooting |
| FWD Front Axle | 541-566 | Specifications (Front to Rear Axle Ratio), Metric Bolt Torque Specifications, Special Tools, Operation -- 4WD Front Axle, Troubleshooting, Maintenance |
| Differential, Rear Axle | 567-606 | Specifications, Bolt Torque Specifications, Metric Bolt Torque Specifications, Special Tools, Operation -- Differential and Rear Axle, Differential, Differential Lock, Rear Axle |
| Power Take-Off (PTO) | 607-642 | Specifications, Metric Bolt Torque Specifications, Special Tools, Operation, Rear PTO -- Power Flow Diagram, Ehss Transmission -- Hydraulic Fluid Flow to the PTO Clutch Assembly |
| Brakes | 643-656 | Specifications, Metric Bolt Torque Specifications, Troubleshooting, Operation -- Brakes, Brake Operation, Parking Brake, Overhaul |
| Hydraulic System | 657-772 | Specifications, Metric Bolt Torque Specifications, Special Tools, Operation -- Hydraulic Systems (Flow Priority, Hydraulic Fluid Filter) |
| Steering | 773-812 | Specifications (Power Steering System), Bolt Torque Specifications, Special Tools, Operation (Power Steering), Power Steering Control Motor, Power Steering Pump |
| Wheels and Tires | 813-836 | Operation (Wheel Tread Settings, Front Wheel Settings, Front Axle:, Rear Wheel Settings, Rear Axle: and, Tractor Weighting, Weighting for Stability, Weight Limitations, Cast Iron Weights, Front Frame Mounted Weights, Optional Front Weight Extension Bracket, Rear Wheel Weight Installation, Rear Wheel Weights, Rear Counterweight Bracket, Ballasting Box, Liquid Ballast, Tire Pressure, Rear Tire Liquid) |
| Electrical System | 837-1050 | Introduction, Component Location and Function |
| Platform | 1051-1068 | Operation and Overhaul (Hood Removal, Hood Installation, Rear Side Hoods Removal, Rear Side Hoods Installation, Steering Wheel Removal, Steering Wheel Installation, Dash Panel Removal, Dash Panel Installation, Steering Column Removal, Steering Column Installation, Seat Removal and Disassembly) |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| General Inch Bolt Torque (1/2, SAE Grade 5, Unplated Silver) | 87 N·m (64 ft. lbs.) | p. 223 |
| Flywheel Mounting Bolts | 13.7 N·m (10 ft. lbs.) | p. 223 |

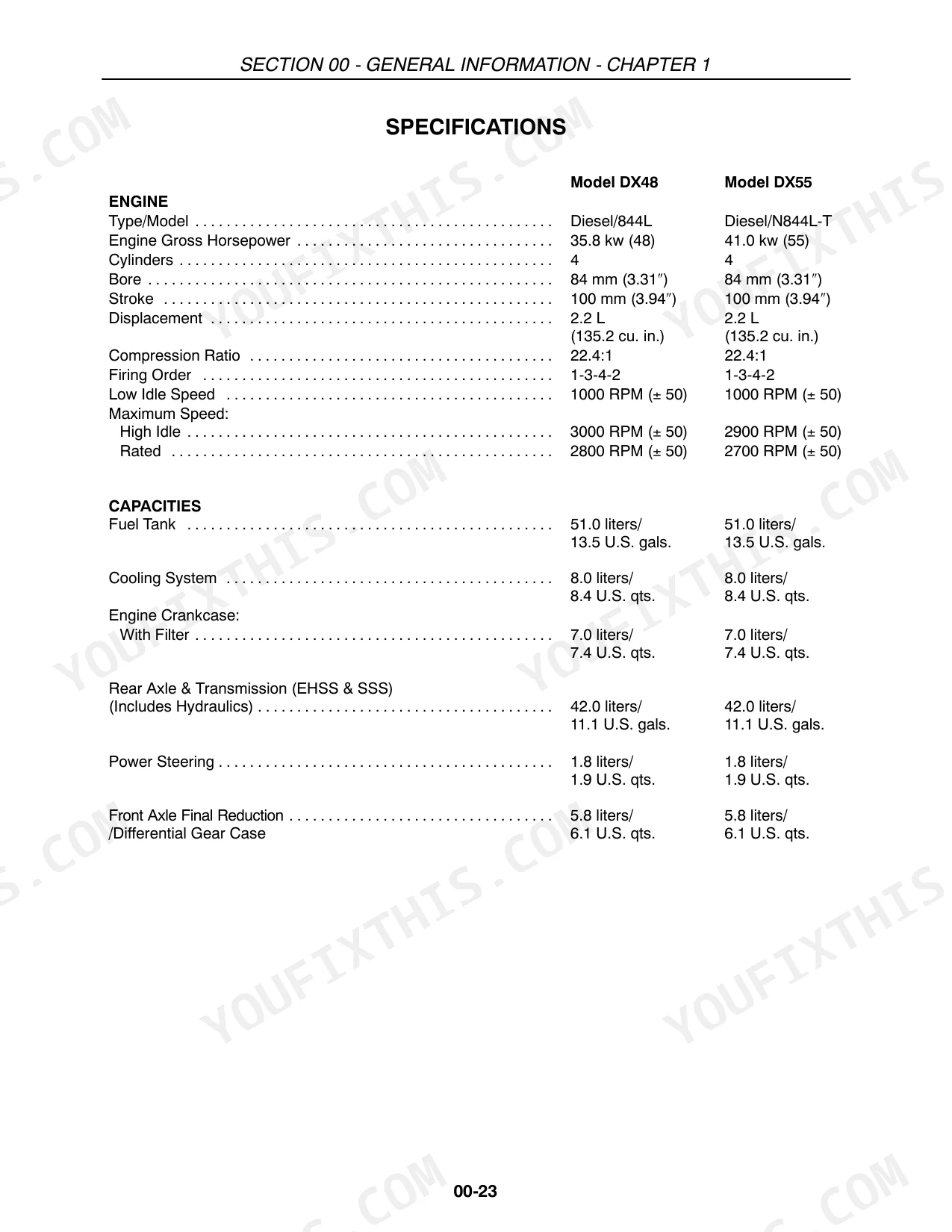

| Fuel Tank Capacity | 51.0 liters | p. 63 |
| Cooling System Capacity | 8.0 liters | p. 63 |
| Engine Crankcase Capacity (With Filter) | 7.0 liters | p. 63 |
| Rear Axle & Transmission (EHSS & SSS) (Includes Hydraulics) Capacity | 42.0 liters | p. 63 |
| Power Steering Capacity | 1.8 liters | p. 63 |
| Radiator Cap Pressure | 0.9 bar (13 psi) | p. 88 |
| ROPS Attaching Bolt Torque (ROPS to Rear Axle) | 74 N⋅m (55 ft. lbs.) | p. 72 |
| Clutch Plate Outside Diameter | 275 mm (10.827″) | p. 222 |
Case IH DX48, DX55 Common Problems This Manual Covers
Case IH DX48/DX55 engine won't start or cranks very slowly in cold weather
Check battery terminals for corrosion and verify the battery holds a full charge before cranking. Inspect fuel lines for wax buildup in freezing temperatures. If cranking speed is still low, top up the crankcase to full; capacity with filter is 7.0 liters. Follow the engine no-start diagnosis chart.
Manual Section: Engine Troubleshooting - GeneralHydraulic lift arms fail to raise implement or move very slowly under load p. 657
Check the transmission and hydraulic fluid level; total system capacity is 42.0 liters (11.1 U.S. gal.). Replace the hydraulic filter if past the 50-hour initial change interval. Verify the control valve moves fully through its range and the relief valve is not stuck open. Work through the lift troubleshooting steps in the Hydraulic System section at page 657.
Manual Section: Hydraulic System TroubleshootingEngine overheats, temperature gauge climbs into red zone even at normal load
Inspect the radiator core and clean debris from the fins with compressed air. Check coolant level; capacity is 8.0 liters. Test the radiator cap: it must hold 0.9 bar (13 psi) per the spec on page 88; replace if it fails. Verify the thermostat opens and the water pump impeller is intact before suspecting head gasket issues.
Manual Section: Engine Troubleshooting - GeneralClutch slips under heavy load with burning smell when pulling uphill or towing
Adjust the clutch pedal free play per the Clutch section at page 221. If adjustment doesn't stop the slip, remove the assembly and measure the clutch plate: outside diameter should be 275 mm (10.827 in.) per the spec on page 222. Inspect the flywheel face and pressure plate for oil contamination from a rear main seal leak before ordering parts.
Manual Section: Clutch TroubleshootingPower steering requires heavy effort to turn, especially at low ground speed
Check the power steering fluid level and refill if low; total capacity is 1.8 liters (1.9 U.S. qts.). Inspect the steering pump drive belt for wear or slippage. Purge air from the system by cycling the steering lock-to-lock several times with the engine idling. If stiffness remains, trace the hydraulic circuit through the Steering section at page 773.
Manual Section: Steering TroubleshootingPTO shaft won't rotate or engages and immediately stalls under implement load
Verify the PTO control lever locks fully into the engaged detent. Check the transmission and hydraulic fluid level; shared system capacity is 42.0 liters (11.1 U.S. gal.). Inspect the hydraulic filter for restriction; first change is at 50 hours. If pressure confirms but the shaft won't spin, trace the fault in the PTO section at page 607.
Manual Section: PTO TroubleshootingFrequently Asked Questions
Torque specs for engine bolts on Case IH DX55?
The manual provides metric bolt torque specifications for various engine components on the Case IH DX55. For example, connecting rod cap bolts should be torqued to 49-54 N⋅m (36-40 ft. lbs.), main bearing retaining bolts to 49-54 N⋅m (36-40 ft. lbs.), and cylinder head bolts to 98-103 N⋅m (72-76 ft. lbs.). Flywheel retaining bolts require a torque of 68-78 N⋅m (51-58 ft. lbs.).
How do you fix case IH DX48/DX55 engine won't start or cranks very slowly in cold weather?
Check battery terminals for corrosion and verify the battery holds a full charge before cranking. Inspect fuel lines for wax buildup in freezing temperatures. If cranking speed is still low, top up the crankcase to full; capacity with filter is 7.0 liters. Follow the engine no-start diagnosis chart.
How do you fix hydraulic lift arms fail to raise implement or move very slowly under load?
Check the transmission and hydraulic fluid level; total system capacity is 42.0 liters (11.1 U.S. gal.). Replace the hydraulic filter if past the 50-hour initial change interval. Verify the control valve moves fully through its range and the relief valve is not stuck open. Work through the lift troubleshooting steps in the Hydraulic System section at page 657.
How do you fix engine overheats, temperature gauge climbs into red zone even at normal load?
Inspect the radiator core and clean debris from the fins with compressed air. Check coolant level; capacity is 8.0 liters. Test the radiator cap: it must hold 0.9 bar (13 psi) per the spec on page 88; replace if it fails. Verify the thermostat opens and the water pump impeller is intact before suspecting head gasket issues.
How will I receive this Case IH DX48, DX55 Repair Manual?
This is a 1068-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Is this Case IH DX48, DX55 Repair Manual printable?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
Are there wiring harness diagrams in this Case IH DX48, DX55 manual?
Yes, this Case IH DX48, DX55 Repair Manual includes complete electrical wiring diagrams, wire routing, and connector pinouts.
