Your Case IH DX55 and DX60 tractors came with a factory operator manual for a reason. This is it: all 173 pages, OEM #87546654, built around every cab control, service interval, and safety procedure both DX models require. You get wiring diagrams for the full electrical system, a dedicated safety section with hazard warnings and decal explanations, and operational guidance from the instrument panel and cab controls through PTO engagement, differential lock, and tractor weighting. The lubrication and maintenance chapter lays out daily fluid checks and a service schedule covering engine oil, fuel filter, air cleaner, and hydraulic system intervals. Fill the tank to 60.0 liters; your safety start fuse is 20 amp. Every hour a tractor sits idle costs you money. Bookmarked by section and keyword-searchable, this PDF opens on any device. Grab your phone, walk to the machine, and start wrenching.
What's Inside This Case IH DX55, DX60 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| DX55, DX60 Tractors with Cab Operator's Manual | 1 | - |
| To the Owner | 1 | Adjustment, Maintenance, General Operation, Service Parts, Replacement Parts, Quality Fitting |
| Improvements | 2 | - |
| Precautionary Statements | 6 | Diesel Engine Exhaust, Battery Posts, Terminals, Lead Compounds |
| Personal Safety | 6 | Danger, Warning, Caution, Hazardous Situation, Personal Injury, Death |
| Machine Safety | 6 | Important, Specific Instructions, Minor Machine Damage, Certain Procedure |
| Information | 7-8 | - |
| Working Safely | 9-15 | Injection System, Power Take-Off, Hydraulic Circuits, Cab, Hand Brake, Transmission Shaft, Three-Point Linkage, Radiator Cap |
| Safety Decals | 16-18 | Pull Only From Drawbar, Rotating Fan and Belts, Before Starting and Operating, Operate Controls Only From Tractor Seat, Front-Wheel Drive Usage, Explosive/Acid - Poison |
| Instruction Decals | 19-23 | Operating Rear Remote Control Valve, Range Selector Lever, Differential Lock, Starter Switch, Flow Control Valve, Engine Oil |
| Ecology and the Environment | 24 | Soil, Air, And Water, Chemical and Petrochemical Nature, Relative Legislation, Contaminated Fuels and Waste Oils, Air-Conditioning System, Hydraulic System |

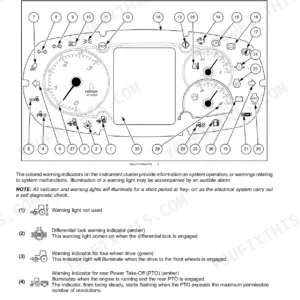

| Universal Symbols | 25 | Thermostart Starting Aid, Alternator Charge, Fuel Level, Engine Oil Pressure, Parking Brake, P.T.O. |
| General Information | 26-29 | To the Owner, Federal Emissions Warranty, California Emission Control Warranty Statement, Minimum Hardware Tightening Torques, Identification Hex Cap Screw and Carriage Bolts |

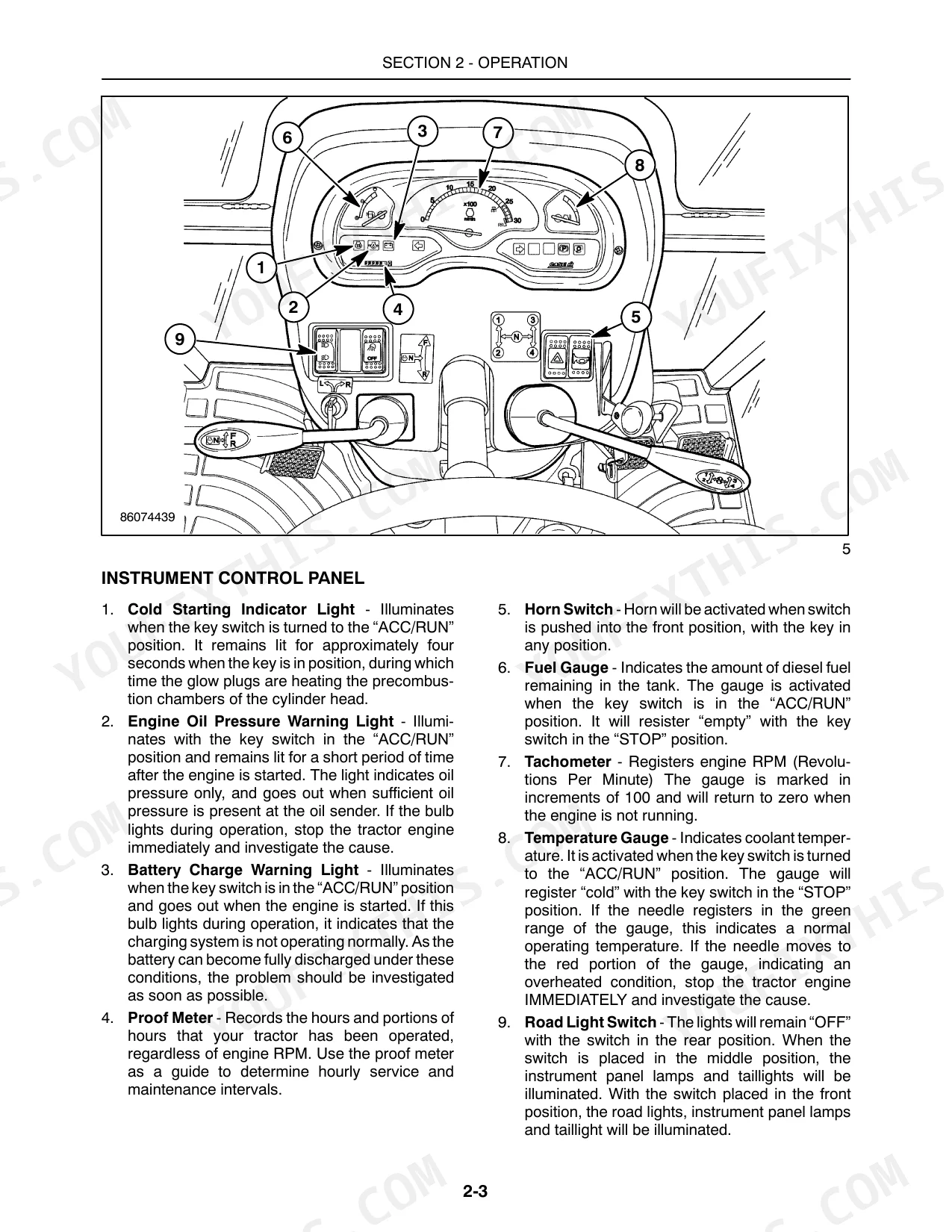

| Operation | 30-81 | Seat, Seat Belt, Instrument Control Panel, Starting the Engine, Operation of the Power Take-Off (PTO), Differential Control, Tractor Weighting |

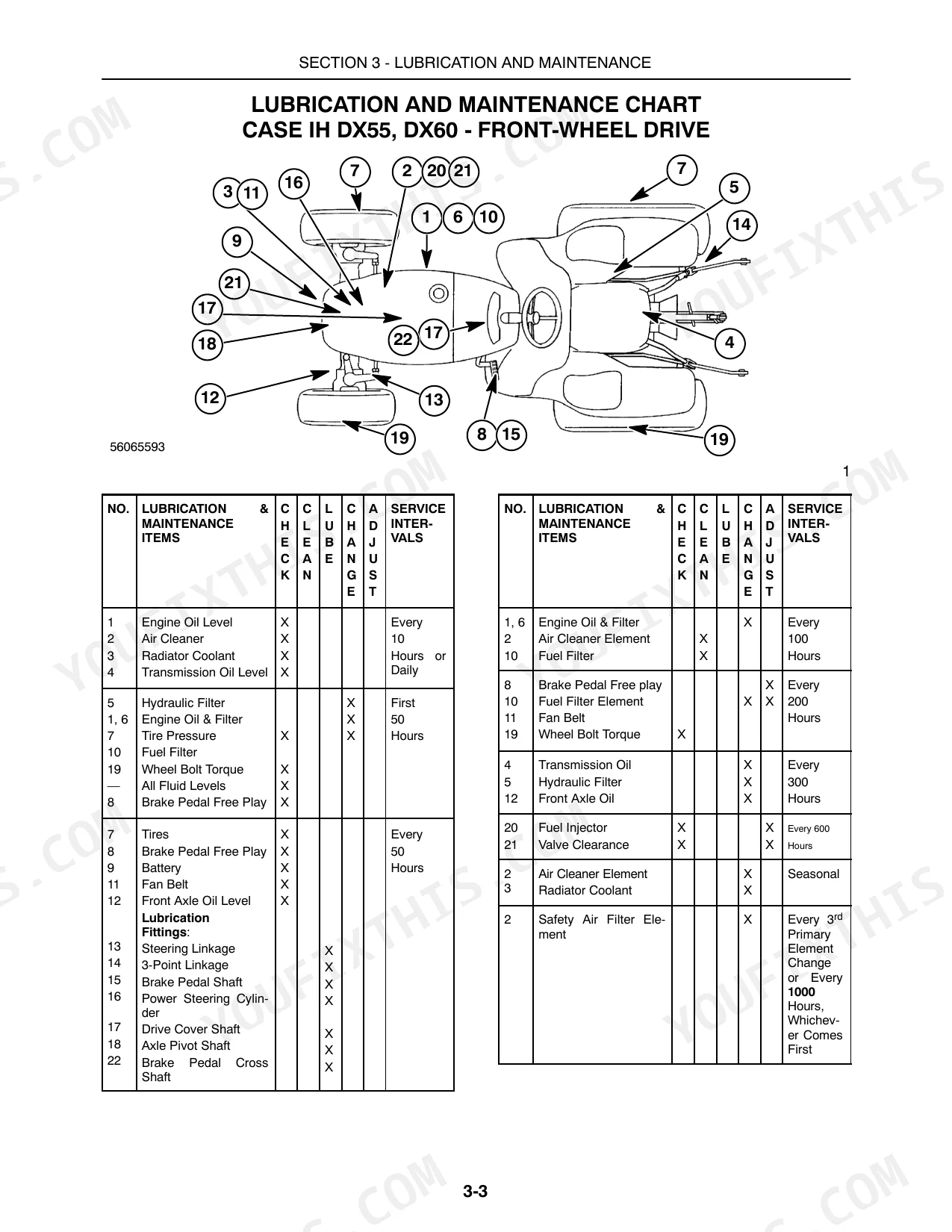

| Lubrication and Maintenance | 82-149 | Recommended Lubricants, Lubrication and Maintenance Chart, Engine Oil Level, Fuel Filter, Air Cleaner, Transmission, Rear Axle, And Hydraulic System |

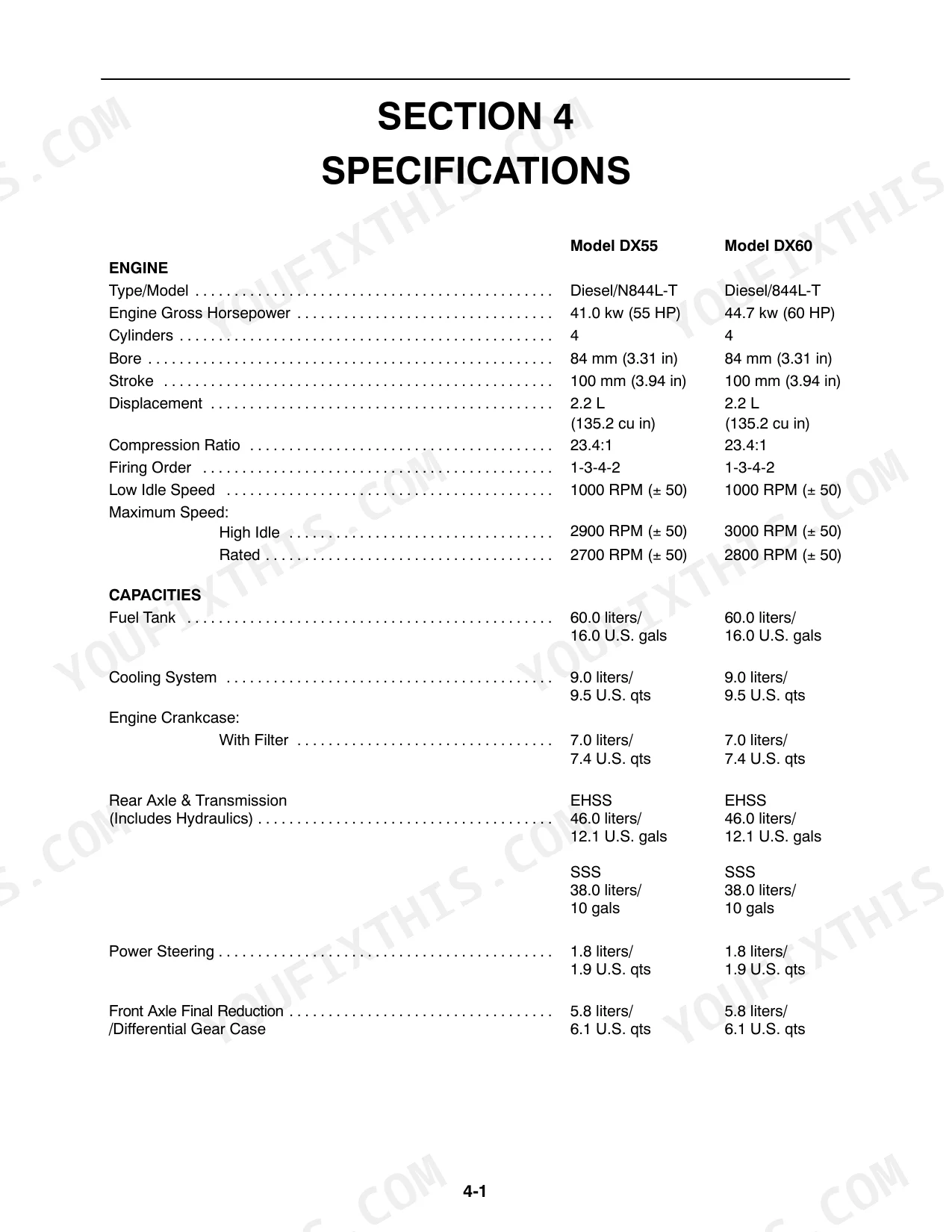

| Specifications | 150-167 | Engine, Capacities, Electrical System, Brakes, Hydraulic Lift System, General Dimensions |
| Predelivery Service | 170-173 | Tire Pressure, Air Cleaner Element, Radiator Coolant Level, Fan Belt Tension, Battery Electrolyte Level, Engine Oil Level |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Front Wheel Torque | 129 N⋅m (95 ft-lb) | p. 75 |
| Rear Wheel Torque | 129 N⋅m (95 ft-lb) | p. 75 |
| Fusible Link Part Number | SBA385608910 | p. 107 |
| Safety Start Fuse Size | 20 amp | p. 106 |
| Fuel Tank Capacity | 60.0 liters | p. 150 |
| Engine Crankcase Oil Capacity (with filter) | 7.0 liters | p. 150 |
| Low Idle Speed | 1000 RPM | p. 150 |
| Rim to Disc Bolt Torque | 244 N⋅m | p. 115 |
| Hydraulic Lift System Relief Valve Setting | 172 bar | p. 153 |
| Rear Axle & Transmission Capacity (EHSS) | 46.0 liters | p. 150 |
| DX55 | ||
| DX55 High Idle Speed | 2900 RPM | p. 150 |
| DX60 | ||
| DX60 High Idle Speed | 3000 RPM | p. 150 |
Case IH DX55, DX60 Common Problems This Manual Covers
Case IH DX55 glow plug indicator light won't illuminate at startup, engine won't crank p. 106
Check the 20-amp safety start fuse on page 106. If intact, inspect the fusible link (part SBA385608910, page 107) for continuity. A dead glow plug indicator with all other dash lights working points to a fuse or wiring fault, not the plugs themselves. Confirm which indicator is dark using the universal symbol chart on page 25.
Manual Section: Electrical System FusesPTO won't engage or disengage from gear despite linkage being intact and lever moving p. 30
Verify the PTO engagement steps in the Operation section starting on page 30. Confirm the clutch pedal is fully depressed before engaging and the engine is at low idle (1000 RPM). Check the rear axle fluid level; the transmission and hydraulic system share a combined 46.0-liter (EHSS) or 38.0-liter (SSS) sump.
Manual Section: OperationEngine cranks freely but won't fire after fuel filter replacement or extended shutdown
Bleed the fuel system following the Fuel System Bleeding procedure in the Lubrication and Maintenance section. Air trapped during a filter swap is the most common cause of a crank-no-start condition. Verify the 60.0-liter fuel tank is adequately filled and the shutoff valve is fully open before cranking.
Manual Section: Fuel System BleedingBattery charging warning light illuminates on the instrument panel during normal operation p. 25
Check the charging system indicator symbol on page 25 to confirm which warning is active. Inspect the alternator drive belt for cracks or glazing; target fan belt deflection is 5-10 mm mid-span (page 102). Verify battery terminals are clean and tight. Inspect the 20-amp safety start fuse at page 106 before assuming the alternator has failed.
Manual Section: Alternator/Charging SystemEngine loses power progressively during fieldwork, exhaust smoke turns black or gray p. 84
Inspect the air cleaner primary and safety filter elements per the Air Cleaner Maintenance section. A clogged primary element is the top cause of power loss and black exhaust smoke under load. Remove and gently tap the primary element to clear loose debris; never wash it. Check service intervals on the maintenance schedule at page 84.
Manual Section: Air Cleaner MaintenanceTransmission grinds or gears are hard to select when shifting between work ranges
Bring the tractor to a complete stop before changing ranges. Check clutch pedal free travel per the Clutch/Inching Pedal Adjustment section. Verify the combined transmission and hydraulic sump level; the system holds 46.0 liters (EHSS) or 38.0 liters (SSS). Low fluid is a frequent cause of hard gear engagement on this platform.
Manual Section: Clutch/Inching Pedal AdjustmentFrequently Asked Questions
How to reset the transmission on a Case IH DX60 tractor?
If the shuttle lever is shifted too quickly (a fraction of a second), the transmission will automatically shift into NEUTRAL. To reset the transmission, shift the shuttle lever into the Neutral position, then into FORWARD or REVERSE.
What torque specs are required for the axle mounting bolts on a Case IH DX60?
For the front wheels, the torque for the wheel bolts is 129 N⋅m (95 ft-lb). For the rear wheels, the torque for the wheel bolts is also 129 N⋅m (95 ft-lb), and the rim to disc bolts require 244 N⋅m (180 ft-lb).
How do you fix case IH DX55 glow plug indicator light won't illuminate at startup, engine won't crank?
Check the 20-amp safety start fuse on page 106. If intact, inspect the fusible link (part SBA385608910, page 107) for continuity. A dead glow plug indicator with all other dash lights working points to a fuse or wiring fault, not the plugs themselves. Confirm which indicator is dark using the universal symbol chart on page 25.
How do you fix PTO won't engage or disengage from gear despite linkage being intact and lever moving?
Verify the PTO engagement steps in the Operation section starting on page 30. Confirm the clutch pedal is fully depressed before engaging and the engine is at low idle (1000 RPM). Check the rear axle fluid level; the transmission and hydraulic system share a combined 46.0-liter (EHSS) or 38.0-liter (SSS) sump.
What format is this manual in?
You get a 173-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Can I print this manual?
The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.

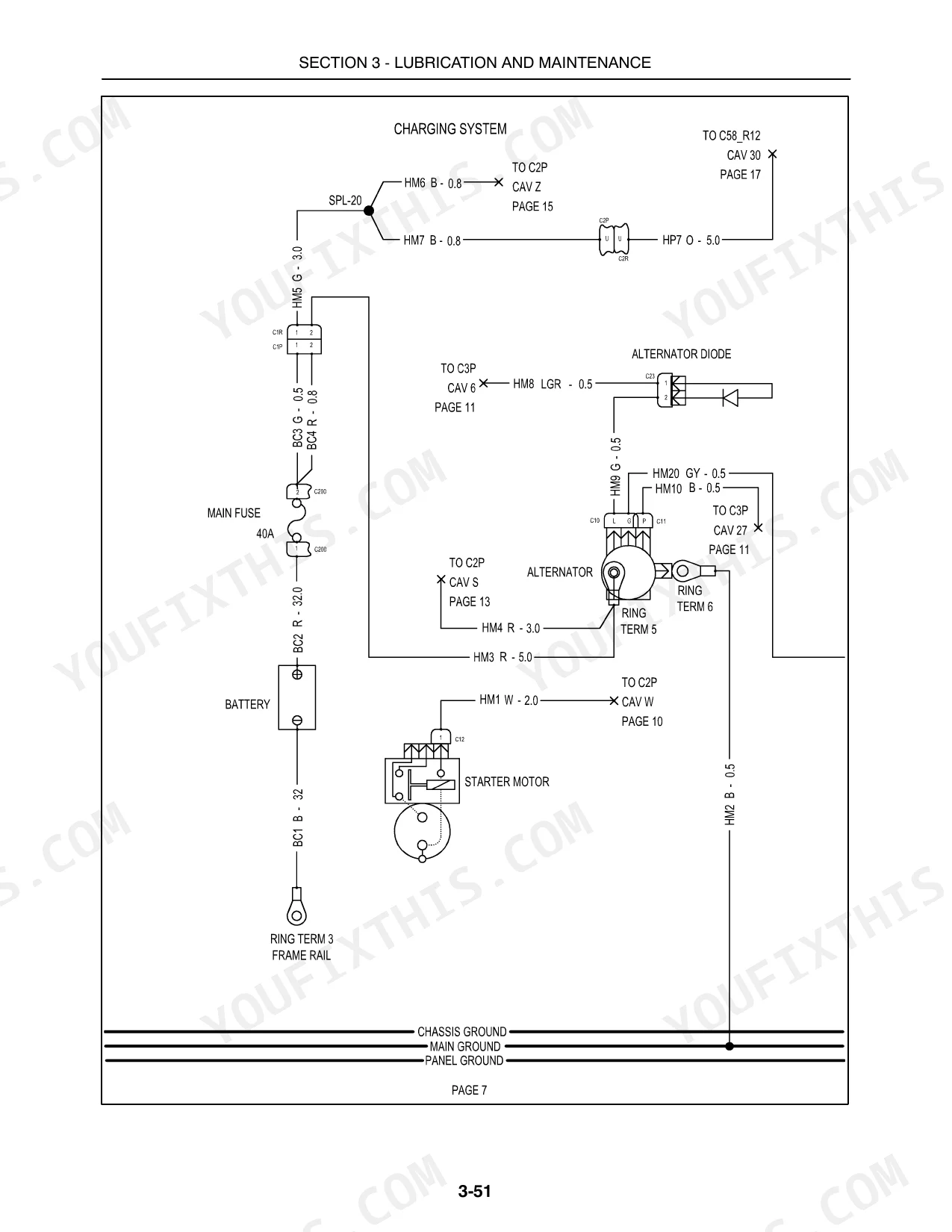

Does this Case IH DX55, DX60 Operator Manual have electrical diagrams?
Yes, an electrical wiring diagram is included to help trace the main circuits.
