Need the factory reference for your McCormick Farmall 130 or International 130 tractor? This 110-page McCormick Farmall 130, International 130 Operator Manual covers Farmall 130, International 130, and Farmall 130 Hi-Clear from the initial delivery checklist through seasonal storage procedures. You get full operating procedures for gasoline, distillate, and kerosene engine variants, plus dedicated sections on the Touch-Control system, Fast-Hitch, hydraulic remote control, and belt pulley and PTO. Inside: wiring diagrams, hydraulic schematics, a complete lubrication guide with oil and grease grade specifications, and a troubleshooting chapter covering brakes, clutch, cooling system, carburetor, and magneto. Valve clearance adjustment specs and system fluid capacities appear in the specifications section, giving you factory figures for every fill point and clearance check. No more guessing at viscosity grades. Bookmarked by section; search by keyword, find the spec, and walk straight to the machine.
What's Inside This Case IH 130, 130 Tractors, MCCORMICK FARMALL 130, INTERNATIONAL 130 Tractors Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction | 8 | Delivery Report, General, Serial Numbers, Engine and Tractor |

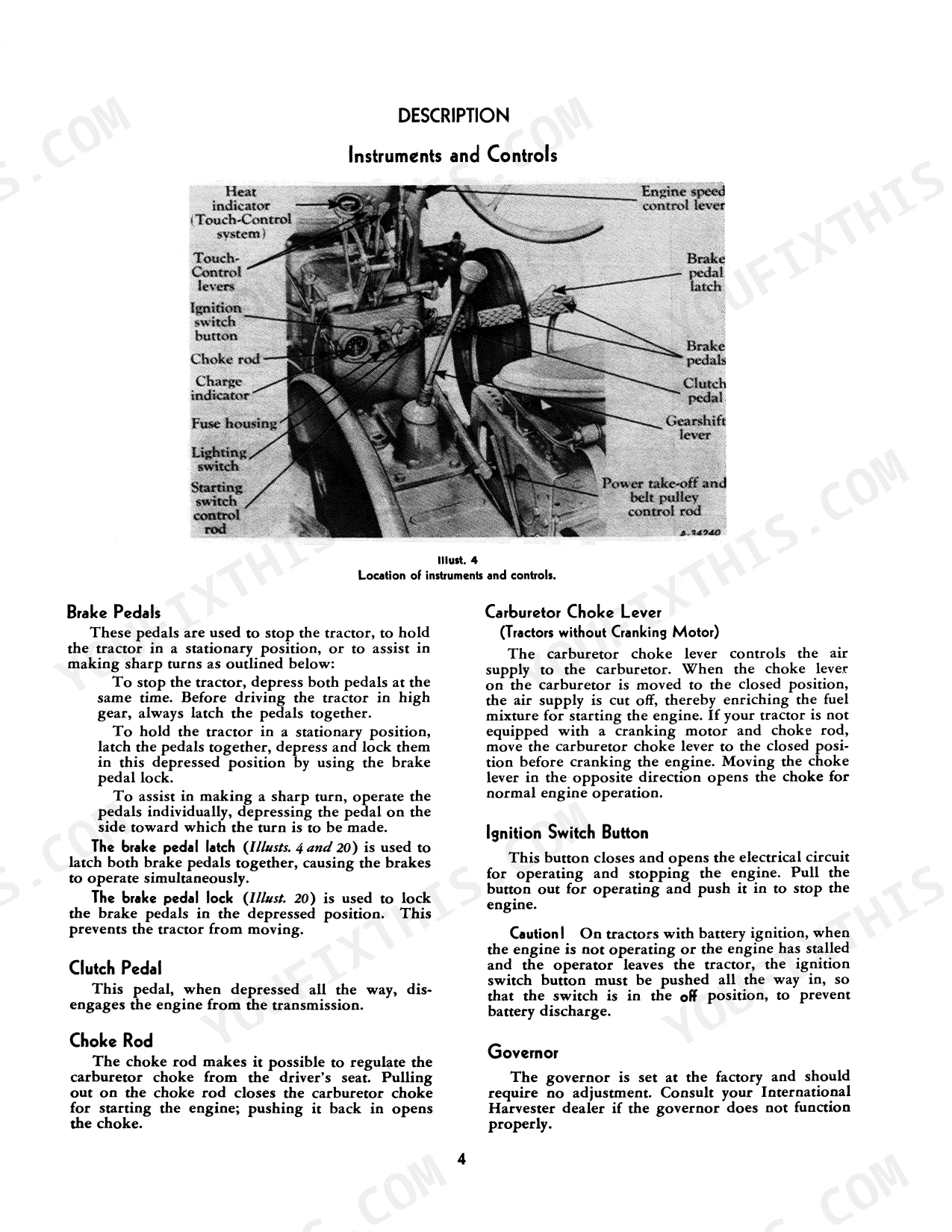

| Description | 9-17 | Before Starting Your New Tractor, Instruments and Controls, Preparing Your Tractor for Each Day's Work, Views of the Tractor |
| Operating Your Tractor | 18-36 | Driving the Tractor, Hitching the Tractor to the Implement, Operating a Distillate Engine on Distillate, Operating a Distillate Engine on Gasoline, Operating a Gasoline Engine |

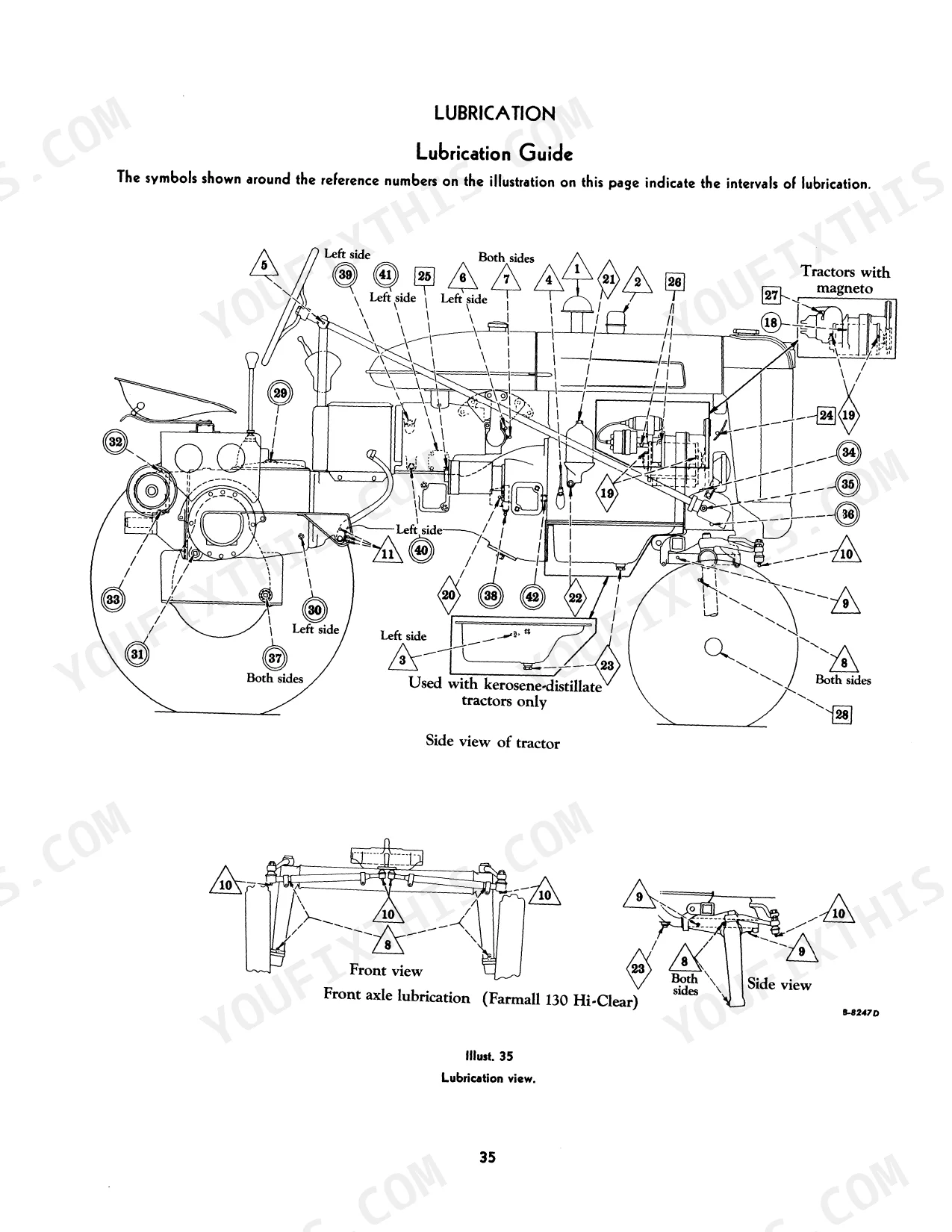

| Lubrication | 37-46 | Greasing the Front Wheels, Lubrication Guide, Lubricating Oil and Grease Specifications, Oil Filter |
| Maintenance | 47-88 | Adjustable Wide-Tread or Heavy-Duty Front Axle, Tread Widths, Air Cleaning System, Battery Ignition Unit, Brakes, Carburetor, Clutch, Cold Weather Precautions |
| Extra Equipment and Accessories | 89-103 | Adjustable Wide-Tread Front Axle, Hydraulic Remote Control, Pneumatic Tire Pumps, Radiator Shutter, Rear Wheel Weights, Fast-Hitch |
Case IH 130, 130 Tractors, MCCORMICK FARMALL 130, INTERNATIONAL 130 Tractors Common Problems This Manual Covers
McCormick Farmall 130 three-point hitch won't lift or lower with engine running and implement attached p. 18
Check the transport lock knob next to the operator's seat before assuming a mechanical fault. If turned inward, the hitch is mechanically locked regardless of lever position. Rotate the knob fully outward to release it. Review hitch procedures on page 18 and verify hydraulic oil level at the daily check; fluid capacities are listed on page 98.
Manual Section: Operating Your TractorEngine won't start or cranks slowly on cold mornings before first use p. 47
Inspect battery terminals for corrosion and tighten any loose cable clamps. Follow the cold-start procedures listed in Maintenance starting on page 47. If cranking is strong but the engine won't fire, consult the troubleshooting chart on page 78 for no-start causes. Perform daily pre-operation checks per page 9 to catch starting issues before they strand the tractor.
Manual Section: MaintenancePTO shaft won't connect to implement or disengage despite collar movement at rear of tractor p. 92
Verify collar direction before forcing anything. To connect, push the implement yoke onto the PTO stub while holding the collar rearward. To disconnect, pull the collar forward, then pull the shaft free. Review the correct sequence on page 92. Grease the PTO splines per the daily lubrication schedule on page 41; dry splines cause the collar to bind.
Manual Section: Extra Equipment and AccessoriesCoolant temperature gauge climbing toward the red zone during routine field operation p. 78
Reduce engine load and idle at low throttle for two minutes before shutdown. Let the engine cool fully before opening the radiator; removing the cap on a hot engine is dangerous. Clear debris from the radiator fins and check fan belt tension. Consult the troubleshooting guide on page 78 for overheating causes and cooling system maintenance on page 47.
Manual Section: MaintenanceEngine smokes and loses power after switching from gasoline to distillate fuel p. 18
Warm the engine on gasoline for at least 5 minutes before switching to distillate, allowing the block to reach operating temperature. Follow the fuel switchover sequence on page 18 step by step. Before shutdown, return to gasoline 5 minutes early to purge distillate from the carburetor bowl, preventing gum deposits and hard starts the following morning.
Manual Section: Operating Your TractorFrequently Asked Questions
How do you fix McCormick Farmall 130 three-point hitch won't lift or lower with engine running and implement attached?
Check the transport lock knob next to the operator's seat before assuming a mechanical fault. If turned inward, the hitch is mechanically locked regardless of lever position. Rotate the knob fully outward to release it. Review hitch procedures on page 18 and verify hydraulic oil level at the daily check; fluid capacities are listed on page 98.
How do you fix engine won't start or cranks slowly on cold mornings before first use?
Inspect battery terminals for corrosion and tighten any loose cable clamps. Follow the cold-start procedures listed in Maintenance starting on page 47. If cranking is strong but the engine won't fire, consult the troubleshooting chart on page 78 for no-start causes. Perform daily pre-operation checks per page 9 to catch starting issues before they strand the tractor.
How do you fix PTO shaft won't connect to implement or disengage despite collar movement at rear of tractor?
Verify collar direction before forcing anything. To connect, push the implement yoke onto the PTO stub while holding the collar rearward. To disconnect, pull the collar forward, then pull the shaft free. Review the correct sequence on page 92. Grease the PTO splines per the daily lubrication schedule on page 41; dry splines cause the collar to bind.
How do you fix coolant temperature gauge climbing toward the red zone during routine field operation?
Reduce engine load and idle at low throttle for two minutes before shutdown. Let the engine cool fully before opening the radiator; removing the cap on a hot engine is dangerous. Clear debris from the radiator fins and check fan belt tension. Consult the troubleshooting guide on page 78 for overheating causes and cooling system maintenance on page 47.
What do I get after purchasing this McCormick Farmall 130, International 130?
Instant PDF download. You get the full 110-page searchable Operator Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Is this McCormick Farmall 130, International 130?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
Can I find wiring schematics in this McCormick Farmall 130, International 130?
Included. The McCormick Farmall 130, International 130 Tractors Operator Manual provides a wiring diagram for the electrical system.
