Case IH operator manual 87684394 takes the JX95 straddle mount tractor from its first 50 hour service to winter storage, all in a 179-page Case IH JX95 operator manual PDF. Lubrication and maintenance claims a large share of the book, scheduled by the hour meter from every 10 hours out to 1200 hours or two years, with refill quantities listed. Field operation runs longer still: PTO engagement, hydraulic lift, Category I and II three-point linkage, remote control valves, ballasting, tire pressures, and the 12X12 and 20X12 creeper shuttle shifts, then troubleshooting charts for engine, electrical and lift faults. Set the steering stops so you keep 20 mm (0.8 in.) between tire and tractor at full lock; the lift relief valve is calibrated at 190 bar (2756 Psi). Out at your shed, there's nobody to ask. Search the text or jump by bookmark, then print the chapter and let it get greasy on the bench while the weather holds.
What's Inside This Case IH JX95 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| General Information and Safety | 8-29 | JX Series Straddle Mount, To the Owner, Improvements, Introduction, Using This Manual, Communication for the User, Important Ecological Considerations, Tractor Identification |

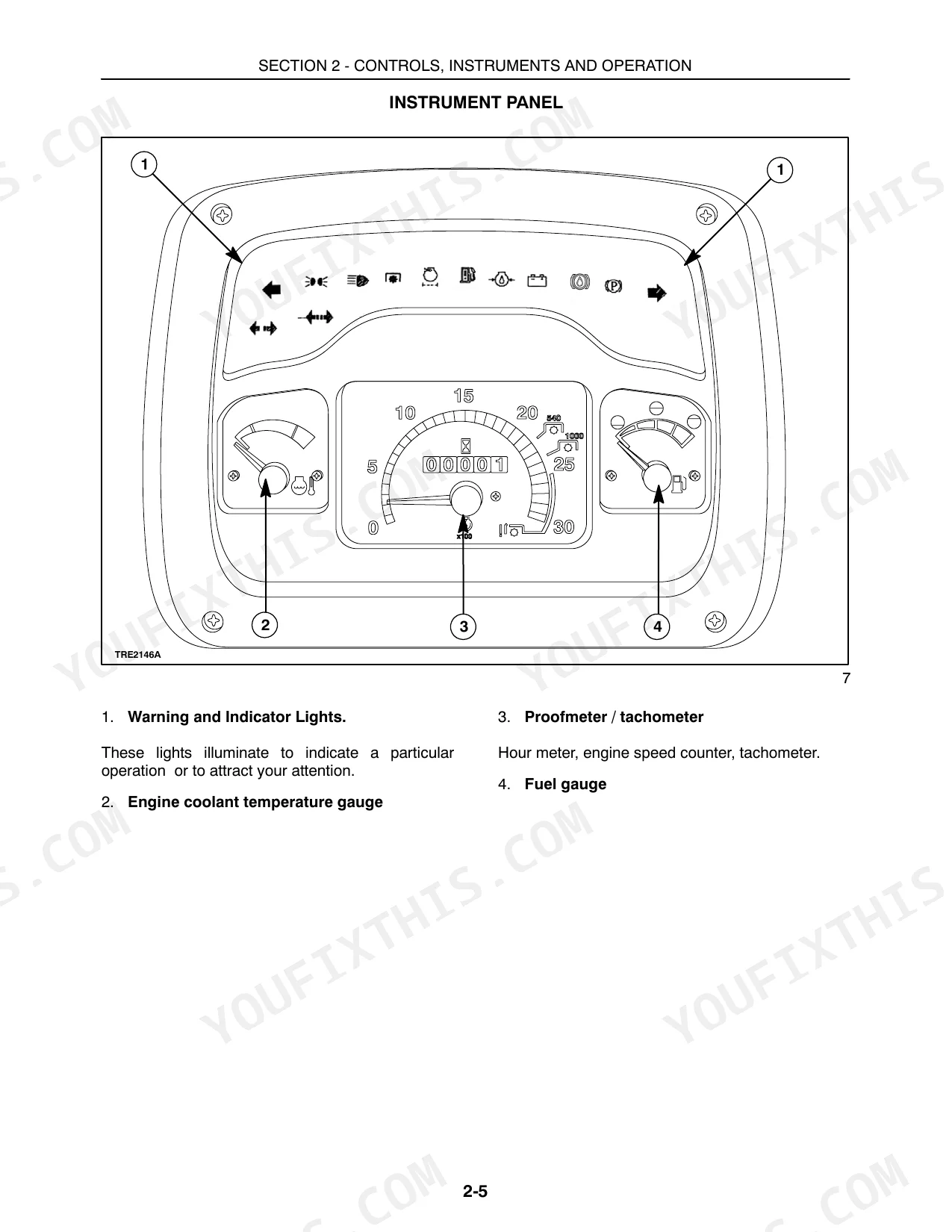

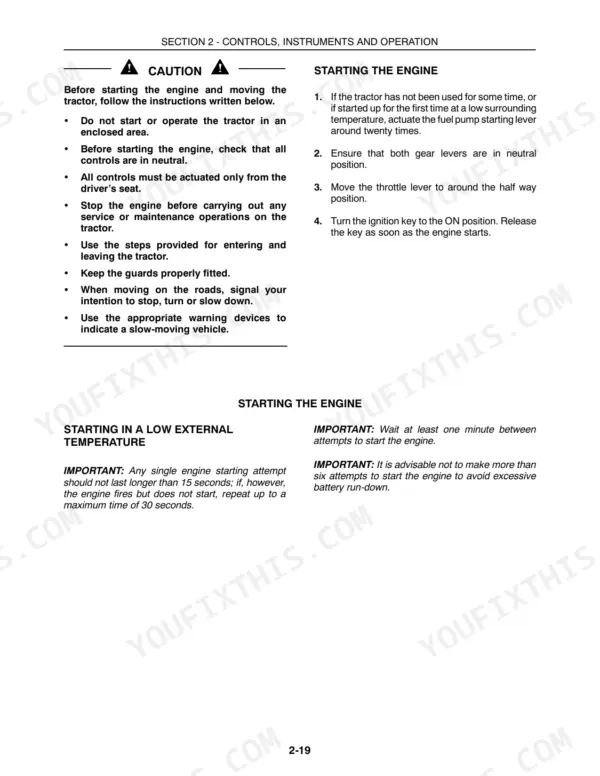

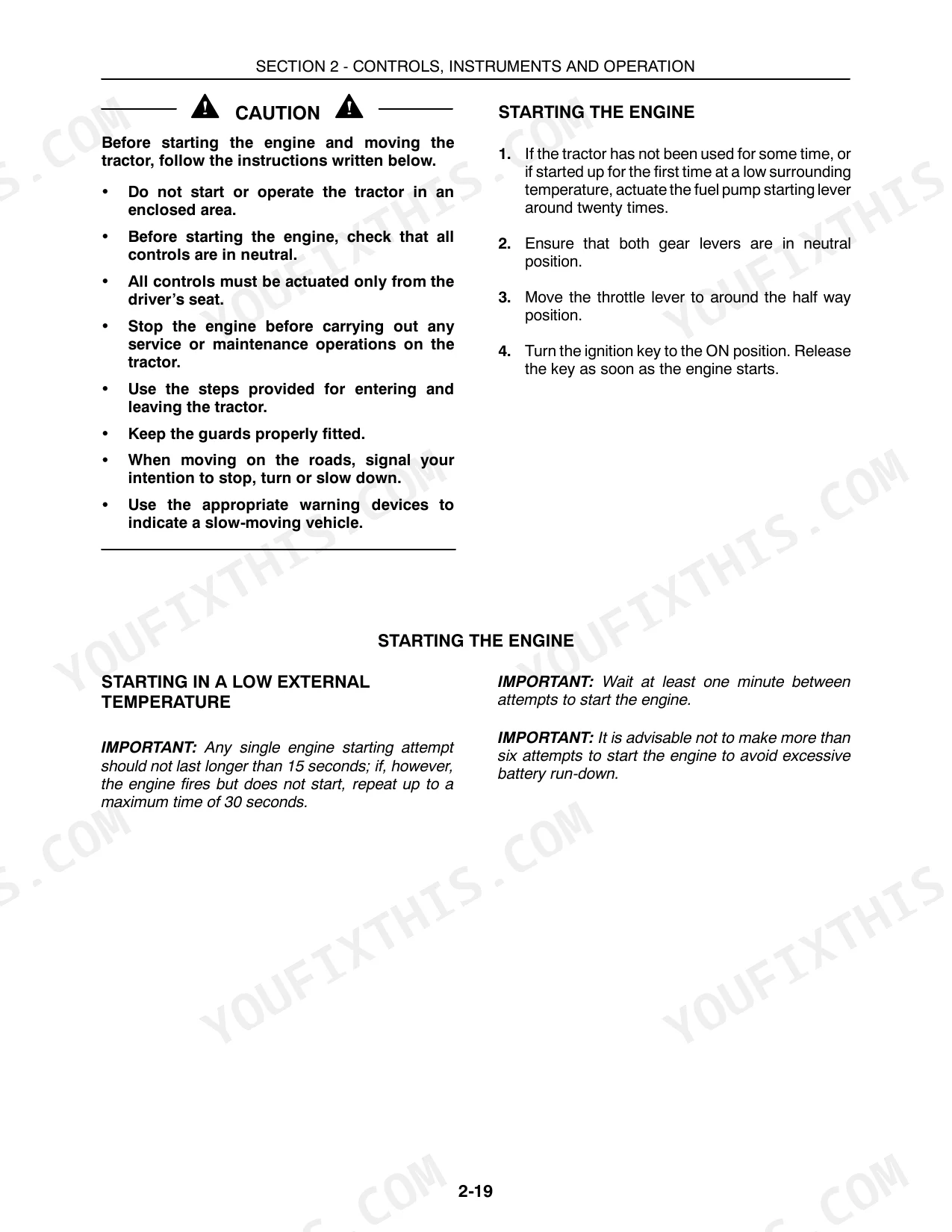

| Controls, Instruments and Operation | 30-57 | Driver's Seat, Instrument Panel, Instrument Console Controls, Operating Controls, Towing the Tractor, Checks Before Using the Tractor, Operation, Starting the Engine |
| Field Operation | 58-101 | Power Take-Off Operation, Hydraulic Lift, Three-Point Linkage, Equipment Mounting Points, Lower Link Attachment, Towing Equipment, Folding ROPS, Operator Protective Structure |

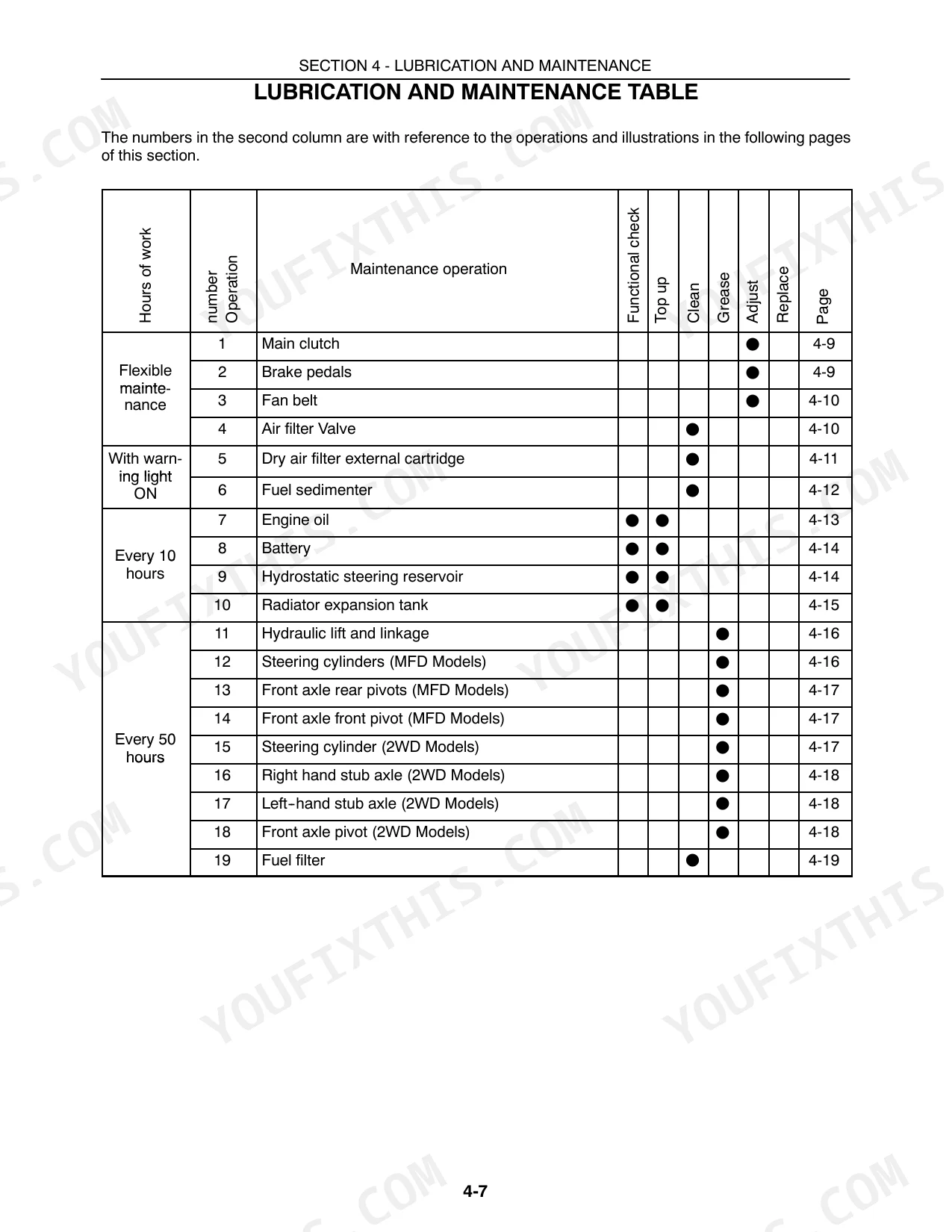

| Lubrication and Maintenance | 102-135 | Introduction, Tractor Refuelling, Miscellaneous Checks, Access for Inspection and Maintenance, Products and Quantities for Refilling, Lubrication and Maintenance Table |
| Troubleshooting | 136-143 | Locating and Identifying Problems, Introduction, Engine, Electrical System, Hydraulic System, Hydraulic Lift and 3-Point Equipment Coupling |
| Tractor Storage | 144-145 | Engine Oil, Air Filter Cartridge, Engine Cooling System, Fuel Tank, Battery, Operating Cylinder Rods |
| Accessories | 146-153 | Electrical System |
| Specifications and Data | 154-167 | Dimensions of 2WD Models with Standard Tires, Dimensions of MFD Models with Standard Tires, Turning Radius, Weights Kg, Engine Data |
| Delivery Report - JX95 Series Straddle Mount | 168-175 | First 50 Hour Service - Check and Adjust, As Required |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Clearance between tractor and tire (or mudguard) at full lock | 20 mm (0.8 in.) | p. 86 |
| Compressed air pressure for cleaning | less than 5.9 bar (85 Psi) | p. 112 |
| Water jet pressure for cleaning | less than 2.9 bar (42 Psi) | p. 112 |
| Hydraulic lift pressure relief valve calibration | 190 bar (2756 Psi) | p. 162 |
| Hydraulic lift pump nominal flow (Standard) | 40.1 l/min (10.6 gal/min) | p. 162 |
| Hydraulic lift pump nominal flow (Mega Flow Pump) | 51.7 l/min (13.6 gal/min) | p. 162 |
| Steering pump pressure relief valve calibration (2WD models) | 100 bar (1450 Psi) | p. 164 |
| Steering pump pressure relief valve calibration (MFD models) | 125 bar (1813 Psi) | p. 164 |
| Engine Sump Oil Capacity (without filter) | 10.5L | p. 106 |
| Engine Sump Oil Capacity (with filter) | 11.2L | p. 106 |
| Fuel Tank Capacity | 77L | p. 103 |
| Cooling System Capacity | 14L | p. 161 |
Case IH JX95 Common Problems This Manual Covers
Case IH JX95 straddle mount tractor working in the field all afternoon and the engine keeps overheating

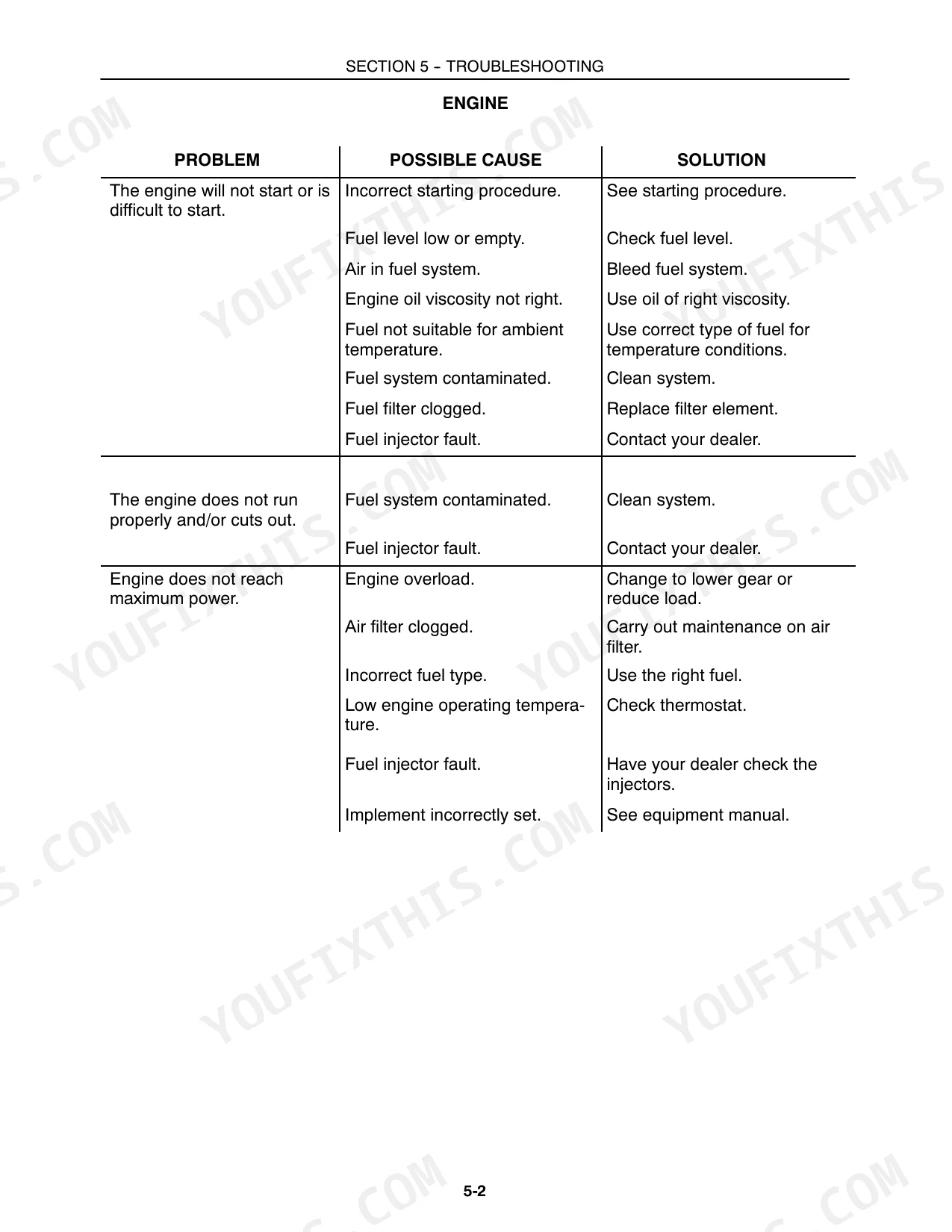

Check fan belt tension first: following page 111, deflection should be 10 to 11 mm with a 78 to 98 N load applied. Verify the cooling system is full; it holds 14 L per page 161. Then work through the overheating checks on page 137 so you finish the field before the weather turns.
Manual Section: Engine Troubleshooting p. 137Engine slow to start in the morning, then running rough and losing power

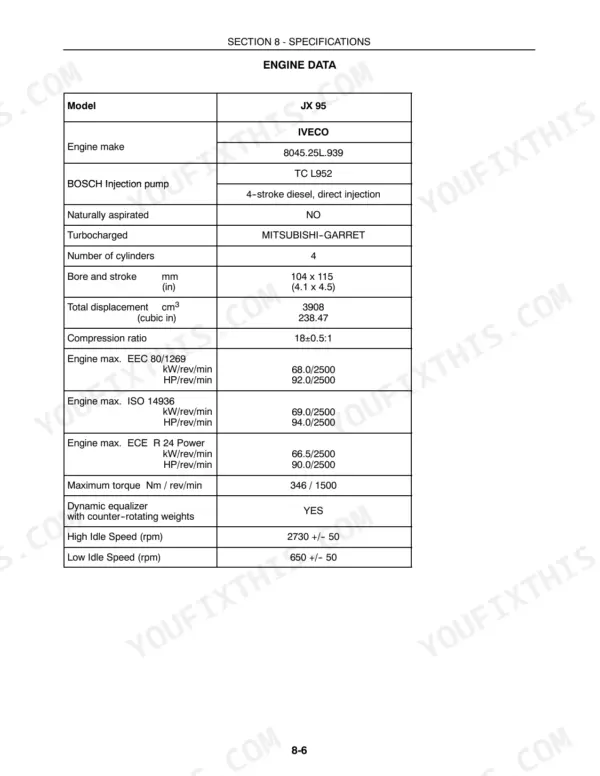

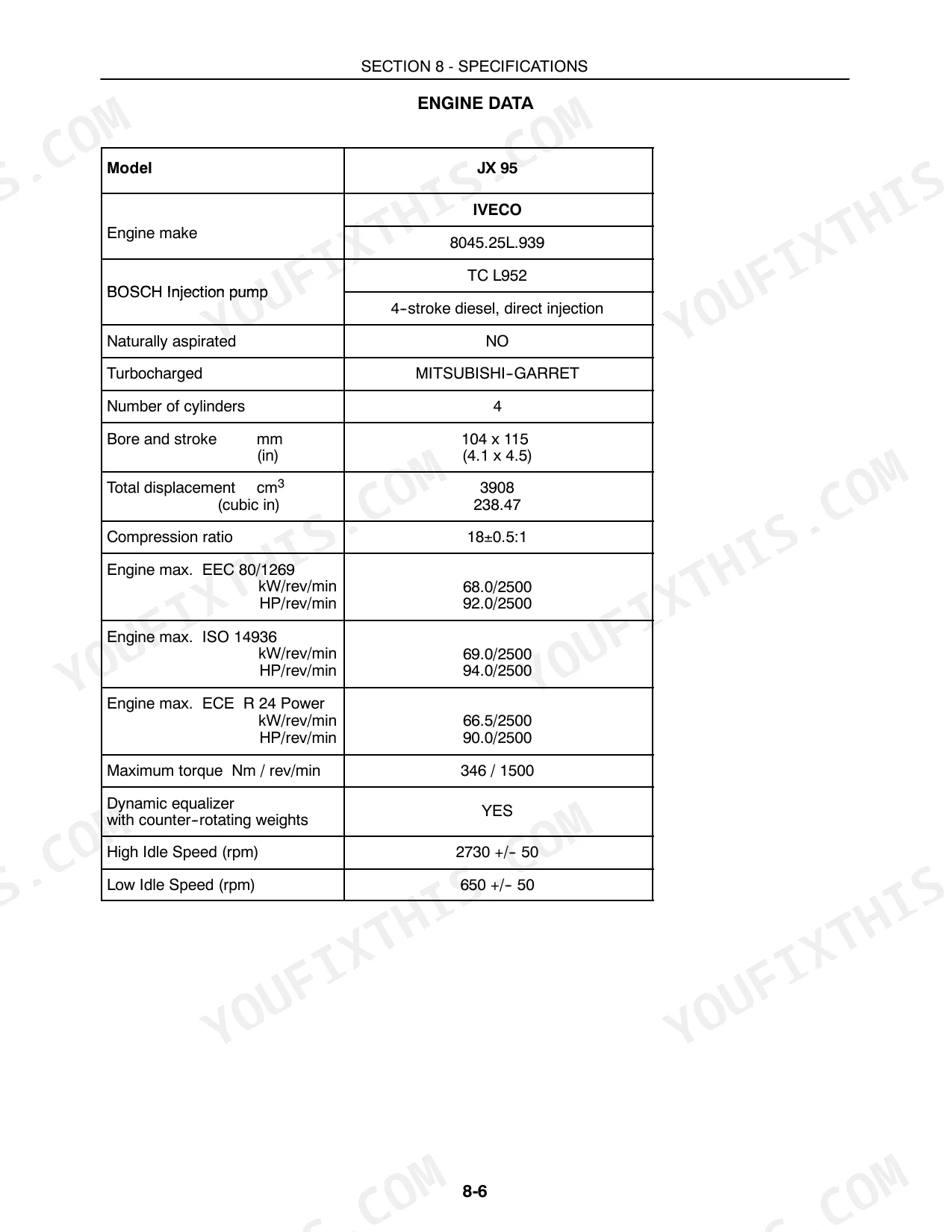

Clean the air filter cartridge with compressed air below 5.9 bar (85 psi) as page 112 describes, and keep drying temperature under 50°C. Verify low idle settles at 650 ± 50 rpm and high idle reaches 2730 ± 50 rpm against page 159. Then follow the no-start, rough running and low power checks on page 137.
Manual Section: Engine Troubleshooting p. 137Between oil changes, engine showing low oil pressure and excessive oil consumption
Check the engine oil level and top up as needed; the sump takes 10.5 L without the filter and 11.2 L with the filter, per page 106. Confirm the oil change interval on the maintenance schedule on page 108, then work through the low oil pressure and excessive oil consumption steps on page 137.
Manual Section: Engine Troubleshooting p. 137Starter motor turning over slowly, battery charge light staying lit, and batteries not charging
Test the batteries before you start chasing the starter motor. Work the electrical troubleshooting chart on page 140 in order, covering low starter speed, starter motor failure, the battery charge light and batteries not charging. If the tractor sat parked since last season, follow the battery steps in Tractor Storage on page 144 before the planting window opens.
Manual Section: Electrical System Troubleshooting p. 140Main clutch pedal and brake pedal free travel feeling wrong, with too much or too little play
Measure main clutch pedal free travel and adjust it to 40 mm following page 110. Measure brake pedal free travel on the same page against 80 mm. Recheck both at the first 50 hour service listed in the delivery report on page 168, and again any time the pedals feel different from last season.
Manual Section: Lubrication and Maintenance p. 110Three-point linkage with draft control selected, lowering slowly or not reaching correct lift height
Check the draft control setting against the Hydraulic Lift section in Field Operation before you suspect the hydraulic system. Inspect the three-point linkage and lower link attachment for overload, then work the Hydraulic Lift and 3-Point Equipment Coupling troubleshooting chart for slow lowering, lift height and draft control speed faults.
Manual Section: Hydraulic Lift and 3-Point Equipment Coupling Troubleshooting p. 142Frequently Asked Questions
How do you adjust the PTO clutch on a Case IH JX95?
To prolong the release bearing life, lower the PTO clutch control lever when the PTO is not selected. For long periods of inactivity, keep the clutch control lever in the engaged position and the selection lever in the off position, as detailed on page 59. p. 59
What are the engine oil filter replacement specifications for the JX95?
When replacing the engine oil filter, unscrew and remove the old filter. Oil the rubber seal of the new filter, then screw it on and tighten the cartridge 3/4 of a turn by hand, as described on page 122. p. 122
What is the correct procedure for bleeding the fuel system on a JX95?
To bleed the fuel system, unscrew the bleed plug on the fuel filter by approximately two turns. Actuate the fuel pump primer lever until fuel without air bubbles spurts from the hole, then tighten the plug and actuate the lever a few more times, as shown on page 134. p. 134
What is the specified valve clearance for the JX95 engine?
The valve clearance for the engine, when cold, is 0.35 ± 0.05 mm (0.012 ± 0.002 in.) for both intake and exhaust valves, as specified on page 160. p. 160
What do I get after purchasing this Case IH JX95 manual?
You download the Operator Manual yourself: 179 pages, searchable PDF, available immediately. Keep a copy on every device you use.
Am I able to print pages from this Case IH JX95 manual?
Yes. Printing works from any reader and any printer, for your own shop use.
