Packed into 146 pages, this Case IH service manual covers the MD72, MD82, and MD92 disc mowers from initial tractor hookup through complete driveline and cutter bar overhaul. Inside you get a full set of exploded views across every disc module, overrunning clutch, bevel gearbox, and U-joint assembly, plus step-by-step hydraulic cylinder procedures for teardown, inspection, and rebuild. Open the torque section for every fastener spec in the driveline, or flip to the troubleshooting charts when your cutter bar isn't floating right. Knife bolts torque to 159 N·m (117 lb ft), disc hub retaining bolts go to 224 N·m, and the MD72 flotation spring measures 845 mm between coil ends. Your machine is down and cutting season doesn't wait. Bookmarks jump you straight to any procedure; open it on your tablet at the mower and start wrenching.
What's Inside This Case IH MD72, MD82, MD92 Manual
| System | Pages | Key Topics |
|---|---|---|

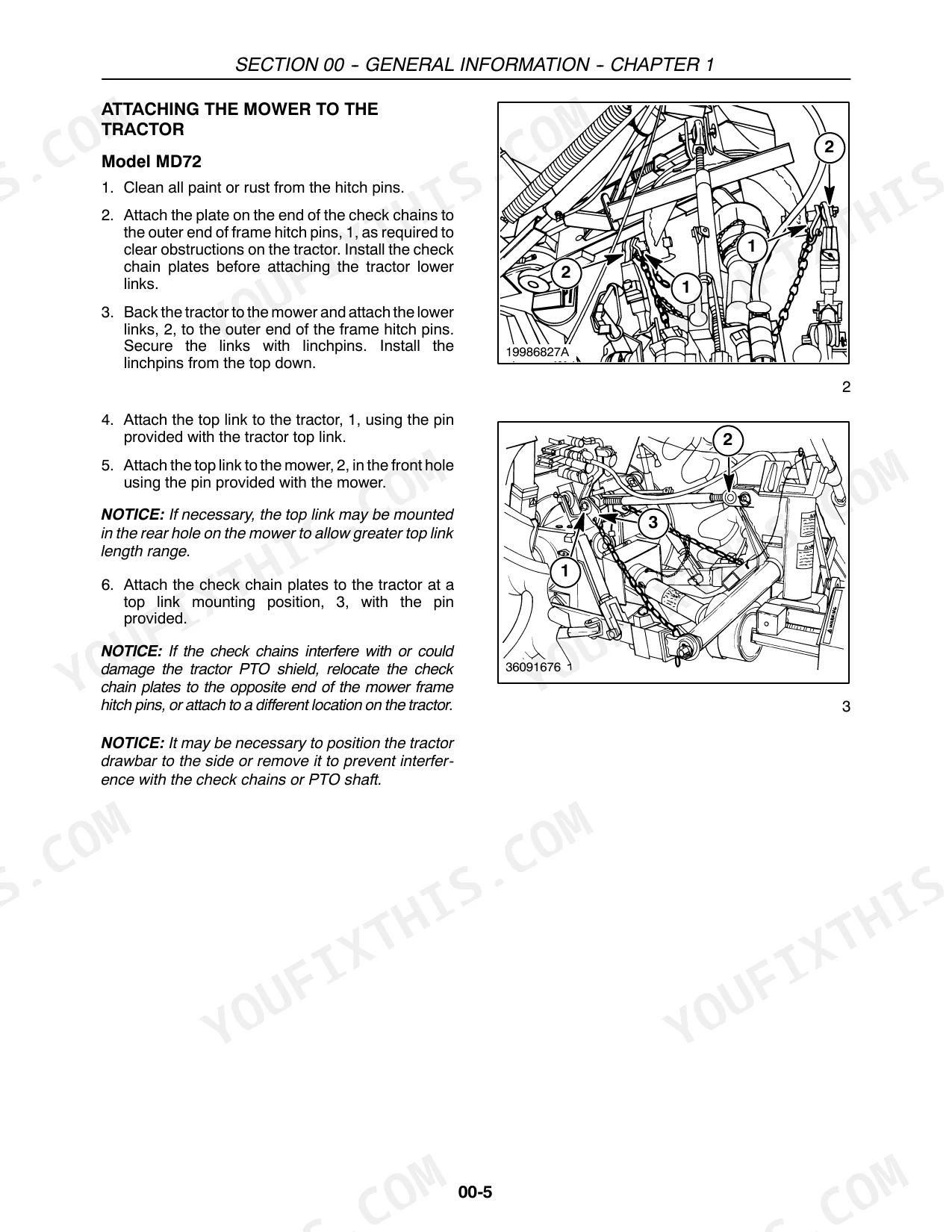

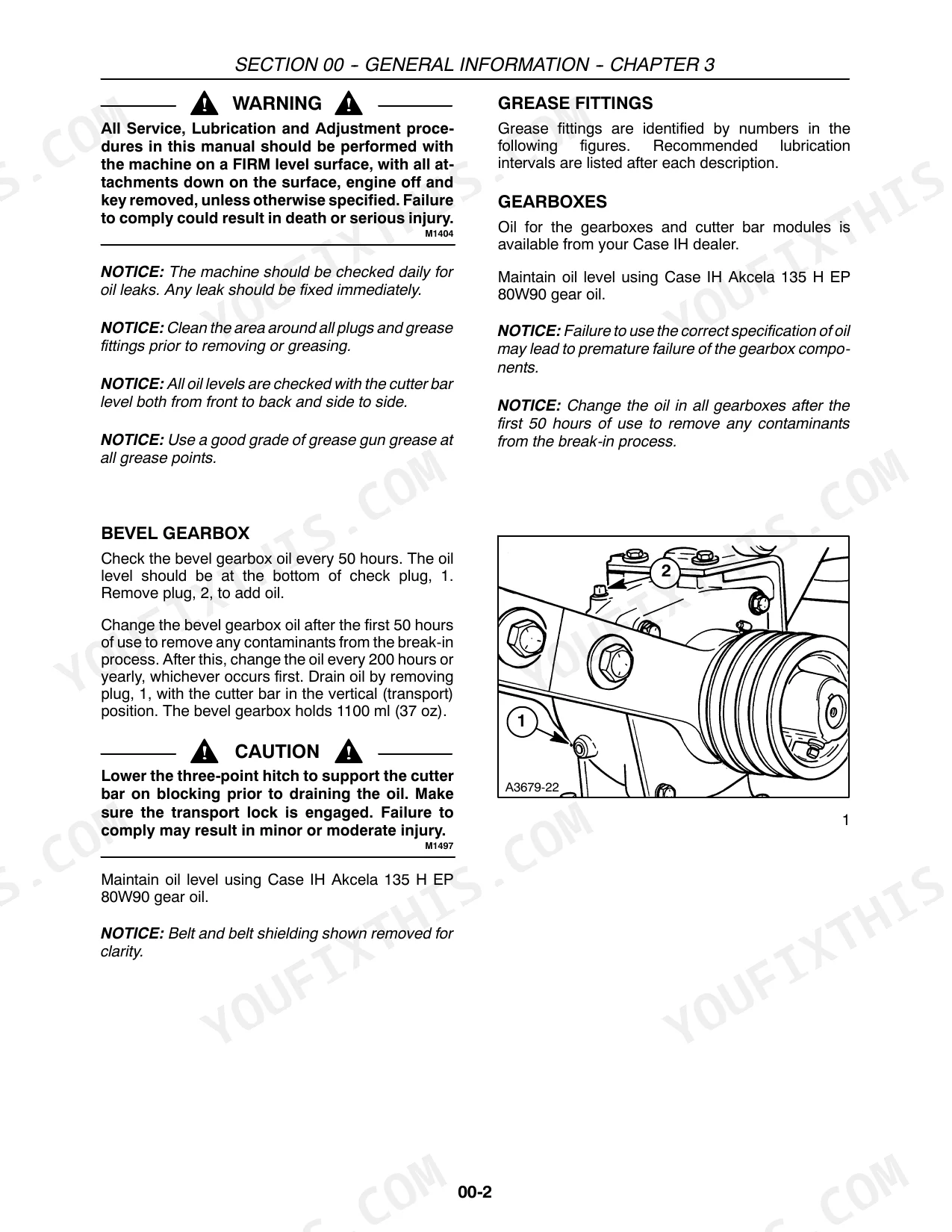

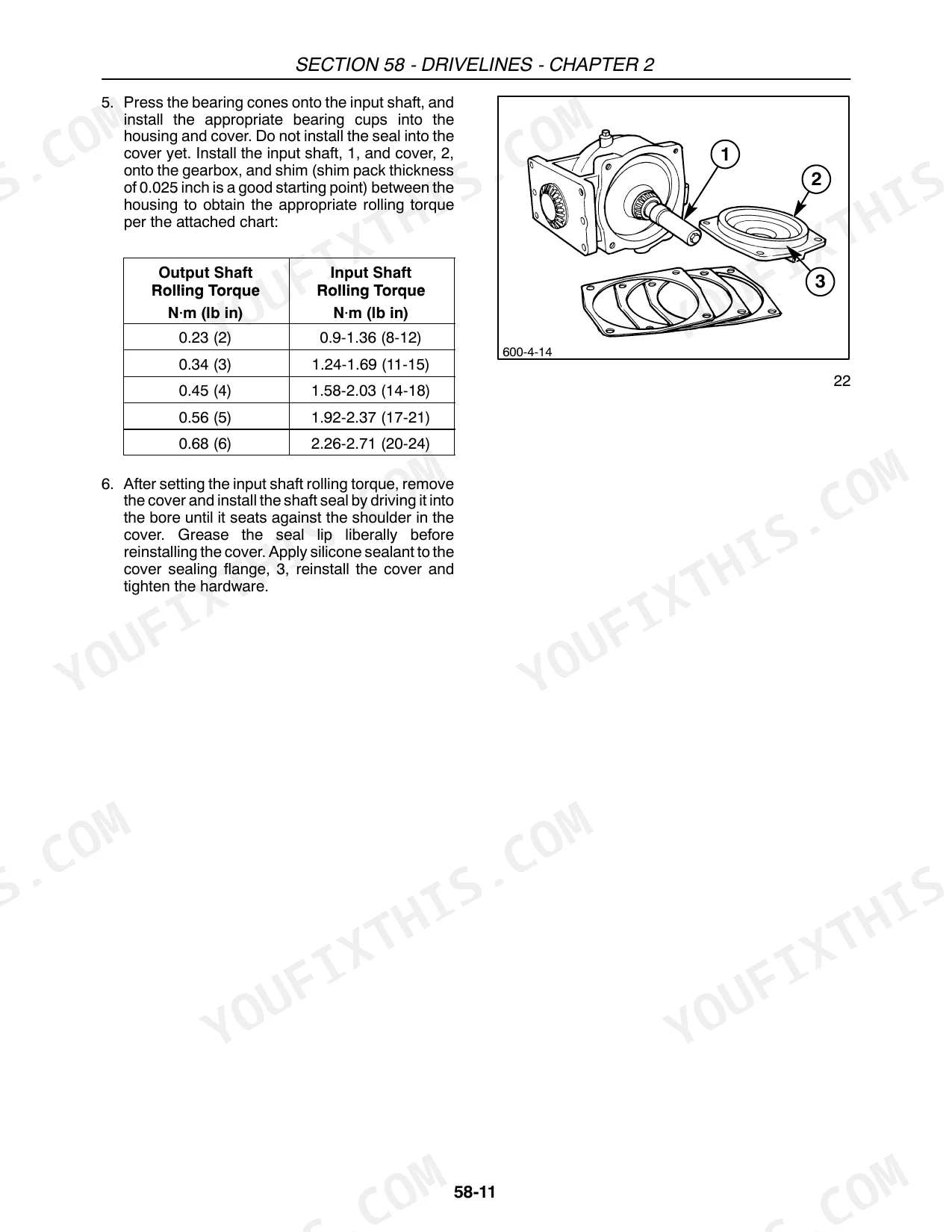

| General Information | 3-54 | Precautionary Statements, Before Using the New Machine, After 8 Hours of Operation, Tractor Requirements, Attaching the Mower to the Tractor, Model MD72, Model MD82 and MD92 |
| Hydraulics | 55-60 | Hydraulic Cylinders, Disassembly, Inspection, Assembly |
| Drivelines | 61-130 | Twist Lock, Overrunning Clutch, U-Joints, Bevel Gearbox, Cutter Bar, Disc Module |
| Optional Equipment | 131-136 | Left Swathboard Kit, High Stubble Kit, Disc Knives |
| Decals | 137-146 | - |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Knife bolt torque | 117 lb ft (159 N⋅m) | p. 101 |
| Disc assembly and cover retaining bolts torque | 113 N⋅m (83 lb ft) | p. 107 |
| Disc hub retaining bolt torque | 224 N⋅m (150 lb ft) or turn the bolt 90° after the bolt has contacted the washer | p. 107 |
| Seal installation | flush with the side of the housing, and square to the shaft | p. 117 |
| Disc module oil sump design | Each disc module is a separate gear case with its own oil sump | p. 96 |
| Cutter Bar Cutting Height | 32 mm - 89 mm | p. 21 |
| Cutter Bar Tilt Angle | 0° to -10° | p. 21 |
| MD72 | ||
| Flotation spring length (between ends of spring coils) | 845 mm (33-1/4 in) | p. 27 |
| Cutter Bar Cutting Width | 2040 mm | p. 21 |
| MD82 | ||
| Flotation spring length (between ends of spring coils) | 902 mm (35-1/2 in) | p. 27 |
| Cutter Bar Cutting Width | 2400 mm | p. 21 |
| MD92 | ||
| Cutter Bar Cutting Width | 2800 mm | p. 21 |
Case IH MD72, MD82, MD92 Common Problems This Manual Covers
Case IH disc mower drive hub fractures after field obstruction impact, affected discs stop spinning p. 107
Inspect the drive hub and shear pins immediately after any impact. Replace shear pins first; if the hub itself is cracked or deformed, pull the disc module from the cutter bar. When reassembling, torque the disc hub retaining bolt to 224 N⋅m (150 lb ft), or 90° past contact with the washer, as specified on page 107 of the Drivelines section.
Manual Section: DrivelinesDisc seal leaks oil after extended field hours, housing contaminated with debris and crop material p. 117
Remove the affected disc module and inspect the seal bore for scoring or debris. Install the replacement seal flush with the side of the housing and square to the shaft, per the procedure on page 117. Torque the disc assembly cover bolts to 113 N⋅m (83 lb ft) on reassembly. Each disc runs its own independent oil sump, so a failed seal on one module stays isolated.
Manual Section: DrivelinesUneven stubble height and streaking across the full cut width, some passes leave taller rows

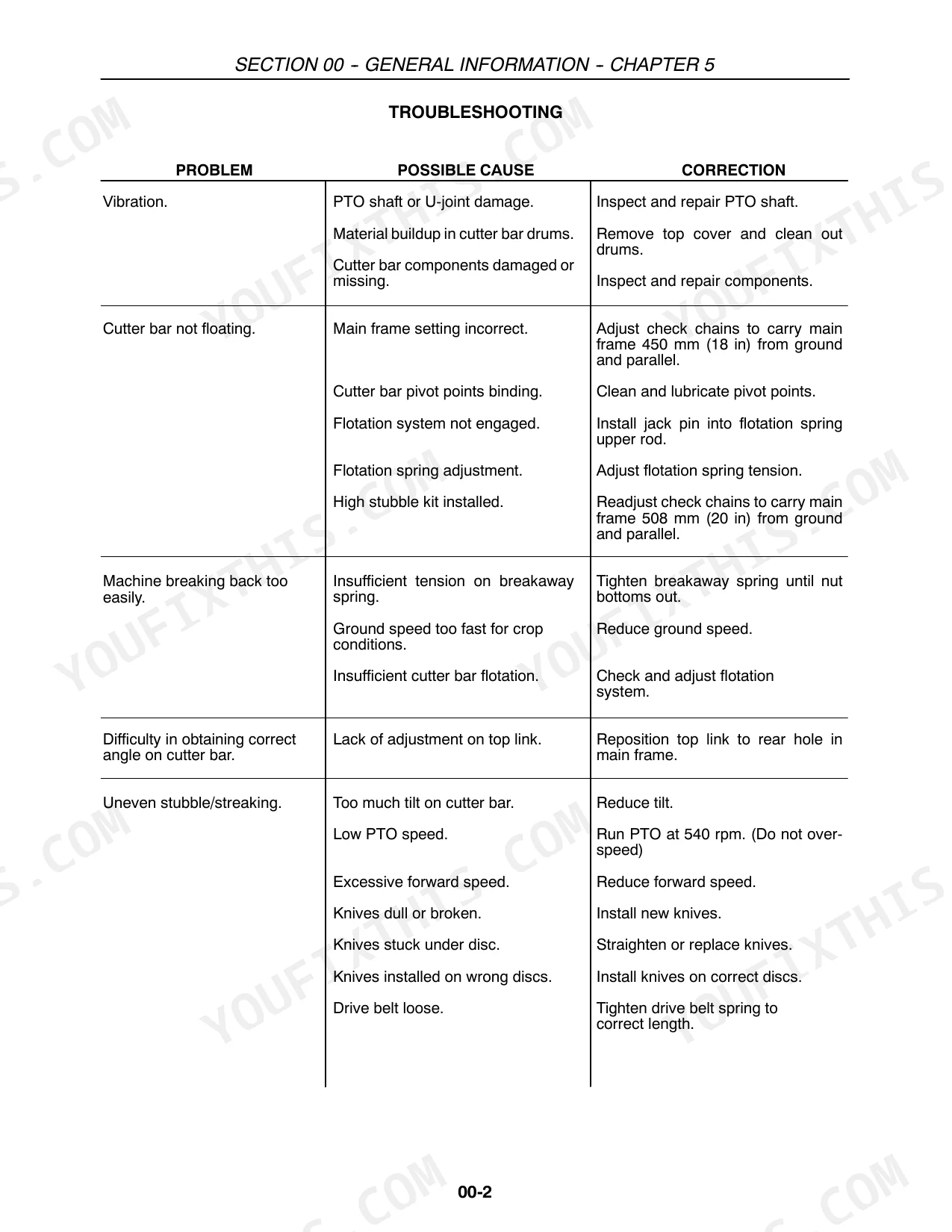

Check PTO speed first; discs must turn at 3000 rpm, which requires 540 rpm input at the shaft. Next, inspect each knife for dull edges or damage and verify knives are mounted on the correct discs with bolts torqued to 117 lb ft (159 N⋅m). For persistent streaking, work through the uneven stubble troubleshooting chart.
Manual Section: General InformationCutter bar rides hard on the ground instead of floating, scalps high spots and misses low ones
Verify the flotation system is engaged and the pivot points are not binding. Measure the flotation spring length against the spec for your model at page 27 (MD72 and MD82) or page 30 (MD92). If cutter bar tilt exceeds -10°, it fights flotation; reset within the 0° to -10° range. Consult the cutter bar not floating chart.
Manual Section: General InformationStubble consistently too long even at slow forward speeds, knives look intact but cut height stays high
Check the cutter bar angle using the troubleshooting notes; an incorrect angle is the most common driver of long stubble. Set cutting height between 32 mm and 89 mm using the cutter bar adjustment, then confirm PTO is running at 540 rpm and reduce forward speed to match crop density. Replace any knife showing edge wear.
Manual Section: General InformationMachine folds back at the cutterbar joint too easily on flat ground, interrupting every pass
Inspect the breakaway spring for correct preload; insufficient tension is the direct cause of premature fold-back. Verify cutter bar tilt is within the 0° to -10° range, since an over-tilted bar increases side-load on the breakaway joint. Check your model's breakaway angle spec on page 21, then reduce forward speed in heavy or lodged crop per the guidance.
Manual Section: General InformationFrequently Asked Questions
Torque specifications for disc mower blades on Case IH MD72
When replacing knives on the MD72 disc mower, install the bolt protector and bolt, then torque the knife bolts to 117 lb ft (159 N⋅m). This ensures proper retention and prevents loosening during operation.
Bolt torque specifications for disc mower spindle Case IH MD92
For the MD92 disc mower, the disc hub retaining bolt should be torqued to 224 N⋅m (150 lb ft) or turned 90° after contacting the washer. Additionally, the top cap retaining bolts should be torqued to 113 N⋅m (83 lb ft).
How do you fix case IH disc mower drive hub fractures after field obstruction impact, affected discs stop spinning?
Inspect the drive hub and shear pins immediately after any impact. Replace shear pins first; if the hub itself is cracked or deformed, pull the disc module from the cutter bar. When reassembling, torque the disc hub retaining bolt to 224 N⋅m (150 lb ft), or 90° past contact with the washer, as specified on page 107 of the Drivelines section.
How do you fix disc seal leaks oil after extended field hours, housing contaminated with debris and crop material?
Remove the affected disc module and inspect the seal bore for scoring or debris. Install the replacement seal flush with the side of the housing and square to the shaft, per the procedure on page 117. Torque the disc assembly cover bolts to 113 N⋅m (83 lb ft) on reassembly. Each disc runs its own independent oil sump, so a failed seal on one module stays isolated.
How quickly can I access this manual after buying?
A 146-page Service Manual in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Am I able to print pages from this manual?
Yes. The PDF has no DRM restrictions, so print any page or section you need for your shop. Works with any standard printer.
