All 171 pages of this Case IH SDX30, SDX40 Repair Manual PDF (OEM #87605427) focus on one machine: your Single Disk No-Till Air Drill, from safety and electrical systems through hydraulic circuit diagnosis and complete frame repair. Inside: full hydraulic schematics with fluid routing, wiring diagrams for the electrical system, a thorough troubleshooting section, and page after page of exploded views covering every major assembly on both drill variants. You also get step-by-step repair procedures for seeding components, metering systems, and frame rebuilds, plus dedicated safety chapters on air hose handling and hydraulic leak precautions. Wheel bolts torque to 115-128 N-m (85-95 lbf-ft); tie rod nuts run 31-41 N-m (23-30 lbf-ft) dry. Your drill is down at planting time. Get the factory numbers now, not forum guesses. One-click download, bookmarked by section, and searchable on any device you bring to the field.
What's Inside This Case IH SDX30, SDX40 Repair Manual

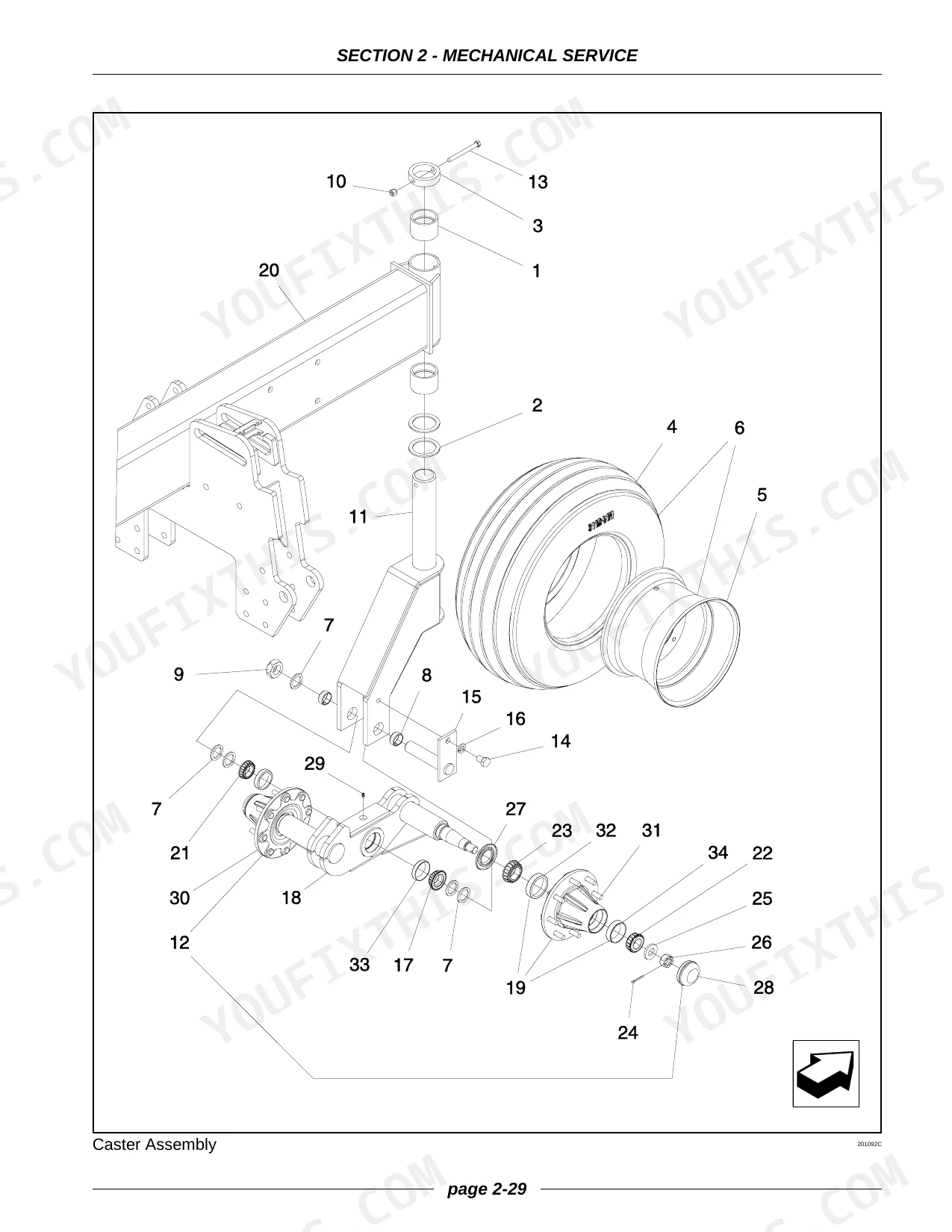

| System | Pages | Key Topics |
|---|---|---|
| Sdx30/Sdx40 Single Disk No-Till Air Drill Repair Manual Cover Page | 1 | - |
| Repair Part Identification - Sdx30 | 2 | Product Identification Number Plate, Model Number, Product Identification Number, Front Bar of the Machine |
| Repair Part Identification - Sdx40 | 3-5 | Product Identification Number Plate, Model Number, Service Manual Table of Contents |
| Safety | 6-23 | - |
| Mechanical Service | 24-61 | Fold Linkages, Hub Spindles Wheels, SDX30 Frame Brace Kit, Grease Locations, Locking Openers Subbar, Welding Procedures |

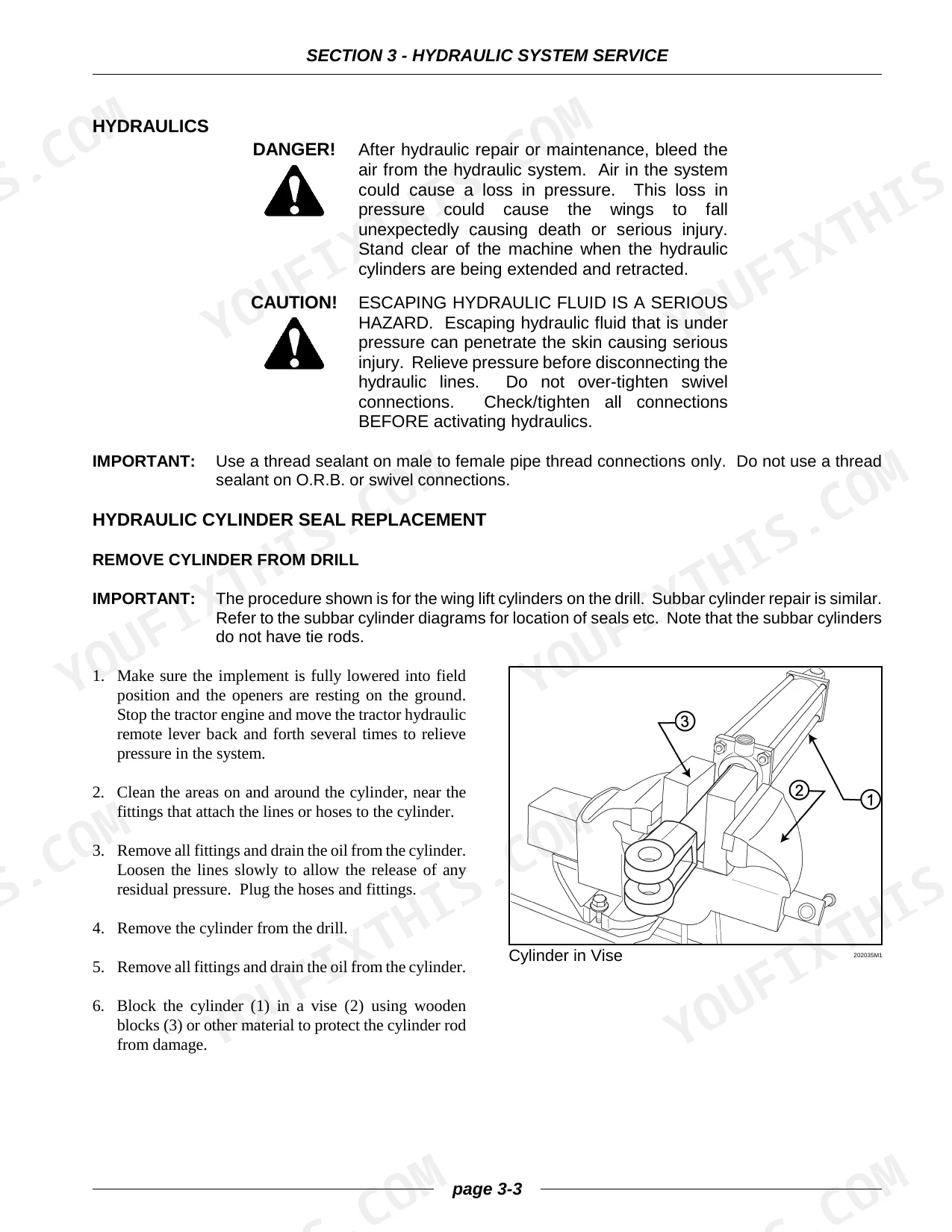

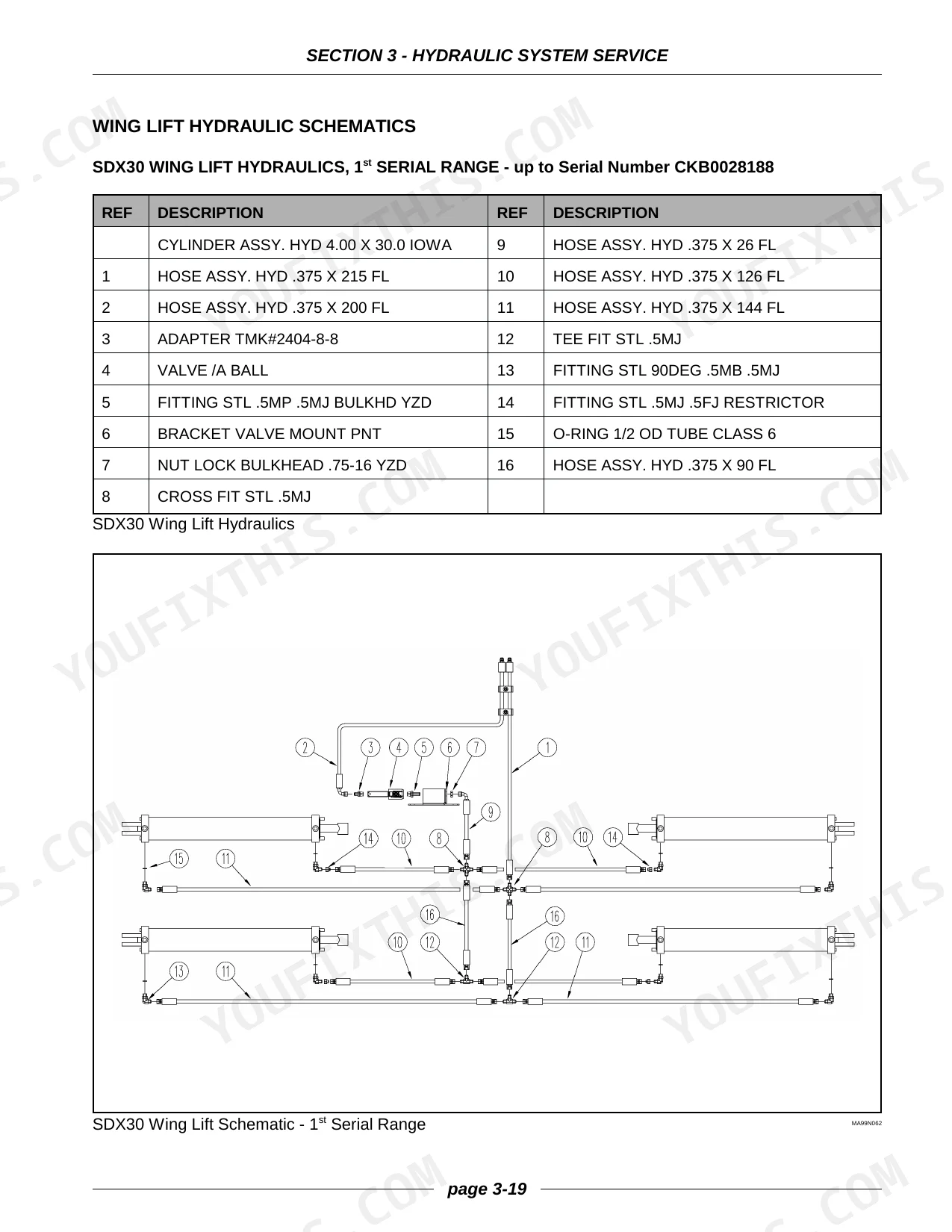

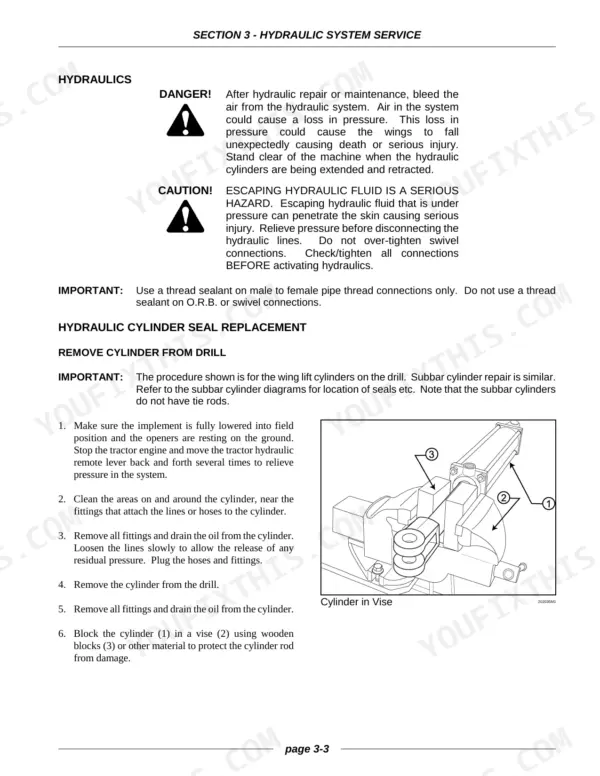

| Hydraulic System Service | 62-93 | Hydraulic Cylinder Seal Replacement, Hydraulic Cylinder Components, Wing Lift Hydraulic Schematics, Subbar Hydraulics |
| Electrical System Service | 94-115 | Electrical Clutches, Work Switch, Connector Service Kit |

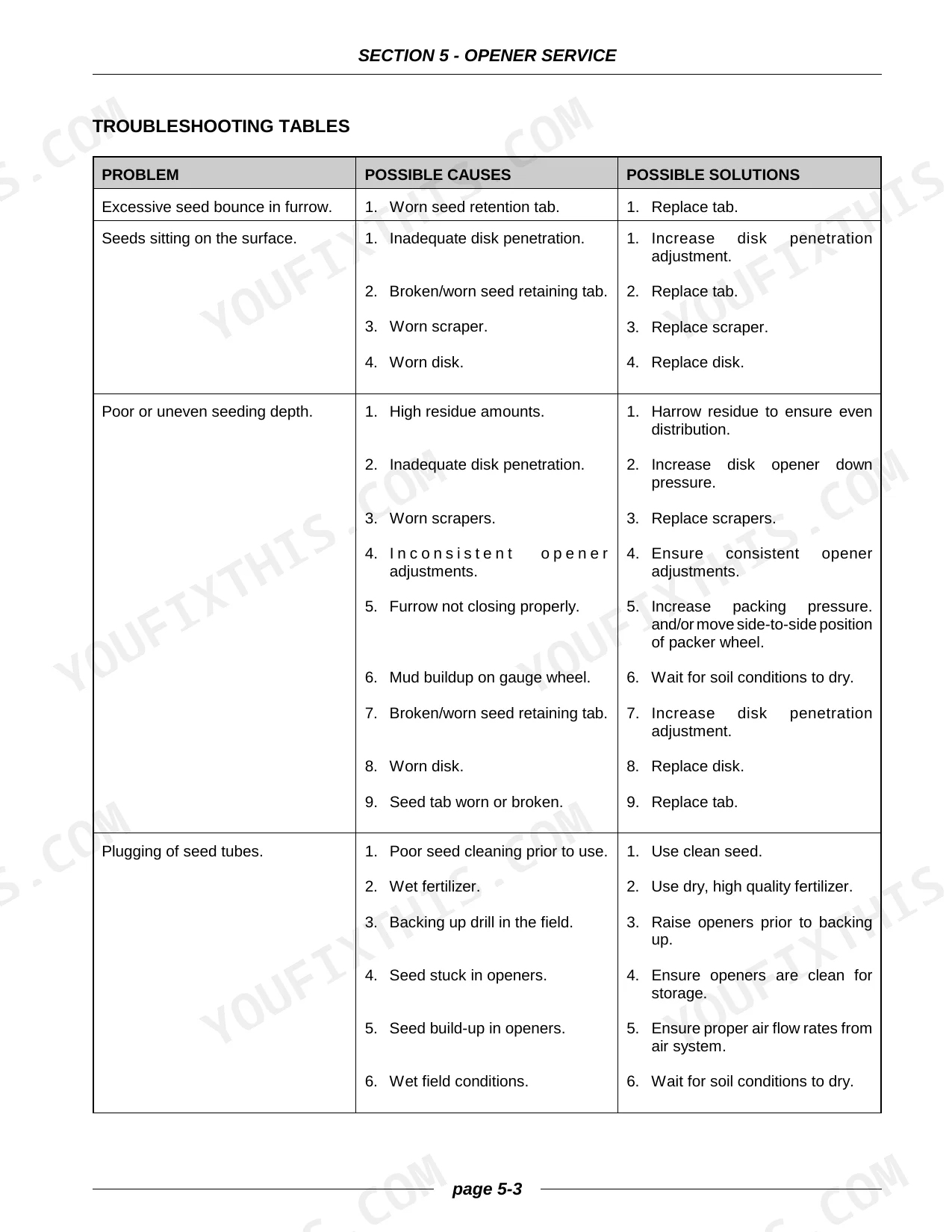

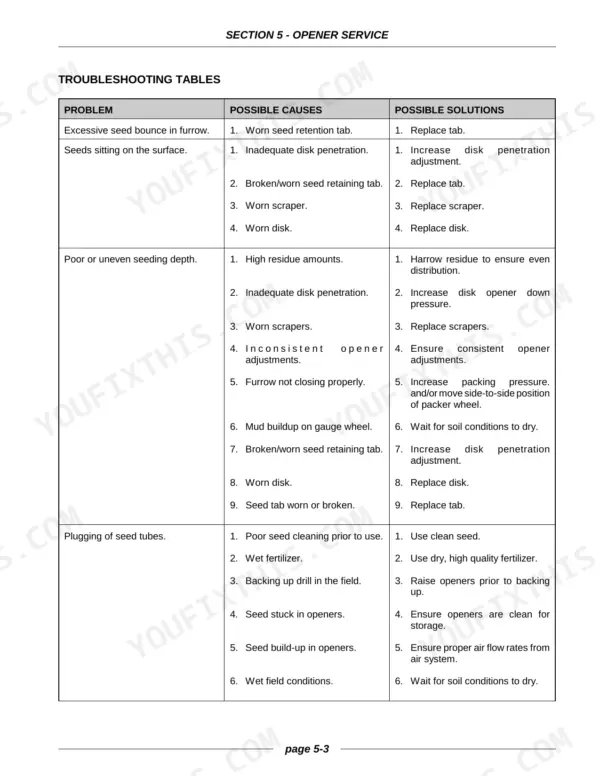

| Opener Service | 116-133 | Opener Troubleshooting Tables, Opener Disc Adjustments, Opener Service Procedures |
| Air System Service | 134-151 | Fan Speed Concord Air Systems, Air System Hoses, Adx Air System Components, Seed Carrying Velocities |
| Endmarker Service | 152-171 | SDX30 Endmarker Assembly, SDX40 Endmarker Assembly, Endmarker Adjustments |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Wheel bolt torque (Center Section, 31 x 13.5 x 15 14PR tires) | 115 to 128 N-m (85 to 95 lbf-ft) | p. 49 |
| Wheel bolt torque (Wing, 31 x 13.5 x 15 10PR tires) | 115 to 128 N-m (85 to 95 lbf-ft) | p. 49 |
| Tie rod torque (3/8 inch nut, dry min) | 31 N-m (23 lbf-ft) | p. 70 |
| Tie rod torque (3/8 inch nut, dry max) | 41 N-m (30 lbf-ft) | p. 70 |
| Gauge wheel lock nut torque | 203 N-m (150 lbf-ft) | p. 126 |
| Packer wheel lock nut torque | 203 N-m (150 lbf-ft) | p. 128 |
| Main cast arm pin retaining hardware torque | 48 N-m (35 lbf-ft) | p. 132 |
| SDX30 Frame Brace Kit (3/4 inch x 3 inch bolts) torque | 280 N-m (205 lbf-ft) | p. 37 |
| SDX30 Frame Brace Kit (1 inch x 3 1/2 inch bolts) torque | 280 N-m (205 lbf-ft) | p. 38 |
| Grease type | Case IH 251H-EP grease or NGLI No. 2 Multi-Purpose Lithium grease | p. 32 |
| Grease quantity (Part Number 132096A1) | 14.5 ounce tube | p. 31 |
| Disk bolt torque check interval | After first 90 ha (200 ac) and periodically | p. 120 |
Case IH SDX30, SDX40 Common Problems This Manual Covers
Case IH SDX30 excessive seed bounce and uneven seeding depth in hard soil conditions.
Inspect the seed firming wheel and lock nut. Tighten the seed firming wheel lock nut to 203 N-m (150 lbf-ft) as specified on page 129. Check the seed tube hardware and torque it to 7 N-m (5 lbf-ft) on page 131 to ensure proper alignment.
Manual Section: Opener Service Troubleshooting TablesCenter manifold lines plugged with high moisture content material and seed openers plugging.
Clean the manifold lines and check the scraper wear. Replace the scraper if it is worn more than 32 mm (1 1/4 inches) above the bottom of the disk, as shown on page 122. Verify the gap from the new scraper to the used blade cutting edge is less than 6 mm.
Manual Section: Air System Service Troubleshooting TablesEndmarker disc vibrating excessively or marker arms flop to the lower transport position.
Check the marker disc assembly weight and hardware. Verify the endmarker disc weight benchmark is at least 23 kg (50 lbs) as noted on page 166. Inspect the rod clevis set screw and torque it to 30 +/- 5 N-m (22 +/- 4 lbf-ft) detailed on page 71.
Manual Section: Endmarker Service Troubleshooting TableGauge wheel plugging with debris and failing to turn freely during field operation.
Remove the gauge wheel assembly and inspect for excessive gap. Replace the gauge wheel when the gap is more than 3 mm (1/8 inch) and no more washers remain to remove, as described on page 124. Torque the gauge wheel lock nut to 203 N-m (150 lbf-ft) on page 126.
Manual Section: Opener Service Troubleshooting TablesFrequently Asked Questions
What are the recommended service intervals?
The manual recommends daily greasing of wheel pivot bearings, caster wheel pivots, and endmarkers. Opener hub bearings should be greased weekly, while the jack stand, hitch pivot, and SDX40 wing pivots require yearly lubrication. Additionally, apply Case 251H-EP grease every 50 hours of operation to flush out old grease and dirt, and check disk bolt torque and tighten all gauge wheels after the first 90 ha (200 ac) and periodically thereafter.
What fluids and capacities does this machine require?
The machine requires Case IH 251H-EP grease for lubrication. This grease is available in a 14.5 ounce tube (Part Number 132096A1), a 35 lb container (Part Number 132098A1), and a 120 lb drum (Part Number 132097A1). The manual also mentions hydraulic fluid, but does not specify types or capacities for it.
What are the hydraulic system specifications?
Hydraulic cylinders and seals in the system are generally rated for 3000 PSI. For instance, the SDX30 Subbar Cylinder (CYLINDER 4X12 3000PSI W/ 1 PIN MONARCH) and SDX40 Wing Lift Cylinder (CYLINDER 5X12 3000PSI W/ 1 PIN MON) are specified with this pressure rating. Additionally, a pressure relief valve is listed with a 1000 PSI rating.
What torque specifications are listed?

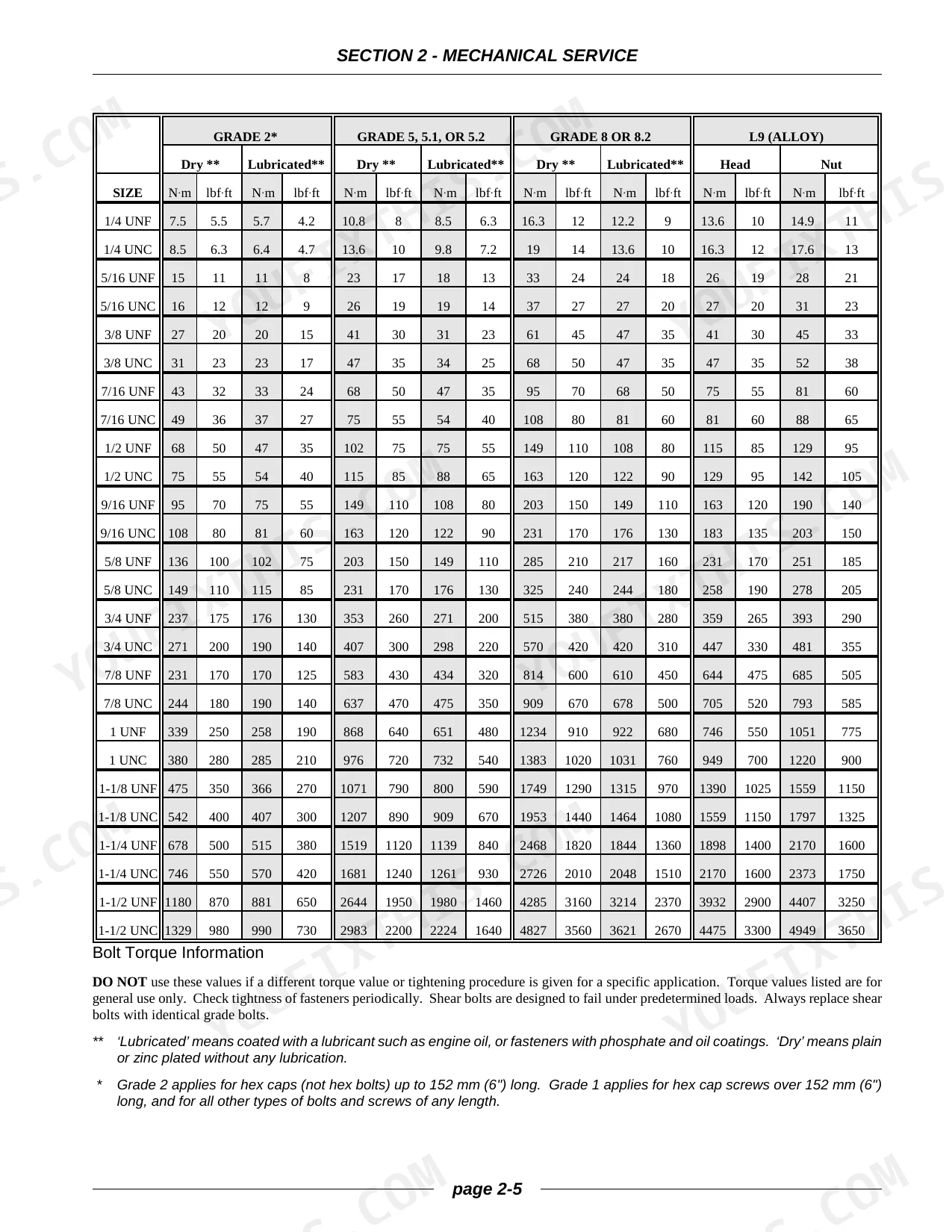

The manual provides comprehensive bolt torque information for various SAE grades (1 OR 2, 5, 5.1, 5.2, 8, 8.2, L9 (ALLOY)) and sizes, with distinct values for dry and lubricated conditions, detailed on pages 27 and 28. Specific torque values include 280 N-m (205 lbf-ft) for the SDX30 frame brace kit, 115 to 128 N-m (85 to 95 lbf-ft) for wheel bolts, and 30 +/- 5 N-m (22 +/- 4 lbf-ft) for the rod clevis set screw. Tie rod nuts have specific torque ranges, such as 31 N-m (23 lbf-ft) to 41 N-m (30 lbf-ft) for 3/8" nuts (dry).
How quickly can I access this manual after buying?
Immediate download of the complete 171-page searchable Repair Manual. Access it on any device, from a laptop at your desk to a phone in the field.
Can I print this manual?
The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
Are electrical wiring diagrams included in this Case IH SDX30, SDX40 manual?
Yes, full electrical schematics are included with wire colors, connector locations, and circuit descriptions.
