Part of the Case IH Repair Manuals.
This is Case IH Service Manual 48068911, 1st edition October 2016, for Patriot 3240 and 3340 Tier 4B (final) sprayers, PIN YGT044001 and above.
It covers pulling the engine with the SCR aftertreatment, the pump drive gearbox, and the powered front and rear axles with active suspension. It also gives hydrostatic pressure tests for each model, boom valve banks, CAN bus checks and fault codes. Both machines get their own vehicle and engine electrical schematics, plus fold-out hydraulic schematics.
What's Inside This Case IH Patriot 3240, Patriot 3340 Manual
| System | Pages | Key Topics |
|---|---|---|
| Front Matter and Contents | 1-7 | Cover, Product and Engine Link Table, Contents of Sections 10 to 90 |
| Introduction | 8-33 | Safety Rules, Operator Presence System, Shop and Assembly Notes, Protecting Electronics When Charging or Welding, Minimum Tightening Torques, General Specification of Fluids and Capacities |
| Engine | 34-125 | Engine Removal and Installation, Valve Cover Access, Air Cleaner and Muffler, Vibration Isolators, Aftercooler, Cooling Package Service and Cleaning, SCR Exhaust Aftertreatment |
| Power Coupling: Pump Drive | 126-153 | Pump Drive Gearbox Torques, Removal, Disassembly, Assembly and Installation, Flex Plate and Engine Isomount Bolts |
| Front Axle System | 154-219 | Powered Front Axle Extension, Axle Liners, Suspension Spring, Trailing Link, Steering Arm, Planetary Drive and Hub Roll, Leak and Brake Tests, Active Suspension Cylinder |
| Rear Axle System | 220-267 | Powered Rear Axle Extension, Axle Liners, Suspension Spring and Trailing Link, Planetary Final Drive Roll and Leak Tests, Final Drive Hub Overhaul |
| Hydrostatic Drive | 268-369 | Drive Circuit Description for the 3240 and 3340, Drive Circuit Troubleshooting, Neutral Shunt Valve, Pump Removal and Installation, High, Charge, Balance, Servo and Case Pressure Tests, Wheel Motor Tests |
| Power Take-Off: Pump Drive Gearbox | 370-377 | Pump Drive Gearbox Torque Table |

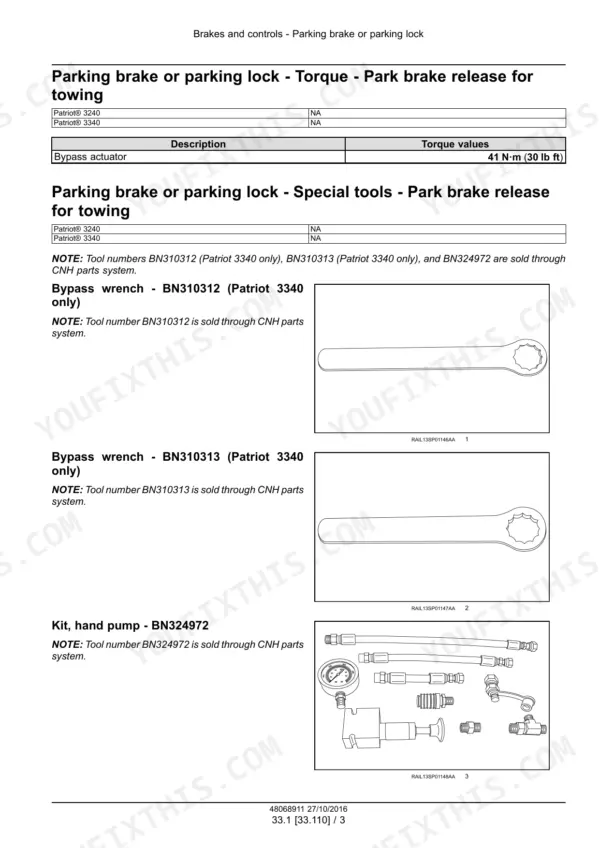

| Brakes and Controls | 378-419 | Parking Brake Release for Towing, Quick Disconnect, Solenoid Valve, Release Test, Parking Brake Control Valve, Parking Brake Discs, Hydraulic Service Brakes, Brake Pedal Control Valve |
| Hydraulic Systems | 420-503 | Cylinder Circuit Troubleshooting, Manifold, Hydraulic Schematics for the 3240 and 3340, Gear Pump Flow Test, Pressure Compensated Pump Removal and Installation, Charge Filter, Hydraulic Fluid |
| Hydraulic Systems: Stabilizer and Track Widening | 504-521 | Active Suspension Shock Absorber Removal and Overhaul, Track Widening Axle Adjust Cylinder |
| Sprayer Boom Hydraulic System | 522-585 | Boom Height, Fold, Level, Parallel Link and Ladder Cylinders, Two, Six and Eight Section Valve Banks, Product Pump Hydraulic Motor, Boom Cylinder Tests |
| Frames: Sprayer Boom | 586-653 | Inner Boom, Outer Boom and Boom Breakaway Torques, Cradled Boom Removal and Installation, Mast, Boom Pivot, Center Section, Mid Boom, Outer Boom |
| Steering | 654-689 | Steering Column, Steering Hand Pump (Orbitrol), Steering Cylinder, Rephasing the Steering, Leaking Seals Test |
| Wheels | 690-713 | Front and Rear Wheel Torques, Special Tools, Wheel Removal and Installation |

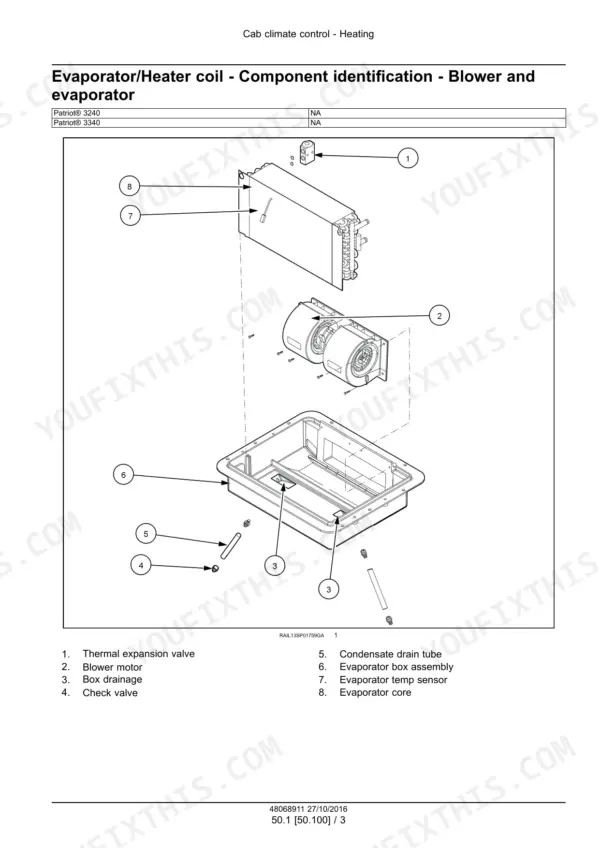

| Cab Climate Control | 714-857 | Blower and Evaporator, Heater Control Valve, Evaporator and Heater Coil, A/C Special Tools, Temperature and Pressure Chart, Component Identification, Automatic Temperature Control, Cab Pressurizing |

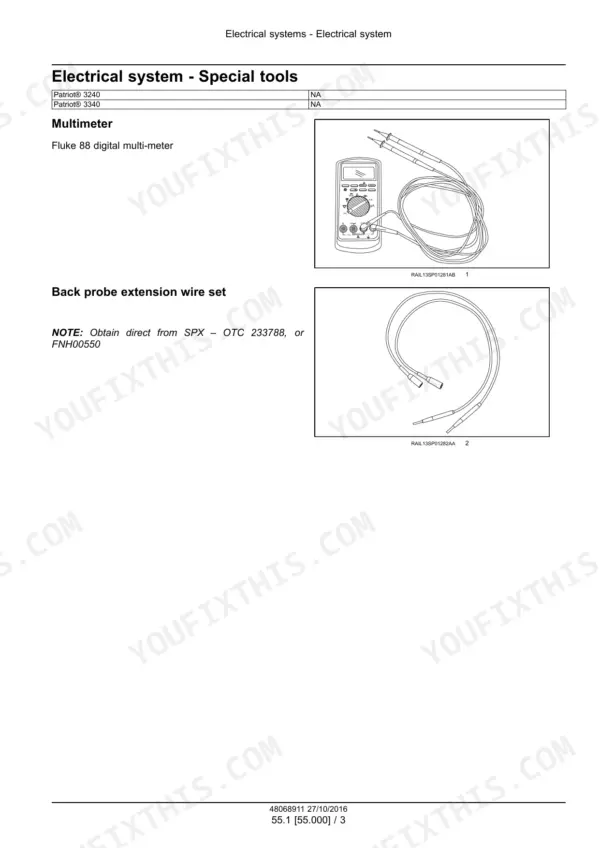

| Electrical Systems: General and Troubleshooting | 858-925 | Electrical Review, Multimeter Continuity, Short to Ground and Resistance Tests, Ground Points, Controller Node Locations, Vehicle, Application and Autoguidance CAN Bus Checks, Neutral Safety Switch |

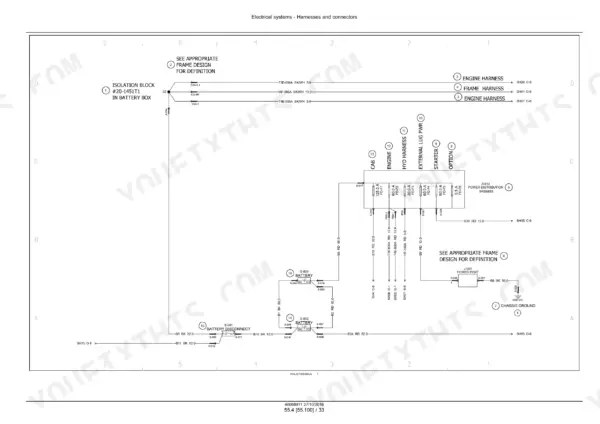

| Electrical Systems: Harnesses and Vehicle Schematics | 926-1175 | Electrical Best Practices, Open and Intermittent Circuits, Connectors and Terminals, Splicing, Grounding Guidelines, Electrical Schematic Sheets for the 3240 and 3340 |

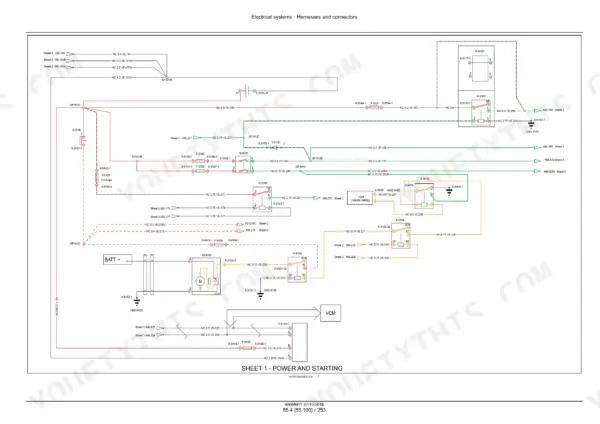

| Electrical Systems: Engine Schematics and Connector Identification | 1176-1709 | Circuit Color Index, Engine Schematic Sheets for Power and Starting, ECU Power, Aftertreatment, Engine CAN, Inputs and Outputs, Fuel Injection, Connector Identification by Harness |
| Electrical Systems: Starting, Charging, Batteries and Controls | 1710-1785 | Starting System Troubleshooting and Tests, Charging System Tests, Battery Specification, Removal, Checks and Fast Charging, Armrest Control Panel, Boom Position Sensors |

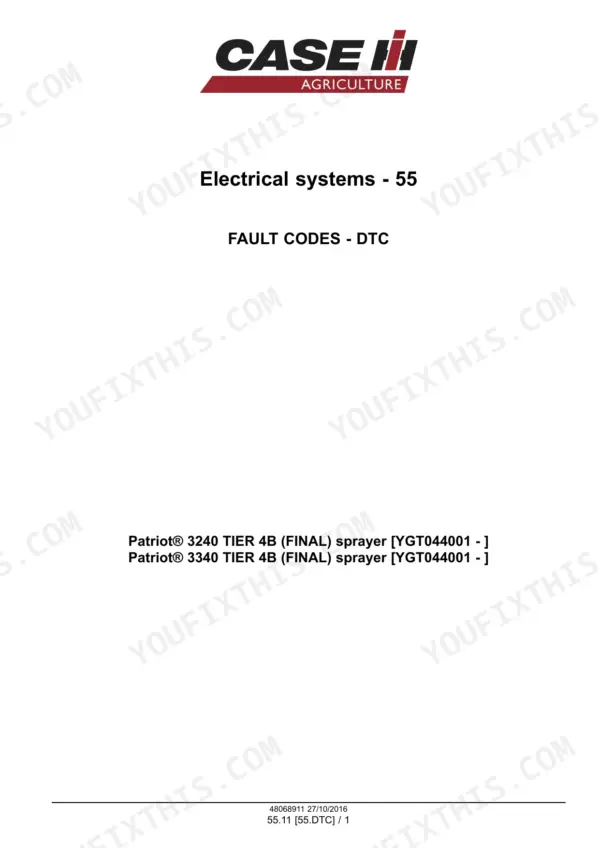

| Electrical Systems: Fault Codes | 1786-2373 | Climate Controller Codes, Seat Switch, Air Filter Clog, Engine Coolant Temperature, Oil Pressure Too Low, Injector Short Circuit and Open Load, ECU Internal Failure |

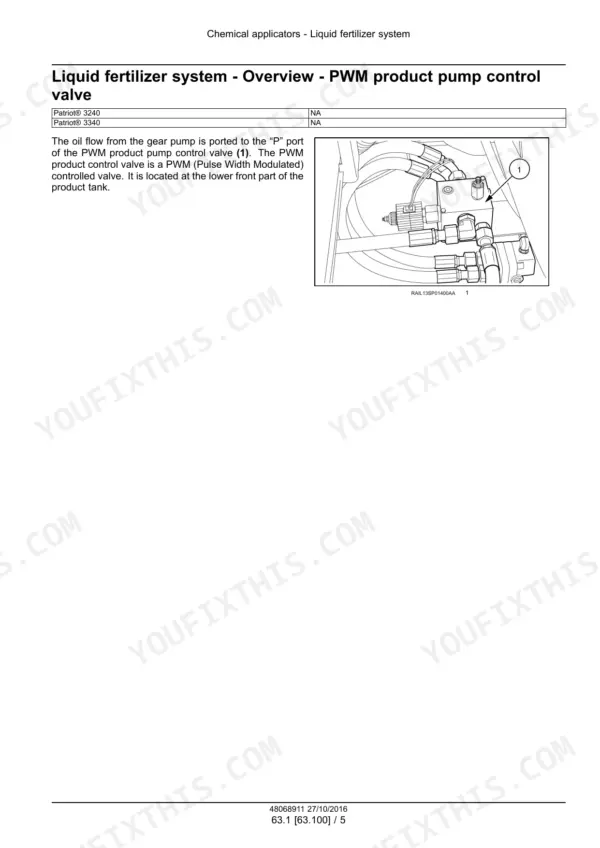

| Chemical Applicators: Liquid Fertilizer | 2374-2405 | PWM Product Pump Control Valve, Manifold, Product Pump Circuit Troubleshooting, Flow Test, Relief Valve Test, Product Pump Overhaul |
| Spraying | 2406-2473 | Introduction to the Sprayer, Nozzle Tips, Boom Height Control, AccuBoom, Product and Rinse Tanks, Spray Boom Sections, Sparge Valve, Filling the Tanks, Chemical Eductor, Foam Marker |
| Platform, Cab, Bodywork and Fold-Out Schematics | 2474-2519 | Front Hood, Engine Hood and Cowling, Cab Removal and Installation, Special Tool Index, Fold-Out Hydraulic Schematics for the Patriot 3240 and 3340 |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Engine oil with filter change (approximate) | 17 l (4.5 US gal) | p. 32 |
| Engine oil without filter change (approximate) | 16 l (4.2 US gal) | p. 32 |
| Cooling system capacity | 51 l (13.5 US gal) | p. 32 |
| Hydraulic tank capacity | 110 l (29 US gal) | p. 32 |
| Wheel hub capacity, each | 0.95 l (2.0 US pt) | p. 32 |
| A/C refrigerant R134A capacity | 1.65 kg (3.63 lb) | p. 32 |
| Hydrostatic working pressure, Patriot 3240 | 450 bar (6525 psi) maximum | p. 312 |
| Hydrostatic working pressure, Patriot 3340 | 420 bar (6090 psi) maximum | p. 322 |
| Charge pressure at high idle, Patriot 3240 | 27 - 29 bar (392 - 420 psi) | p. 314 |
| Charge pressure at 1300 RPM, Patriot 3340 | 24.1 bar (350 psi) | p. 324 |
| Pump case pressure, continuous maximum, Patriot 3340 | 3 bar (44 psi) | p. 327 |
| Pressure compensated pump stand-by pressure | 190 bar (2750 psi) | p. 459 |
| Gear pump maximum flow | 70.7 l/min (18.7 US gpm) | p. 444 |
| Product pump hydraulic motor pressure rating | 172.36 bar (2500 psi) | p. 539 |
| PWM product pump relief valve setting | 172.3 bar (2498 psi) | p. 2384 |
| Inner boom fold relief valves A1A and A1B | 200 bar (2900 psi) | p. 570 |
| Wheel lug nuts, front and rear | 608 - 675 N·m (448 - 498 lb ft) | p. 694 |
| Engine mount bolts | 310 - 380 N·m (229 - 280 lb ft) | p. 38 |
| Rinse tanks, total capacity | 424 l (112 US gal) | p. 2435 |
Case IH Patriot 3240, Patriot 3340 Common Problems This Manual Covers
Machine will not move
Start with the simple checks: hydraulic oil level, and whether the park brake switch is ON. Next, confirm the park brake actually released and check the neutral safety switch adjustment. Then go through the fuses, relays, wiring and the power train control module. The drive circuit troubleshooting chart ends with the park brake valve and the motor control valve.
Manual Section: Hydrostatic drive: drive circuit troubleshooting p. 283Engine does not crank when the key is turned to start
First confirm the batteries are charged, the 150 A circuit breaker is closed, the hydrostatic lever is in neutral and the park brake is on. Then check fuse #1, test the ignition switch and adjust the neutral safety switch. Last, test the intermediate starter relay and the starter motor, in that order.
Manual Section: Starting system troubleshooting p. 1714Controller shows no product pressure at the booms
Switch the rate controller to MAN first. If pressure comes back normal, the fault is in the controller. If it doesn't, open the manual shutoff valves and check the hydraulic oil and product tank levels. Then test the product pump control valve, the PWM valve driver and the pump ON sensor before you suspect the product pump or its motor.
Manual Section: Liquid fertilizer: product pump circuit troubleshooting p. 2381Hard steering, or slow or no steering response
Check the hydraulic oil level, then clean or replace the suction strainer if it's clogged. Test the steering cylinder, and repair or replace it if it isn't working properly. If those check out, adjust the compensator on the pressure compensated pump. Replace the pump if it's worn or damaged.
Manual Section: Hydraulic systems: cylinder circuit troubleshooting p. 425Frequently Asked Questions
How much engine oil does the Patriot 3240 or 3340 take?
Plan on about 17 l (4.5 US gal) if you change the filter too, and about 16 l (4.2 US gal) if you don't. The manual gives both figures as approximate. p. 32
What torque do the wheel lug nuts on the Patriot 3240 and 3340 need?
Torque them to 608 - 675 N·m (448 - 498 lb ft). Front and rear wheels use the same spec, so one wrench setting covers every wheel on the machine. p. 694
What should the hydrostatic charge pressure be on my Patriot?
That depends on the model, and the two numbers are not interchangeable. A Patriot 3240 should read 27 - 29 bar (392 - 420 psi) at high idle, measured at port Fa. A Patriot 3340 should read 24.1 bar (350 psi) at 1300 RPM, measured at port M3. Warm the oil to 49 °C (120 °F) before you test. p. 314
How much refrigerant goes in the Patriot 3240 and 3340 air conditioning?
The A/C system uses R134A, and it holds 1.65 kg (3.63 lb). p. 32
How much flow should the gear pump that drives the product pump deliver?
Maximum flow is 70.7 l/min (18.7 US gpm). In the flow test at 2200 RPM, the meter should read about 63 - 70 l/min. Below 57 l/min (15.0 US gpm) the pump is losing efficiency, and it should be replaced if sprayer performance is poor. p. 444
