This is Case IH Service Manual 47888397, 1st edition July 2016, for Farmall 75N, 85N, 95N, 105N and 105V Tier 3 tractors, with and without cab. The Power Shuttle chapter covers the transmission control valve, the clutch assembly and the clutch pressure test, with 15.7 bar (227.65 psi) working pressure and 2 - 2.08 mm driven plates.
The book also covers the clutch, the 16-speed mechanical gearbox, creeper and Hi-Lo, 4WD, front and rear axles, PTO and brakes. Remote hydraulics, the electronic three-point hitch, steering, A/C, wiring schematics for each configuration and the fault code tables are all here. The engine section covers removal and installation only.
What's Inside This Case IH Farmall 75N, 85N, 95N, 105N and 105V Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction | 1-23 | Cover, Product and Engine Link Table, Safety Rules, Basic Instructions, Notes for Equipment, Consumables and Capacities |

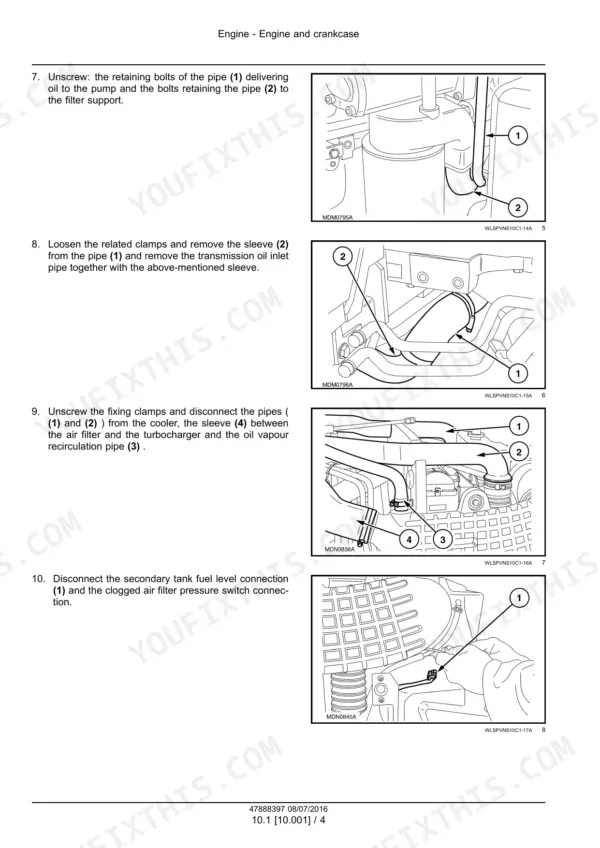

| Engine | 24-35 | Engine Removal and Installation |

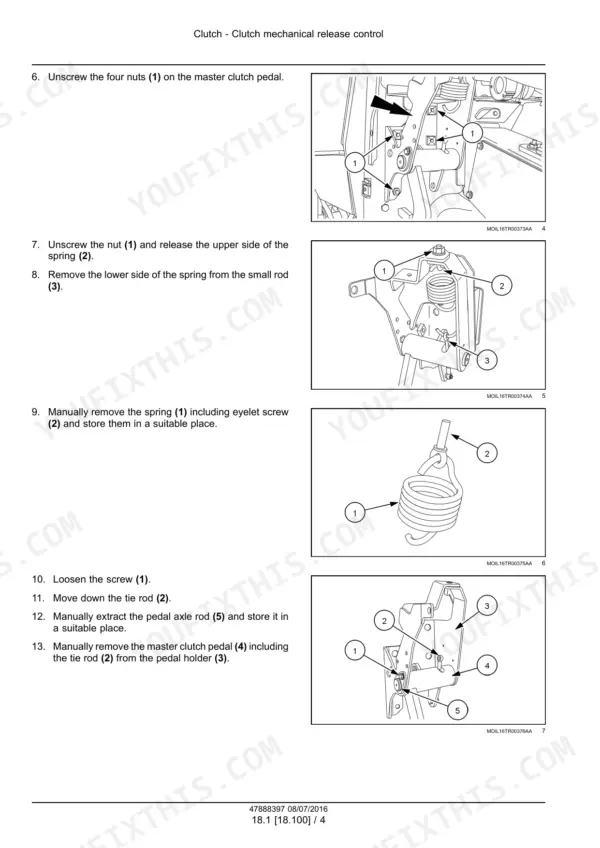

| Clutch | 36-75 | Mechanical and Hydraulic Clutch Release Control, Travel Adjustment, Clutch Specifications, Torques, Sectional View, Troubleshooting |
| Mechanical Transmission | 76-121 | Specifications, Torques, Special Tools, Sectional Views, Troubleshooting, External Controls, Gears, Shafts and Bearings |
| Power Shuttle Transmission | 122-163 | Specifications, Torques, Sectional Views, Transmission Control Valve, Clutch Assembly, Clutch Pressure Test |

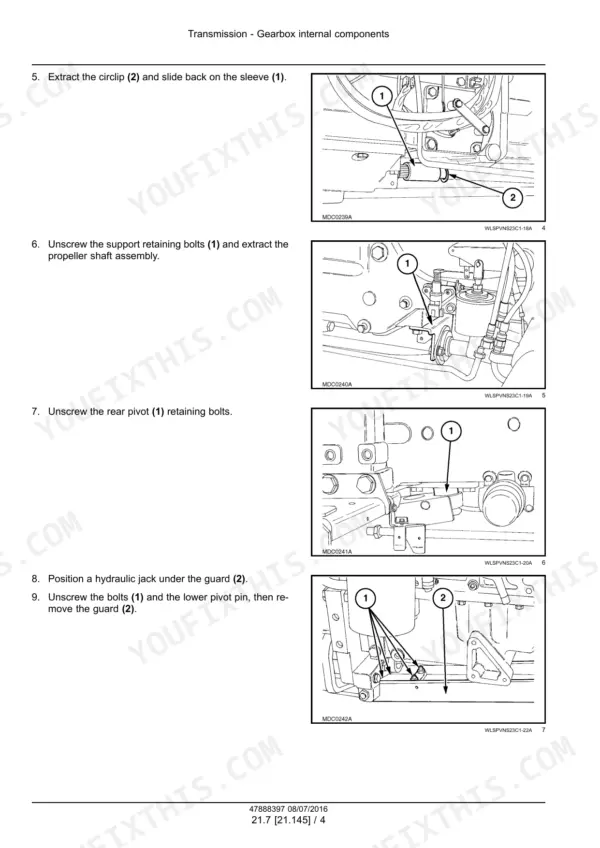

| Creeper, Reverser, Hi-Lo Unit and Differential | 164-209 | Gearbox Drive Shaft, Creeper, Reverser, Hi-Lo Unit Specifications and Troubleshooting, Differential |
| Four-Wheel Drive System | 210-257 | Electro-Hydraulic 4WD Control, Component Diagram, Troubleshooting, 4WD Gearbox, Drive Shaft |
| Powered Front Axle and Differential | 258-329 | Front Axle Specifications, Torques, Special Tools, Functional Diagram, Sectional View, Troubleshooting, Front Bevel Gear Set and Differential |
| Front Axle Hubs, Suspension and Final Drives | 330-381 | Final Drive Hub, Steering Knuckles, Axle Suspension Control, Final Drives, Non-Powered Front Axle |
| Rear Axle System | 382-429 | Rear Axle Torques and Special Tools, Rear Bevel Gear Set and Differential, Troubleshooting, Planetary and Spur Gear Final Drives |
| Power Take-Off (PTO) | 430-457 | PTO Specifications, Torques, Sectional View, Engage and Release Control, Troubleshooting |
| Brakes and Controls | 458-520 | Hydraulic Service Brakes, Troubleshooting, Parking Brake, Trailer Brake Hydraulic Schema and Pressure Test |
| Hydraulic Schemas, Reservoir and Filters | 521-535 | Hydraulic Schemas for Mechanical and Power Shuttle Transmissions, Reservoir, Cooler, Filters, Accumulator |
| Hydraulic Fixed Displacement Pump and Remote Valves | 536-635 | Hydraulic Pumps, Fixed Displacement Gear Pump Specifications, Remote Control Valves and High Flow Hydraulics, Remote Control Valves, Hydraulic Schema, Diverter, Mid-Mount Remote Control Valve, Open Center Mechanical Remote Valve, High Flow Pump |
| Main Lift and Three-Point Hitch Hydraulics | 636-676 | Main Lift System, Three-Point Hitch Control Valve Relief Pressure Setting, Three-Point Hitch Cylinder |
| Hitches and Three-Point Hitch Controls | 677-753 | Rear Three-Point Hitch Specifications, Torques, Troubleshooting, Electronic Control System, External Controls |
| Steering and Wheels | 754-807 | Steering Control, Hydraulic Control Components, Plumbing Schema, Steering Troubleshooting, Front Wheel Toe-In Adjustment |

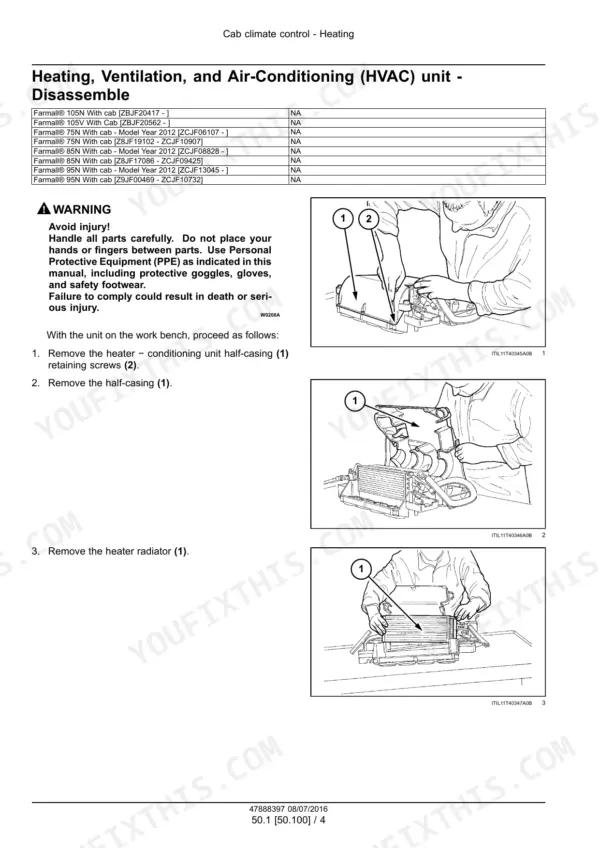

| Cab Climate Control | 808-877 | Heating, Ventilation, Air Conditioning Specifications, SANDEN Compressor, A/C Troubleshooting |

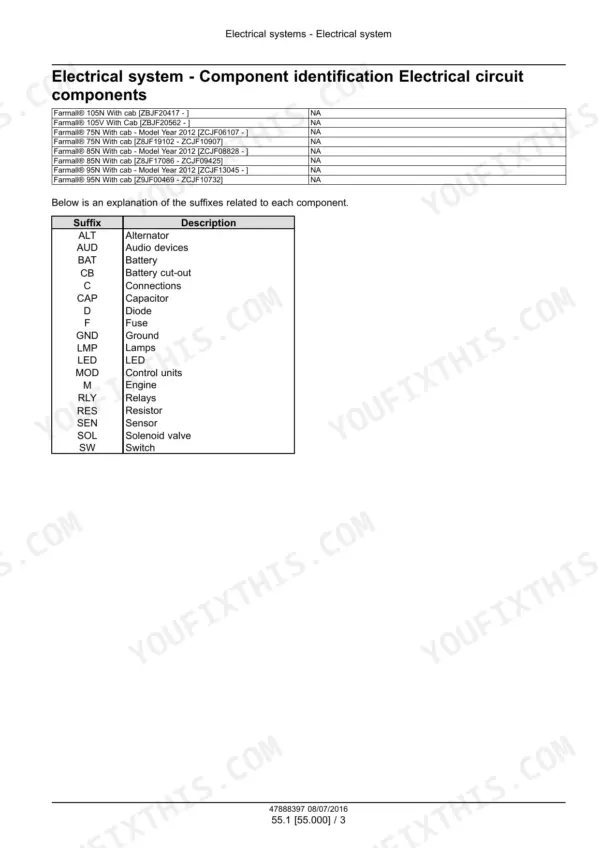

| Electrical System: Components and Grounds | 878-911 | Component Identification, Ground Location Points, Transmitters, Sensors and Switches, Schematic Index by Configuration |
| Wiring Harnesses and Electrical Schematics | 912-1891 | Component Localization, Electrical Schematic Sheets by Configuration, Component Diagrams, Wire Connector Identification |
| Starting, Charging and Batteries | 1892-1947 | Starting System Specifications and Troubleshooting, Alternator, Battery, Cold Start Aid |

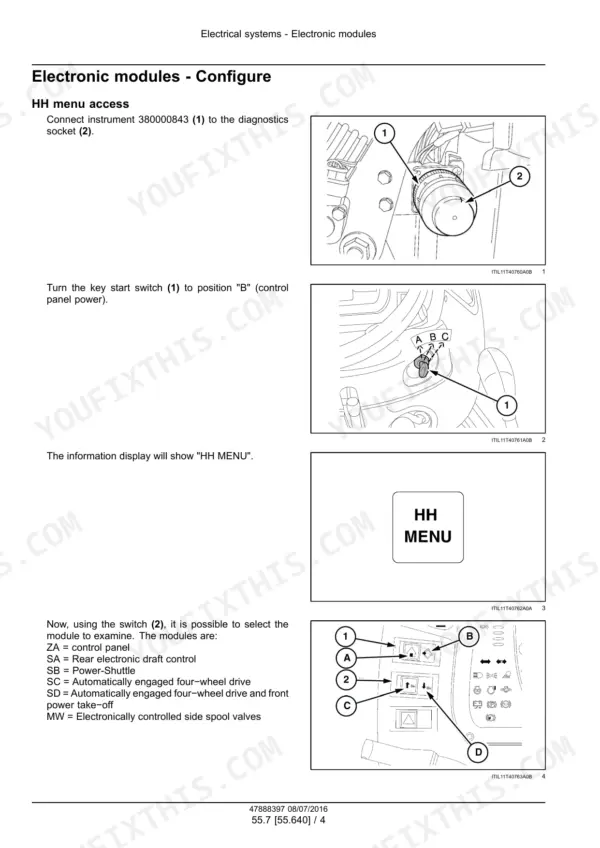

| Electrical Systems Electronic Modules and Fault Codes | 1948-2473 | Electronic Modules and Electrical Controls, Electronic Modules, Cab HVAC Controls, Steering Control System, Cab Hitch Controls, Rear Hitch Electronic Control, Lighting and Instruments, Fault Codes, DTC Tables with Control Module, Context, Possible Failure Modes and Solution for Each Code |
| Platform, Cab and Bodywork | 2474-2533 | Operator Platform, Operator Protections, Cab, Cab Interior, Doors and Hatches, Engine Hood and Panels, Shields and Trims |
| Special Tool Index | 2534-2545 | Index of Genuine and Reference Special Tools with Page References |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Main clutch driven disc thickness | 9.6 - 10.4 mm (0.38 - 0.41 in) | p. 50 |
| Clutch release command fork torque | 136 - 165 N·m | p. 52 |
| Mechanical transmission | 4 ranges, 16 speeds | p. 76 |
| Driven gear shaft locknut torque, mechanical transmission | 280 - 309 N·m | p. 76 |
| Power Shuttle working pressure | 15.7 bar (227.65 psi) | p. 123 |
| Power Shuttle driven plate thickness | 2 - 2.08 mm (0.0787 - 0.0818 in) | p. 122 |
| Powered front axle pivoting at centre / steering angle | 8° / 55° | p. 258 |
| Front axle steering cylinder operating pressure | 110 bar (1595.00 psi) | p. 259 |
| Engine speed at 540 RPM PTO | 2196 RPM | p. 430 |
| Engine speed at 540E RPM PTO | 1535 RPM | p. 430 |
| Service brake working pressure | 17.6 bar (255.20 psi) | p. 458 |
| Service brake disk thickness, N models | 10 mm (0.3937 in) | p. 458 |

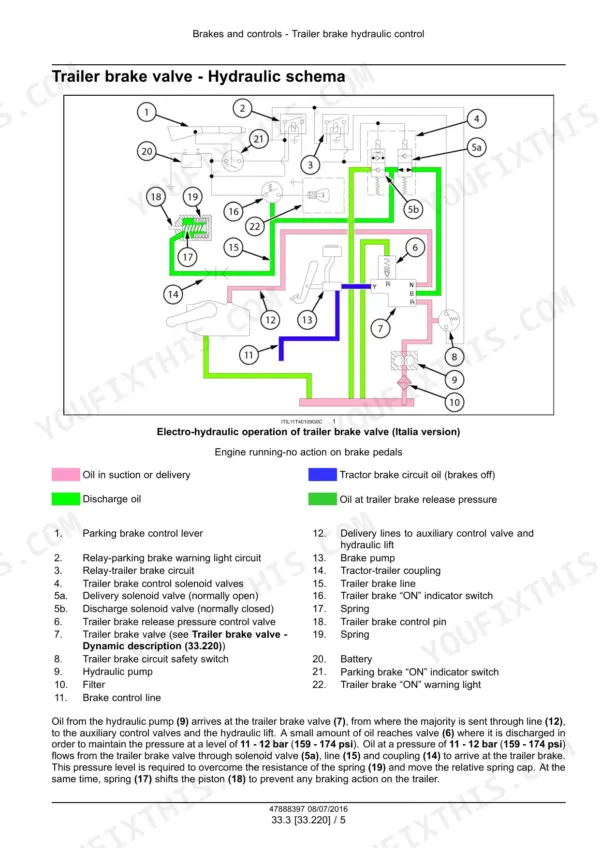

| Trailer brake release pressure | 11 - 12 bar (159 - 174 psi) | p. 502 |
| Gear pump A 25 rated output | 28.19 l/min | p. 536 |
| High flow pump C 42 rated output | 47.36 l/min | p. 628 |
| Three-point hitch pressure relief valve setting | 180 bar (2610.000 psi) | p. 677 |
| Three-point hitch maximum lift, top link upper hole | 2600 kg | p. 678 |
| Steering relief valve calibration | 165.0 - 170.0 bar (2392 - 2465 psi) | p. 760 |
| A/C refrigerant HFC R134A quantity | 0.75 kg (1.653 lb) | p. 823 |
| Alternator regulator controlled voltage | 13.95 - 14.25 V | p. 1906 |
Case IH Farmall 75N, 85N, 95N, 105N and 105V Common Problems This Manual Covers
Steering wheel excessively stiff
The steering troubleshooting table lists three causes. If the hydraulic pump is faulty, repair it. If the pressure relief valve is set wrong, calibrate it to 165.0 - 170.0 bar (2392 - 2465 psi). If the valve is jammed or held open by debris, clear the foreign bodies out and clean the filter.
Manual Section: Steering: hydraulic control components troubleshooting p. 792Three-point hitch lift does not rise
Start with the cheapest fix and replace a clogged oil filter. Next, check whether the control valve is stuck in the discharge position, and release it if it is. If both check out, the hydraulic pump is faulty and needs an overhaul or replacement. The relief valve setting is 180 bar (2610 psi).
Manual Section: Rear three-point hitch troubleshooting p. 738Brake pedal stroke too long
Air in the brake circuit is the first thing to check, so bleed the circuit. Then look for leaks at the control pipes and fix whatever is causing them. If the pedal still travels too far, the brake control pumps are worn and need replacing. Working pressure is 17.6 bar (255.20 psi).
Manual Section: Hydraulic service brakes troubleshooting p. 479Clutch slips
Worn disks are the usual cause. Replace any part worn to or past its limit, then adjust the levers and linkage. Driven disc thickness is 9.6 - 10.4 mm (0.38 - 0.41 in). Replace a distorted or damaged Belleville spring disk. Oil or grease on the lining means new discs, and you need to find the leak first.
Manual Section: Clutch troubleshooting p. 69Frequently Asked Questions
Does this manual cover my Farmall 75N, 85N, 95N, 105N or 105V?
It does if yours is a Tier 3 Farmall 75N, 85N, 95N, 105N or 105V, with or without cab. The cover lists the PIN ranges for each model, so check your PIN against that list. The book is written for the North American market. p. 1
What does the Case IH Farmall 75N to 105V rear three-point hitch lift, and what is its relief valve setting?
The rear hitch uses Category 1st and 2nd linkage. Maximum lift is 2600 kg at the lower-arm link ends, with the top link in the upper hole. The pressure relief valve is set at 180 bar (2610 psi). p. 678
What engine speed gives 540 and 540E PTO speed on the Case IH Farmall 75N to 105V?
540 RPM at the PTO shaft comes at 2196 engine RPM. 540E gets there at 1535 engine RPM. A 540/540E/1000 RPM PTO is optional on all models. p. 430
What is the service brake working pressure on these Farmall tractors?
Service brake working pressure is 17.6 bar (255.20 psi). On N models the brake disk thickness is 10 mm (0.3937 in). p. 458
Does the manual explain the electronic fault codes?
Yes. Every code is listed with its control module, context, possible failure modes and solution. Code 1008, for example, is a fast up/down switch failure on the rear electronic lift control unit. p. 2086
