You're probably standing beside the Patriot 4430 with a shield off, a gauge in one hand and the spray window closing. The book covers the whole machine: primary hydraulics, hydrostatic drive, AIM Command spraying, boom cylinders and valves, axles, brakes, cab HVAC and removing and installing the Case IH Cursor 8.7 l engine.
It gives the numbers you check against, like 24.8 - 26.2 bar (360 - 380 psi) charge pressure at 1300 RPM. ATC climate, engine ECU and SCR urea fault codes each come with a cause and a step-by-step solution. Large-format electrical and hydraulic schematic sheets are at the back.
If it's late and you're alone with the sprayer, with nobody to call, this book is the second opinion. Find the part that failed and order the right one the first time.
What's Inside This Case IH Patriot 4430 Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction | 7-19 | Safety Rules, Torque Charts for Standard Hardware and Fittings, Lubricants and Capacities, General Specification |
| Primary Hydraulic Power System | 20-107 | Pressure Compensated Pump, Gear Pump, Valve Blocks and Manifold, System Pressures, Hydraulic Troubleshooting Chart |
| Electrical Power System | 108-416 | Basic Electrical Troubleshooting, Fuse and Relay Panels, Connector Pin-Out Tables |
| Wiring Harnesses and Schematic Frames | 417-617 | Electrical Schematic Frames Incl. AIM Command Frames, Ground Location Table, Battery Service |
| Lighting System | 618-625 | Lamps and Lighting Circuits |
| Fault Codes | 626-943 | ATC Climate Codes, Engine ECU Codes, SCR/Urea Codes with P-Codes, Cause and Step-By-Step Solution for Each |
| Engine | 944-977 | Engine Remove and Install |
| Fuel, Injection and Air Intake | 978-997 | Fuel System Components, Air Cleaner |
| Exhaust System Emissions Control | 998-1045 | SCR Muffler and Urea (DEF) System Components |
| Engine Coolant System | 1046-1073 | Radiator and Cooling Components |
| Hydrostatic Transmission | 1074-1179 | Pump Drive, Hydrostatic Pumps, Wheel Motors, System Pressures, Drive Circuit Troubleshooting Chart |
| Front and Rear Axles | 1180-1261 | Axle Extension and Adjust Cylinders, Planetary Gear Hubs |
| Hydraulic Steering | 1262-1287 | Steering Control, Steering Cylinders |
| Service and Parking Brakes | 1288-1321 | Hydraulic Service Brake, Hydraulic Parking Brake, Control Valve |
| Suspension and Wheels | 1322-1363 | Mechanical and Hydraulic Suspension, Wheel Lug Nut Torque |
| Frame and Cab | 1364-1457 | Shields, Operator Ladder and Platform, Operator Seat, Heating, Ventilation and Air-Conditioning |
| Frame Positioning | 1458-1483 | Towing, Static Levelling, Working Stabilising |
| Boom | 1484-1593 | Boom Lift, Tilt, Unfold and Stabilising Cylinders and Valves |
| Spraying | 1594-1687 | Product Pump and Control Valve, AIM Command Nozzle Tip Selection, AIM Command Troubleshooting Chart |
| Plumbing, Pressure System, End Marker and Rinsing | 1688-1793 | Spray Plumbing, Pressure System, Foam End Marker, Rinse System |

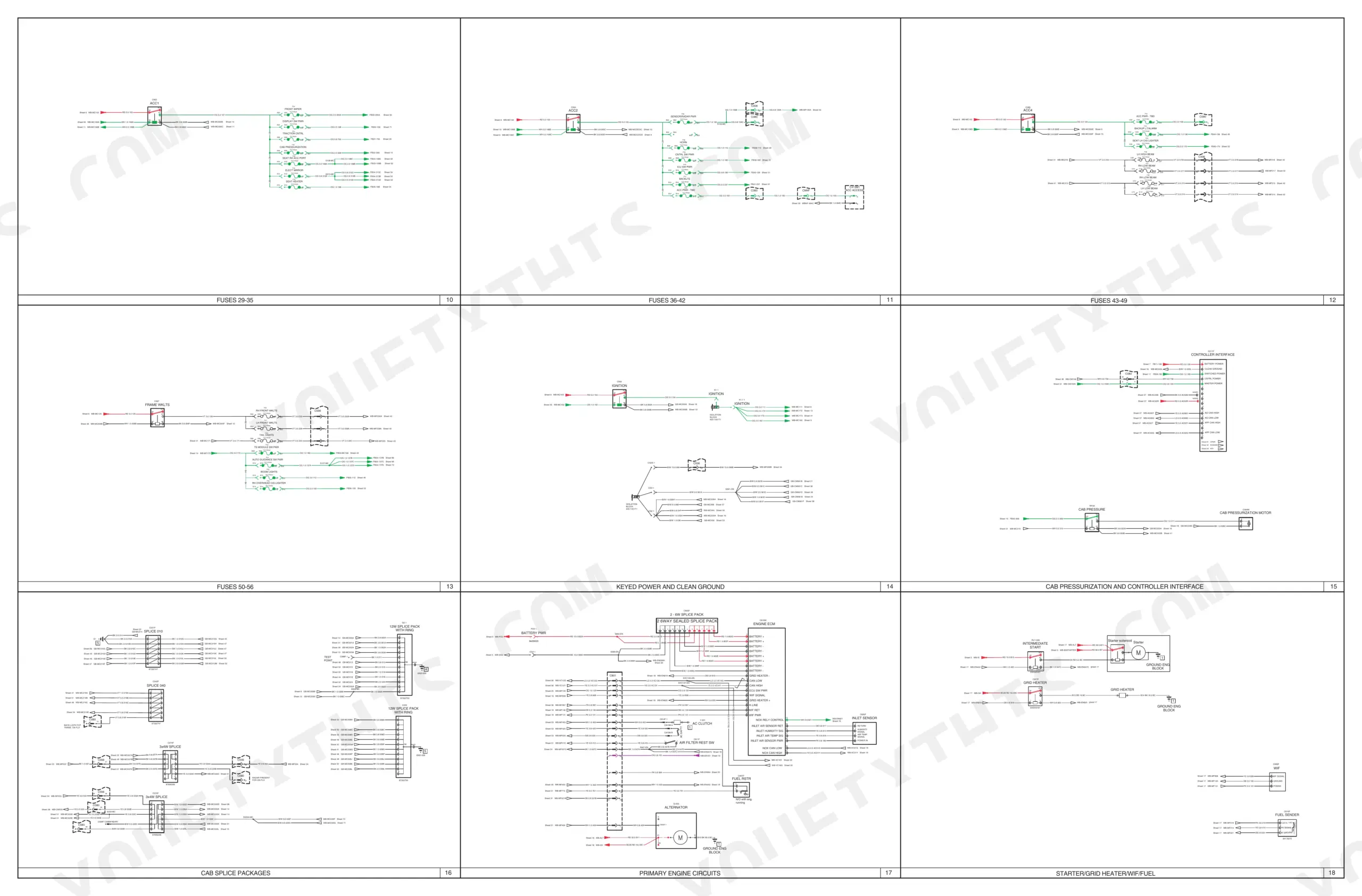

| Electrical Schematic | 1794-1804 | Large-Format Electrical Schematic Sheets |

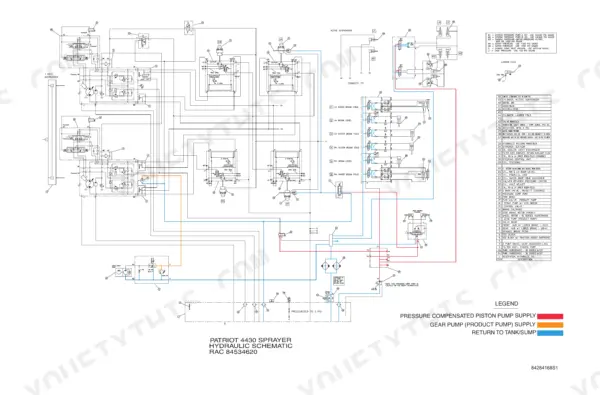

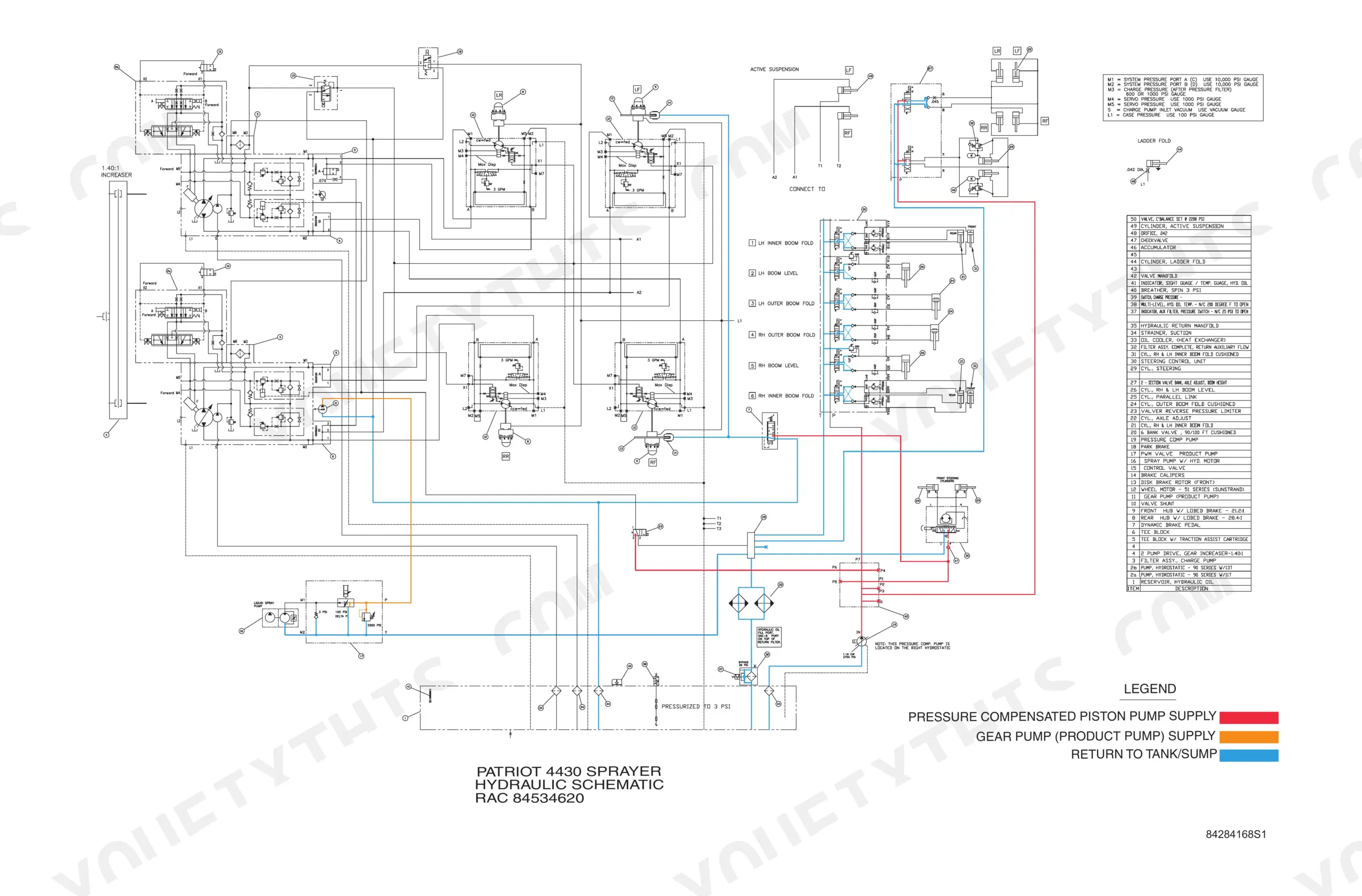

| Hydraulic Schematic | 1805-1806 | Large-Format Patriot 4430 Hydraulic Schematic |

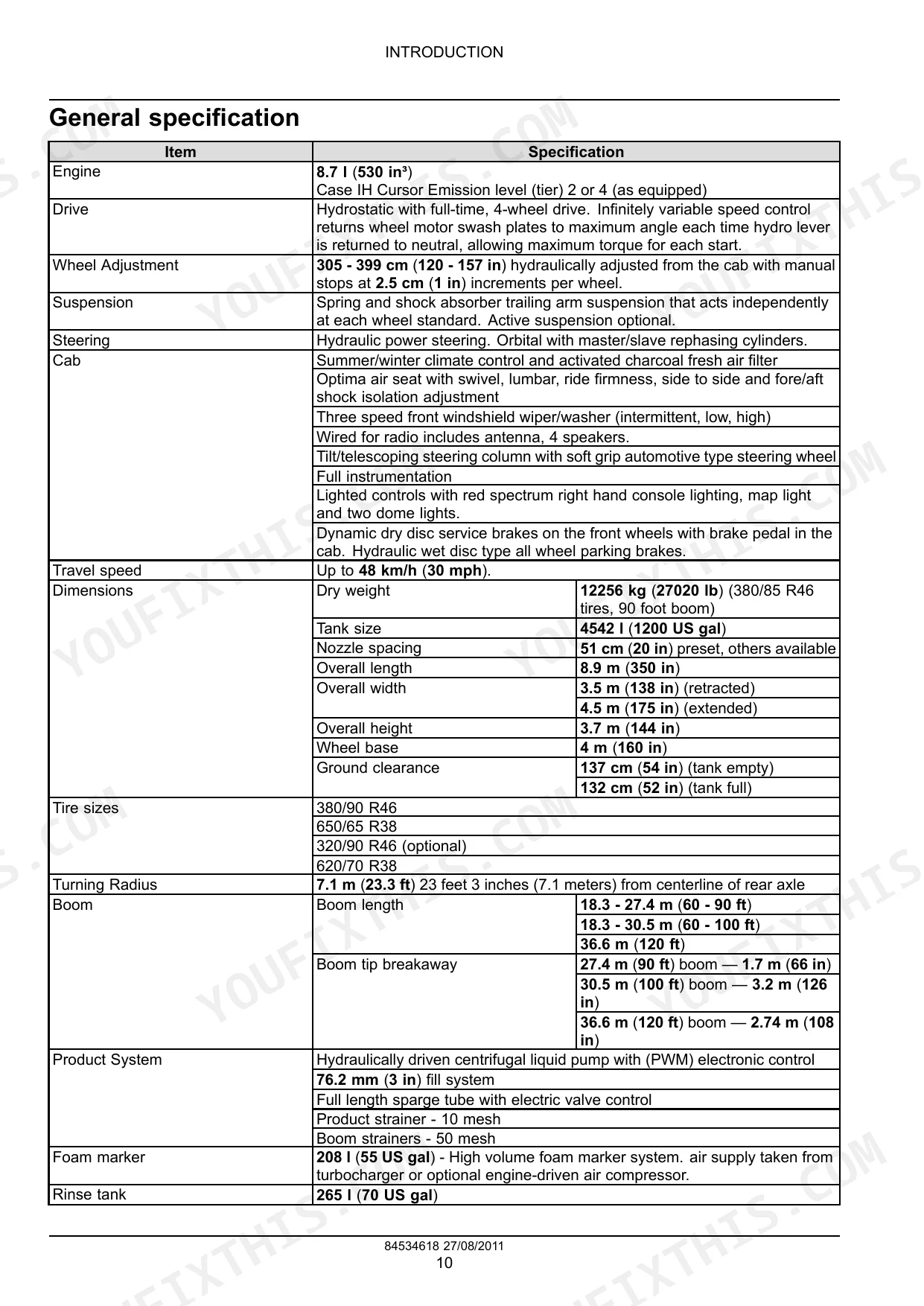

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Engine | Case IH Cursor 8.7 l (530 in³), Tier 2 or 4 (as equipped) | p. 15 |
| Product Tank Size | 4542 l (1200 US gal) | p. 15 |
| Boom Length | 18.3 - 27.4 m (60 - 90 ft) | p. 15 |
| Travel Speed | Up to 48 km/h (30 mph) | p. 15 |
| Dry Weight | 12256 kg (27020 lb) (380/85 R46 tires, 90 foot boom) | p. 15 |
| Engine Oil Capacity with Filter | 25 l (6.6 US gal), SAE 15W-40 | p. 14 |
| Cooling System Capacity | 60 l (15.75 US gal) | p. 14 |
| Hydraulic Tank Capacity | 110 l (29 US gal) | p. 14 |

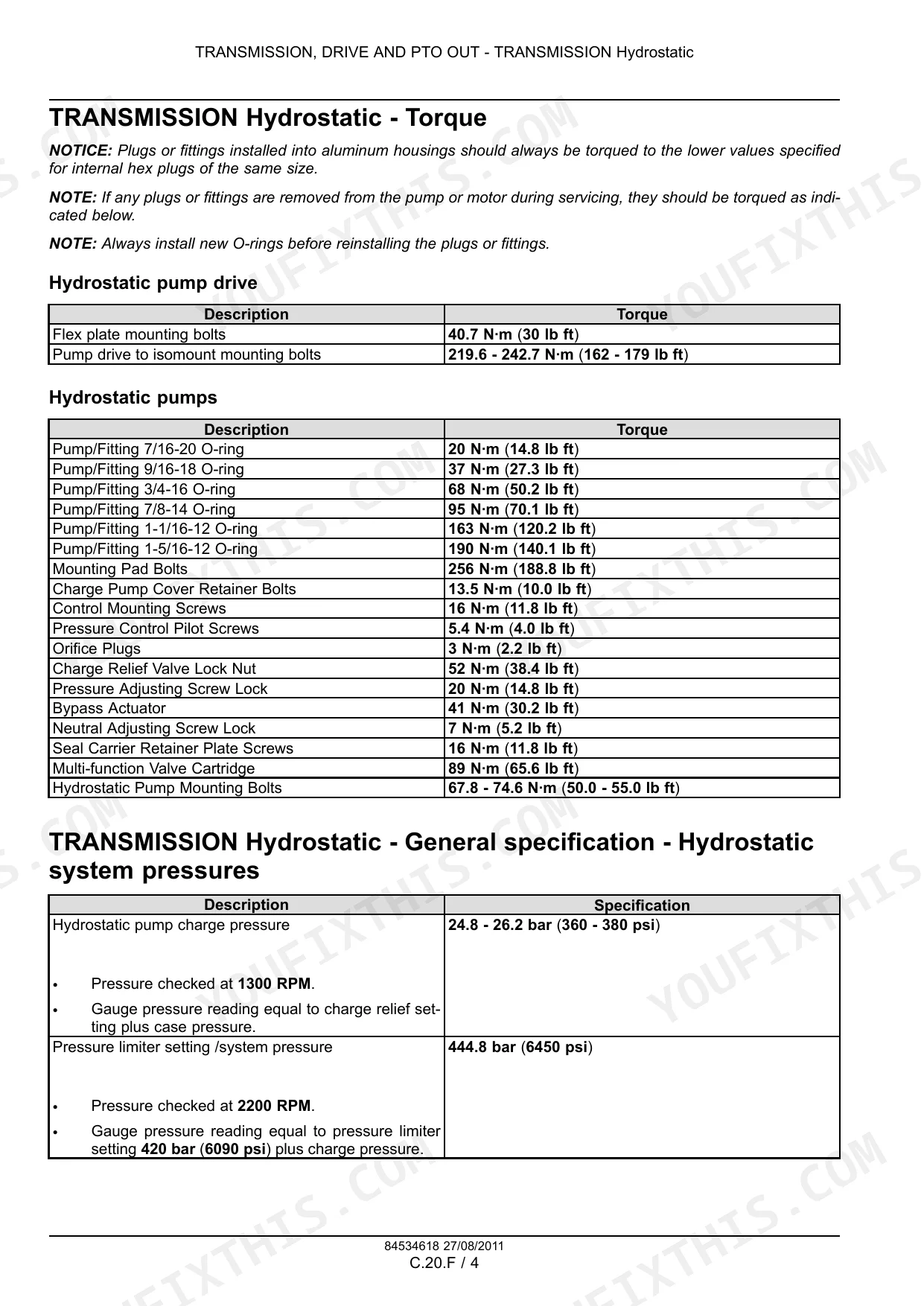

| Hydrostatic Pump Charge Pressure | 24.8 - 26.2 bar (360 - 380 psi) at 1300 RPM | p. 1077 |
| Hydrostatic Pressure Limiter Setting | 444.8 bar (6450 psi) at 2200 RPM | p. 1077 |
| Product Pump Circuit Relief Valve Setting | 172.3 bar (2498 psi) | p. 1078 |
| Wheel Lug Nut Torque | 608 - 675 N·m (450 - 500 lb ft) | p. 1352 |
Case IH Patriot 4430 Common Problems This Manual Covers

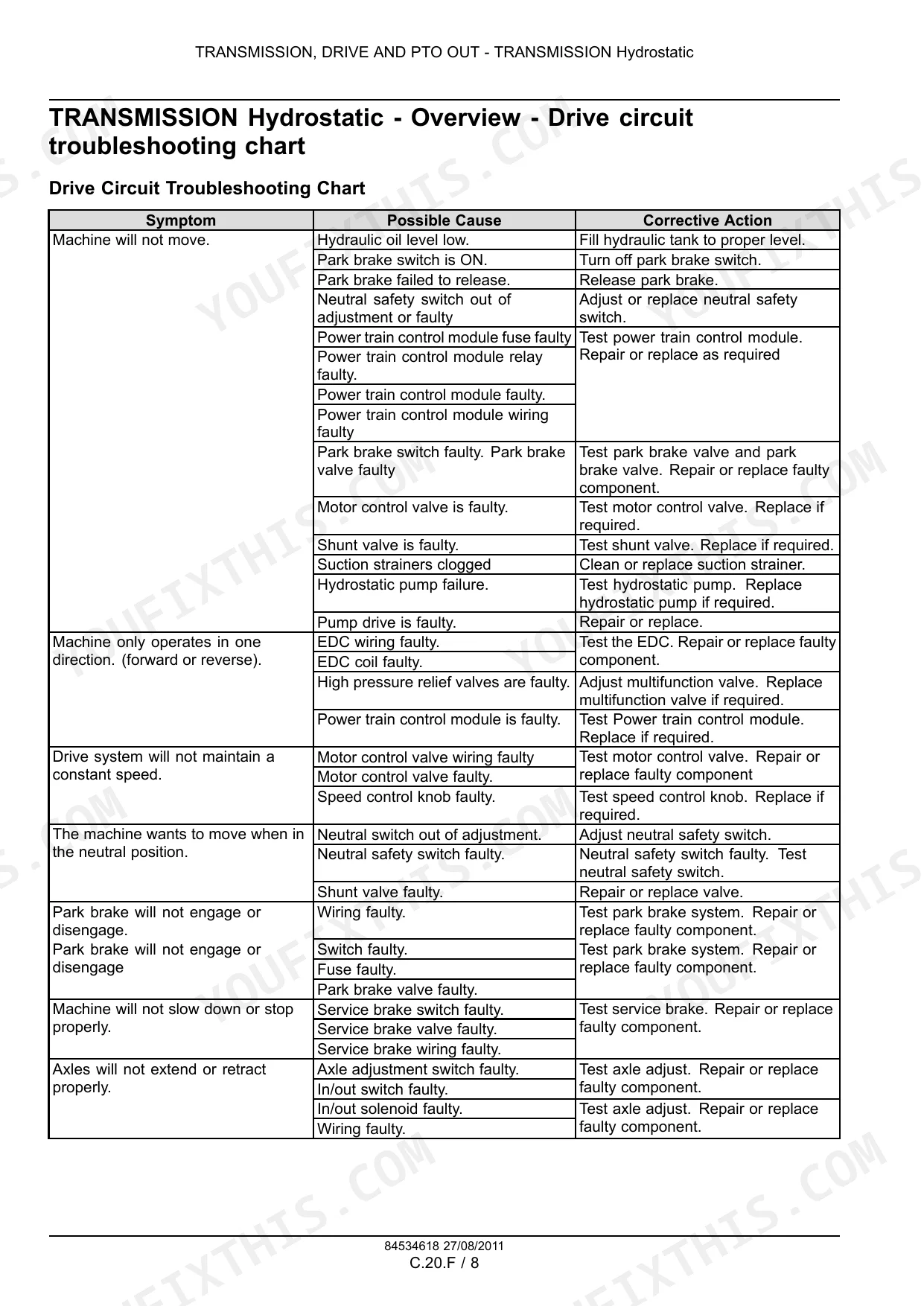

Machine will not move
Work down the drive circuit troubleshooting chart. Start with the easy checks: hydraulic oil level low, park brake switch on or brake not released, and the neutral safety switch. Next check the power train control module fuse, relay, module and wiring. Only then move on to the motor control valve, shunt valve, suction strainers, hydrostatic pump and pump drive. Confirm charge pressure at 1300 RPM before you pull a pump.
Manual Section: Hydrostatic transmission - drive circuit troubleshooting chart p. 1081Steering does not work properly, hard steering, slow or no response
The cylinder system troubleshooting chart puts hydraulic oil level low at the top, then a clogged suction strainer. Check both before you blame the steering cylinder or steering pump. After that, check the pressure compensator and look for a worn pressure compensated pump. The Hydraulic steering section covers the steering control and steering cylinders once you've narrowed it down.
Manual Section: Primary hydraulic power system - cylinder system troubleshooting chart p. 43A single boom section will not pulse or spray

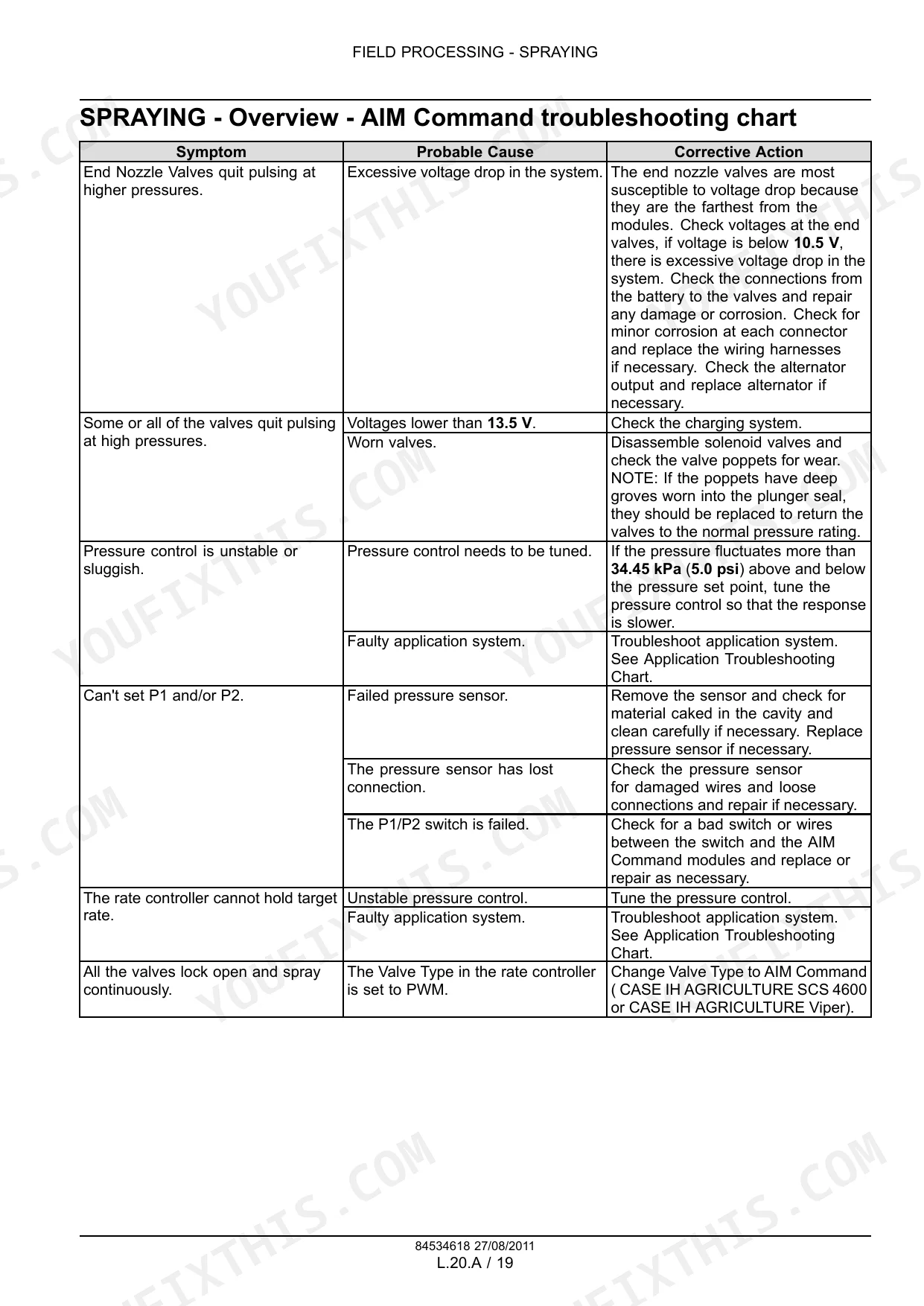

When one section is dead and the others spray fine, the AIM Command troubleshooting chart points at a faulty fuse, faulty wiring or a shorted solenoid. Put a meter on the nozzle valve coil. Normal resistance is near 21 - 23.5 ohm, so a reading well off that points to the coil. Use the connector pin-out tables to trace the wiring.
Manual Section: Spraying - AIM Command troubleshooting chart p. 1613Fault code 3028 Oil pressure too low
Check for low engine oil level before you do anything else, then work through the solution steps in the Fault codes section. It has you check the oil temp/press sensor, its wiring, and the ECU supply voltages and grounds before you suspect the engine lubrication system itself. The ground location table in the wiring harness section helps you find the ground points.
Manual Section: Fault codes - engine ECU codes p. 751Frequently Asked Questions
Which book is this exactly?
It's the Case IH Patriot 4430 self-propelled sprayer service manual, CNH part number 84534618. This is the 1st edition, in English, dated August 2011. It covers everything from the introduction and torque charts through the large-format electrical and hydraulic schematic sheets. p. 2
Can I rebuild the engine with this manual?
No. The engine section only covers removing and installing the Case IH Cursor 8.7 l. You do get separate sections on fuel system components and the air cleaner, radiator and cooling parts, and the SCR muffler and urea (DEF) system components. p. 946
Are the fault codes actually listed with fixes?
Yes. It lists ATC climate codes 111 to 134, engine ECU codes from 3006 up, and SCR urea codes 19001 to 19741 with their matching P-codes. Each code has a cause and a step-by-step solution. For example, 19415 Empty urea tank (P203F) traces back to the urea tank being empty. p. 627
What hydrostatic pressures should I see on the gauge?
Charge pressure should be 24.8 - 26.2 bar (360 - 380 psi), checked at 1300 RPM. The pressure limiter is set at 444.8 bar (6450 psi), checked at 2200 RPM. The drive circuit troubleshooting chart tells you where to go from there. That chart pays for itself the first time the machine won't move in the field. p. 1077
What fluids and capacities does the manual list for the Case IH Patriot 4430?
Engine oil takes 25 l (6.6 US gal) of CASE IH AKCELA NO. 1 SAE 15W-40 with a filter change. The hydraulic tank holds 110 l (29 US gal) of AKCELA HY-TRAN ULTRA. Cooling system capacity is 60 l (15.75 US gal). p. 14
