Within the hour you could have the rocker cover off and a feeler gauge on the valves. This manual gives the cold clearances for both the 8000 three-cylinder and the NEF four-cylinder, so you set them right the first time.
A Farmall 65A to 115A sitting in the shed means hay lying in the swath or ground going unworked. The book covers the engine, clutch, 12 x 4 mechanical and 12 x 12 / 20 x 12 reverser transmissions, electrohydraulic 4WD, both axles, PTO, brakes, hydraulics, steering, cab climate and wiring.
It is laid out system by system. A lift that won't hold sends you to hydraulics, and a stiff steering wheel sends you to steering. Find your section, do the job and get back in the field.
Other edition of this manual
- Case IH Farmall 75A Service Manual — Wiring Diagrams Original price was: $53.99.$39.99Current price is: $39.99.
What's Inside This Case IH Farmall 65A–115A Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction | 6-15 | Note to the Owner, Safety Rules, Consumables and Fluid Capacities by Model |
| Engine | 16-275 | Engine and Crankcase, Valve Drive and Gears, Crankshaft and Flywheel, Fuel Injection System, Engine Cooling System, Fan and Drive (8000, F5 and NEF Engines) |
| Clutch | 276-385 | Clutch Hydraulic Release Control, Clutch and Components, Clutch Troubleshooting by Engine |
| Transmission | 386-507 | Mechanical Transmission 12 X 4, Power Shuttle Transmission, Gearbox, Creeper, Reverser 12 X 12 and 20 X 12 |
| Four-Wheel Drive (4WD) System | 508-517 | Four-Wheel Drive (4WD) Gearbox |
| Front Axle System | 518-595 | Powered Front Axle, Front Bevel Gear Set and Differential, Final Drive Hub, Steering Knuckles, And Shafts |
| Rear Axle System | 596-639 | Powered Rear Axle, Rear Bevel Gear Set and Differential, Final Drive Hub and Shafts |
| Power Take-Off (PTO) | 640-671 | Rear Mechanical Control: Specification, Sectional View, Remove, Install, Overhaul, Troubleshooting |
| Brakes and Controls | 672-723 | Hydraulic Service Brakes, Parking Brake or Parking Lock, Trailer Brake Hydraulic Control |
| Hydraulic Systems | 724-803 | Rear Hydraulic Lift, Safety and Main Relief Valves, Auxiliary Hydraulic Valves and Lines |

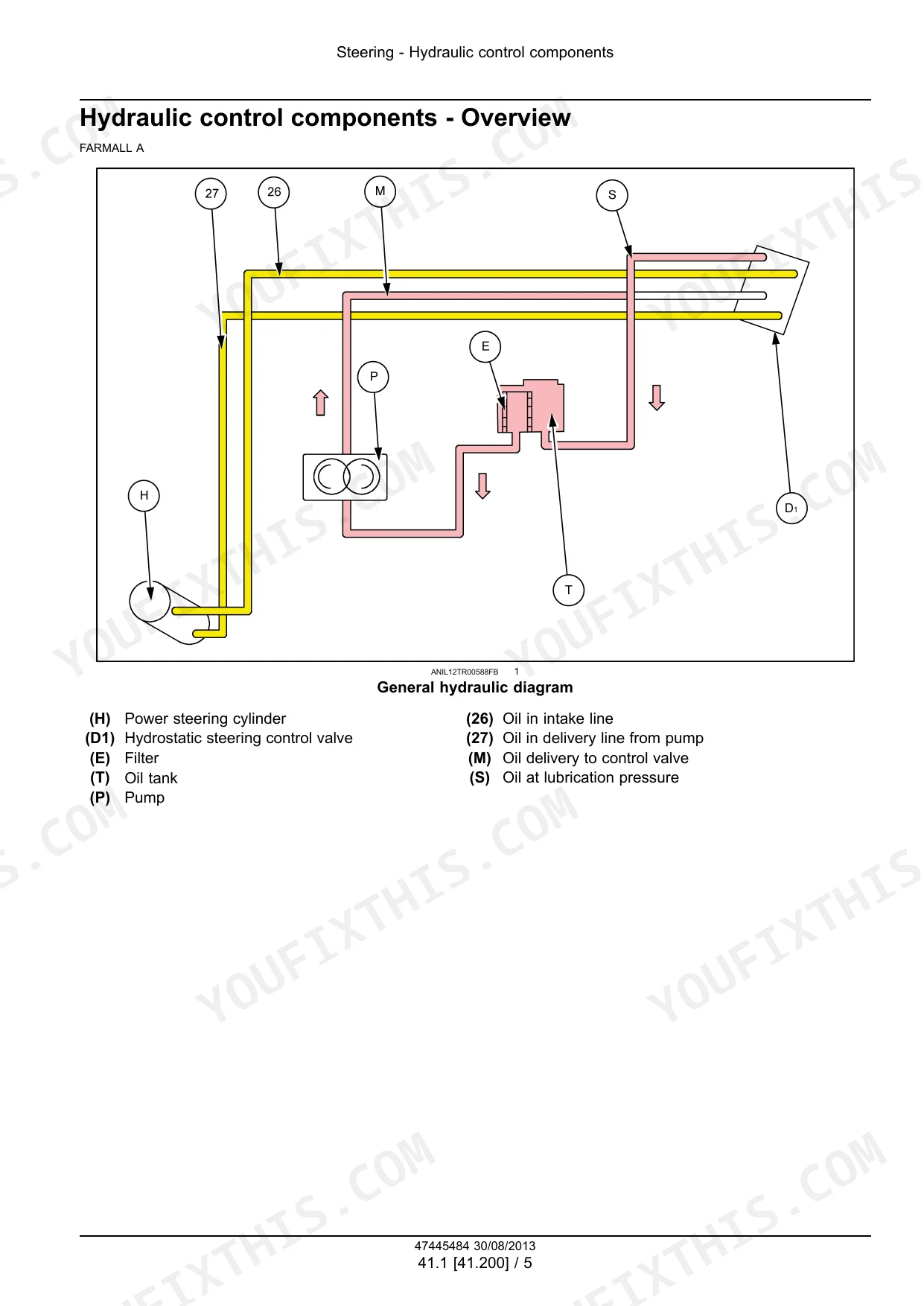

| Steering | 804-855 | Hydrostatic Steering Control Components, Steering Pump, Steering Cylinders |
| Wheels | 856-869 | Front Wheels: Specification, Torque Settings, Sectional View, Check, Troubleshooting |
| Cab Climate Control | 870-931 | Heating, Air Conditioning |
| Electrical Systems | 932-1147 | Harnesses and Connectors with Schematic Frames 01-11, Engine Starting System, Alternator, Battery, Cab Controls, Wiper and Washer, Warning Indicators and Instruments |
| Platform, Cab, Bodywork, and Decals | 1148-1191 | Cab, Cab Interior, Cab Doors and Hatches, Machine Shields and Guards |
| Special Tool Index | 1192-1207 | Special Tool Part Numbers Listed by Section |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Engine Model (3-Cylinder, 8000) | 8035.25C.313T (Farmall 65A) / 8035.25D.313T (Farmall 75A) | p. 28 |

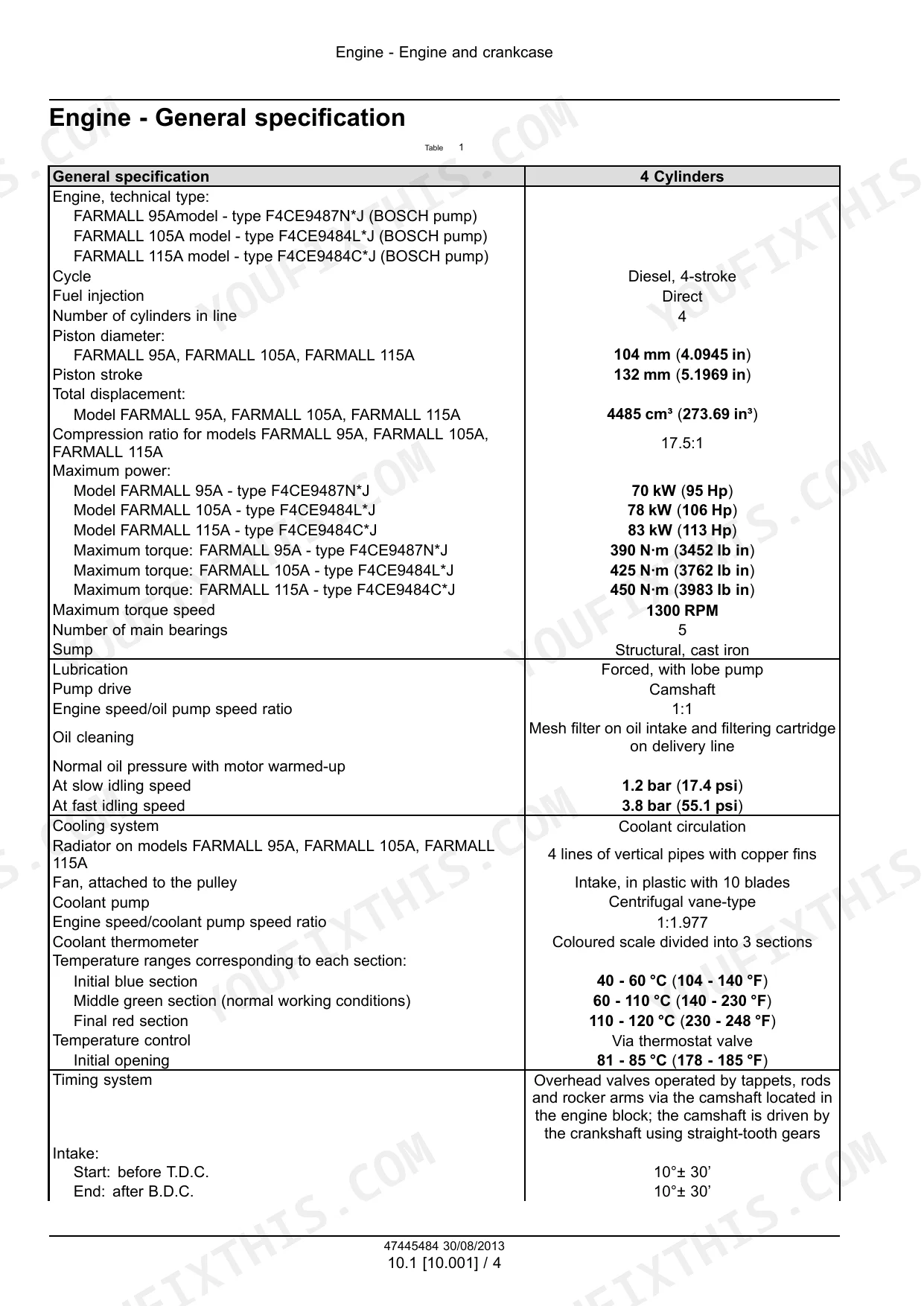

| Engine Model (4-Cylinder, NEF) | F4CE9487N*J (Farmall 95A) / F4CE9484L*J (Farmall 105A) / F4CE9484C*J (Farmall 115A) | p. 21 |
| Maximum Power (NEF) | 70 kW (95 Hp) (Farmall 95A) / 78 kW (106 Hp) (Farmall 105A) / 83 kW (113 Hp) (Farmall 115A) | p. 21 |
| Engine Sump Capacity | 7.6 l (2.01 US gal) (Farmall 65A, 75A) / 8.5 l (2.25 US gal) (Farmall 85A) / 10 l (2.64 US gal) (Farmall 95A, 105A, 115A) | p. 14 |
| Rear Transmission, Gearbox, Hydraulic Lift and PTO Capacity | 46 l (12.15 US gal) | p. 14 |
| Fuel Tank Capacity | 110 l (29.06 US gal) | p. 14 |
| Lift Pressure Relief Valve Setting | 186 - 191 bar (2697 - 2770 psi) | p. 729 |
| Lift Cylinder Safety Valve Setting | 210 - 215 bar (3045 - 3117.5 psi) | p. 729 |
| Front Wheel Hub Bearing Lock Nut Torque | 118 N·m (87.03 lb ft) (Farmall 65A, 75A) / 392 N·m (289.12 lb ft) (Farmall 85A, 95A, 105A, 115A) | p. 525 |
| Farmall 65A, 75A | ||
| Total Displacement (8000) | 2931 cm³ (178.86 in³) | p. 28 |
| Valve Clearance, Engine Cold (Intake and Exhaust) | 0.25 - 0.35 mm (0.0098 - 0.0138 in) | p. 29 |
| Farmall 95A, 105A, 115A | ||
| Total Displacement (NEF) | 4485 cm³ (273.69 in³) | p. 21 |
| Valve Clearance, Engine Cold (Intake) | 0.20 - 0.30 mm (0.0079 - 0.0118 in) | p. 22 |
| Valve Clearance, Engine Cold (Exhaust) | 0.45 - 0.55 mm (0.0177 - 0.0217 in) | p. 22 |
| Farmall 65A | ||
| Maximum Power, Farmall 65A | 48 kW (65 Hp) | p. 28 |
| Farmall 75A | ||
| Maximum Power, Farmall 75A | 53 kW (72 Hp) | p. 29 |
Case IH Farmall 65A–115A Common Problems This Manual Covers

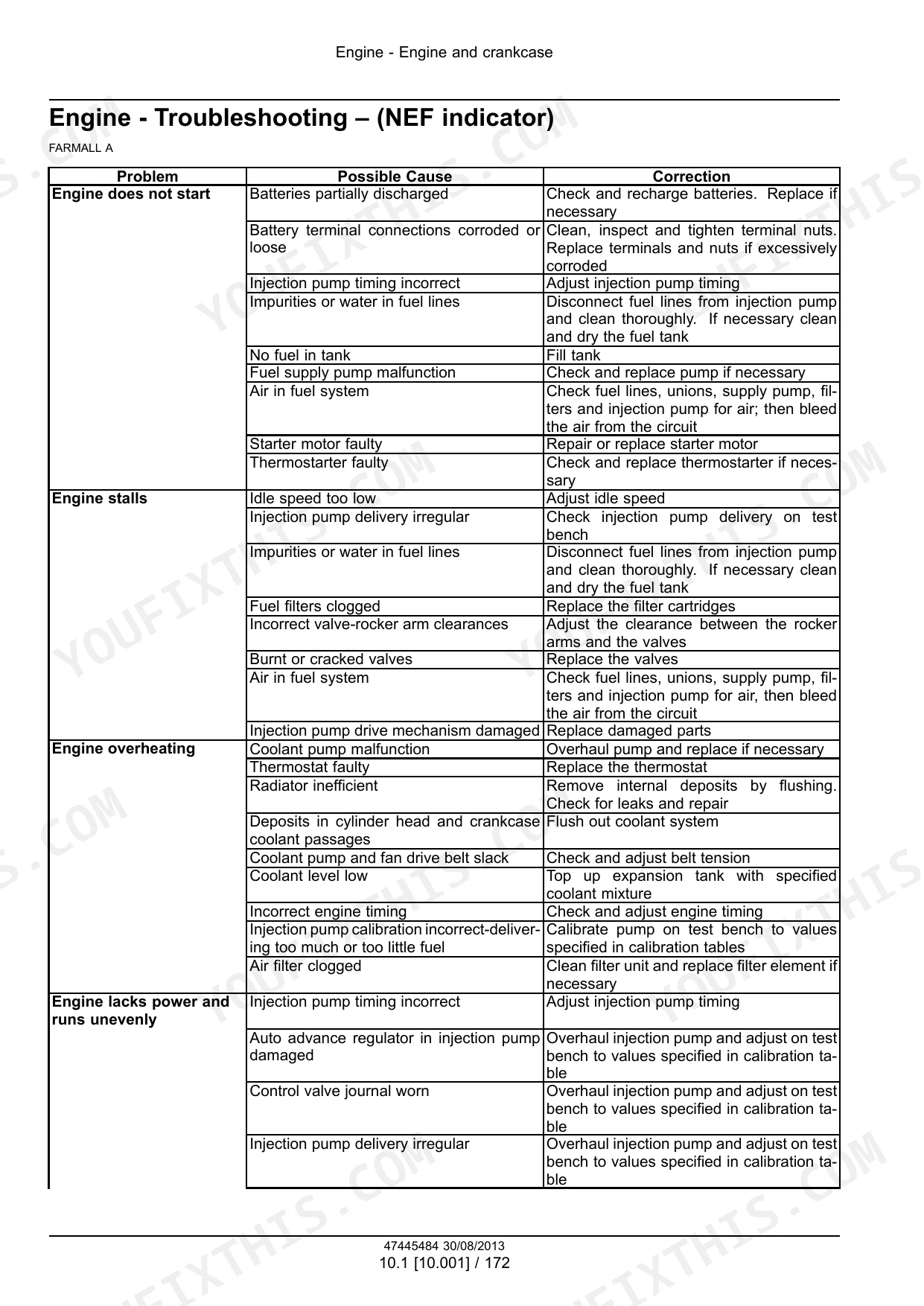

Engine does not start
Start with the cheap checks the table lists: partly discharged batteries and corroded or loose battery terminals. Next, look for water or impurities in the fuel lines and air in the fuel system. After that the table points to the fuel supply pump, starter motor, thermostarter and injection pump timing. The Engine - Troubleshooting tables cover both the NEF and 8000 engines.
Manual Section: Engine - Troubleshooting p. 189Engine overheating
Engine - Troubleshooting first lists the causes you can fix in the yard: a slack pump/fan belt, low coolant and radiator deposits. Past those it points to the thermostat, coolant pump, a clogged air filter, incorrect engine timing and injection pump calibration. The Engine cooling system and Fan and drive sections cover the parts involved.
Manual Section: Engine - Troubleshooting; Engine cooling system p. 189Lift does not raise or cannot keep the load raised
The Hydraulic systems troubleshooting table starts with a clogged oil filter and a jammed control valve, then a defective hydraulic pump. It also names the check valve seal, lift piston seals and a cylinder safety valve set too low. That safety valve should sit at 210 - 215 bar (3045 - 3117.5 psi). The lift relief valve is set at 186 - 191 bar.
Manual Section: Hydraulic systems - Troubleshooting p. 772Clutch slips
Clutch - Troubleshooting lists worn clutch plates, a worn pressure plate and flywheel, a distorted Belleville spring, or oil and grease on the friction linings. If there is oil on the linings, find the leak before fitting new plates, or the new disc will slip too. Clutch and components covers the parts, and Clutch hydraulic release control covers the release side.
Manual Section: Clutch - Troubleshooting; Clutch and components p. 381Frequently Asked Questions

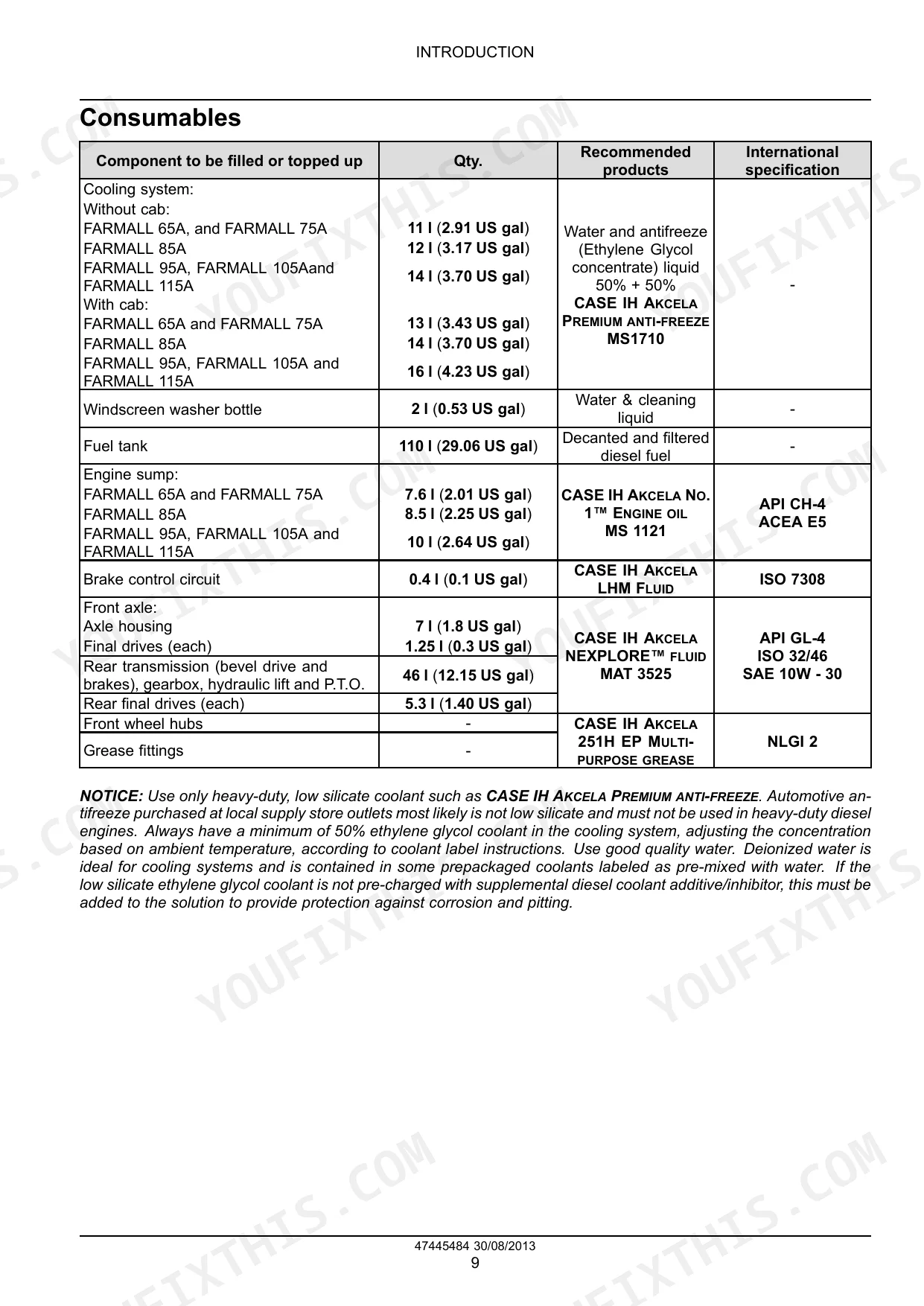

What are the fluid capacities on the Farmall 65A through 115A?
The engine sump holds 7.6 l (2.01 US gal) on the 65A/75A, 8.5 l (2.25 US gal) on the 85A and 10 l (2.64 US gal) on the 95A/105A/115A. The rear transmission, gearbox, hydraulic lift and PTO share one 46 l (12.15 US gal) fill of CASE IH AKCELA NEXPLORE FLUID. The fuel tank holds 110 l (29.06 US gal). p. 14
What is the valve clearance on the Case IH Farmall 65A-115A engine?
Set it with the engine cold. The 8000 three-cylinder in the 65A/75A takes 0.25 - 0.35 mm on both intake and exhaust. The NEF four-cylinder in the 95A/105A/115A takes 0.20 - 0.30 mm intake and 0.45 - 0.55 mm exhaust. If you set a NEF exhaust valve to the intake figure, it ends up too tight. p. 22

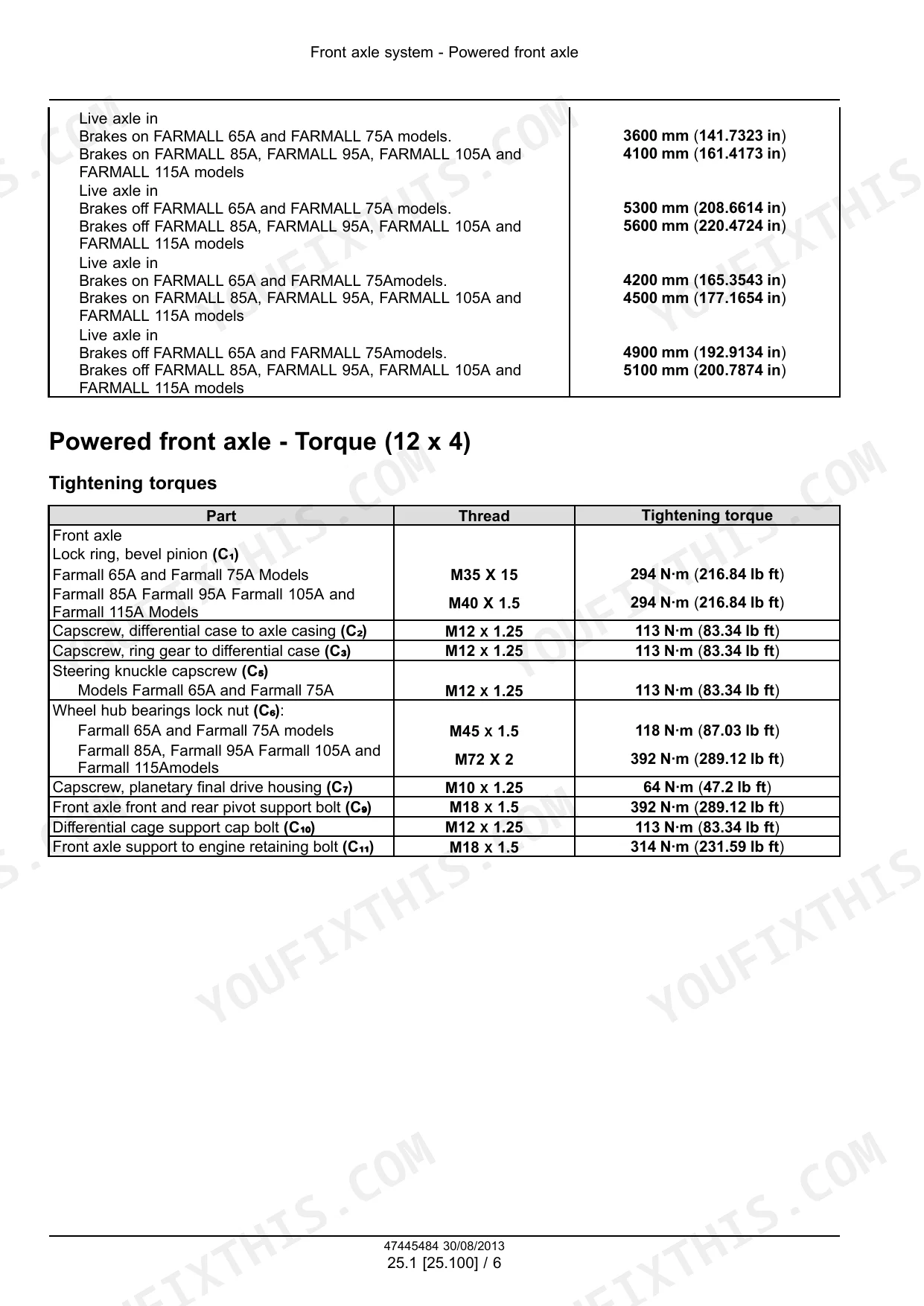

What is the torque spec for the front wheel hub bearing lock nut on a Case IH Farmall 65A-115A?
118 N·m (87.03 lb ft) on the 65A/75A and 392 N·m (289.12 lb ft) on the 85A through 115A. The bigger tractors take more than three times the figure, so confirm which model you have before you pull on the wrench. The front axle section covers the final drive hub, steering knuckles and shafts. p. 525
How do I check injection pump timing on the NEF engine?
The NEF check uses tools 380000988 and 380000732, with the flywheel pinned at TDC on cylinder No.1. The fuel injection system part of the Engine section walks you through the procedure. The troubleshooting tables list bad pump timing as a cause of hard starting and black smoke. They list incorrect engine timing as a cause of overheating. p. 229

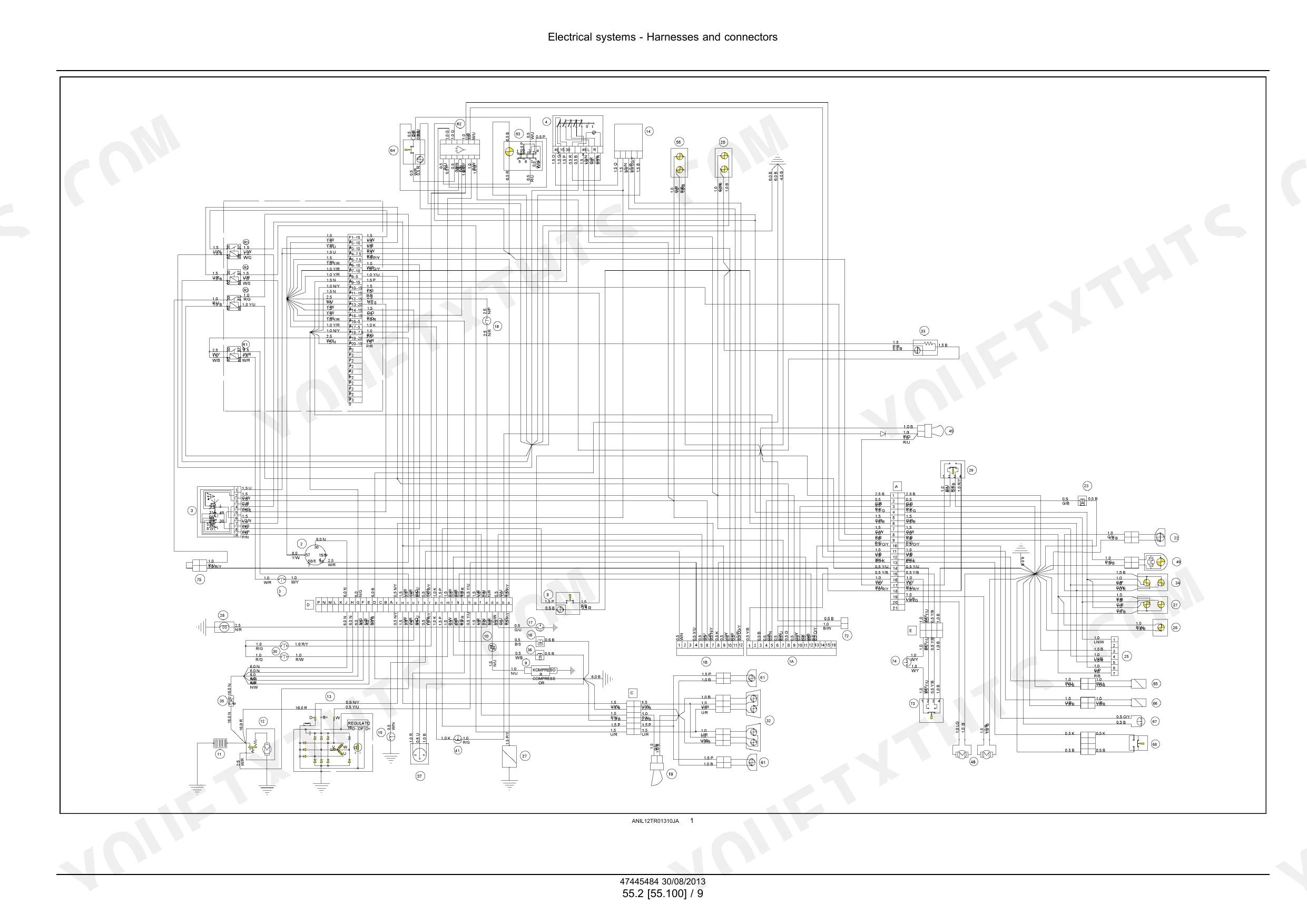

Does the manual include wiring diagrams?
Yes. The electrical section has wire harness schematic frames 01 through 11, split between 8000 series and NEF/F5A engine tractors. A starting or charging fault is much quicker to trace with the right frame for your engine open beside you. That alone is a reason to own the book. p. 954
