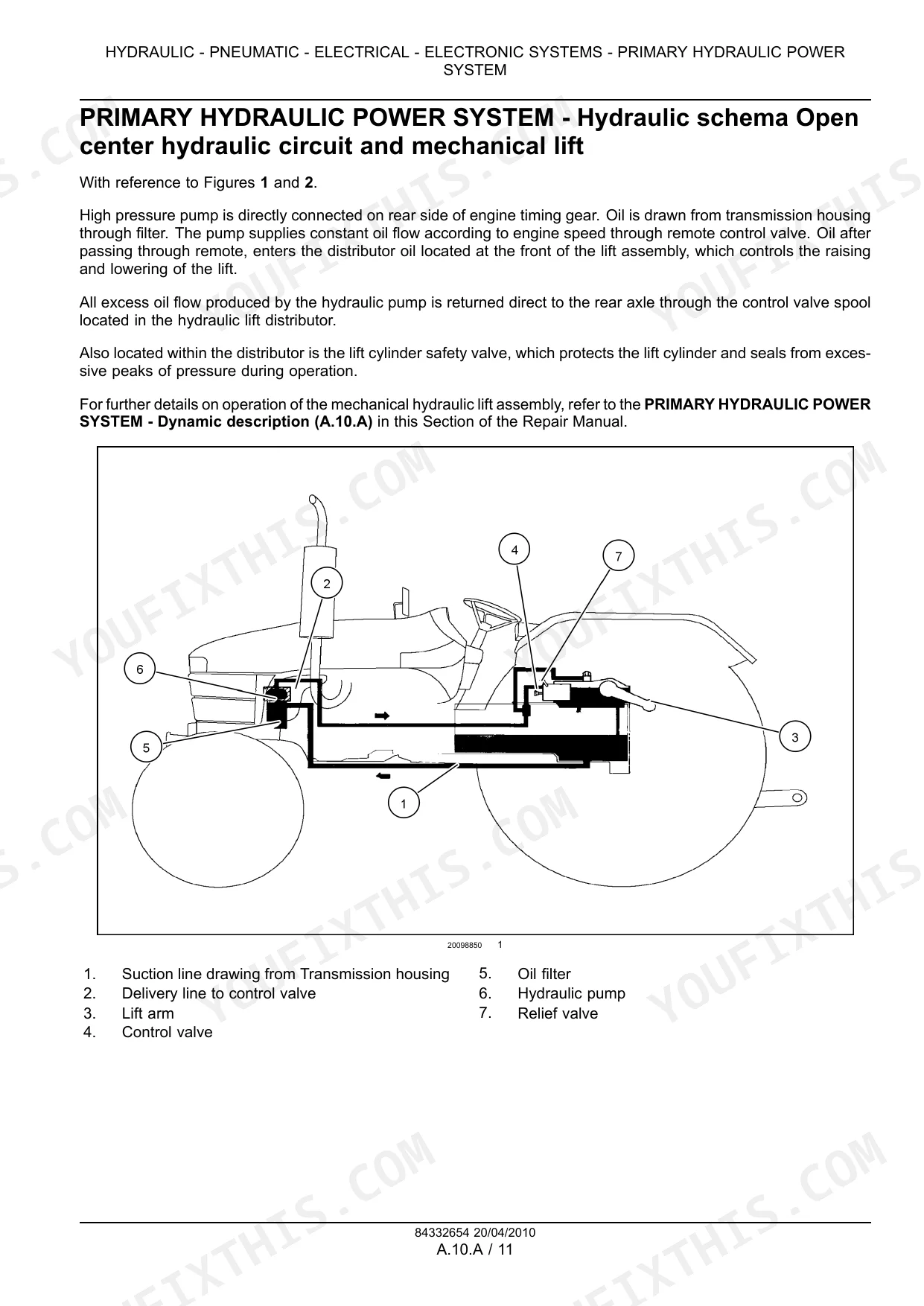

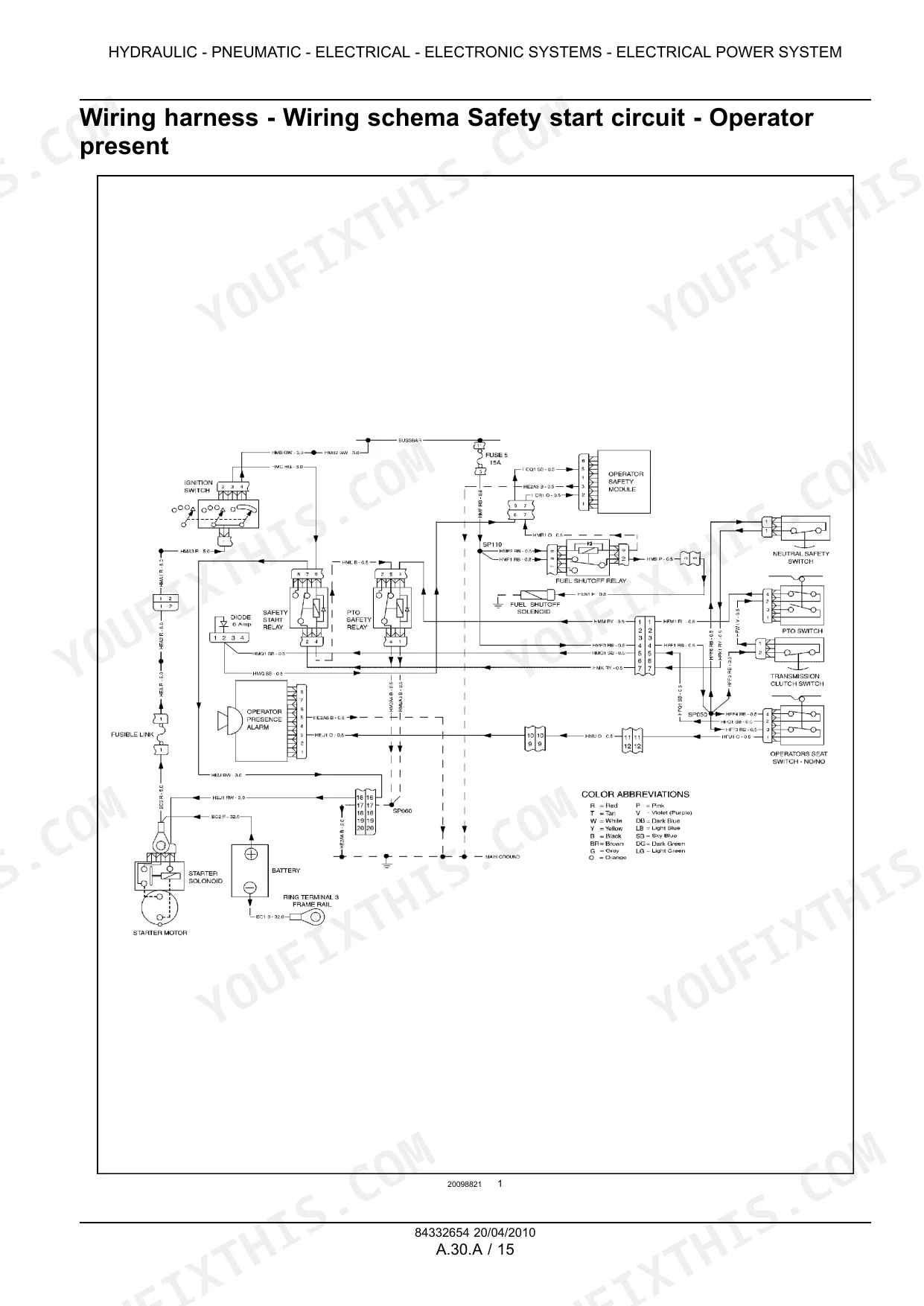

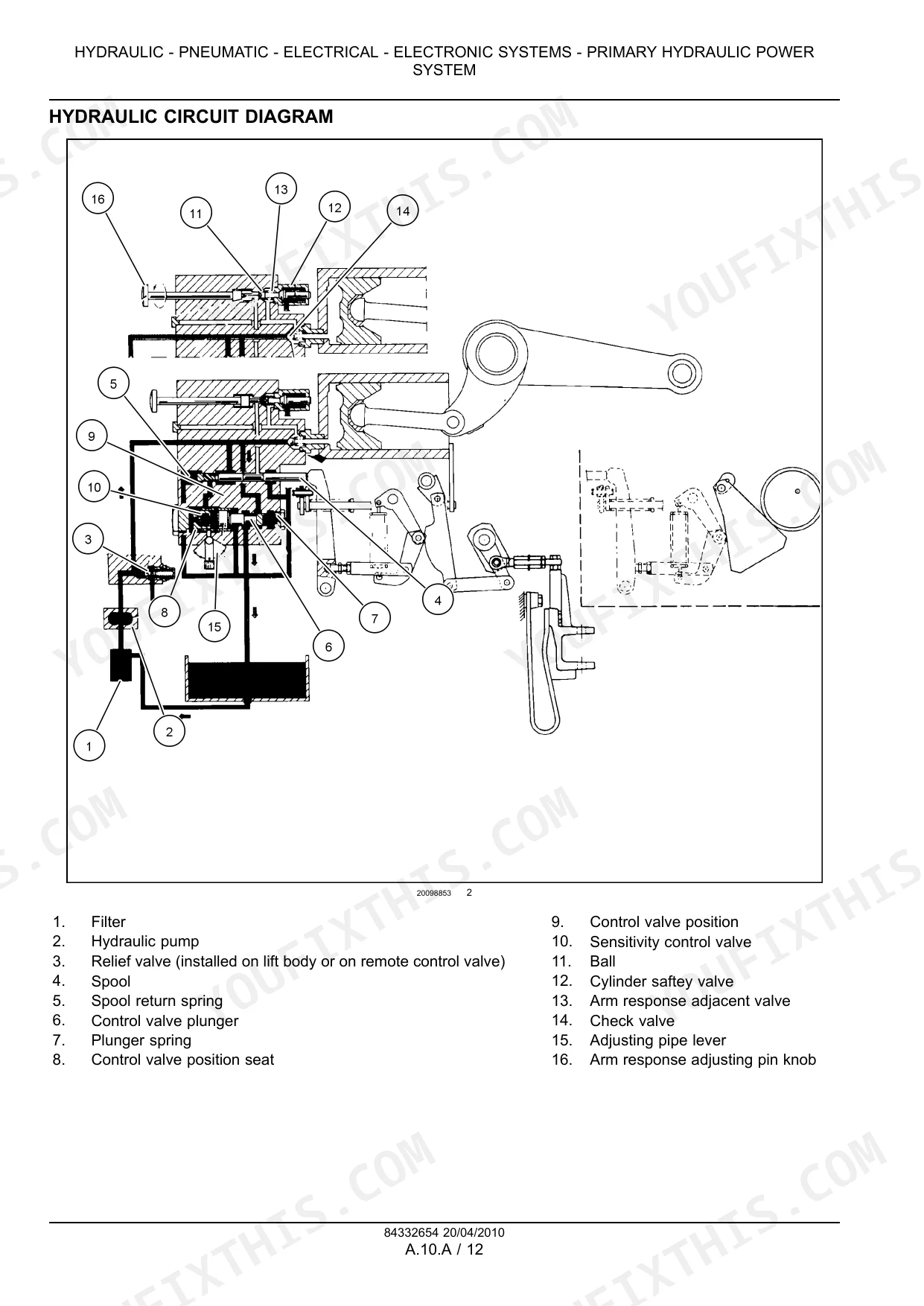

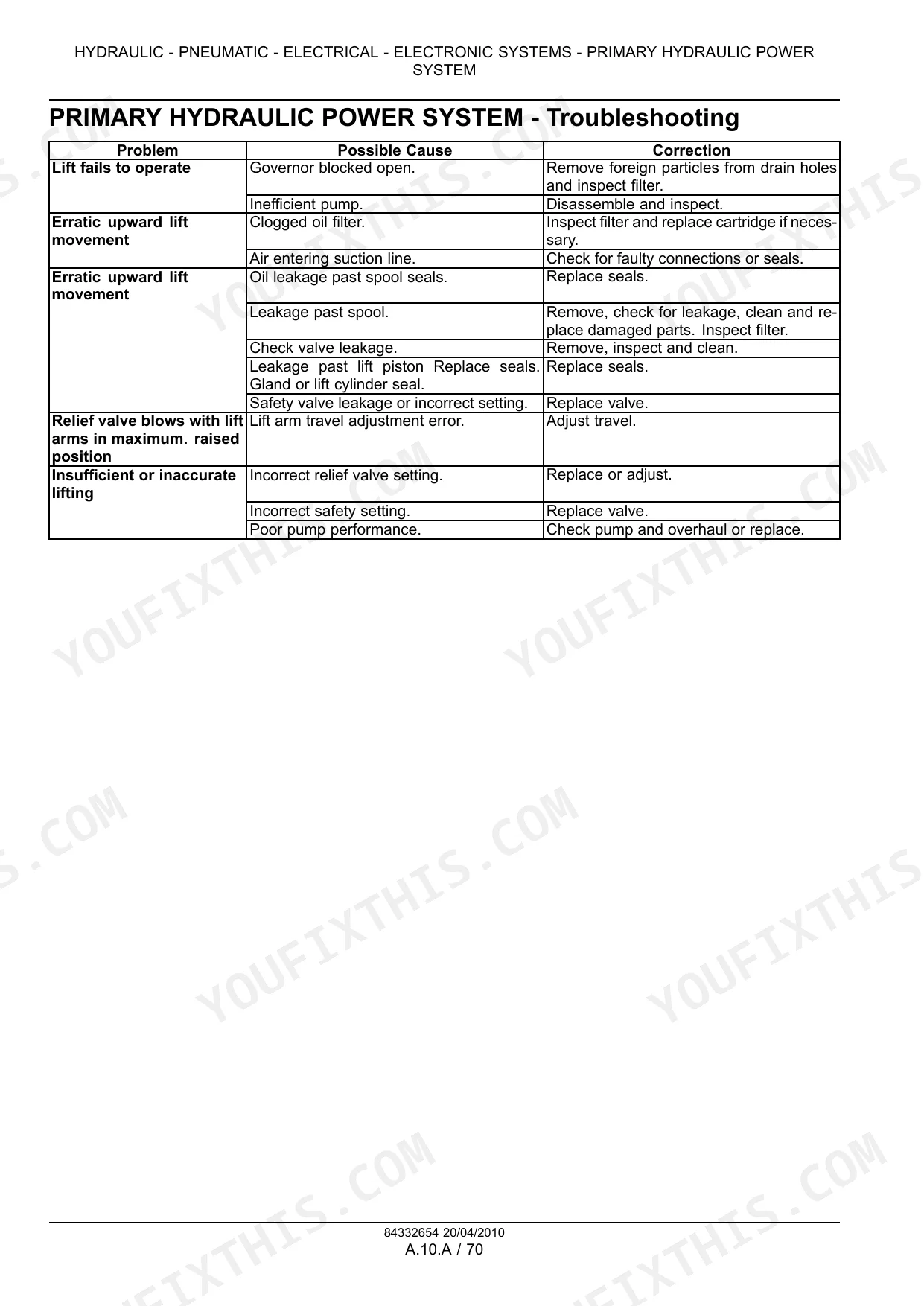

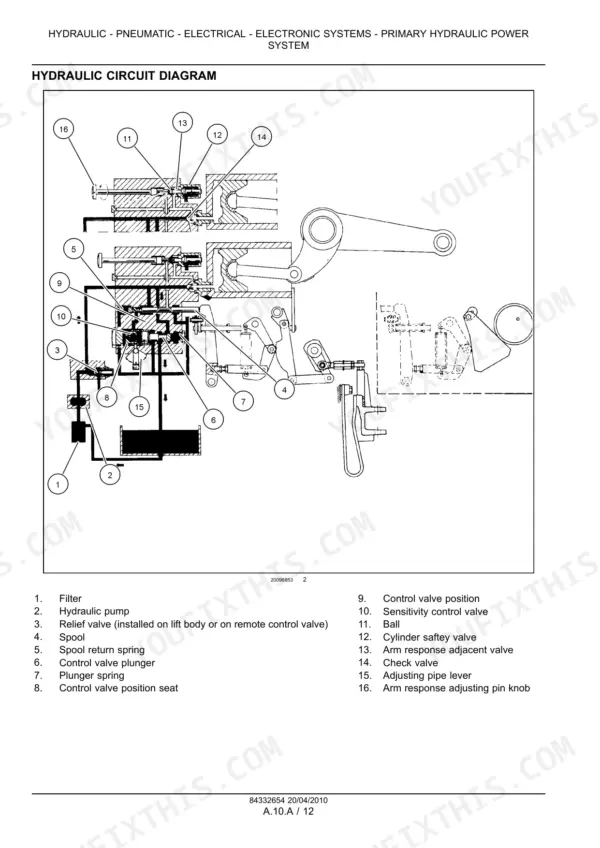

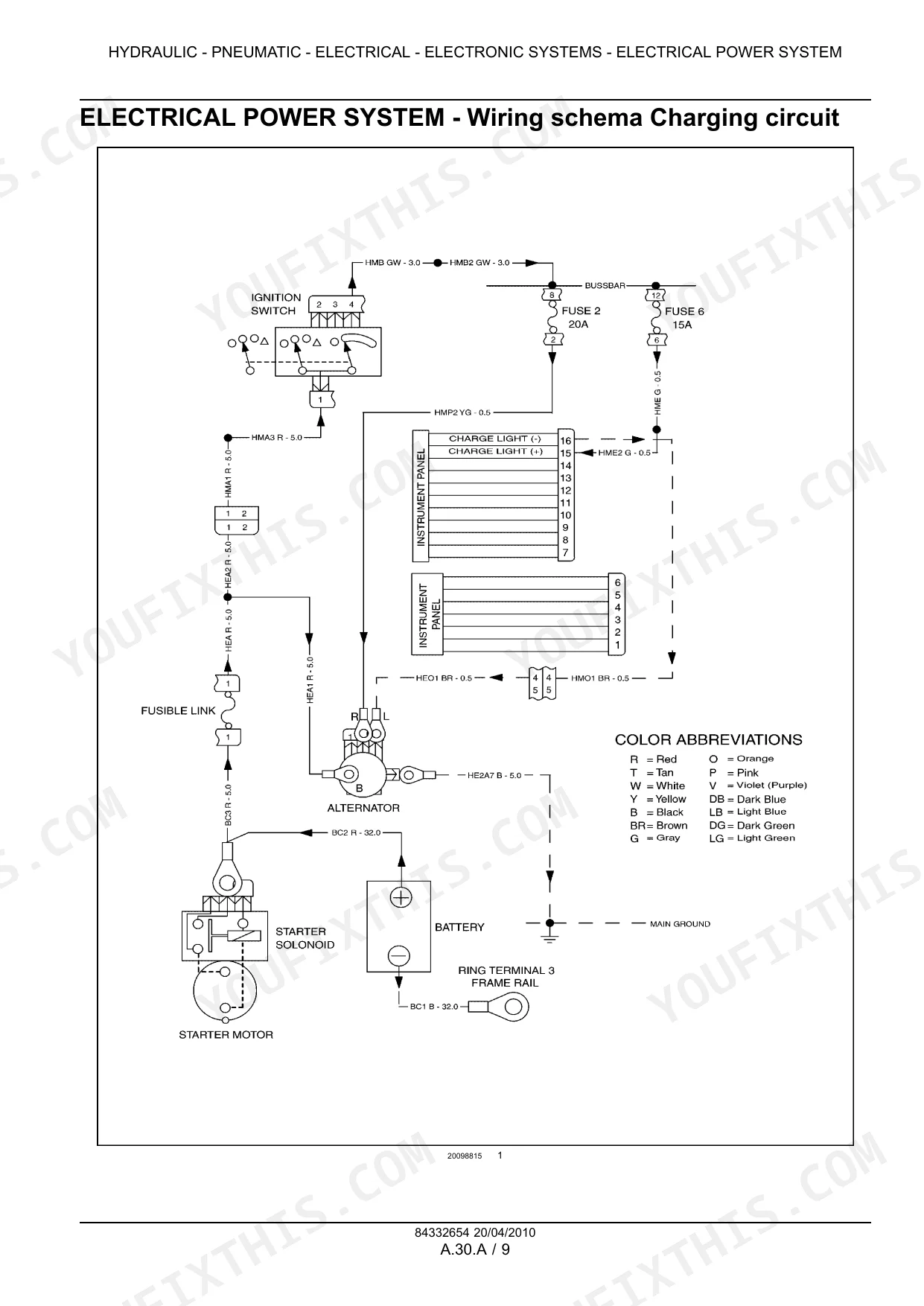

The Case IH Farmall 75A service manual PDF, OEM 84332654, takes this utility tractor apart system by system across 666 pages, from the open center mechanical remote valve to the rear PTO. Wiring diagrams trace the lighting and electrical power circuits back to the alternator and battery; hydraulic schematics show where the Hydraulic Command System routes pressure into the steering circuit. Troubleshooting charts let you walk a symptom back to its cause before anything comes apart, and the largest block of the book covers axles, brakes and steering, with front axle, final drive and 2WD/4WD work carried through to reassembly. A 280 mm (11 in) clutch disc sits on the rear PTO; rear wheel disc-to-hub hardware pulls to 247 to 273 N·m (182 to 202 lb ft). Some jobs you face alone, with nobody to ask. Bookmarked and text-searchable, it stays with you wherever the tractor stopped.
What's Inside This Case IH Farmall 75A Manual
| System | Pages | Key Topics |
|---|---|---|

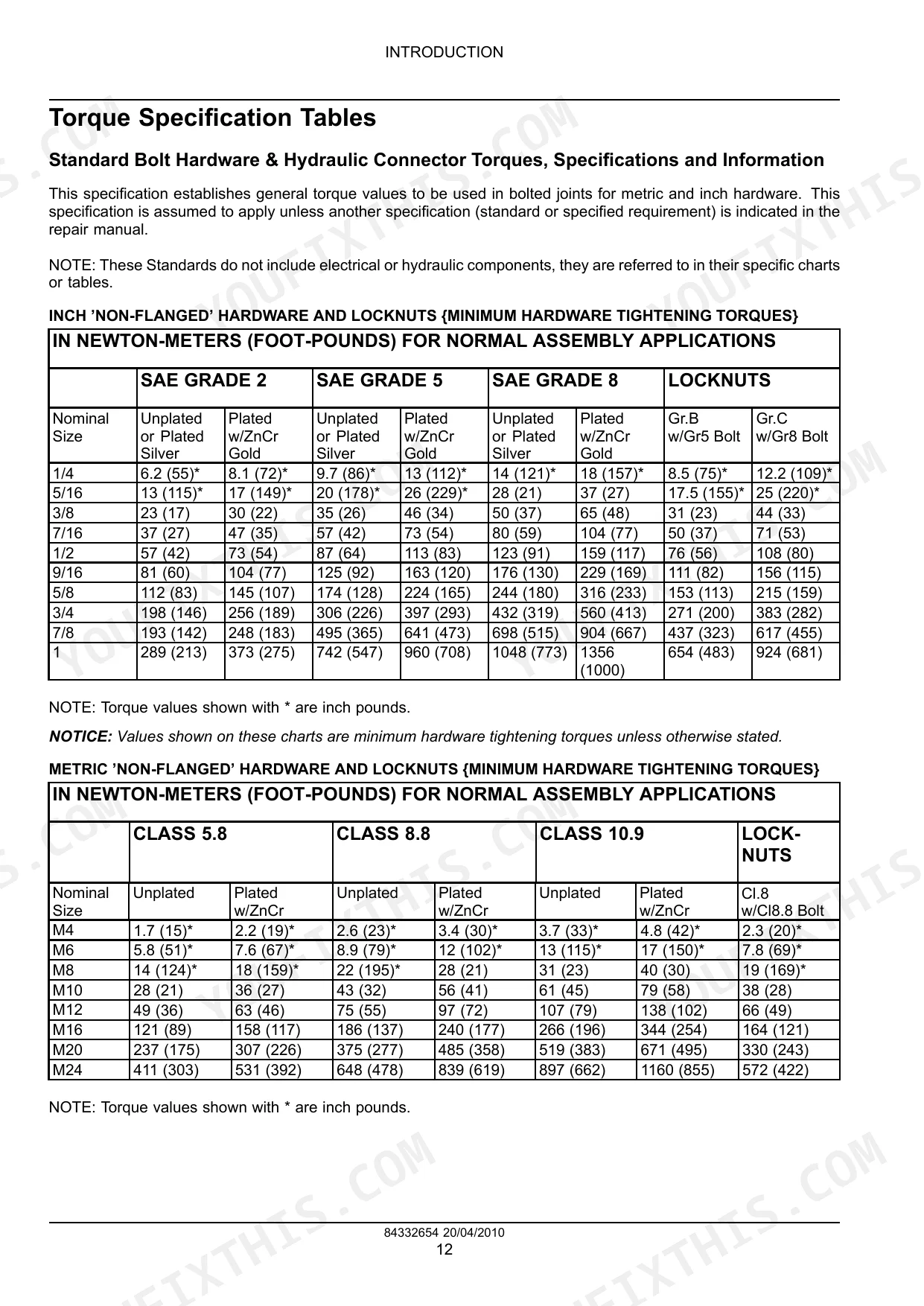

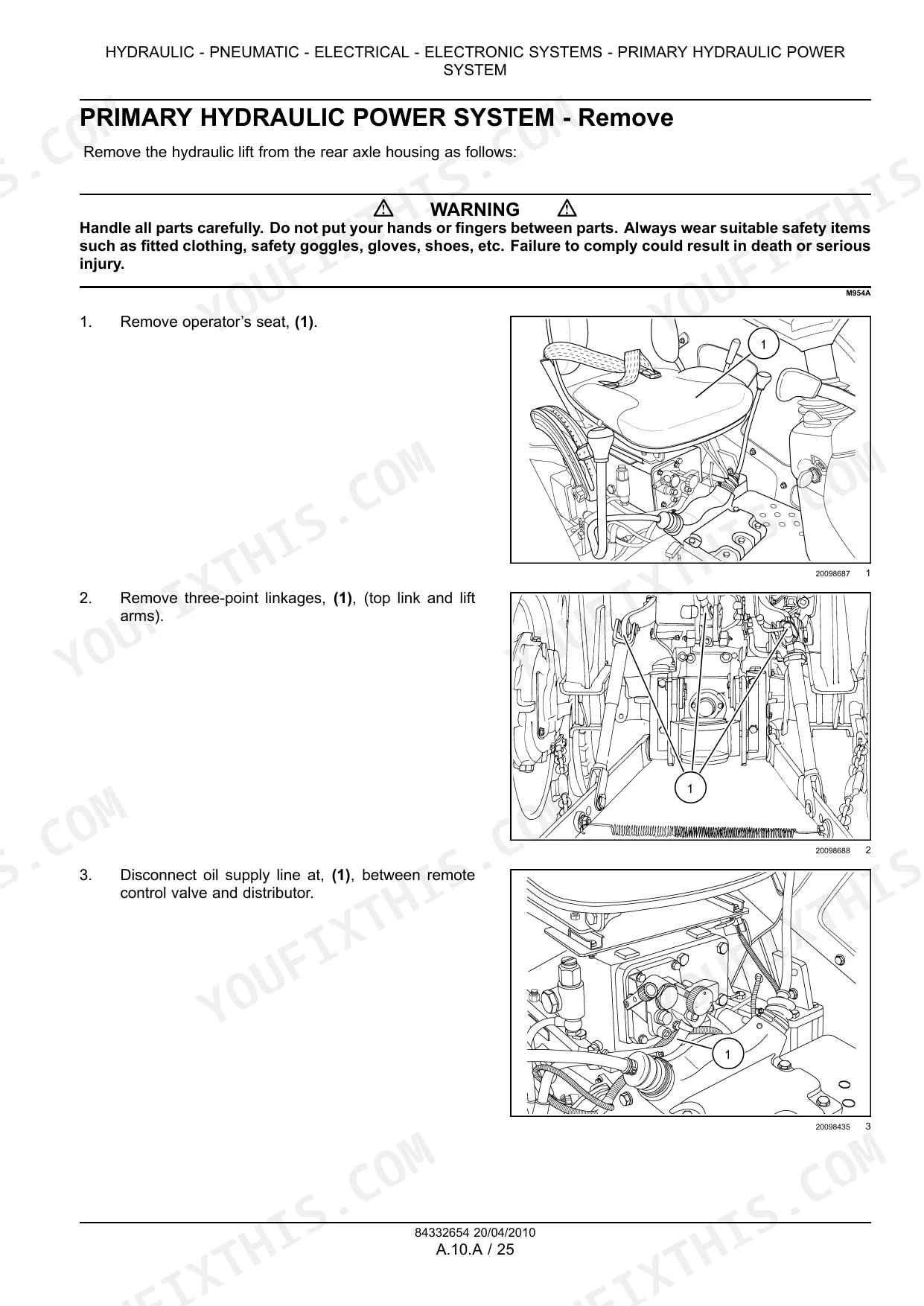

| Introduction | 5-28 | Safety Rules, Basic Instructions Hardware, Torque Specification Tables |
| Hydraulic - Pneumatic - Electrical - Electronic Systems | 29-228 | Primary Hydraulic Power System (Open Center Mechanical Remote Valve), Hydraulic Command System, Electrical Power System, Lighting System |
| Engine and PTO in | 229-282 | Engine, Fuel and Injection System, Air Intake System, Engine Coolant System, Lubrication System, Starting System |
| Transmission, Drive and PTO Out | 283-410 | Power Coupling Clutch, Transmission Mechanical, Rear PTO Mechanical |
| Axles, Brakes and Steering | 411-636 | Front Axle, Rear Axle, 2WD-4WD System Mechanical, Final Drive, Steering Hydraulic, Service Brake Mechanical, Parking Brake Mechanical |
| Frame and Cab | 637-666 | User Controls and Seat, User Platform, Safety Security Accessories Safety, Foreword, Foreword Ecology and the Environment, Legal Advice, International Symbol, Safety Rules |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Front Wheel - Disc-to-Hub (2WD) | 329 N·m (243 lb ft) | p. 19 |
| Front Wheel - Disc-to-Hub (FWD) | 260 N·m (192 lb ft) | p. 19 |
| Alternator | 14 V, 65 A | p. 18 |
| Battery Type | 12 V, w/ negative ground, 800 cca | p. 18 |
| PTO Clutch Disc Diameter | 280 mm (11 in) | p. 19 |
| PTO Pedal Free-Travel | 35 - 40 mm (1.38 - 1.57 in) | p. 23 |
| Lift to Rear Transmission Housing Bolts | 132 N·m (97 lb ft) | p. 35 |
| Control Valve body to Lift Bolts | 19 N·m (14 lb ft) | p. 35 |
| Nut, pump drive gear, (C1) | 47.5 N·m (35.0 lb ft) | p. 38 |
| Nut, pump mounting on timing case, (C2) | 8 N·m (5.9 lb ft) | p. 38 |
| Alternator rated voltage | 14 V | p. 134 |
| Battery cold cranking ability | 800 A | p. 144 |
Case IH Farmall 75A Common Problems This Manual Covers
Case IH Farmall 75A gears hard to engage at standstill, tractor creeps with clutch pedal fully down
Check the tank-to-filter fuel hose for soft spots that collapse under suction, then replace the diesel filter before chasing sensors. Crack the filter bleed screw and confirm steady flow at 850 RPM ± 50 idle, verified in the specification tables on page 22. Bleed the system fully and run it under load before you head back out.
Manual Section: Engine and PTO in p. 229Loader lifts slow and the three-point hitch drops under load with a full bucket
Check transmission and hydraulic oil level first; the system holds 29.0 L per the capacity table on page 24. Then pull the pump and measure gear journal clearance in the bearing against the 0.032 to 0.070 mm limit on page 37, scrapping anything past 0.1 mm wear. Torque pump body bolts to 56 N·m (41 lb ft).
Manual Section: Primary Hydraulic Power System TroubleshootingBattery light stays on and the tachometer reads erratically or quits entirely
Test alternator output at the battery post with the engine at rated speed. Voltage should sit between 13.6 and 14 V, and the alternator is rated 14 V, 65 A per the specifications on page 22. Clean both grounds and load test the battery against its 800 A cold cranking rating. Torque the pivot bolt to 80 N·m (59 lb ft) on reassembly.
Manual Section: Alternator TroubleshootingPTO will not disengage when the lever is pulled back, shaft keeps turning
Measure PTO pedal free travel and reset it to the 35 to 40 mm (1.38 to 1.57 in) range listed on page 23 before tearing into anything. If linkage adjustment does not stop the shaft, inspect the 280 mm (11 in) clutch disc for glazing and a seized release bearing. Shut the tractor down before touching the drawbar area.
Manual Section: Rear PTO Mechanical p. 283Range shifter binds or will not move between low and high range
Inspect the external range linkage for bent rods, worn ball joints, and dry pivots before condemning the transmission. Grease every pivot and recheck the throw at the lever. If it still hangs internally, drain the case and pull the rear cover, torquing those bolts back to 100 N·m (74 lb ft) on assembly per page 378.
Manual Section: Transmission Mechanical TroubleshootingWhining or growling from the rear end, worse with MFWD engaged on the road
Disengage the front axle drive for road travel, then check rear axle oil level against the 5.6 L capacity on page 24 and front axle differential at 5.5 L. Drain a sample and look for metal glitter. Retorque front wheel disc-to-hub hardware to 260 N·m (192 lb ft) on FWD units before the next field pass.
Manual Section: Axles, Brakes and Steering p. 411Frequently Asked Questions
What is the torque specification for the front wheel bolts on a 2WD Farmall 75A?
The torque specification for the front wheel disc-to-hub bolts on a 2WD Farmall 75A is 329 N·m (243 lb ft). p. 23
What is the crankcase oil capacity for the Farmall 75A engine?
The engine crankcase oil capacity for the Farmall 75A is 8.0 liters (8.5 US quarts). p. 22
What is the correct torque for the transmission housing to engine nuts on a Case IH Farmall 75A?
The torque specification for the transmission housing to engine nuts is 100 N·m (74 lb ft). p. 54
What is the torque spec for the final drive housing to transmission housing bolts on a Case IH Farmall 75A?
The torque specification for the bolts securing the final drive housing to the transmission housing is 85 N·m (63 lb ft). p. 118
What is the correct torque for the starter motor and engine block assembly bolts on a Case IH Farmall 75A tractor?
The torque specification for the starter motor and engine block assembly bolts is 34 N·m (25 lb ft). p. 131
How is this Case Farmall 75A Service Manual delivered?
One searchable PDF covering 666 pages, delivered instantly. No disc, no shipping, no waiting on the post.
Am I able to print pages from this Case Farmall 75A manual?
Zero restrictions. The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
