Part of the Case IH Repair Manuals.
Coolant warning on in the middle of second cut, or the steering goes heavy with a bale on the loader. This is the Case IH factory service manual for the Farmall 90C, 100C, 110C and 120C, CNH part number 51543581, from PIN HLRFC120LHLF01896 and ELRFC110VJLF50027 and above.
It covers Mechanical, Power Shuttle and Hi-Lo transmissions, with or without a cab. You get the clutch, 4WD, both axles, PTO, brakes, remote hydraulics, three-point hitch, steering, HVAC, wiring schematics and SCR/EGR. The ECU fault codes each come with causes and a step-by-step fix.
It's for the evening you're alone in the shed with the tractor and nobody to call. The Special Tool Index gives the part numbers, so you order the right tool the first time and get back in the field.
What's Inside This Case IH Farmall 90C–120C Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction | 11-40 | Safety, Coolant Basics, Standard Torque Data for Hydraulic Connections, Loader Specification, Consumables, Identification Plates |
| Engine | 41-340 | Engine Torque, Remove and Install, Oil and Filter, Fuel Tanks and Filters, Air Cleaners, Manifolds, SCR and EGR Exhaust Treatment, Cooling, Fan, Aftercooler, Lubrication |
| Clutch | 341-404 | Mechanical and Hydraulic Release Control, Clutch and Components, Slip Clutch or Flywheel Damper |

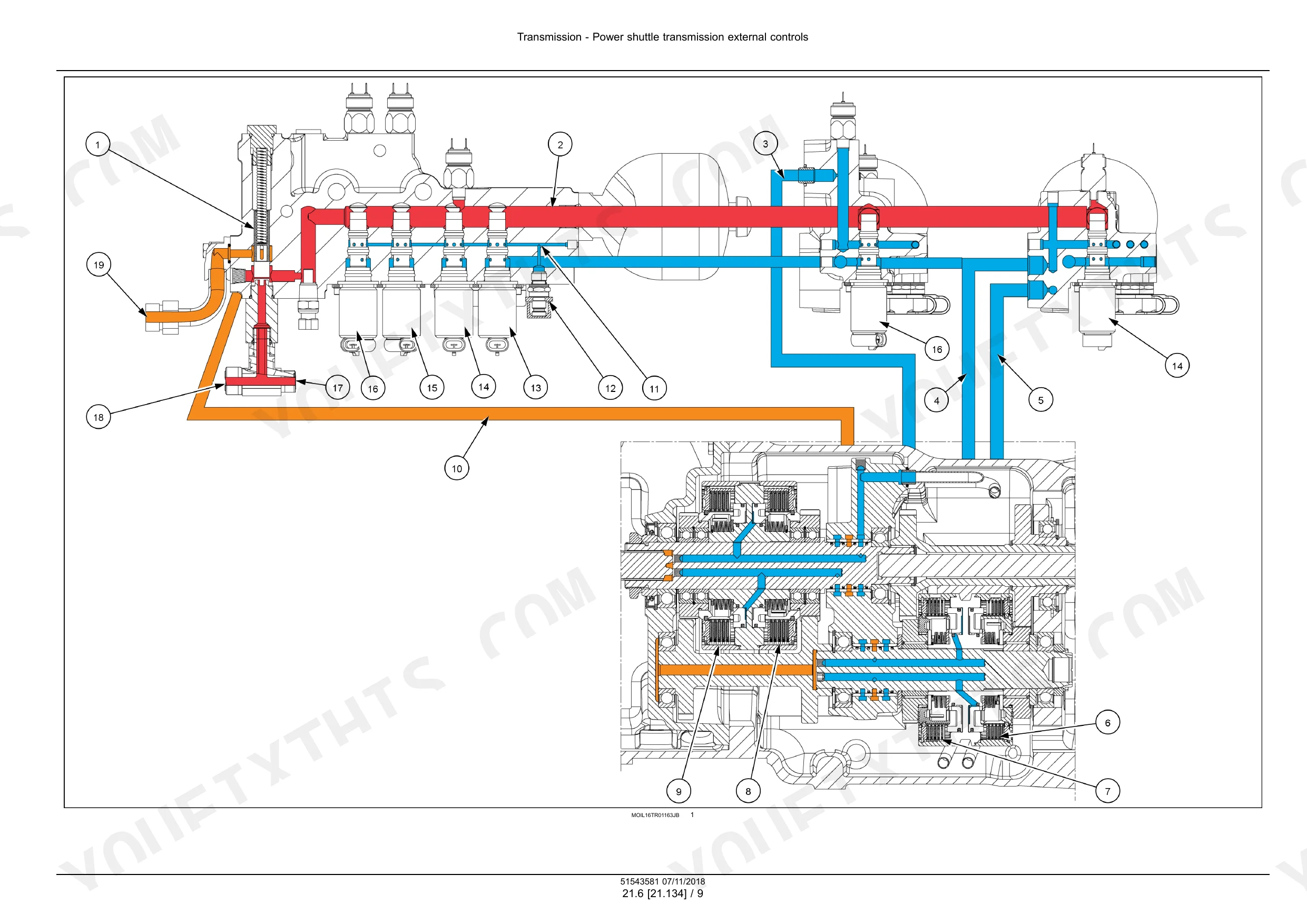

| Transmission | 405-704 | Mechanical 12-Speed Transmission, Power Shuttle, Master Clutch Housing, Creeper, Reverser, Hi-Lo Unit, Transmission Cooler, Rear Drive |
| Four-Wheel Drive (4WD) System | 705-784 | Electro-Hydraulic 4WD Control, Drive Shaft |
| Front Axle System | 785-992 | Powered Front Axle, Front Bevel Gear Set and Differential, Final Drive Hubs and Knuckles, Non-Powered Front Axle |
| Rear Axle System | 993-1082 | Powered Rear Axle, Rear Bevel Gear Set and Differential, Planetary and Final Drives |
| Power Take-Off (PTO) | 1083-1248 | Rear Mechanical and Electro-Hydraulic PTO Control, One-Speed and Two-Speed Rear PTO, PTO Clutch |
| Brakes and Controls | 1249-1318 | Hydraulic Service Brakes, Parking Brake, Trailer Brake Pneumatic Control |
| Hydraulic Systems | 1319-1434 | Combination Pump Units, Remote Control Valves, Main Lift System, Three-Point Hitch Control Valve and Cylinder |
| Hitches, Drawbars, and Implement Couplings | 1435-1560 | Drawbars and Towing Hitches, Rear Three-Point Hitch, External Controls and Linkage |
| Steering | 1561-1632 | Steering Control, Tie Rods, Hydraulic Control Components, Steering Cylinders |
| Wheels | 1633-1658 | Front and Rear Wheels |
| Cab Climate Control | 1659-1850 | Heating, Ventilation, Air Conditioning with Troubleshooting Tables |

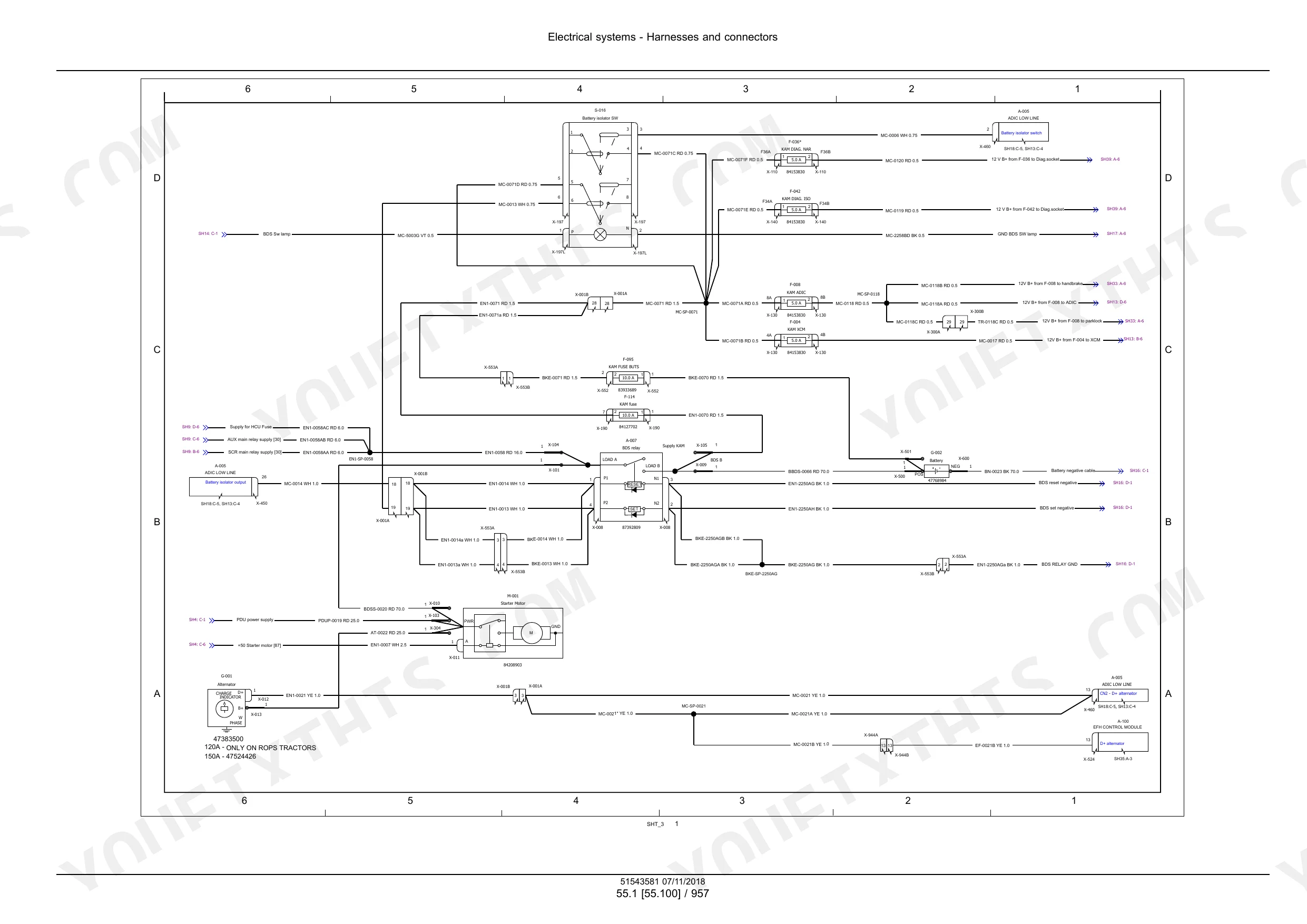

| Electrical Harnesses and Connectors | 1851-3303 | Harness Routing, Connector Views, Electrical Schematic Sheets |
| Engine and Emissions Electrical Systems | 3304-3599 | Engine Control, Starting, Alternator, Battery, Cold Start Aid, Fuel Injection, SCR Electrical System, Electronic Modules |
| Transmission, PTO and Cab Electrical Controls | 3600-3815 | Transmission Control and Sensors, PTO Control, Parking Brake Electrics, HVAC Controls, Hitch Electronic Control, Lighting, Instruments |
| Fault Codes | 3816-4666 | ECU Diagnostic Trouble Codes with DTC Number, Context, Cause, Failure Modes and Step-By-Step Solution |
| Front Loader and Accessories | 4667-4692 | Loader Arm, Accessories |
| Platform, Cab, Bodywork, and Decals | 4693-5079 | Cab, Interior and Trim, Doors and Windows, Operator Platform, Seats, Hood and Panels, Fenders |
| Special Tool Index | 5080-5085 | Special Tool Part Numbers |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Engine Model, Farmall 90C | F5GFL413J*C006 (Hi-Lo: F5GFL413J*C005) | p. 4 |
| Engine Model, Farmall 100C | F5GFL413H*C006 (Hi-Lo: F5GFL413H*C005) | p. 3 |
| Engine Model, Farmall 110C | F5GFL413G*C006 | p. 3 |
| Engine Model, Farmall 120C | F5GFL413F*C011 (Hi-Lo: F5GFL413F*C010) | p. 3 |
| Engine Oil | CASE IH AKCELA UNITEK NO. 1 SBL CJ-4 SAE 10W-40 (API CJ-4) | p. 32 |
| Front Axle to Engine Block Bolt Torque | 587 N·m (432.95 lb ft) | p. 46 |
| Gearbox to Engine Block Bolt Torque | 121 N·m (89.25 lb ft) | p. 46 |
| Transmission Oil Quantity (Mechanical Transmission) | 48.00 l (12.68 US gal) | p. 488 |
| Engine Speed for 540 RPM PTO | 1938 RPM | p. 1141 |
| Remote Control Valve Relief Setting | 190 - 195 bar (2755 - 2828 psi) | p. 1339 |
| Coolant Temperature Warning Threshold (3173) | 111.96 °C (233.53 °F) | p. 4071 |
Case IH Farmall 90C–120C Common Problems This Manual Covers
Fault code 3146 (DTC 4415) Water in fuel detected or water in fuel circuit failure
Step one in the Fault codes section is to drain the water out of the fuel filter. If the code comes back on dry fuel, check the connector, then the harness, then the water in fuel sensor. The Engine section covers fuel tanks and filters if you need to replace the element.
Manual Section: Fault codes p. 4061Fault code 3173 (DTC F623) Engine coolant temperature has exceeded the warning threshold
Start with the coolant level. Then look for leaks and check for chaff packed into the cooler stack. The Engine section covers cooling, the fan and the aftercooler. If the system checks out, the Fault codes steps take you on to the coolant temperature sensor, its wiring and the ECU software.
Manual Section: Fault codes / Engine - cooling p. 4071Hard steering

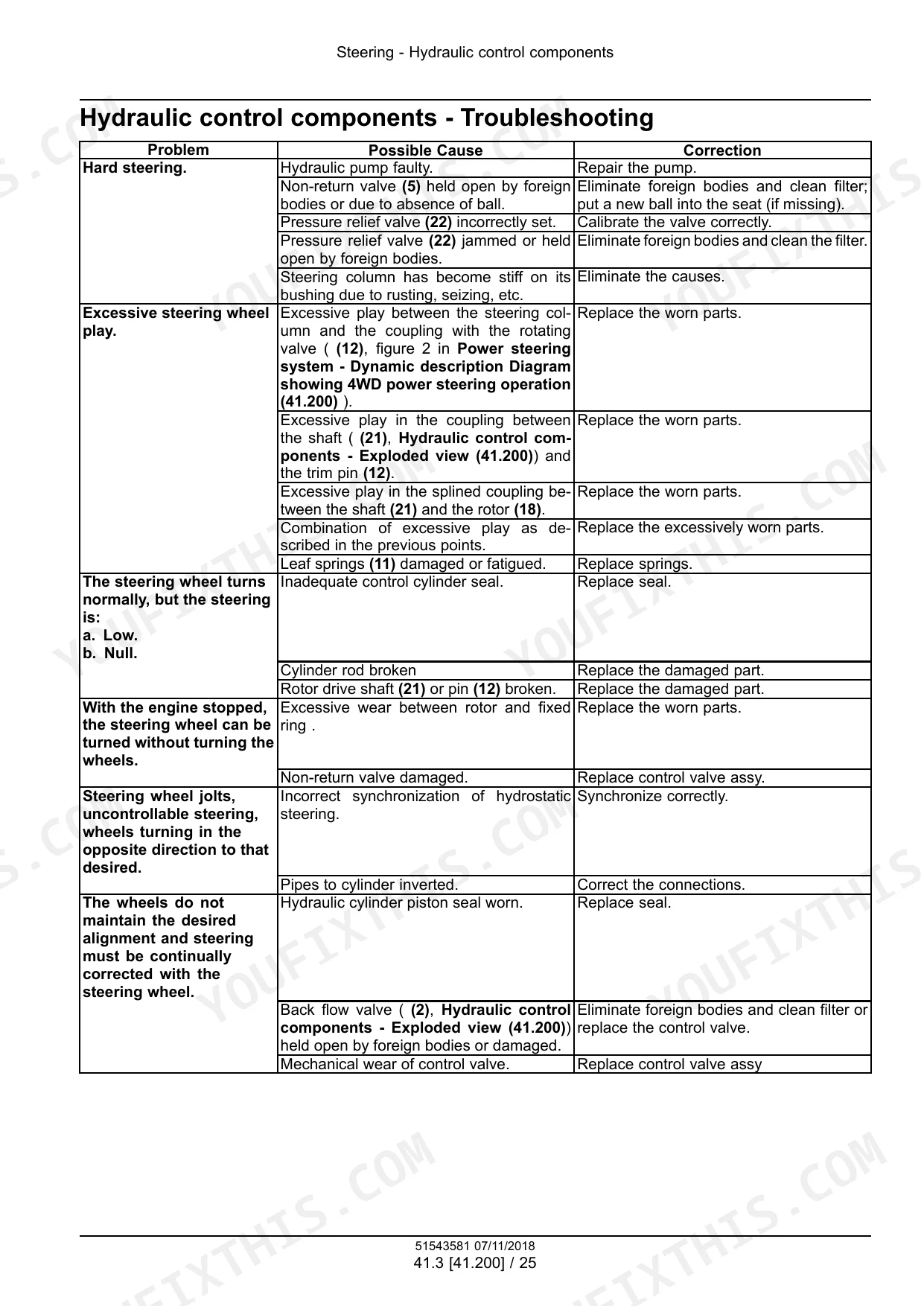

The troubleshooting table lists four causes: a faulty hydraulic pump, a non-return valve held open or missing its ball, a pressure relief valve set wrong or jammed, and a steering column stiff on its bushing. Rule out the column by hand before you put a gauge on the pump.
Manual Section: Steering - Hydraulic control components - Troubleshooting p. 1616A/C: air from the vents is not cooled

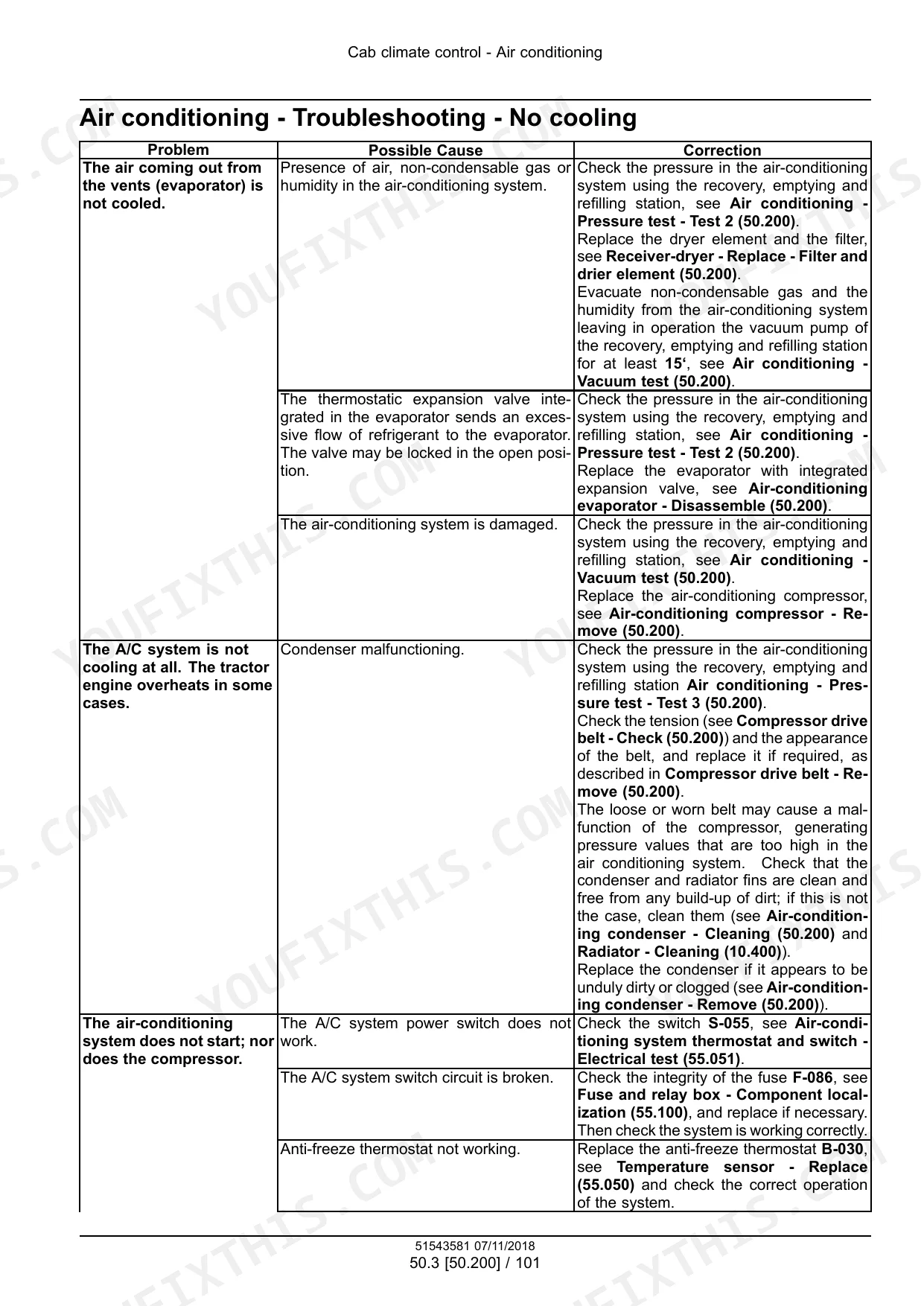

The book points to air, non-condensable gas or humidity in the system, or a thermostatic expansion valve that is sending too much refrigerant or is stuck open. It also lists a damaged system. The Cab climate control troubleshooting tables take you from the symptom to the component.
Manual Section: Cab climate control - Air conditioning - Troubleshooting - No cooling p. 1844Frequently Asked Questions
Does this manual cover my exact tractor and transmission?

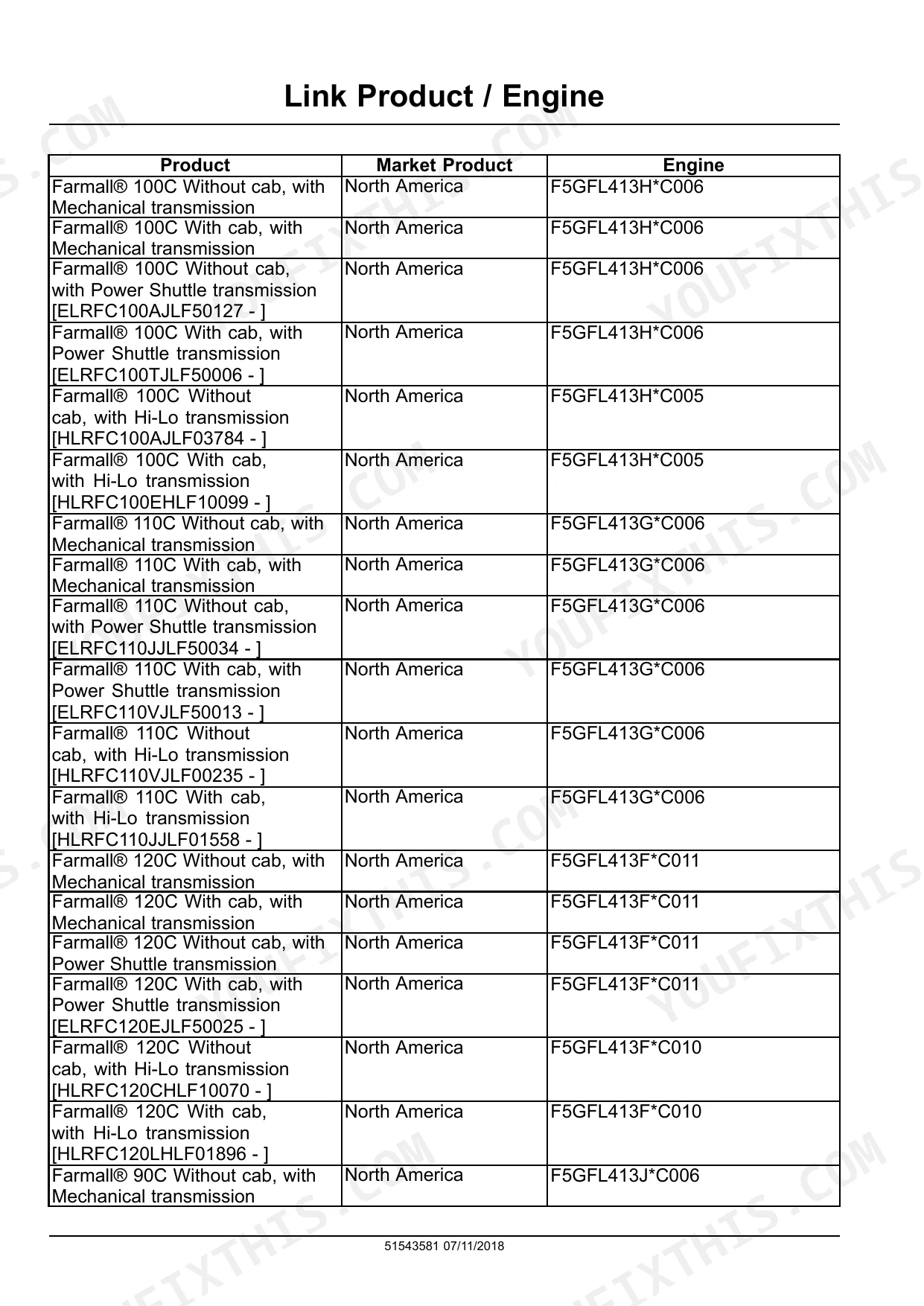

It covers the Farmall 90C, 100C, 110C and 120C in Mechanical, Power Shuttle and Hi-Lo versions, with and without a cab. Engine codes are listed by model. For example, the 90C runs F5GFL413J*C006, or F5GFL413J*C005 with Hi-Lo. Check your PIN plate against the ranges starting at HLRFC120LHLF01896 and ELRFC110VJLF50027. p. 3
My dash is showing 3173 (DTC F623). What is it telling me?
Engine coolant temperature has passed the warning threshold, which the book puts at 111.96 °C (233.53 °F). The listed causes are low coolant, a leak or blockage in the cooling system, extreme heat or heavy work, the coolant temperature sensor or its wiring, and ECU software. Work through the Fault codes section's solution steps in order before you pull anything apart. p. 4071
What torque specs do I need to split a Case IH Farmall 90C-120C tractor?

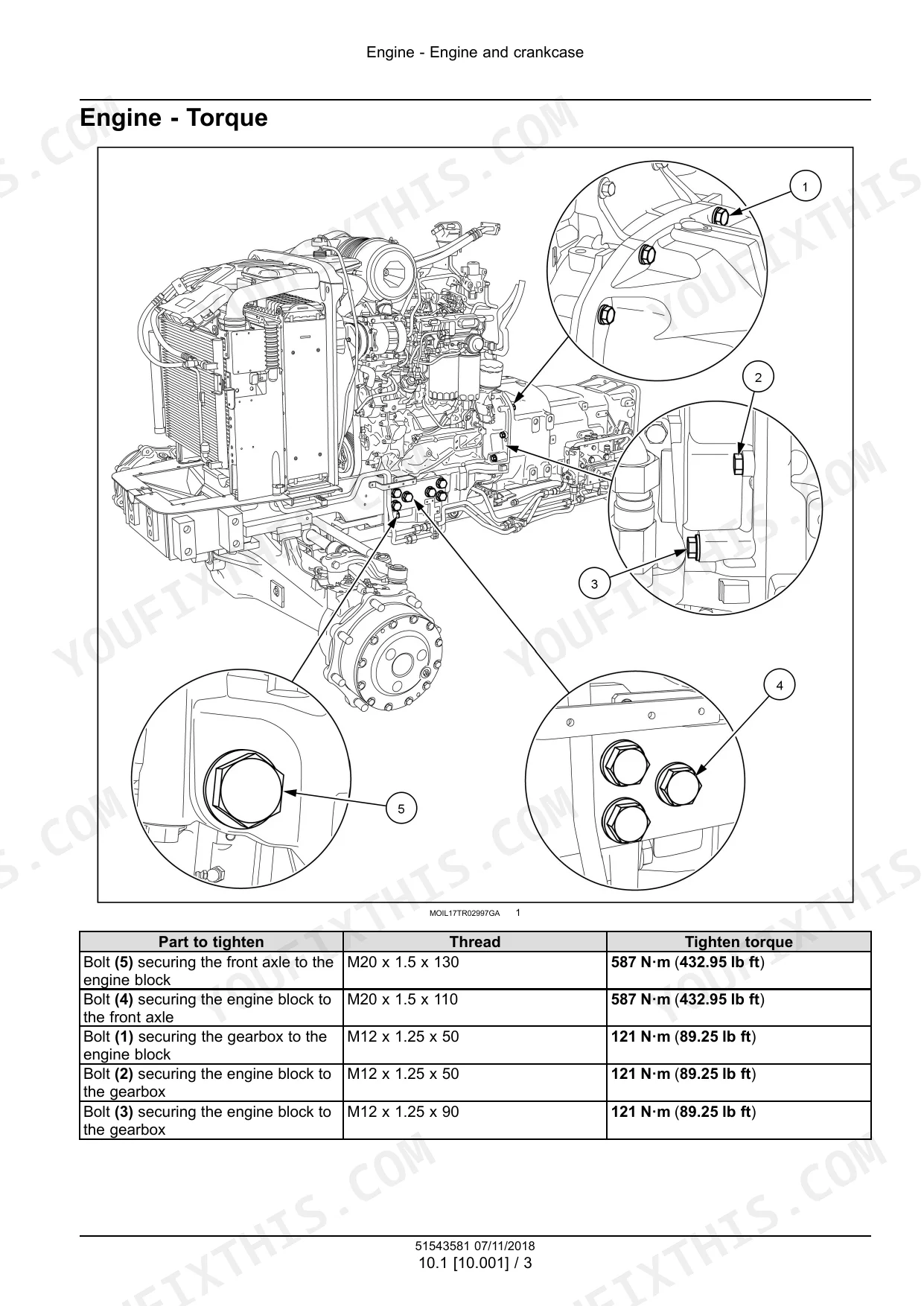

The book gives 587 N·m (432.95 lb ft) for the front axle to engine block bolts. The gearbox to engine block bolts take 121 N·m (89.25 lb ft). The Engine section covers removal and installation, and the Introduction has standard torque data for hydraulic connections. Get the front axle bolts right, because they carry the loader and the front ballast. p. 46
Can I do a full engine rebuild with this book?
No. The Engine section covers engine removal and installation, oil and filter, fuel tanks and filters, air cleaners, manifolds, cooling, the fan, the aftercooler and SCR/EGR. For internal engine work the book sends you to separate engine technical information. Everything bolted around the engine, and the drivetrain behind it, is covered here. p. 45
What oil does it call for, and how much comes out of the transmission?
Engine oil is CASE IH AKCELA UNITEK NO. 1 SBL CJ-4 SAE 10W-40 (API CJ-4). The mechanical transmission drains 48.00 l (12.68 US gal). The consumables table names the correct products but does not list capacities. So measure what comes out of the other compartments and have enough on the shelf before you pull a plug. p. 32
