Part of the Case IH Repair Manuals.
Hydraulic fan drive, product metering, augers, wheels, harnesses and the Rate, Flow and Section Control ECUs are covered for the Case IH Precision Air 2230, 2280, 2330, 3380 and 3430 towed air carts. It is the factory service manual, part number 84329233, 3rd edition. There is no engine chapter.
It prints bolt torque charts by grade, hydraulic tube and fitting torque, and tire pressures and wheel bolt specs for each model.
The fault code sections list the Rate ECU, Flow ECU and Section Control ECU codes with their cause, failure modes and solution steps.
What's Inside This Case IH Precision Air 2230–3430 Manual

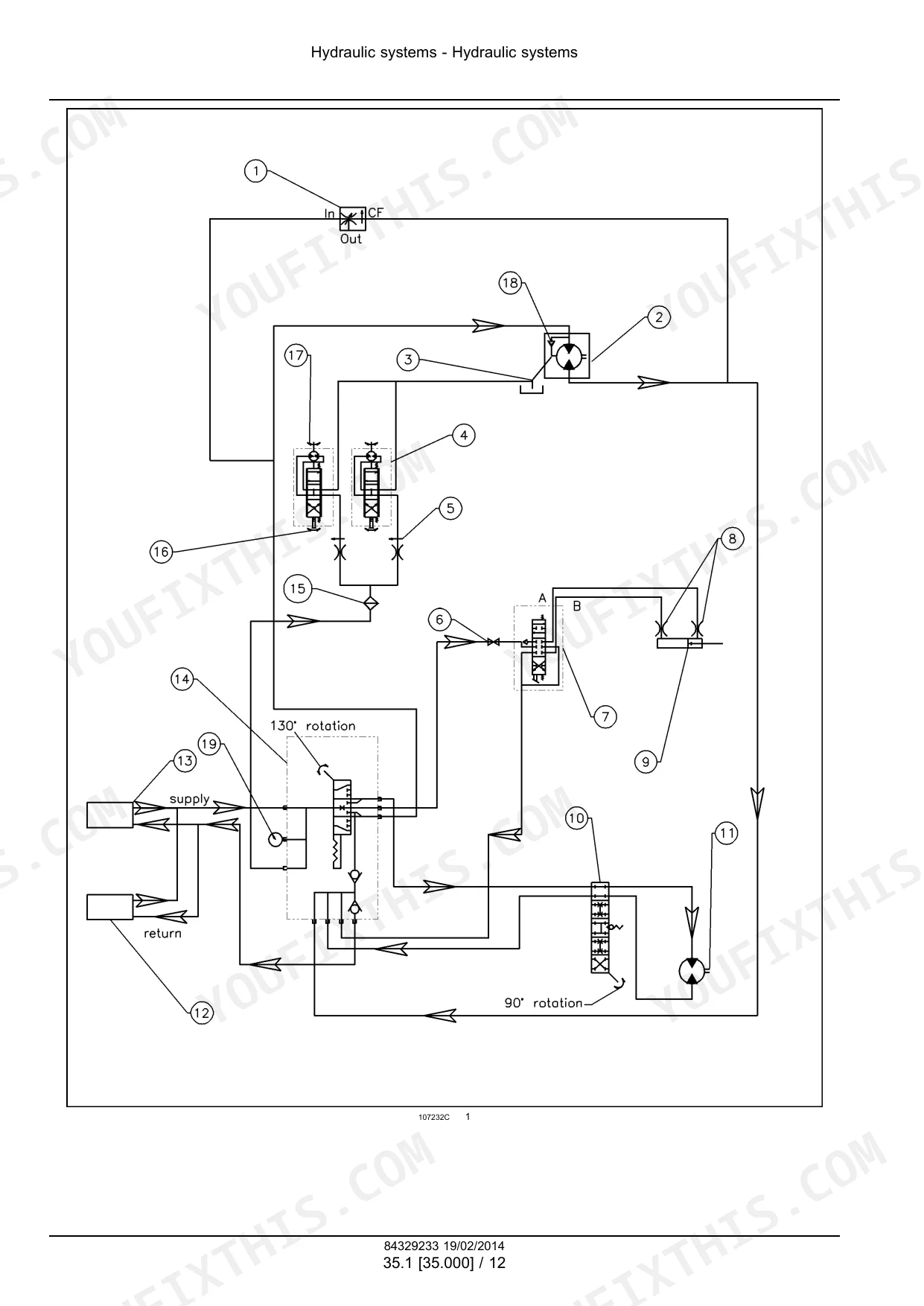

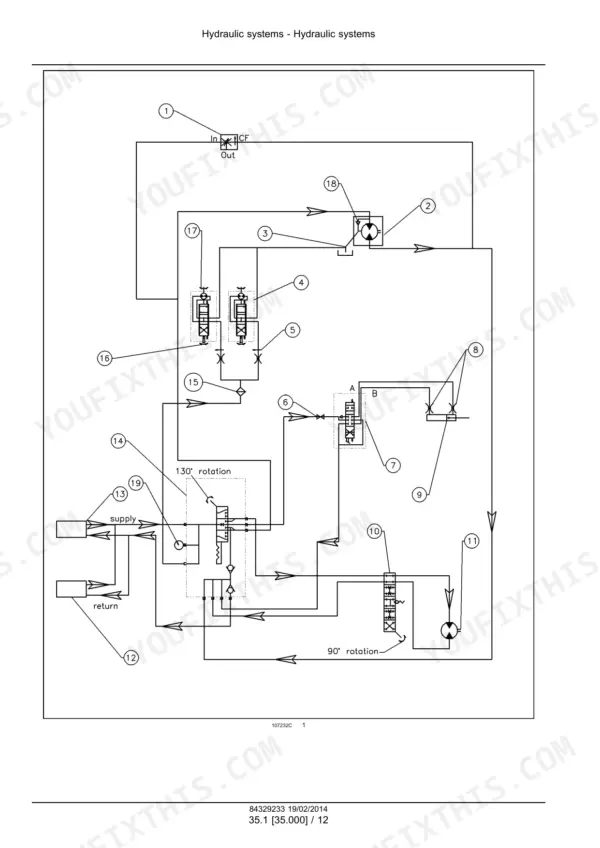

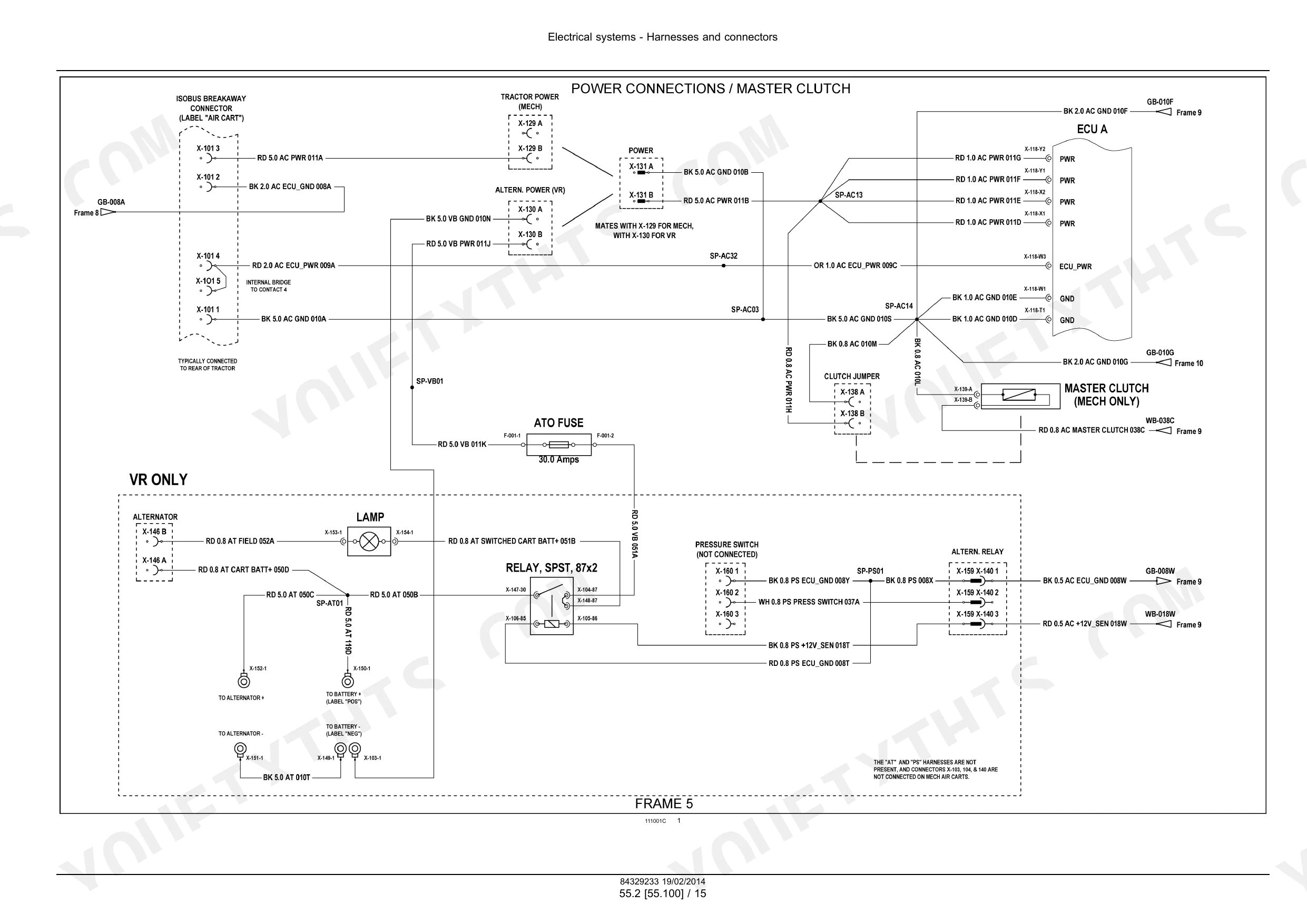

| System | Pages | Key Topics |
|---|---|---|
| Introduction, Safety and Torque | 1-69 | Safety Rules, Hand Signals, Bolt Torque Charts by Grade, Hydraulic Tube and Fitting Torque, Electrical Testing Basics |
| Power Requirements and Dimensions | 70-85 | Hydraulic Fan Drive Requirements, Air Cart Input Requirements, Dimensions and Weights for 2230, 2280, 2330, 3380 and 3430, Product Identification |
| Rear Axle System | 86-103 | Non-Powered Rear Axle |
| Hydraulic Systems | 104-172 | Hydraulic Schema, Flow Explanation, Troubleshooting, Reservoir and Case Drain Lines, Seeding and Metering Hydraulic Circuits |
| Hydraulic Seeding Fan System | 173-201 | Single and Dual Fan Selection Guide, Fan Motor Service, Fan Troubleshooting |
| Wheels | 202-223 | Rear Wheels and Caster Wheels: Tire Pressure, Wheel Bolt Torque, Rims and Hubs, Caster Pivot Housing |
| Electrical System | 224-236 | Tractor Harness Schematic Frames, Power Extension, CAN |
| Harnesses and Connectors | 237-430 | Electrical Schematic Frames for Each Cart: Power Connections, Lighting, Speed and Fan Sensors, Tank Harnesses, CAN Bus; Connector Views |
| Alternator and External Lighting | 431-466 | 60 a and 100 a Alternator Identification, Alternator Service, Lighting Checks |
| Seeding Control System | 467-574 | Air Cart ECU, Sensors, Meter Speed Troubleshooting, Electronic Control Problem Solving, Flow Monitoring |
| Cab Seeding Controls | 575-620 | Console Operation, Communication Loss Problem Solving, Seeding Meter Switch |
| Auger, Electronic Modules and Split Meter Control | 621-654 | Auger Electrics, CAN Data Bus Problem Solving, Split Meter Control System |
| Fault Codes: Air Cart Rate ECU | 655-890 | Fault Code Index and Rate ECU Fault Codes with Context, Cause, Failure Modes and Solution Steps |
| Fault Codes: Flow and Section Control ECUs | 891-1091 | Flow ECU and Flow Gateway Codes, Section Control ECU Fault Codes |
| Metering System | 1092-1179 | Split Meter Control System, Metering Mechanical Drive, Split Meter Agitator, Product Metering and Meter Rollers |
| Product Handling and Auger | 1180-1218 | Product Handling and Delivery Drive System, Auger Adjustment, Auger Troubleshooting |
| Seeding Fan and Air Distribution | 1219-1294 | Seeding Fan System, Air Distribution System, Air Plenums, Troubleshooting |
| Special Tool Index | 1295-1296 | Special Tools |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Part number | 84329233 (3rd edition, March 2014, replaces 87478714) | p. 1 |
| 2230 front / rear tank | 3030 L (86 Bu) / 5074 L (144 Bu) | p. 76 |
| 2230 weight - empty | 3710 kg (8180 lb) | p. 76 |
| 2280 front / rear tank (tow behind) | 4158 L (118 Bu) / 5955 L (169 Bu) | p. 72 |
| 2330 front / rear tank (tow behind) | 5004 L (142 Bu) / 6554 L (186 Bu) | p. 72 |
| Oil flow at 2.3 kg/min per primary (3-6 run + 10 port headers) | 52.3 L per minute (11.5 US gpm) | p. 71 |
| Oil pressure at 2.3 kg/min per primary | 7302 kPa (1059 psi) | p. 71 |
| Variable rate adds per meter | 5.7 L/min (1.25 US gpm) | p. 71 |
| Tractor delivery for high end or dual fan | 90 L/min @ 1380 kPa (20 US gpm @ 2500 psi) | p. 175 |
| Maximum fan speed | 5500 RPM | p. 196 |
| Rear wheel bolt torque (10 bolt) | 440 Nm (325 lb ft) | p. 205 |
| Rear tire 18.4 x 38 pressure 2280 / 3380 | 140 kPa (20 psi) | p. 205 |
| Rear tire 18.4 x 38 pressure 2330 / 3430 | 160 kPa (23 psi) | p. 205 |
| Caster wheel bolt torque (8 bolt) | 160 Nm (120 lb ft) | p. 211 |
| Caster tire 22.5L x 16.1 (R3) ST II | 150 kPa (22 psi) | p. 211 |
| Alternator | 60 A single fan; 100 A dual fan from serial YCS000000 | p. 433 |
Case IH Precision Air 2230–3430 Common Problems This Manual Covers
Fan is fast
The fan troubleshooting table blames fan speed above the operator set limit. Slow the fan down or raise the high fan alarm threshold, and do not run it faster than 5500 RPM. The same table covers no oil flow to or from the fan motor. Its causes are dirty or damaged couplers, a closed control valve and an extremely low oil level. It also lists a coupler not inserted, a closed tractor control valve line, a pinched, collapsed or burst hose, and a faulty fan motor.
Manual Section: Hydraulic seeding fan system - fan troubleshooting p. 196Meter speed does not read
First, verify the sensor has power and ground. Next, check the signal voltage from the sensor. Above 8.2 V, the signal line may be shorted to power. Below 0.6 V, it is shorted to ground or open. If it reads between 7.0 - 8.2 V with the sensor unplugged, the sensor is likely bad.
Manual Section: Seeding control system - meter speed troubleshooting p. 492Many inadequate flow alarms
The flow monitoring table lists the causes in this order. First, the air cart fan speed is too slow, so increase the fan speed. Next come empty tanks, then plugged or worn openers. After that, the table lists secondary hoses blocked by wet soil and plugged primary hoses. Flow ECU and flow gateway codes are listed separately in the flow and section control fault code section.
Manual Section: Seeding control system - flow monitoring p. 570Auger will not operate
The auger troubleshooting table lists the causes in this order: no oil supply to the auger motor, hydraulic control levers returned to neutral, a faulty auger spool valve and a seized auger motor. It continues with product feed rate too high, jammed flighting and a sheared flighting drive pin. Insufficient hydraulic oil pressure means operating the tractor above idle speed. On variable drive carts the table adds a pressure valve that is not closed: close the valve.
Manual Section: Product handling and auger - auger troubleshooting p. 1216Frequently Asked Questions

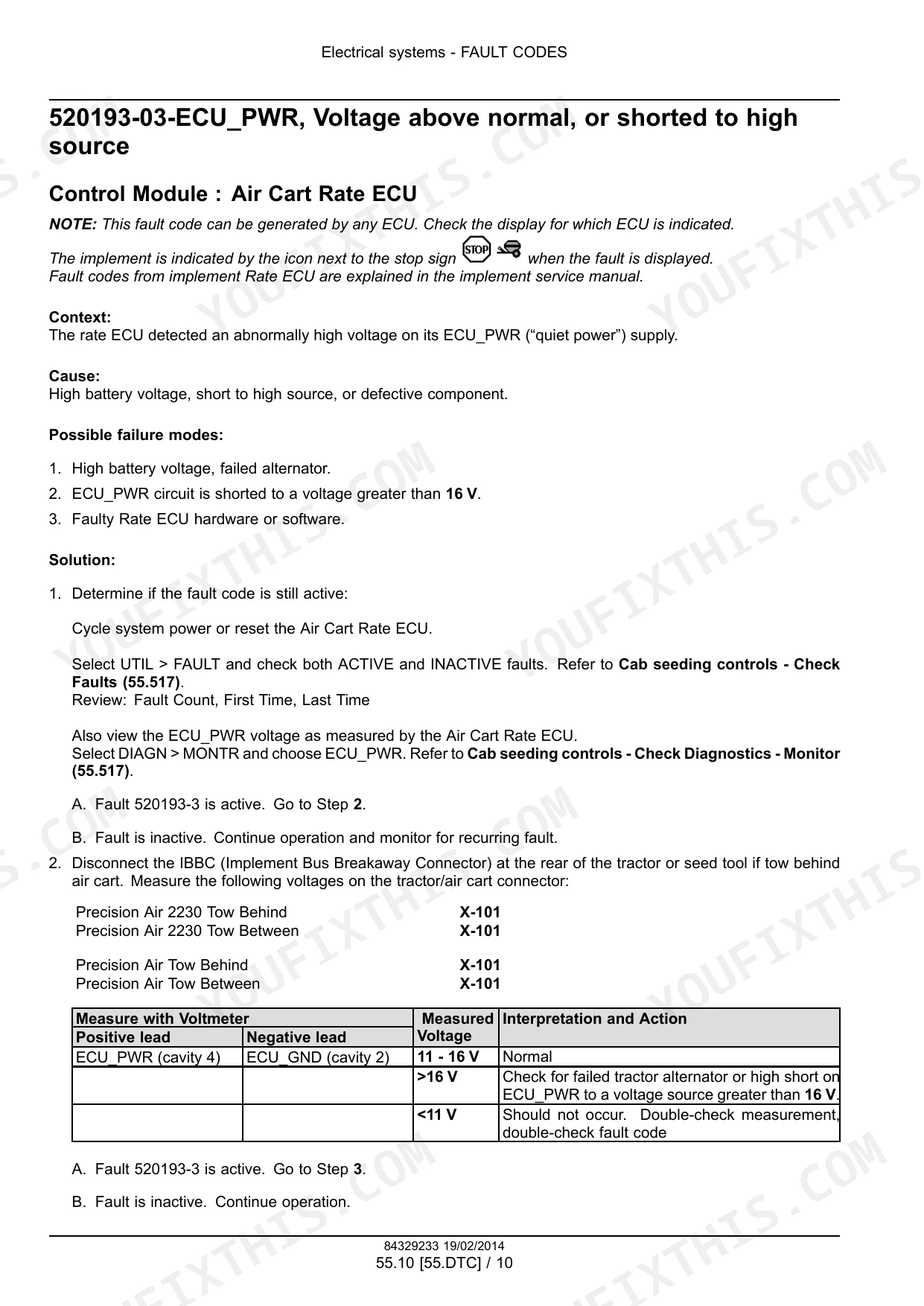

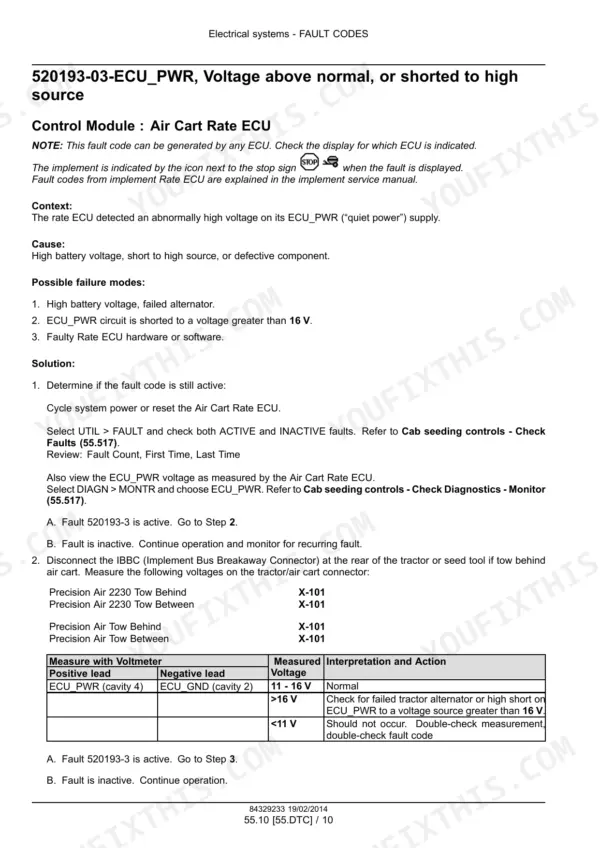

What does fault code 520193-03 mean on a Precision Air cart?
The Air Cart Rate ECU detected abnormally high voltage on its ECU_PWR supply. The book lists three failure modes. The first is high battery voltage or a failed alternator. The second is the ECU_PWR circuit shorted to a voltage greater than 16 V. The third is faulty Rate ECU hardware or software. Solution step 1 is to cycle system power or reset the Rate ECU. Then select UTIL > FAULT and check both ACTIVE and INACTIVE faults. The book also notes that only about 1 in 10 returned Rate ECUs are actually defective. p. 664

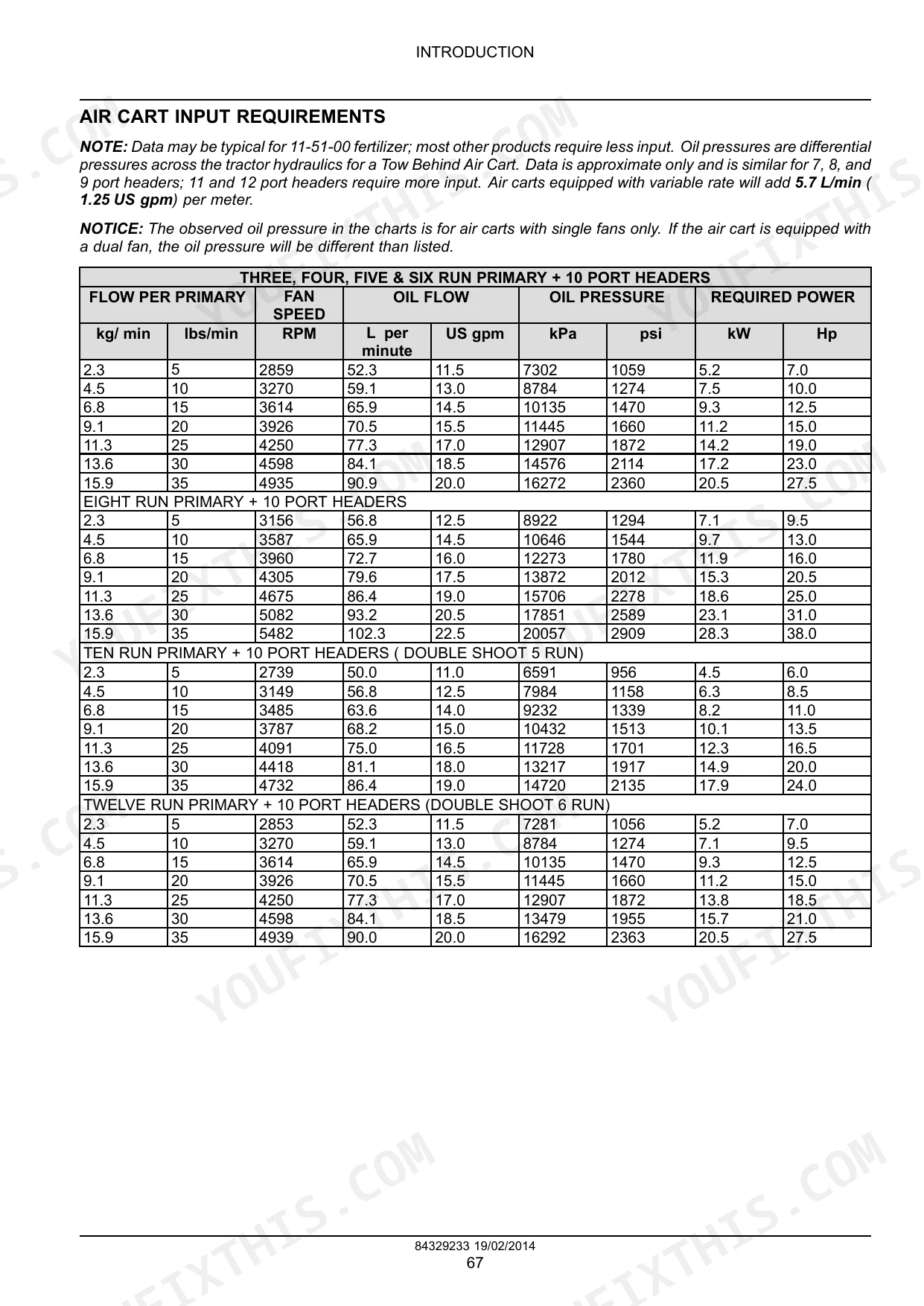

How much hydraulic flow does a Precision Air cart need from the tractor?

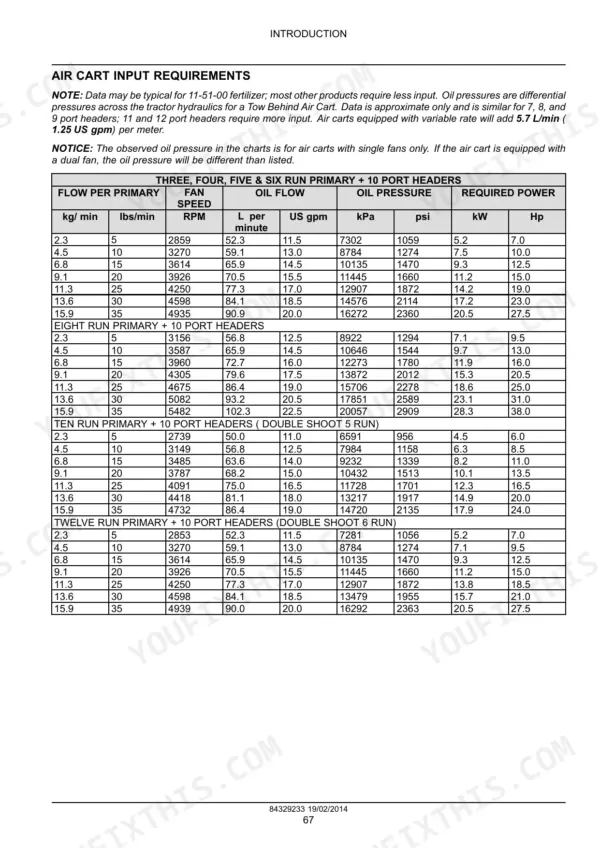

The input requirement chart is based on three, four, five and six run primary + 10 port headers at 2.3 kg/min (5 lbs/min) per primary. For that setup it lists fan 2859 RPM, oil flow 52.3 L per minute (11.5 US gpm) and oil pressure 7302 kPa (1059 psi). Carts equipped with variable rate add 5.7 L/min (1.25 US gpm) per meter. High end or dual fan applications need 90 L/min @ 1380 kPa (20 US gpm @ 2500 psi), measured at the couplers. Check the case drain too. Some tractors are rated for only 11.4 L/min at 172 kPa (3 US gpm at 25 psi). Larger tanks can put 18.9 L/min (5 US gpm) or more through it. If couplers pop out when the hydraulic motor is activated, the case drain is insufficient. p. 71

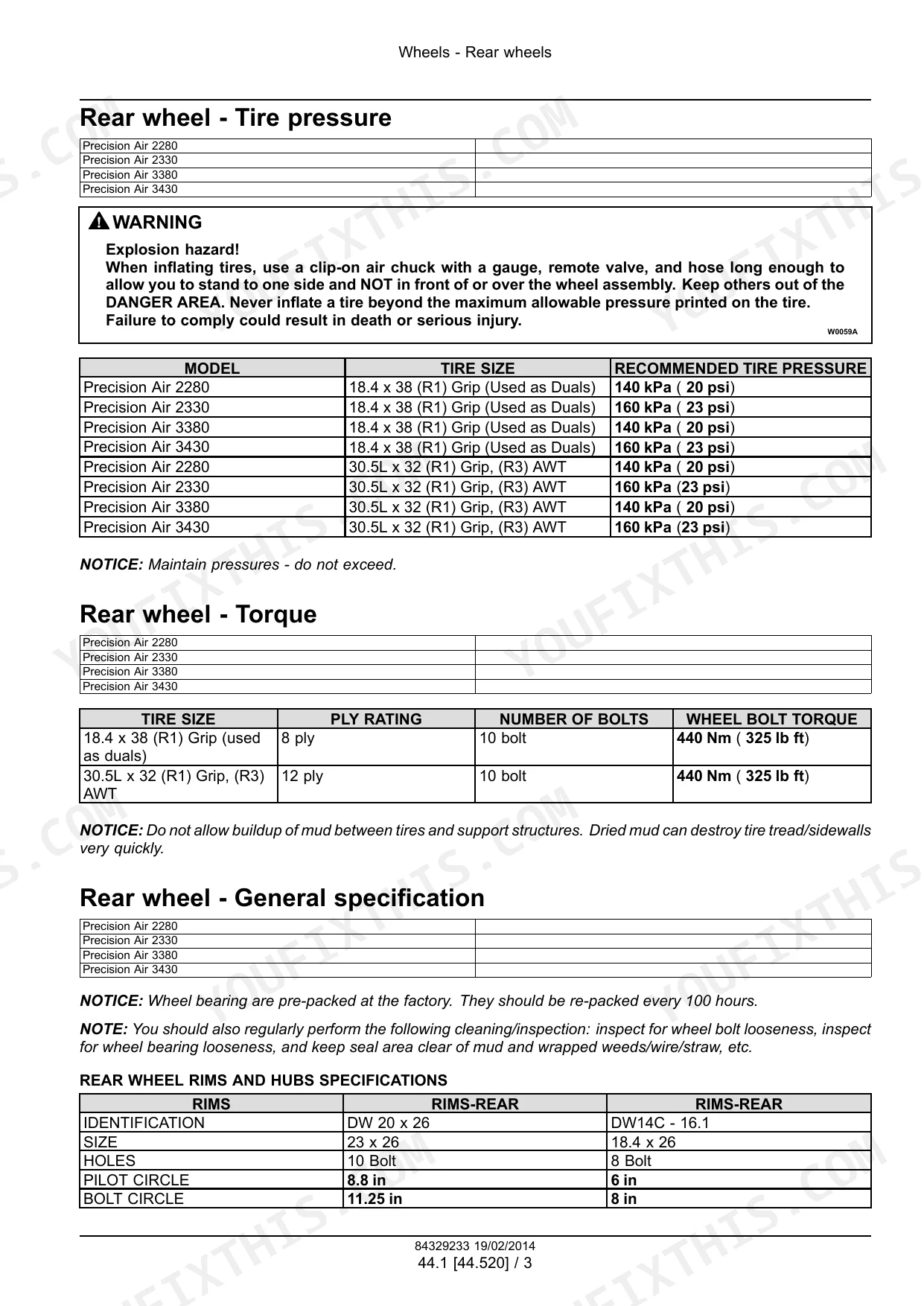

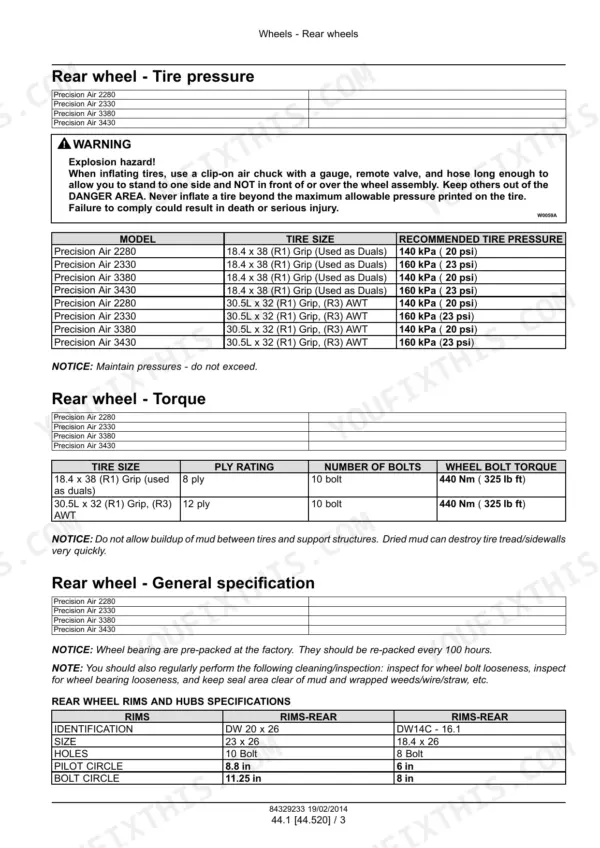

What is the wheel bolt torque on a Precision Air 3430?
Rear wheel bolts take 440 Nm (325 lb ft) on a 10 bolt pattern with 18.4 x 38 (R1) tires. The 3430 and 2330 run those tires at 160 kPa (23 psi). The 2280 and 3380 run them at 140 kPa (20 psi). The caster wheels use a different spec: 160 Nm (120 lb ft), 8 bolt. The caster tire is a 22.5L x 16.1 (R3) ST II at 150 kPa (22 psi). p. 205

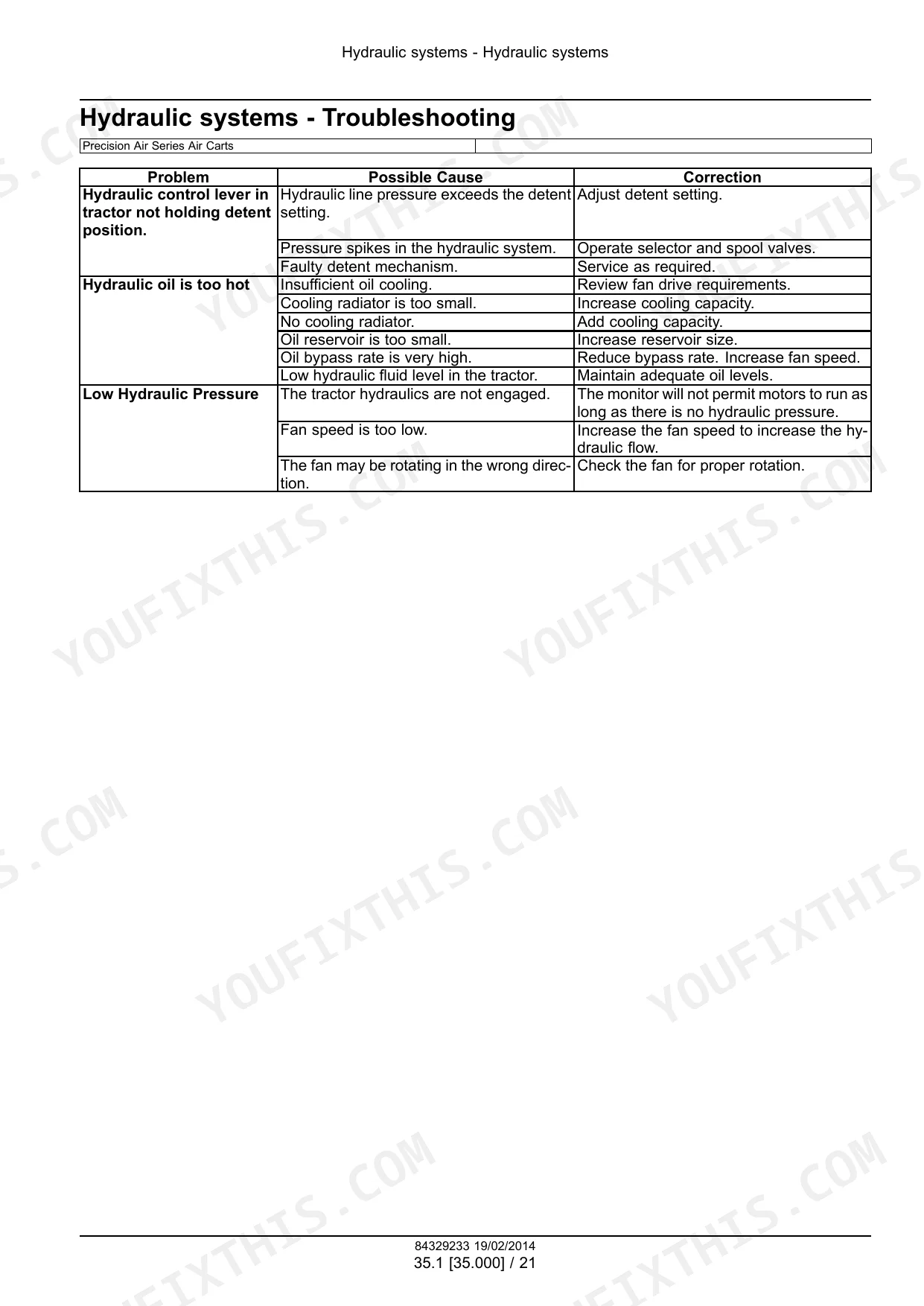

Why does my air cart fan run slow or hydraulic oil get hot?
The Hydraulic systems troubleshooting table lists the hot oil causes in this order. Insufficient oil cooling: review fan drive requirements. Cooling radiator too small: increase cooling capacity. No cooling radiator: add cooling capacity. Oil reservoir too small: increase reservoir size. Oil bypass rate very high: reduce bypass rate and increase fan speed. Low hydraulic fluid level in the tractor: maintain adequate oil levels. For low hydraulic pressure, the table lists tractor hydraulics not engaged and fan speed too low. It also lists the fan rotating in the wrong direction. p. 125
Which alternator should a dual fan Precision Air cart have?
Dual fan carts, serial number YCS000000 and above, should have the 100 A alternator. Single fan carts still use the 60 A unit. Viewed from the back, the positive post is on the left side on the 100 A and on the right side on the 60 A. The Alternator and external lighting section covers identification, alternator service and lighting checks. p. 433
