Splitting a Farmall 50A, 60A or 70A for the clutch, setting bevel gear backlash, or tracing a DTC through the ECU is covered in this factory service manual. It is part number 47866582, 1st edition English December 2015, for the Tier 4B (final) 2WD and 4WD tractors.
It covers engine remove and install, then clutch, transmission, front and rear axles, PTO, brakes, hydraulics, steering, wiring schematics and fault codes. The book prints 294 N·m (217 lb ft) for the bevel pinion lock ring and 190 bar (2755 psi) for the pressure regulating valve.
At the back, a special tool index lists genuine tool numbers with page references, so you have the right number the first time.
What's Inside This Case IH Farmall 50A–70A Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction and Fuel | 1-19 | Safety Rules, Basic Hardware and Torque Instructions, Biodiesel Fuel Specification |
| Engine Removal and Engine Systems | 20-83 | Engine Remove and Install, Crankshaft and Flywheel, Air Cleaners, Fuel Filters, Fuel Tanks, Aftercooler, Engine Cooling System |
| Clutch | 84-117 | Mechanical Release Control, Clutch Specification, Torque, Sealing, Troubleshooting |
| Transmission | 118-199 | Mechanical Transmission Specification and Torque, External Controls, Internal Components, Gearbox, Troubleshooting |
| Four-Wheel Drive (4WD) System | 200-209 | 4WD Engagement and Drive Line |
| Front Axle System | 210-279 | Powered Front Axle Specification and Torque, Bevel Gear Set and Differential, Final Drive Hub, Steering Knuckles, Non-Powered Front Axle |
| Rear Axle System | 280-327 | Rear Bevel Gear Set and Differential, Planetary and Final Drives, Troubleshooting |
| Power Take-Off (PTO) | 328-357 | Rear Mechanical Control, PTO Clutch and Drive |
| Brakes and Controls | 358-379 | Mechanical Service Brakes Specification, Adjustment, Troubleshooting |

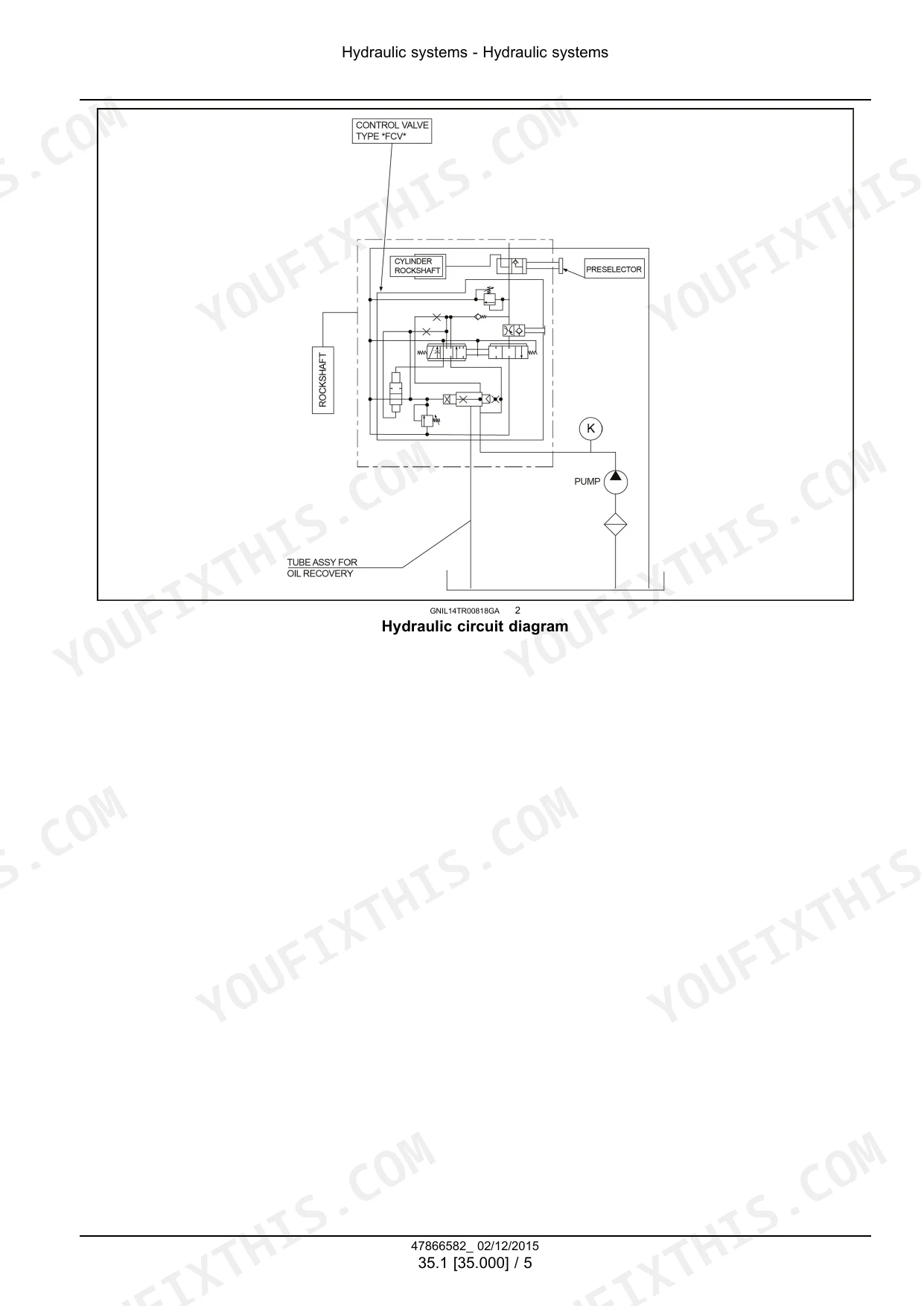

| Hydraulic Systems | 380-467 | Hydraulic Schema and Circuit Diagram, Main Lift System, Fixed Displacement Pump, Remote Control Valves, Troubleshooting |
| Steering | 468-525 | Steering Control, Hydraulic Control Components, Power Steering Pump, Cylinders, Troubleshooting |
| Wheels | 526-543 | Front and Rear Wheels, Wheel Bolt Torque |
| Electrical System and Sensors | 544-559 | Electrical System Specification and Troubleshooting, Battery, Sensors |

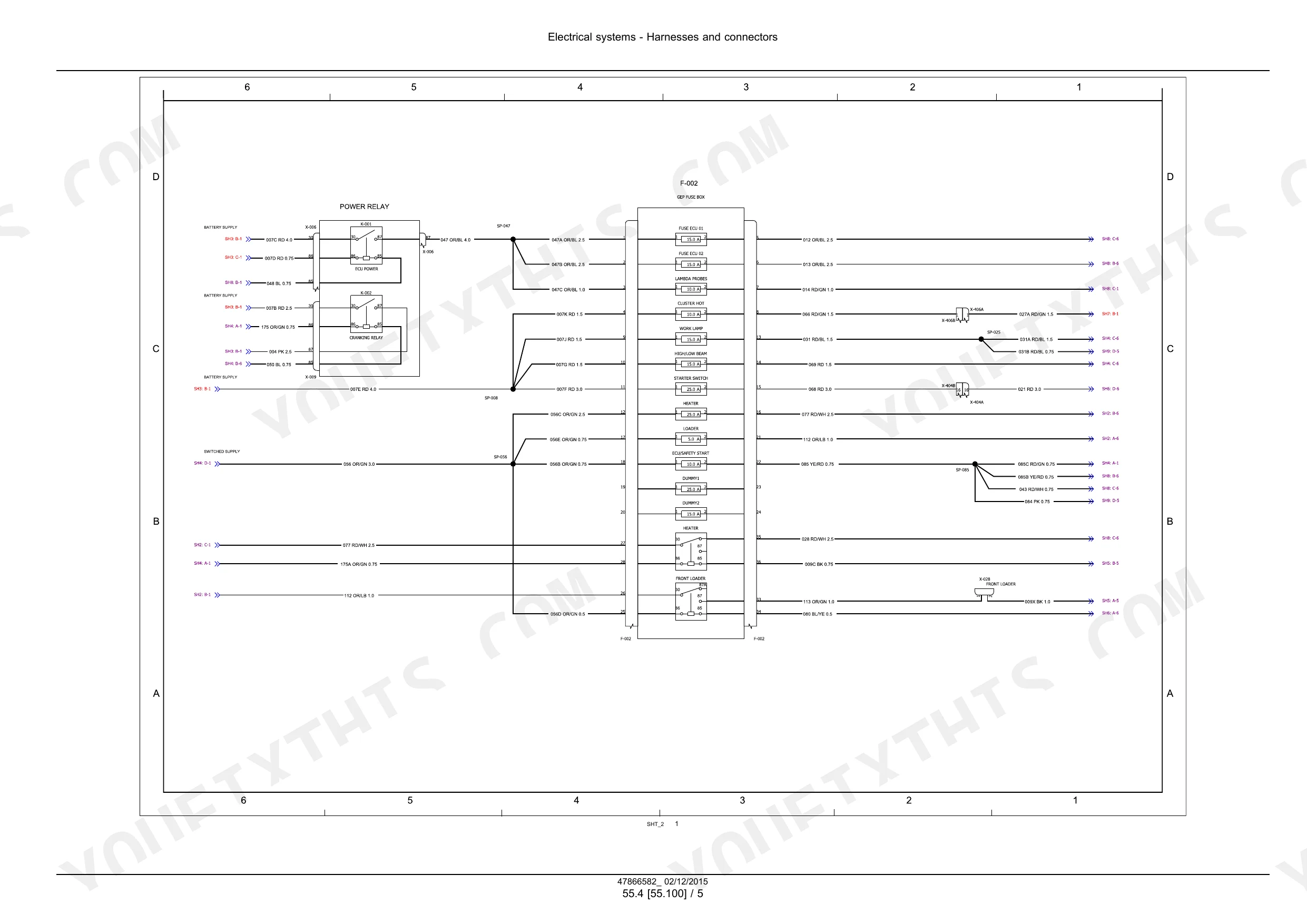

| Electrical Schematics | 560-591 | Electrical Schematic Sheets SH01-SH12 and Engine Schematic Sheets for Power Distribution, ECU and After Treatment, Engine Sensors |
| Connectors and Harness Troubleshooting | 592-661 | Wire Connector Component Diagrams, Safety Start Circuit Troubleshooting |
| Starter, Alternator, Lighting and Instruments | 662-717 | Engine Starter, Alternator, External Lighting, Instrument Cluster, Controls |
| Fault Codes: Sensors, Fuel Rail and Injectors | 718-827 | DTC Index, Water in Fuel, Coolant and Intake Sensors, Fuel Rail Pressure, Injector Circuits and Programming |
| Fault Codes: ECU, Turbo, Throttle and CAN | 828-1028 | ECU Internal Failures, Oil Pressure Switch, Turbocharger Boost, Throttle Valve Actuator, Lambda Sensor, CAN Timeouts |
| Platform, Cab, Bodywork and Decals | 1029-1057 | Operator Platform, Bodywork, Decals |
| Special Tool Index | 1058-1061 | Genuine Tool Numbers with Page References |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Engine code (Link Product / Engine) | R 753 IE4 | p. 3 |

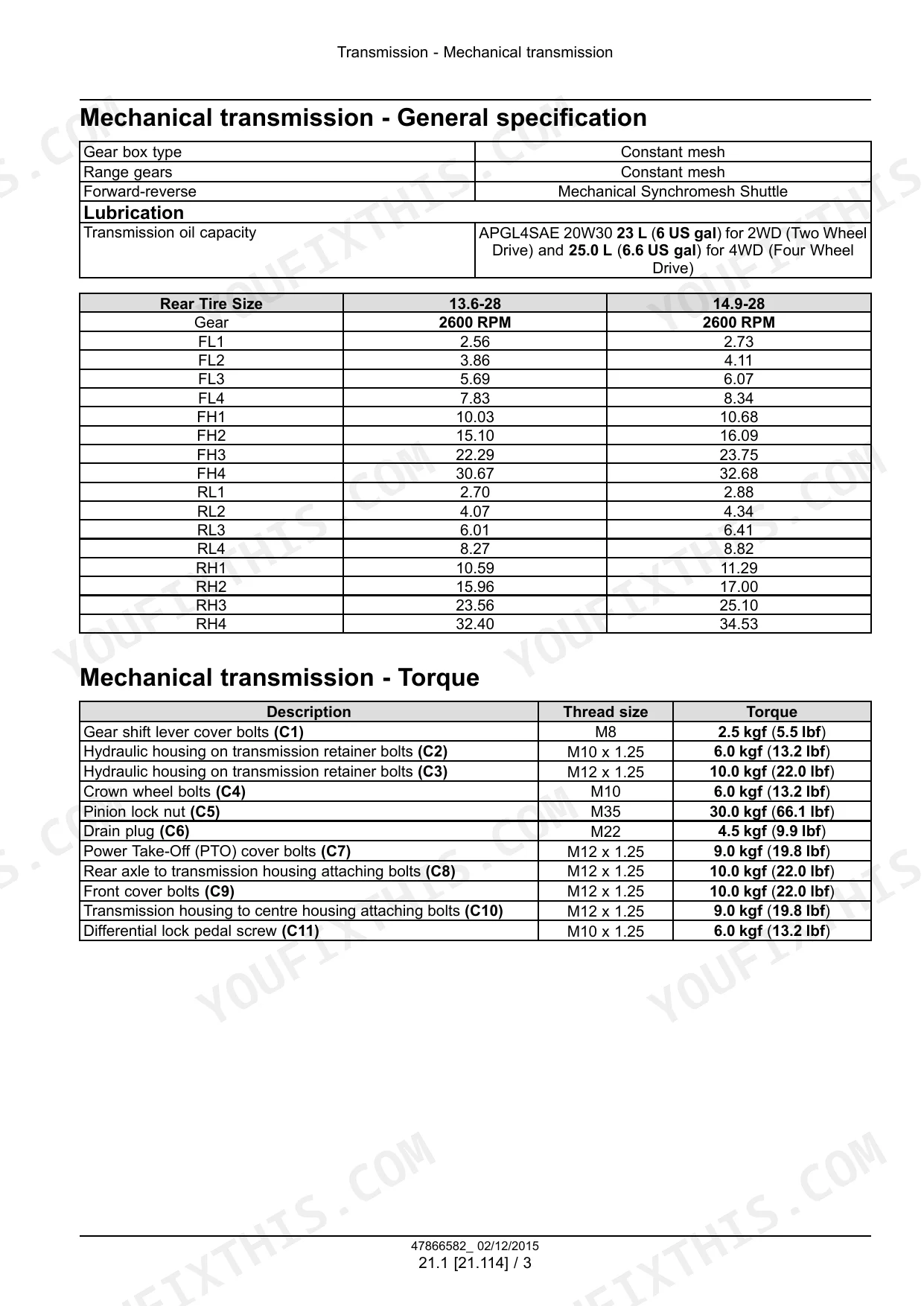

| Gear box type | Constant mesh | p. 120 |
| Forward-reverse | Mechanical Synchromesh Shuttle | p. 120 |
| Transmission oil | APGL4SAE 20W30 | p. 120 |
| Transmission oil capacity 2WD | 23 L (6 US gal) | p. 120 |
| Transmission oil capacity 4WD | 25.0 L (6.6 US gal) | p. 120 |
| Clutch plate thickness | 7.50 - 8.10 mm (0.30 - 0.32 in) | p. 96 |
| 4WD axle pinion-ring gear ratio | 9/38 = 1:4.2 | p. 212 |

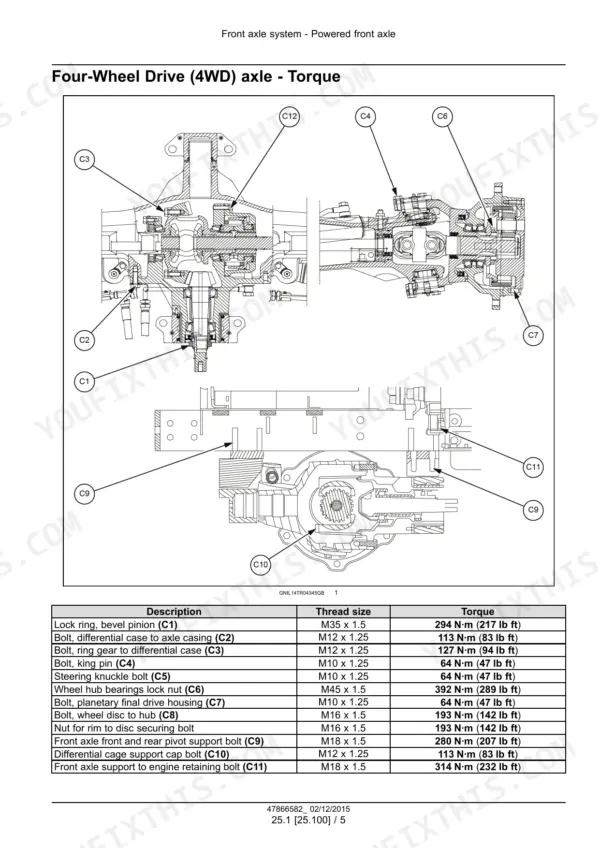

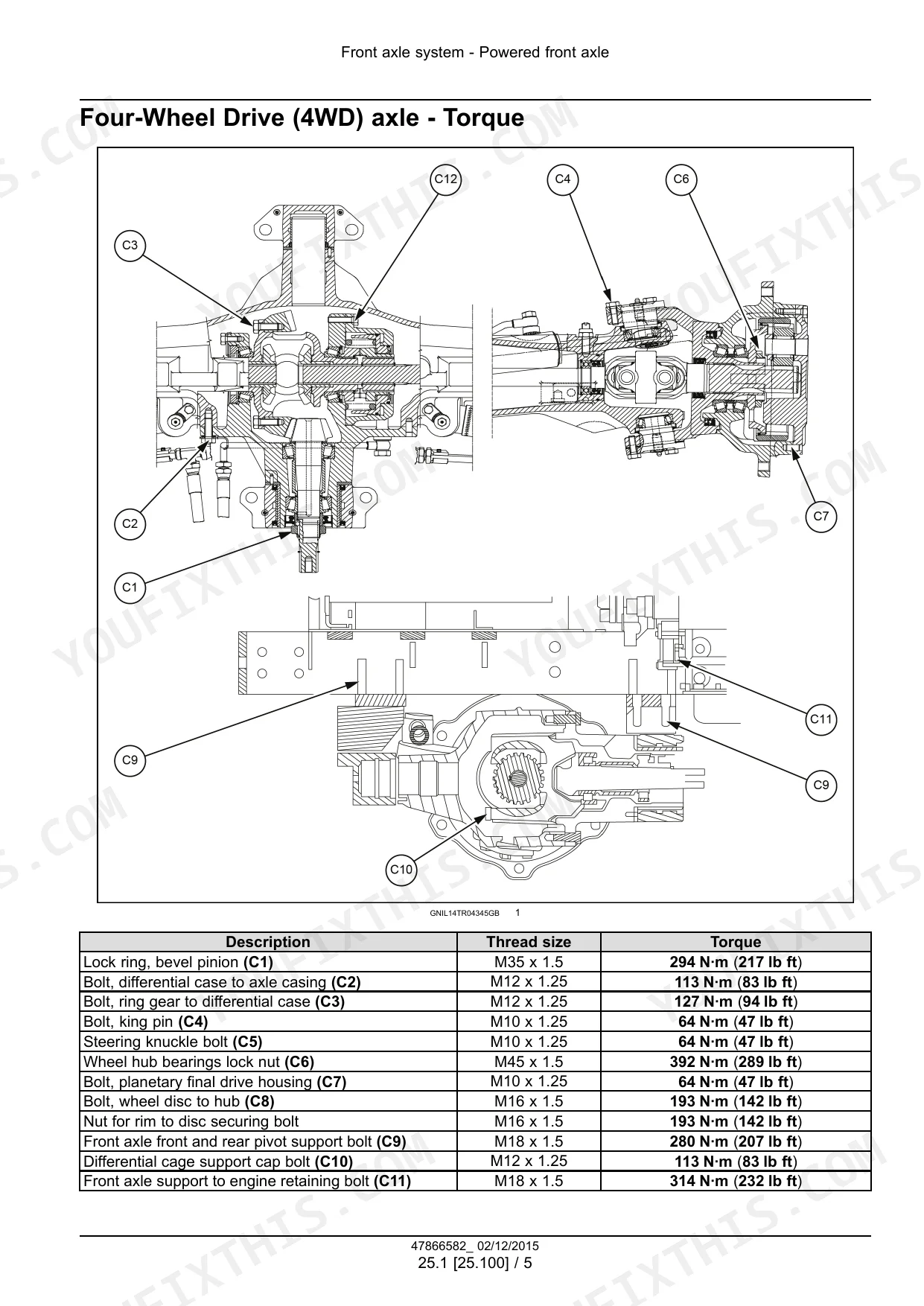

| Lock ring, bevel pinion (C1) M35 x 1.5 | 294 N·m (217 lb ft) | p. 214 |
| Wheel hub bearings lock nut (C6) M45 x 1.5 | 392 N·m (289 lb ft) | p. 214 |
| Rear pinion to crown wheel backlash | 0.180 mm (0.007 in) - 0.230 mm (0.009 in) | p. 286 |
| Brake pedal free play | 50 - 55 mm (1.97 - 2.17 in) | p. 360 |
| Nominal brake disc thickness | 4.65 mm (0.183 in) | p. 360 |
| Lift pressure regulating valve setting | 190 bar (2755 psi) | p. 392 |
| Lift cylinder safety valve opening pressure | 205.0 bar (2972.5 psi) | p. 392 |
| Lift pump flow at 1500 RPM & 210 bar | 21.12 L/min | p. 422 |
| Steering pump flow at 1500 RPM & 210 bar | 10.56 L/min | p. 508 |
| Front wheel bolt torque | 192.0 N·m (141.6 lb ft) | p. 533 |
| Alternator | 75 A | p. 546 |
| Battery | 12 V, BCI group 47, CCA 600-850 | p. 546 |
Case IH Farmall 50A–70A Common Problems This Manual Covers
Clutch slips
The clutch troubleshooting table lists three causes. First, clutch disc, pressure plate and/or flywheel wear: replace the clutch disc, replace the clutch if necessary and grind the flywheel. Second, damaged, bent or broken fingers: replace the finger assembly. Third, oil or grease on the friction material: replace the clutch disc and repair the lubricant leak. Plate thickness is specified at 7.50 - 8.10 mm (0.30 - 0.32 in).
Manual Section: Clutch: specification and troubleshooting p. 113The rockshaft lifts jerkily

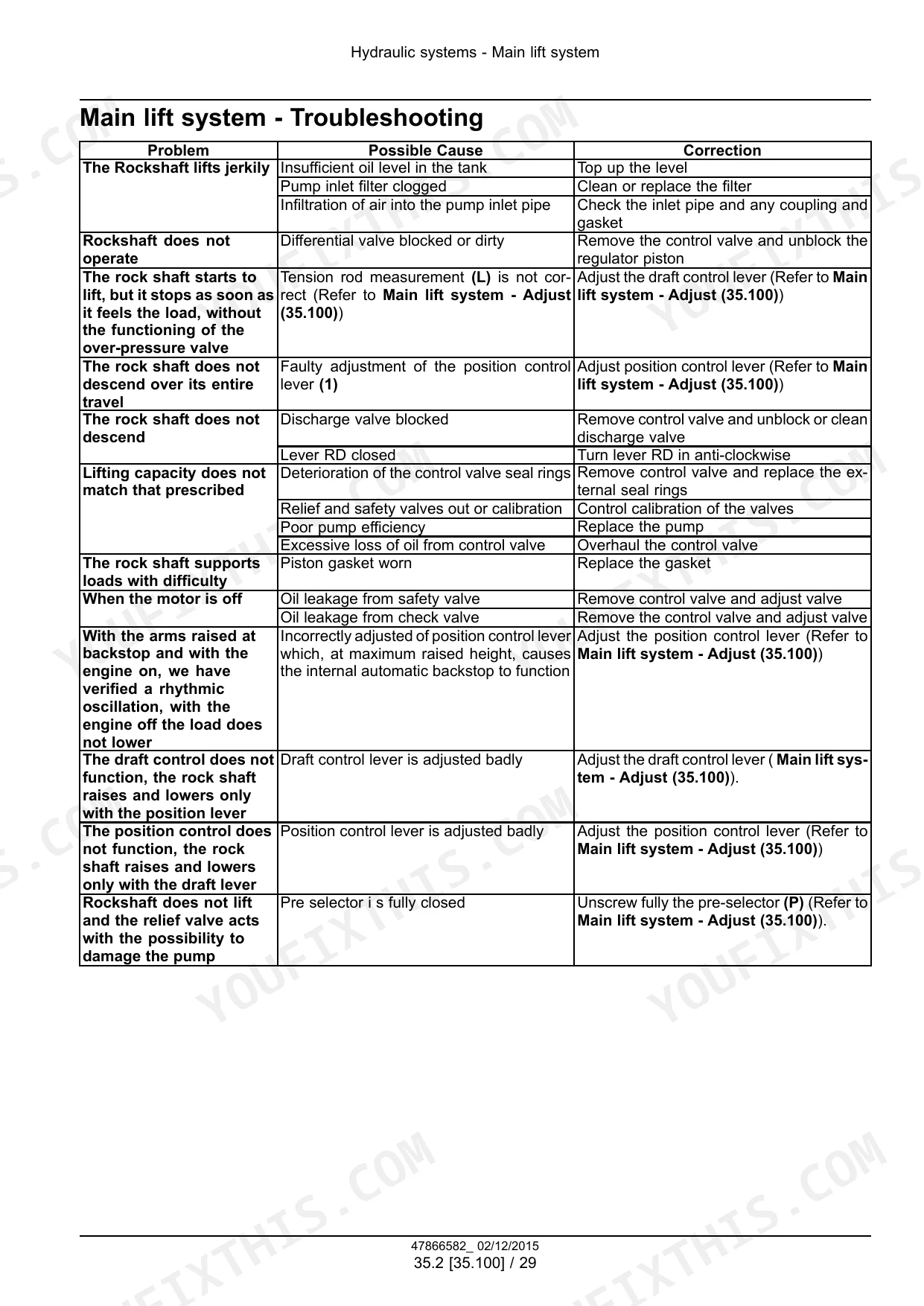

Main lift troubleshooting gives three causes in order. Insufficient oil level in the tank: top up the level. Pump inlet filter clogged: clean or replace the filter. Air getting into the pump inlet pipe: check the inlet pipe and every coupling and gasket. The lift pump is a Rexroth gear type, 16 cm³ per revolution, mounted in tandem with the steering pump.
Manual Section: Hydraulic systems: main lift system troubleshooting p. 418Tractor pulls to one side when brakes applied
The service brakes troubleshooting table lists three causes. Brakes not equally adjusted: adjust them. Wrong tire pressure: inflate the tires to the correct pressure. Wrong liners on one side: replace the discs. Each side has 3 oil immersed discs, with a nominal thickness of 4.65 mm (0.183 in). Brake pedal free play is 50 - 55 mm (1.97 - 2.17 in).
Manual Section: Brakes and controls: mechanical service brakes adjustment and troubleshooting p. 375Steering wheel is heavy to turn
Steering troubleshooting starts with no or insufficient oil pressure: the pump does not run, is defective, turns the wrong way or is worn out. Next is a pressure relief valve stuck open or set too low: repair or clean it, then adjust. Then comes a priority valve stuck open: repair or clean it. The table continues with too much friction in the steering mechanics and missing emergency steering balls. The steering pump is a Rexroth gear type, 8 cm³ per revolution.
Manual Section: Steering: power steering pump and troubleshooting p. 477Frequently Asked Questions
What does a Farmall 60A fault code like DTC 131-03 mean?

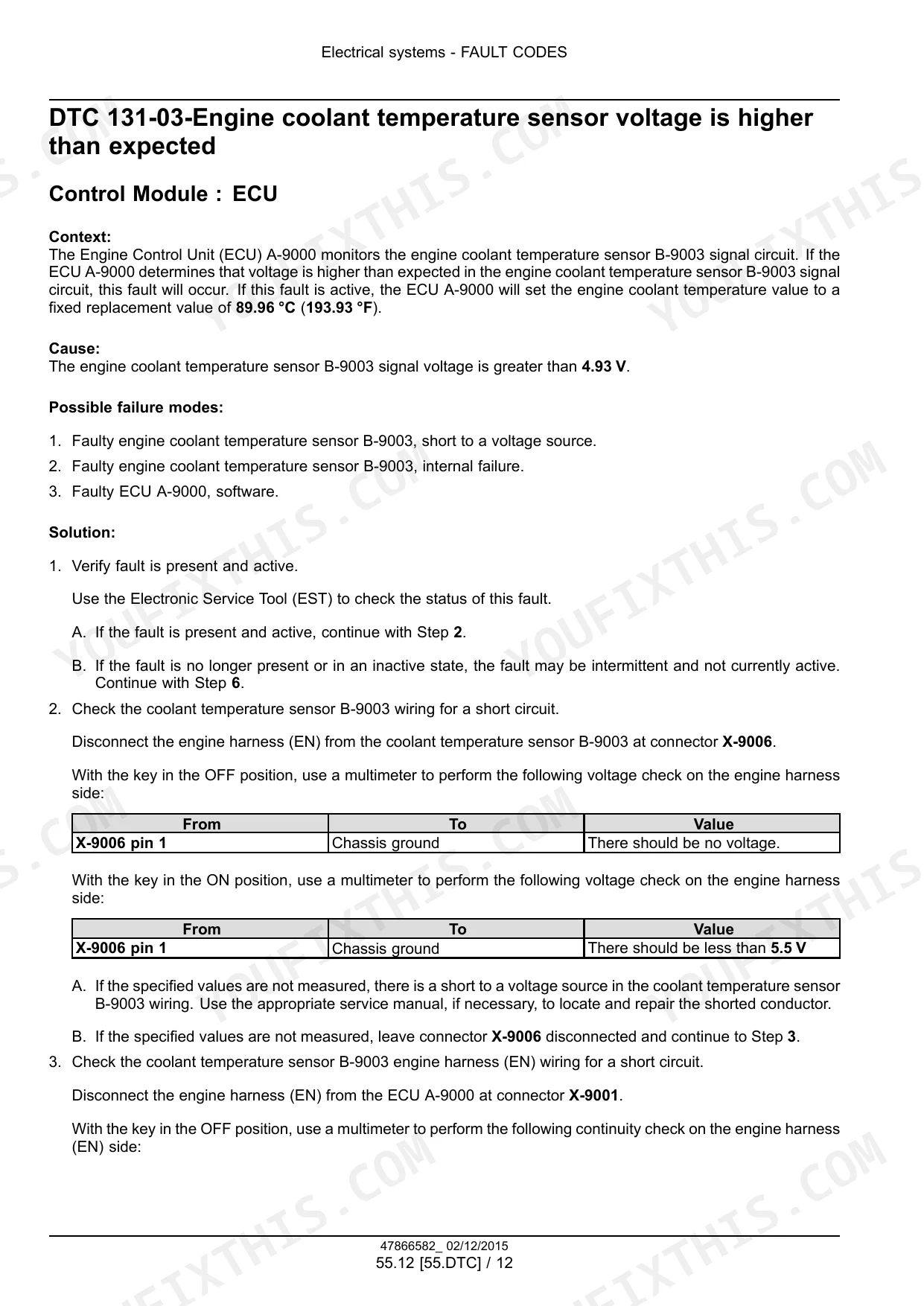

DTC 131-03 means the engine coolant temperature sensor voltage is higher than expected. ECU A-9000 monitors sensor B-9003 and sets the code when signal voltage is greater than 4.93 V. The ECU then uses a fixed replacement value of 89.96 °C (193.93 °F). Step 1 is to check the fault status with the Electronic Service Tool (EST). After that come wiring checks at connectors X-9006 and X-9001, pins A57/A58. The book prints no procedure for clearing or resetting codes. p. 729
Why won't my Case IH Farmall 50A–70A tractor start?
The safety start troubleshooting table lists these causes, in this order, for a starter motor that will not energize. Insufficient battery charge: test the battery. Blown fusible link: inspect and replace. Defective key switch. Defective PTO safety or safety start relay: test the relays. Malfunctioning safety start switch: test the neutral range, main PTO transmission clutch and seat safety start switches. The battery spec is 12 V negative ground, BCI group 47, CCA 600-850. Main system protection is a Mega Fuse 125 A. p. 656
What oil and how much goes in the Farmall 50A transmission?
The book calls for APGL4SAE 20W30 transmission oil. Capacity is 23 L (6 US gal) on 2WD tractors and 25.0 L (6.6 US gal) on 4WD. The gearbox is constant mesh, with a forward-reverse mechanical synchromesh shuttle. The service brakes run in oil too. For them the book lists APGSAE 20W30. p. 120
What is the wheel bolt torque on a Farmall 70A?
The front wheel bolt torque is 192.0 N·m (141.6 lb ft). The Wheels section covers front and rear wheels separately, so check the rear wheel pages rather than reusing the front figure. On 4WD front axles, the wheel hub bearing lock nut (C6) is M45 x 1.5, torqued to 392 N·m (289 lb ft). p. 533
Does this manual cover an engine overhaul?
No. The book identifies the engine only by code R 753 IE4. It prints no make, displacement or power table. The engine section covers remove and install, air cleaners, fuel filters, fuel tanks, the aftercooler and the cooling system. Electronic engine faults are covered in the DTC chapters: fuel rail pressure, injector circuits, turbocharger boost, throttle valve actuator, lambda sensor and CAN timeouts. p. 23
