Case IH service manual 48194628 covers the Farmall 85A, 95A, 105A and 115A, listed in the book under factory codes TD5.85, TD5.95, TD5.105 and TD5.115. It gives you the real fill capacities, relief valve settings, shuttle test pressures and ECU fault code tables, so you are not relying on parts counter guesswork.
A DPF that won't regenerate or a shuttle clutch reading low pressure tends to show up mid-season, with half a field still standing. The book covers manual regeneration, the power shuttle pressure test and the 12 x 4, 12 x 12 and 20 x 12 transmissions. It also covers the powered front axle, brakes, hydraulic lift, steering, air conditioning and wiring schematics.
Keep it on a phone or tablet in the cab or on the bench. The spec is there wherever the tractor stopped.
What's Inside This Case IH Farmall 85A, Farmall 95A, Farmall 105A, Farmall 115A Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction, Safety and Consumables | 1-12 | General Instructions, Spare Parts, Towing, Safety Rules, Consumables and Fluid Capacities Table |
| Engine: EGR and DPF Exhaust Treatment | 13-44 | DPF Specification and Torque, Automatic and Manual Regeneration, DPF Inhibition, DPF Removal and Installation, Lambda and DPF Pressure Sensor Fault Codes |

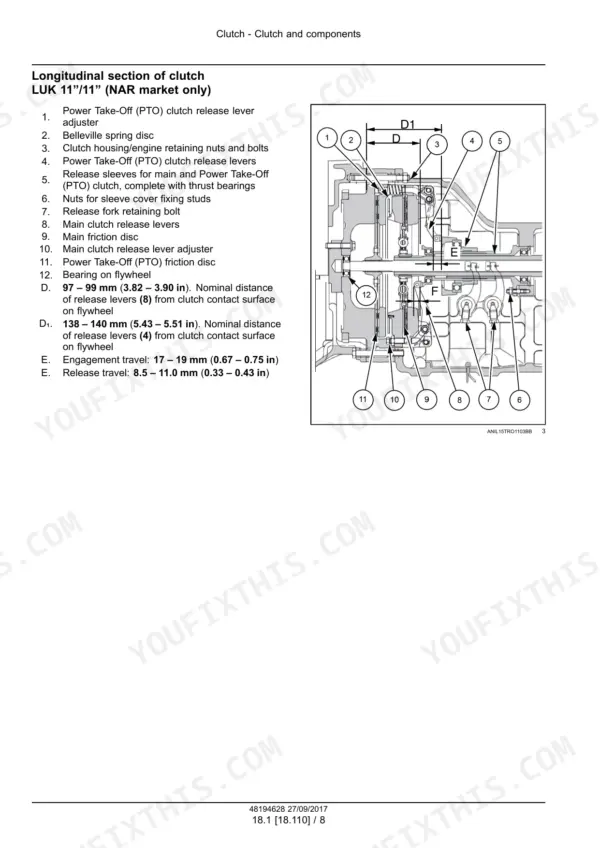

| Clutch | 45-78 | Dual Clutch Specification, Torque, Special Tools, PTO Servo Control, Clutch Removal, Installation, Overhaul and Pedal Adjustment, Troubleshooting |
| Mechanical Transmission (12 X 4) | 79-100 | Specification, Electrohydraulic 4WD, Torque, Sectional Views, Transmission Removal and Installation, Troubleshooting |
| Mechanical Transmission Internal Components | 101-116 | 4WD Engagement, Transmission Shafts, Gears and Bearings, Differential Lock Solenoid, FWD Troubleshooting |
| Power Shuttle Transmission | 117-134 | Clutch Packs, Working Pressure, 12 X 12 Shuttle Description, Power-Shuttle Hydraulic Circuit, Overhaul, Pressure Test and Adjustment |
| Shuttle Internal Components and Gearbox | 135-148 | Gear and Shaft Adjustment, Seal Assembly Tools, Gearbox Installation, Synchroniser Adjustment |

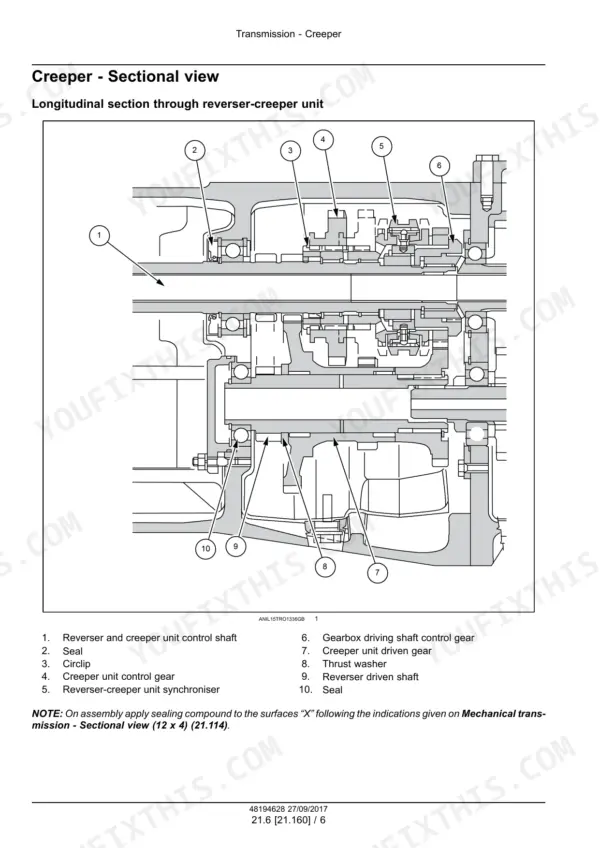

| Creeper and Reverser | 149-180 | Creeper Specification and Torque, 20 X 12 Reverser and Creeper Replacement, 12 X 12 Synchroniser Reverser, Troubleshooting |
| Four-Wheel Drive Control | 181-190 | Front-Wheel Drive Clutch Disassembly and Assembly, Solenoid, Hub, Piston and Seals |
| Front Axle | 191-272 | Powered Front Axle Specification, Removal and Installation, Bevel Pinion and Crown Wheel Adjustment, No-Spin Differential, Steering Knuckle, Final Drive Hub, Toe-In, Non-Powered Axle |
| Rear Axle and Final Drives | 273-338 | Rear Axle Specification, Bevel Gear Ratios, Final Drive Reduction, Bevel Pinion and Differential Adjustment, Differential Lock, Final Drive Hubs and Shafts, Troubleshooting |
| Rear Power Take-Off (PTO) | 339-370 | 540, 540/750 and 540/1000 RPM PTO, Ground Speed PTO, North American Version, Removal, Overhaul, Troubleshooting |

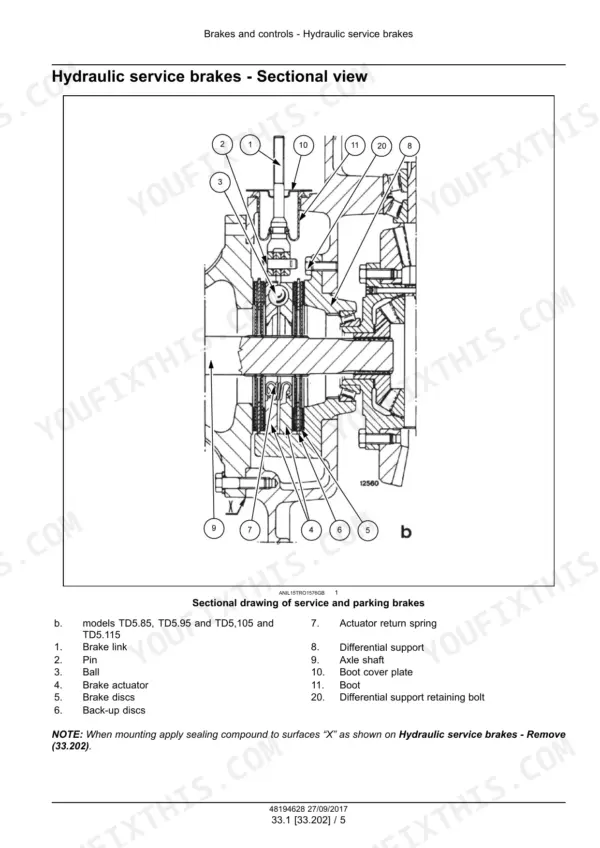

| Brakes | 371-442 | Oil-Bath Disc Service Brakes, Parking Brake, Bleeding and Pedal Adjustment, Master Cylinders, Trailer Hydraulic and Pneumatic Brakes, Pressure Test, Troubleshooting |
| Hydraulic Lift, Pump and Auxiliary Valves | 443-522 | Lift Specification and Relief Settings, Three-Point Linkage Capacity, Lift Troubleshooting, BOSCH A31 Pump, Auxiliary Valves, Main Lift Removal and Adjustment |
| Steering | 523-574 | Hydrostatic Steering Control Valve, Steering Pump, Relief Valve, Test Bench, Steering Troubleshooting, Power Steering Pump, Steering Cylinders |
| Front Wheels | 575-582 | Front Wheel Troubleshooting: Tyre Wear, Toe-In, Stability, Inflation Pressure |
| Air Conditioning | 583-632 | SANDEN Compressor, HFC-134a Charge, Operating Principles, Charging, Oil Change, Leak Tests, Belt Adjustment, Component Overhaul |

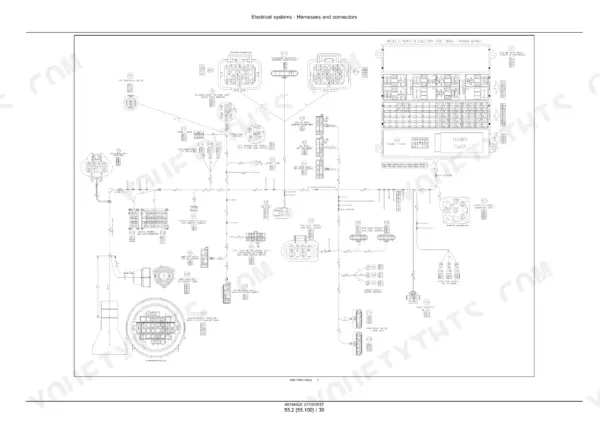

| Electrical System and Wiring Schematics | 633-826 | System Overview, Transmitters and Switches, Chassis, Transmission, Main and Engine Harnesses, Electrical Schematic Sheets, Component Diagrams and Connectors |

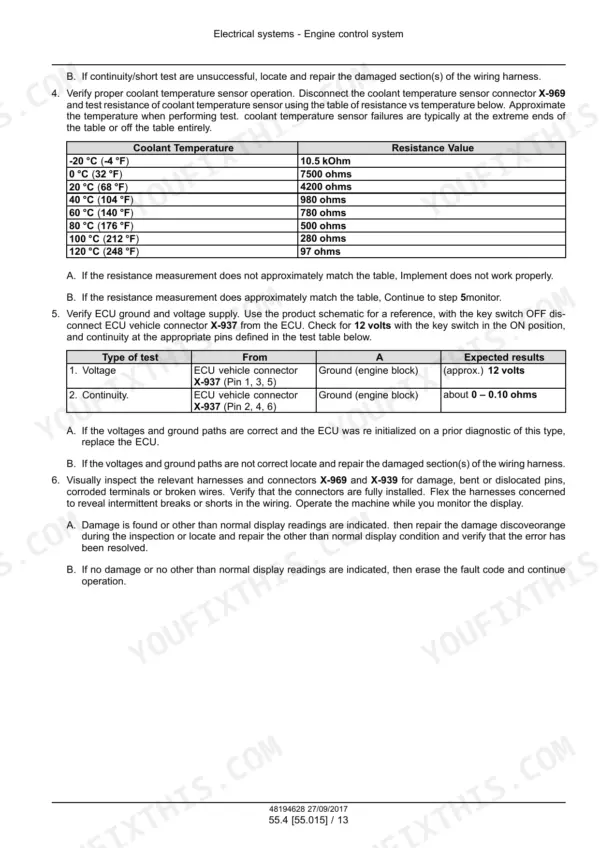

| Engine Controls and ECU Fault Codes | 827-950 | Throttle Sensor Codes, Instrument Cluster Schematics, Coolant Temperature, Sensor Supply, CAN, EGR and ECU Internal Fault Codes |
| Starting, Charging, Battery, Cold Start and Fuel Injection | 951-1160 | ISKRA Starter and Alternator, Battery, Glow Plug Codes, Fuel Level Sender Test, Injector, Metering Unit and Rail Pressure Codes |
| Intake, Oil Pressure, Modules, PTO, Transmission and Hitch Controls | 1161-1298 | Inlet Air and Boost Codes, Engine Oil Pressure Code, Calibration Menus, Transmission, PTO and Three-Point Hitch Fault Codes, Instrument Cluster |

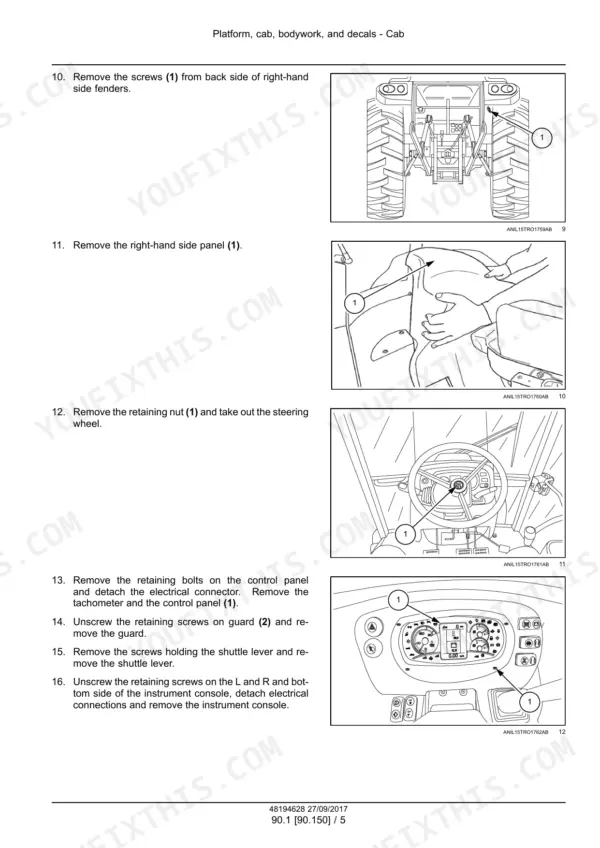

| Cab and Platform | 1299-1342 | Control Levers, Seat, Rear Window, Door Locks, Door, Front Wiper Motor, Cab Windows |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Engine sump oil | 8.5 L (2.25 US gal), SAE 10W-40, API CJ-4 | p. 12 |
| Cooling system | 14 L (3.7 US gal) without cab; 16 L (4.2 US gal) with cab | p. 12 |
| Fuel tank | 121 L (29.06 US gal) | p. 12 |
| Rear transmission, gearbox, hydraulic lift and PTO oil | 46 L (12.15 US gal) | p. 12 |
| Front final drives (each) | 1.25 L (0.3 US gal) | p. 12 |
| Rear final drives (each) | 5.3 L (1.40 US gal) | p. 12 |
| Hydraulic lift pressure relief valve setting | 186 - 191 bar (2697 - 2770 psi) | p. 447 |
| Maximum liftable load, top link on upper support pin | 3565 kg (7859 lb) | p. 448 |
| Main hydraulic pump | BOSCH A31 gear pump, engine to pump ratio 1 : 0.931 | p. 448 |
| Steering pump rated output | 26.40 l/min (6.97 US gpm) | p. 527 |
| Power shuttle working pressure | 16 bar (232 psi) | p. 119 |
| Engine speed at 540 RPM PTO | 2200 RPM | p. 343 |
| Mechanical transmission | 12 forward and 4 reverse speeds | p. 83 |
| Creeper transmission | 20 forward and 12 reverse speeds | p. 151 |
| Rear final drive reduction | 1:6.1 (TD5.85), 1:6.2 (TD5.95), 1:6.45 (TD5.105 and TD5.115) | p. 278 |
| Front axle bevel gear ratio | 9/38 = 1:4.2 | p. 195 |
| Rear wheel hub to disc nuts (M18 x 1.5) | 255 N·m (188 lb ft) | p. 278 |
| Starter motor | ISKRA, 3.2 kW (4.4 Hp), 12 V | p. 953 |
| Alternator | ISKRA 14 V, nominal current 120 A | p. 975 |
| Battery | 12 V, 120 A·h | p. 989 |

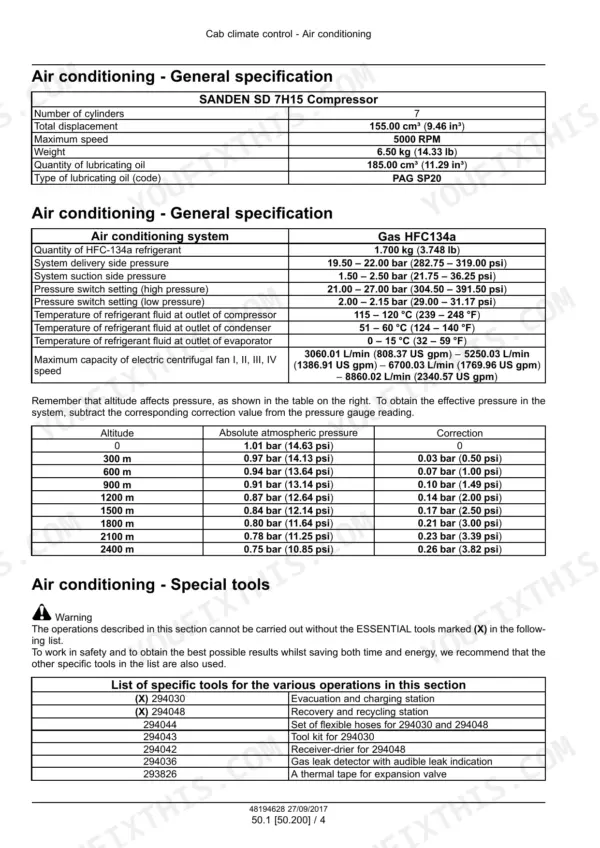

| A/C refrigerant | HFC-134a, 1.700 kg (3.748 lb) | p. 588 |
Case IH Farmall 85A, Farmall 95A, Farmall 105A, Farmall 115A Common Problems This Manual Covers
Hydraulic lift does not raise
The lift troubleshooting table narrows this to three causes. Replace a clogged oil filter. Release a control valve that is jammed in the discharge position. Overhaul or replace a defective hydraulic pump. The same section covers the BOSCH A31 pump and main lift removal and adjustment.
Manual Section: Hydraulic systems - Troubleshooting p. 469Steering wheel excessively stiff
Work through the steering troubleshooting list. Repair an inefficient hydraulic pump. If the check valve is held open by foreign bodies or its ball is missing, clean the valve and the filter. Reset a relief valve that is set wrong or jammed. Free a steering column that has stiffened on its bushing from rust or seizing.
Manual Section: Steering - Hydraulic control components - Troubleshooting p. 556Braking ineffectual or unbalanced
Weak braking comes from worn friction material on the oil-bath brake discs, and the fix is new discs. If the tractor pulls to one side, check for incorrect tyre pressure or one worn disc. Inflate the tyres to the correct pressure and replace the worn disc. The Brakes section also covers bleeding and pedal adjustment.
Manual Section: Hydraulic service brakes - Troubleshooting p. 399DPF pressure sensor hose error
The engine control unit sets this error when the differential pressure signal drops below 1.0 kPa (0.1 psi). The cause is a hose upstream of the diesel particulate filter that is not attached or is clogged. Check how the hose lines are mounted and make sure they are clear. The EGR and DPF section also lists the lambda and DPF pressure sensor fault codes.
Manual Section: EGR exhaust treatment - DPF pressure sensor hose line error p. 39Frequently Asked Questions
How much oil and coolant does the Farmall 85A to 115A take?
Engine oil is 8.5 L (2.25 US gal) of SAE 10W-40 API CJ-4, from the consumables table. The rear transmission, gearbox, hydraulic lift and PTO share 46 L (12.15 US gal). Coolant is 14 L (3.7 US gal) without a cab and 16 L (4.2 US gal) with one. The fuel tank holds 121 L (29.06 US gal). Each rear final drive takes 5.3 L (1.40 US gal), and each front final drive takes 1.25 L (0.3 US gal). p. 12
How do I run a manual DPF regeneration?
Allow 15 to 20 minutes. The tractor stays parked with the engine running and the hand brake on. Set the hand throttle to minimum and release the foot throttle. Leave the PTO disengaged and the hydraulics inactive. On the central monitor, enter the setup menu, step to the filter symbol and confirm. When the monitor shows START, confirm again. It changes to WAIT and regeneration begins. Give no commands until the monitor reads OFF. If any of those conditions change, the regeneration stops. p. 22
How do I pressure test the power shuttle?
Unscrew the plug for the clutch you are testing and fit a pressure gauge to the test port. Run the engine at 1500 RPM and read the gauge. The spec is 15.97 to 16.03 bar (231.57 to 232.44 psi). A slightly low reading, down to 14 bar (203 psi), can mean a sticking or contaminated valve. Pull the regulated spool, clean and polish it, then retest. A reading of 10 to 12 bar (145 to 174 psi) points more toward an internal leak in the clutch system. Even then, do the valve checks first. p. 130
How do I check front wheel toe-in?
Inflate the front tyres to 2.50 bar (36.25 psi), centre the steering wheel and park on flat, level ground. Measure between the fronts of the wheel rims at hub height and chalk mark the rims. Roll the tractor forward until the wheels turn exactly 180 degrees, then measure again at the marks. Toe-in must not exceed 5.0 mm (0.1969 in). Adjust it at the end of the transverse steering tie rod. p. 262
What are the Farmall 85A to 115A hydraulic lift relief pressure and lift capacity?
The hydraulic lift pressure relief valve is set to 186 to 191 bar (2697 to 2770 psi). The cylinder safety valve is set to 210 to 215 bar (3045 to 3117 psi). The Category 2 three-point hitch lifts 2700 kg (5952 lb) with the top link in the hole on the upper support. With the top link on the upper support pin, it lifts 3565 kg (7859 lb). Both figures assume the load sits 610 mm from the lower link ends with the arms horizontal. p. 447
