Part of the Case IH Repair Manuals.
The 95C shows a code on the display, the lift won't hold, and the hay is down. This Case IH service manual, Print No. 87744415A1, covers the Quantum 65C, 75C, 85C and 95C.
It's you, the tractor and a shop light, with nobody to call. The book has the numbers you need. It covers 44STA engine teardown for the 85C/95C, clutch and Power Shuttle overhaul, lift relief valve setting, brakes, steering and the front axle. For the 65C/75C F5AE engine, it gives specifications and removal-installation only.
Every system has its own chapter. The fault code lists start at page 1003. HH menu access and calibrations are at page 1118. You can go straight to the code on your display without leafing through the engine chapter.
What's Inside This Case IH Quantum 65C, 75C, 85C, 95C Manual
| System | Pages | Key Topics |
|---|---|---|

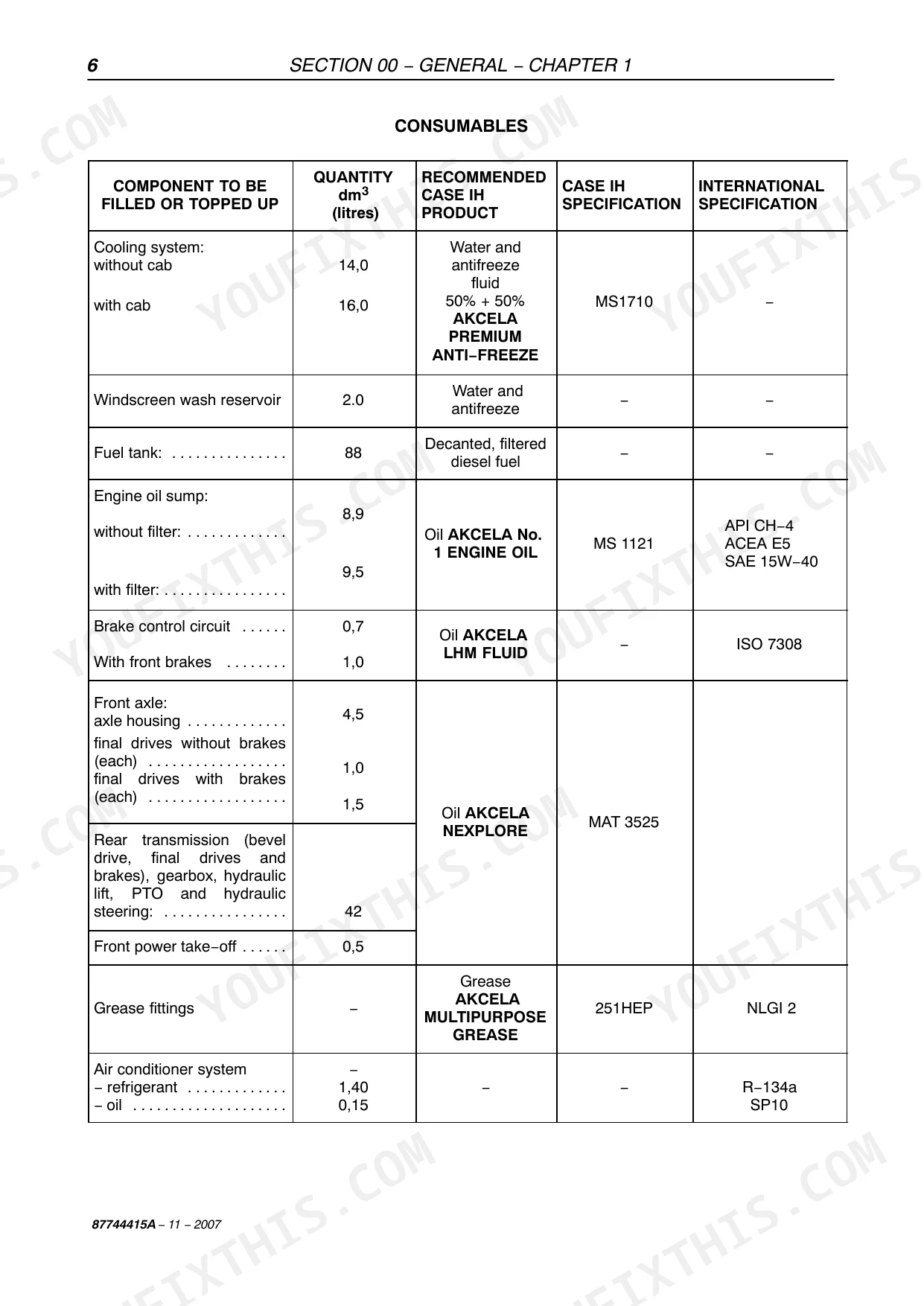

| Introduction, Safety and Consumables | 1-16 | Introductory Notes and Document Numbering, Contents, General Instructions, Safety Regulations, Tractor Refuelling and Consumables Table with Quantities and Recommended Case IH Products |
| Engine 44STA (Quantum 85C, 95C) | 17-126 | General Specifications, Engine Block and Crankshaft Data, Torque Settings, Tools, Lubrication and Cooling Diagrams, Troubleshooting, Engine Removal and Installation, Engine Disassembly and Assembly, Crankshaft Seals, Valve and Rocker Arm Clearance, Injectors, Bosch Injection Pump Timing and Air Bleeding, Coolant Pump, Thermostat, Radiator, Drive Belts |
| Engine F5AE (Quantum 65C, 75C) | 127-144 | General Specifications for the F5AE9484 Engines, Engine Removal and Installation |
| Clutch | 145-174 | Clutch Specifications and Torque Settings, Troubleshooting, Clutch Removal and Installation, Dual Disk 11 in / 11 in Clutch and Single Disk 11 in Power Shuttle Clutch Bench Overhaul, Clutch Adjustments |
| Transmissions | 175-250 | Transmission and Range Gear, Mechanical Transmission and Splitter, Power Shuttle Transmission with Hi-Lo Function, Power Shuttle 16+16: Specifications, Torques, Section Views, Description and Operation, Troubleshooting, Gearbox, Control Valve, Accumulator, Solenoid Valves and Clutch Casing Overhaul |
| Drive Lines and Front Axle Mechanical Transmission | 251-310 | Drive Gear Specifications, Section Views, Description, Operation and Hydraulic Diagrams, Propeller Shafts and Drive Gear Assembly, Front Axle Removal, Overhaul and Differential Lock Clutch, Steering Knuckle Pins, Front Differential and Lim-Slip Overhaul, Toe-In Check |
| Rear Mechanical Transmission | 311-342 | Bevel Drive and Differential Data, Torques, Special Tools, Mechanical and Electrohydraulic Differential Lock, Troubleshooting, Removal, Installation and Overhaul |
| Mechanical Power Take-Off | 343-358 | PTO Main Data and Speeds, Bolt Torques, Section Views, Description and Operation, Troubleshooting, Disassembly and Assembly |
| Brakes | 359-380 | Brake Main Data and Torques, Description and Operation, Brake Troubleshooting, Service Brake Removal and Installation, Braking System Hydraulic Pump, Parking Brake Disks, Handbrake Travel Adjustment |
| Rear Mechanical Hydraulic Lift | 381-420 | Rear Lift and Three-Point Hitch Data, Bolt Torques, Special Tools, Cross-Sectional Views, Hydraulic Lift Troubleshooting, Lift Internal Controls, Lift and Linkage Adjustments, Arm Shaft and Lifting Cylinder, Lift Control Valve, Pressure Relief Valve Removal and Setting |

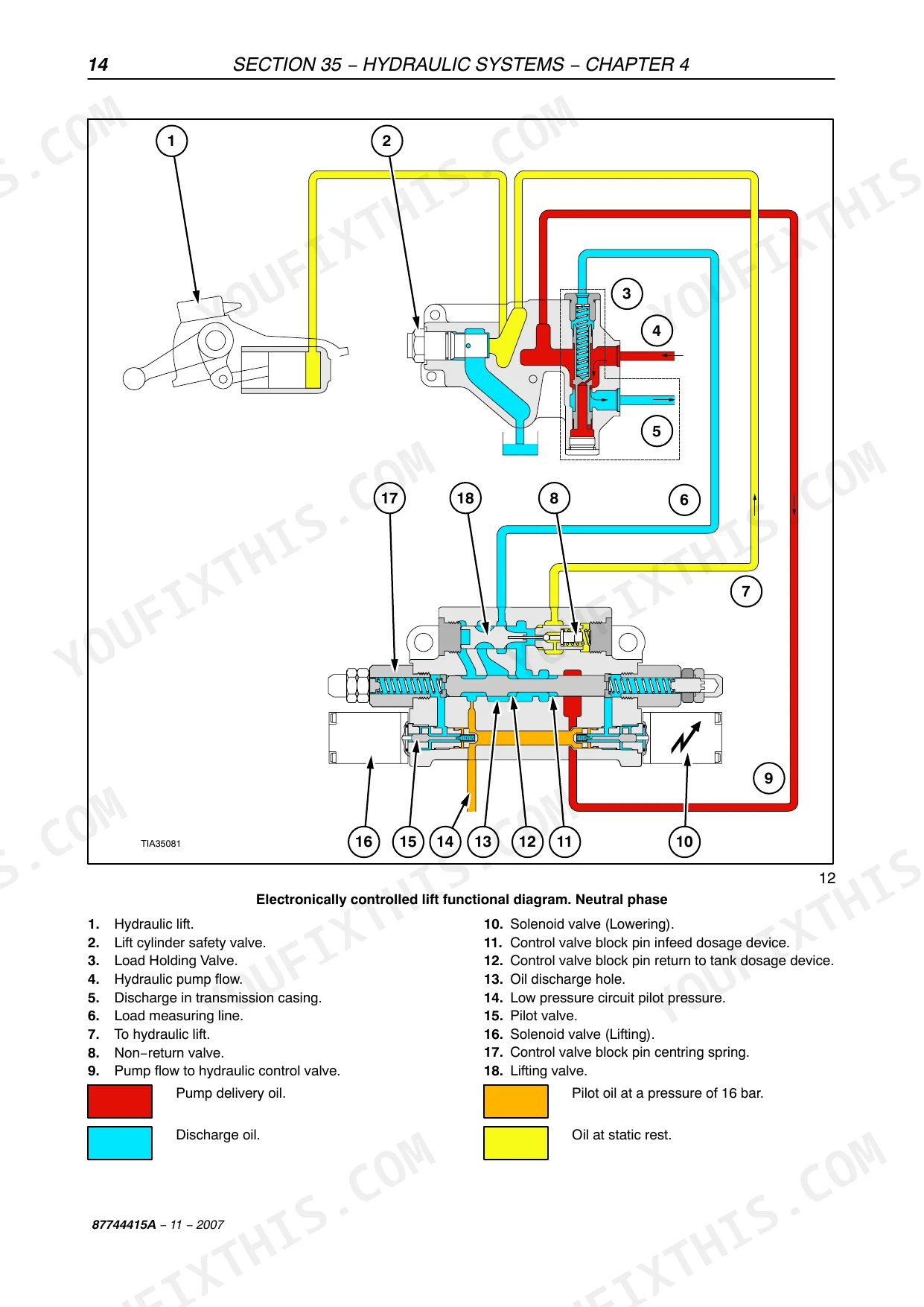

| Auxiliary Valves, Trailer Brake Valve, Electronic Lift and Lift Pump | 421-486 | Open Centre Auxiliary Control Valves, Trailer Brake Auxiliary Control Valve, Electronically Controlled Hydraulic Lift with Functional Diagrams, Draft Sensor and Lift Arm Potentiometer, Hydraulic Control Valve, Lift Circuit Gear Pump Data and Overhaul |
| Front Lift and Front Power Take-Off (75C, 85C, 95C) | 487-542 | Front PTO, Front Mechanical and Electronic Lift Description, Hydraulic Control Valve Diagram, Front Lift Troubleshooting, Operating Instructions, Smooth Ride Control, Front Lift Calibrations, Front Lift and Front PTO Removal and Installation |
| Steering | 543-584 | Hydrostatic Steering Torque Settings and Data, Operation and Components, Steering Troubleshooting, Steering Wheel and Control Valve Removal, Disassembly and Bench Testing, Steering Oil Pump Data and Overhaul |
| Axles and Wheels | 585-602 | Front Axle Main Data, Camber and Toe-In, Section Views, Torques, Troubleshooting, Front Axle Hub, Stub Axle Overhaul, Alignment of the Leading Wheels |
| Cab Air Conditioning System | 603-642 | Safety Instructions, Operating Principles, Main Components, Refrigerant Recovery, Evacuation and Charging, Filter/Dryer, Leak Checks, Compressor Belt Tension, Heating and Air Conditioning Unit Removal, Troubleshooting |
| Instruments, Components, Starting, Charging and Battery | 643-704 | Analog Instruments and Digital Instrument Cluster, Senders, Sensors and Switches, Control Panel Components, Starter Motor Testing and Overhaul, Alternator Testing and Overhaul, Battery Checking, Maintenance and Charging |
| Electric Circuits: Tractors with Cab | 705-824 | Electrical Circuit Components, Fuses and Relays Layout, Power Sockets, Ground Location Points, How to Read the Wiring Diagrams, Connector Code Reading, Wire Colour Coding, Harness Layout Drawings and Circuit Component Keys for Versions 1 to 5 |
| Electric Circuits: Tractors with Platform | 825-892 | Electrical Circuit Components, Fuse and Relay Layout, Power Sockets, Ground Location Points, Connector Code Reading, Wire Colour Coding, Harness Layout Drawings and Circuit Component Keys for Versions 1 to 3 |
| Connectors | 893-1002 | Electrical Circuit Components, Version Types for Tractors with and Without Cab, List of Connectors |

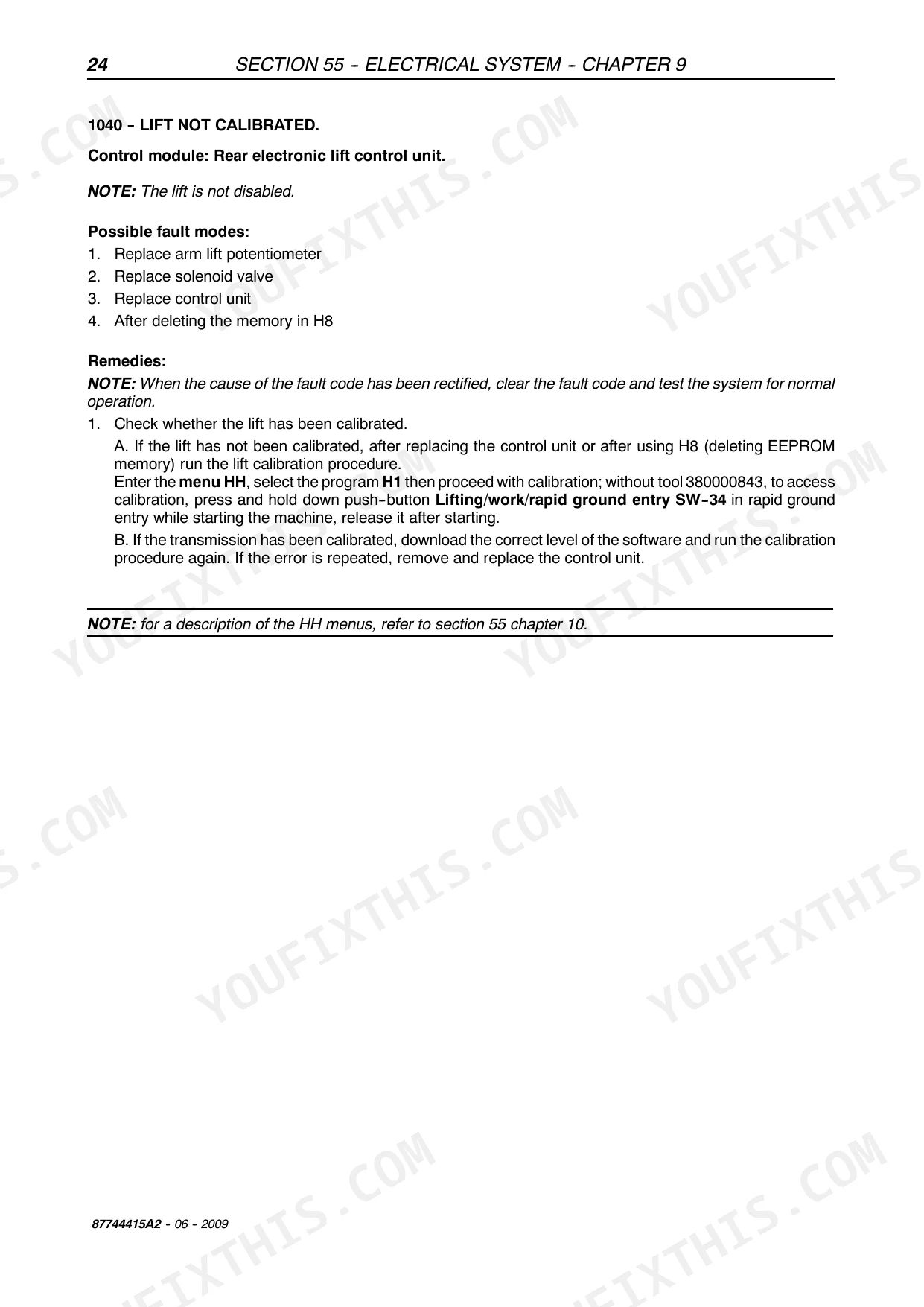

| Fault Codes | 1003-1116 | Fault Code Lists and Diagnosis for the EDC Rear Electronic Lift (SA), Power Shuttle Transmission (SB), Electric Codes and ADIC Control Panel (ZA): Control Module, Possible Fault Modes and Remedies |
| HH Menu, Calibrations and Electronic Front Lift | 1117-1168 | HH Menu Access with Tool 380000843, H1 Calibrations of Clutches, Synchronizer and Lift, Calibration Values, Options, Switch Diagnosis, Voltmeter, Stored Error Code Display and Deletion, Electronic Front Lift Components and Connectors |
| Platform, Cab and Bodywork | 1169-1194 | Bonnet, Instrument Panel Lower Guard, Platform Assembly, Safety Frame Roof, Cab with Platform Removal and Installation, Glued Cab Windows, Upright Seals, Cab Ceiling Fitting, Sun Blind |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Quantum 85C | ||

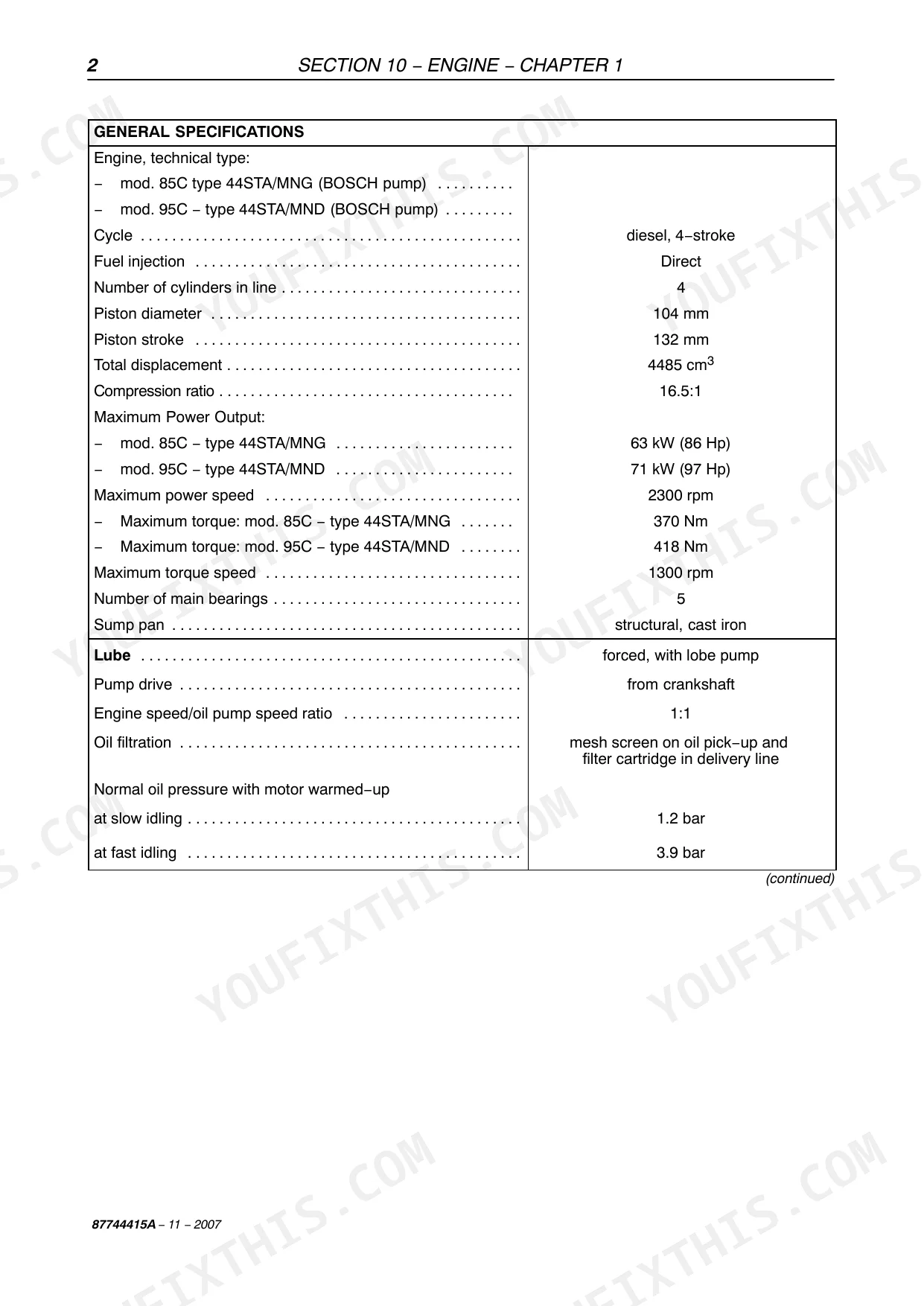

| Engine (Quantum 85C) | type 44STA/MNG, 63 kW (86 Hp), maximum torque 370 Nm | p. 18 |
| Quantum 95C | ||
| Engine (Quantum 95C) | type 44STA/MND, 71 kW (97 Hp), maximum torque 418 Nm | p. 18 |
| Quantum 65C | ||
| Engine (Quantum 65C) | type F5AE9484A*A, 48 kW (65 Hp), maximum torque 290 Nm | p. 128 |
| Quantum 75C | ||
| Engine (Quantum 75C) | type F5AE9484B*A, 57 kW (78 HP), maximum torque 330 Nm | p. 128 |
| Quantum 85C, Quantum 95C | ||
| Displacement, bore x stroke (85C, 95C) | 4485 cm3, 104 mm x 132 mm, 4 cylinders in line | p. 18 |
| Quantum 65C, Quantum 75C | ||
| Displacement, bore x stroke (65C, 75C) | 3200 cm3, 99 mm x 104 mm, 4 cylinders in line | p. 128 |
| All Models | ||
| Valve clearance, engine cold | intake 0.25 ± 0.05 mm, exhaust 0.50 ± 0.05 mm | p. 19 |
| Injection order | 1-3-4-2 | p. 20 |
| Engine oil sump | 8.9 litres without filter, 9.5 litres with filter | p. 16 |
| Cooling system | 14.0 litres without cab, 16.0 litres with cab | p. 16 |
| Fuel tank | 88 litres | p. 16 |
| Rear transmission, gearbox, hydraulic lift, PTO and hydraulic steering | 42 litres | p. 16 |
| Front axle housing | 4.5 litres | p. 16 |
| Rear lift maximum lifting load (horizontal arm link ends) | 2670 kg | p. 383 |
| Rear lift pressure relief valve setting | 190 ÷ 195 bar | p. 381 |
| Lift cylinder safety valve setting | 210 ÷ 215 bar | p. 381 |
| Transmission oil temperature for calibrations | 20 to 50 °C | p. 1119 |
Case IH Quantum 65C, 75C, 85C, 95C Common Problems This Manual Covers
Rear lift won't hold the implement up, bobs with the engine running and settles with it off

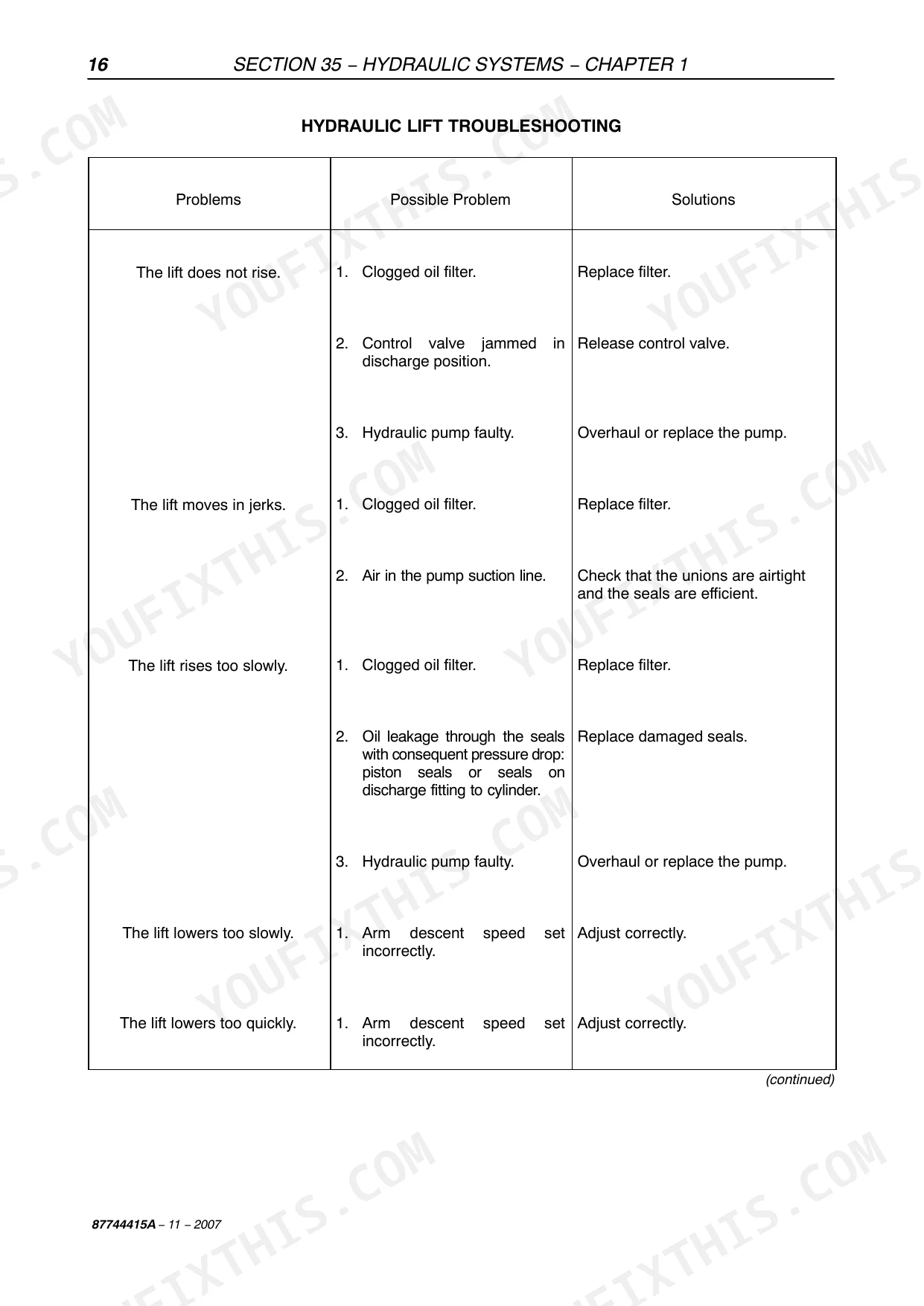

The Rear Mechanical Hydraulic Lift troubleshooting table on page 396 lists the causes. It names a faulty check valve seal, oil leaking past the control valve block pin seat seals, a worn lift piston seal, or a cylinder safety valve set very low. If the lift rises but lacks capacity, check the relief valve setting procedure on page 420.
Manual Section: Rear Mechanical Hydraulic Lift - troubleshooting and pressure relief valve setting p. 396Clutch slips, or sticks and drags
Clutch troubleshooting on page 149 lists worn disks, a distorted Belleville spring, or oil or grease on the friction linings. Oily linings mean new disks and fixing the source of the oil. Dragging points to deformed disks, seized linkage or controls out of adjustment. A noisy clutch points to a worn thrust bearing. The same chapter has bench overhaul procedures for the dual disk and Power Shuttle clutches.
Manual Section: Clutch - troubleshooting, removal-installation and bench overhaul p. 149Brake pedal travel too long, or the tractor pulls to one side when braking
Brake troubleshooting on page 365 lists three causes of a long pedal stroke: air in the brake circuit (bleed it), worn brake control pumps and leaking control pipes. For unbalanced braking, check tyre pressure, then worn control pumps, obstructed pipes and worn friction material. If the tractor stays braked with the parking brake released, the return stroke is obstructed or the braking sectors have seized on the disks.
Manual Section: Brakes - troubleshooting, service brake removal and handbrake adjustment p. 365Steering goes heavy, or the wheel turns with the engine off but the front wheels don't
The Steering chapter troubleshooting on page 549 traces hard steering to a faulty hydraulic pump or a non-return valve held open by debris. A missing ball, a sticking or badly set relief valve, or a stiff column bushing can also cause it. If the wheel turns without steering the tractor, look at rotor and fixed ring wear or a damaged non-return valve. To fix a leak at the steering unit, replace the Rotoglyd seal with tool 380000281.
Manual Section: Steering - hydrostatic steering troubleshooting and control valve overhaul p. 549Frequently Asked Questions
How do I clear a fault code on a Case IH Quantum 85C?
Connect tool 380000843 to the diagnosis connection and turn the ignition to position B. The display shows HH MENU (page 1118). Read HB first. It stores up to 10 codes per module and shows the first occurrence, last occurrence and number of occurrences. It shows F 0 if there are none (page 1147). Write the codes down, because HC deletes them all. The display shows F CL. Hold the push-button in position B and it counts 5-4-3-2-1-EE. EE means the deletion is done (page 1149). p. 1147
What does an error code mean on a Quantum 75C and where do I start?
Start with the number, because it tells you which module logged it. The fault codes chapter at page 1003 splits them into groups. SA codes 1008-1081 cover the EDC rear electronic lift. SB codes 2011-2433 cover the Power Shuttle. Electric codes start at 13011, and ZA covers the ADIC control panel. Each entry lists the control module, possible fault modes and step-by-step remedies. Code 1040 on page 1026 is an example: lift not calibrated, logged by the rear electronic lift control unit. After a control unit replacement or a memory deletion in H8, the remedy is the lift calibration through the HH menu, program H1. p. 1003
How do I calibrate the Power Shuttle clutches on a Quantum 95C?
Get the transmission oil between 20 to 50 °C before you start (page 1118). With tool 380000843 connected, go into H1 for the SB module. The display shows CAL and the oil temperature. Select the fast range and engage 1st gear. Hold the engine at 1200 to 1300 rpm with the parking brake engaged. Release the clutch pedal and put the shuttle lever in forward. The clutches and synchronizer then calibrate automatically until the display shows End (page 1120). No tool? Fault code 2024 on page 1041 gives another way: hold the HOME push-button on the dashboard while starting. p. 1120
What are the torque specs on a Case IH Quantum 95C?

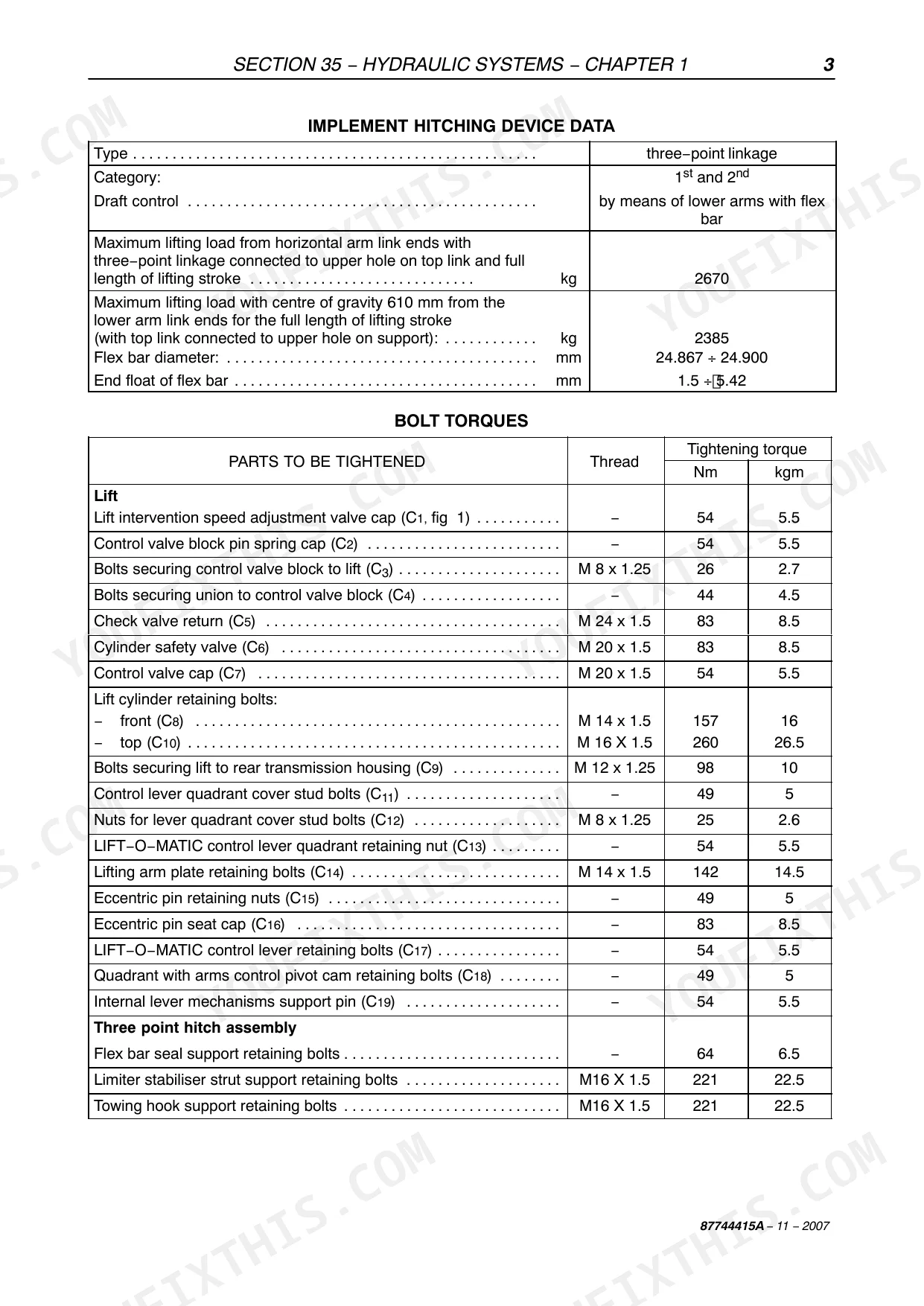

Torque values are in each chapter, not in one master list. On the rear lift (page 383), the lift cylinder front bolts are M 14 x 1.5 at 157 Nm. The top bolts are M 16 x 1.5 at 260 Nm. The lift-to-rear transmission housing bolts are M 12 x 1.25 at 98 Nm. The leading wheel-to-hub nut, M 18x1.5, is 115 Nm (page 590). If the steering unit leaks because its bolts are loose, they go to 24÷36 Nm (page 549). The engine, clutch, transmission, rear transmission, PTO and brake chapters each have their own torque table. p. 383
Can I overhaul the engine on a Quantum 65C or 75C with this book?
No. Better to know that before you split the tractor. The F5AE chapter for the 65C and 75C covers general specifications and engine removal-installation only (page 127). You get the F5AE9484 data: 3200 cm3, 99 mm bore x 104 mm stroke, 48 kW on the 65C and 57 kW on the 75C (page 128). The disassembly, injector, Bosch pump timing and cooling system procedures are written for the 44STA engine in the 85C and 95C. p. 127
