You have a baler parked in the shed, the tractor unhooked, and hay drying in the windrow. The next hour is a bent tailgate latch, a net wrapper that won't cut, or a code on the monitor you have never seen before. This is the Case IH service manual for the RB455, RB465 and RB565 round balers: 1st edition, July 2014, CNH part number 84546102.
It covers the PTO shaft and slip clutches, the density, tailgate, pickup, cutter, drop floor and bale eject hydraulic circuits, pickup and rotor, belts and rolls, net and twine wrap, and the electronics. You are out there alone with the machine and nobody to call.
The chapters run in order with page ranges, and faults are listed by number in the fault code index. That gets you from the code on the screen to the right page fast, so you can get back to baling before the weather turns.
What's Inside This Case IH RB455–RB565 Manual

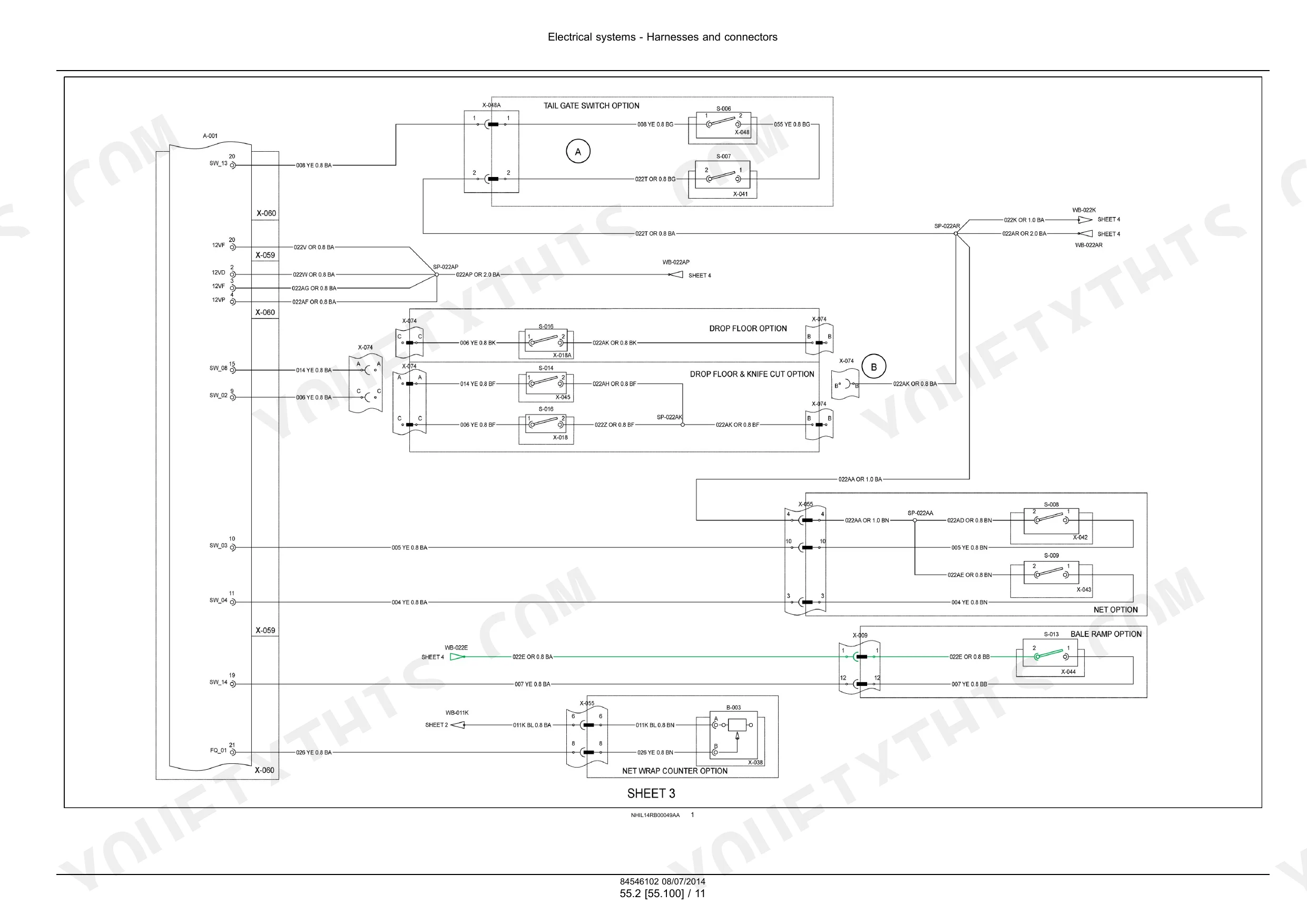

| System | Pages | Key Topics |
|---|---|---|
| Introduction | 6-133 | Safety Rules, Special Tools, Minimum Tightening Torques, Standard Torque Data for Hydraulics, Consumables Chart, General Specifications RB455/RB465 and RB565, Product Identification |
| Rear Axle System | 134-163 | Non-Powered Rear Axle, Wheel Hub, Wheel Lug Torque Table and Tightening Pattern |
| Power Take-Off (PTO) | 164-229 | PTO Drive Shaft, Gearbox, Friction Disc Slip Clutch, Cut-Out Clutch |
| Hydraulic Systems | 230-343 | Bale Density Circuit, Density Pre-Charge Accumulator, Tailgate Circuit, Pickup Lift Circuit, Cutter Control Circuit, Drop Floor Circuit, Bale Eject Circuit, Circuit Troubleshooting |
| Hitches, Drawbars, and Implement Couplings | 344-363 | Drawbars and Towing Hitches, Front Hitch |
| Electrical Systems | 364-767 | Harnesses and Connectors, Electrical Schematic Sheets 01-07, Ejection/Unloading Control, Twine and Net Wrap Control, Bale Density System, Electronic Modules, Fault Code Index, Fault Codes |
| Product Feeding | 768-1065 | Pickup, Pickup Slip Clutch, Flotation Springs, Wide Pickup with Over Shot Feeder, Wide Pickup with Rotor Cutter/Feeder, Rotor |
| Pressing - Bale Formation | 1066-1263 | Bale Formation, Bale Forming Belts, Belt De-Clutch, Starter Roll, Stationary Roll, Stripper Roll, Floor Roll |
| Tying/Wrapping/Twisting | 1264-1335 | Net Wrapper, Twine Wrapper |
| Ejection | 1336-1349 | Bale Ramp |
| Lubrication System | 1350-1385 | Grease Lubrication, Drive Chain Oiler System |
| Platform, Cab, Bodywork, and Decals | 1386-1406 | Machine Shields and Guards, Side Shields, Decals |
| Electrical Schematic Poster 47740583 | 1407-1408 | Electrical Schematic and Component Location Views for RB455, RB465 and RB565 |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| RB455 | ||

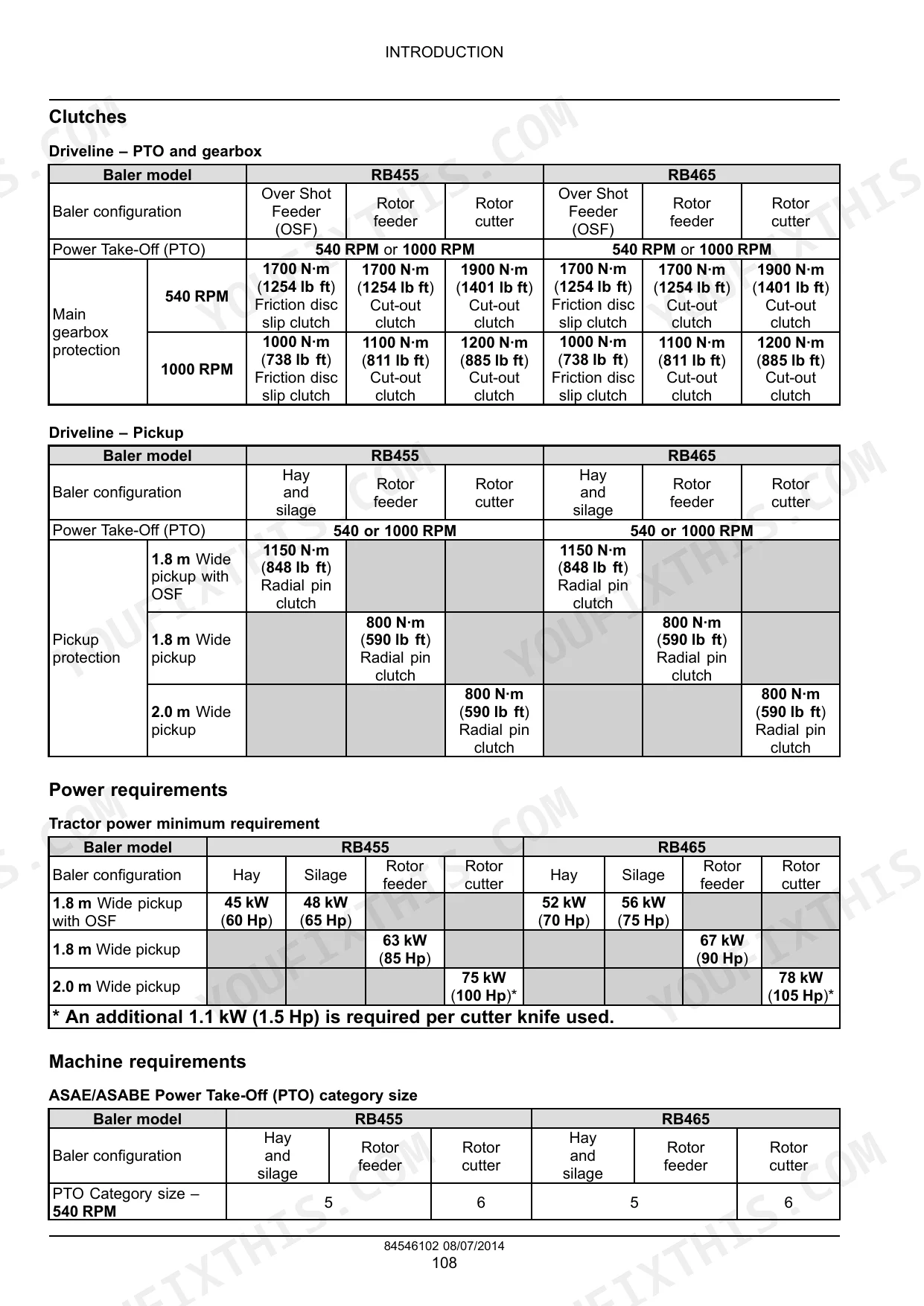

| Min. tractor power, RB455 | 45 kW (60 Hp) OSF hay / 48 kW (65 Hp) OSF silage / 63 kW (85 Hp) rotor feeder / 75 kW (100 Hp) rotor cutter | p. 112 |
| Bale diameter, RB455 | 914 - 1524 mm (36 - 60 in) | p. 114 |
| RB465 | ||
| Min. tractor power, RB465 | 52 kW (70 Hp) OSF hay / 56 kW (75 Hp) OSF silage / 67 kW (90 Hp) rotor feeder / 78 kW (105 Hp) rotor cutter | p. 112 |
| RB455, RB465 rotor cutter | ||
| Additional power per cutter knife | 1.1 kW (1.5 Hp) | p. 112 |
| RB565 | ||
| Min. tractor power, RB565 | 60 kW (82 Hp) | p. 125 |
| Pickup slip clutch factory setting | 316 N·m (233 lb ft) | p. 796 |

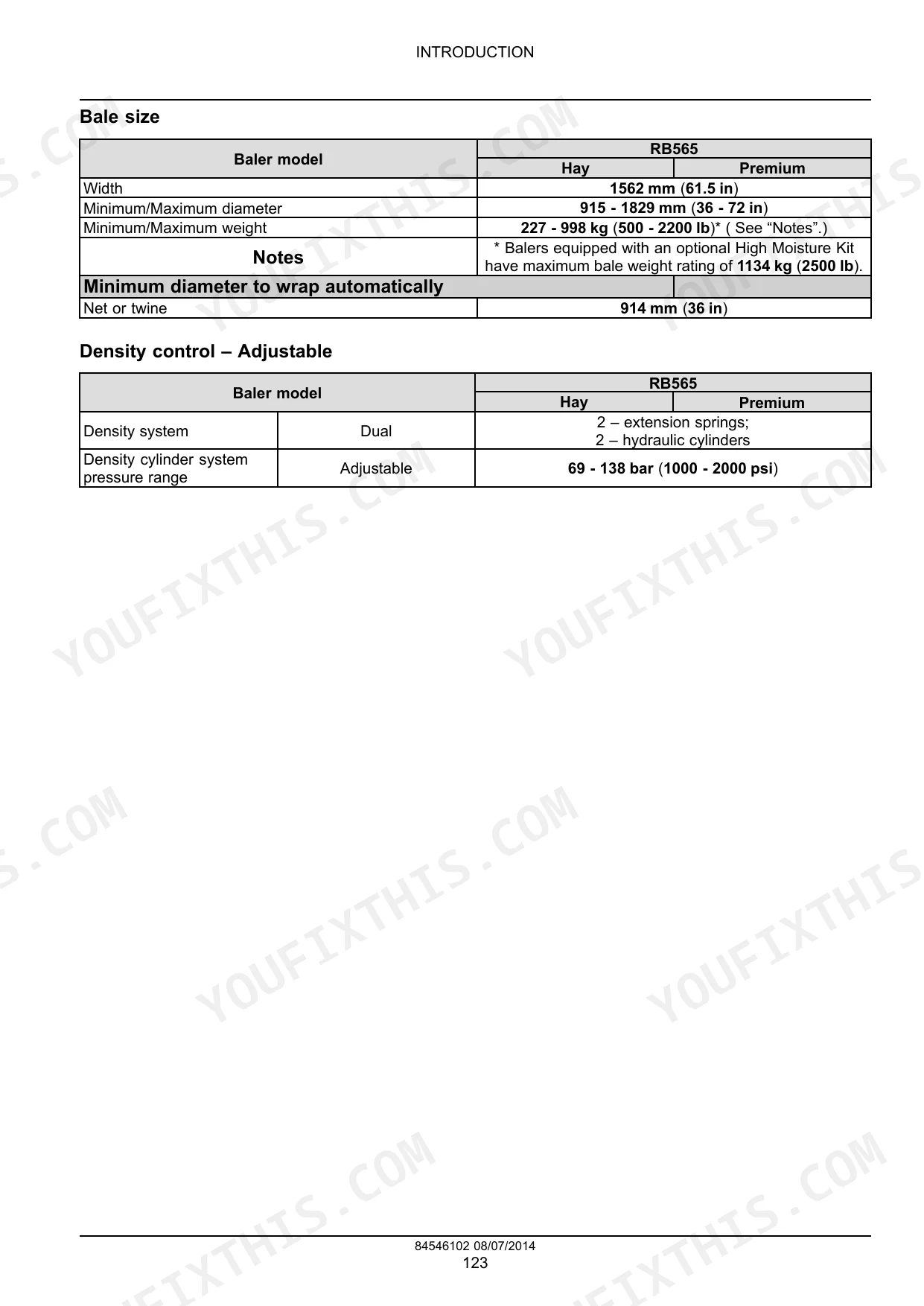

| Bale size, RB565 | Width 1562 mm (61.5 in); diameter 915-1829 mm (36-72 in) | p. 127 |
| Friction disc slip clutch, 1700 N·m (1254 lb ft) rating | ||
| PTO slip clutch setting, 540 RPM | 17.3 - 17.8 mm (0.68 - 0.70 in) distance (A); slip torque 1530 - 2040 N·m (1129 - 1504 lb ft) | p. 222 |
| Friction disc slip clutch, 1000 N·m (738 lb ft) rating | ||
| PTO slip clutch setting, 1000 RPM | 18.8 - 19.3 mm (0.74 - 0.76 in) distance (A); slip torque 900 - 1200 N·m (664 - 885 lb ft) | p. 222 |
| All Models | ||
| Wheel lug torque, 31 X 13.5-15 8 ply (6 lugs) | 156 - 183 N·m (115 - 135 lb ft) | p. 139 |
| Wheel lug torque, 18L-16.1 SL 10 ply (6 lugs) | 380 - 407 N·m (280 - 300 lb ft) | p. 139 |
| Wheel lug torque, 21.5L-16.1 10 ply (8 lugs) | 203 - 230 N·m (150 - 170 lb ft) | p. 139 |
| Gearbox oil | CASE IH AKCELA GEAR 135 H EP 80W-90; 1.9 L (2.0 US qt) or 2.0 L (2.1 US qt) | p. 107 |
| Drive chain oiler reservoir | 1.9 L | p. 107 |
| RB455, RB465 | ||
| Bale width, RB455 / RB465 | 1181 mm (46.5 in) | p. 114 |
| Density pre-charge accumulator | Dry nitrogen only, 4137 kPa (600 psi) | p. 247 |
| RB455, RB465 single density | ||
| Single density cylinder pressure range | 83 - 179 bar (1200 - 2600 psi) | p. 114 |
| RB465 dual density | ||
| Dual density cylinder pressure range | 69 - 138 bar (1000 - 2000 psi) | p. 114 |
Case IH RB455–RB565 Common Problems This Manual Covers
Bale density pressure drops or never reaches maximum

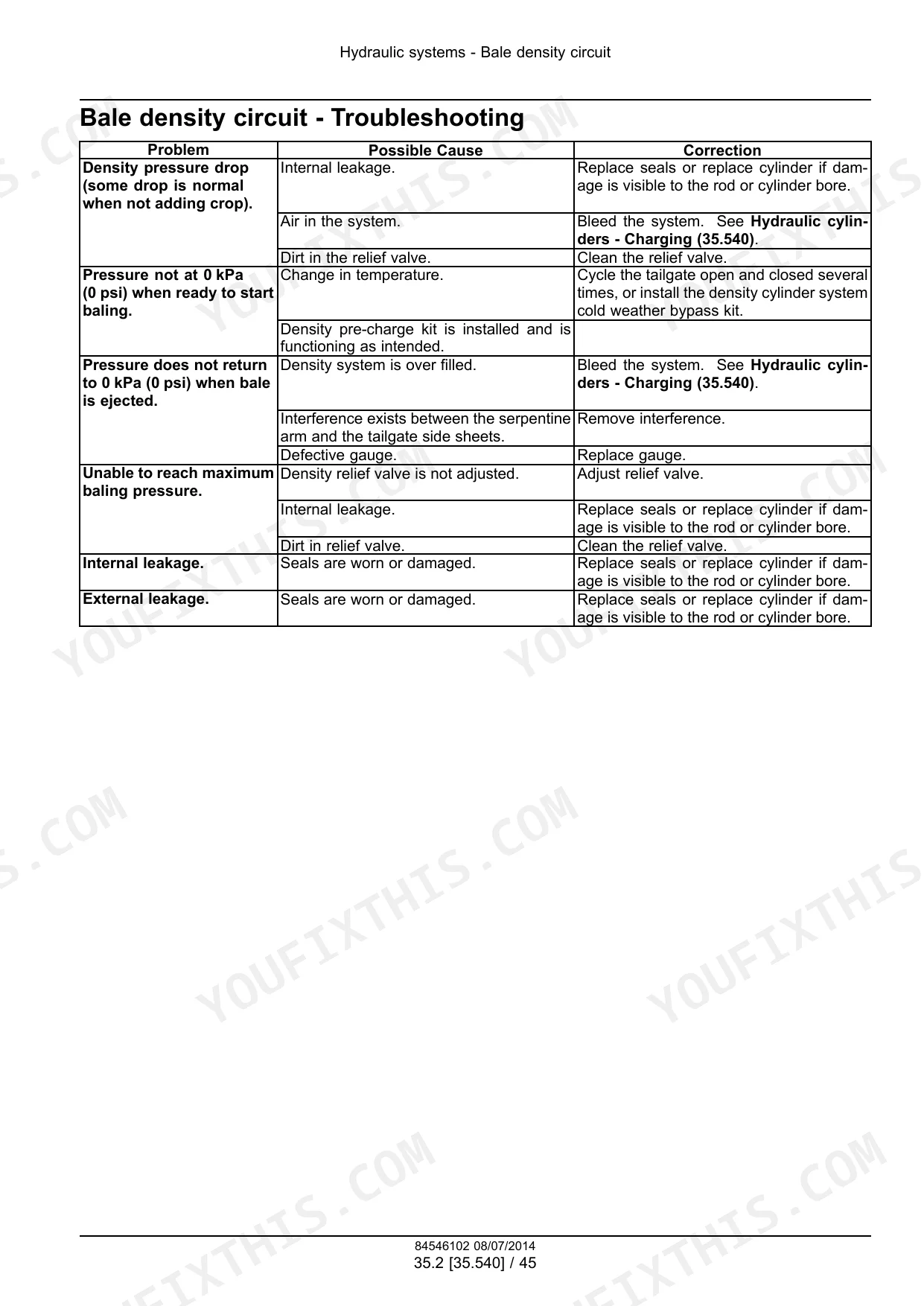

Work through the Bale density circuit - Troubleshooting table. Check whether the density relief valve is adjusted, then look for dirt in the relief valve and internal leakage. If there is air in the system, bleed it per Hydraulic cylinders - Charging 35.540. The pre-charge accumulator takes dry nitrogen only, at 4137 kPa (600 psi).
Manual Section: Hydraulic systems - Bale density circuit - Troubleshooting p. 281Tailgate opens slowly, slams shut, or drifts open
The Tailgate circuit - Troubleshooting table covers each symptom. A slow opening usually means a restriction in the line or a lockout valve that needs adjusting. A fast close points to a missing or wrongly installed orifice. Drift comes from a cylinder internal leak, a tractor remote that is not sealing, or a tailgate that is not latched.
Manual Section: Hydraulic systems - Tailgate circuit - Troubleshooting p. 303Pickup rises too fast or will not lower
Go to the Pickup lift circuit - Troubleshooting table. If the pickup rises too fast, check that the orifice is present and installed correctly, because a missing one lets the pickup shoot up. If it will not lower, check the pickup flotation spring adjustment against the Product feeding chapter.
Manual Section: Hydraulic systems - Pickup lift circuit - Troubleshooting p. 314Rotor knives will not stay inserted on an RB455 or RB465
The Cutter control circuit - Troubleshooting table lists three causes: an internal leak in the cylinder, a tractor remote that is not sealing, and a leak in the hydraulic lines. Work through each cause the table lists before you replace parts.
Manual Section: Hydraulic systems - Cutter control circuit - Troubleshooting p. 323Frequently Asked Questions
What does a fault code on the RB465 monitor mean?

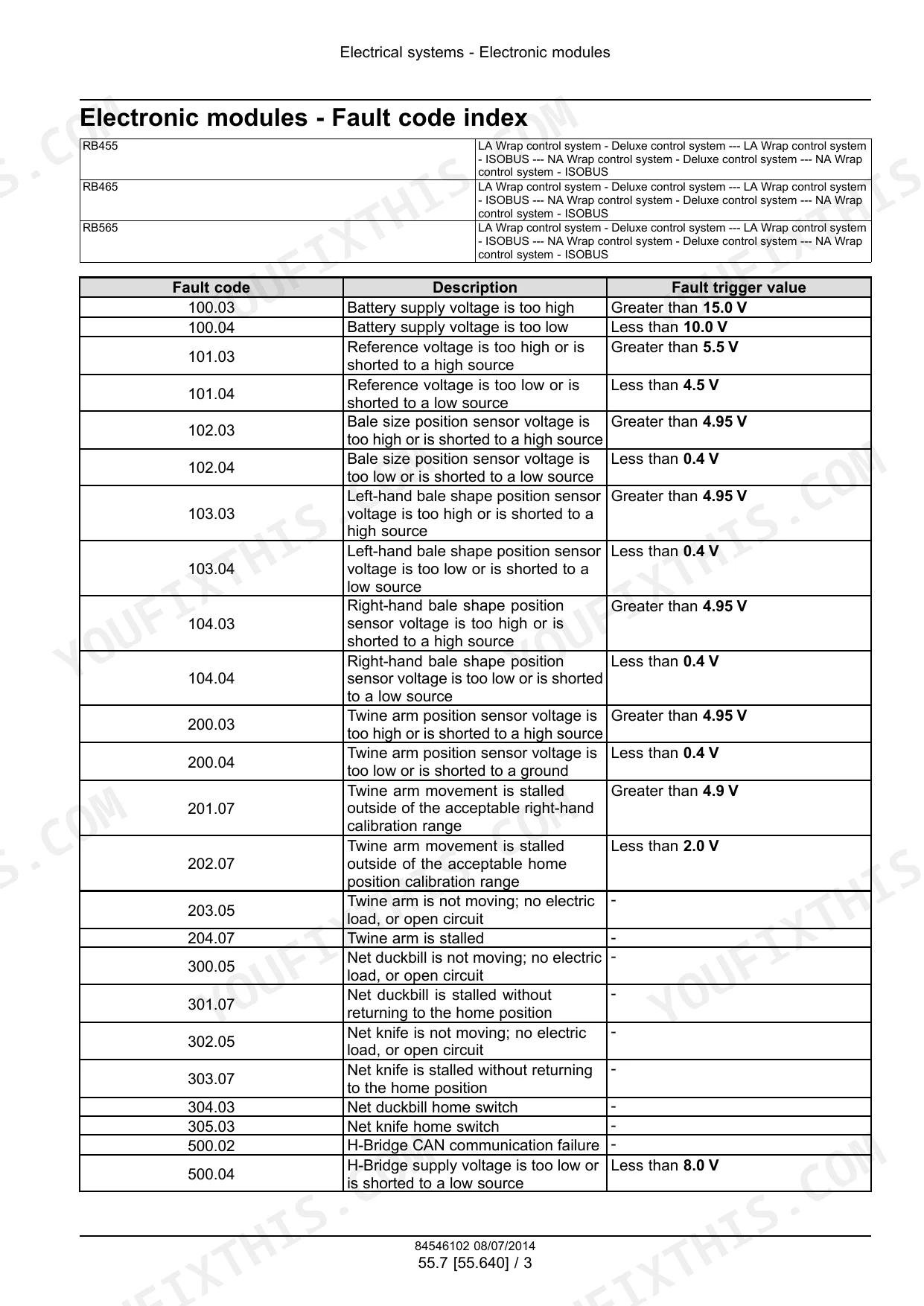

Codes are shown in NNN.NN form, and the manual prints a fault code index plus a FAULT CODES diagnostic section. For example, 100.03 means battery supply voltage is too high - greater than 15.0 V. 100.04 means it is too low - less than 10.0 V. 101.04 means reference voltage is too low or is shorted to a low source - less than 4.5 V. Each code sends you to a diagnostic procedure, so you are not just swapping modules to see what happens. p. 673
How do I read the fault history on an RB565?
The fault history screen shows the past ten fault codes, a cumulative count, and the bale count when each fault happened. The bale count is useful: it shows whether a fault started last week or has been coming back all season. Some alarms are never stored in the history. These are 600.11 net did not cut at the end of the wrap cycle, 600.13 bale shape imbalance, and 600.21 tailgate is open. p. 402
What are the torque specs for RB455 wheels and clutches?

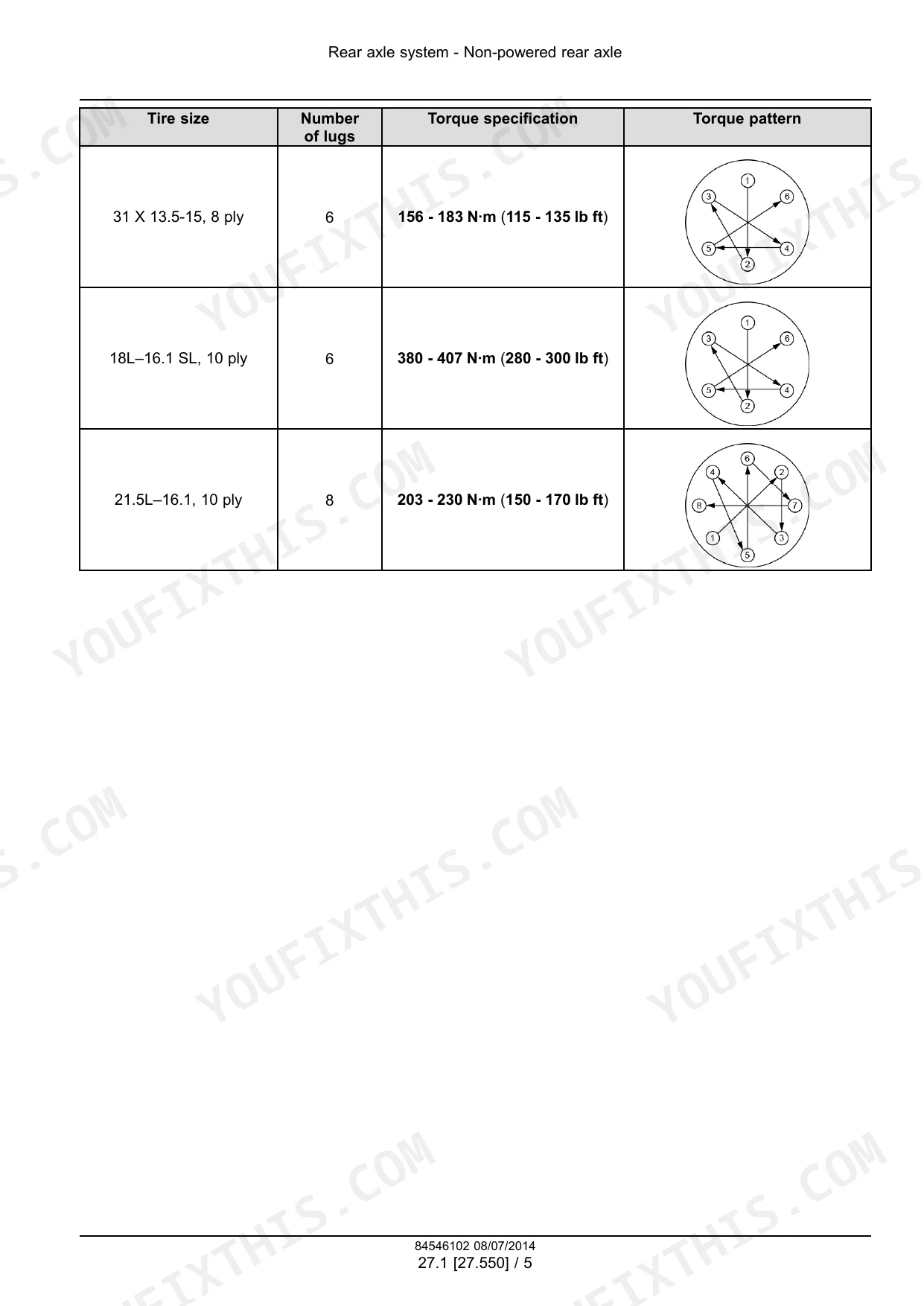

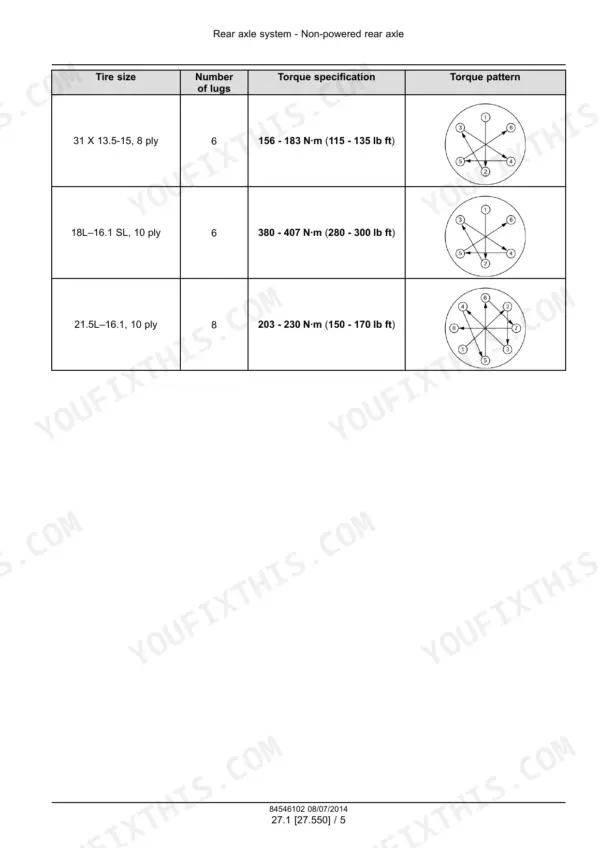

Wheel lug torque depends on the tire. 31 X 13.5-15, 8 ply, 6 lugs gets 156 - 183 N·m (115 - 135 lb ft). 18L-16.1 SL, 10 ply, 6 lugs gets 380 - 407 N·m (280 - 300 lb ft). 21.5L-16.1, 10 ply, 8 lugs gets 203 - 230 N·m (150 - 170 lb ft). The rear axle chapter shows the tightening pattern. The PTO chapter gives slip torque figures for the friction disc clutch. p. 139
How do I set the PTO slip clutch?
You set the friction disc slip clutch by measuring distance (A). On the 540 RPM clutch rated 1700 N·m (1254 lb ft), that distance is 17.3 - 17.8 mm (0.68 - 0.70 in) and slip torque is 1530 - 2040 N·m (1129 - 1504 lb ft). On the 1000 RPM clutch rated 1000 N·m (738 lb ft), it is 18.8 - 19.3 mm (0.74 - 0.76 in), slipping at 900 - 1200 N·m (664 - 885 lb ft). A clutch set too tight turns a plugged rotor into a broken driveline. p. 222
What tractor do I need to run an RB465 with a rotor cutter?
The minimum for the RB465 rotor cutter is 78 kW (105 Hp), plus 1.1 kW (1.5 Hp) for each cutter knife used. With a rotor feeder it drops to 67 kW (90 Hp). With the OSF it is 56 kW (75 Hp) in silage and 52 kW (70 Hp) in hay. Look this up before you hitch a borrowed tractor to a full knife bank, and it will save you a long afternoon. p. 112
