Part of the Case Repair Manuals.
Need the factory service reference for your Case RB454 or RB464? All 961 pages of this Case round baler service manual (OEM #84275655) walk through the complete implement driveline, hydraulic tailgate and belt tension systems, electrical circuits, product feeding assembly, pressing belts, and net wrapping: the full machine, top to bottom. Inside you get hydraulic schematics tracing the tailgate cylinder and density circuit fluid paths, wiring diagrams with complete test procedures for relays, switches, and sensors, a calibration section covering net wrapper adjustment and density settings, and step-by-step rebuild procedures for the PTO CV joint, slip clutch, and sledge assembly. Set gearbox backlash to 0.18-0.48 mm and torque the PTO-to-gearbox input bolt to 142 N·m; numbers from the factory, not a forum post. Your baler is down and the crop isn't waiting. Bookmarked and searchable; jump straight to the section you need and get back to work.
What's Inside This Case RB454, RB464 Manual
| System | Pages | Key Topics |
|---|---|---|

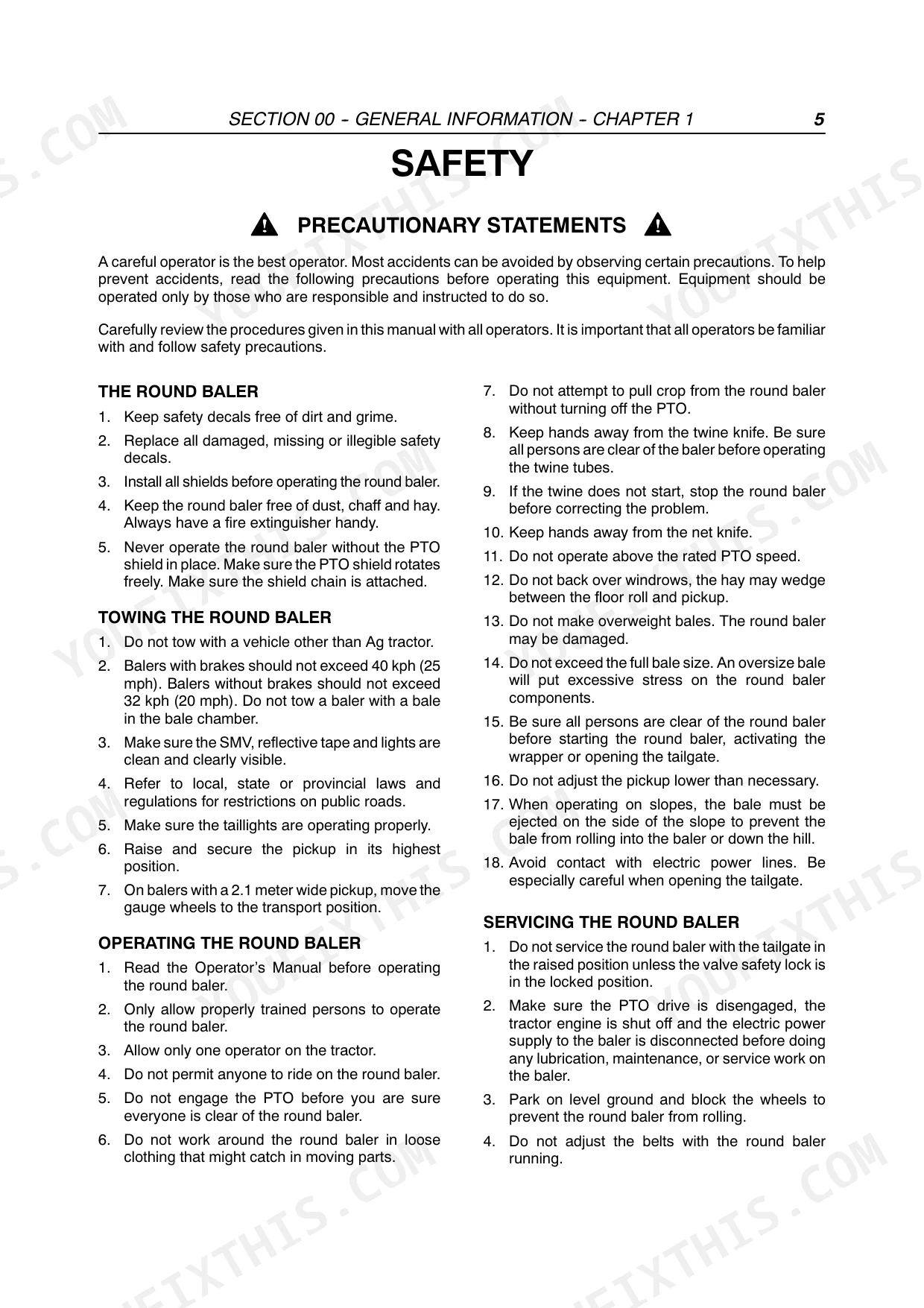

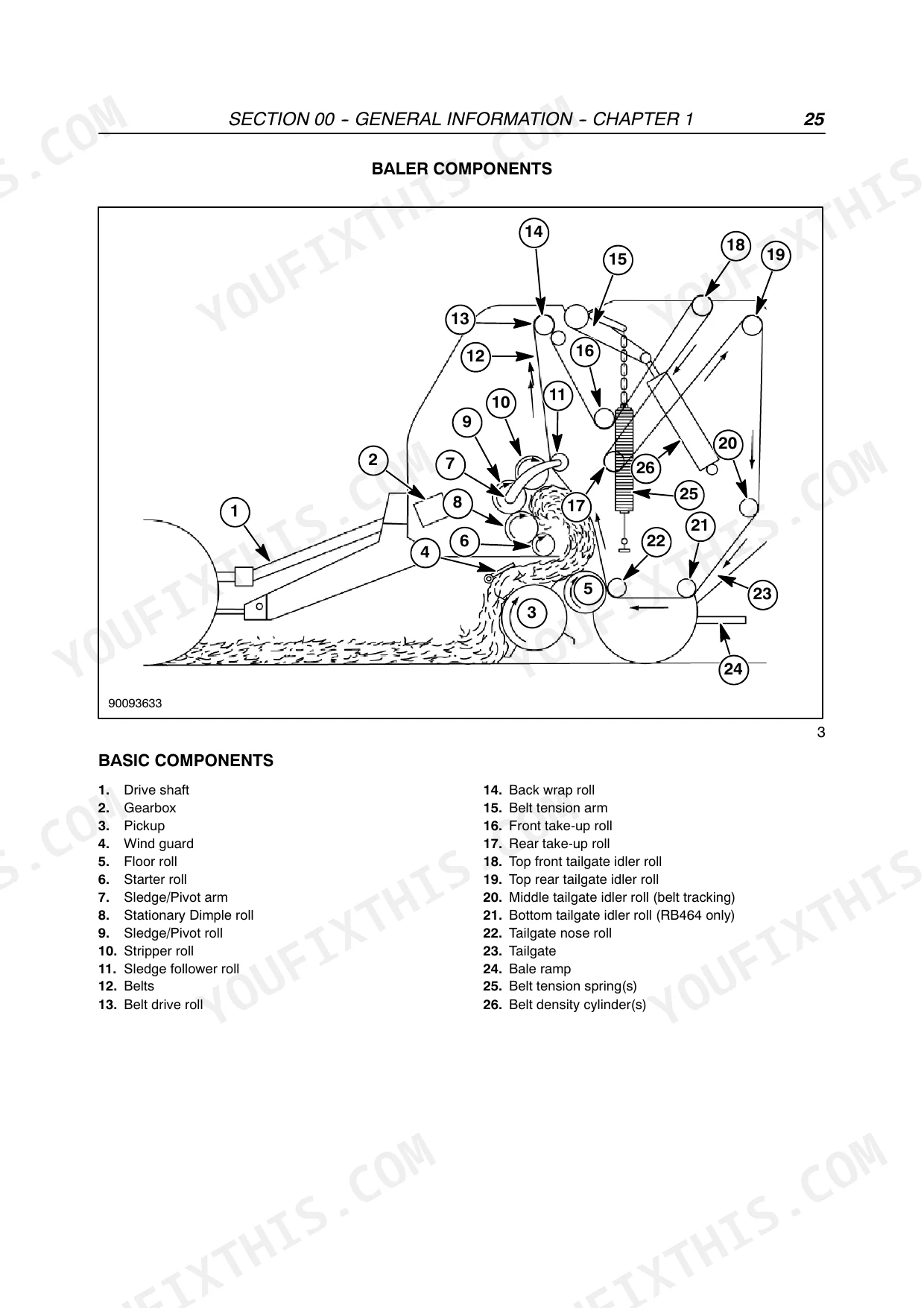

| General Information | 2-37 | Introduction, Precautionary Statements (Personal Safety, Machine Safety and Information) |
| Implement Driveline | 38-141 | PTO Constant Velocity, Front PTO and Cv U-Joint, Rear PTO, Gearbox Coupler Seal, Main Drive Slip Clutch, Sledge Roll Drive Slip Clutch |
| Brakes | 142-199 | Brake Drum, Brake Shoes, Brake Cylinder, Brake Cable, Brake Crank, Parking Brake |

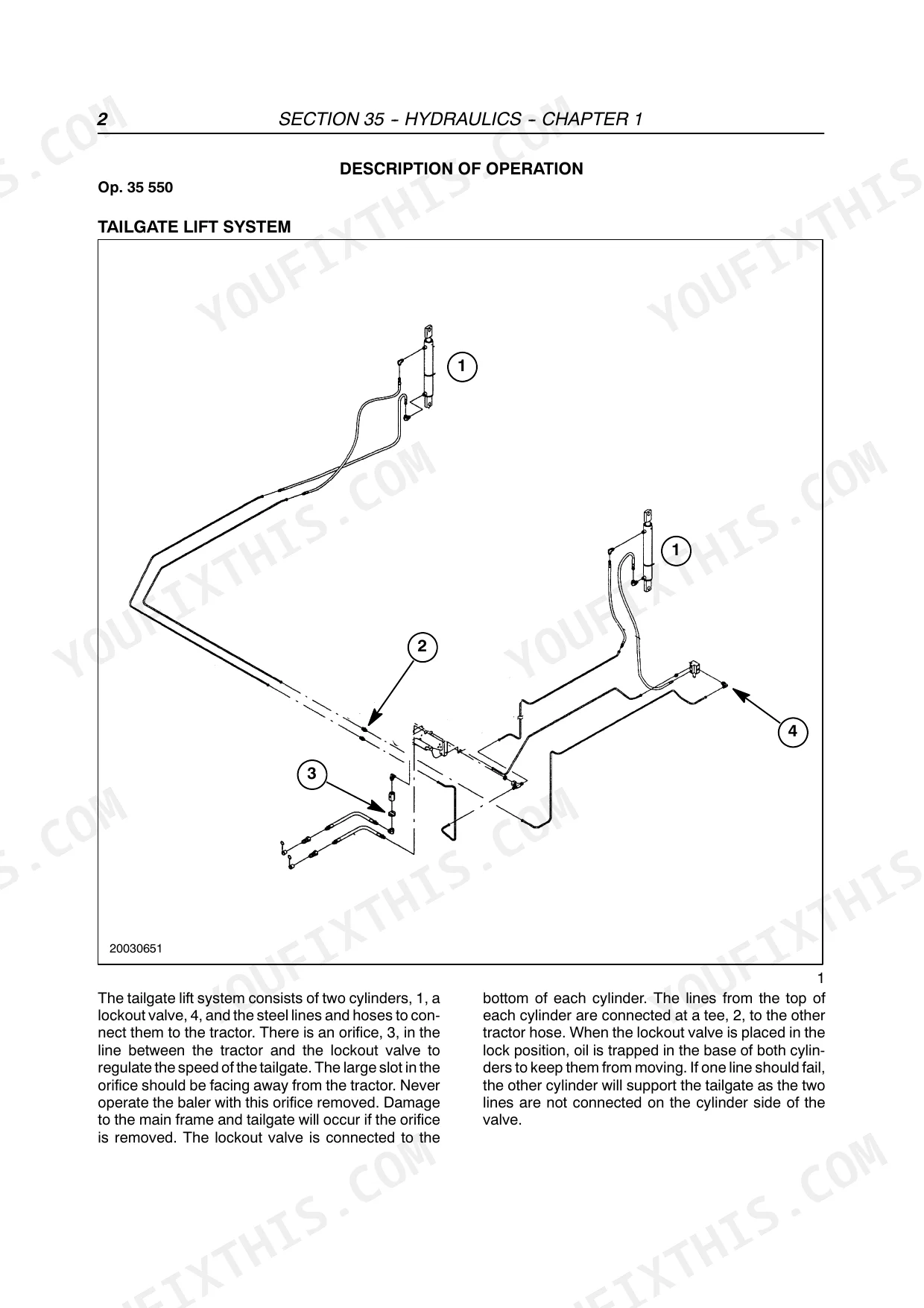

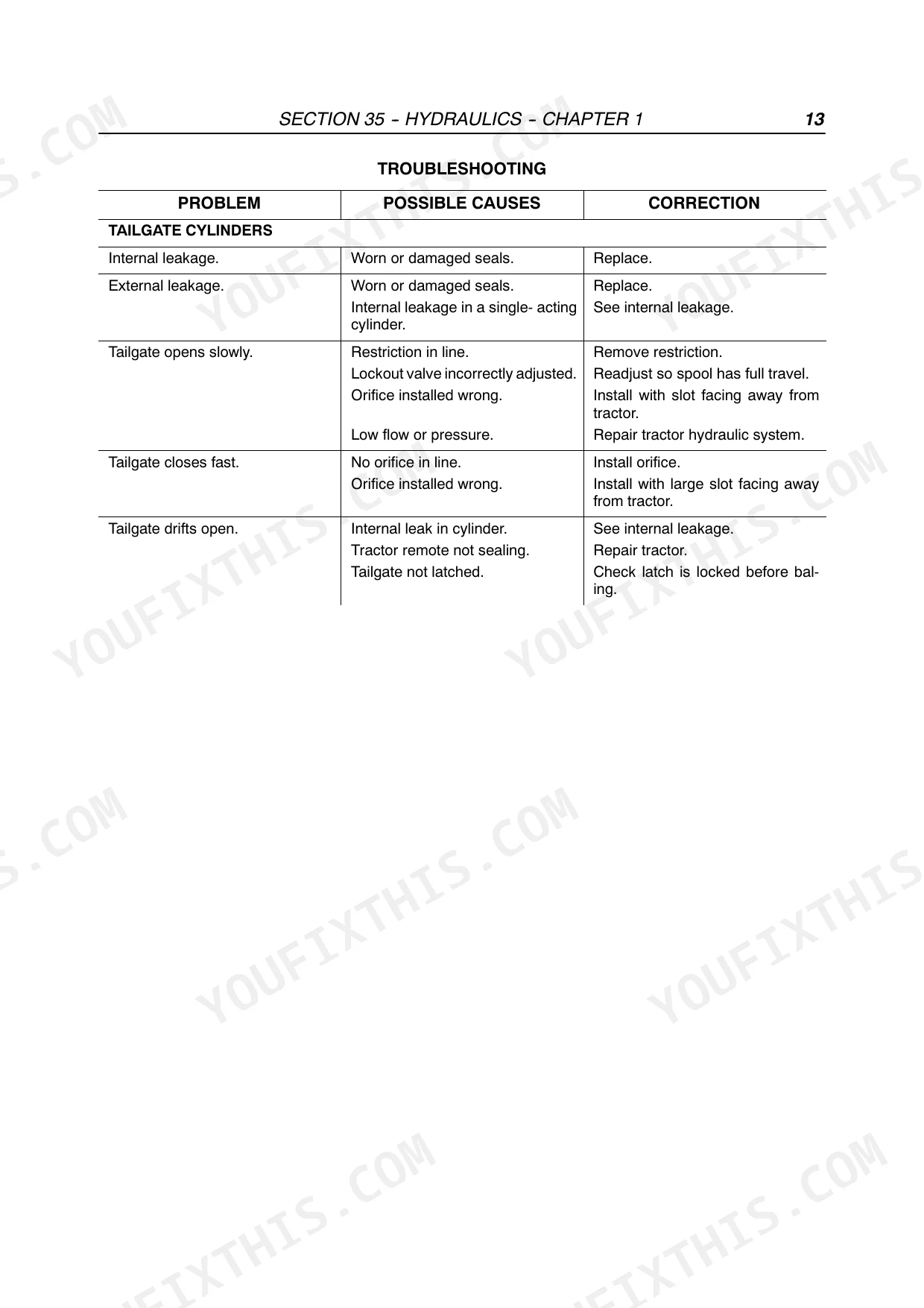

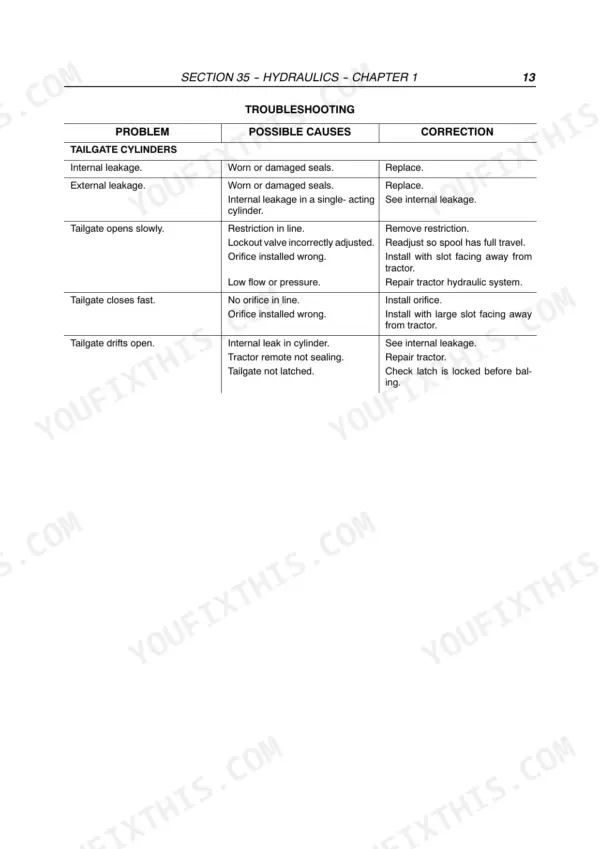

| Hydraulics | 200-259 | Tailgate Lift System, Tailgate Cylinder, Tailgate Lockout Valve, Belt Tension System, Density Cylinder System, Relief Valve |
| Frame | 260-329 | Tailgate Replacement, Latch, Door Stop, Door Hinge, Gas Spring, High Hitch |
| Axles and Wheels | 330-335 | Axle, Tire Pressure, Wheel Torques, Wheel Bearings |
| Electrical Systems | 336-519 | Wire Identification, Electrical Test Procedures, Relays, Switches, Sensors, Actuators |
| Product Feeding | 520-673 | Wide Pickup with Stuffer, Tine Pipe and Bearings, Reel Disc and Hex Shaft, Auger, Bearing and Drive Chain, Rotor Pickup, Rotor Knife Spring |
| Pressing | 674-857 | Belts, Belt Tension Removal, Starter Roll, Stationary Roll, Floor Roll, Sledge Assembly |
| Wrapping | 858-939 | Description of Operation, Knife Spring, Duckbill, Net Wrapper Adjustment, Net Brake System |
| Ejection | 940-943 | Description of Operation, Bale Ejector, Disassembly, Assembly |
| Shielding | 944-961 | Description of Operation, Left and Right Side Doors, Gas Spring, Latch, Front Net Wrapper Box, Rear Net Wrapper Box |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Number of belts | 6 | p. 33 |
| Belt length (for 153 cm (4') diameter bale) | 8712 mm (343 in) | p. 691 |
| Gearbox backlash | 0.18 to 0.48 mm (0.007 to 0.019 in) | p. 75 |
| PTO to Gearbox Input Shaft Attaching Bolt Torque | 142 N·m (105 lb ft) | p. 82 |

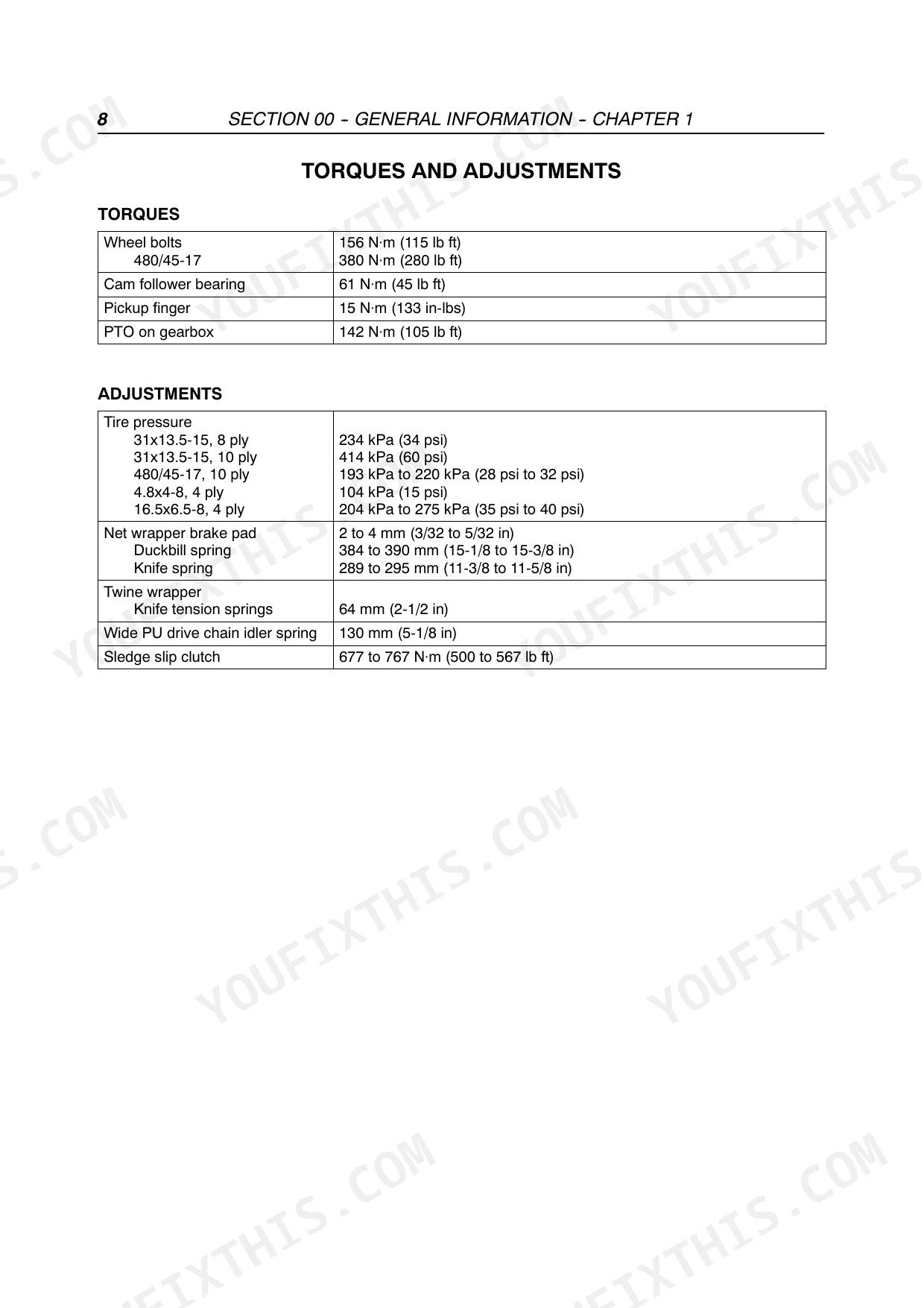

| PTO on gearbox torque | 142 N·m (105 lb ft) | p. 9 |
| Net wrapper brake pad thickness | 2 to 4 mm (3/32 to 5/32 in) | p. 9 |
| Sledge slip clutch torque | 677 to 767 N·m (500 to 567 lb ft) | p. 9 |
| Gearbox Oil Type | 80W-90 API GL5 | p. 59 |
| Gearbox Oil Capacity | 0.65 L (22 oz) | p. 59 |
| Gearbox 540 Ratio | 18:1 | p. 59 |
| RB454 | ||

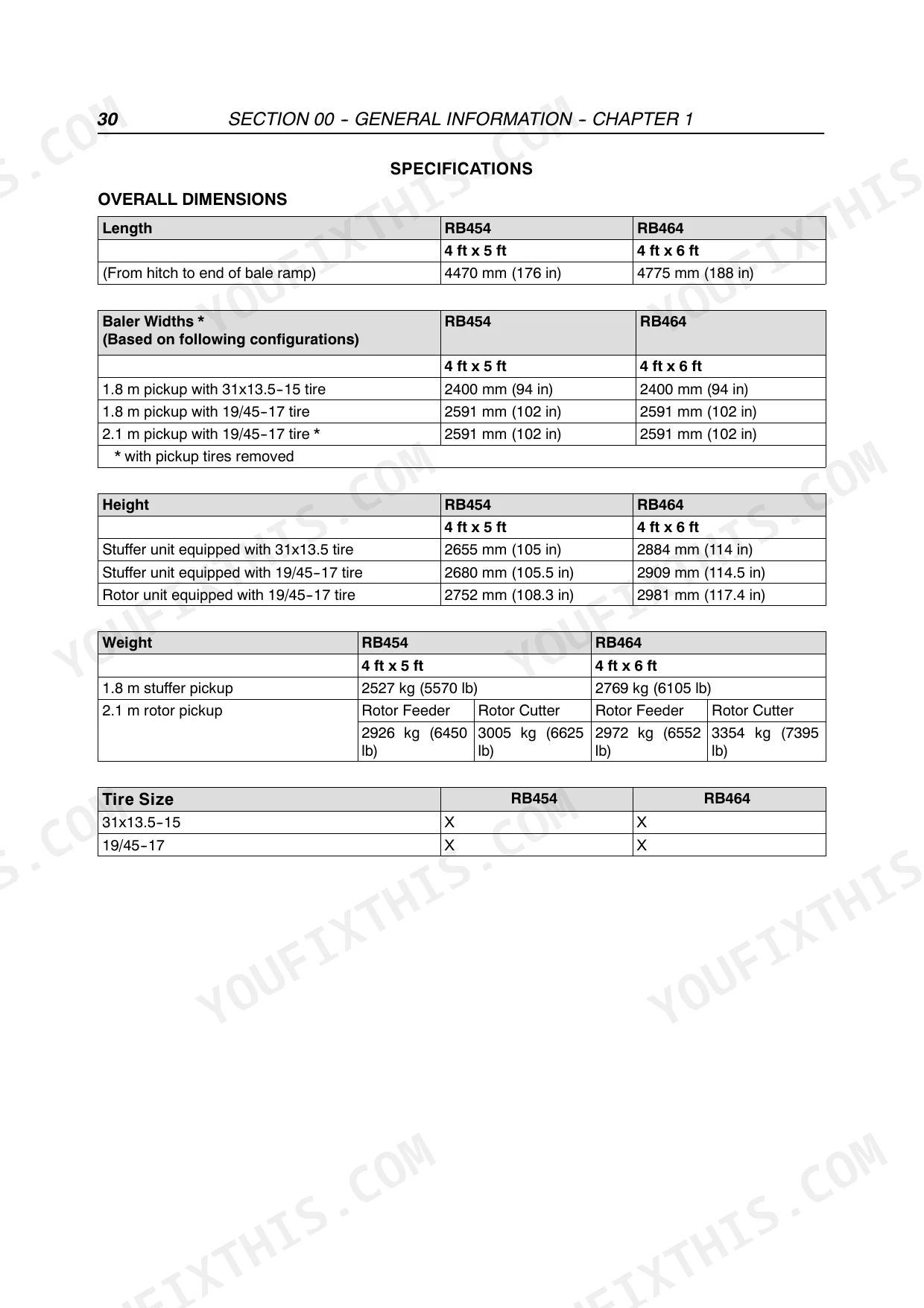

| Baler Length | 4 ft x 5 ft | p. 31 |
| RB464 | ||
| Baler Length | 4 ft x 6 ft | p. 31 |
Case RB454, RB464 Common Problems This Manual Covers
Case RB454 chevron belt fraying, edge wear, and tearing during heavy pressing cycles p. 691
Inspect torn belts for surface damage. If replacing sections, trim the rough top to a skiving depth of 5 mm (0.2 in) as detailed on page 725. For complete replacement on 1524 mm (60 in) diameter bales, cut new belts to exactly 8712 mm (343 in) on page 691.
Manual Section: SECTION 62 - PRESSING, Chapter 2 - Belts, Belt Failure AnalysisSluggish bale rotation and loud slipping noises from the sledge drive slip clutch p. 9
Inspect the sledge roll drive slip clutch for glazed or burned linings. Measure the breakaway torque. Adjust the spring tension until the clutch slips exactly between 677 to 767 N·m (500 to 567 lb ft) as shown on page 9. Replace the friction discs if torque cannot be maintained.
Manual Section: Implement DrivelineLoud grinding noise from the front PTO drive shaft and gearbox input connection p. 75
Drain the gearbox and inspect for metal shavings. Measure the gearbox backlash on page 75, ensuring it stays between 0.18 to 0.48 mm (0.007 to 0.019 in). Refill the housing with 0.65 L (22 oz) of 80W-90 API GL5 gear oil as specified on page 59.
Manual Section: Implement DrivelineNet wrapping fails to cut cleanly or uneven tension causes loose wrap on bales p. 9
Check the net brake system linkages for binding. Measure the net wrapper brake pad thickness. Replace the pads immediately if they wear below the minimum specification of 2 to 4 mm (3/32 to 5/32 in) listed on page 9. Adjust the brake spring tension to ensure proper cutting action.
Manual Section: SECTION 68 - WRAPPING, Chapter 1 - Net Wrapper Mechanical System AdjustmentsFrequently Asked Questions
How to reset twine arm error on Case IH RB454?
The manual indicates that the "Er 1" error code, which signifies a net or twine actuator failure for 5 seconds or more, will clear itself automatically after 10 seconds. There is no manual reset procedure specified for this particular error.
What are the torque specs for belt tension bolts on RB464?
The manual does not provide a specific torque specification for "belt tension bolts" on the RB464. However, for the RB464 with clutch, it instructs to tighten the two set screws, 3, and jam nuts, 2, without specifying a torque value.
What do error codes E10 and E25 mean on RB454 baler computer?
The manual does not list specific error codes E10 or E25. However, it describes various error messages and diagnostic items, such as "Er 1" for net or twine actuator failure and flashing indicators for bale shape or wrapper issues.
How to reset twine arm automatic tie on Case IH RB454
The manual does not provide a specific procedure to "reset twine arm automatic tie" on the Case IH RB454. However, it details adjustments for twine tension and twine tube breakaway, and troubleshooting steps for the net-twine wrapper electrical system, which may involve checking sensors and actuators.
How quickly can I access this manual after buying?
This is a 961-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Is this Case RB454, RB464 Service Manual printable?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.

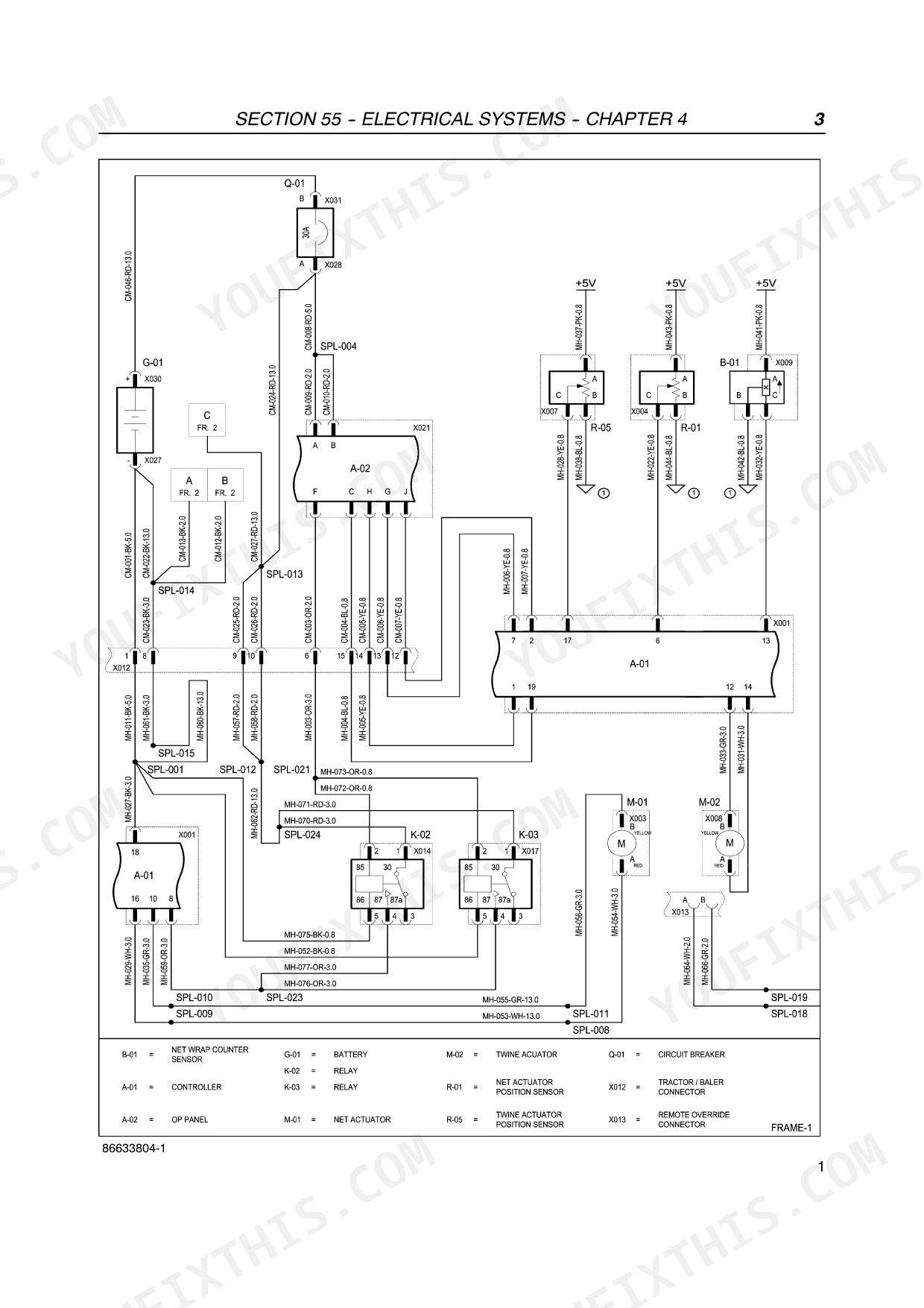

Are there wiring harness diagrams in this Case RB454, RB464 manual?
Yes, full electrical schematics are included with wire colors, connector locations, and circuit descriptions.
