Wrenching on a Hyundai R180LC-3? This 521-page Hyundai R180LC-3 service manual PDF covers the crawler excavator front to back: pump device, main control valve, swing and travel drives, boom, arm, and bucket cylinders. Inside you get hydraulic schematics tracing the main and pilot circuits, electrical wiring diagrams with component locations, and a fat troubleshooting section that even walks the Hyper Dat mechatronics diagnostics. Exploded views and step-by-step disassembly procedures take you from turning joint to travel motor without guesswork. Set the bypass relief valve to open at 1.5 kg/cm2, and confirm the check valve holds 3.0 kg/cm2 before you button up the return line. Your excavator is dead in the yard; forum threads won't fix it. Bookmarked by system and searchable by keyword, so jump straight to the spec, then get back on the sticks.
What's Inside This Hyundai R180LC-3 Manual
| System | Pages | Key Topics |
|---|---|---|
| General | 9-32 | Safety, Specification |

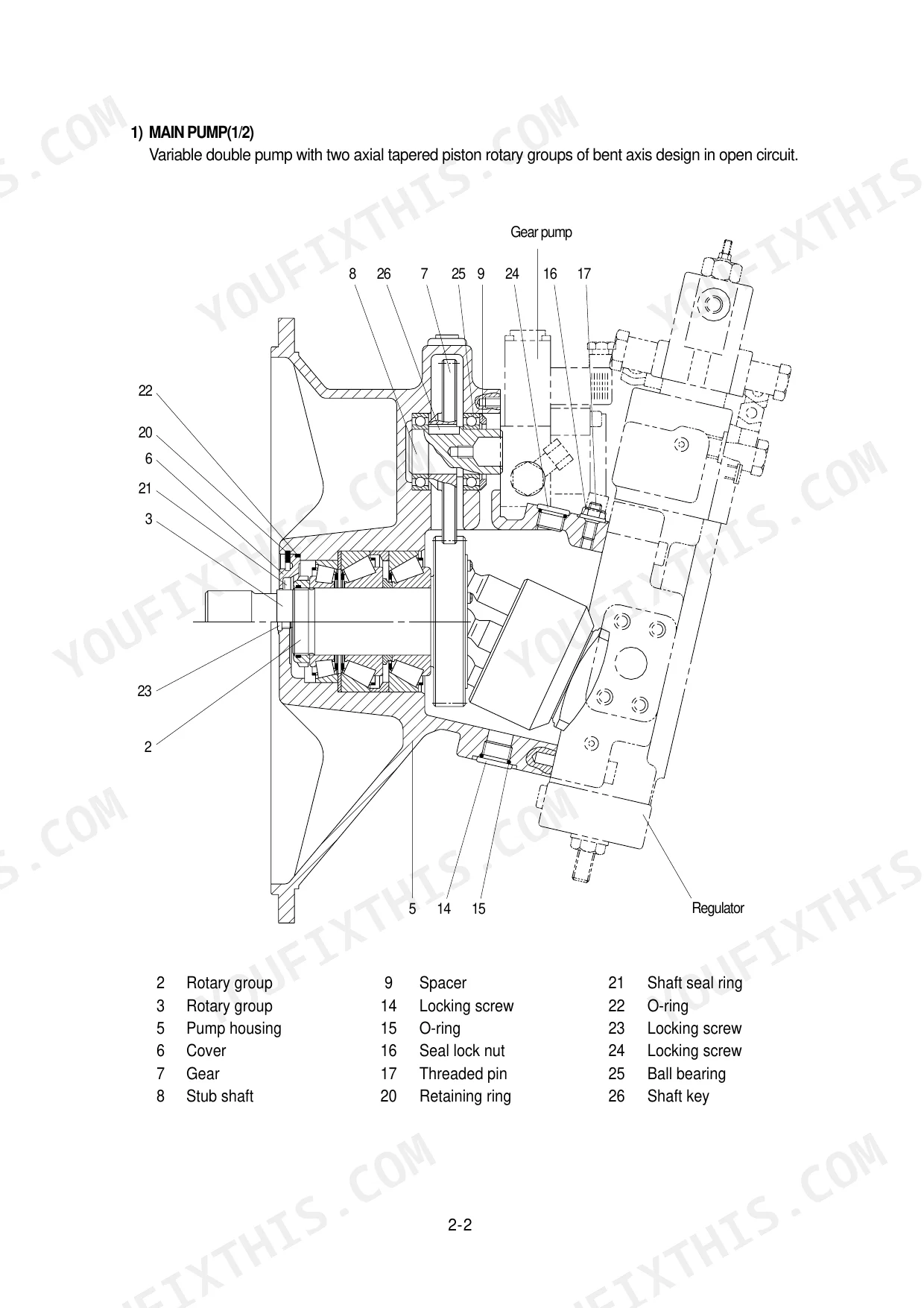

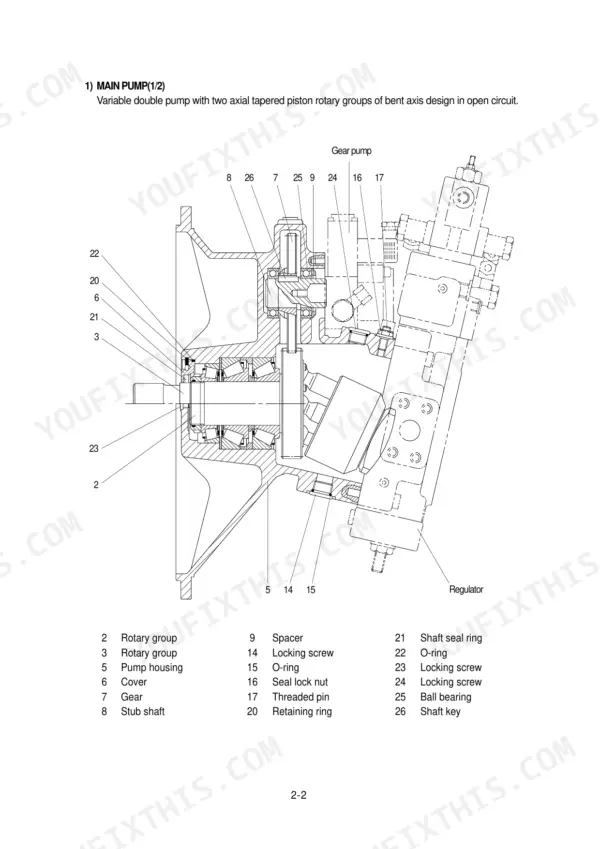

| Structure and Function | 33-94 | Pump Device, Main Control Valve, Swing Device, Travel Device, Rcv Lever, Rcv Pedal |

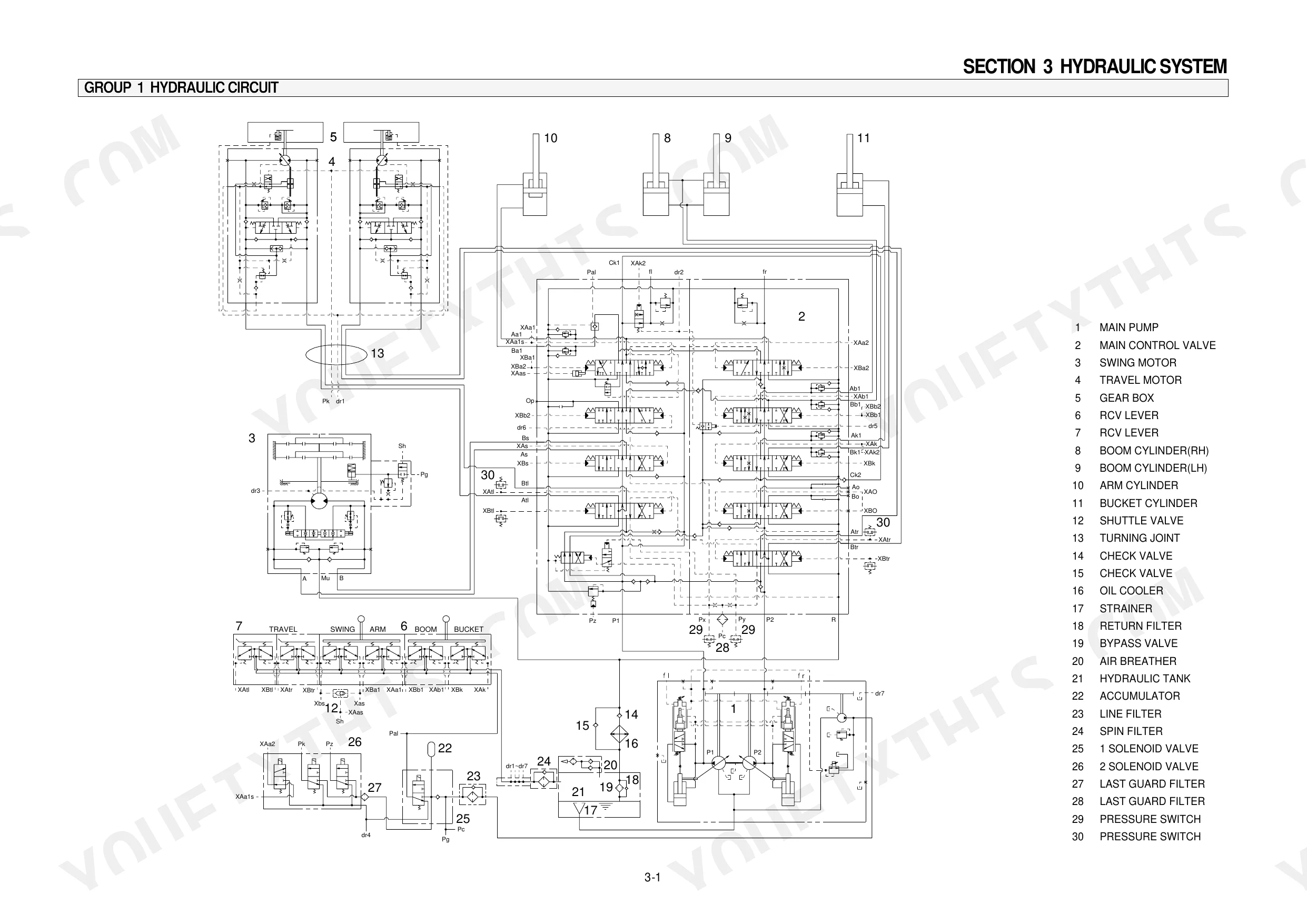

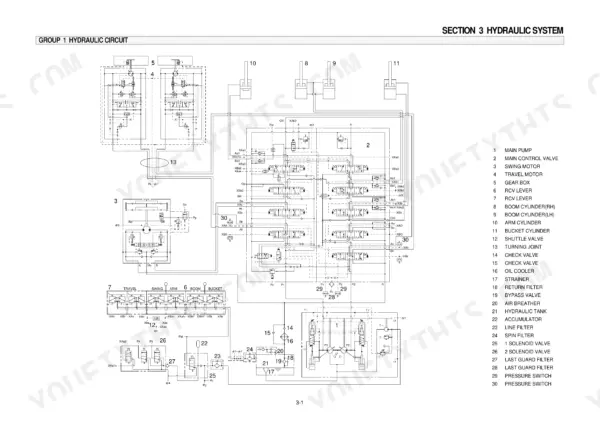

| Hydraulic System | 95-123 | Hydraulic Circuit, Main Circuit, Pilot Circuit, Combined Operation |
| Electrical System | 124-174 | Component Location, Electrical Circuit |
| Mechatronics System | 175-206 | Outline, Mode Selection System |

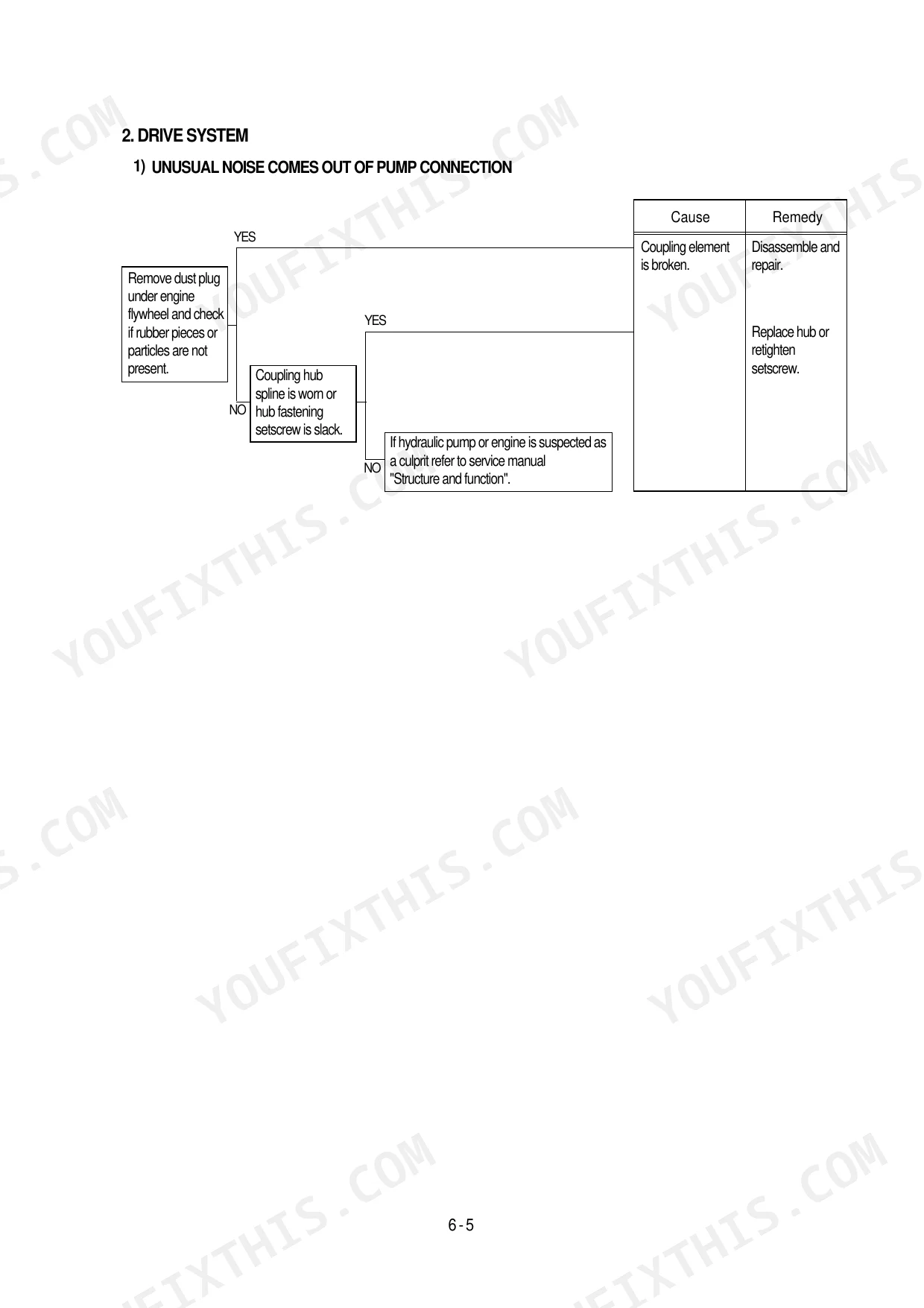

| Troubleshooting | 207-333 | Before Troubleshooting, Hydraulic and Mechanical System, Mechatronics System by Hyper Dat |
| Maintenance Standard | 334-370 | Operational Performance Test, Track and Work Equipment |

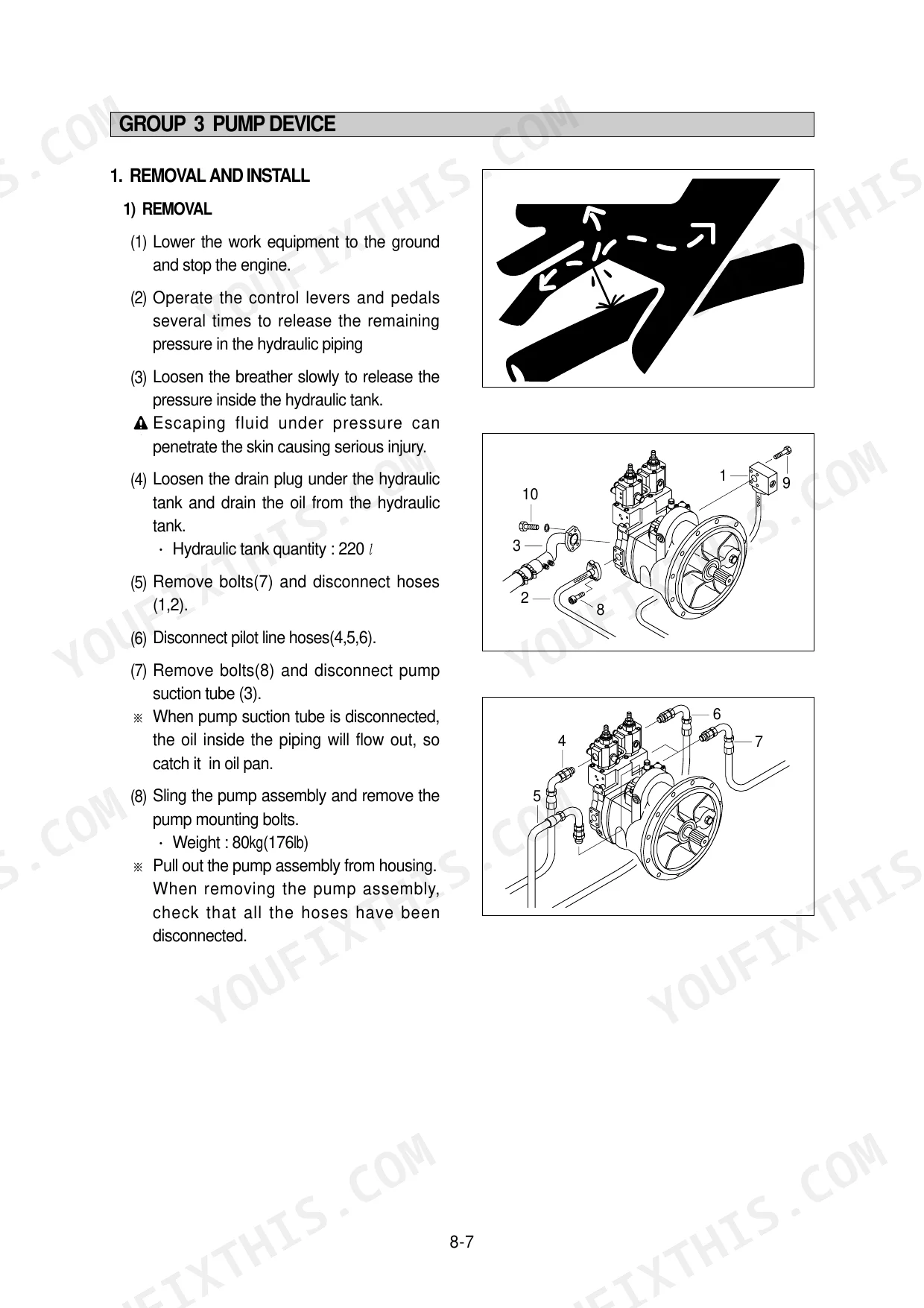

| Disassembly and Assembly | 371-521 | Precautions, Pump Device, Main Control Valve, Swing Device, Travel Device, Turning Joint, Boom, Arm and Bucket Cylinder |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Battery | 2 x 12V x 160Ah | p. 29 |
| Starting motor | Delco Remy 37MT(24V) | p. 29 |
| bypass relief valve opening pressure | 1.5kg/cm2 | p. 97 |
| bypass check valve(1) setting pressure | 3.0kg/cm2 | p. 97 |
| bypass check valve(2) setting pressure | 1.5kg/cm2 | p. 97 |
| Battery capacity | 12V x 160Ah | p. 153 |
| EPPR valve pressure gauge capacity | 0 to 40-50 kg/cm2 (0 to 570-710 psi) | p. 203 |
| EPPR valve pressure specification | 6-12 kg/cm2 (85-170 psi) | p. 203 |

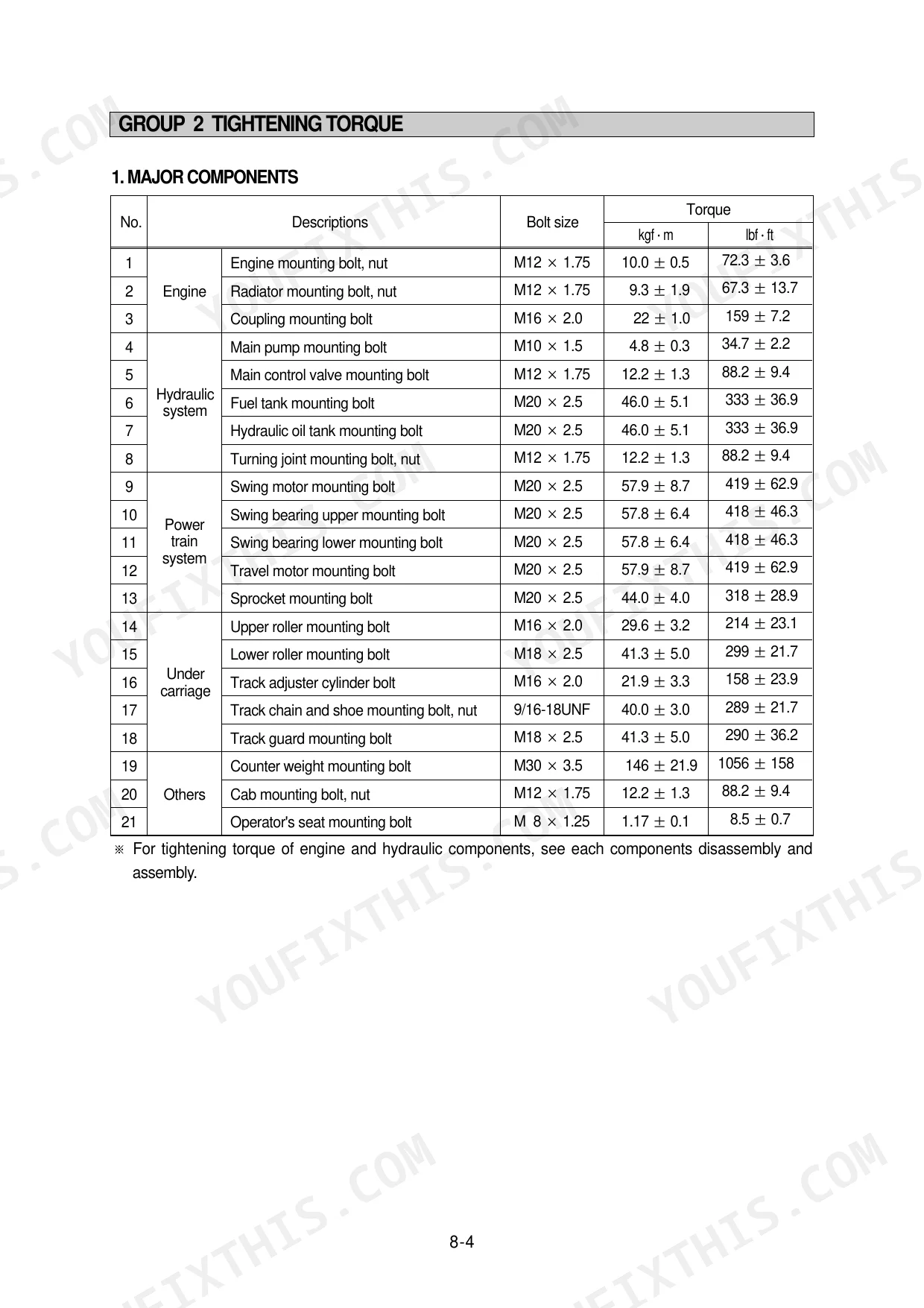

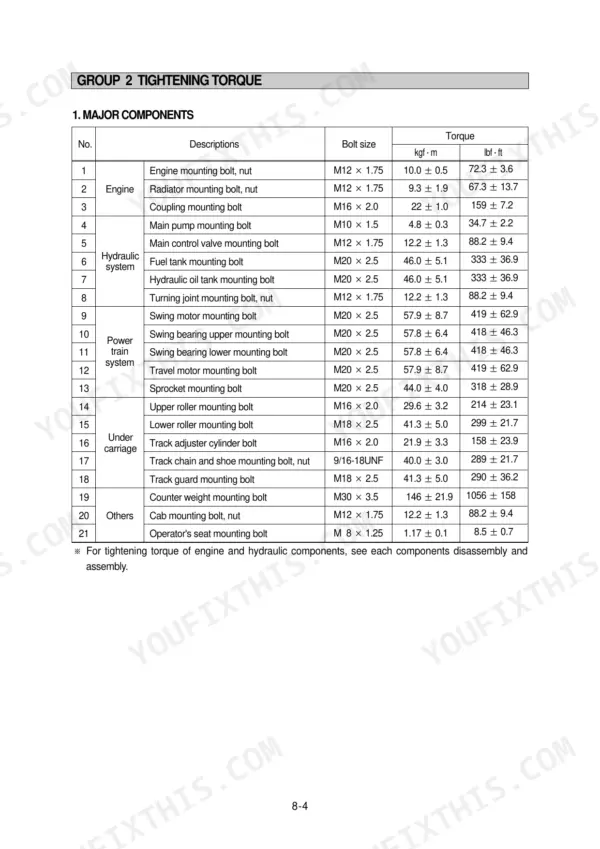

| Engine mounting bolt, nut torque | 10.0 ± 0.5 kgf·m | p. 375 |
| Radiator mounting bolt, nut torque | 9.3 ± 1.9 kgf·m | p. 375 |

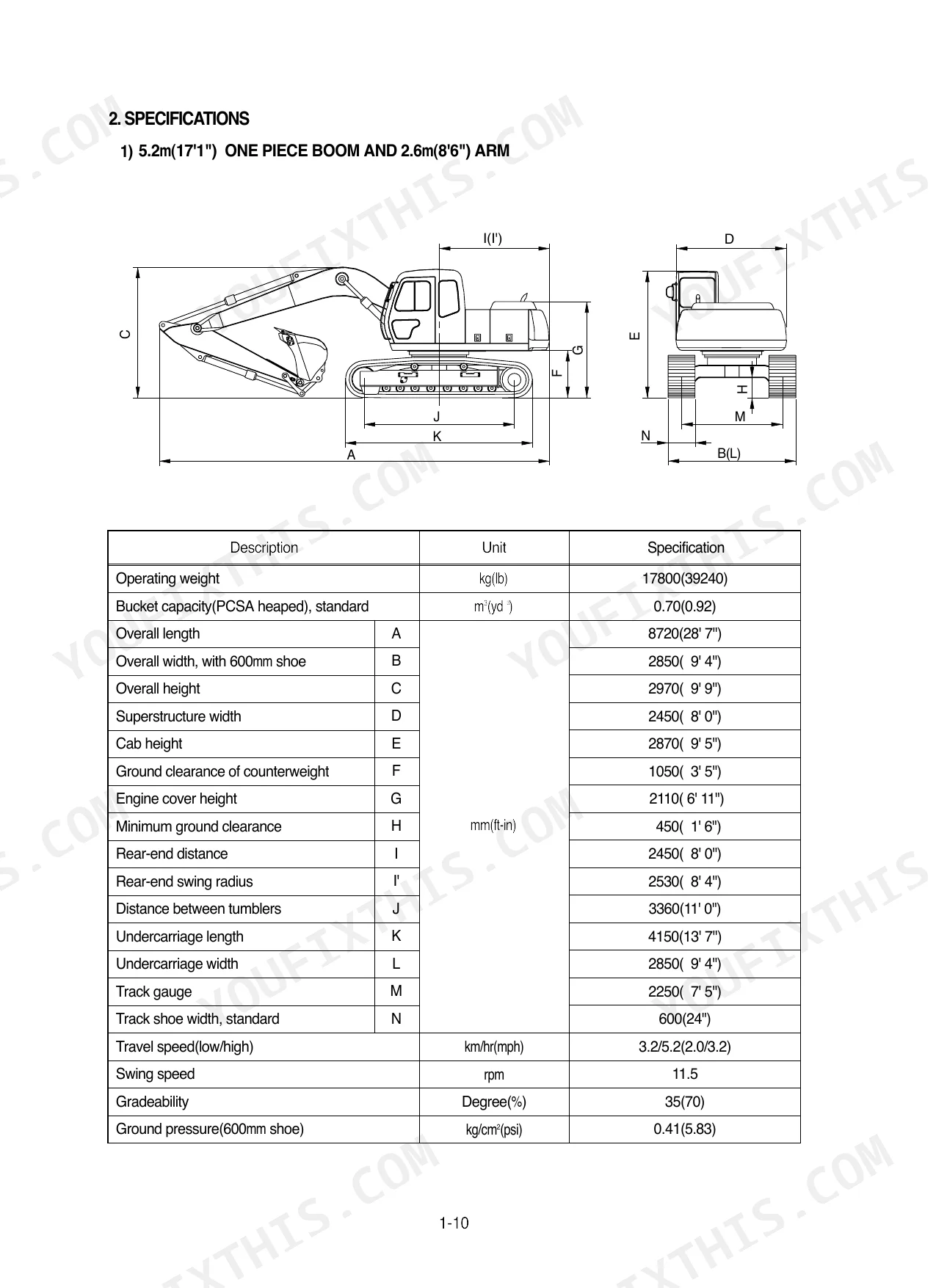

| Operating weight | 17800 kg | p. 18 |
| Travel speed (low/high) | 3.2/5.2 km/hr | p. 18 |
Hyundai R180LC-3 Common Problems This Manual Covers
Hyundai R180LC-3 hydraulic pump making loud whining noise, all functions slow and weak after warm up
Check hydraulic oil level with the machine on flat ground; running low pulls air into the suction line — check the level against the capacity table rather than by eye. Inspect the tank strainer for sludge, bleed the pump housing, then verify main relief pressure reaches 320 kg/cm2 using the troubleshooting procedures starting.
Manual Section: Hydraulic System TroubleshootingEngine cranks slowly or will not turn over, clicking from starter relay on cold mornings

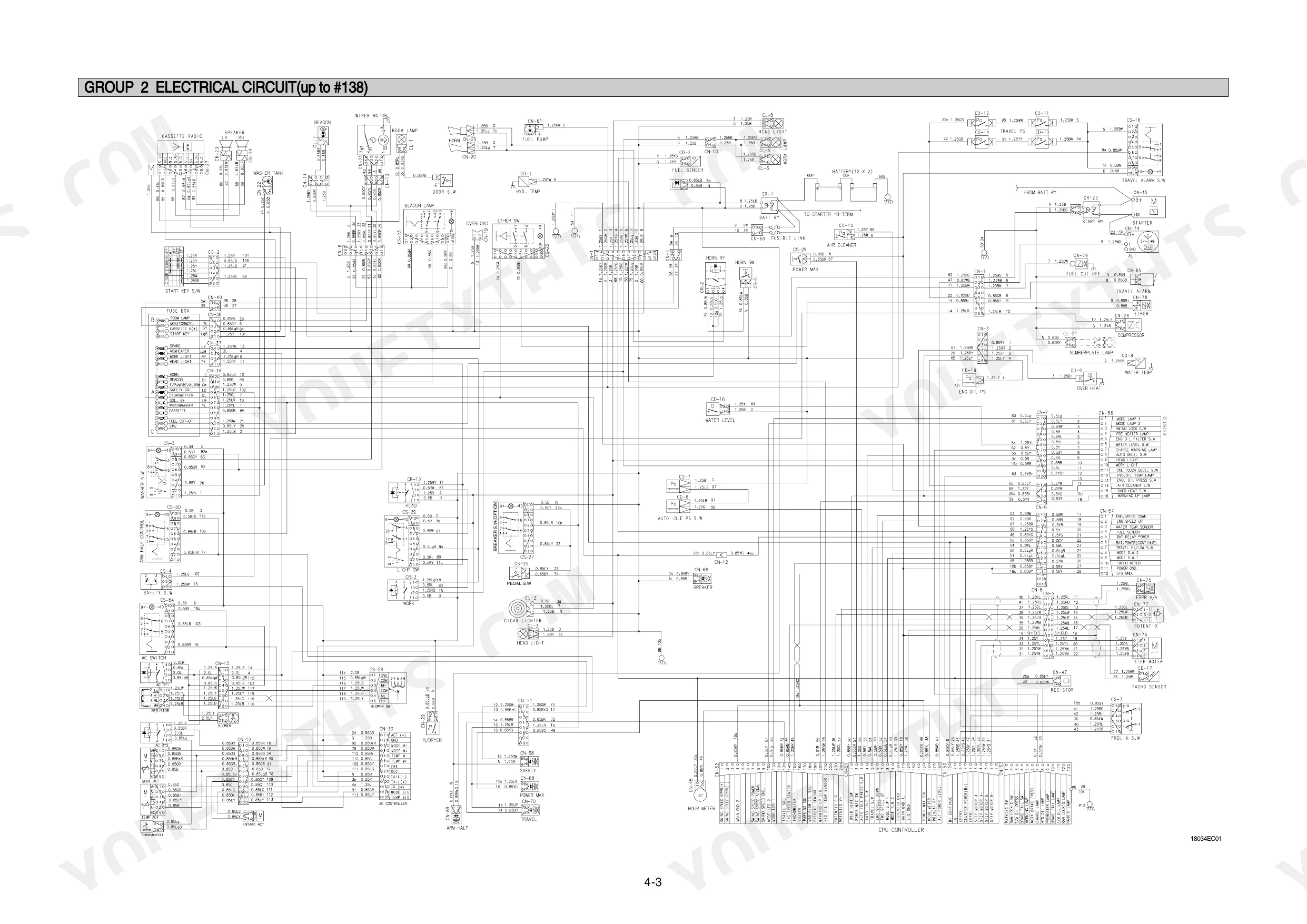

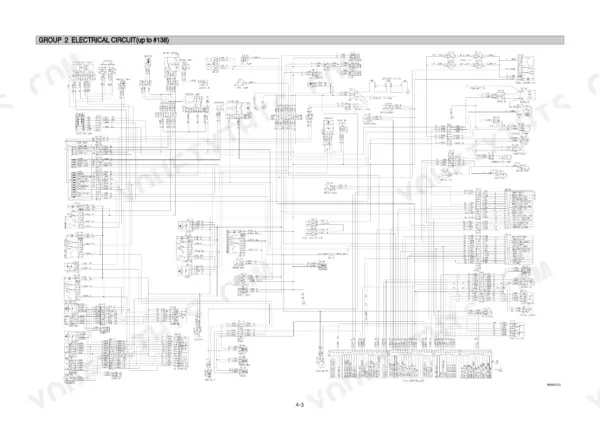

Test both 12V 160Ah batteries under load; this machine runs two in series and one weak cell drags the whole 24V system down. Clean and tighten the ground and starter cable connections, then trace voltage drops through the wiring diagram on page 126 before condemning the Delco Remy 37MT starter.
Manual Section: Electrical System Troubleshooting p. 126Machine curves to one side during travel, one track slow or powerless on grades
Measure travel speed on flat ground; the specification table on page 18 gives 3.2 / 5.2 km/hr for low and high range, and one side lagging points to that track's motor or brake valve. Check track tension first, then swap the travel relief valves side to side and confirm relief pressure reaches 335 kg/cm2.
Manual Section: Travel System Troubleshooting p. 18Hydraulic oil temperature climbing into the red zone within an hour of normal digging
Clean the oil cooler fins with compressed air blown from the fan side; packed debris is the usual cause. Check oil level and condition, then test the cooler bypass check valve, which should open at 3.0 kg/cm2 per the circuit data on page 97. Replace any milky or dark oil before it damages the pump.
Manual Section: Hydraulic System p. 97Boom and arm cylinders slow in every work mode, engine sounds normal under load
Connect a 0 to 50 kg/cm2 gauge to the EPPR valve output port and check pressure with the engine at full throttle. Spec is 6 to 12 kg/cm2, shown on page 248; a reading outside that range means the valve or its controller signal is off. Verify power mode selection before replacing parts.
Manual Section: Mechatronics System Troubleshooting p. 248Frequently Asked Questions
How do I enter the diagnostic mode on a Hyundai R180LC-3?
To enter the diagnostic mode, you must use the HYPER DAT tool. Connect the modular and signal adapter between the CPU controller and the main harness, then connect the main cable to the main body. Ensure the start switch is OFF before installation, then turn the start switch ON or to START to begin the diagnostic process. p. 205
What are the replacement specifications for the hydraulic return filter?
The return filter is provided in the hydraulic tank. A bypass relief valve is integrated into the return filter. If the filter element becomes clogged, the bypass relief valve will open at a differential pressure of 1.5 kg/cm² (21 psi). p. 97
What is the tightening torque for the engine mounting bolts and nuts?
The engine mounting bolts and nuts (size M12 x 1.75) should be tightened to a torque of 10.0 ± 0.5 kgf·m (72.3 ± 3.6 lbf·ft). p. 374
How do I bleed air from the hydraulic cylinders after repair?
After repairing or reassembling hydraulic cylinders, start the engine and run it at low idling. Actuate the hydraulic cylinder 4-5 times, stopping 100mm before the end of the stroke. Finally, operate the piston rod to the end of its stroke to relieve the circuit, ensuring the air bleed valve is actuated to bleed the air. p. 372
What is the standard engine speed for the H mode?
The standard engine speed for the H mode is 2250 +50 rpm at rated speed. p. 177
What exactly do I receive with this Hyundai R180LC-3 Service Manual?
Instant PDF download. You get the full 521-page searchable Service Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Is this Hyundai R180LC-3 manual print-friendly?
Print away. There is no DRM and no page limit. Many buyers print one chapter at a time and leave the rest on a tablet.
