Part of the Hyundai Repair Manuals.
Looking for the Hyundai R300LC-7 service manual PDF that dealers actually use? All 468 pages cover the R300LC-7 crawler excavator from pump device teardown to final track adjustment. You get high-quality hydraulic circuit schematics with pilot and main circuit routing, full electrical wiring diagrams with connector pinouts, and a thick troubleshooting section that walks the hydraulic, electrical, and mechatronics systems fault by fault. Disassembly and assembly procedures cover the main control valve, swing device, travel device, and turning joint, each with tightening torques. Set the pilot relief valve at 35 kgf/cm2 and swap the fuel filter element every 500 hours, straight from the maintenance standard tables. No more chasing wiring faults with a multimeter and a prayer. Bookmarked, text-searchable, and it opens on any device; walk it right out to your machine.
What's Inside This Hyundai R300LC-7 Manual
| System | Pages | Key Topics |
|---|---|---|
| General | 11-38 | Safety Hints, Specifications |

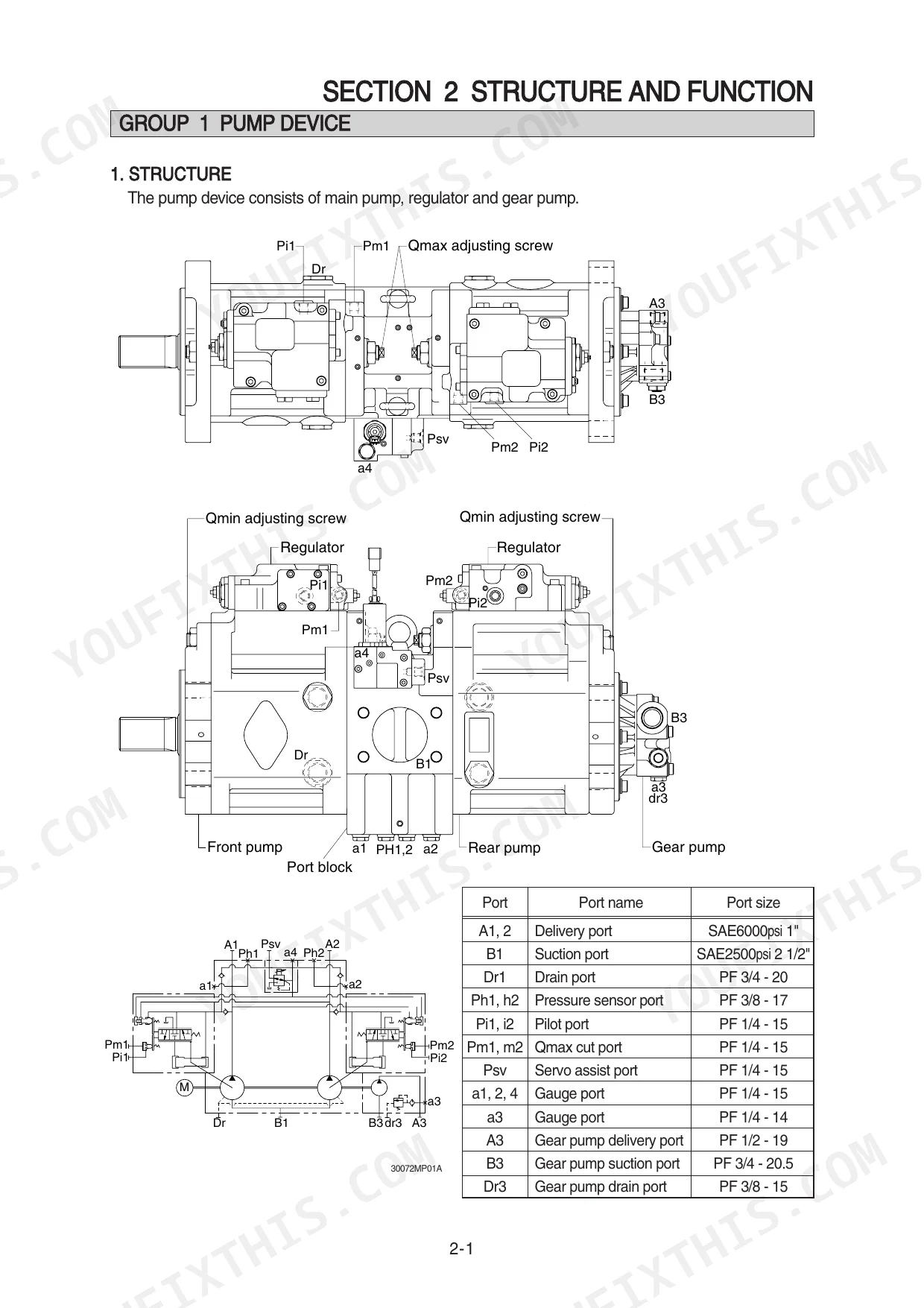

| Structure and Function | 39-95 | Pump Device, Main Control Valve, Swing Device, Travel Device, Rcv Lever, Rcv Pedal |

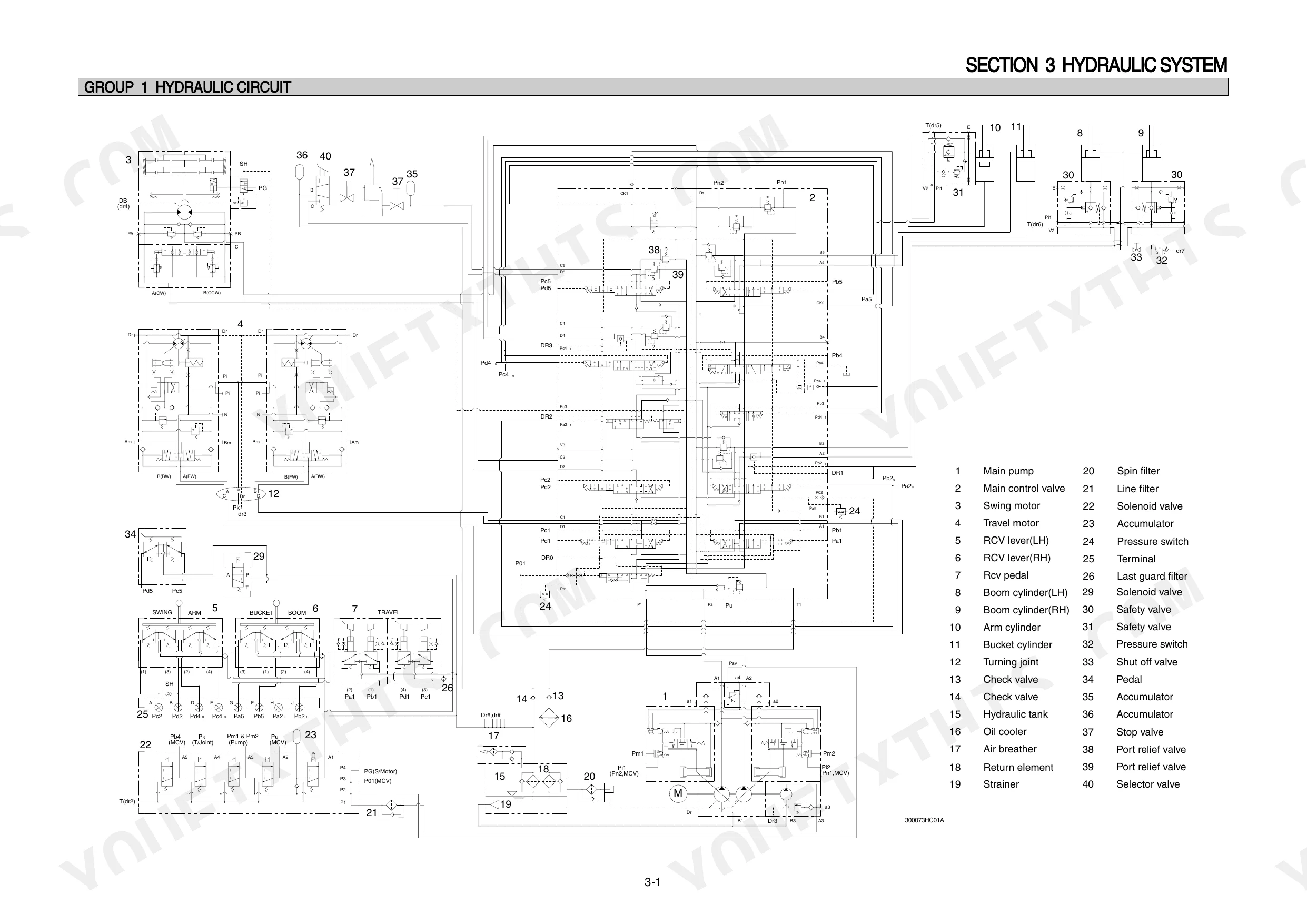

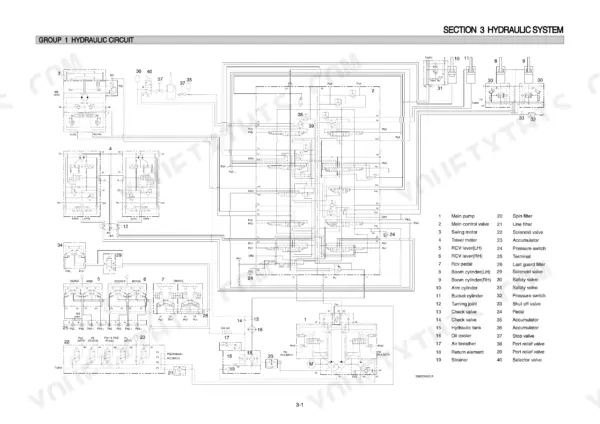

| Hydraulic System | 96-127 | Hydraulic Circuit, Main Circuit, Pilot Circuit, Single Operation, Combined Operation |
| Electrical System | 128-173 | Component Location, Electrical Circuit, Electrical Component Specification, Connectors |
| Mechatronics System | 174-211 | Outline, Mode Selection System, Engine Control System, Monitoring System |
| Maintenance Standard | 268-302 | Operational Performance Test, Major Components, Track and Work Equipment |

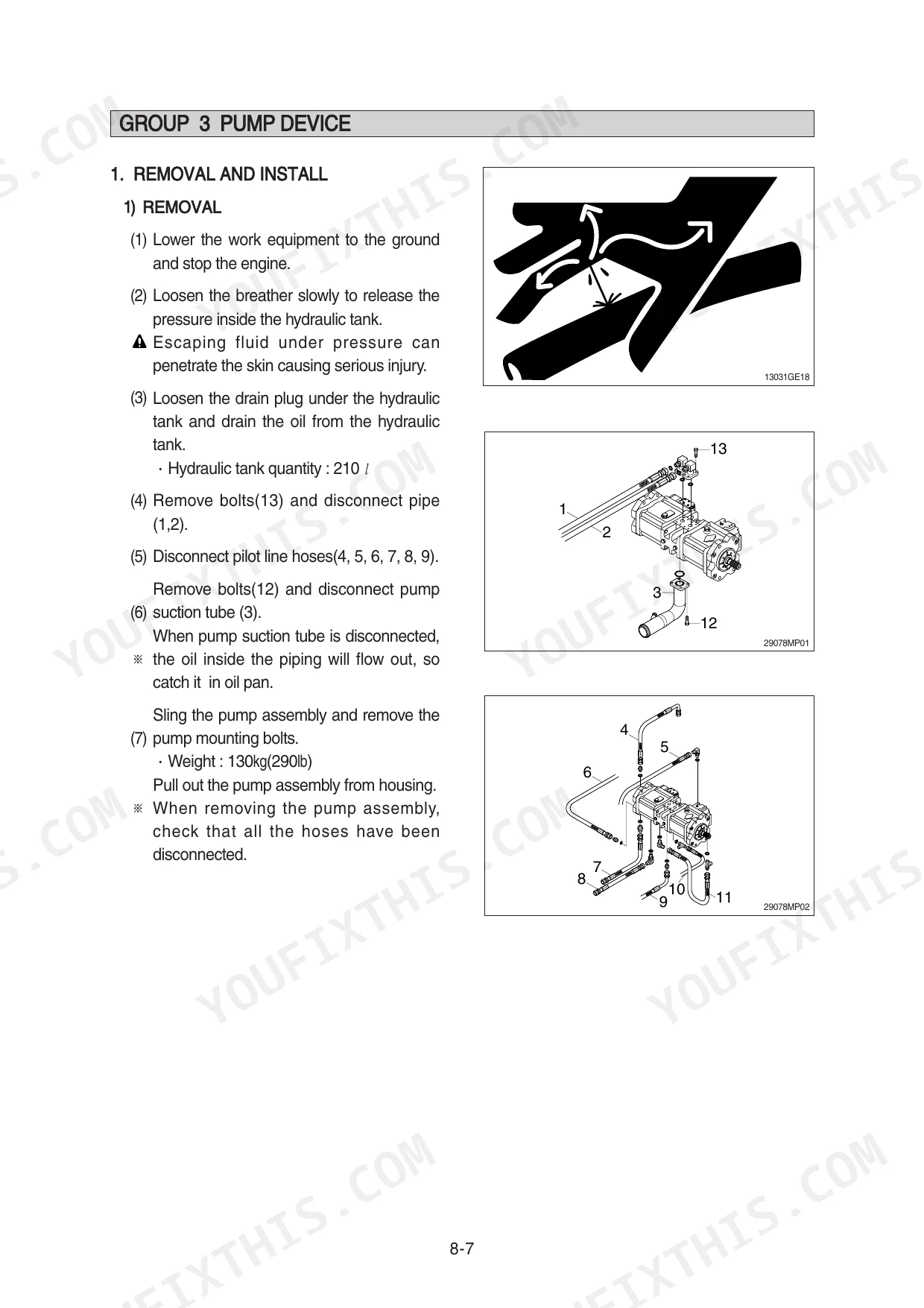

| Disassembly and Assembly | 303-453 | Precaution, Tightening Torque, Pump Device, Main Control Valve, Swing Device, Travel Device, Rcv Lever, Turning Joint |
| Component Mounting Torque | 454-468 | Introduction Guide, Engine System, Electric System, Undercarriage, Structure, Work Equipment |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| secondary pressure | 5 to 20.5 kgf/cm2 | p. 84 |
| Bypass relief valve opening pressure | 1.5kgf/cm2 | p. 99 |
| Drain oil pressure limit | 1.5kgf/cm2 | p. 100 |
| Pilot relief valve setting pressure | 35kgf/cm2 | p. 101 |
| Fuel filter element replacement interval | 500hr | p. 204 |
| Current | 15A | p. 213 |
| Play between piston(1) & shoe caulking section(3) | 0-0.1 mm | p. 289 |

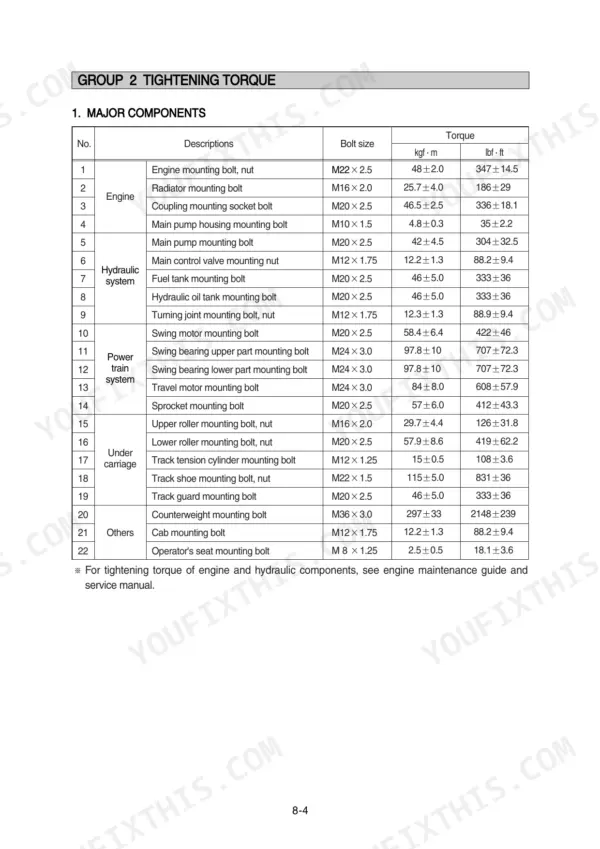

| Engine mounting bolt, nut torque | 48 ± 2.0 kgf·m | p. 308 |
| Swing bearing upper part mounting bolt torque | 97.8 ± 10 kgf·m | p. 308 |
| Tightening torque for M10x1.5 bolt (Item 2) | 4.4 ± 0.9 kgf·m (31.8 ± 6.5 lbf·ft) | p. 456 |

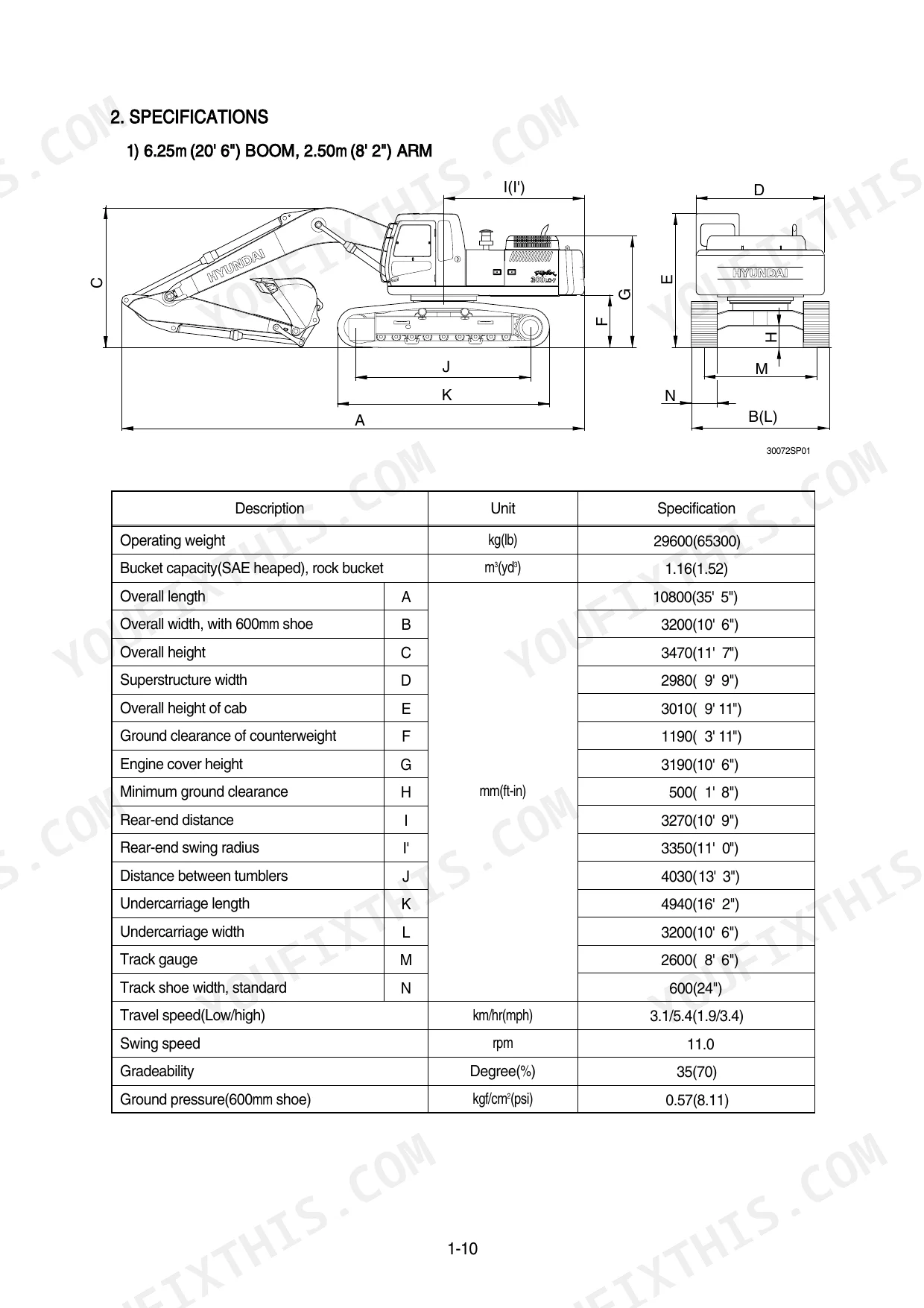

| Operating weight | 29600 kg | p. 21 |
| Engine rated gross horse power | 217 Hp | p. 34 |
Hyundai R300LC-7 Common Problems This Manual Covers
Hyundai R300LC-7 hydraulic pump whines and cavitates under load, bucket and boom respond slowly
Check hydraulic oil level and the suction strainer first; cavitation usually starts there. Bleed air from the suction line, then inspect the coupling hub setscrews and element for spline wear. If the noise continues, tear the pump down and measure piston-to-shoe caulking play against the 0 to 0.1 mm limit on page 289; replace worn rotating groups.
Manual Section: Maintenance Standard p. 289All hydraulic functions weak and slow, digging force drops off once the oil warms up
Test main relief pressure at the pump port; spec is 330 kgf/cm2 on page 34. Adjust or replace the main relief valve if it reads low, torquing the cartridge to 8 to 9 kgf·m per page 342. Also check the pilot circuit; pilot relief should hold 35 kgf/cm2 as listed on page 101.
Manual Section: Hydraulic System p. 96Boom and arm completely dead in both directions, swing and travel still work normally
Measure pilot secondary pressure at the RCV lever outlet; it should run 5 to 20.5 kgf/cm2 per page 84. No pressure there points to a pilot supply fault, not the main valve. If pilot pressure is good, pull the boom spool cover (bolts torque to 1 to 1.1 kgf·m, page 343) and check the spool for sticking or contamination.

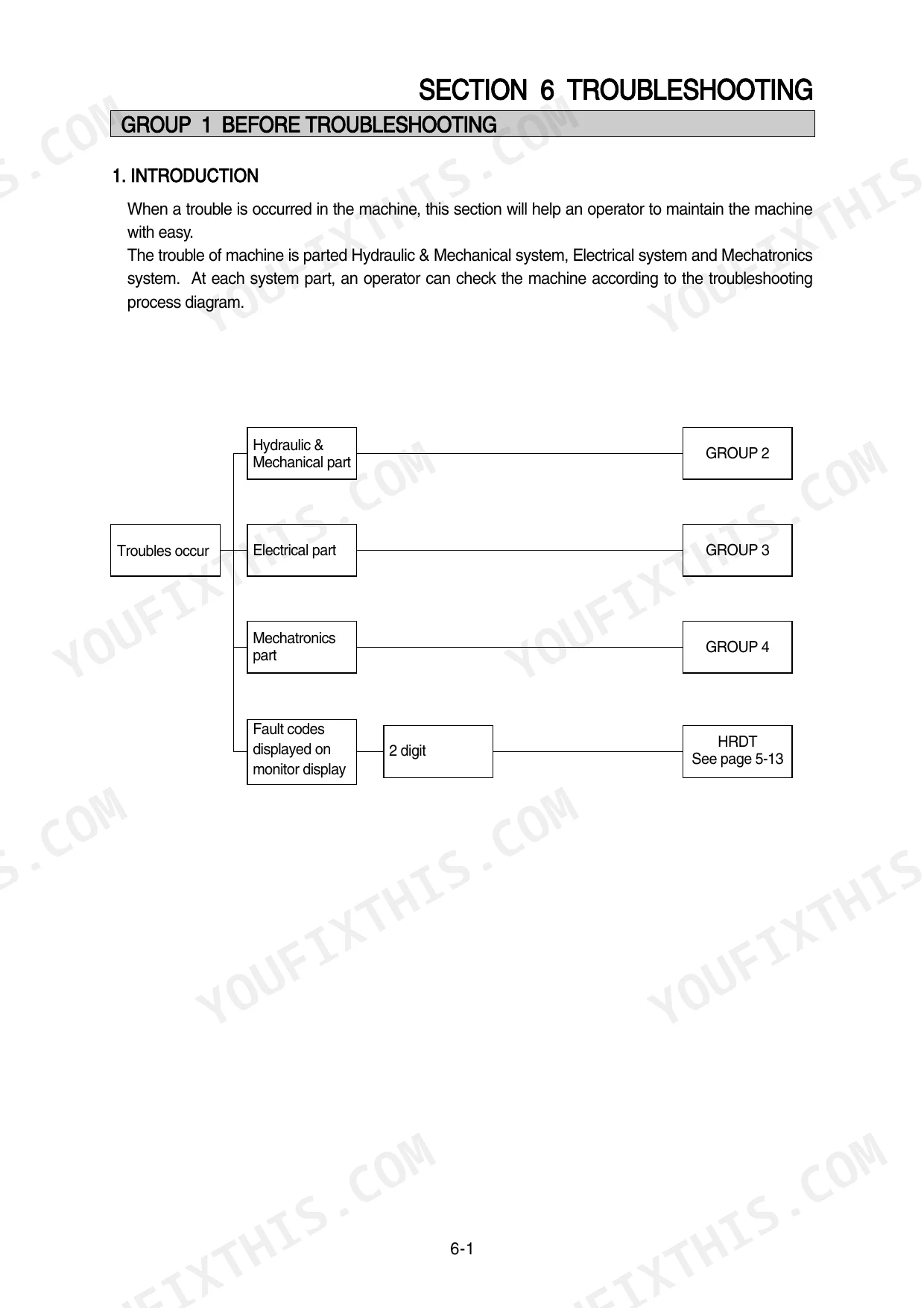

Manual Section: Hydraulic and Mechanical System Troubleshooting p. 213Coolant temperature climbs into the red under load, radiator and fan belt look clean

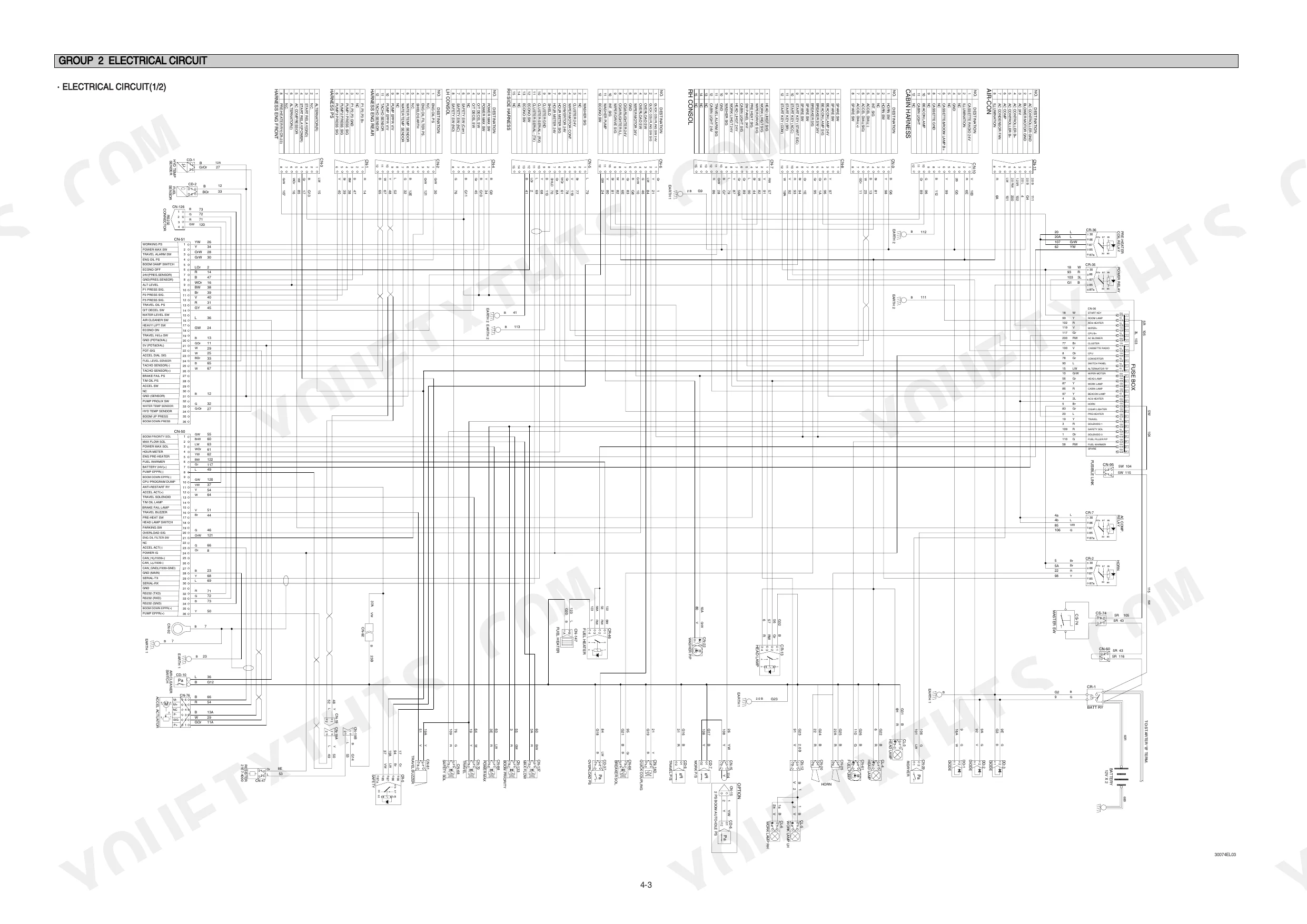

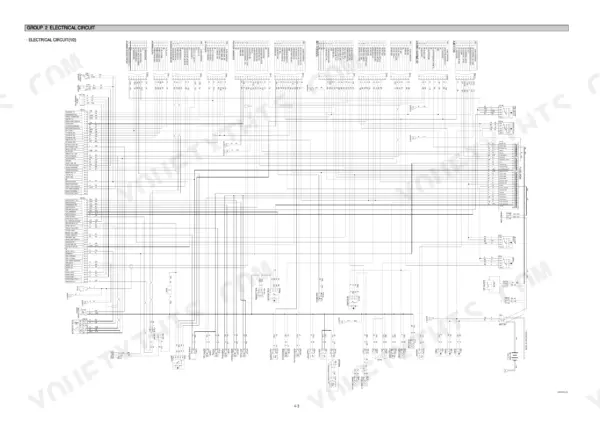

Check coolant level and the fan hub first. Verify the fan mounting bolts are tight; the M10 bolts take 4.4 kgf·m per page 456. Back-flush the radiator core, then test the temperature sender and wiring against the diagram on page 131. If the engine also runs rough, replace the fuel filter element at the 500 hour interval on page 204.
Manual Section: Electrical System TroubleshootingEngine cranks slowly or not at all, monitor panel flickers and resets during cranking
Load test the battery and clean both cable terminals down to bright metal. Check the fuse box for blown fuses; the start circuit checks beginning on page 213 include a 15A current spec. Trace ground and starter feeds against the wiring diagram on page 131, then test the safety solenoid and start relay before condemning the starter.
Manual Section: Electrical System Troubleshooting p. 213Frequently Asked Questions
What does the Hyundai R300LC-7 error code mean?
Error codes are displayed on the cluster when an abnormality occurs in the NEW CAPO system. For example, error code 1 indicates a short circuit in the accel actuator system, and error code 34 indicates that the controller input voltage is below 18V. p. 187
What are the torque specs for Hyundai R300LC-7 track roller bolts?

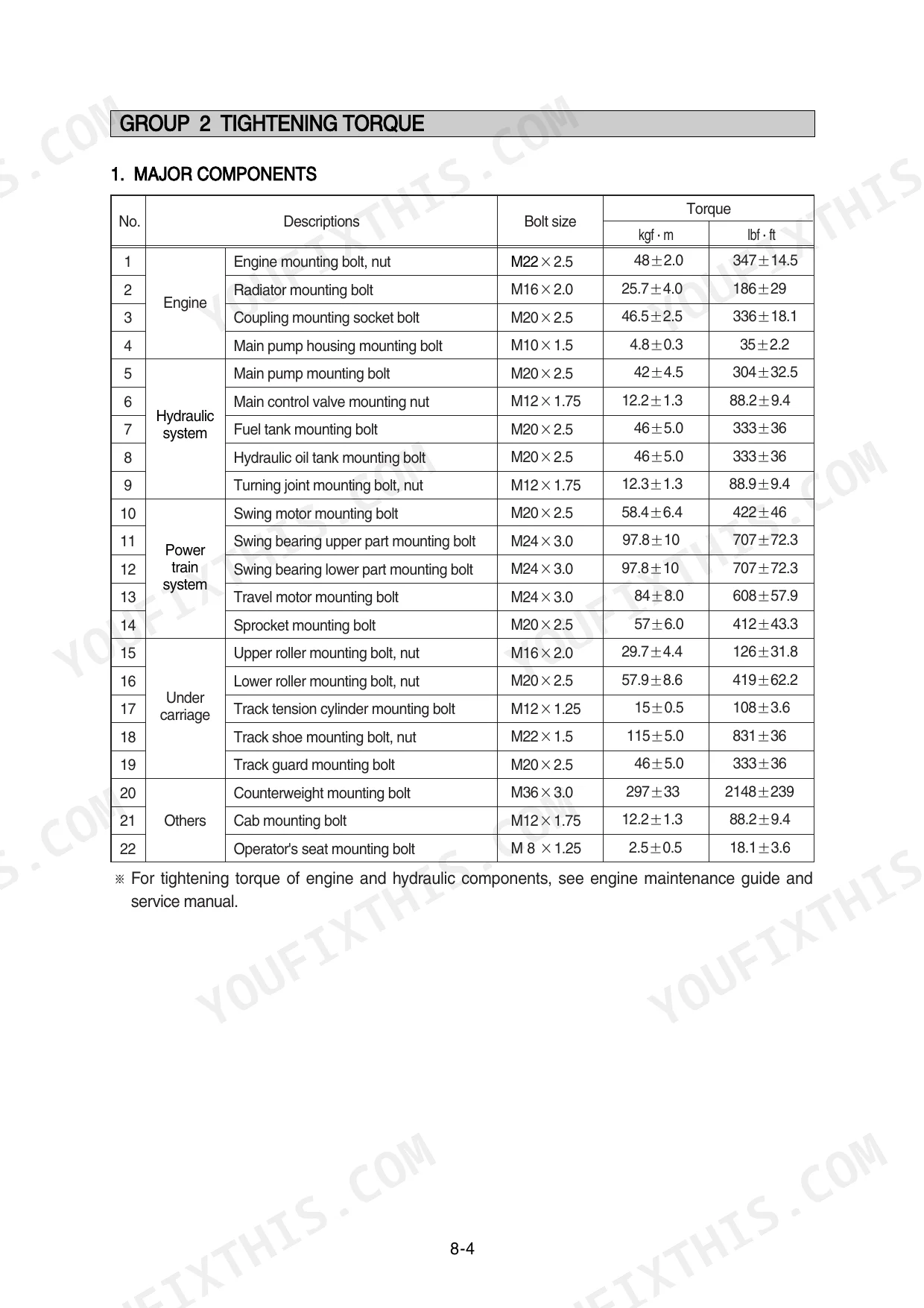

The tightening torque for the lower roller mounting bolt and nut is 57.9 ± 8.6 kgf·m (419 ± 62.2 lbf·ft). p. 307
How do I clear a Hyundai R300LC-7 alarm?
If the alarm buzzer sounds due to a machine problem, press the BUZZER STOP switch on the cluster. The buzzer sound will be canceled, but the red lamp will remain lit until the problem is cleared. p. 209
What are the replacement specifications for the hydraulic pump?
The main pump consists of two piston pumps (front and rear) and a valve block. The rated oil flow is 2 × 260 ˶/min (68.7 U.S. gpm/ 57.2 U.K. gpm) and the maximum pressure is 330 kgf/cm² (4690 psi). p. 34
What is the tightening torque for the main relief valve on the R300LC-7?
The tightening torque for the main relief valve (81) is 8-9 kgf·m (57.8-65.1 lbf·ft) using a 32mm spanner. p. 342
What exactly do I receive with this Hyundai R300LC-7 Service Manual?
Instant PDF download. You get the full 468-page searchable Service Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Am I able to print pages from this Hyundai R300LC-7 manual?
Zero restrictions. The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
