Looking for the Hyundai R80-7A shop manual PDF? All 420 pages cover your R80-7A Crawler Excavator, from pump device and main control valve teardowns to swing and travel drive rebuilds. Inside you get full hydraulic circuit schematics tracing main and pilot flow through single and combined operation, plus electrical wiring diagrams with connector pinouts and component specifications. A thick troubleshooting section walks hydraulic, electrical, and mechatronics faults step by step, backed by operational performance tests and maintenance standards for tracks and work equipment. Torque the swing motor mounting bolts to 29.7 kgf·m (215 lbf·ft) and check the coolant temp sender at 120 to 150 ohms before you swap parts on a hunch. Chasing an intermittent fault burns daylight fast. This bookmarked PDF opens on any device; search a spec by keyword, walk to the machine, and fix it.
What's Inside This Hyundai R80-7A Manual
| System | Pages | Key Topics |
|---|---|---|
| General | 3-22 | Safety Hints, Specifications |
| Structure and Function | 23-80 | Pump Device, Main Control Valve, Swing Device, Travel Device, Rcv Lever, Rcv Pedal |

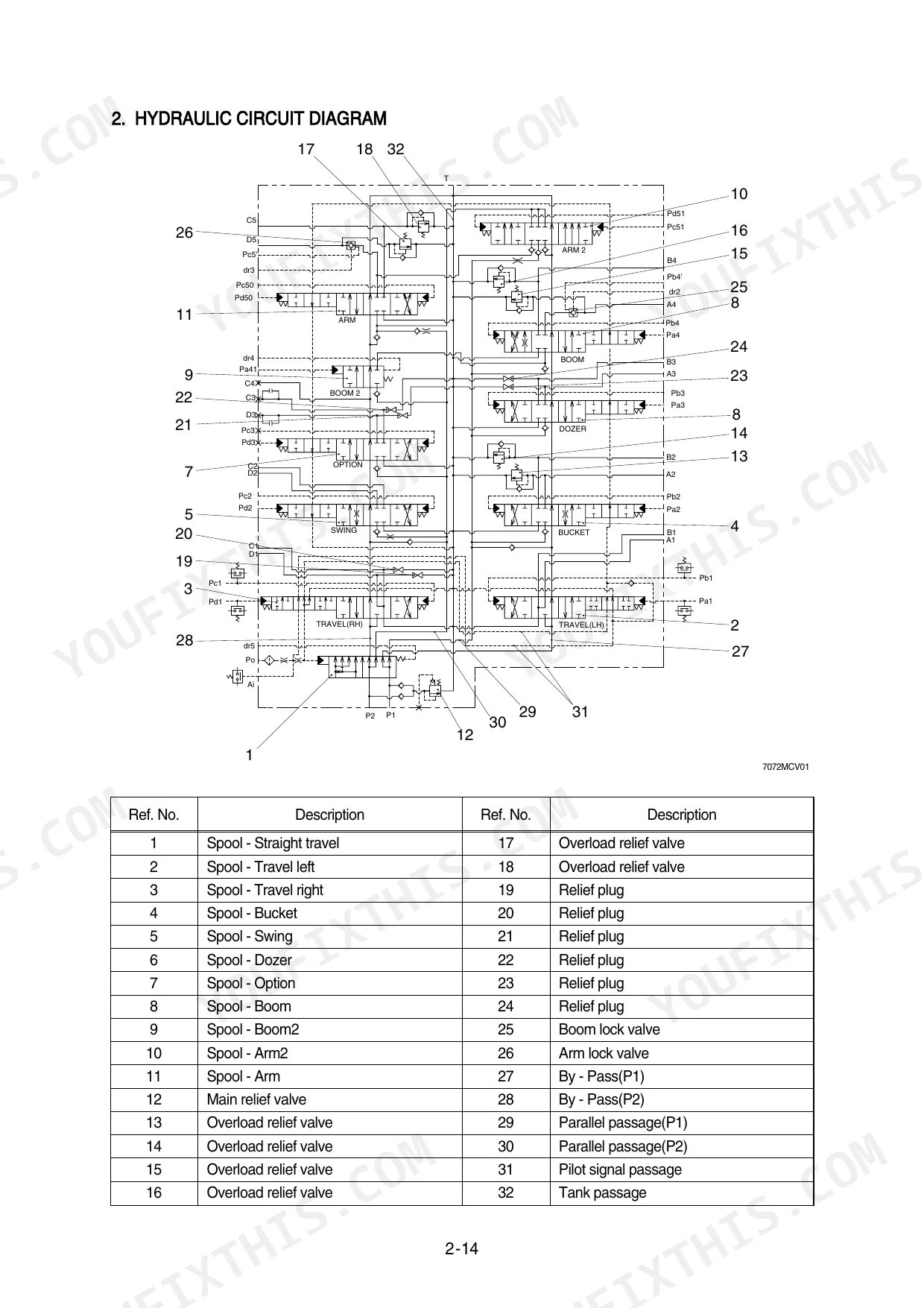

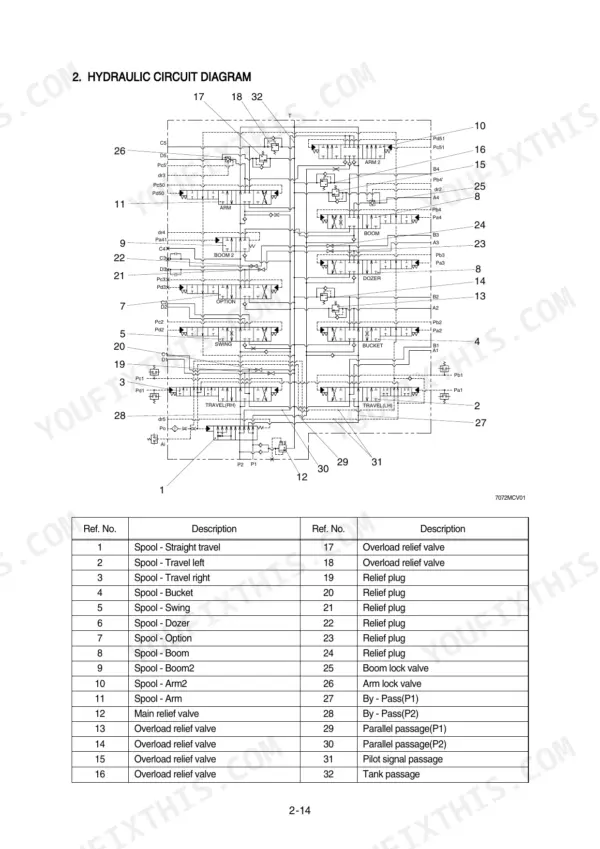

| Hydraulic System | 81-111 | Hydraulic Circuit, Main Circuit, Pilot Circuit, Single Operation, Combined Operation |

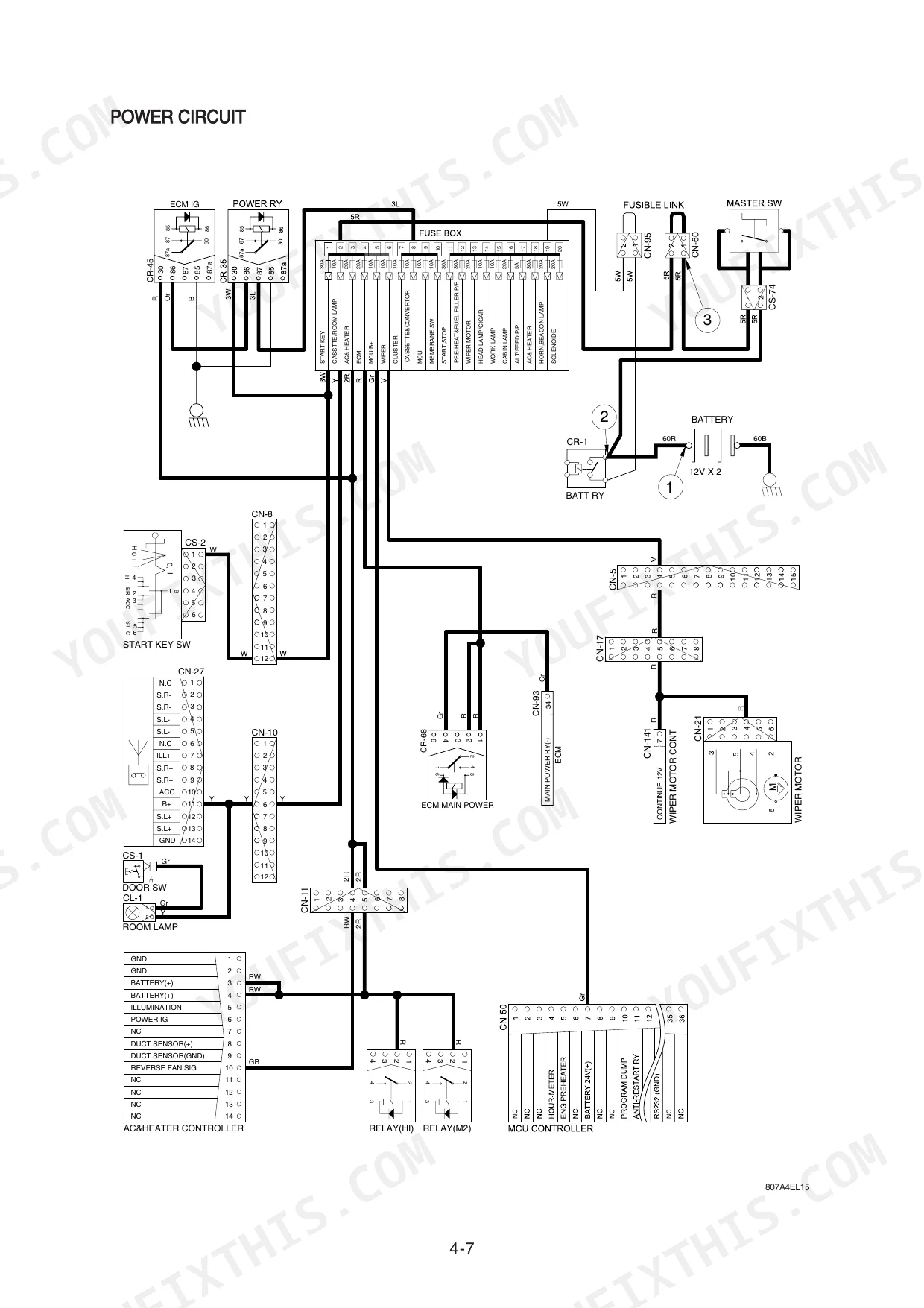

| Electrical System | 112-161 | Component Location, Electrical Circuit, Electrical Component Specification, Connectors |
| Mechatronics System | 162-184 | Outline, Mode Selection System, Travel Speed Control System, Automatic Warming Up Function, Engine Overheat Prevention Function, Anti-Restart System, Self-Diagnostic System |
| Maintenance Standard | 227-261 | Operational Performance Test, Major Components, Track and Work Equipment |

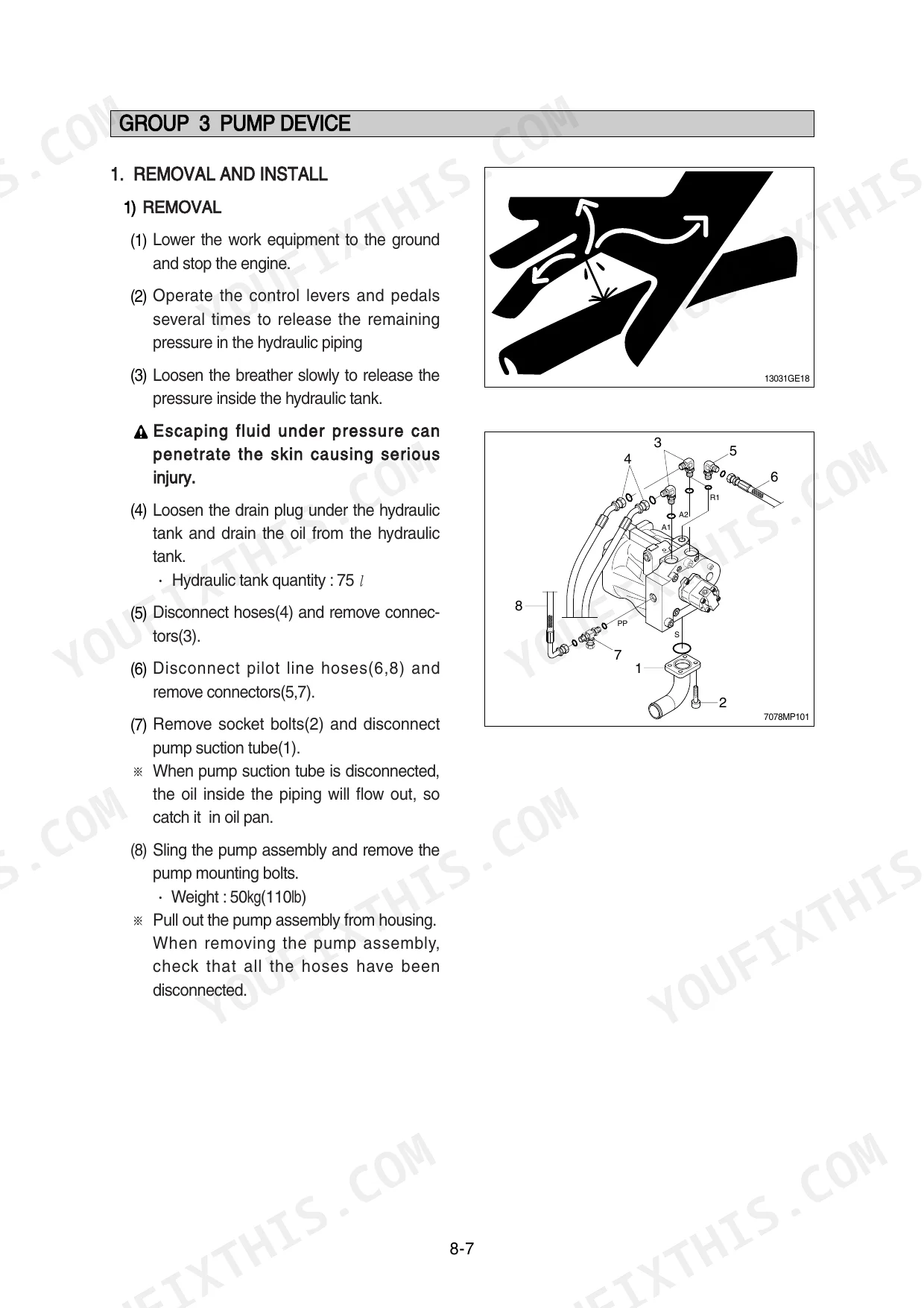

| Disassembly and Assembly | 262-398 | Precaution, Tightening Torque, Pump Device, Main Control Valve, Swing Device, Travel Device, Rcv Lever, Turning Joint |
| Component Mounting Torque | 399-420 | Introduction Guide, Engine System, Electric System, Undercarriage, Structure, Work Equipment |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| bypass relief valve opening pressure | 1.5kgf/cm2 | p. 83 |
| Resistance between CN-93(14) and chassis | MAX 1Ω | p. 213 |
| Resistance between CD-8(1,2) | 120~150Ω | p. 211 |
| Resistance between CN-93(16,28) | 0~1Ω | p. 211 |

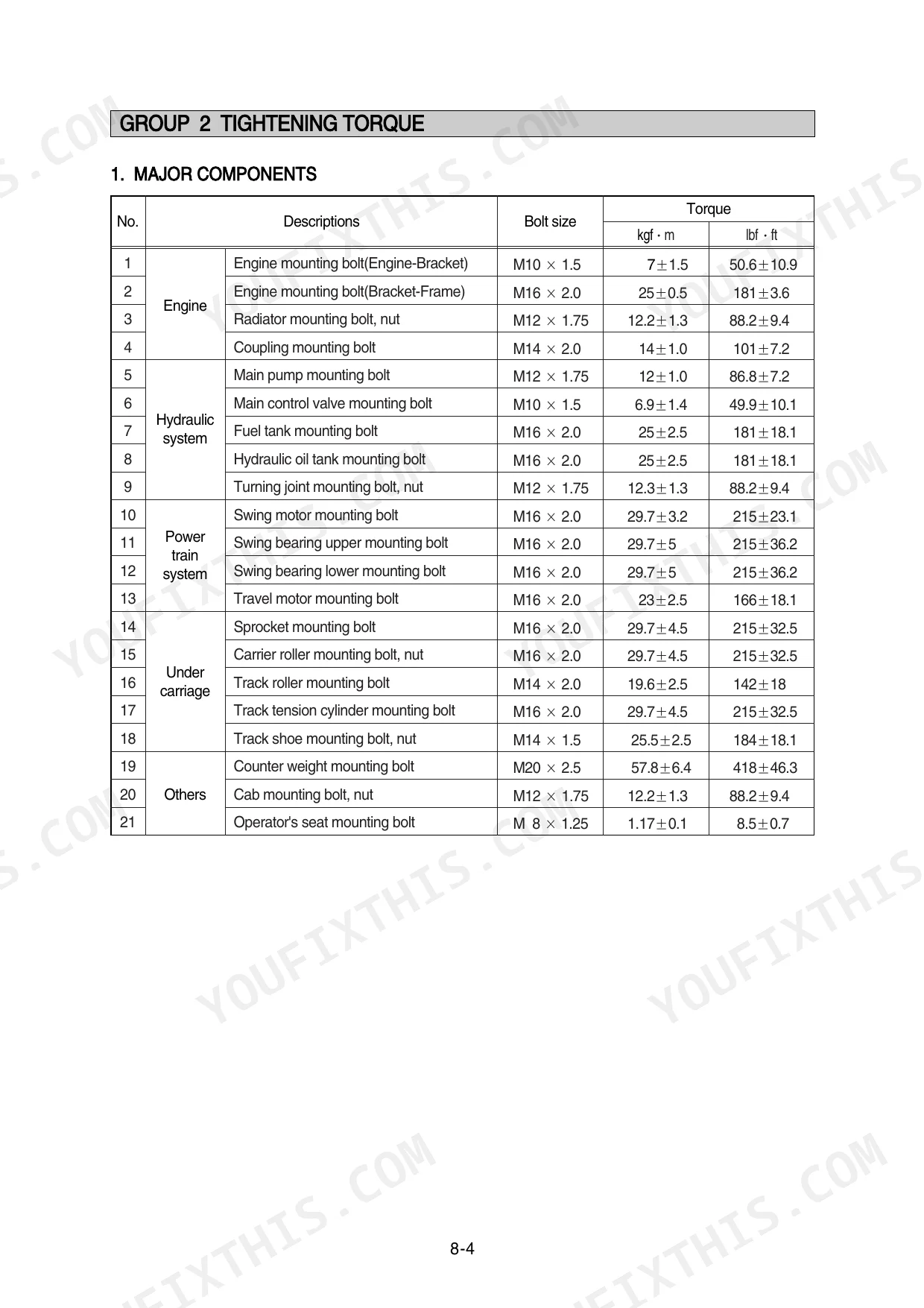

| Swing motor mounting bolt | 29.7 ± 3.2 kgf·m (215 ± 23.1 lbf·ft) | p. 265 |
| Track roller mounting bolt | 29.7 ± 4.5 kgf·m (215 ± 32.5 lbf·ft) | p. 265 |
| Main pump mounting bolt | 12 ± 1.0 kgf·m (86.8 ± 7.2 lbf·ft) | p. 265 |

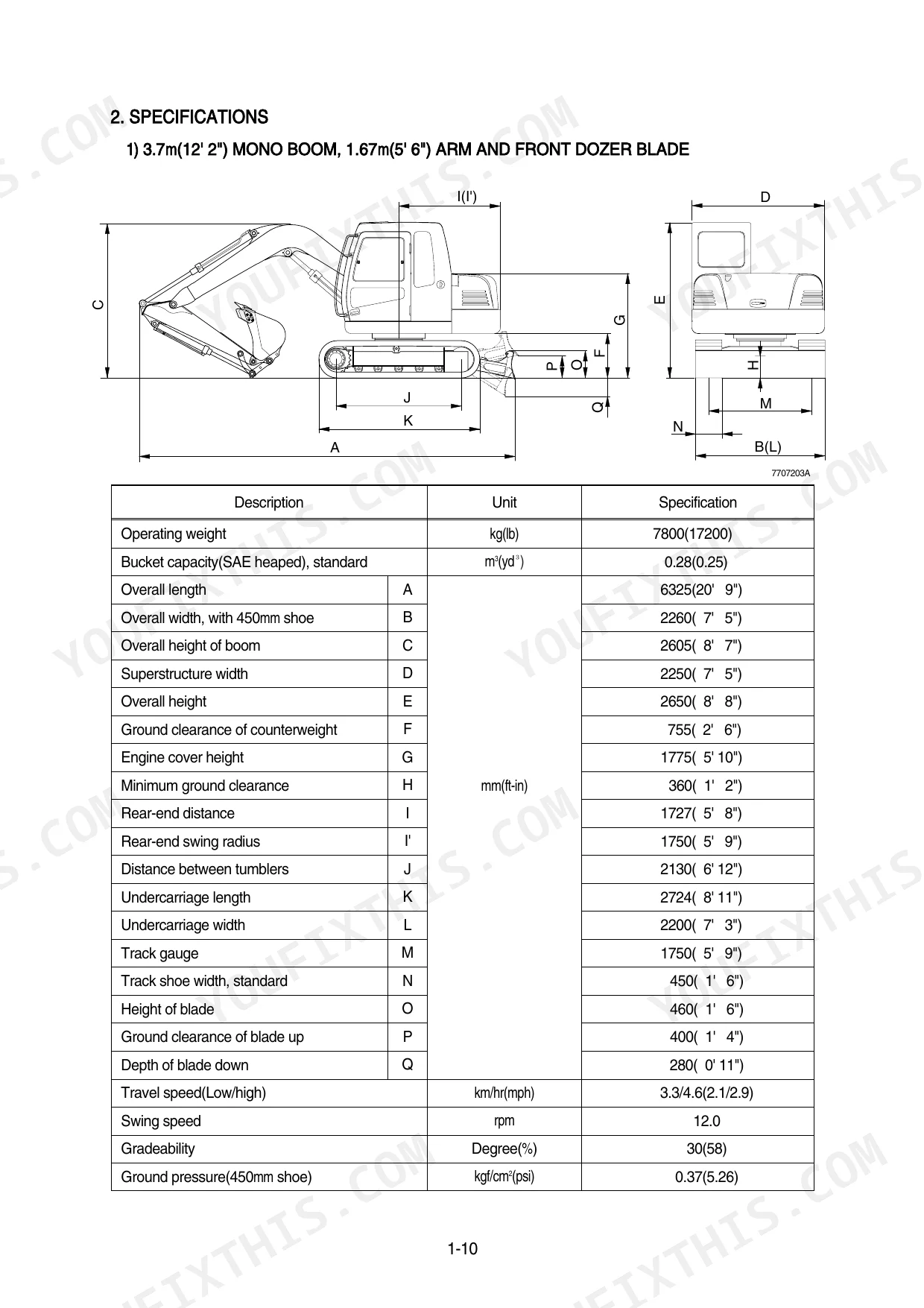

| Operating Weight | 7800 kg | p. 12 |
| Travel Speed (Low/High) | 3.3/4.6 km/hr | p. 12 |
| Swing Speed | 12.0 rpm | p. 19 |
| Engine Oil Quantity | 11.6 L | p. 18 |
| Main Pump Maximum Pressure | 280 kgf/cm2 | p. 18 |

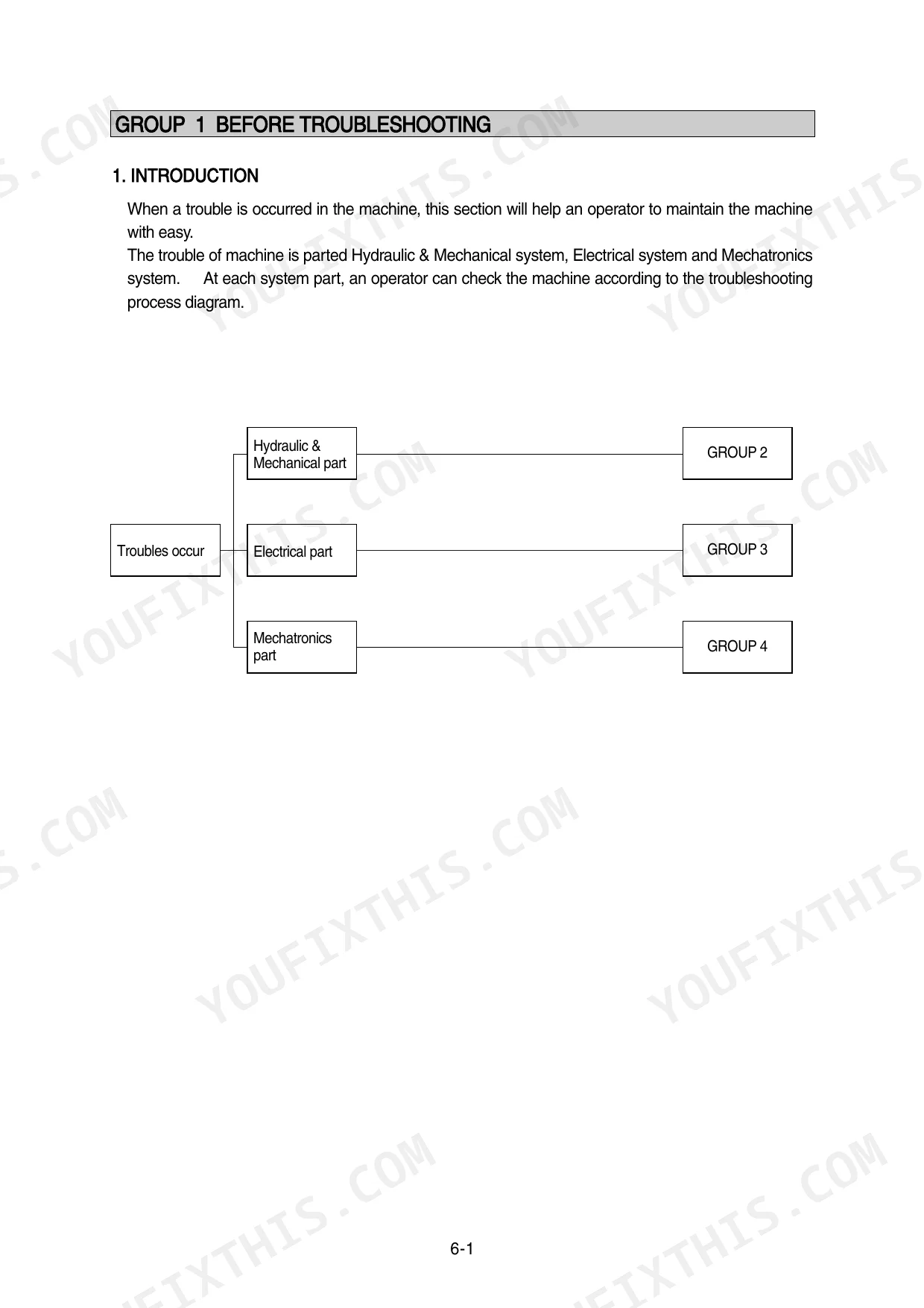

Hyundai R80-7A Common Problems This Manual Covers
Hyundai R80-7A weak hydraulic power, bucket and boom slow under load, pump whines at full throttle
Check hydraulic oil level and inspect the suction line for air leaks before condemning the pump. Test main relief pressure; the grounded main pump maximum for this machine is 280 kgf/cm2 (page 18). Follow the diagnosing procedure starting, and inspect the pump drive coupling for stripped splines. If pulling the pump, torque mounting bolts to 12 ± 1.0 kgf·m per page 265.
Manual Section: Hydraulic and Mechanical System p. 18Hydraulic oil overheating after an hour of digging, temperature gauge climbs into the red
Clean the oil cooler fins with compressed air and verify oil level before anything else. Replace the hydraulic return filter; its bypass relief opens at just 1.5 kgf/cm2 per page 83, so a plugged element sends hot, unfiltered oil straight back to the tank. Clean the tank strainer while the system is drained.
Manual Section: Hydraulic System p. 83Engine oil pressure warning lamp stays on with engine running and oil level full
Verify oil is actually at the full mark, 11.6 L capacity, before trusting the lamp. Then disconnect CN-93 and measure resistance between pin 14 and chassis; the chart on page 213 calls for 1 ohm maximum. A higher reading means a broken harness or bad ground, not a pressure problem. Repair the wiring before replacing the switch.
Manual Section: Electrical System Troubleshooting p. 213Coolant temperature gauge stays on cold or reads erratic with engine fully warmed up
Test the sender first: resistance across CD-8 pins 1 and 2 should read 120 to 150 ohms per page 211. Then measure the harness between CN-93 pins 16 and 28; anything over 1 ohm points to a wiring fault, not a gauge fault. Replace the sender only after the harness checks clean.
Manual Section: Electrical System Troubleshooting p. 211One track travels slower than the other, machine pulls to one side on flat ground
Measure travel motor relief pressure on the weak side and compare it against the specification table in the General section. Compare travel speed on flat ground against the rated 3.3 km/hr in low range. Drain a sample from the final drive and check for metal, then confirm track roller mounting bolts are torqued to 29.7 ± 4.5 kgf·m per page 265.
Manual Section: Hydraulic and Mechanical System p. 12Frequently Asked Questions
What do the Hyundai R80-7A error codes mean?

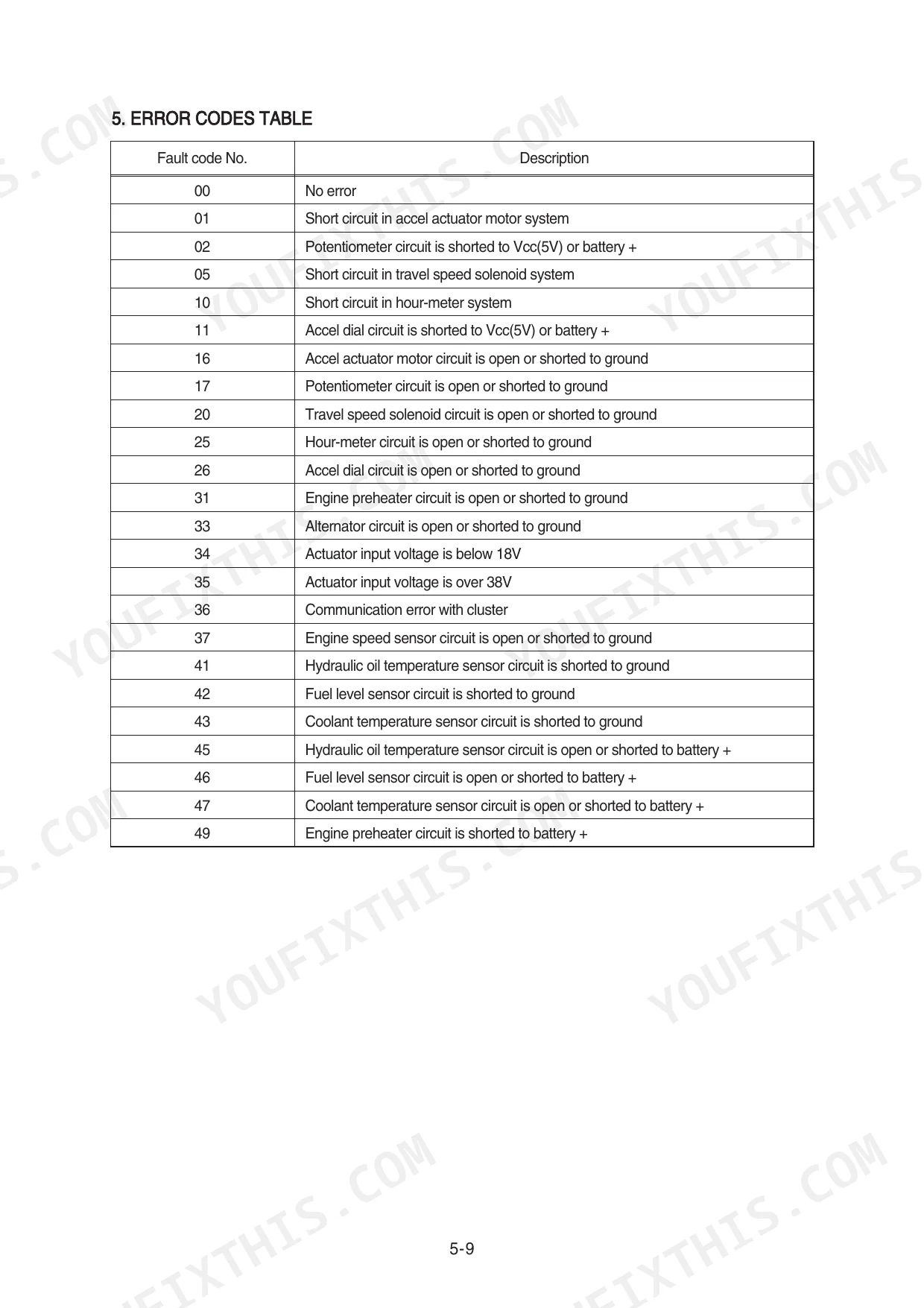

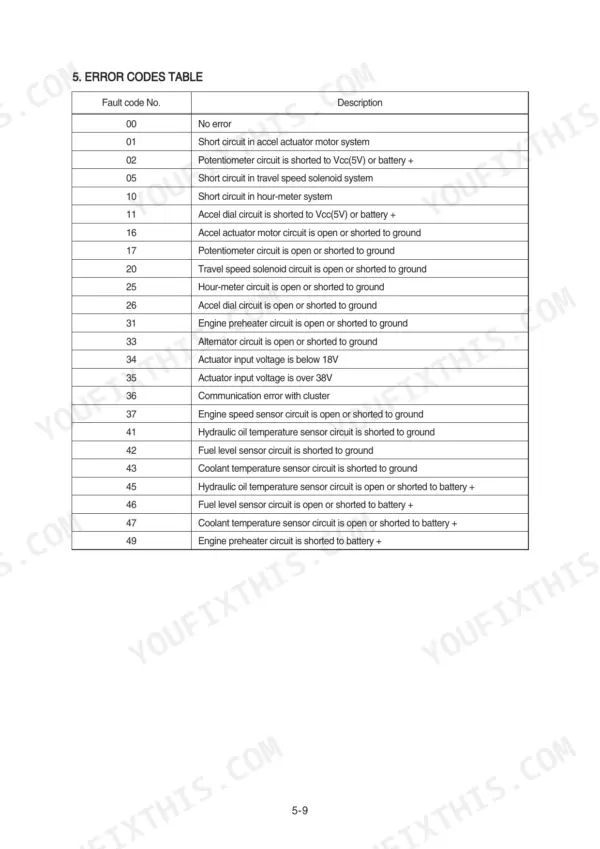

The error codes for the R80-7A are listed in the 'ERROR CODES TABLE' on page 170. For example, code 01 indicates a short circuit in the accel actuator motor system, code 34 indicates the actuator input voltage is below 18V, and code 43 indicates the coolant temperature sensor circuit is shorted to ground. p. 170
How do you clear fault codes on a Hyundai R80-7A excavator?
Fault codes can be cleared using the cluster's diagnostic menu. Navigate to the 'Recorded Error' screen, select the option to delete errors, and confirm by selecting 'Yes' when prompted to delete all errors. p. 169
What causes the hydraulic oil temperature warning on a Hyundai R80-7A?
The hydraulic oil temperature warning lamp operates and the buzzer sounds when the temperature of the hydraulic oil exceeds 105°C (221°F). When this occurs, you should check the hydraulic oil level and inspect for debris between the oil cooler and the radiator. p. 177
What are the replacement specifications for the hydraulic oil return filter?
The return filter should be replaced after the initial startup, after 500 hours of operation, and every 500 hours thereafter. Additionally, it must be replaced each time the hydraulic oil is changed or if a failure occurs. p. 29
What is the tightening torque for the main pump mounting bolts?
The tightening torque for the main pump mounting bolts (M12 x 1.75) is 12 ± 1.0 kgf·m (86.8 ± 7.2 lbf·ft). p. 265
What do I get after purchasing this Hyundai R80-7A manual?
All 420 pages arrive as one searchable PDF at checkout. Read it at the desk, then take the phone out to the machine.
Can I print specific sections of this Hyundai R80-7A Shop Manual?
Zero restrictions. The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
