Every one of the 386 pages in this Hyundai HL757-7A, HL757XTD-7A, HL757TM-7A service manual PDF covers one machine family: the HL757 wheel loader in all three configurations. Inside: full electrical circuit diagrams with connector specs and pinouts, hydraulic schematics for the power train, brake, steering, and work equipment circuits, plus fault codes and page after page of troubleshooting charts. You also get step-by-step disassembly and assembly procedures for every major system, from the transmission to the loader linkage. Rebuilding a steering cylinder? Torque the gland to 70 ± 7 kgf·m (506 ± 51 lbf·ft), then fill the hydraulic tank to 125 liters before you cycle the system. Your loader isn't earning anything parked. Bookmarked with a real text layer; pull it up on your phone, search the spec, get back to work.
What's Inside This Hyundai HL757-7A, HL757XTD-7A, HL757TM-7A Manual
| System | Pages | Key Topics |
|---|---|---|

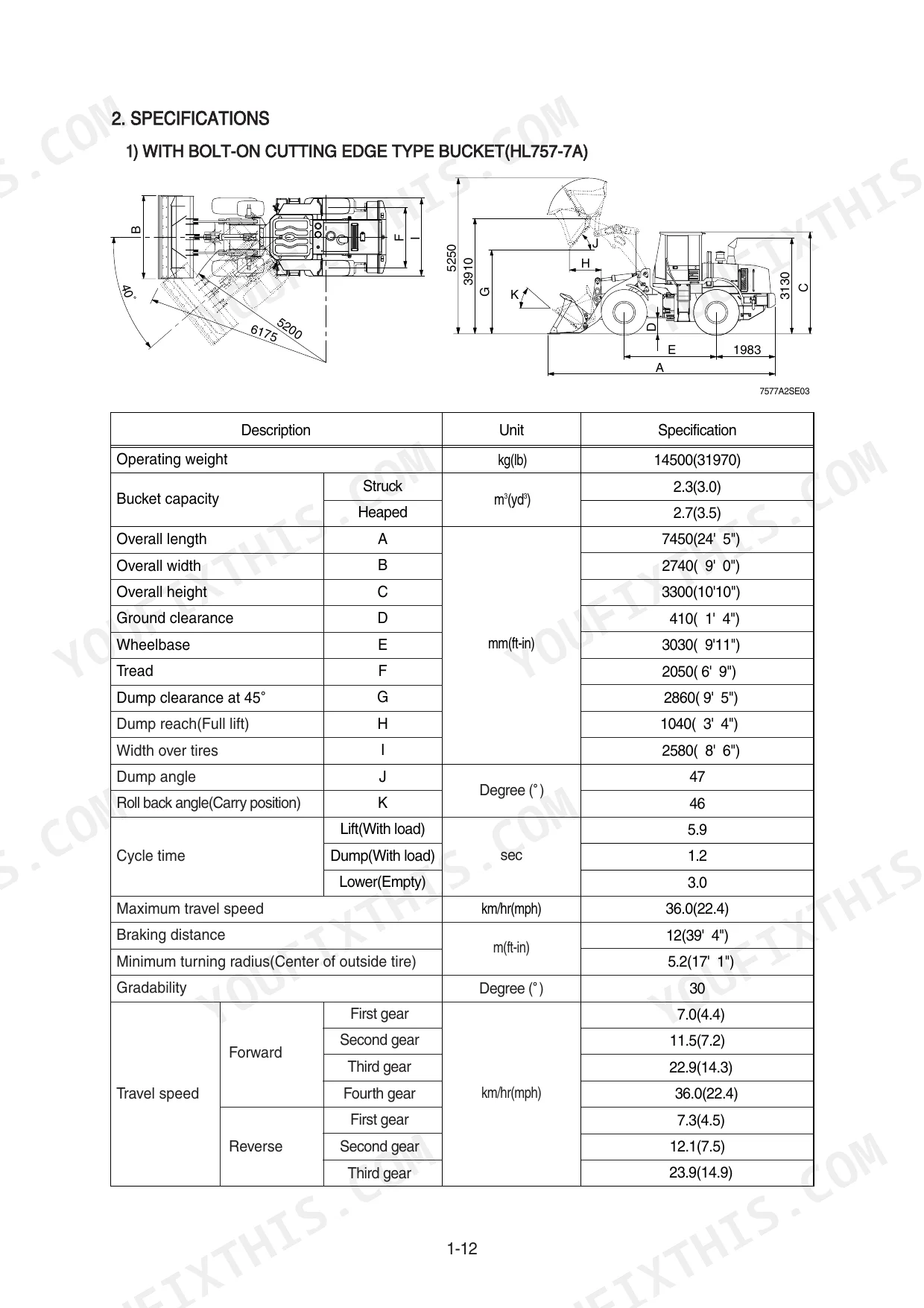

| General | 11-38 | Safety Hints, Specifications, Operational Checkout Record Sheet |

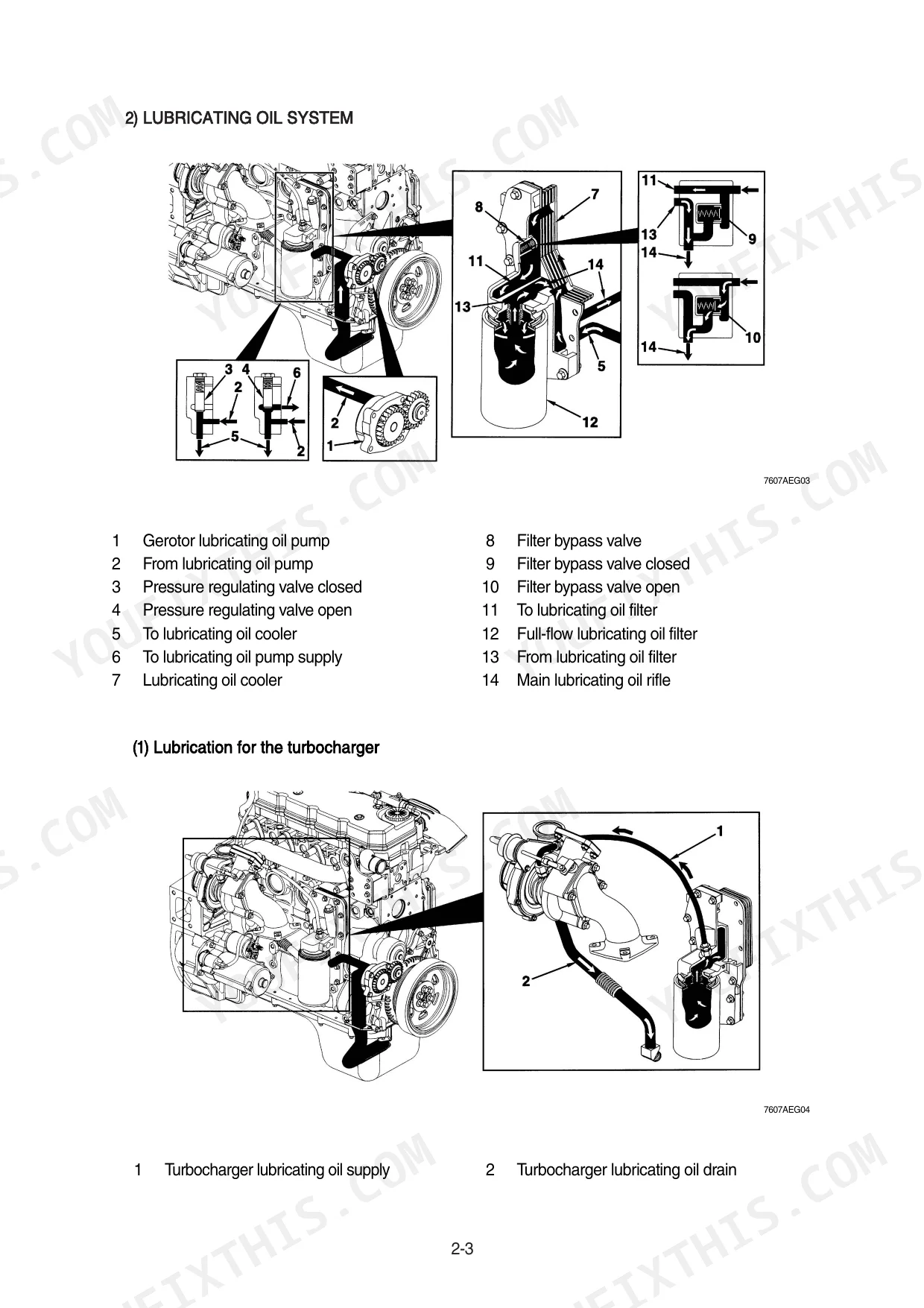

| Engine | 39-46 | Structure and Function, Fuel Warmer System, Engine Speed and Stall RPM |

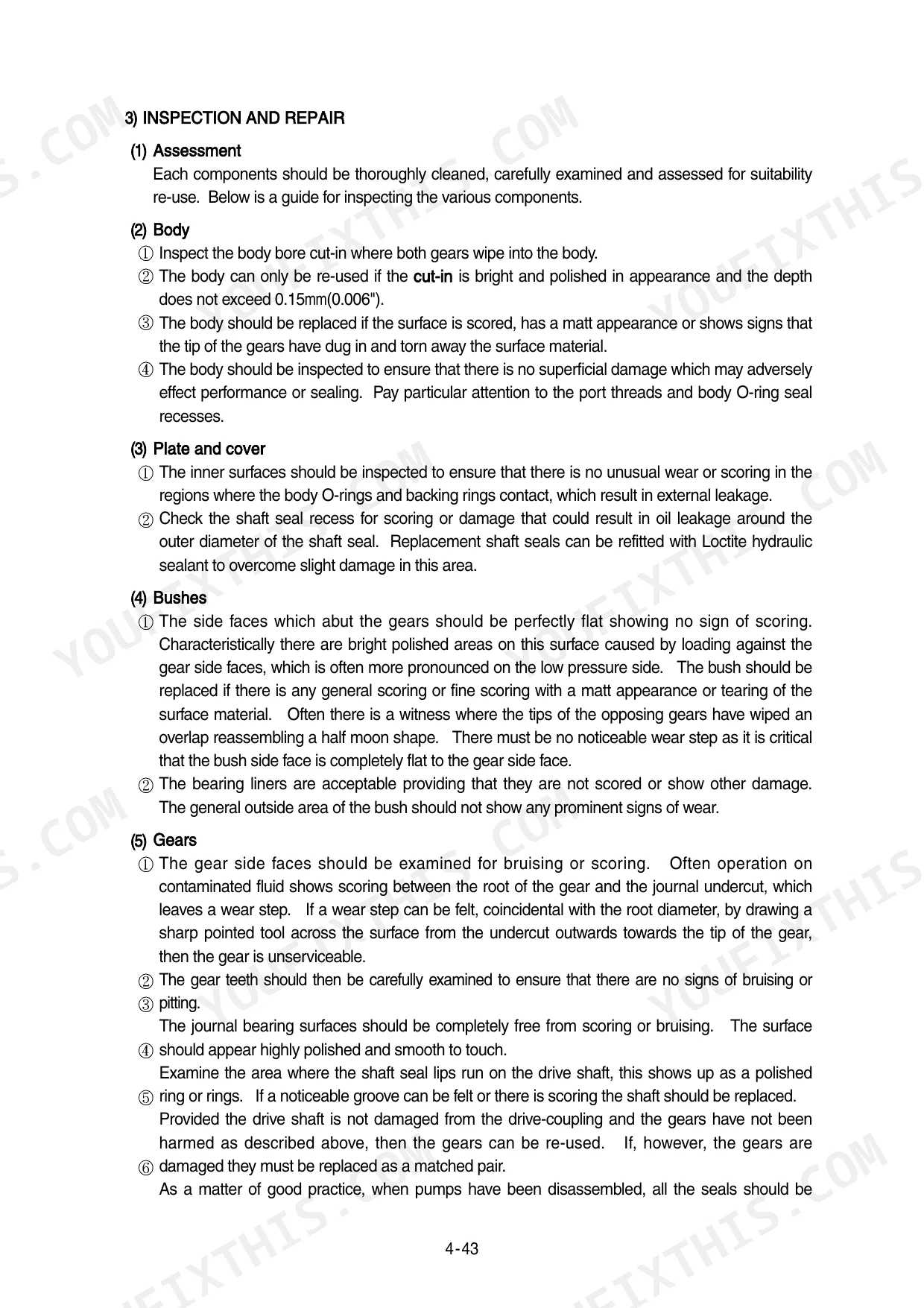

| Power Train System | 47-120 | Structure and Function, Operational Checks and Troubleshooting, Test and Adjustments, Disassembly and Assembly |
| Brake System | 121-167 | Structure and Function, Operational Checks and Troubleshooting, Tests and Adjustments, Disassembly and Assembly |
| Steering System | 168-228 | Structure and Function, Operational Checks and Troubleshooting, Tests and Adjustments, Disassembly and Assembly |

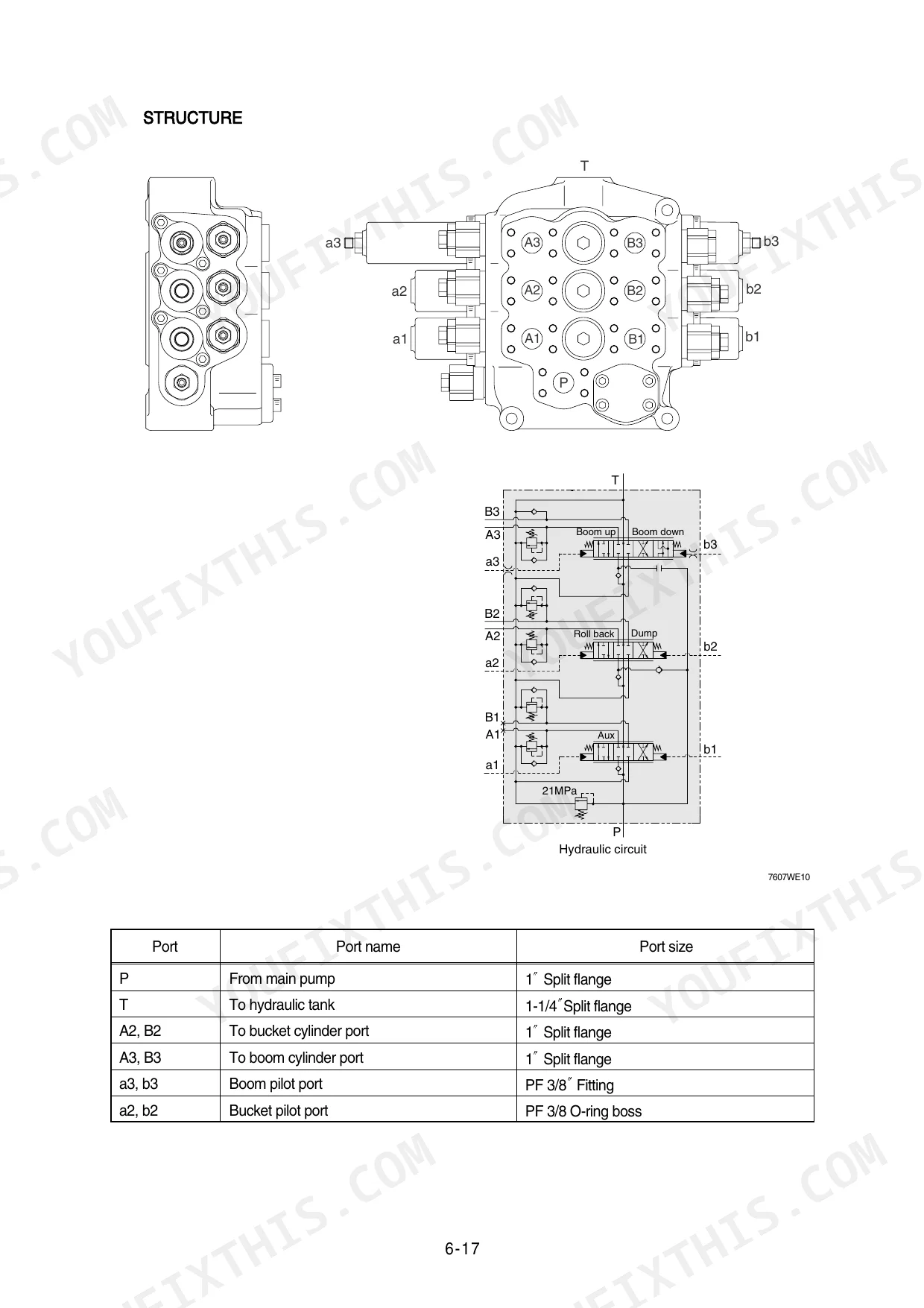

| Work Equipment | 229-311 | Structure and Function, Operational Checks and Troubleshooting, Tests and Adjustments, Disassembly and Assembly |

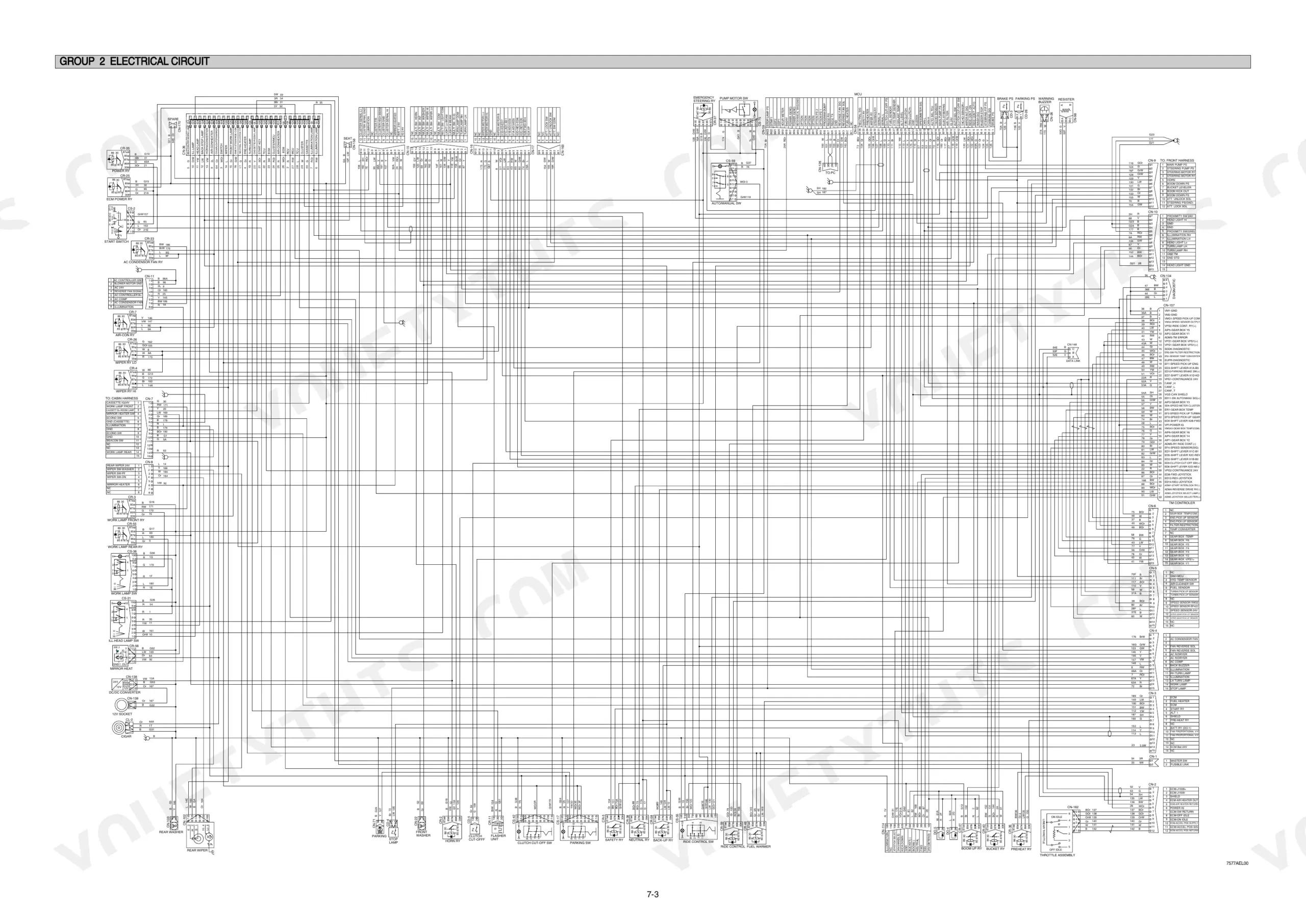

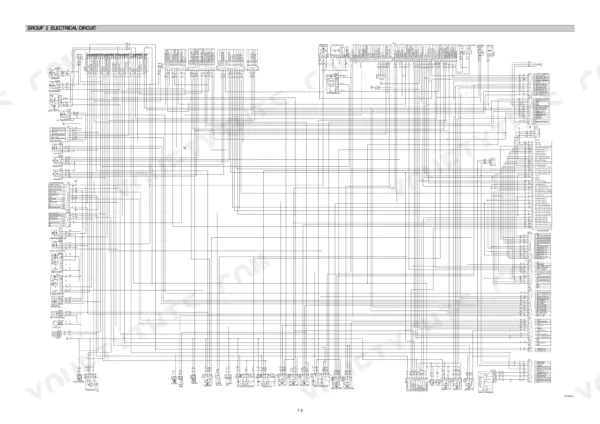

| Electrical System | 312-386 | Component Location, Electrical Circuit, Monitoring System, Electrical Component Specification, Connectors, Troubleshooting |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Maximum pressure on the EF port | 210 bar | p. 175 |
| Hydraulic oil tank capacity | 125 L (33 U.S. gal) | p. 192 |
| Gland tightening torque | 70 ± 7 kgf·m (506 ± 51 lbf·ft) | p. 216 |
| Nylon nut tightening torque | 75 ± 8 kgf·m (542 ± 58 lbf·ft) | p. 216 |
| Return oil filter bypass valve set pressure | 1.36kg/cm2 (19.3psi) | p. 262 |
| Hydraulic system restriction test - Maximum pressure at steering valve(Ehps) | 2MPa (20bar, 285psi) | p. 284 |
| Hydraulic system restriction test - Maximum pressure at main control valve | 1MPa (10bar, 145psi) | p. 284 |
| Pilot pressure setting | 30~35bar(430~500psi) | p. 289 |
| Relief valve setting pressure | 45bar | p. 289 |
| Hydraulic oil filter replacement interval | 250 operating hours | p. 291 |
| Charging circuit voltage | 20~28V | p. 326 |
| Hydraulic oil temperature warning lamp and audible alarm activation temperature | 105°C (221°F) | p. 337 |
Hyundai HL757-7A, HL757XTD-7A, HL757TM-7A Common Problems This Manual Covers
Hyundai HL757-7A hydraulic oil temperature warning lamp and buzzer come on during loading, oil overheats
Check hydraulic oil level first; the tank holds 125 L (33 U.S. gal). Clean debris packed between the radiator and oil cooler with compressed air, working from the fan side out. The lamp and buzzer trip at 105°C (221°F) per the spec on page 337, so run at low idle until the temperature drops before shutdown.
Manual Section: Work Equipment Hydraulic Troubleshooting p. 337Loader lacks lift power and boom raises slowly, bucket functions feel weak under load
Check hydraulic oil level and top off; the tank takes 125 L (33 U.S. gal) verified on page 192. Replace the hydraulic tank filter if it has more than 250 operating hours on it, the interval given on page 291. If lift stays weak after that, test main relief pressure against the 210 kgf/cm2 setting and bleed air from the suction side.
Manual Section: Work Equipment Hydraulic Troubleshooting p. 291Transmission warning lamp illuminates and LCD displays fault code, machine loses drive

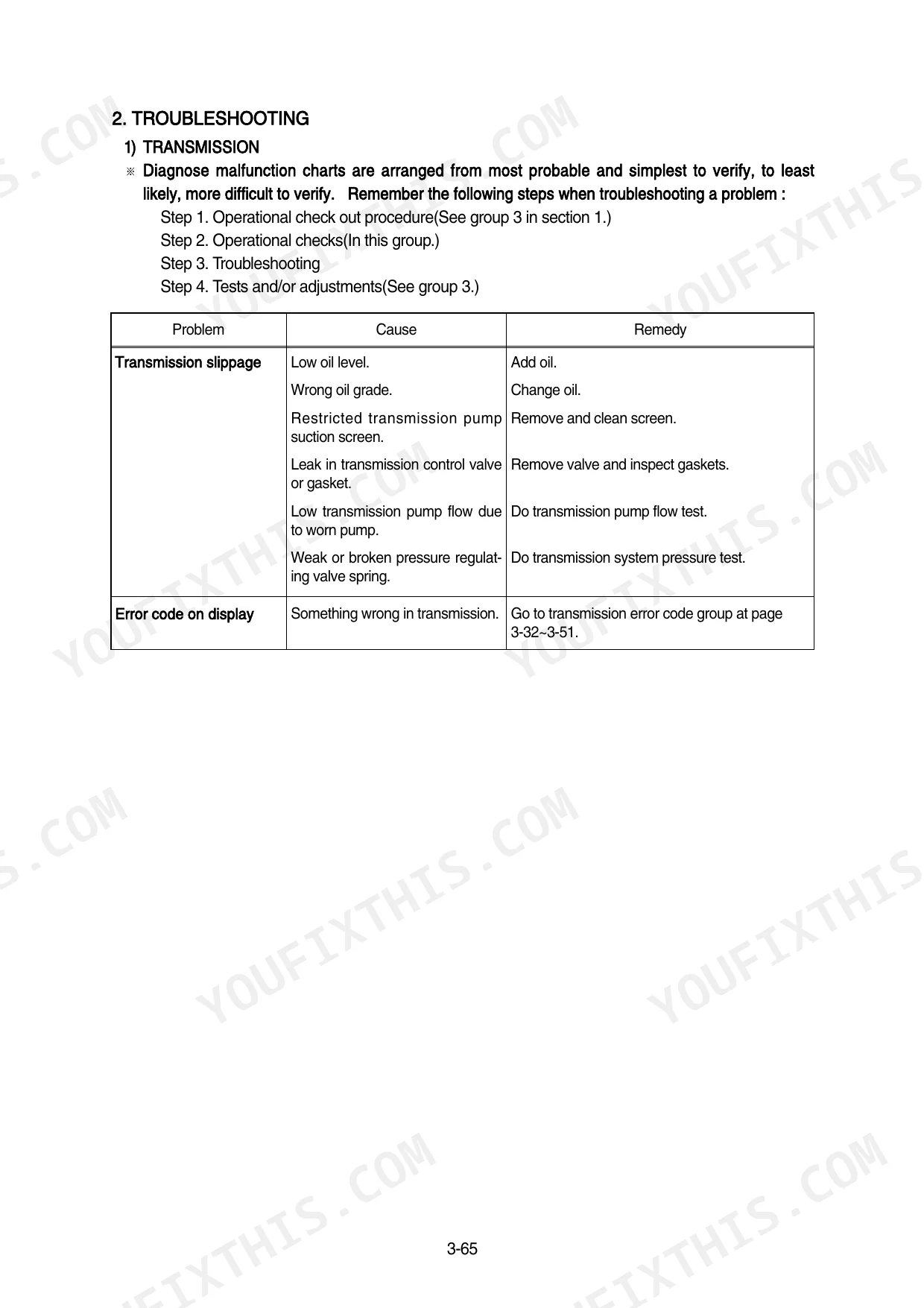

Stop the machine and record the exact code from the LCD before it clears. Match it against the error code reference starting, then work through the transmission troubleshooting procedures for slippage, low pressure, or overheating. Check transmission oil level with the engine at low idle, 800 +/- 50 rpm, before condemning any hard parts.
Manual Section: Transmission Troubleshooting p. 107Boom cylinder vibrates and jerks during operation, hydraulic oil looks milky or foamy
Inspect suction lines and fittings for loose clamps pulling in air, then verify oil level. Cycle the boom through full stroke with oil at operating temperature, 45±5°C (113±9°F), to purge trapped air. Pull a 200cc oil sample following the procedure on page 274; if it stays cloudy after settling overnight, drain and refill with clean oil.
Manual Section: Work Equipment Hydraulic Troubleshooting p. 274Steering feels hard and slow at full engine speed, wheel binds partway through a turn
Test steering circuit pressure with a gauge on the EF port; maximum is 210 bar, the spec on page 175. Run the restriction test next: pressure at the steering valve should not exceed 2MPa (20bar, 285psi), the limit shown on page 284. If readings run high, pull the priority valve spool and clean the orifice plugs before replacing the steering valve.
Manual Section: Steering System Troubleshooting p. 175Frequently Asked Questions
What does error code 010 mean on a Hyundai HL757-7A?
Error code 010 indicates that the power input voltage is low, specifically below 18V. p. 65
How do I check the torque specifications for the HL757-7A steering cylinder bolts?
The tightening torque for the steering cylinder assembly is not explicitly listed in the major component table, but the steering valve (EHPS) mounting bolt is 2.5 ± 0.5 kgf·m (18.1 ± 3.6 lbf·ft). For general bolt torque, refer to the torque chart on page 33. p. 32
What are the replacement specifications for the hydraulic tank filter?
The hydraulic oil filter in the filter case of the hydraulic oil tank should be replaced every 250 operating hours or more often. p. 291
What is the engine oil capacity for the HL757-7A?
The engine oil quantity for the Cummins QSB6.7 engine is 16 liters (4.2 U.S. gallons). p. 29
What is the procedure for bleeding the hydraulic brake system?
Two people are required to bleed the brake system. One person operates the brake valve while the other opens and closes the bleed screws on the differential and axle assembly until the hydraulic oil is free of air. p. 161
What exactly do I receive with this Hyundai HL757-7A Service Manual?
Immediate download of the complete 386-page searchable Service Manual. Access it on any device, from a laptop at your desk to a phone in the field.
Can I print specific sections of this Hyundai HL757-7A Service Manual?
Zero restrictions. The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
