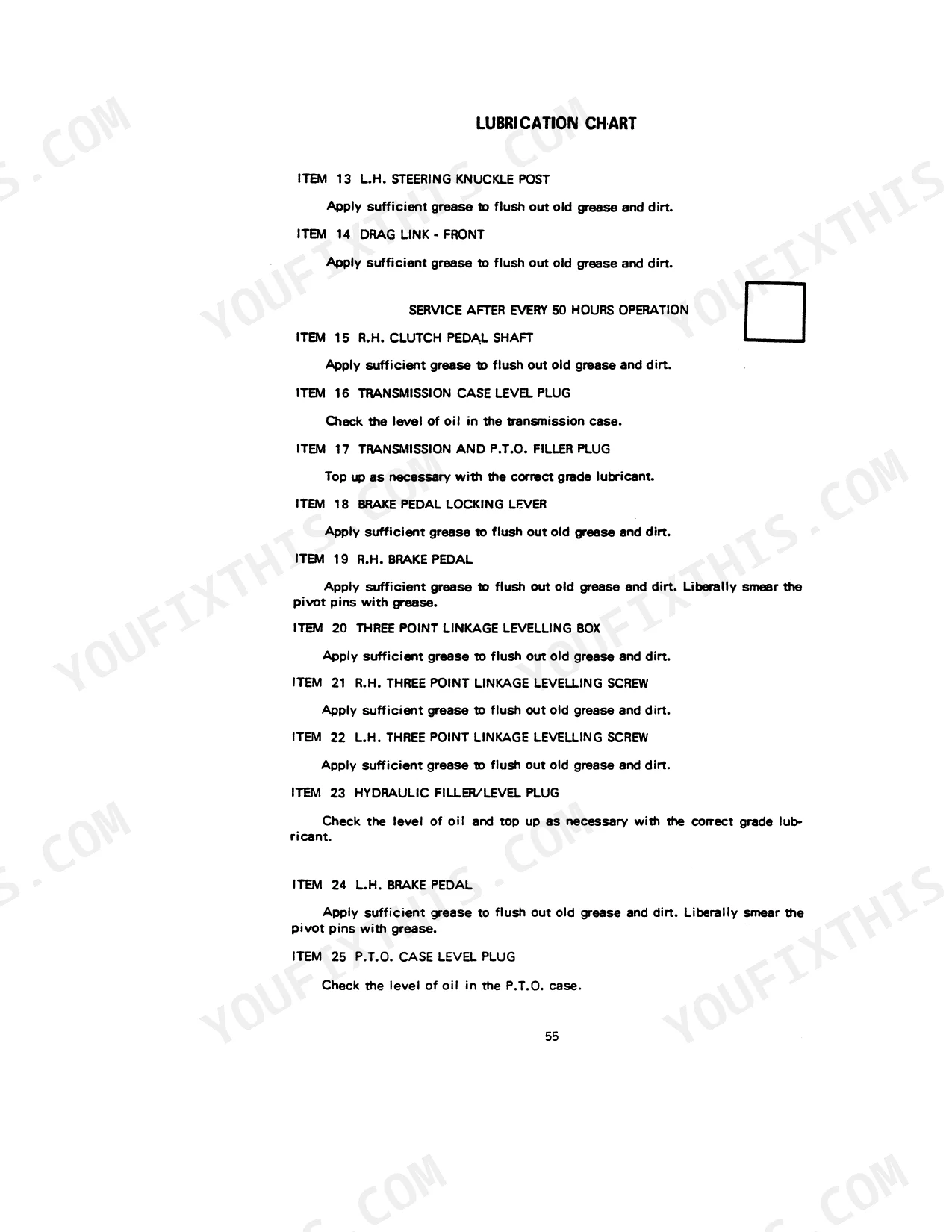

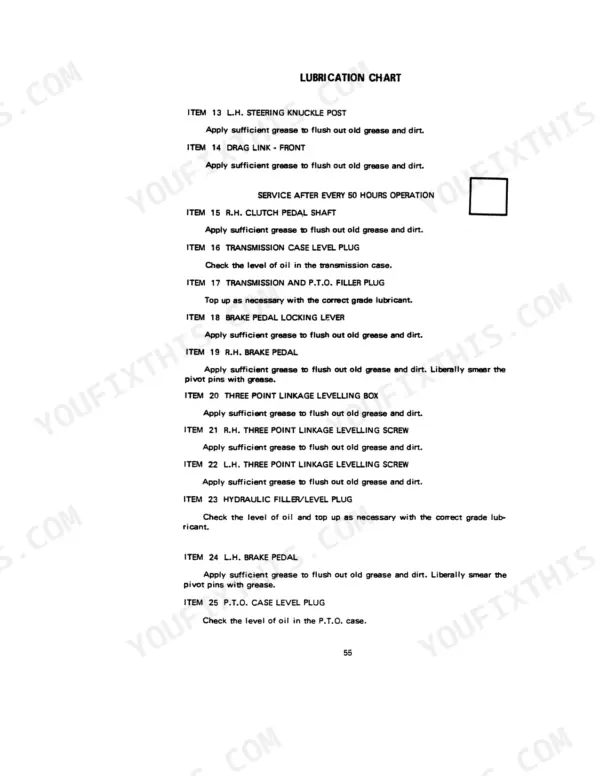

All 112 pages of this International Harvester 434 Operator Manual (OEM #1080186R3) focus on one thing: keeping your 434 Tractor running the way the factory intended. Open it to a full controls walkthrough covering the Tractormeter, engine oil pressure warning light, governor control lever, and keyswitch, plus the complete "Vary-Touch" hydraulic lift, mechanical depth control, and remote cylinder procedures. Inside you get both diesel and petrol wiring diagrams with their full legends, a detailed lubrication chart, routine servicing schedule, and a fault tracing section that cuts guesswork when something goes wrong. Torque the cylinder head nuts to 75-80 lbf/kgm and front wheel nuts to 55-60 lbf/kgm — those numbers are straight from the factory spec table on page 11. Your 434 is down and the clock is running. One-click download, search by keyword, find the spec, fix the machine. Bookmarked and organized so you jump straight to the section you need.
What's Inside This Case IH 434, 434 Tractor Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Description | 7-8 | Standard Version, High Clear Version, Narrow Tread Version, Highway Version |
| Introduction | 9 | Tractor Serial Number Location, Engine Serial Number Location |

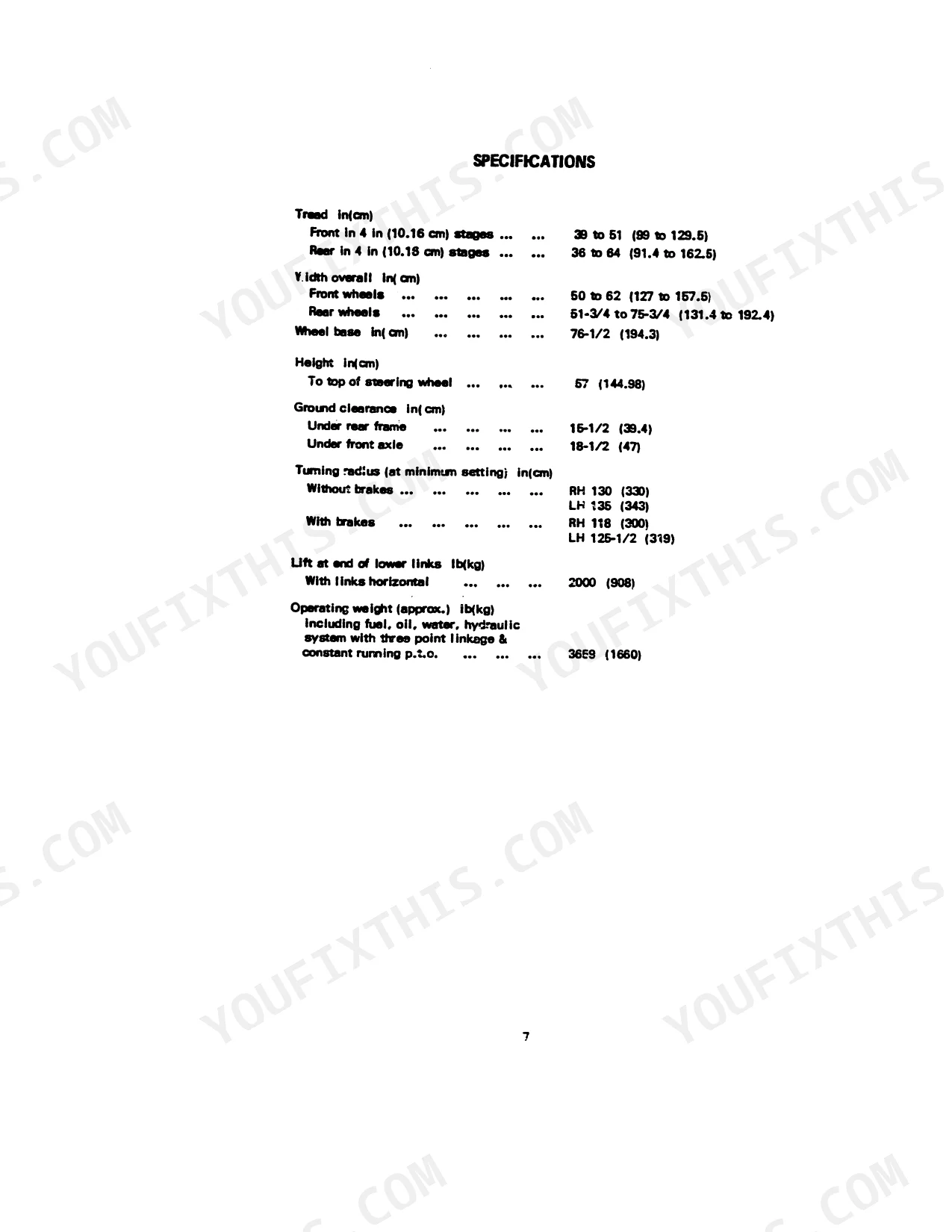

| Specifications | 10-13 | Engine, Tractor Speeds, Tyre Size, Tyre Pressures, Capacities, General Dimensions |

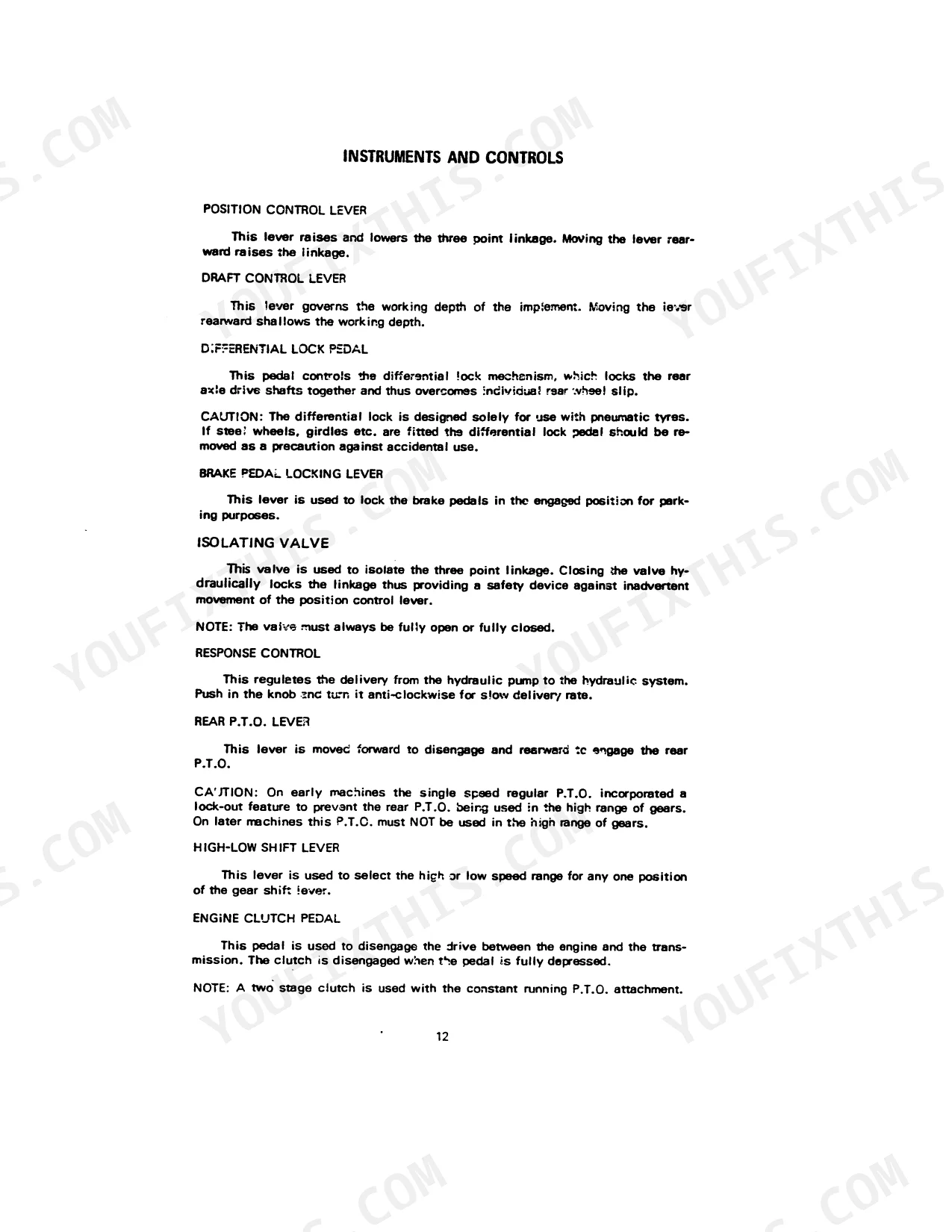

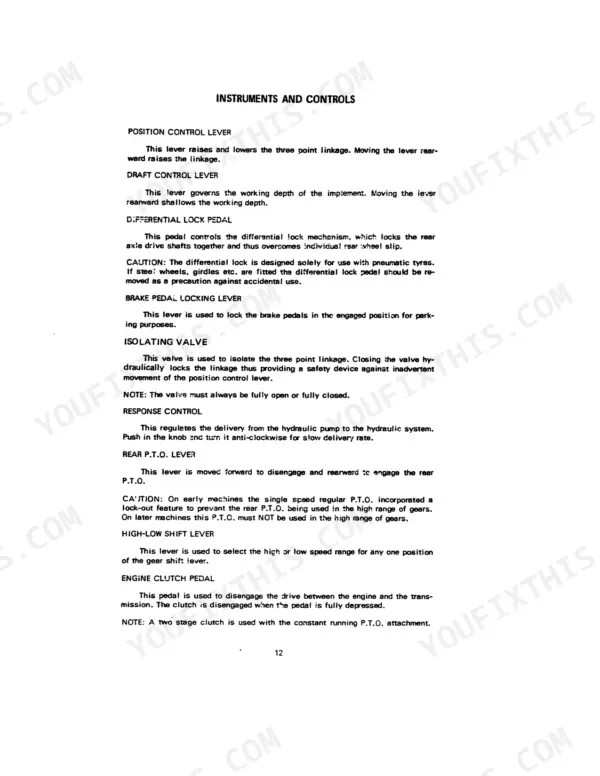

| Instruments and Controls | 14-19 | Tractormeter, Engine Oil Pressure Warning Light, Generator Warning Light, Governor Control Lever, Keyswitch, Gear Shift Lever |
| For Better Performance and Safe Operation | 20 | - |
| Before Starting a New Tractor | 21 | General, Lubrication, Ship Away Oils, Air Cleaner, Cooling System, Hydraulic System |
| Preparing for Each Day's Work | 22-23 | Cooling System, Lubrication, Battery, Wheels and Tyres, Air Cleaner |
| Operation | 24-55 | Operating the Engine, Operating the Tractor, "Vary-Touch" Hydraulic System, Mechanical Depth Control Hydraulic System, Remote Cylinders, Auxiliary Control Valves |
| Preventive Maintenamce | 56-66 | - |
| Maintenance | 67-103 | Cooling System, Aircleaning System, Engine, Diesel Fuel System, Petrol Fuel System, Engine Clutch, Transmission, Speed Amplifier |
| Storing the Tractor | 104 | Engine Oil, Oil Filter, Diesel Fuel System, Petrol Fuel System, Air Cleaner, Cooling System, Battery, Tyre Weight |
| Starting the Engine After Storage | 105 | Valve Mechanism, Valve Housing, Crankcase, Oil Filter, Lubricant, Air Cleaner, Exhaust, Air Inlet |
| Weight Attachments/ Optional Tyre Equipment | 106 | Front Tyres, Rear Tyres, Front Wheel Weights, Rear Wheel Weights, Front End Weights |
| Attachments | 107-112 | High Altitude Fuel Injection Pump, Vary-Touch Hydraulic Lift, Speed Amplifier, Power Assisted Steering, Three Point Linkage, Automatic Hitch |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Engine (Diesel) No. of cylinders | 4 | p. 10 |
| Cylinder head nuts torque | 75 to 80 lbf/kgm | p. 11 |
| Front wheel nuts torque | 55 to 60 lbf/kgm | p. 11 |
Case IH 434, 434 Tractor Common Problems This Manual Covers
International Harvester 434 Tractor engine does not idle properly and sputters after replacing carburetor and ignition points. p. 96
Check the troubleshooting procedures on page 96 for fuel and air restrictions causing poor idle. Verify intake manifold integrity and tighten the cylinder head nuts to 75 to 80 lbf/kgm to prevent vacuum leaks. Inspect the engine breather pipe for clogging.
Manual Section: Engine Performance IssuesEngine coolant temperature rises rapidly and overheats when pulling heavy implements during standard field operation. p. 96
Inspect the cooling system and fan belt tension during your daily maintenance routine. Verify the cylinder head gasket is completely intact by checking the cylinder head nuts torque at 75 to 80 lbf/kgm. Clean the radiator core and check the troubleshooting procedures on page 96.
Manual Section: Engine OverheatingPower steering system fails to turn right but steers to the left normally during daily operation. p. 107
Inspect the power steering cylinder and steering valve for binding or physical damage. Verify the steering linkage is fully secure and tighten the front wheel nuts to 55 to 60 lbf/kgm. Check the hydraulic fluid level on page 10 to ensure the steering pump operates correctly.
Manual Section: AttachmentsStarter motor clicks but engine will not turn over or starts very slowly in cold weather. p. 90
Check the battery connections and cables for heavy corrosion or loose terminals. Inspect the electrical system grounds using the wiring diagram on page 90. Tighten the front wheel nuts to 55 to 60 lbf/kgm if removing the wheel for better access to the starter motor wiring.
Manual Section: Engine Starting IssuesFrequently Asked Questions
How to read the serial number on an IH 434?
The tractor serial number is stamped on a nameplate located on the right-hand side of the clutch housing. Additionally, the engine serial number can be found stamped on the right-hand side of the engine crankcase.
What is the correct hydraulic fluid for the IH 434?
The correct hydraulic oil for the IH 434 should be a good quality mineral oil specifically blended for hydraulic systems or diesel engines. For temperatures above +32°F (0°C), use SAE 30; for 0.0°F (-18°C) to +32°F (0°C), use SAE 20; and for temperatures below 0.0°F (-18°C), use SAE 10W, or an oil meeting MIL-L-10295A requirements.
What are the replacement specifications for Hydraulic filter?
The hydraulic system includes an orifice filter (Illust.15, item 12) which should be cleaned or changed during maintenance. The manual does not provide specific part numbers or detailed replacement specifications for this filter, but it is mentioned in the context of cleaning the hydraulic system.
How do you fix International Harvester 434 Tractor engine does not idle properly and sputters after replacing carburetor and ignition points?
Check the troubleshooting procedures on page 96 for fuel and air restrictions causing poor idle. Verify intake manifold integrity and tighten the cylinder head nuts to 75 to 80 lbf/kgm to prevent vacuum leaks. Inspect the engine breather pipe for clogging.
How quickly can I access this International Harvester 434, 434 Tractor manual after buying?
Immediate download of the complete 112-page searchable Operator Manual. Access it on any device, from a laptop at your desk to a phone in the field.
Is this International Harvester 434, 434 Tractor Operator Manual printable?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.
Are electrical wiring diagrams included in this International Harvester 434, 434 Tractor manual?
Yes, this International Harvester 434, 434 Tractor Operator Manual includes a wiring diagram for the electrical system.
