Looking for the factory tear-down steps for your 2006-2007 excavator? This 351-page JCB 8056, Isuzu 4JG1PBW service manual PDF (OEM #9803/9296-1) breaks down the complete hydraulic system, track motors, and slew ring assembly. Inside, you get complete hydraulic schematics tracing every circuit, plus detailed wiring diagrams to chase down stubborn electrical gremlins. Open up to the troubleshooting sections for clear fault-finding steps covering the control valves, auxiliary relief valves, and track motor gearboxes. Verify your 2.2kW starter motor is pulling correct voltage before tearing into the harness, and ensure the hydraulic filter main bypass pressure is holding at exactly 1.5 bar. Down time kills your profit margin. Grab this searchable download, pull it up on your shop tablet, and get the iron moving again.
What's Inside This JCB 8056, ISUZU 4JG1PBW Manual
| System | Pages | Key Topics |
|---|---|---|

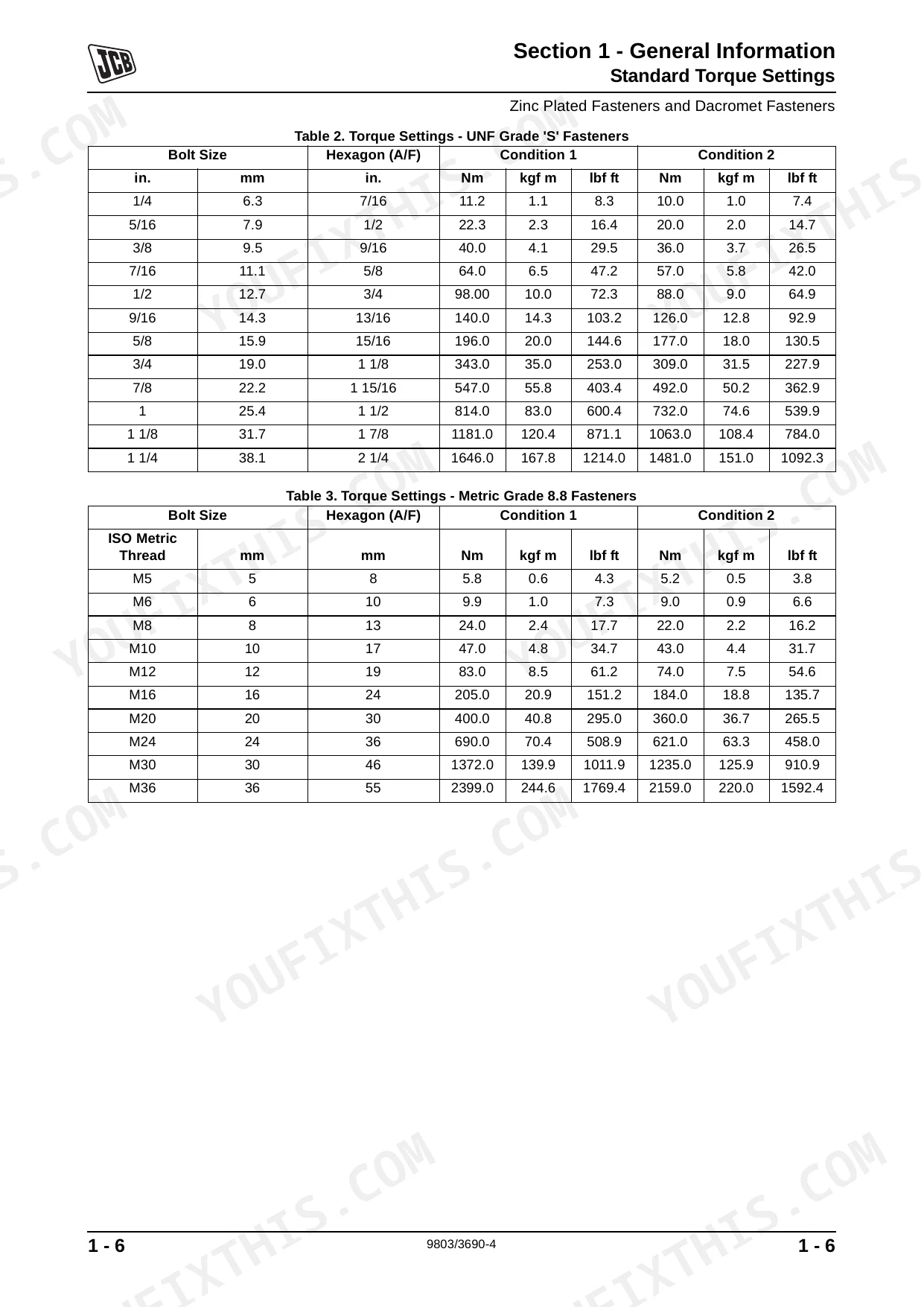

| General Information | 2-34 | Standard Torque Settings, Service Tools |
| Care and Safety | 35-50 | Safety Check List |
| Maintenance | 51-95 | Health and Safety, Service Schedules, Greasing, Electrical System, Fuel System, Hydraulic System, Tracks and Running Gear |
| Attachments | 96-104 | Bucket |

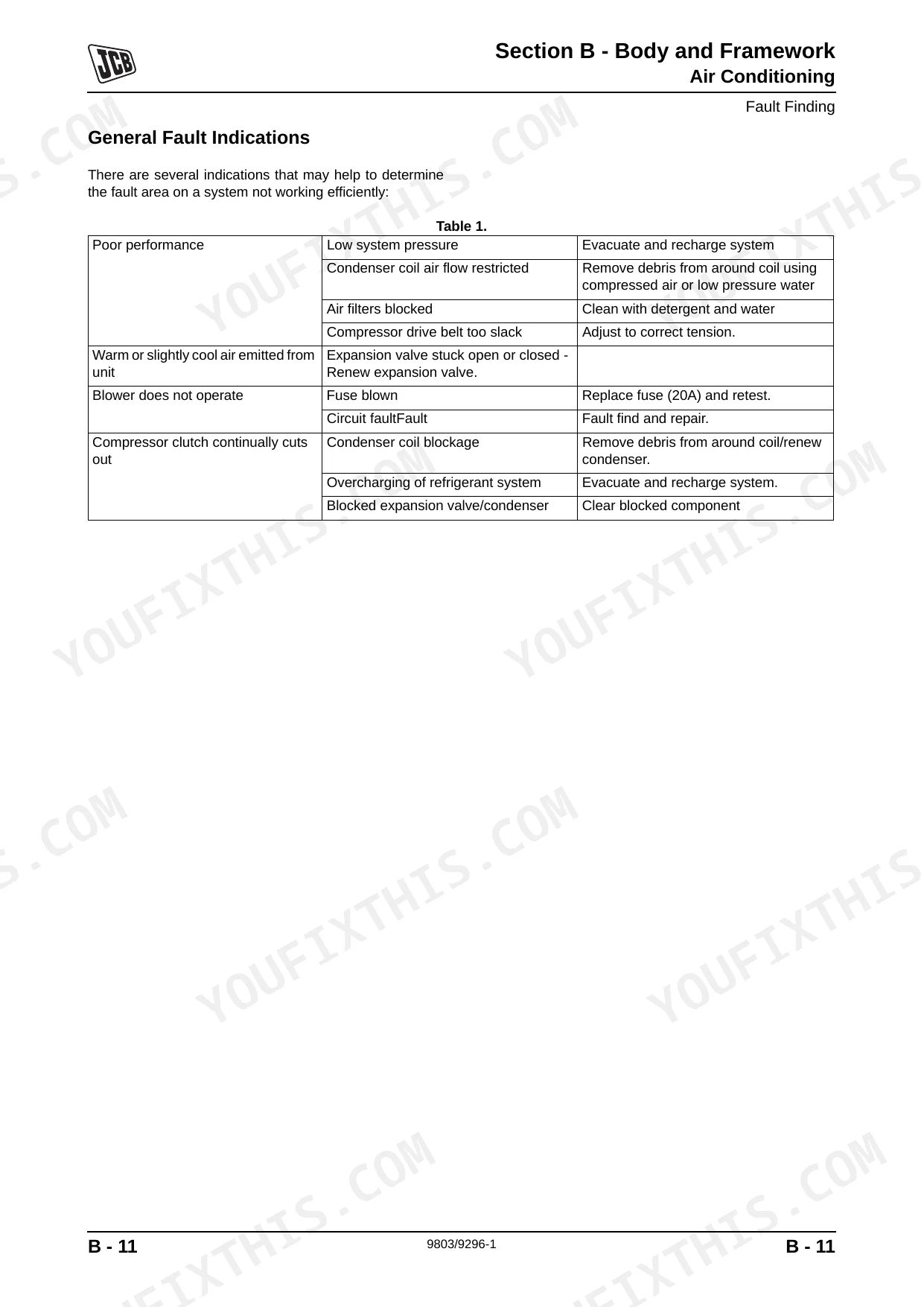

| Body and Framework | 105-147 | Technical Data, Air Conditioning, Service Procedures, Slew Ring |

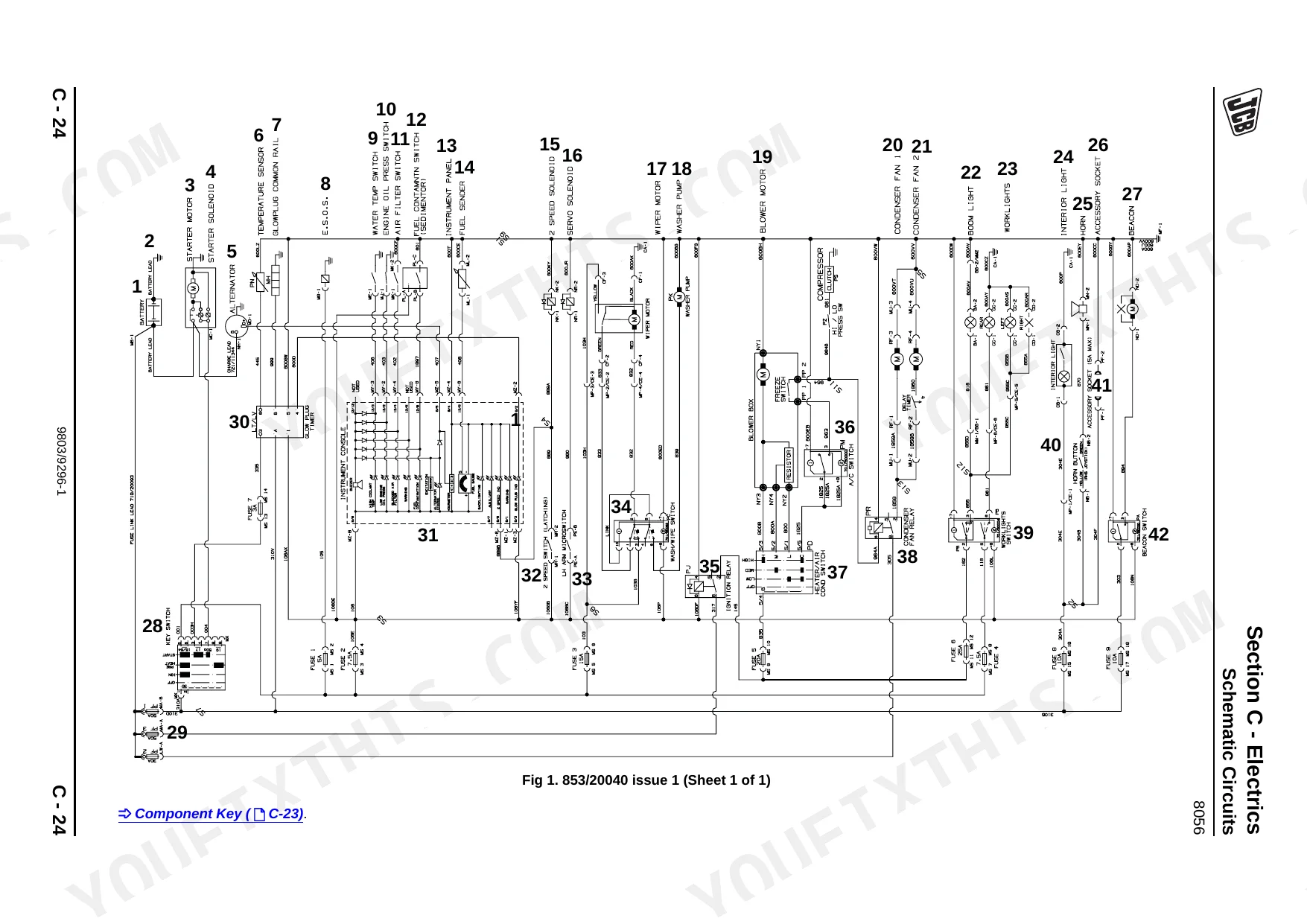

| Electrics | 148-180 | Service Procedures, Harness Data |

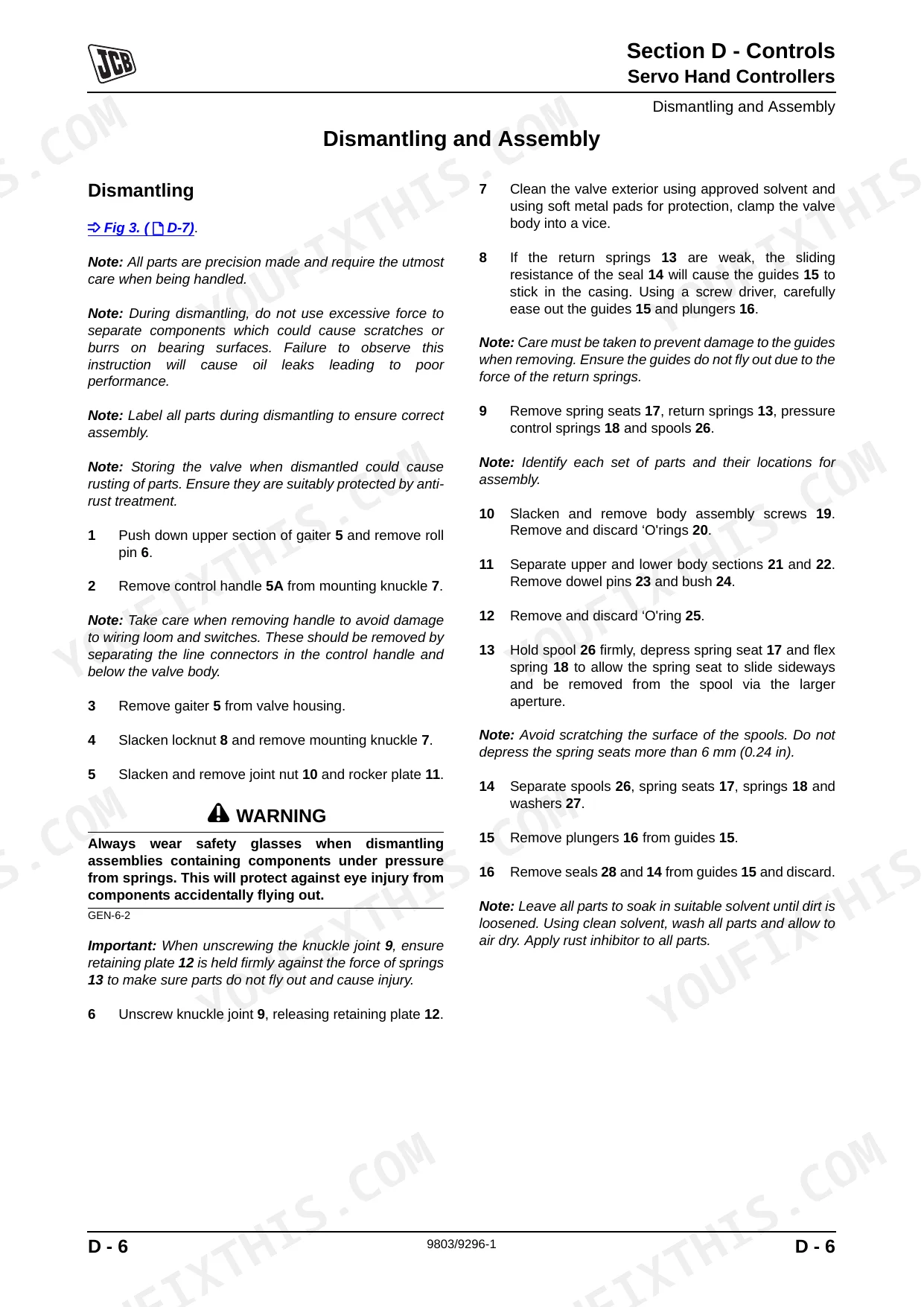

| Controls | 181-198 | Servo Hand Controllers |

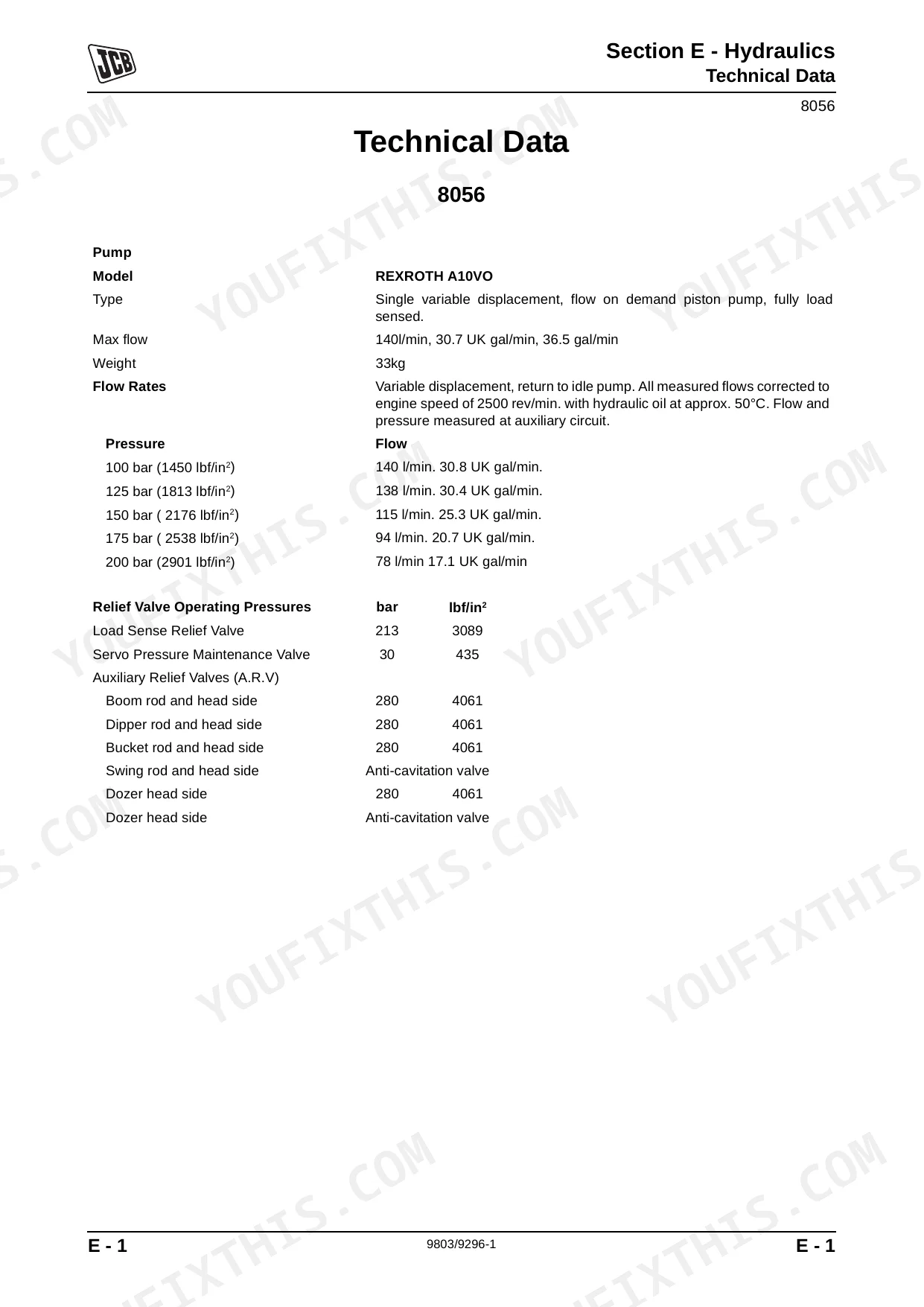

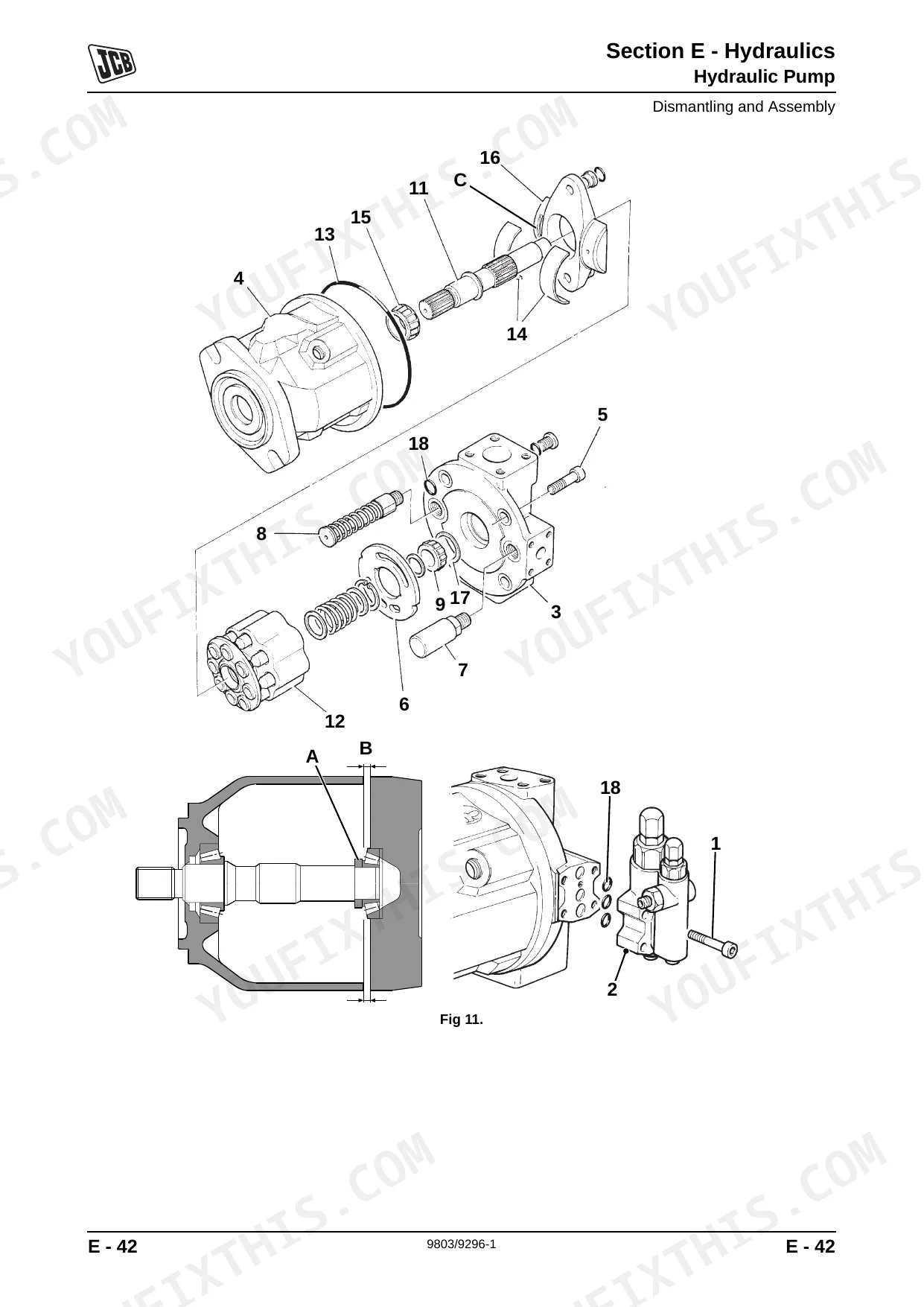

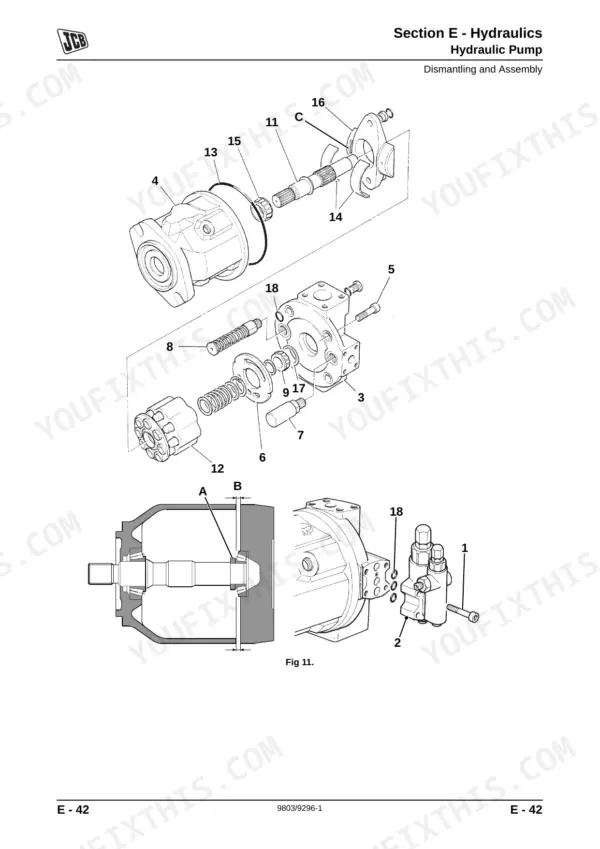

| Hydraulics | 199-323 | Basic System Operation, Fault Finding, Hydraulic Pump, Control Valve, Auxiliary Relief Valves, Pressure Maintenance Valve and Dual Solenoid Valve, Track Motor/Gearbox |
| Gearboxes | 324-328 | Slew Motor/Gearbox, Track Motor/Gearbox, Removal and Replacement, Dismantling and Assembly, Fault Finding |
| Track and Running Gear | 329-346 | Idler and Recoil Unit |
| Engine | 347-351 | Technical Data, General |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Metric Grade 8.8 Fasteners (M10, Condition 1) | 47.0 Nm | p. 11 |
| Hydraulic Filter Main Bypass pressure | 1.5 bar (22 lbf/in2) | p. 205 |
| Air Cleaner Element replacement | Change (procedure described) | p. 82 |
| Starter Motor Power | 2.2kW | p. 152 |
| Battery Voltage | 12 V | p. 152 |
| BSP Hose Torque Setting (1/2 inch) | 44.0 - 50.0 Nm | p. 15 |
| JCB Multi-Gasket quantity | 50 ml | p. 34 |
| Track Rollers Bolt Torque (Item C) | 244 Nm | p. 337 |
| Idler Recoil Spring length X | 263 mm (10.5 in) | p. 346 |
| Bucket Ram Pivot pin Reference value | 44.9 mm dia. | p. 135 |
| Fuel Tank Capacity | 70 Litres | p. 65 |
| Engine Oil Capacity (first 500 hours) | 9.6 Litres | p. 65 |
JCB 8056, ISUZU 4JG1PBW Common Problems This Manual Covers
JCB 8056 excavator clicks but will not start or engine cranks weakly in cold morning weather. p. 152
Test the charging circuit and battery voltage first. Verify the alternator output reaches 14 Volts, 80A as specified on page 152. Inspect battery terminals for corrosion, clean the connections, and check the starter motor wiring harness for loose splices or grounds.
Manual Section: ElectricsMachine arm operates slowly and hydraulic functions feel weak when lifting heavy loads. p. 237
Inspect the main hydraulic system and check the pump flow control valves. Verify the MRV pressure is set exactly to 230 bar as detailed on page 237. If pressure drops below specification, drain the tank and inspect the main relief valve.
Manual Section: HydraulicsRubber tracks run too loose and frequently derail or exhibit rapid undercarriage wear. p. 346
Measure the undercarriage track tension components immediately. Verify the idler recoil spring length X measures exactly 263 mm (10.5 in) as shown on page 346. Adjust the grease tensioner cylinder, clean out impacted dirt, and check the track rollers for excessive play.
Manual Section: Track and Running GearHydraulic oil leaks heavily around the boom lift cylinders and main valve block fittings. p. 205
Wipe down the cylinders to locate the exact fluid leak source. Torque the boom ram piston head to 405 Nm as listed on page 205. Check all 1/2 inch BSP hoses and tighten any loose fittings to 44.0 - 50.0 Nm.
Manual Section: HydraulicsFrequently Asked Questions
How to check torque specs on JCB 8056?

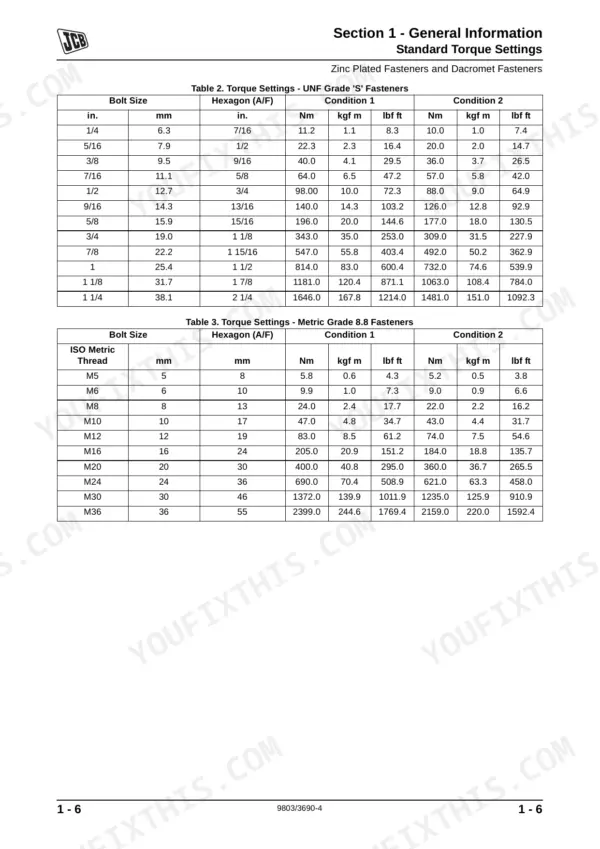

To check torque specifications on the JCB 8056, refer to the 'Standard Torque Settings' section in the manual. This section provides tables for various fasteners, including UNF Grade 'S' Fasteners, Metric Grade 8.8, 10.9, and 12.9 Fasteners, Rivet Nut Bolts/Screws, Internal Hexagon Headed Cap Screws, BSP Adaptors, SAE Connections, and BSP Hose Torque Settings.
How do you fix JCB 8056 excavator clicks but will not start or engine cranks weakly in cold morning weather?
Test the charging circuit and battery voltage first. Verify the alternator output reaches 14 Volts, 80A as specified on page 152. Inspect battery terminals for corrosion, clean the connections, and check the starter motor wiring harness for loose splices or grounds.
How do you fix machine arm operates slowly and hydraulic functions feel weak when lifting heavy loads?
Inspect the main hydraulic system and check the pump flow control valves. Verify the MRV pressure is set exactly to 230 bar as detailed on page 237. If pressure drops below specification, drain the tank and inspect the main relief valve.
How do you fix rubber tracks run too loose and frequently derail or exhibit rapid undercarriage wear?
Measure the undercarriage track tension components immediately. Verify the idler recoil spring length X measures exactly 263 mm (10.5 in) as shown on page 346. Adjust the grease tensioner cylinder, clean out impacted dirt, and check the track rollers for excessive play.
How quickly can I access this manual after buying?
A 351-page Service Manual in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Can I print this manual?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.

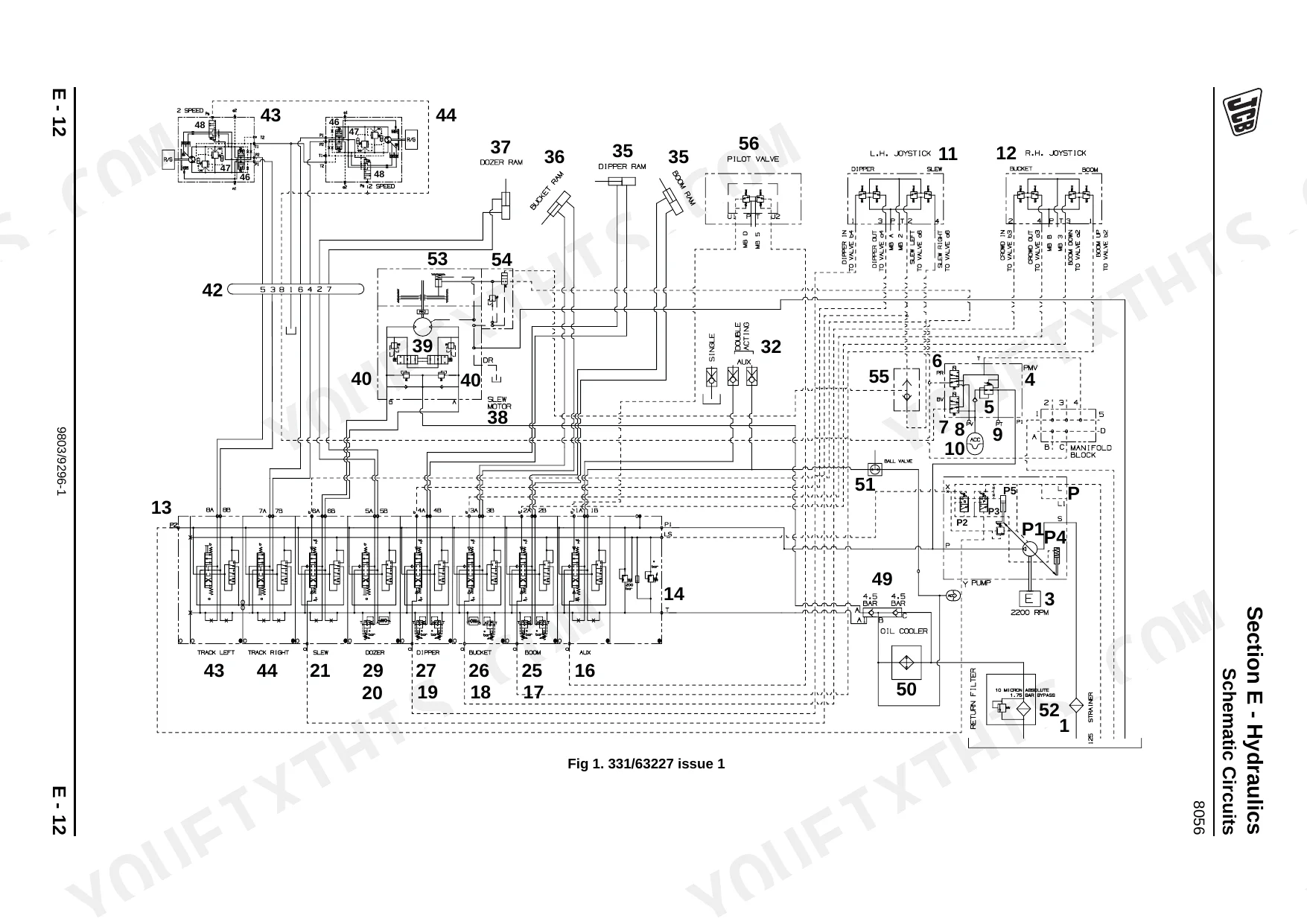

Can I find hydraulic circuit diagrams in this JCB 8056, Isuzu 4JG1PBW manual?
Yes, this JCB 8056, Isuzu 4JG1PBW Service Manual includes hydraulic system diagrams, circuit schematics, and component specifications.
Document Quality

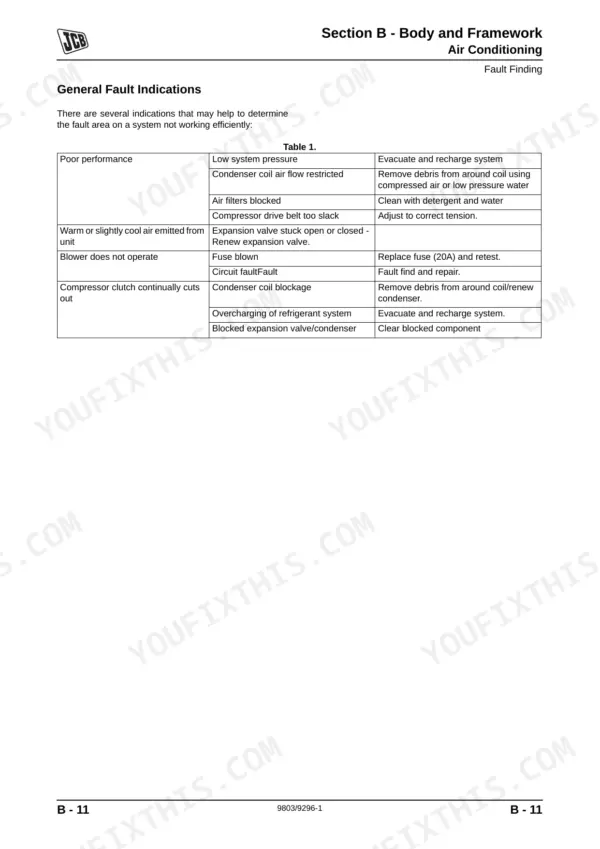

This document is a scanned PDF with an OCR text layer, allowing you to search and copy text throughout. The text quality is generally crisp and easy to read. Diagrams and illustrations are raster images, which remain clear at moderate zoom levels, and their labels are readable. Pages are clean with no noticeable scan artifacts, stains, or skewed content. Please note that several pages are intentionally left blank as filler pages.
