Keep your 2006-2007 Midi Excavator running smoothly with this 213-page JCB Operator Manual PDF covering every factory-mandated daily check and operating procedure. You get complete service schedules, pre-start cold checks, and a full breakdown of every dashboard switch, heater control, and track lever. Open to the routine maintenance section for step-by-step instructions on greasing pivot pins, replacing air filter elements, and safely securing the machine for heavy transport. Adjust the fan belt deflection to exactly 10 mm and verify your hydraulic tank is topped off with 70 liters of fluid before hitting the dirt. Ignoring preventative maintenance costs serious money. Download this bookmarked file directly to your phone, find the exact fluid specs instantly, and get back to digging.
What's Inside This JCB 8056 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety Notices | 10-12 | Operator Manual, Lifting Equipment, Raised Equipment, Exhaust Gases, Fluid Under Pressure, Safety Decals |
| Introduction | 13-38 | Operating Safety, Maintenance Safety, Safety Decals |

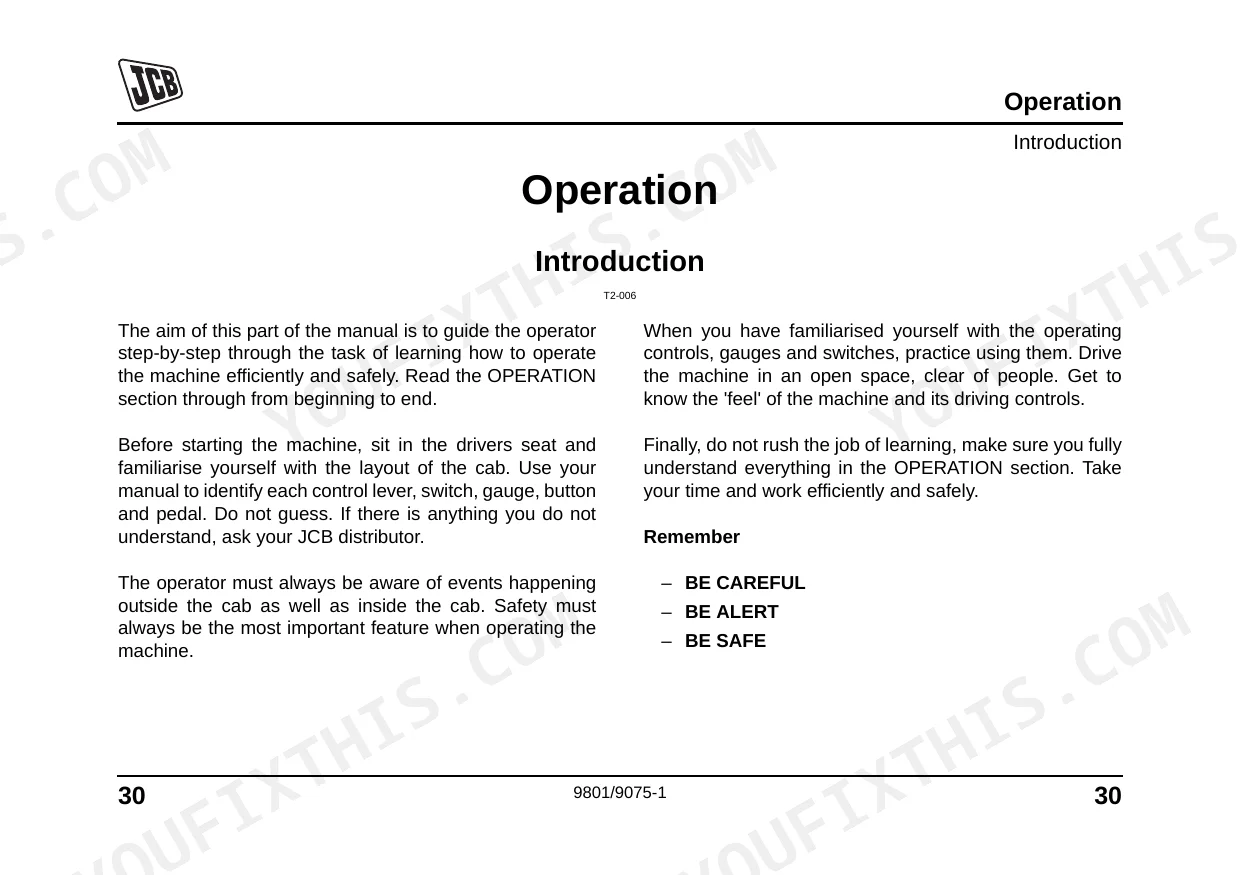

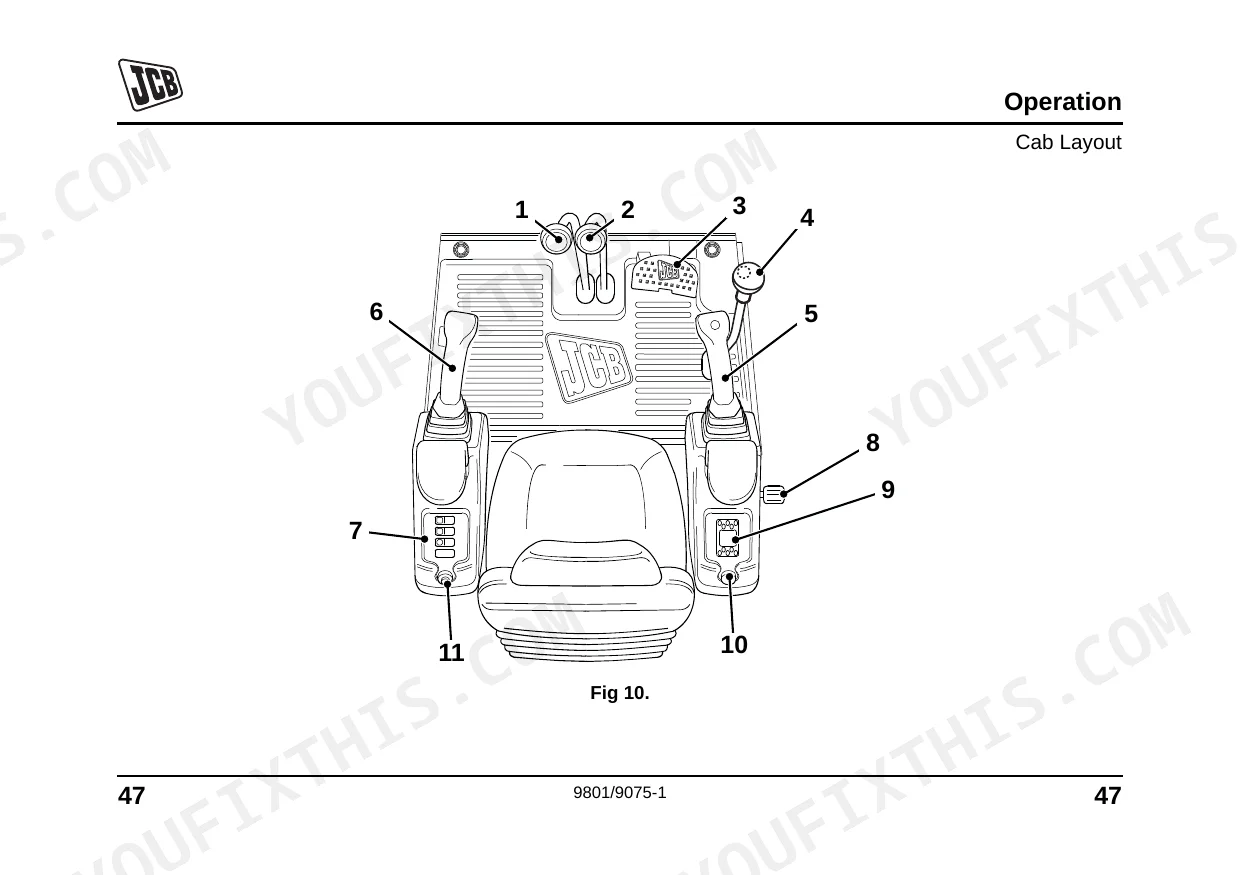

| Operation | 39-116 | Before Entering the Cab, Entering and Leaving the Cab |
| Storage | 117-118 | Preparation for Storage, Preparation After Storage |

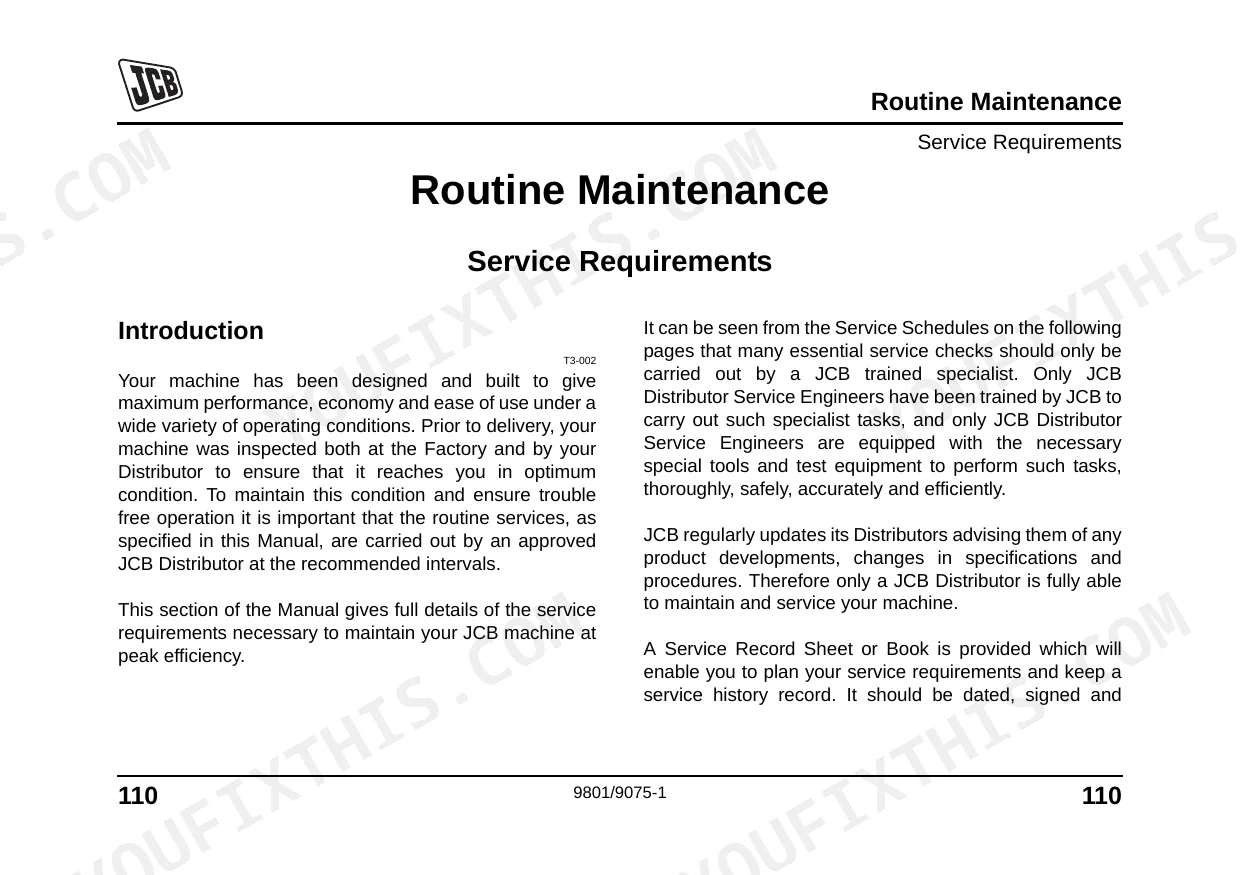

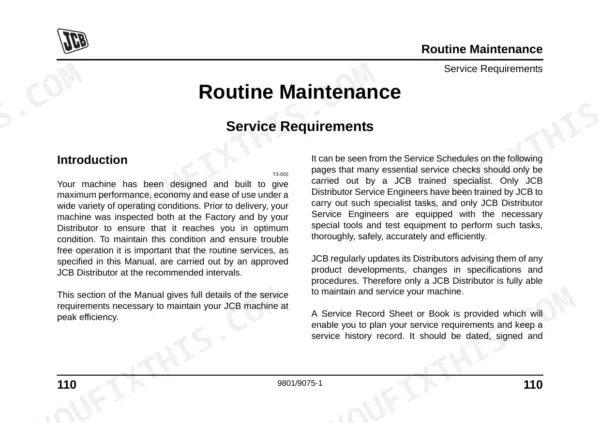

| Service Schedules | 121-130 | Introduction, How to Use the Service Schedules, Pre Start Cold Checks, Service Points and Fluid Levels, Functional Test and Final Inspection |

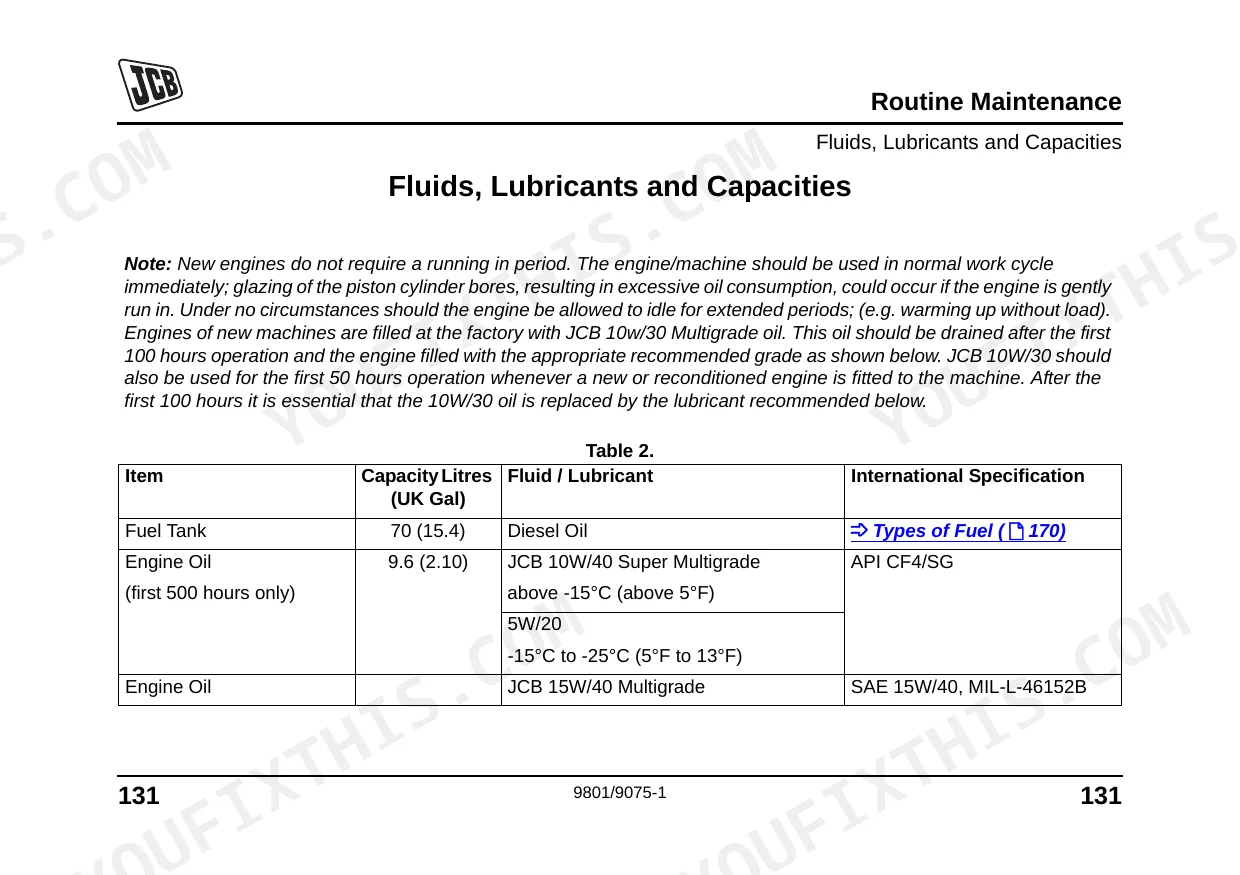

| Fluids, Lubricants and Capacities | 131-134 | Coolant Mixtures |
| Cleaning the Machine | 135-137 | Cleaning the Tracks |
| Checking for Damage | 138 | Steelwork, Pivot Pins, Steps and Handrails, Window Glass, Bucket Teeth, Lamp Lenses |
| Seat Belt | 139 | Checking the Seat Belt Condition and Security |
| Checking the Cab Frame | 140 | Cab Frame Damage, Mounting Bolts Installation, Bolts Tightness |
| Greasing | 141-146 | Daily, Every 50 Hours, Every 1000 Hours |
| Electrical System | 147-158 | Battery Cover, Removing the Floor Plate, Battery, Jump Starting the Engine |
| Engine | 159-169 | Checking the Oil Level, Changing the Oil and Filter, Changing the Air Filter Elements, Checking the Coolant Level |
| Fuel System | 170-213 | Types of Fuel |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Hydraulic Oil (Tank only) capacity | 70 litres (15.50 UK Gal) | p. 141 |
| Hydraulic Oil (Full System) capacity | 106 litres (23.32 UK Gal) | p. 141 |
| Engine Coolant capacity | 13.5 litres (3.0 UK Gal) | p. 141 |
| Engine Coolant type | JCB High Performance Antifreeze and Inhibitor/Water, ASTM D6210 | p. 141 |
| Fan belt deflection | 10 mm (0.4in) | p. 140 |
| Fuel Tank Capacity | 70 Litres (15.4 UK Gal) | p. 140 |
| Engine Oil Capacity (first 500 hours) | 9.6 Litres (2.10 UK Gal) | p. 140 |
| Coolant Antifreeze Protection (50% Concentration) | down to -40 °C (-39 °F) | p. 142 |
| Machine Weight (8056) | 5595 kg (12334.9 lb) | p. 209 |

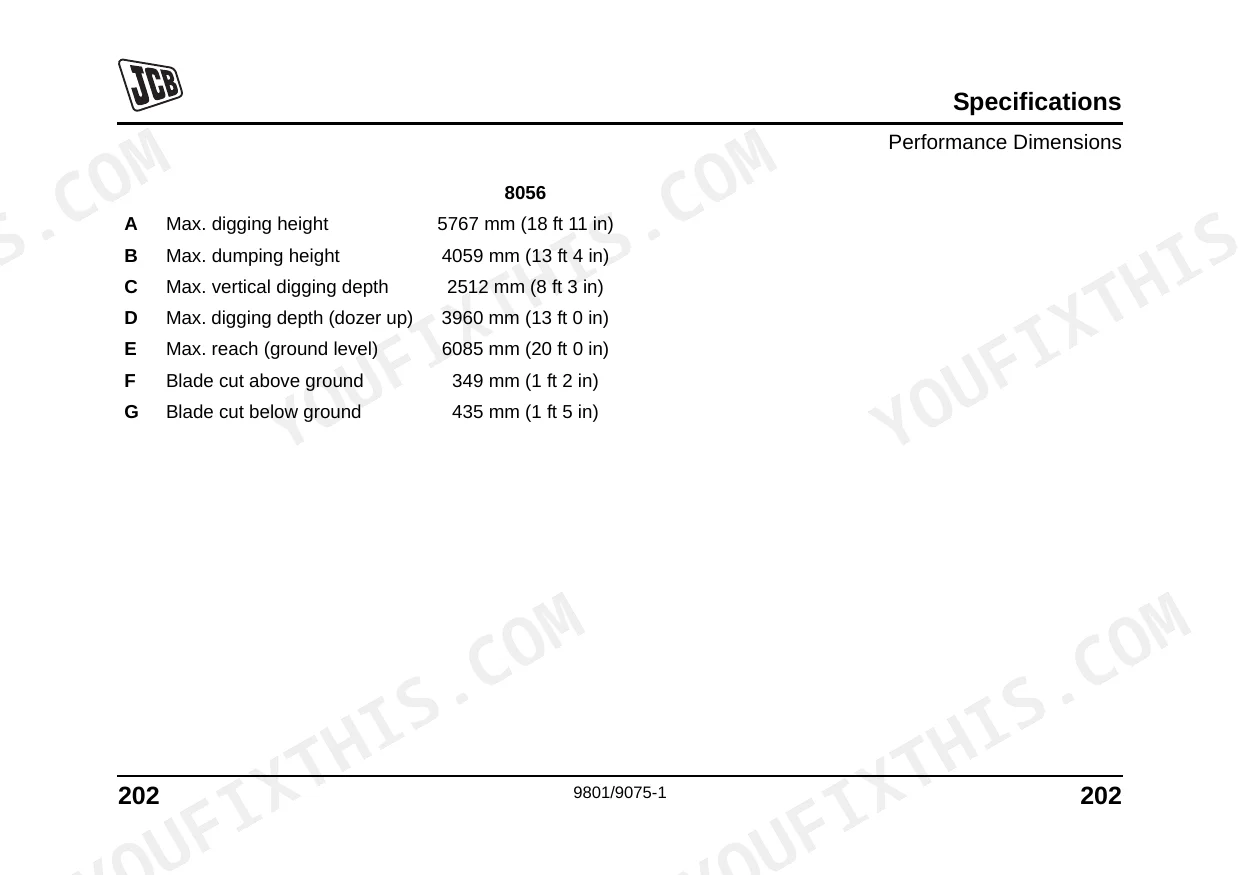

| Max. digging height (8056) | 5767 mm (18 ft 11 in) | p. 211 |
| Overall Height (8056) | 2704 mm (8 ft 11 in) | p. 213 |
JCB 8056 Common Problems This Manual Covers
JCB engine turns over normally after a fuel filter change but will not start p. 170
Bleed the air from the lines using the procedures found in the fuel system section on page 170. Verify the tank holds adequate diesel, noting the maximum capacity is 70 Litres (15.4 UK Gal). Prime the hand pump until resistance is felt before attempting another start.
Manual Section: Fuel SystemTemperature gauge spikes into the red zone during heavy operation or reduced cooling system performance p. 142
Inspect the radiator matrix for debris and clean the fins with compressed air. Check the expansion tank level and top up the system with JCB High Performance Antifreeze to the 13.5 Litres (3.0 UK Gal) capacity. Ensure proper winter protection down to -40 °C (-39 °F) as detailed on page 142.
Manual Section: Fluids, Lubricants and CapacitiesBoom and stick cylinders move sluggishly under load or exhibit low overall hydraulic response p. 131
Check the hydraulic tank sight glass with the machine parked on level ground. Fill the reservoir with JCB Special Hydraulic Fluid 46 if the level falls below the minimum mark. Note that the full system holds exactly 106 Litres (23.32 UK Gal) as documented on page 141.
Manual Section: Fluids, Lubricants and CapacitiesHigh pitched squealing noise from the engine compartment during startup or heavy electrical loads p. 159
Inspect the fan belt for wear, cracking, or glazing on the friction surfaces. Adjust the alternator bracket until you achieve a deflection of exactly 10 mm (0.4 in) as specified on page 140.
Manual Section: EngineFrequently Asked Questions
What are the replacement specifications for Fuel filter?
The manual specifies two fuel filter elements for replacement: a 5 Micron Primary Fuel Filter/Sedimenter Element and a 30 Micron Secondary Fuel Filter/Sedimenter Element. The procedure for replacing these elements is outlined in the 'Replacing the Fuel Filter Elements' section on page 184.
How do you fix JCB engine turns over normally after a fuel filter change but will not start?
Bleed the air from the lines using the procedures found in the fuel system section on page 170. Verify the tank holds adequate diesel, noting the maximum capacity is 70 Litres (15.4 UK Gal). Prime the hand pump until resistance is felt before attempting another start.
How do you fix temperature gauge spikes into the red zone during heavy operation or reduced cooling system performance?
Inspect the radiator matrix for debris and clean the fins with compressed air. Check the expansion tank level and top up the system with JCB High Performance Antifreeze to the 13.5 Litres (3.0 UK Gal) capacity. Ensure proper winter protection down to -40 °C (-39 °F) as detailed on page 142.
How do you fix boom and stick cylinders move sluggishly under load or exhibit low overall hydraulic response?
Check the hydraulic tank sight glass with the machine parked on level ground. Fill the reservoir with JCB Special Hydraulic Fluid 46 if the level falls below the minimum mark. Note that the full system holds exactly 106 Litres (23.32 UK Gal) as documented on page 141.
Is this JCB Operator Manual a digital download?
You get a 213-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Are there any print restrictions on this manual?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.
Document Quality
This document is a native digital PDF, allowing you to search and copy all text content. The text is consistently crisp and easy to read throughout the manual. Diagrams and illustrations are clear raster images with readable labels, providing good visual support for the instructions. All pages are clean with no scan artifacts, stains, or skewed content, and there are a few pages intentionally left blank as noted in the document.
