Working on a vibratory roller means battling constant vibration damage, and this 167-page JCB VMD70, VMD100 Service Manual PDF (OEM #9813/0300-3) delivers the exact factory procedures to rebuild your machine. Open this file to find clear hydraulic schematics for the drive circuits, wiring diagrams for the engine electrics, and step-by-step fault finding charts. Exploded views of the body framework and detailed maintenance interval schedules keep the sprinkler system running strong. Fasten the 1/4-inch BSP hydraulic hoses to a tight 24.0-27.0 Nm and verify your breather filter element gets checked every 250 hours before hitting the dirt. Download this bookmarked file directly to your shop tablet, jump straight to the right diagram, and have the right answer before you pull the first bolt.
What's Inside This JCB VMD70 & variants Manual
| System | Pages | Key Topics |
|---|---|---|
| General Information | 6-29 | Machine Model and Serial Number, Service Tools, Torque Settings, Hydraulic Connections, Service Consumables |
| Care and Safety | 30-43 | Safety Warnings, General Safety, Operating Safety, Maintenance Safety |
| Routine Maintenance | 44-81 | Service Schedules, Fluids, Lubricants and Capacities, Engine Oil and Filter, Fuel System, Hydraulic System, Sprinkler System |
| Body and Framework | 82-95 | Water Tank, Sprinkler Bar, Scraper Bar, Guiding Handle Assembly, Side Plate, Drum Bearing Pre-Load |

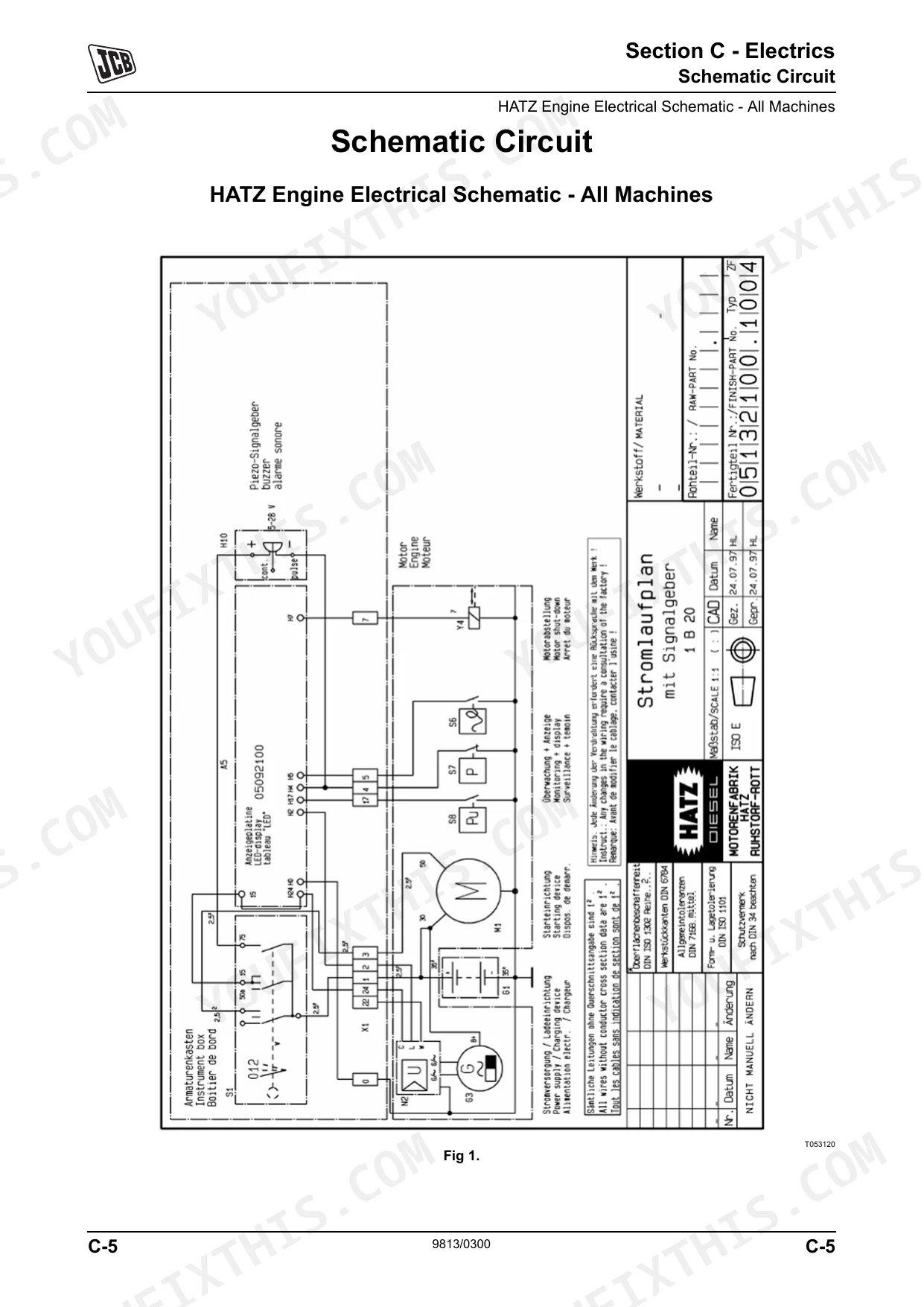

| Electrics | 96-116 | Technical Data, Hatz Engine Electrical Schematic, Using a Multimeter, Battery Testing, Battery Charging System Precautions, Battery Removal and Replacement |

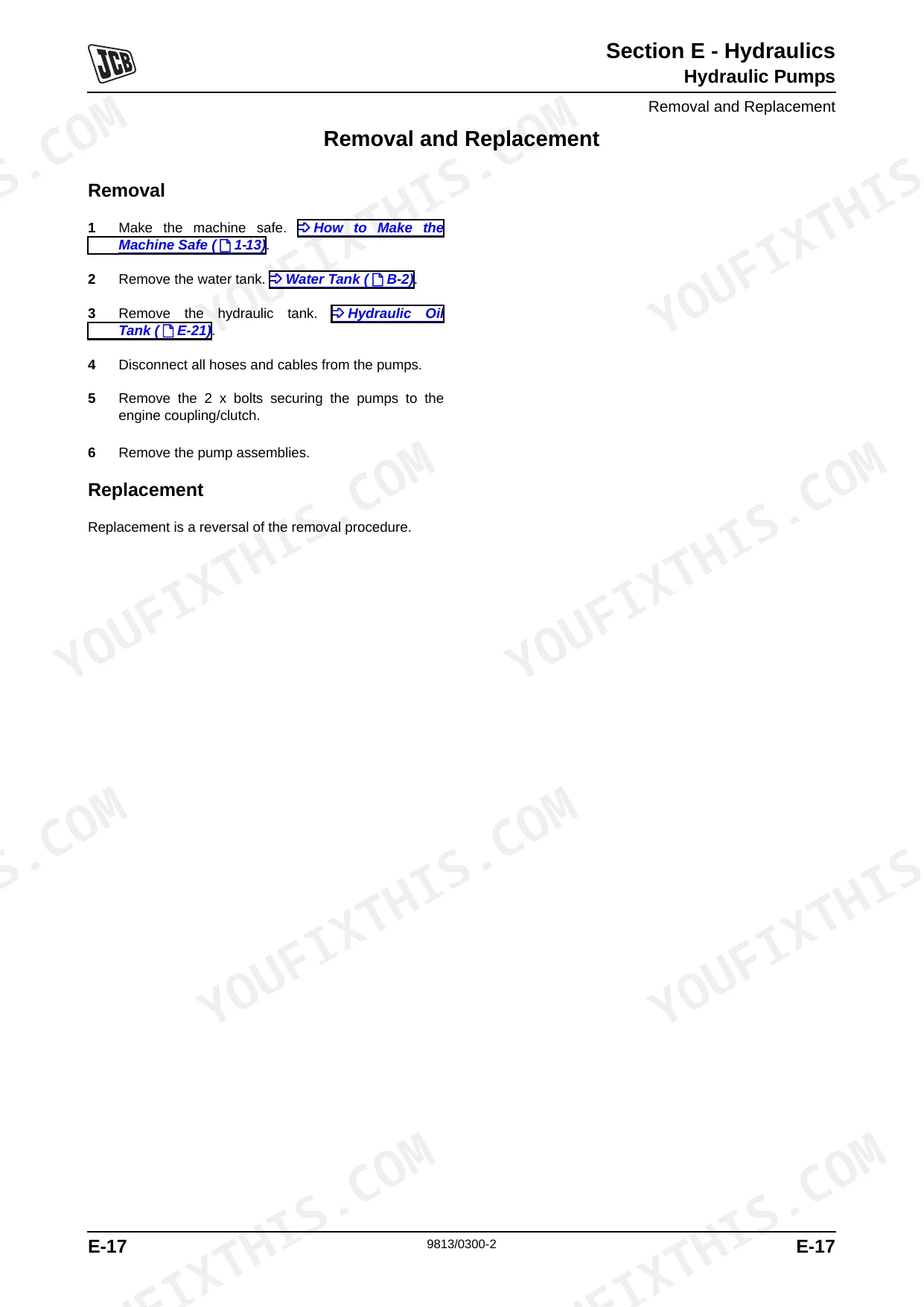

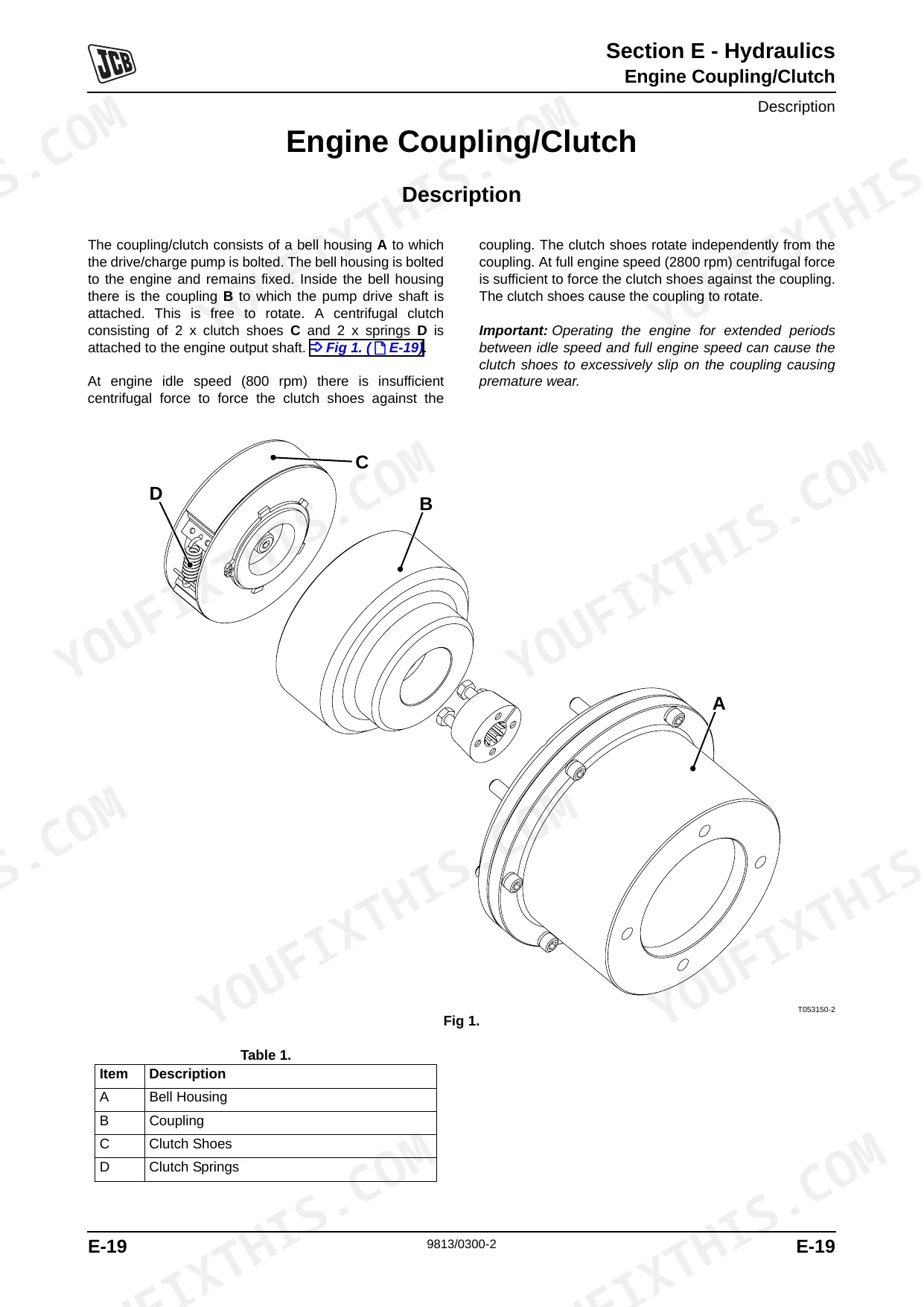

| Hydraulics | 117-155 | Technical Data, Fault Finding, Hydraulic Schematic and Circuit Descriptions, Hydraulic Pumps, Hydraulic Oil Tank, Pressure Test Procedures |
| Engine | 156-167 | Technical Data, Hatz 1B40 Engine, Fault Finding, Engine Removal and Replacement, Horsepower Check |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Hydraulic Fluid and Filter Element Service Interval | Change at 250, 500, 1000, 2000 hours | p. 55 |
| Breather Filter Element Service Interval | Check/Clean at 250, 500, 1000, 2000 hours | p. 55 |

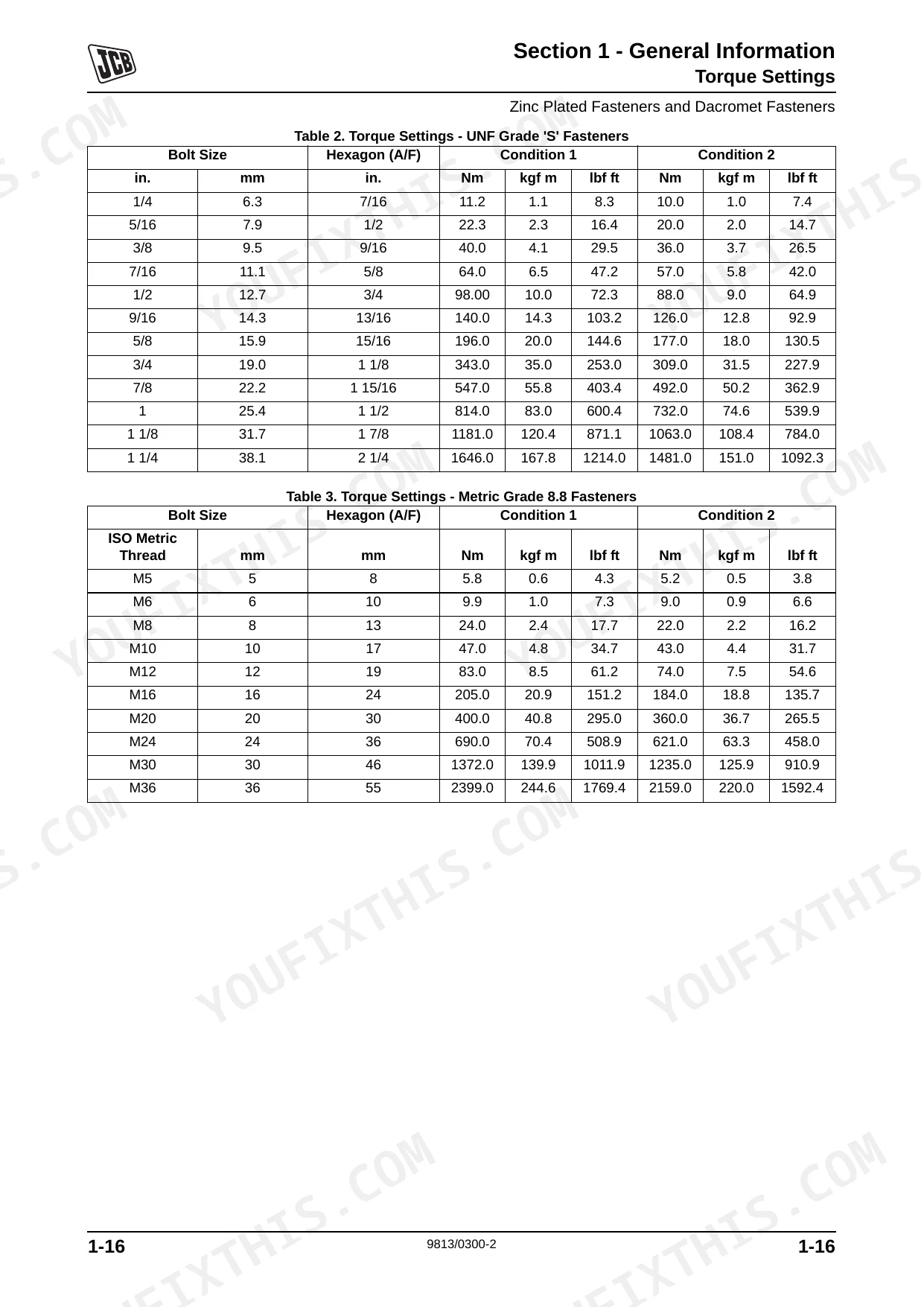

| BSP Hose Torque Setting (1/8 in.) | 14.0 - 16.00 Nm | p. 25 |
| BSP Hose Torque Setting (1/4 in.) | 24.0 - 27.0 Nm | p. 25 |
| JCB Multi-Gasket Part No. | 4102/1212 | p. 28 |
| JCB Multi-Gasket Quantity | 50 ml | p. 28 |
| Drum Bearing Preload (Clearance) | 0.1-0.6 mm | p. 93 |
| Maximum Circuit Pressure for Drum Bearing Preload Check | 60 bar | p. 92 |
| Fuel Cartridge Filter Service Interval | Change at 250, 500, 1000, 2000 hours | p. 55 |
| Air Filter Element Service Interval | Change at 250, 500, 1000, 2000 hours (or earlier if indicator shows blocked) | p. 55 |
| VMD70 | ||
| Vibration System Oil Capacity | 0.15 Litres | p. 58 |
| VMD100 | ||
| Vibration System Oil Capacity | 0.2 Litres | p. 58 |
JCB VMD70 & variants Common Problems This Manual Covers
JCB VMD70 and VMD100 vibrator not rotating at full speed or reduced performance p. 122
Inspect the vibration system relief valve. Test the vibrator system working pressure on page 122 to verify it falls between 80-120 bar. If pressure is low, check the fluid level and verify the vibration system oil capacity is correct at exactly 0.15 Litres for the VMD70 model.

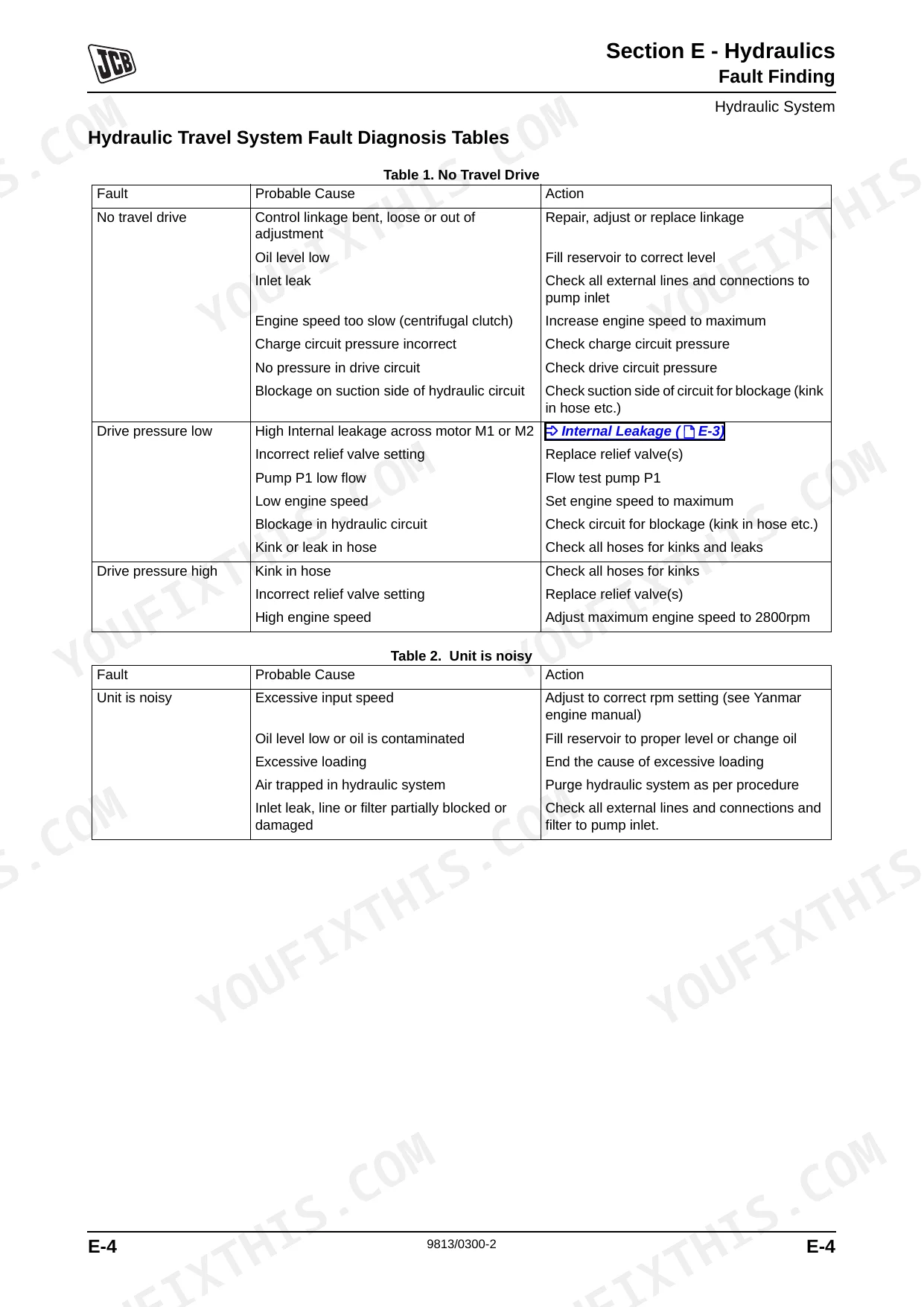

Manual Section: Vibration System Fault DiagnosisMachine will not move or has poor drive performance with no travel drive p. 124
Troubleshoot the hydraulic travel system using the diagnostic procedures on page 124. Connect a gauge to measure the travel drive system forwards working pressure. Verify the reading matches the 30-40 bar specification on page 122. Replace the hydraulic filter if you find restricted fluid flow.
Manual Section: Hydraulic Travel System Fault DiagnosisEngine starts but stalls under load or outputs black smoke from exhaust p. 161
Check the engine valve clearance for the HATZ 1B40 engine. Remove the valve cover and use a feeler gauge to verify the inlet and exhaust clearances measure exactly 0.10 mm as specified on page 161. Adjust the rocker arms if the clearance measurement is out of spec.
Manual Section: Engine Fault Finding - HATZ EngineExcessive vibration noise or knocking near the drum assembly indicating bearing failure p. 92
Measure the drum bearing preload clearance. Pressurize the hydraulic circuit to the maximum circuit pressure of 60 bar shown on page 92. Select and install the appropriate shims to achieve a final preload clearance between 0.1-0.6 mm as detailed on page 93.
Manual Section: Drum Bearing Pre-load Check and AdjustFrequently Asked Questions
What are the replacement specifications for hydraulic filters?
The hydraulic fluid and filter element should be changed according to the service schedules, which indicate intervals of 250, 500, 1000, or 2000 hours. The filter assembly is designed to maintain the required cleanliness level and must be serviced as per the machine's service requirements.
What are the replacement specifications for hydraulic hoses?
If a hydraulic hose or hose fitting is damaged, it must be replaced immediately, and the machine should not be used until the replacement is complete. All replacement hoses must match the original in terms of size and standard.
How do you fix JCB VMD70 and VMD100 vibrator not rotating at full speed or reduced performance?
Inspect the vibration system relief valve. Test the vibrator system working pressure on page 122 to verify it falls between 80-120 bar. If pressure is low, check the fluid level and verify the vibration system oil capacity is correct at exactly 0.15 Litres for the VMD70 model.
How do you fix machine will not move or has poor drive performance with no travel drive?
Troubleshoot the hydraulic travel system using the diagnostic procedures on page 124. Connect a gauge to measure the travel drive system forwards working pressure. Verify the reading matches the 30-40 bar specification on page 122. Replace the hydraulic filter if you find restricted fluid flow.
What do I get after purchasing this JCB VMD70 & variants manual?
This is a 167-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Am I able to print pages from this manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.

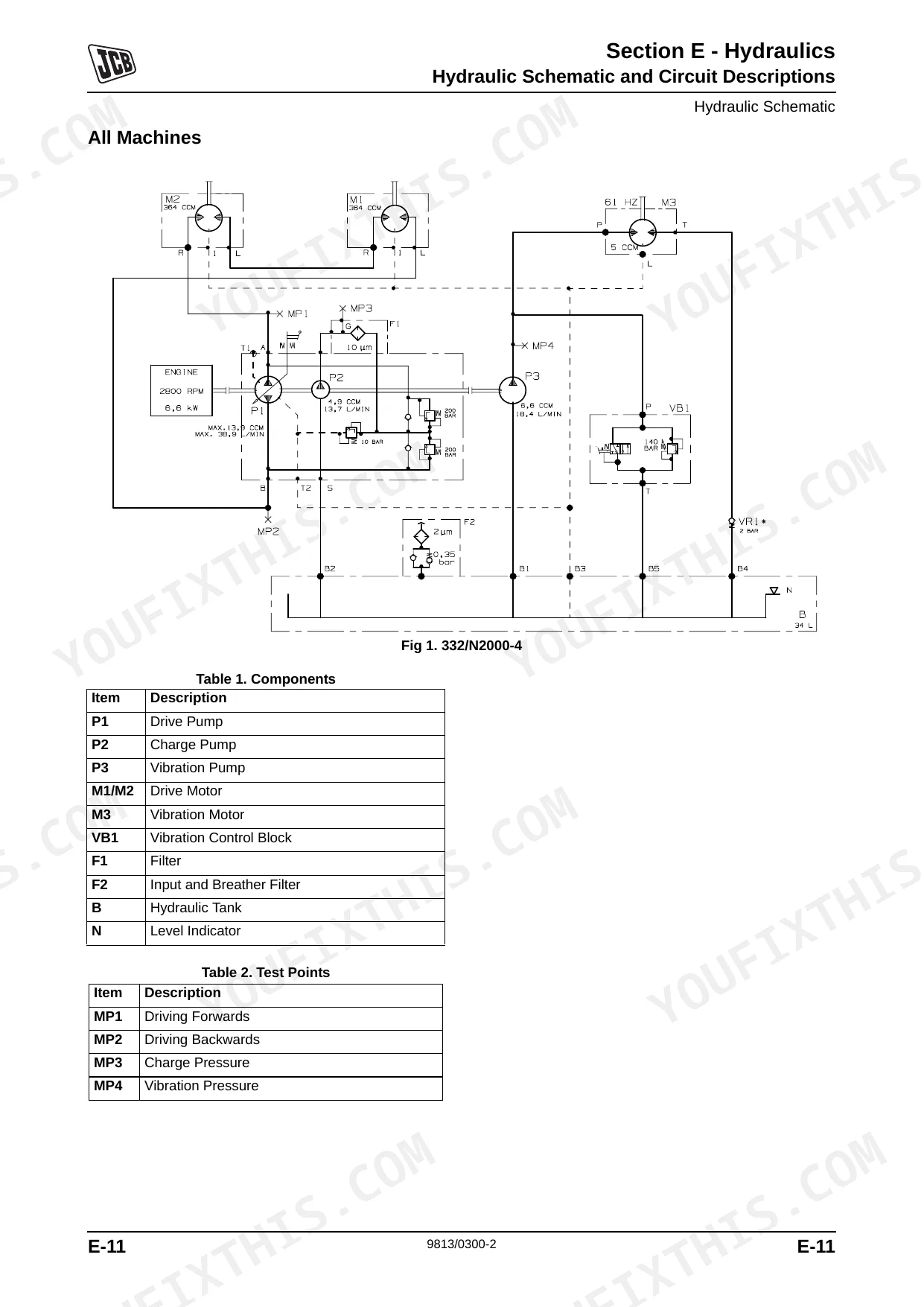

Are there hydraulic schematics in this JCB VMD70 & variants manual?
Yes, this JCB VMD70 & variants Service Manual includes hydraulic system diagrams, circuit schematics, and component specifications.
Document Quality
This document is a scanned PDF, not a native digital file, but it includes an OCR layer so you can search and copy the full text. The text quality is generally readable, though it has a slightly fuzzy appearance typical of scanned documents rather than crisp digital text. Diagrams and illustrations are raster images, and while most are clear with readable labels, some schematic diagrams contain very small text that is difficult to read even when zoomed in. Pages are clean with no notable scan artifacts, stains, or skewed content, and there are several pages explicitly marked as intentionally blank filler pages.
