Arguments over what the 2130 actually calls for end with TM-4272, the 454-page John Deere 2130 Technical Manual PDF written for the dealer techs who serviced this tractor new. Wiring diagrams trace both the Bilux and sealed-beam lighting circuits, and hydraulic schematics map oil flow from the pumps through the rockshaft and selective control valves. Roughly a fifth of the book covers the hydraulic system alone, with pressure tests plus malfunction diagnosis for the Roto-Diesel injection pump, power train, and brakes. Set hydraulic pump stand-by pressure to 155 bar (2250 psi), and check the PTO clutch and brake at 9 to 9.5 bar before you blame the pump. Splitting a tractor with hay down is no time to hunt for a spec. Bookmarks in this scanned original PDF put your thumb on the clutch or rockshaft section in seconds; download it and keep it in the shop.
What's Inside This John Deere 2130 Manual
| System | Pages | Key Topics |
|---|---|---|

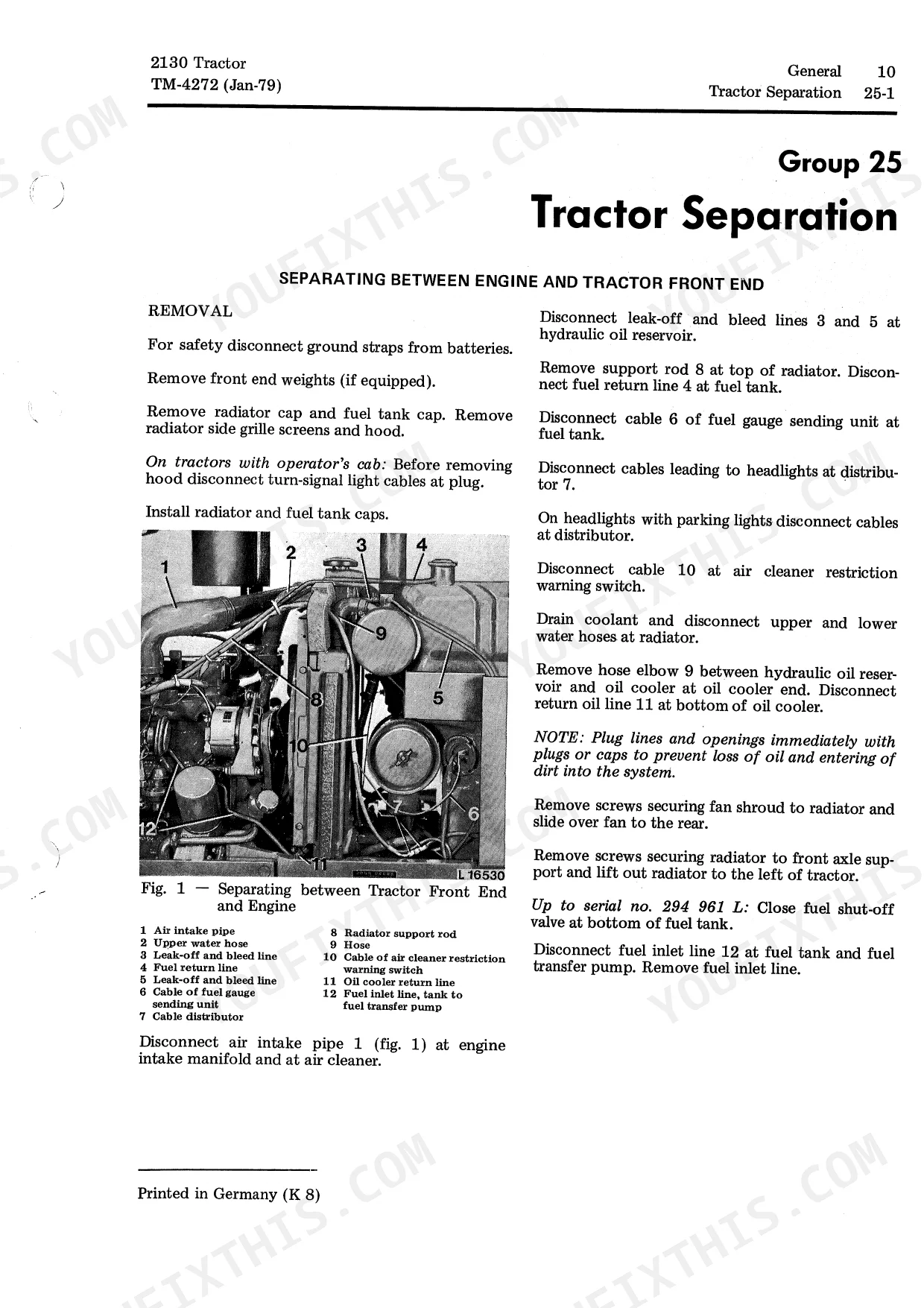

| General | 3-38 | Specifications, Pre-Delivery, Delivery and After-Sales Inspections, Lubrication and Periodic Service, Engine and Tractor Tune-Up, Tractor Separation |

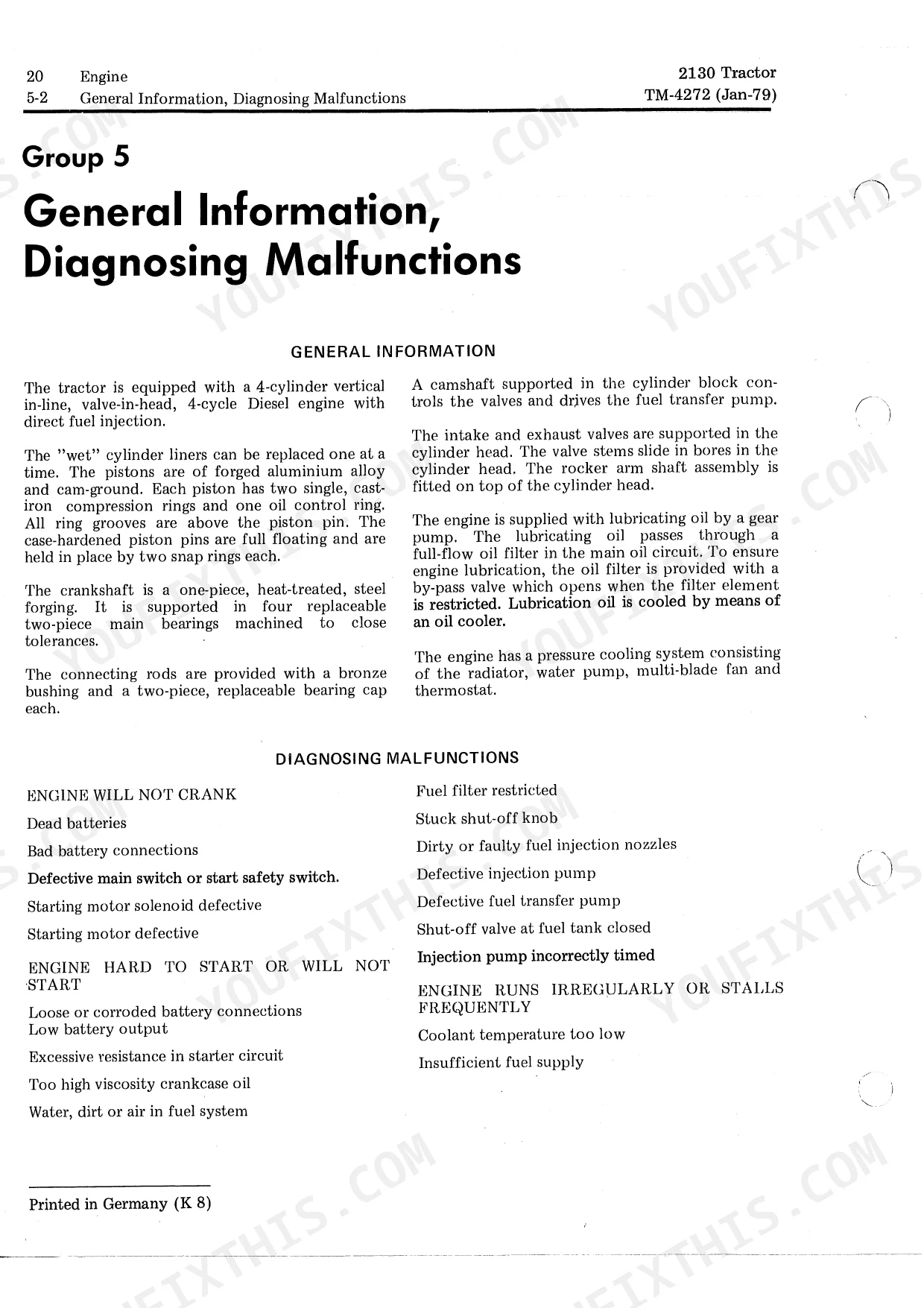

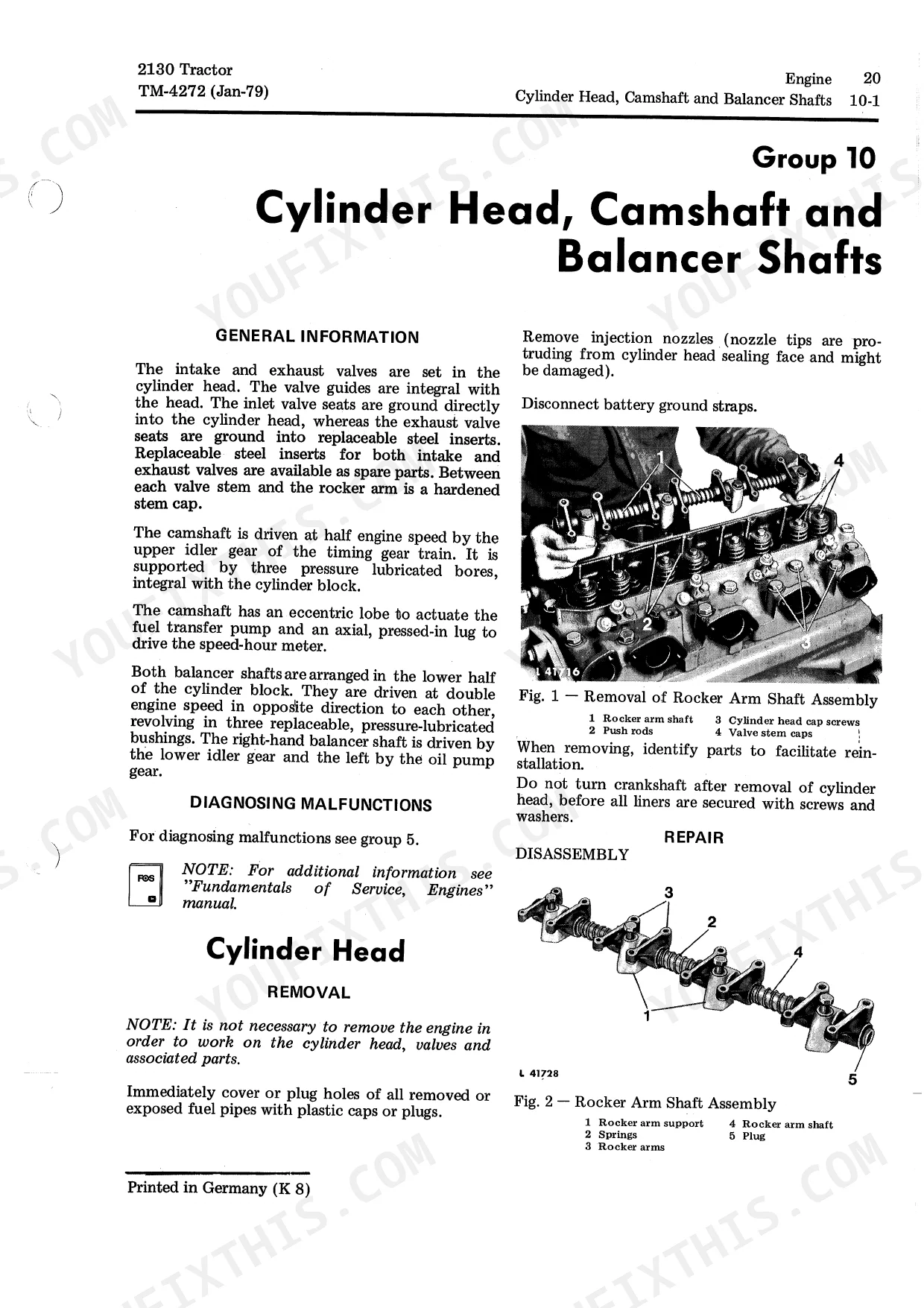

| Engine | 39-100 | General Information and Diagnosing Malfunctions, Cylinder Head, Camshaft and Balancer Shafts, Cylinder Block, Liners, Pistons and Connecting Rods, Crankshaft |

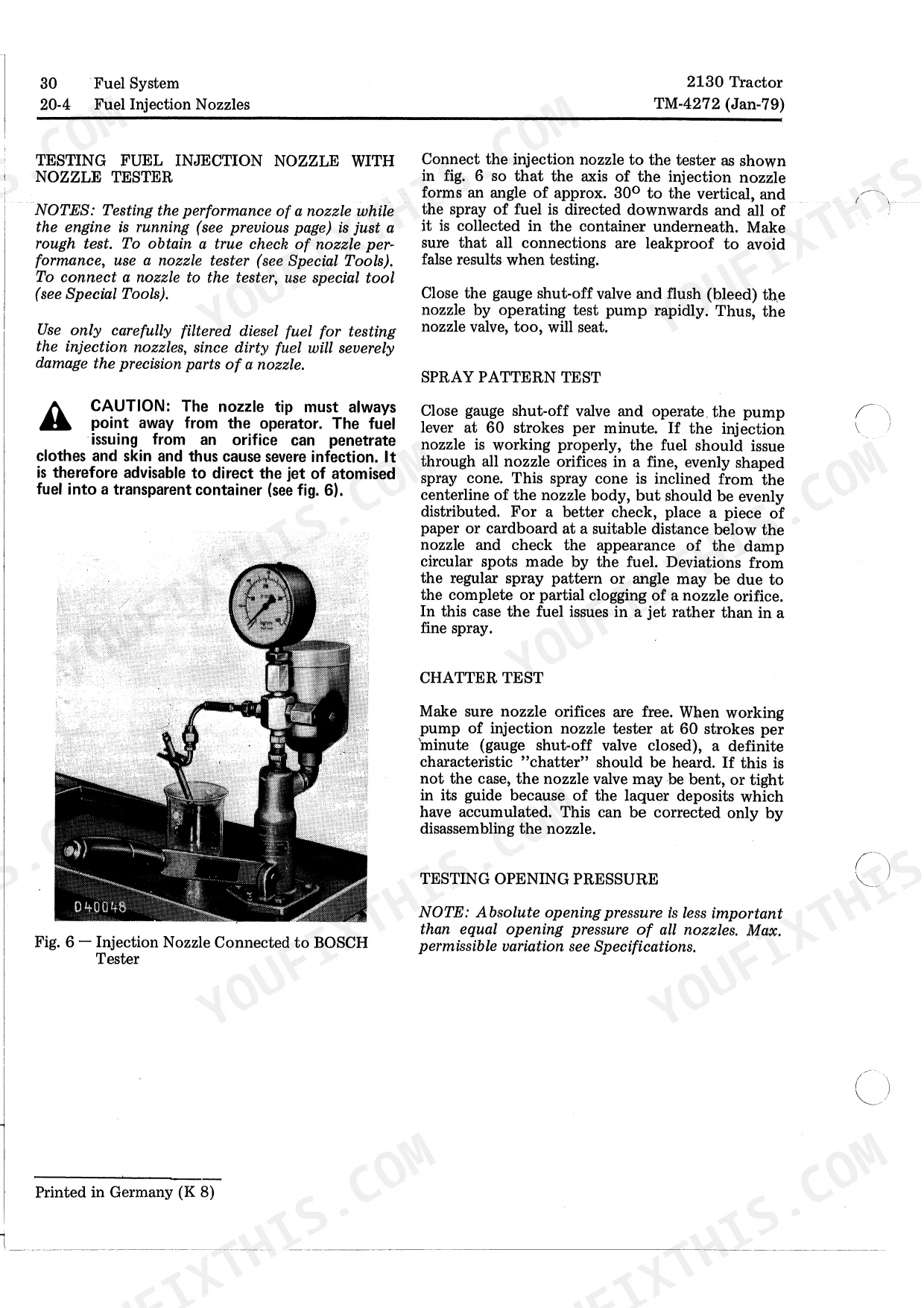

| Fuel System | 101-132 | Fuel Tank, Water Trap, Fuel Transfer Pump, Fuel Filter and Air Cleaner, Roto-Diesel Fuel Injection Pump, Fuel Injection Nozzles, Cold Weather Starting Aids |
| Electrical System | 133-206 | Diagnosing Malfunctions, Bilux Lighting System, Sealed-Beam Lighting System, Starting Motor, Alternator and Regulator |
| Power Train | 207-286 | Engine Clutch and Clutch Linkage, High-Low Shift Unit, Creeper Transmission, Collar-Shift Transmission, Differential, Final Drives, Independent PTO |
| Front Axle, Steering System and Brakes | 287-328 | Front Axle, Steering System, Brakes |
| Hydraulic System | 329-424 | General Information, Diagnosing Malfunctions and Tests, Oil Reservoir, Filter, Valves and Oil Cooler, Hydraulic Pumps and Transmission Oil Pump, Rockshaft, Selective Control Valves |
| Miscellaneous | 425-454 | Belt Pulley, Operator's Seats, Front and Rear Wheels, Roll Guard, Operator's Cab - Ventilation and Heating, Operator's Cab |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Maximum torque at 1400 rpm | 246 Nm (181 ft-lb) | p. 6 |
| Operating pressure of PTO clutch and PTO brake | 9 to 9.5 bar (125 to 135 psi) | p. 20 |
| Stand-by pressure of hydraulic pump | 155 bar (2250 psi) | p. 20 |
| Pump drive gear-to-pump shaft, cap screws | 25 Nm | p. 116 |
| Engine Displacement | 3920 cm3 | p. 6 |
| Engine Fast Idle Speed | 2660 rpm | p. 6 |
| Engine Slow Idle Speed | 750 rpm | p. 6 |
| Hydraulic System Pressure | 155 bar | p. 7 |
| Engine Oil Pressure (at 800 rpm) | 1 bar | p. 19 |
| Front Wheel Toe-in | 3 to 6.5 mm | p. 19 |
| Starting Motor Power | 3 kW | p. 6 |
| Alternator Output | 28 amps | p. 6 |
John Deere 2130 Common Problems This Manual Covers
Starter turns engine over slowly on cold mornings, lights dim while cranking
Check battery voltage and load-test before pulling the starter; the 12 volt, 3 kW starting motor drags on corroded cables long before it actually fails. Clean and tighten both ground straps, then verify the 28 amp alternator is charging. Follow the electrical diagnosing procedures in the section starting on page 133 if cranking stays sluggish.
Manual Section: Electrical System p. 133Rockshaft leaks oil at the seals, three-point hitch drops with mounted implement overnight
Inspect the rockshaft housing for weeping at the shaft seals during every service and replace them at the first sign of seepage. Verify system pressure holds at 155 bar (2250 psi) after reassembly so the hitch carries a plow overnight without settling. Rockshaft repair procedures sit in the hydraulic system section beginning on page 329.
Manual Section: Hydraulic System p. 329Front wheels shimmy and hunt at road speed, steering feels delayed then wanders
Measure toe-in before replacing parts; set it to 3 to 6.5 mm (1/8 to 1/4 in.) with the wheels straight ahead. Inspect track rod ends and the front axle pivot for play, then work through the steering procedures in the front axle section starting on page 287. Worn rod ends plus loose toe-in feed the shimmy.
Manual Section: Front Axle, Steering System and Brakes p. 287Frequently Asked Questions
What are the torque specifications for the cylinder head bolts on the John Deere 2130?
The cylinder head cap screws should be tightened to 130 Nm (13 mkp; 95 ft-lb). p. 55
How do you fix John Deere 2130 hydraulics and power steering quit after tractor warms up, loader and hitch dead?
Drain the reservoir and pull the suction screen and hydraulic filter before blaming the pump; a plugged screen starves steering and hitch once warm oil thins out. Clean the screen, replace the filter, refill, then test stand-by pressure against the 155 bar (2250 psi) spec using the hydraulic test procedures starting on page 329. p. 329
How do you fix PTO shaft keeps turning after lever is disengaged, implement won't stop spinning?
Test PTO clutch and brake operating pressure first; the spec on page 20 calls for 9 to 9.5 bar (125 to 135 psi). Low pressure lets the clutch drag and the brake miss the shaft. If pressure checks good, split the tractor and inspect the PTO clutch pack for worn or warped plates before baling season. p. 207
How do you fix front wheels shimmy and hunt at road speed, steering feels delayed then wanders?
Measure toe-in before replacing parts; set it to 3 to 6.5 mm (1/8 to 1/4 in.) with the wheels straight ahead. Inspect track rod ends and the front axle pivot for play, then work through the steering procedures in the front axle section starting on page 287. Worn rod ends plus loose toe-in feed the shimmy. p. 287
Will this John Deere 2130 Technical Manual download right away?
Delivery is instant: a 454-page scanned PDF is yours the second checkout clears. Laptop, tablet, or phone, all fine.
Can I print this John Deere 2130 manual?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.
Does this John Deere 2130 manual include hydraulic schematics?
Yes. The manual includes a hydraulic system diagram covering the main circuits. Page 272 carries one of them. p. 272
