Need factory service data for your Kubota RCK54-24B-EC, RCK60-24B-EC, RCK60-27B-EC, RC60-24BR, or RC60-27BR? This 56-page Workshop Manual (OEM #9Y011-17110) covers both side-discharge and rear-discharge rotary mower configurations in full factory detail. Inside: 19 pages of step-by-step checking, disassembly, and assembly procedures split by mower variant, plus 10 pages of exploded-view diagrams showing every deck component in sequence. You get the complete maintenance schedule with 50-hour, 150-hour, and 2-year service intervals, power transmission and lifting mechanism procedures for both lift-cylinder and 3-point hitch setups, and a troubleshooting section to chase faults before you start pulling hardware. Blade screws torque to 98.1–117.7 N-m (72.3–86.8 ft-lbs); the RCK54 deck runs a 475 mm (18.7 in.) blade, the 60-series decks use a 523 mm (20.6 in.) blade. Grass doesn't care your machine is down. Bookmarked PDF: jump to any section by name, search any spec by keyword, fix the mower.
What's Inside This Kubota RCK54-24B-EC & variants Manual
| System | Pages | Key Topics |
|---|---|---|
| General | 11-32 | Mower Identification, Lubricants, Tightening Torques, Maintenance Check List |
| Mechanism | 33-37 | Power Transmission, Lifting Mechanism (Mower Lift Cylinder Type, 3-Points Hitch Lift Type) |
| Servicing | 38-56 | Troubleshooting, Servicing Specifications, Tightening Torques, Checking |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||

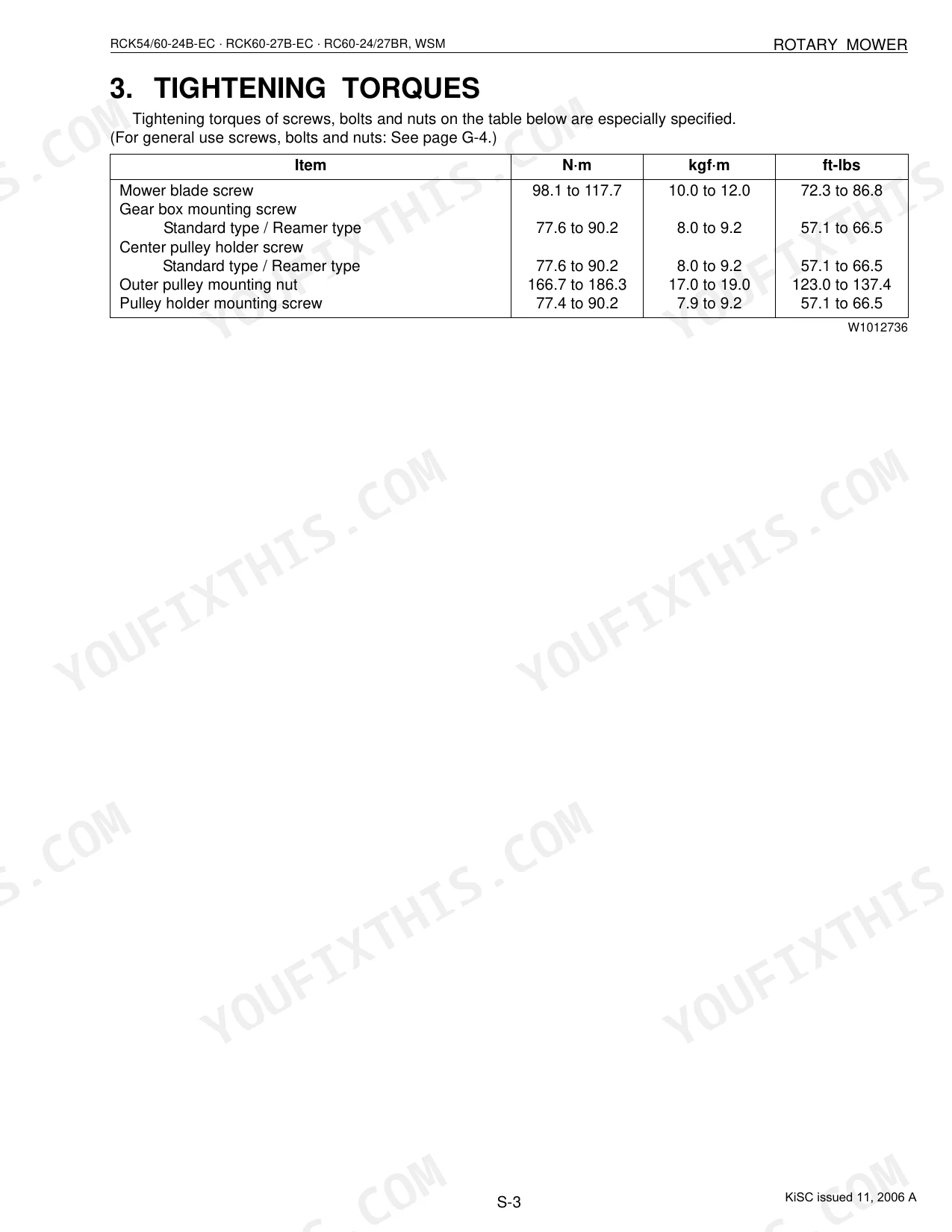

| Mower blade screw tightening torque | 98.1 to 117.7 N-m (10.0 to 12.0 kgf-m, 72.3 to 86.8 ft-lbs) | p. 41 |
| Mower blade replacement condition | Replace if worn or cracked | p. 42 |
| Mower belt replacement condition | Replace if surface split at more than 3 positions | p. 42 |
| Center pulley holder screw tightening torque (Standard type / Reamer type) | 77.6 to 90.2 N-m (8.0 to 9.2 kgf-m, 57.1 to 66.5 ft-lbs) | p. 41 |
| Outer pulley mounting nut tightening torque | 166.7 to 186.3 N-m (17.0 to 19.0 kgf-m, 123.0 to 137.4 ft-lbs) | p. 41 |
| Pulley holder mounting screw tightening torque | 77.4 to 90.2 N-m (7.9 to 9.2 kgf-m, 57.1 to 66.5 ft-lbs) | p. 41 |
| RCK54-24B-EC | ||

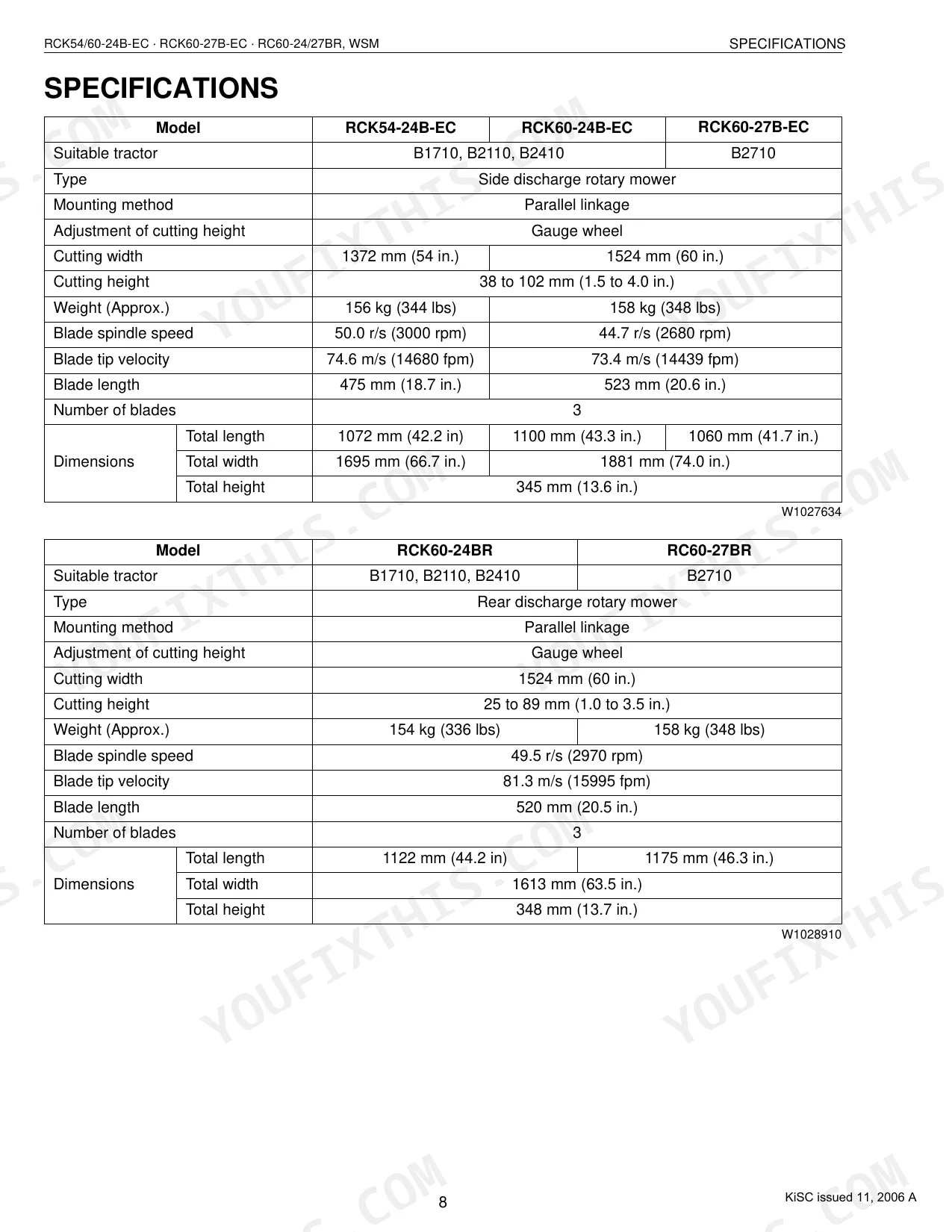

| Blade length | 475 mm (18.7 in.) | p. 10 |
| RC60-24BR | ||
| Tension spring length (L) | 160.0 mm (6.3 in.) | p. 51 |
| RCK54-24B-EC, RCK60-24B-EC | ||
| Bevel Gears in Gear Box Backlash (Factory Specification) | 0.10 to 0.20 mm (0.0039 to 0.0079 in.) | p. 40 |
| RCK60-27B-EC, RC60-24BR, RC60-27BR | ||
| Bevel Gears in Gear Box Backlash (Factory Specification) | 0.13 to 0.25 mm (0.0051 to 0.0098 in.) | p. 40 |
| RCK54-24B-EC, RCK60-24B-EC, RCK60-27B-EC | ||
| Center pulley holder oil seal replacement | Replace oil seals with new ones during reassembly | p. 47 |
| RC60-27BR | ||
| Tension spring length (L) | 245.0 mm (9.7 in.) | p. 51 |
Kubota RCK54-24B-EC & variants Common Problems This Manual Covers
Kubota RCK54-24B-EC mower deck will not engage or disengage the PTO-driven blades correctly p. 39
Inspect the tension spring condition on page 39. Replace the tension spring if the mower belt is loose. Check the outer pulley mounting nut and torque it to 166.7 to 186.3 N-m as detailed on page 41. Verify pulley alignment and clear any debris buildup.
Manual Section: General Mower Operational IssuesExcessive deck vibration, loud grinding noise from spindle bearings, or uneven cutting p. 42
Remove the mower blade screws and inspect for damage. Replace blades if worn or cracked as shown on page 42. Install new spindle bearings and tighten the mower blade screws to 98.1 to 117.7 N-m. Check page 41 for proper torque sequence to balance the spindle assembly.
Manual Section: Mower Blade Inspection and ReplacementMower deck belts slipping, smoking, or wearing out quickly during heavy mowing p. 51
Measure the tension spring length. For the RC60-24BR model, verify the spring length is exactly 160.0 mm as specified on page 51. Replace the belt if the surface is split at more than three positions. Clean all grass buildup from the idler pulleys and retest engagement.
Manual Section: ServicingHydraulic lift or deck raise and lower function is slow or inconsistent p. 32

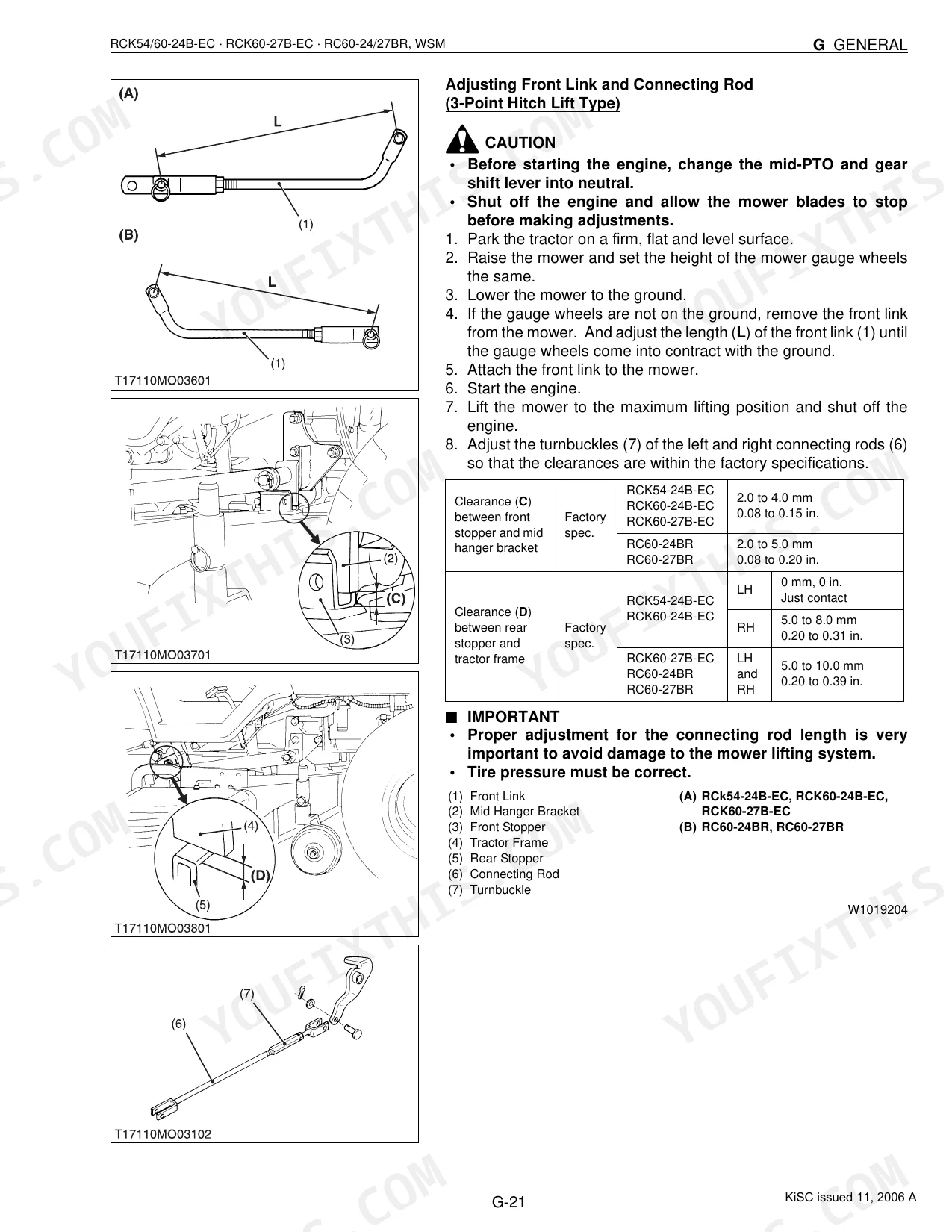

Check the clearance between the rear stopper and tractor frame. For RCK54-24B-EC models, adjust the RH clearance to 5.0 to 8.0 mm as outlined on page 32. Ensure the tire pressure is correct before making adjustments. Lubricate the lift arms and gauge wheels with grease.
Manual Section: GeneralMower blades turning slowly or gearbox overheating and making excessive whining noise p. 14
Drain the used oil and inspect the bevel gears. Refill the unit with exactly 0.36 L of fresh gear oil as detailed on page 14. Test the pinion shaft turning force to ensure it remains less than 117.7 N, referencing the factory specifications on page 40.
Manual Section: Gear Box Oil Level Check and ChangeFrequently Asked Questions
What is the torque spec for Kubota mower blade bolts?
The tightening torque for mower blade screws is specified as 98.1 to 117.7 N-m (10.0 to 12.0 kgf-m, 72.3 to 86.8 ft-lbs). This applies when retightening or reassembling the mower blades.
How do I adjust or level a Kubota mid-mount mower deck?
To adjust the cutting height, lift the mower slightly and close the 3-point lowering speed knob, then set the front gauge wheels, rear gauge wheels, anti-scalp wheel, and anti-scalp rollers according to the desired height (e.g., 50 mm or 2.0 in. recommended). For leveling, after setting the height, check if the mower is level and adjust the clevis (for Lift Cylinder Type) or turnbuckles of the connecting rods (for 3-Point Hitch Lift Type) as needed.
How do I replace the mower deck belt on a Kubota RCK54-24B-EC or RCK60-24B-EC?

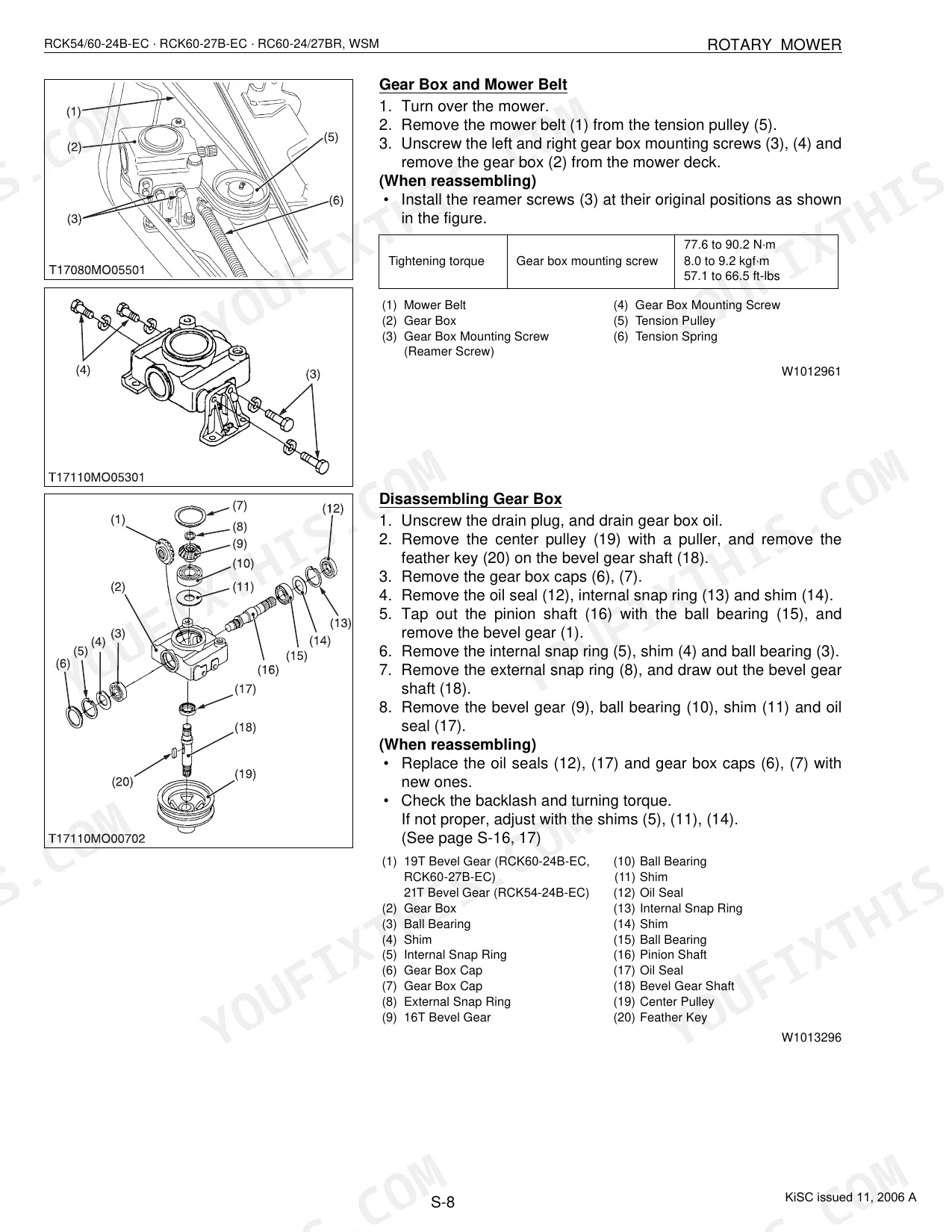

To replace the mower belt, first dismount the mower from the tractor and remove the left and right belt covers. Clean around the gear box, then remove the right hand stay (for RCK54-24B-EC, RCK60-24B-EC, RCK60-27B-EC) which mounts the gear box to the mower deck. Finally, remove the mower belt from the tension pulley and slip it over the top of the gear box; installation is the reverse procedure.
Kubota mower deck torque specs blade bolts
The tightening torque for mower blade screws is specified as 98.1 to 117.7 N-m (10.0 to 12.0 kgf-m, 72.3 to 86.8 ft-lbs). This torque should be applied when retightening or reassembling the mower blades.
What are the replacement specifications for mower blades?
Mower blades should be replaced if they are cracked or if the cutting edges are severely worn, as depicted in figure (3) on page 42. If the blades are only worn, they should be sharpened as shown in figure (2) on the same page.
How will I receive this Kubota RCK54-24B-EC & variants Workshop Manual?
Immediate download of the complete 56-page searchable Workshop Manual. Access it on any device — laptop at your desk or phone in the field.
Am I able to print pages from this Kubota RCK54-24B-EC & variants manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
Document Quality
This document is a scanned PDF, providing a clear visual representation of the original manual. An OCR layer is present, allowing you to search the full text, though copying may introduce minor character errors. All text is crisp and easy to read, ensuring good legibility. The diagrams and illustrations are raster images, but they are consistently clear with all labels perfectly readable. The pages are clean, free from scan artifacts, stains, or skewed content, and there are no notable blank or filler pages.
