This Kubota Workshop Manual is the factory service reference for the T1460 and T1560 riding mowers, delivered as a 143 page PDF. It is built around Kubota's GH410V and GH420V engines and follows the maker's own mechanism and servicing layout.Coverage spans the whole machine: the engine with its intake, cooling, lubricating and ignition systems, the hydrostatic transaxle, brake, front axle, steering, the fender and lift system, the PTO drive, the electrical system with wiring diagrams, and the mower deck itself. Each section pairs construction detail with troubleshooting, servicing specifications and tightening torques.From a hydrostatic transaxle that has gone weak to a mower deck that cuts unevenly, the procedures and specs let an owner or independent mechanic diagnose and repair these tractors properly instead of throwing parts at the problem.
What's Inside This Kubota T1460, T1560 Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety Instructions | 2-6 | Safety Servicing And Repairing, Safety Operation, Operation, Safety Decals |
| Specifications | 7-8 | Dimensions |

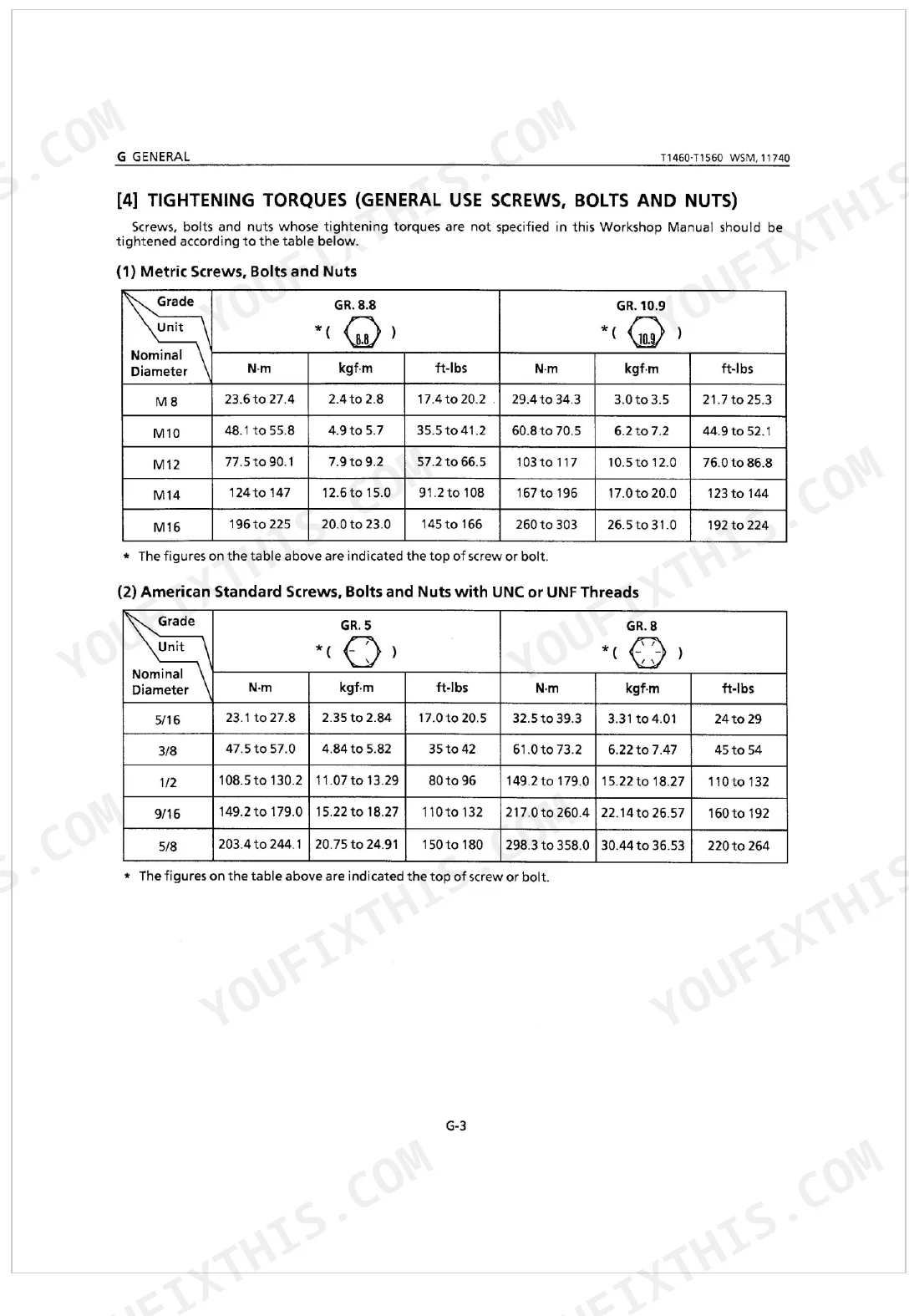

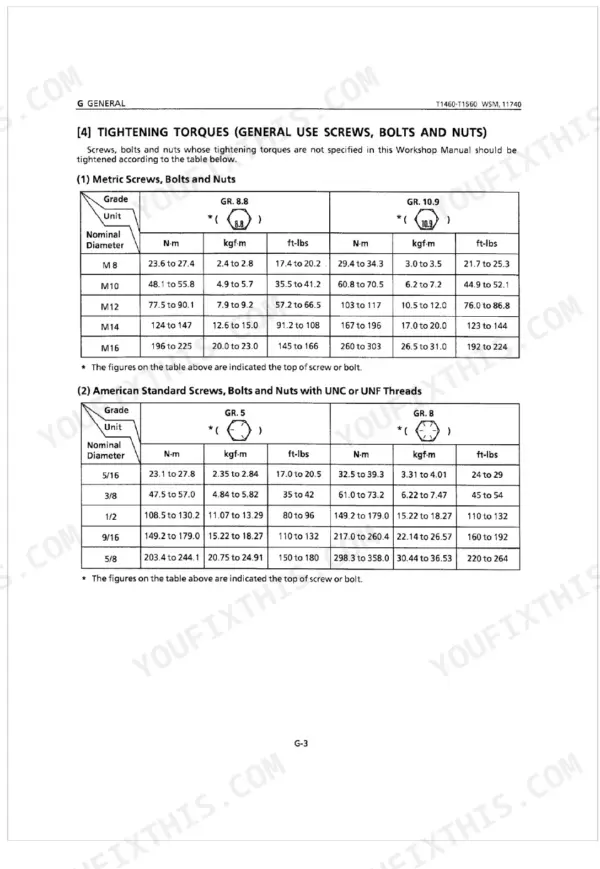

| General | 9-23 | Unit Identification, Lubricants and Fuel, Maintenance Check List |

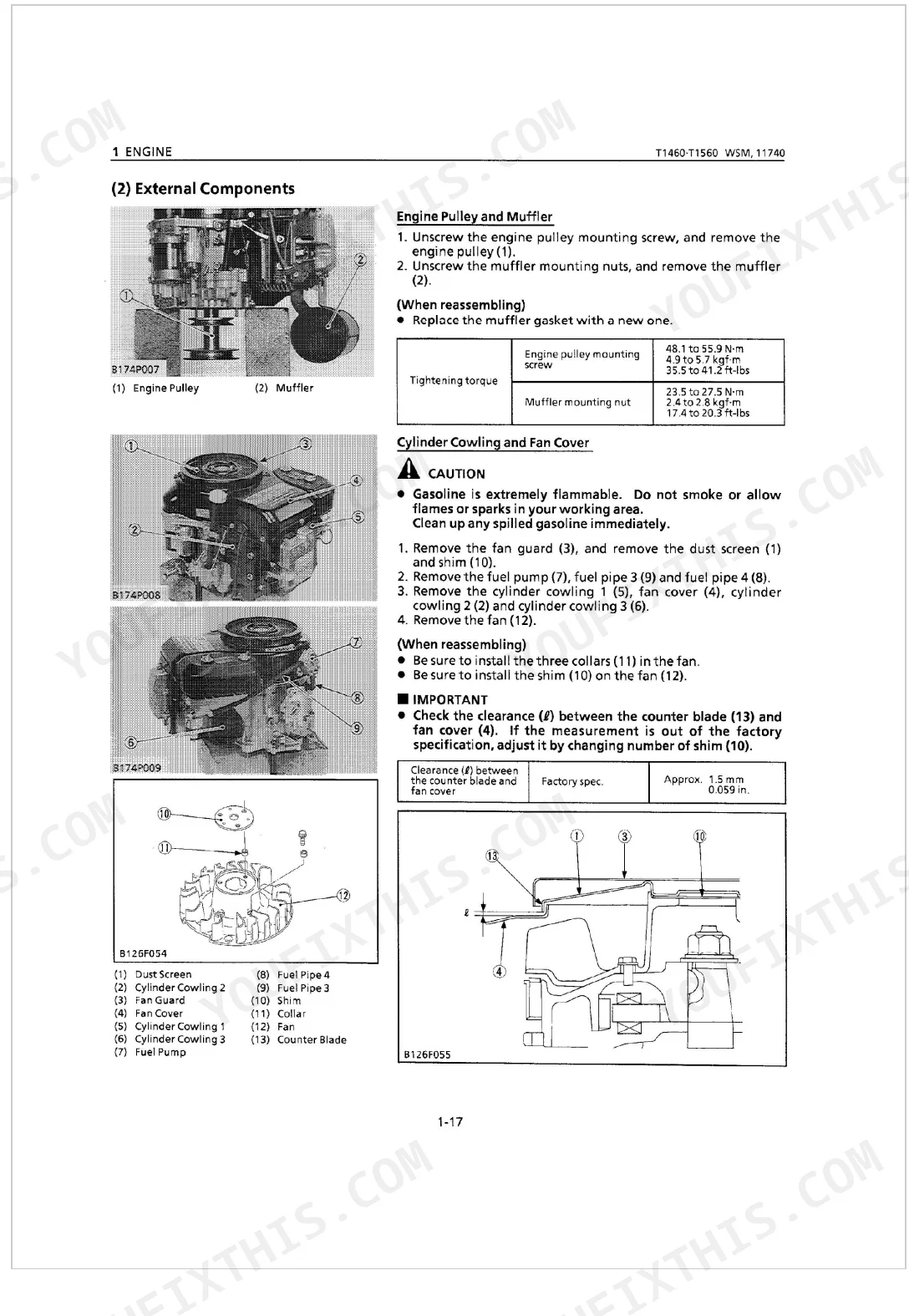

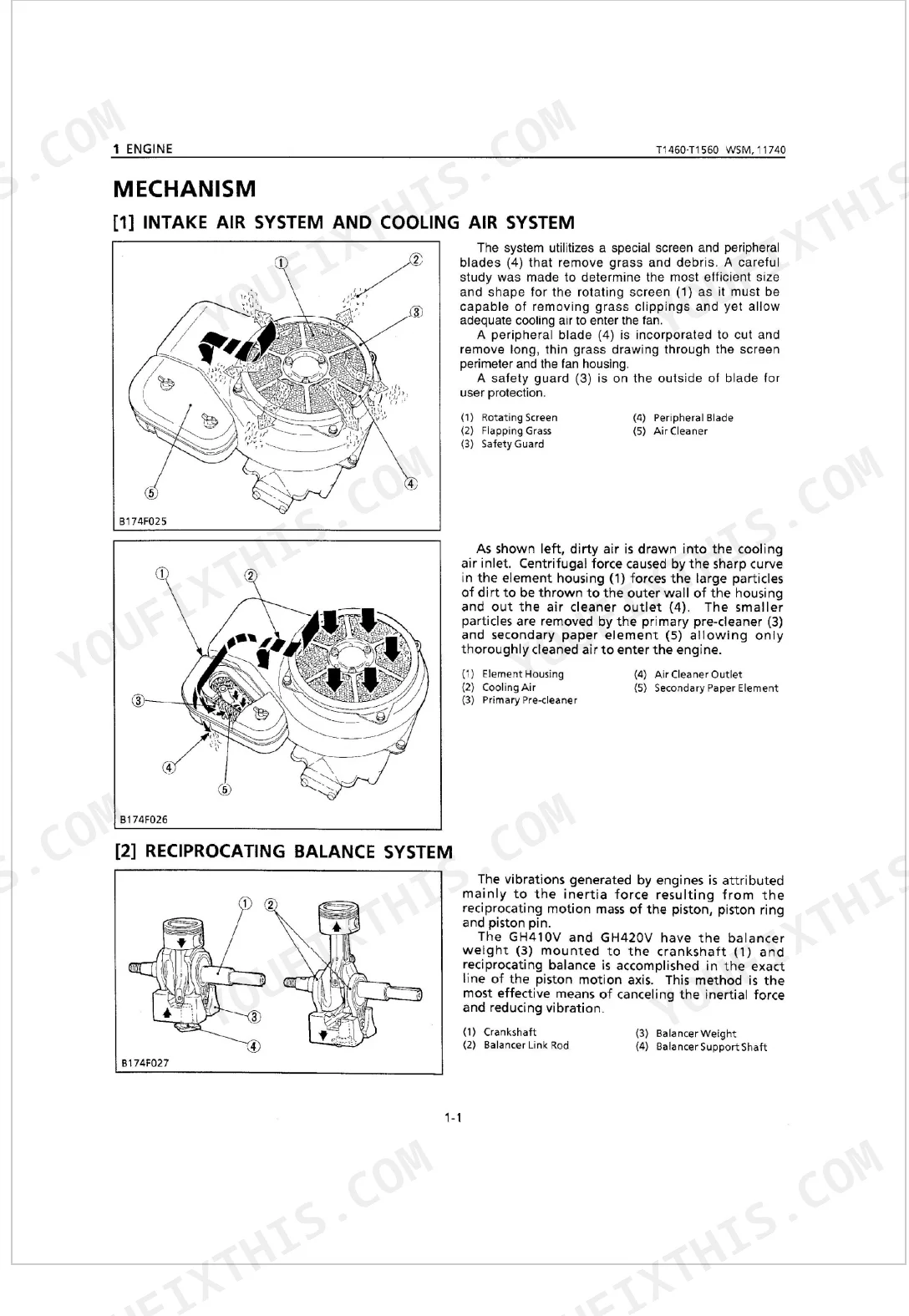

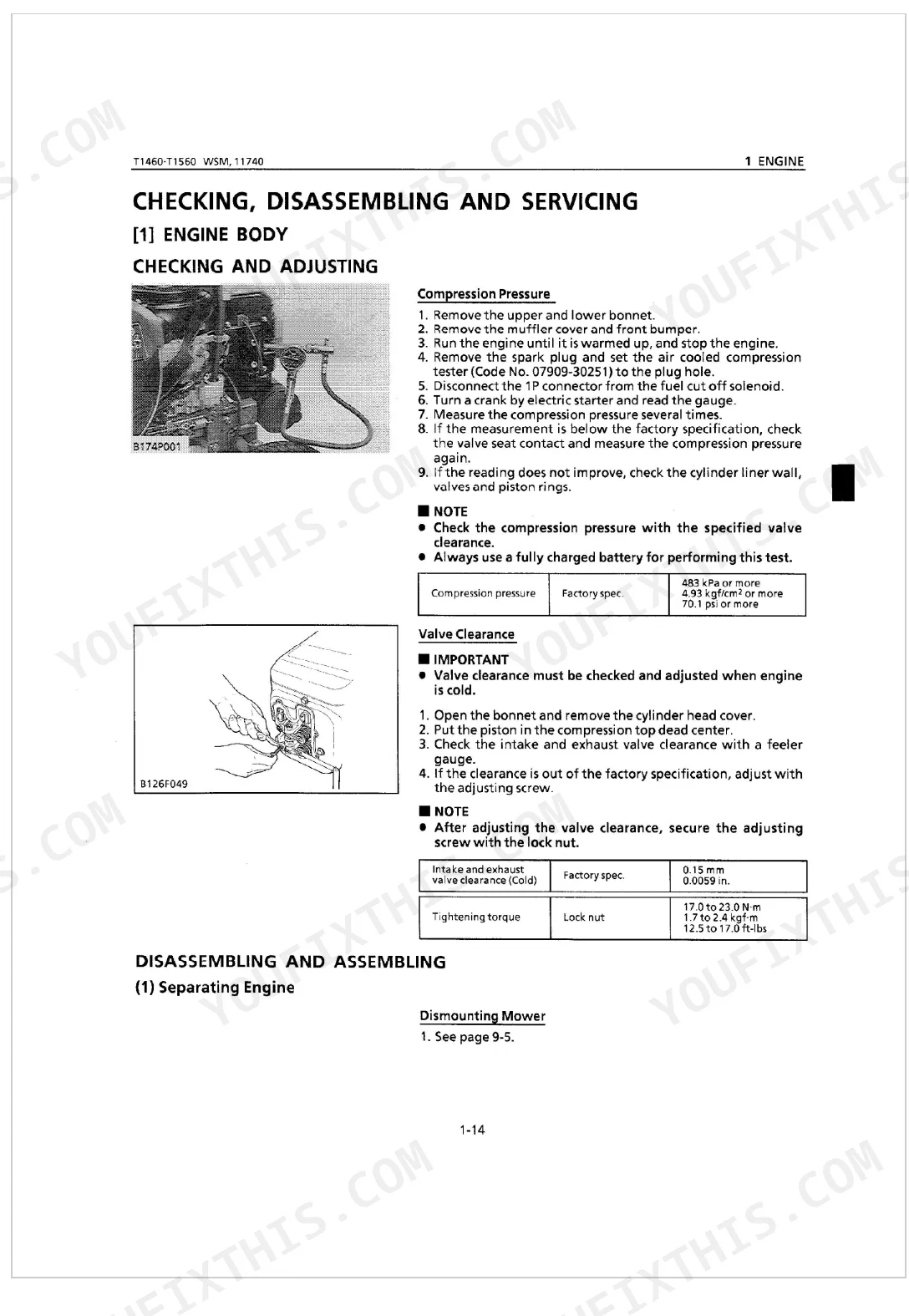

| Engine | 24-74 | Intake Air System and Cooling Air System, Reciprocating Balance System, Lubricating System, Ignition System, Auto Throttle Advance System, Checking |
| Hydrostatic Transaxle | 75-91 | Separating Hydrostatic Transaxle, Disassembling Hydrostatic Transaxle, Assembling Hydrostatic Transaxle, Checking Hydrostatic Transaxle |
| Brake | 92-95 | Brake Pedal, Parking Brake System, Brake Pedal Assembly, Brake Assembly |
| Front Axle | 96-99 | Bonnet, Muffler Cover, Front Bumper, Muffler, Front Wheel, Tie-Rod |
| Steering | 100-104 | Steering Wheel, Battery, PTO Clutch Lever, Parking Lock Pedal, Throttle Cable, Wiring, Fender, Panel |
| Fender and Lift System | 105-111 | Checking, Disassembling and Servicing (Separating Fender, Lift Linkage, Lift Lever) |
| PTO System | 112-116 | PTO Belt Tension, Mower Brake, PTO Clutch Lever, Tension Bracket, Tension Pulley |

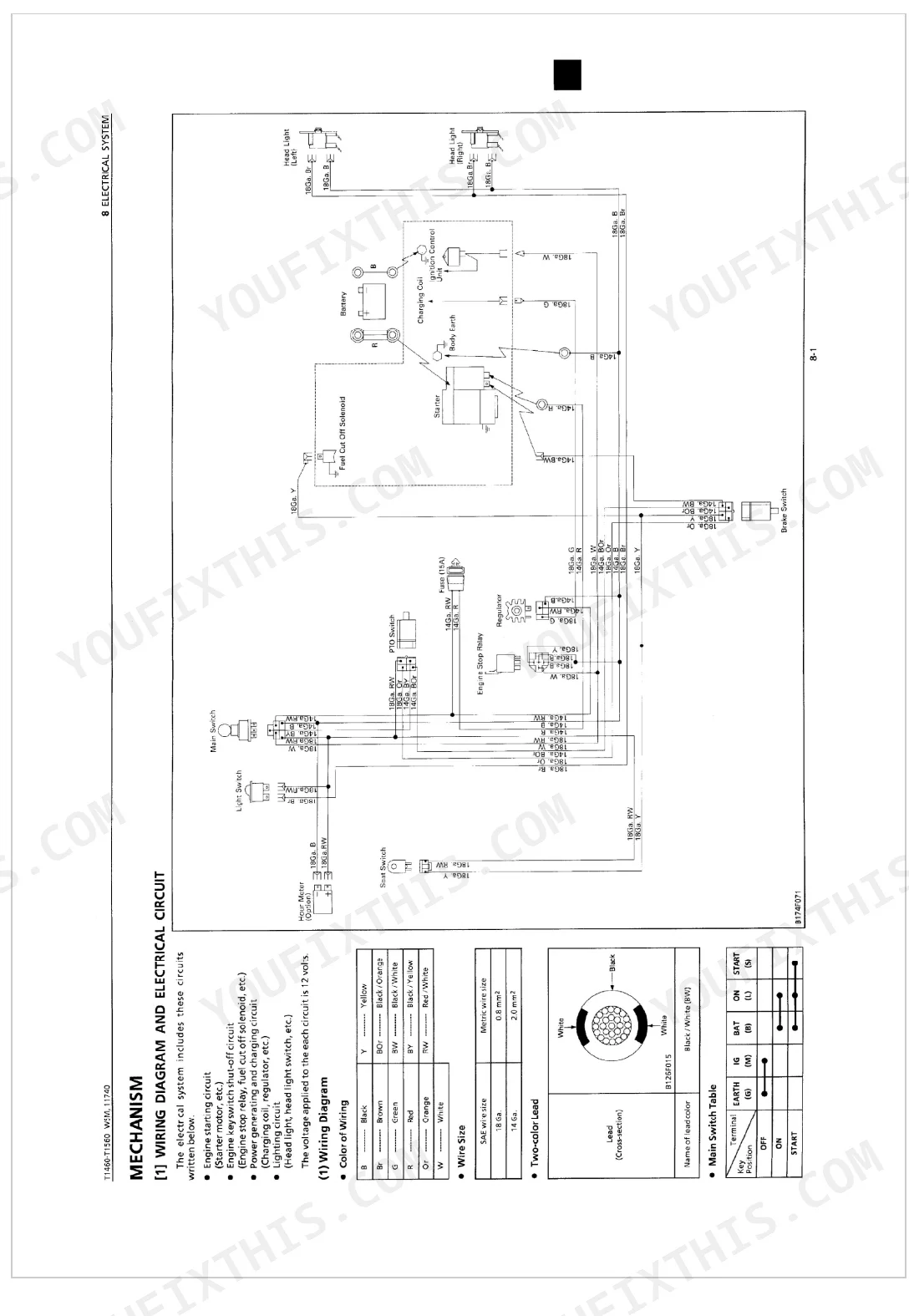

| Electrical System | 117-134 | Mechanism (Wiring Diagram and Electrical Circuit, Wiring Diagram, Electrical Circuit), Checking |
| Mower | 135-143 | Mower Belt, PTO Belt, Pulley Cover, 5.5-6.0 Pulley, Tension Arm, Blades, Blade Pulley |
Every system also includes servicing specifications, troubleshooting, and tightening torques.
Quick Reference Specifications

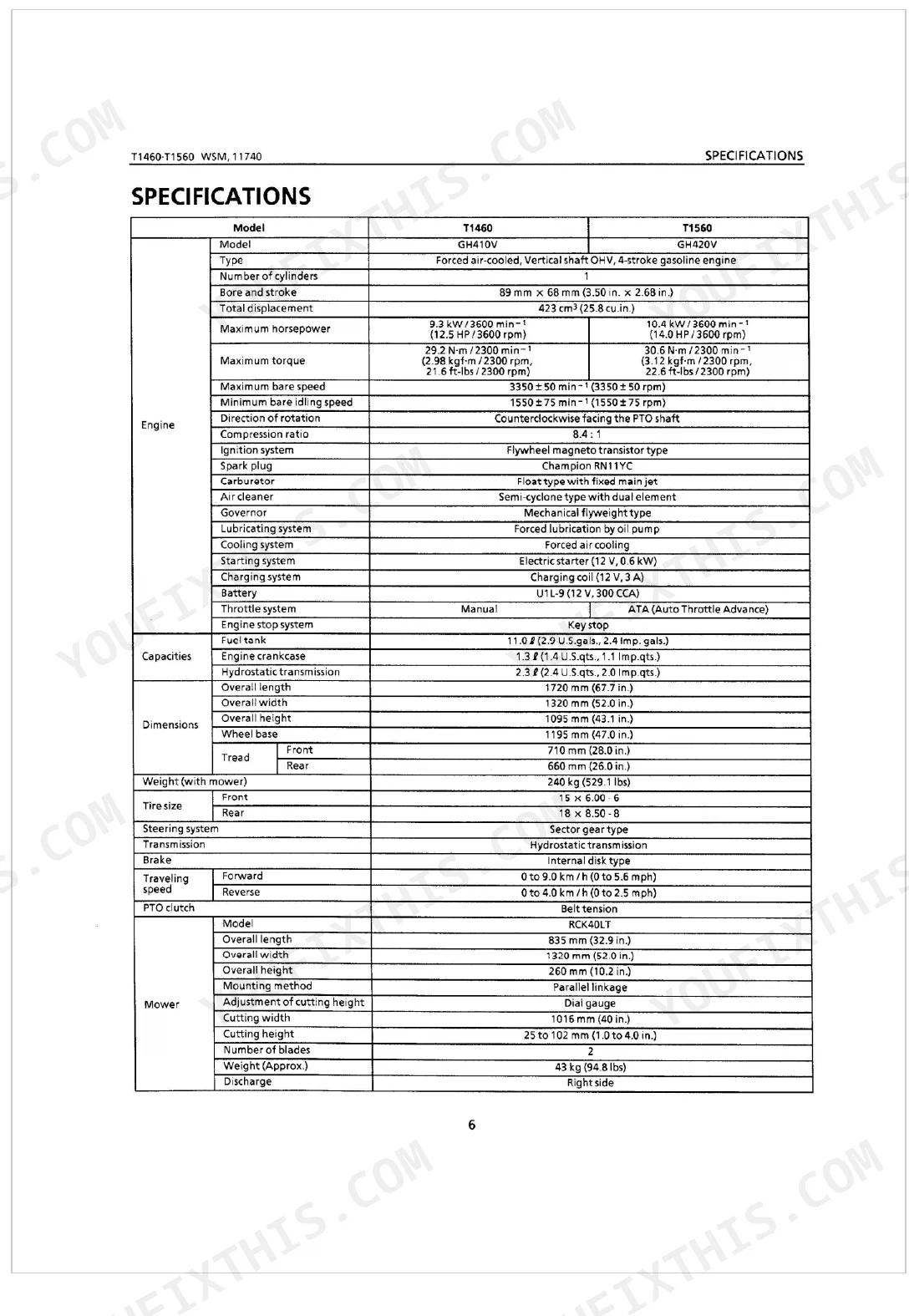

| Specification | Value | Page |
|---|---|---|
| Fuel tank capacity | 11.0 l (2.9 U.S.gals., 2.4 Imp. gals.) | p. 11 |
| Engine crankcase capacity | 1.3 l (1.4 U.S.qts., 1.1 Imp.qts.) | p. 11 |
| Engine Oil Capacity | 1.3 L | p. 11 |
| Hydrostatic Transaxle Capacity | 2.3 L | p. 11 |
| Valve Clearance (Intake and Exhaust) | 0.15 mm | p. 34 |
| Spark Plug Gap | 0.7 to 0.8 mm | p. 37 |
| Engine Oil Pressure (Factory Spec) | 294 kPa or more | p. 36 |
| Engine Oil Pressure (Allowable Limit) | 235 kPa | p. 36 |
| Cylinder Head Surface Flatness (Allowable Limit) | 0.05 mm | p. 34 |
| Rotor Mounting Nut Torque | 127.0 to 147.0 N-m | p. 37 |
| Connecting Rod Screw Torque | 19.0 to 20.0 N-m | p. 37 |
| PTO Tension Spring Length (Factory Spec) | 69 to 72 mm | p. 113 |
Kubota T1460, T1560 Common Problems This Manual Covers
Weak or slow hydrostatic transaxle
A transaxle that crawls, loses drive on a slope or hesitates from a stop usually has worn internals or aged fluid. The Hydrostatic Transaxle section covers separating, disassembling and checking the unit with the servicing specs to judge wear.
Manual Section: Hydrostatic Transaxle p. 75Mower will not engage
When the blades will not spin, the fault is usually the PTO clutch, tension spring or a stretched belt rather than the deck. The PTO System section covers the clutch lever, belt tension and tension pulley with the spring length spec to set it right.
Manual Section: PTO System p. 112Hard starting or weak spark

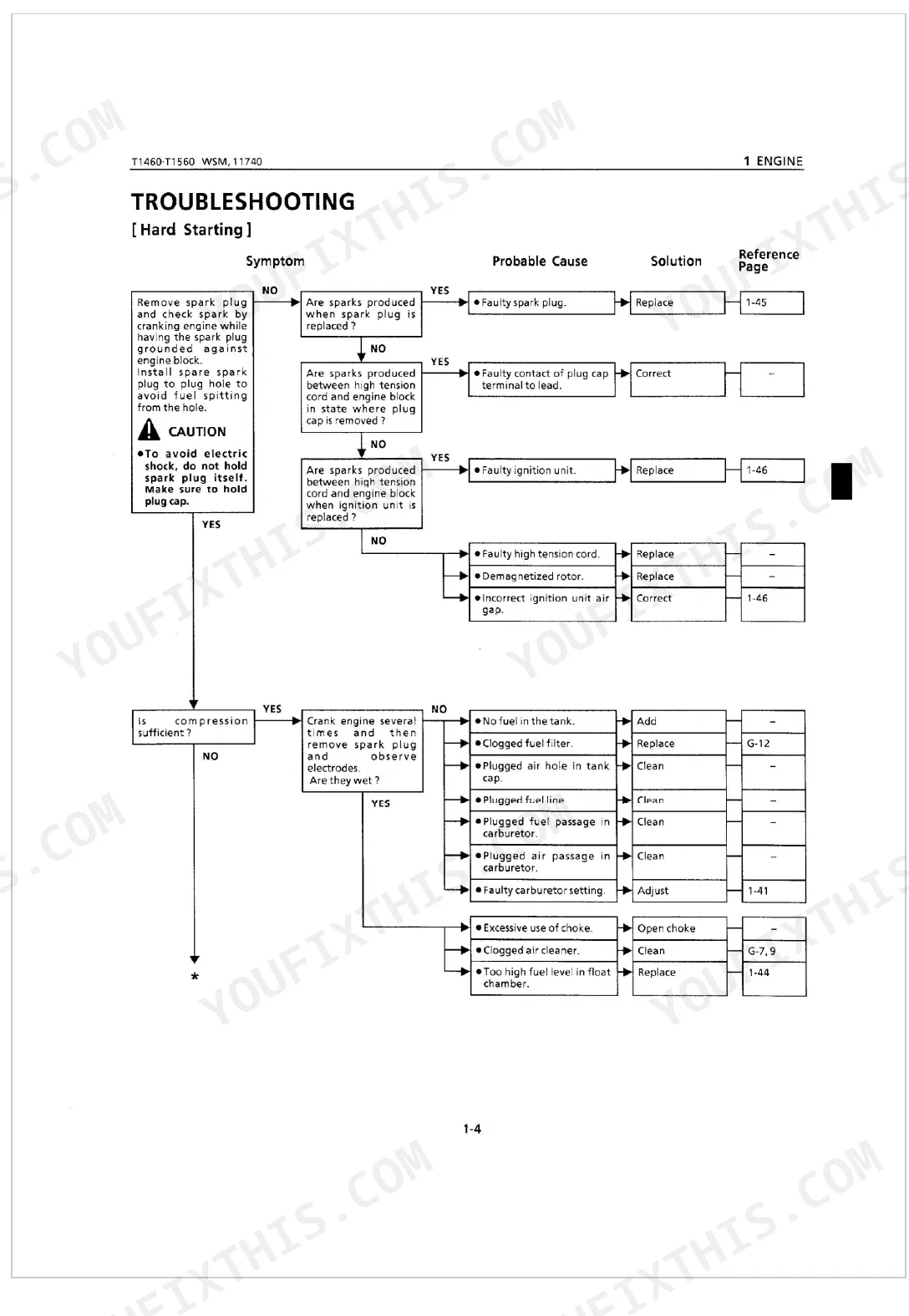

Difficult starting, misfire or fouled plugs on the GH410V and GH420V engines trace to the ignition and fuel systems. The Engine section gives the spark plug gap, valve clearance and the checking steps to bring the engine back to spec.
Manual Section: Engine p. 24Uneven or ragged cut
Scalping, streaking or an uneven finish comes from worn blades, a loose mower belt or a misaligned deck. The Mower section covers the blades, blade pulley, mower and PTO belts and the tension arm so the deck runs level and true.
Manual Section: Mower p. 135Excess steering play
A wandering machine or loose feel at the wheel usually means worn steering linkage or a tie rod that needs adjustment. The Steering section covers the steering wheel and linkage with the wheel play spec to set it correctly.
Manual Section: Steering p. 100Poor braking or parking brake creep
A brake that grabs late or a parking brake that will not hold on a slope points to the brake assembly and pedal adjustment. The Brake section covers the pedal, parking brake system and brake assembly with the servicing detail to restore it.
Manual Section: Brake p. 92Frequently Asked Questions
Which mowers does this manual cover?
It covers the Kubota T1460 and T1560 riding mowers in one document, with shared procedures and the model specific values noted where the two differ.
Which engines are covered?
The manual services Kubota's GH410V and GH420V engines. The Engine section covers the intake and cooling air systems, lubricating and ignition systems, plus the spark plug gap and valve clearance specs. p. 24
Are wiring diagrams included?
Yes. The Electrical System section provides the wiring diagram and electrical circuit along with checking procedures, so you can trace a starting or charging fault to the right component.
How is the manual delivered?
It is an instant digital download. The PDF is available immediately after checkout, with no shipping wait and nothing physical to store.
Is this Kubota T1460 manual a PDF I download?
This is a 143-page searchable PDF ready for immediate download. It works on any device, so you can pull it up on your phone while you're under the hood. No shipping, no waiting.
Can I print just the pages I need from this Kubota T1460 manual?
Yes, print as many copies as you want; there are no restrictions. Plenty of mechanics print just the section they need and carry it to the shop floor.
Are electrical wiring diagrams included in this Kubota T1460 Workshop Manual?
Yes. Full electrical schematics are included, with wire colors, connector locations, and circuit descriptions.
