From safety decals to predelivery checks, the New Holland Boomer 1030, 230GM operator manual PDF (OEM 87487351) walks the compact tractor and its mower deck end to end in 137 pages: operation, lubrication and maintenance, deck service, and full specifications. Wiring diagrams map the tractor's electrical circuits, and the deck section takes you from mounting through belt routing, blade service, and cutting height adjustment. Maintenance charts spell out which fluid, filter, and grease point comes due at each hour mark. Run PTO equipment at 540 RPM, plus or minus 10, and swap the hydraulic filter at the first 50 hours, then every 300 after. Guess at the gearbox bracket bolt torque instead of using the printed 77 to 90 N·m and you'll find out mid-mow when it lets go. Print the pages you need. Let them catch grease on the bench; the bookmarked, keyword searchable PDF stays clean on your drive.
What's Inside This New Holland Boomer 1030, Boomer 230GM Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety | 7-21 | Personal Safety, Safety Decals |
| General Information | 22-25 | Minimum Hardware Tightening Torques |

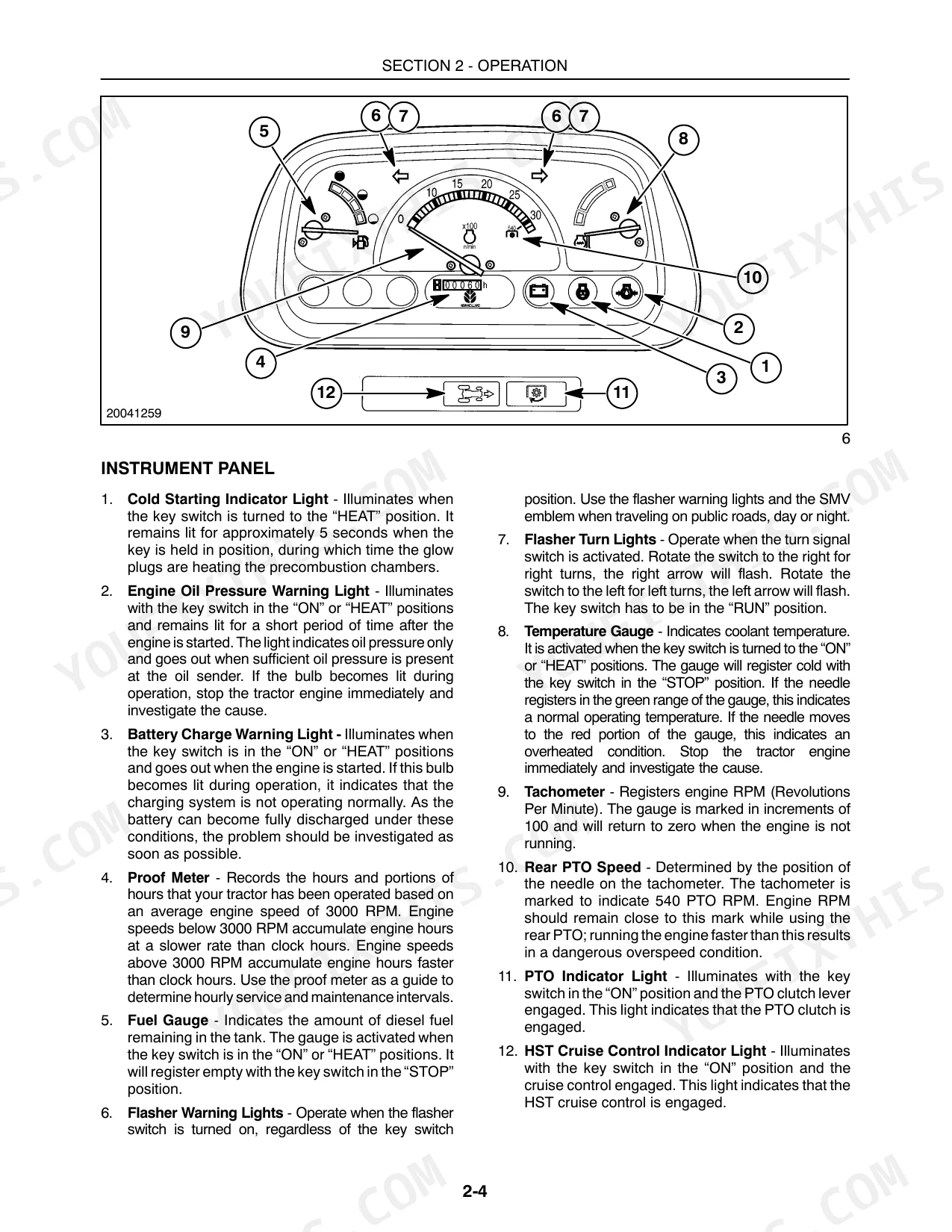

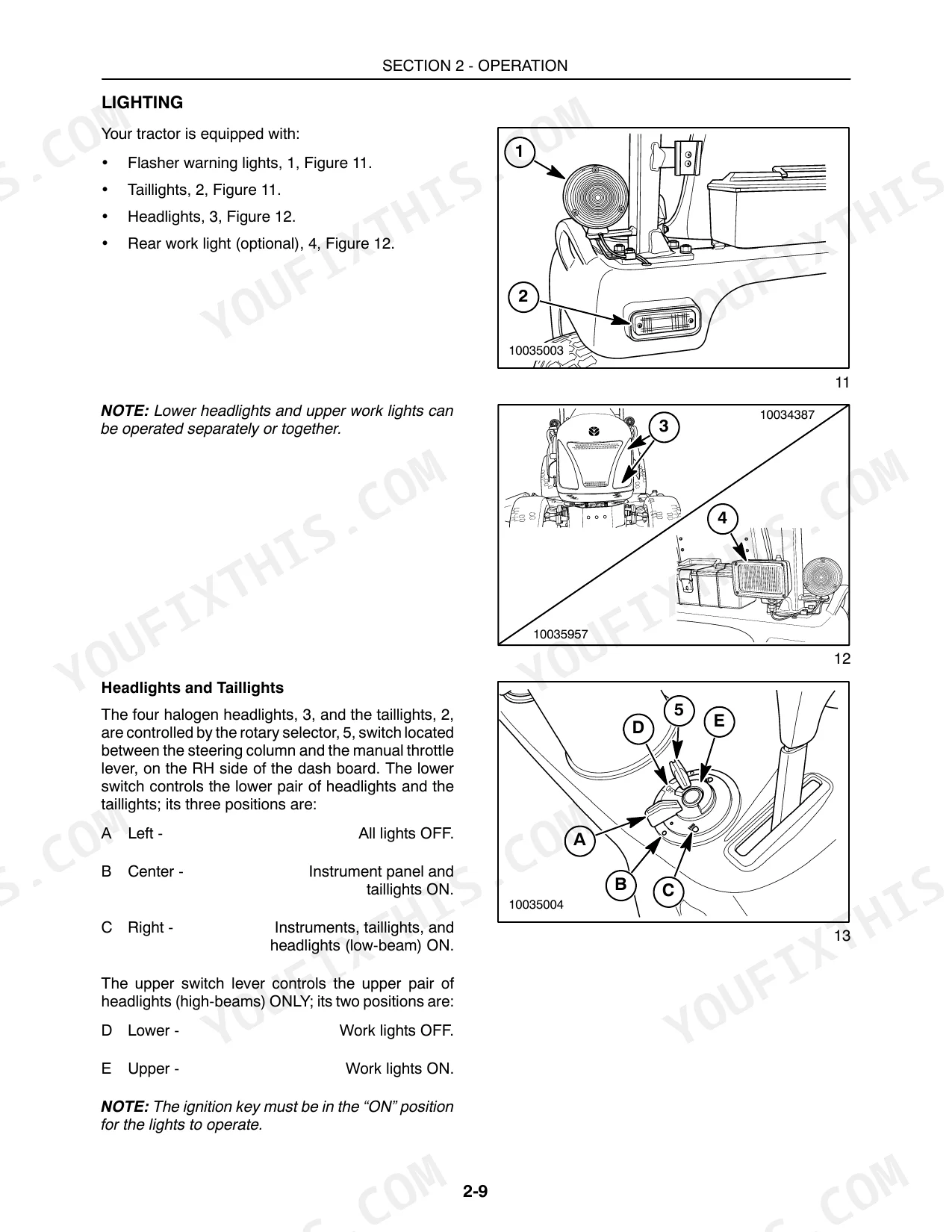

| Operation | 26-53 | Controls and Instruments, Starting the Engine, Lighting |

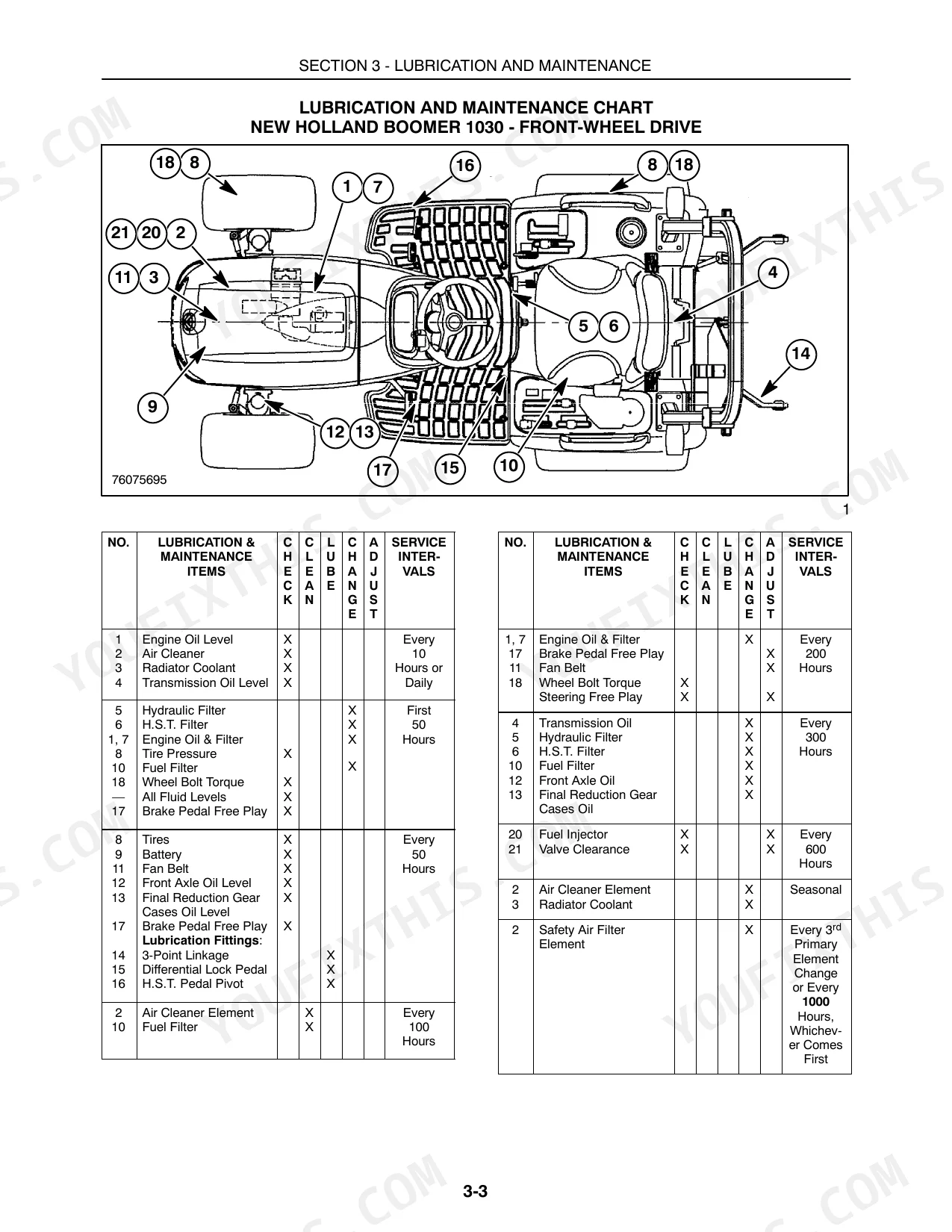

| Lubrication and Maintenance | 54-85 | Fuel and Lubricant Service Procedures, General Maintenance |
| 230GM Mower Deck | 86-123 | Introduction, Operating Instructions, Maintenance |

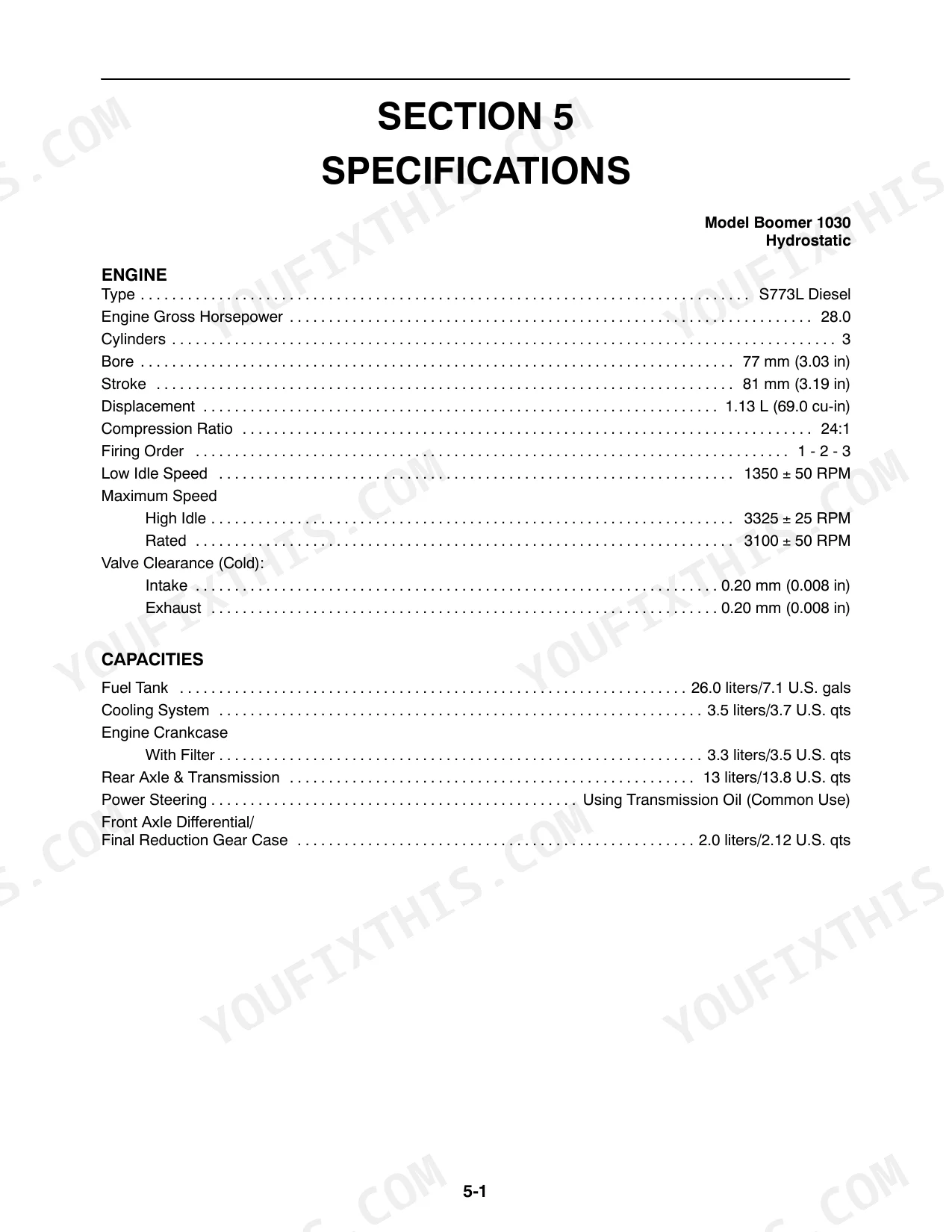

| Specifications | 124-131 | Engine, Cooling System |
| Predelivery Service | 134-137 | Tire Pressure, Air Cleaner, Radiator Coolant, Battery, Brake Adjustment, Hydraulic System |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| 230GM | ||
| Gearbox Bracket Bolt Torque | 77 - 90 N⋅m (57 - 65 ft-lbs) | p. 115 |
| Boomer 1030 | ||
| Front Wheel Disc-to-Hub Torque | 88 N⋅m (65 ft-lbs) | p. 128 |
| Hydraulic Filter Service Interval | First 50 Hours, then Every 300 Hours | p. 56 |
| Battery Type | 51BCI/450 CCA | p. 125 |
| Thermostat Start to Open | 82°C | p. 125 |
| Thermostat Fully Open | 95°C | p. 125 |
| Fuel Tank Capacity | 26.0 liters | p. 124 |
| Engine Crankcase Oil Capacity (with filter) | 3.3 liters | p. 124 |
| Rear Axle & Transmission Oil Capacity | 13 liters | p. 124 |
| All Models | ||
| PTO equipment operating speed | 540 ± 10 RPM | p. 41 |
| Battery Electrolyte Level | 6.35 mm (1/4 in) above the plates | p. 72 |
New Holland Boomer 1030, Boomer 230GM Common Problems This Manual Covers
New Holland Boomer 1030 engine overheats while mowing, will not restart until it cools down
Check the coolant level in the recovery tank before every mowing session and clean grass chaff off the radiator screen and fins. Test that the radiator cap holds its rated 0.9 bar pressure. If it still runs hot, have the thermostat checked; it should start opening at 82 C per the specifications on page 125.
Manual Section: Cooling System MaintenancePTO lever hard to engage or will not stay engaged at full mowing speed
Check that the PTO selector lever seats fully in its detent with the engine off, then lubricate the linkage pivots and work the lever through its full travel. Run PTO equipment at 540 RPM, plus or minus 10 RPM, as specified on page 41. If the lever still creeps out, have your dealer adjust the selector linkage.
Manual Section: Operation p. 41Hydrostatic transmission growls or whines under load, range lever hard to shift
Check the transmission and hydraulic oil level with the tractor parked on level ground and top up before running it again. Change the hydraulic filter at the first 50 hours and every 300 hours after that, per the maintenance schedule on page 56. The system holds 13 liters, so refill slowly and recheck the level.
Manual Section: Lubrication and Maintenance p. 56Mower deck vibrates badly at full throttle and leaves streaks of uncut grass between passes

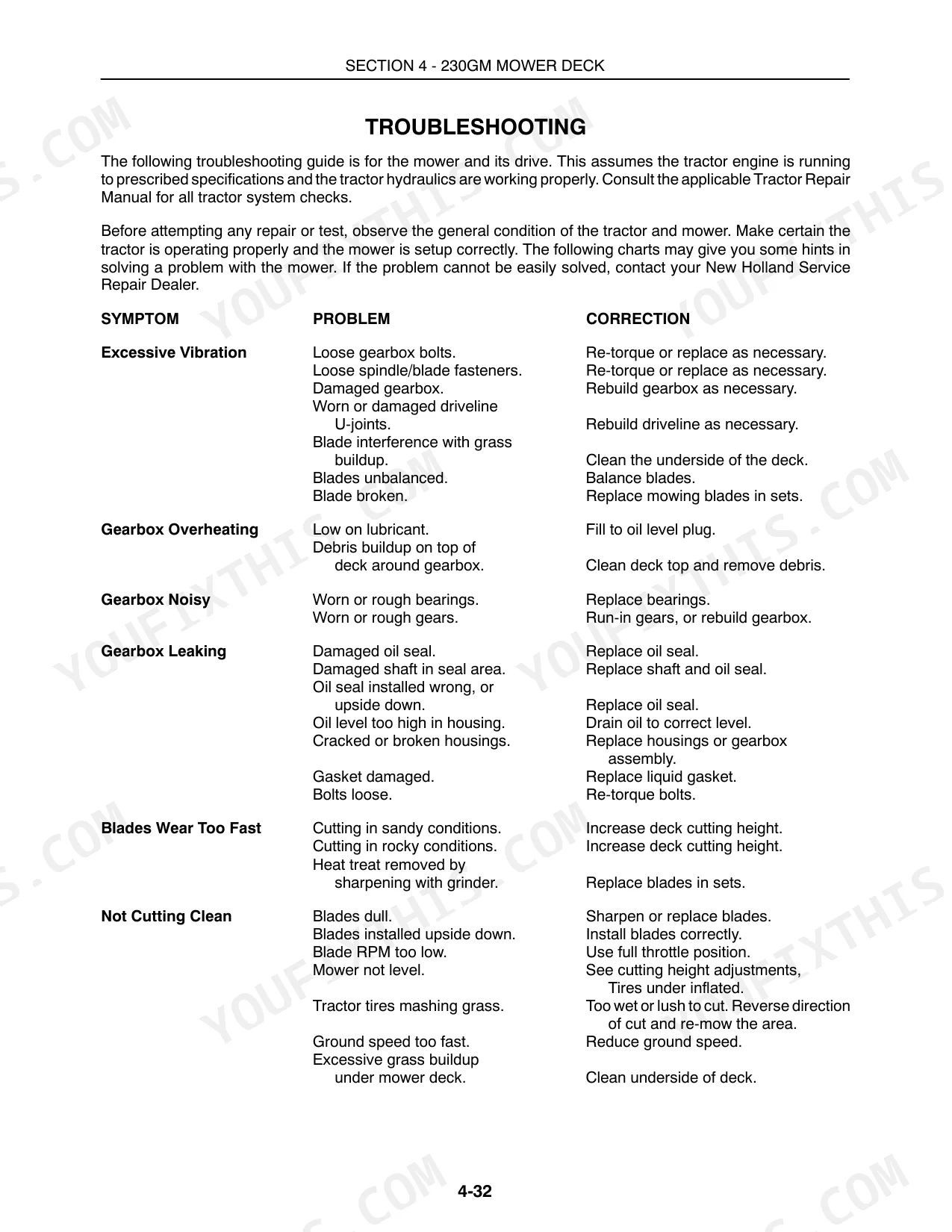

Check the troubleshooting chart on page 117 and inspect for bent blades, uneven blade wear, and grass packed under the deck shell. Sharpen or replace blades in matched pairs, then torque the blade bolts to 98 to 118 N·m per page 112. Verify the belt sits correctly on the idler pulleys before mowing again.
Manual Section: Mower Deck Troubleshooting p. 117Engine cranks slowly and will not fire on cold mornings after sitting in the barn
Check the battery electrolyte level first; it should sit 6.35 mm (1/4 in) above the plates as shown on page 72. Clean and tighten both cable clamps, then load test the battery and replace it with the specified 51BCI/450 CCA unit if it fails. Verify the fuel is fresh winter grade before cranking again.
Manual Section: Lubrication and Maintenance p. 72Nuts and bolts work loose all over the tractor after a season on rough ground
Check all visible hardware before each use, starting at the wheels. Torque the front wheel bolts to 88 N·m and the rear wheel bolts to 122 N·m, following the values on page 78. Retorque the ROPS mounting bolts to 50 N·m, and use the hardware torque chart on page 23 for everything else.
Manual Section: General Information p. 23Frequently Asked Questions
What are the torque specifications for the New Holland Boomer 1030 wheel bolts?
The front wheel bolts should be torqued to 88 N⋅m (65 ft-lb), and the rear wheel bolts should be torqued to 122 N⋅m (90 ft-lb). p. 78
What are the replacement battery specifications for the New Holland Boomer 1030 tractor?
The tractor is equipped with a BCI group 51, 12-volt battery that has a minimum cold cranking ability of 450 amps at -18°C (0°F). p. 72
What are the replacement thermostat specifications for the New Holland Boomer 1030?
The thermostat is a heat-sensitive valve located in the coolant outlet connection. It begins to open at 82°C and is fully open at 95°C. p. 125
What is the engine valve clearance for the Boomer 1030?
The cold valve clearance for both the intake and exhaust valves is 0.20 mm (0.008 in). p. 124
What is the engine crankcase oil capacity for the Boomer 1030?
The engine crankcase capacity, including the filter, is 3.3 liters (3.5 U.S. quarts). p. 124
How will I receive this New Holland Boomer 1030 Operator Manual?
You download the Operator Manual yourself: 137 pages, searchable PDF, available immediately. Keep a copy on every device you use.
Can I print a copy of this New Holland Boomer 1030 Operator Manual for the shop?
Printing is allowed without restriction. Pull the pages you need for the job and bin them when they get greasy.
