All 742 pages of this New Holland E27, TNV82A, TNV84, 3/4TNV84T, TNV88-106, 3TNV84(T), 4TNV106(T), 4TNV98T, 4TNV94L-98, 3TNV82A-TNV88, 4TNV94L/98 Shop Manual PDF (OEM #87360159NA) focus on one goal: keeping your hydraulic excavator out of the shop and digging in the dirt. Inside, you get full electrical wiring diagrams, complete hydraulic schematics, and a massive troubleshooting section dedicated to engine and fluid faults. Open up to step-by-step disassembly instructions for the upper slewing structure, travel system, and attachments. Set the fuel injection pressure between 200 and 210 kg/cm² and tighten O-ring seals to exactly 17 Nm during reassembly. Your machine is losing money sitting idle. Grab this bookmarked file, pull it up on your phone in the shop, and get the job done right.
What's Inside This New Holland E27 Manual

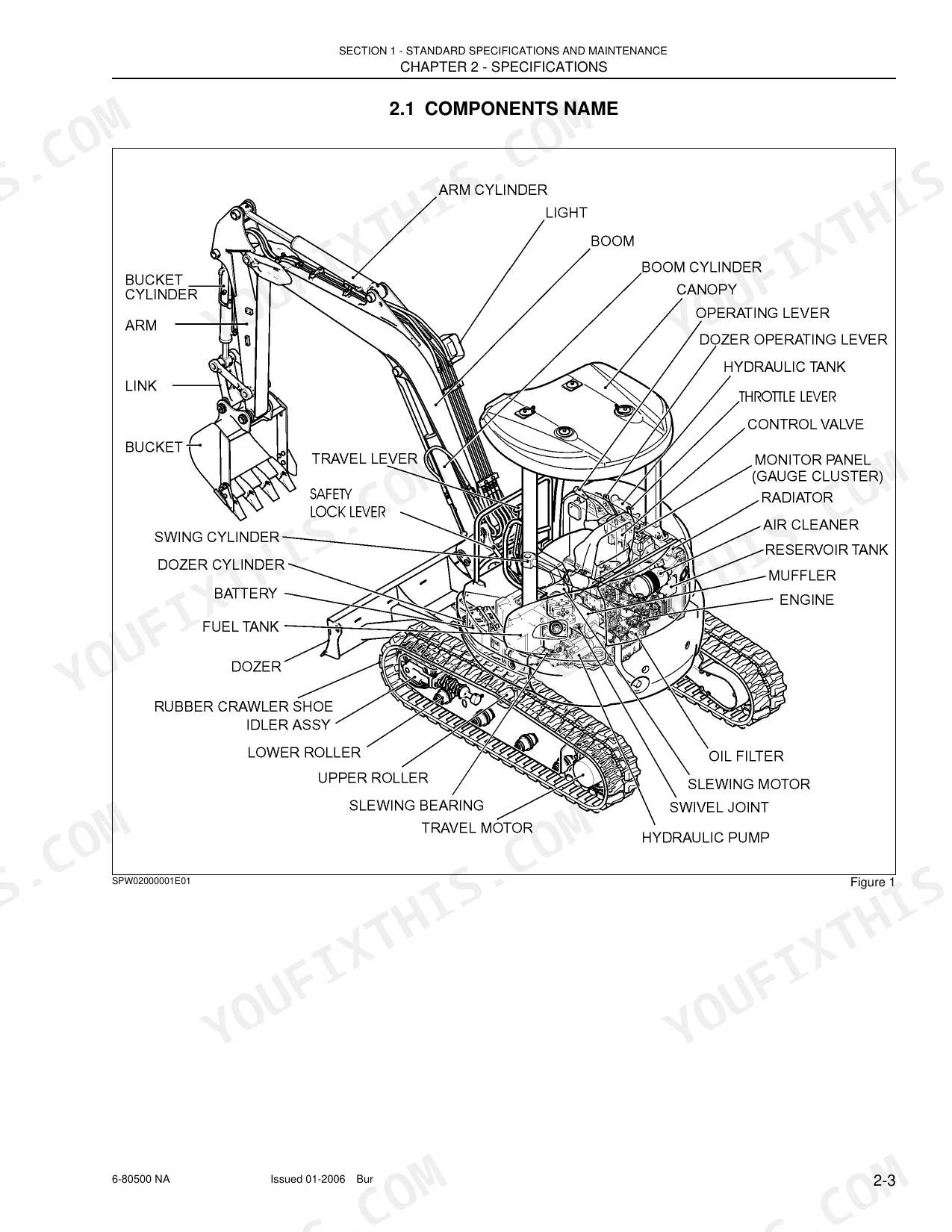

| System | Pages | Key Topics |
|---|---|---|
| Standard Specifications and Maintenance | 7-106 | General Information and Safety, Specifications, Attachment Dimensions, Tools, Standard Maintenance Time Table, Maintenance Standards and Test Procedures |
| Hydraulic, Electrical, and Component Systems | 107-272 | Hydraulic System, Electrical System, Components System |
| Disassembly and Assembly | 273-480 | General Disassembly and Assembly, Attachments, Upper Slewing Structure, Travel System |
| Troubleshooting | 481-526 | Hydraulic System, Electrical System, Engine, Attachment, Travel Operation, Slewing Operation, Pump |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|

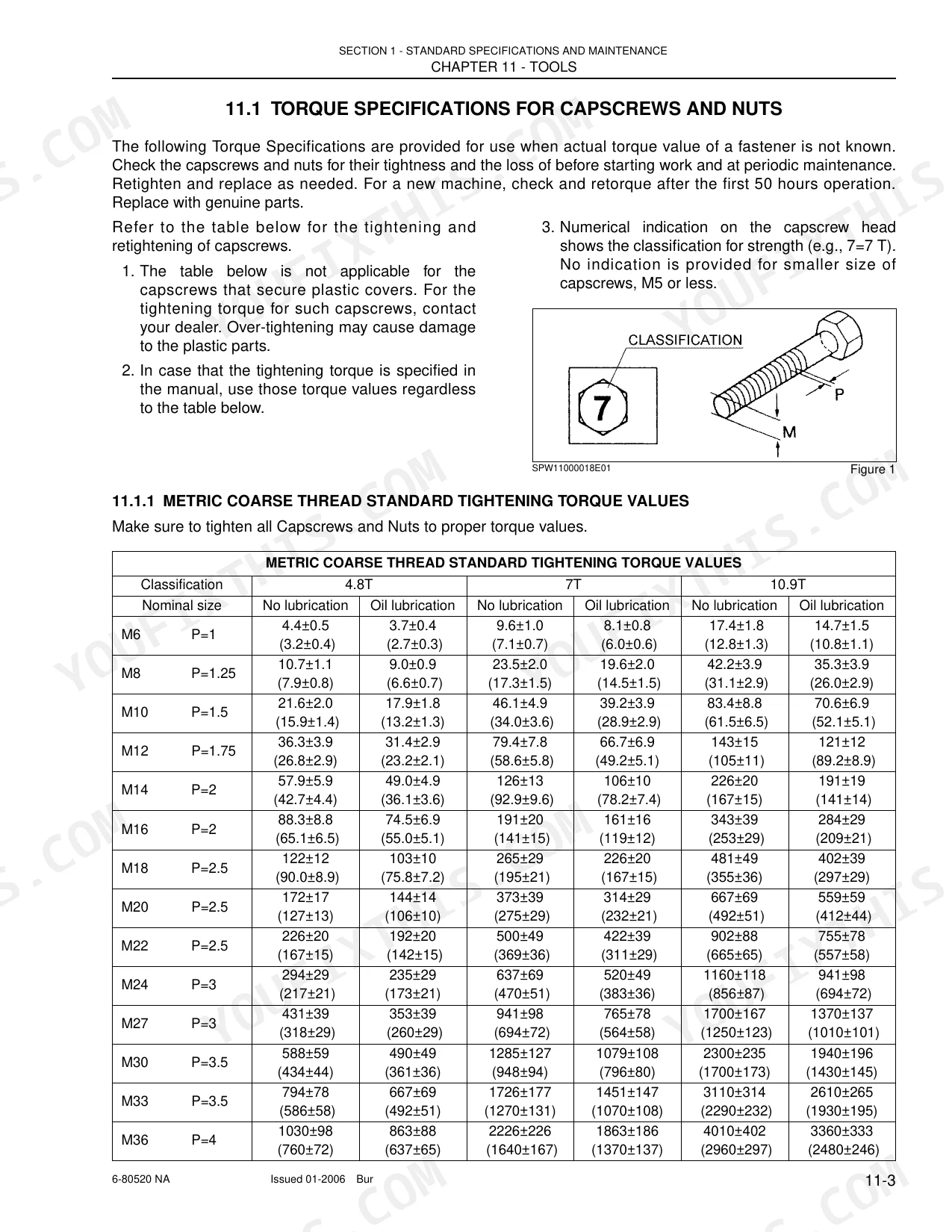

| O-ring seal tightening torque | 17±2 Nm (12±1 lb ft) | p. 64 |
| Hydraulic hose (30 degree flare type) tightening torque | 15±2.0 Nm (11±1 lb ft) | p. 64 |
| Sleeve type tube fittings tightening torque | 44±4.9 Nm (33±4 lb ft) | p. 65 |

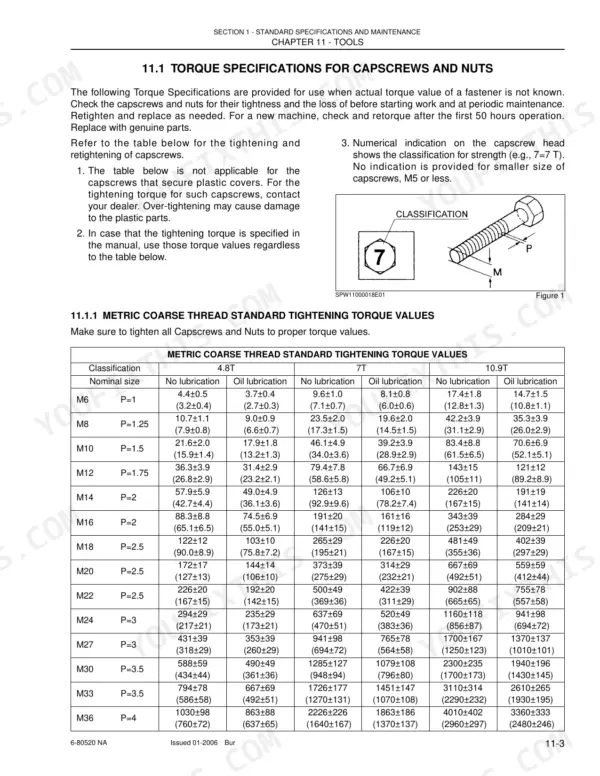

| Tightening torque for 30° flare type fitting (1/2 thread size) | 78.5 Nm (58 lb ft) | p. 635 |

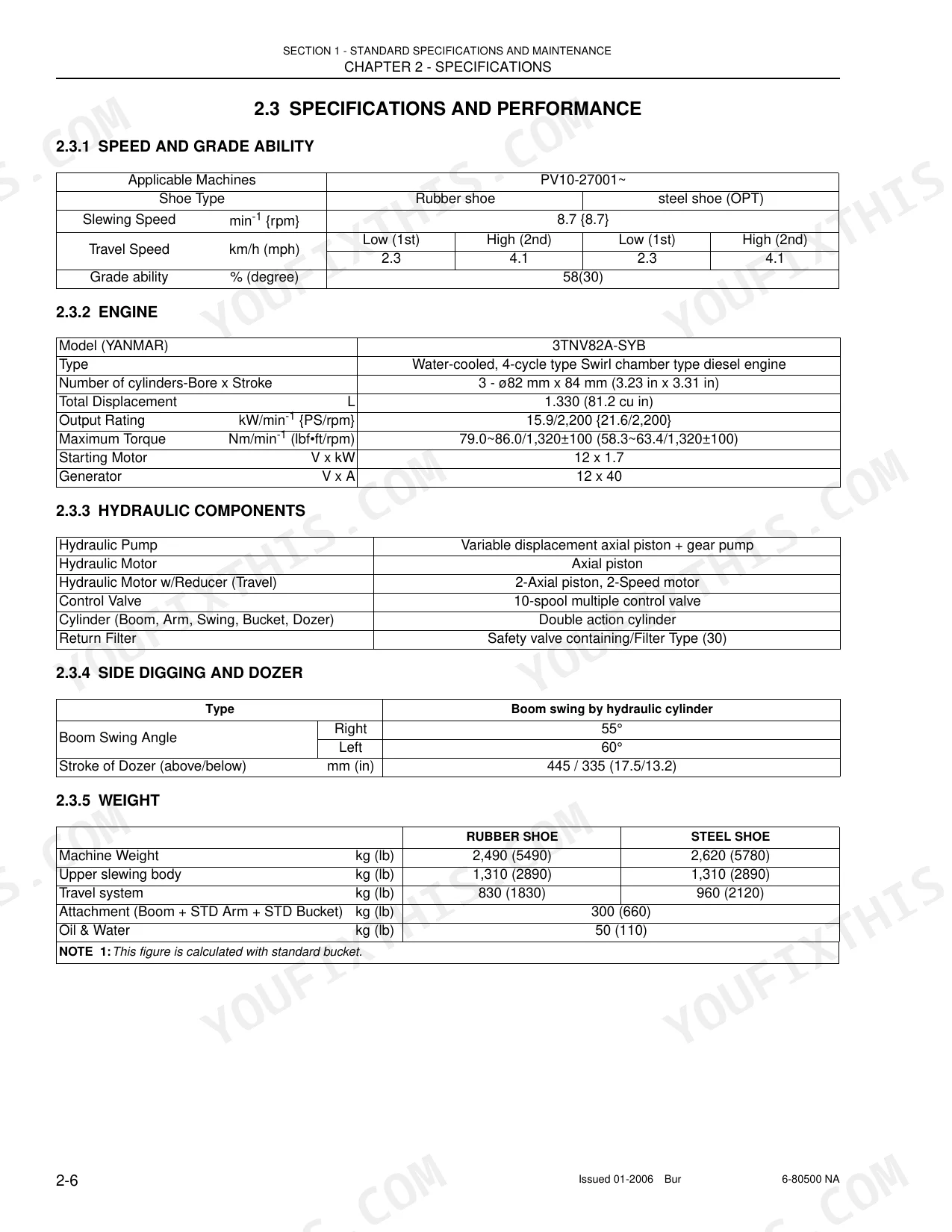

| Engine Output Rating | 15.9 kW at 2200 rpm | p. 28 |
New Holland E27 Common Problems This Manual Covers
New Holland E27 pinhole hydraulic leak invisible near hose, oil spray won't show up

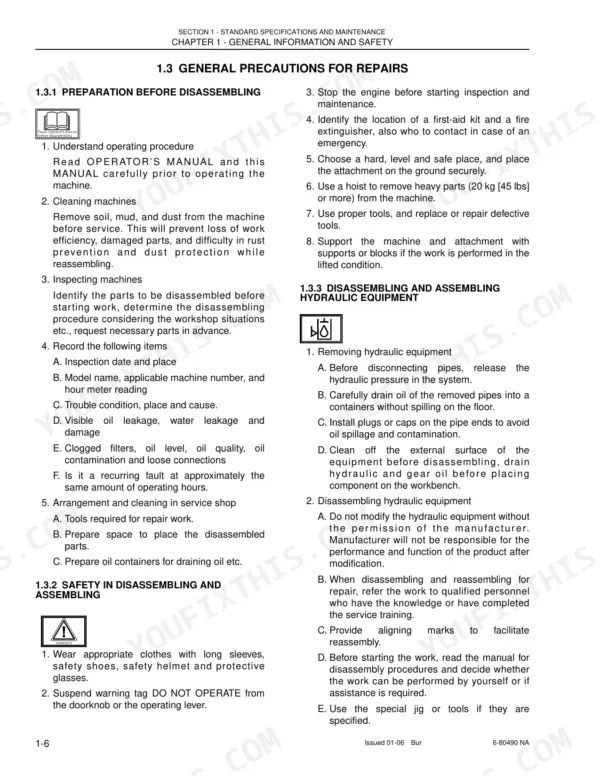

Never sweep bare hands along a pressurized line to find the leak. Take a piece of cardboard and pass it slowly over the hose runs near the pump and cylinders; a pinhole stream will mark the board instantly and safely. Once located, check the fitting torque against page 64 (17±2 Nm for O-ring seals) before swapping the hose.

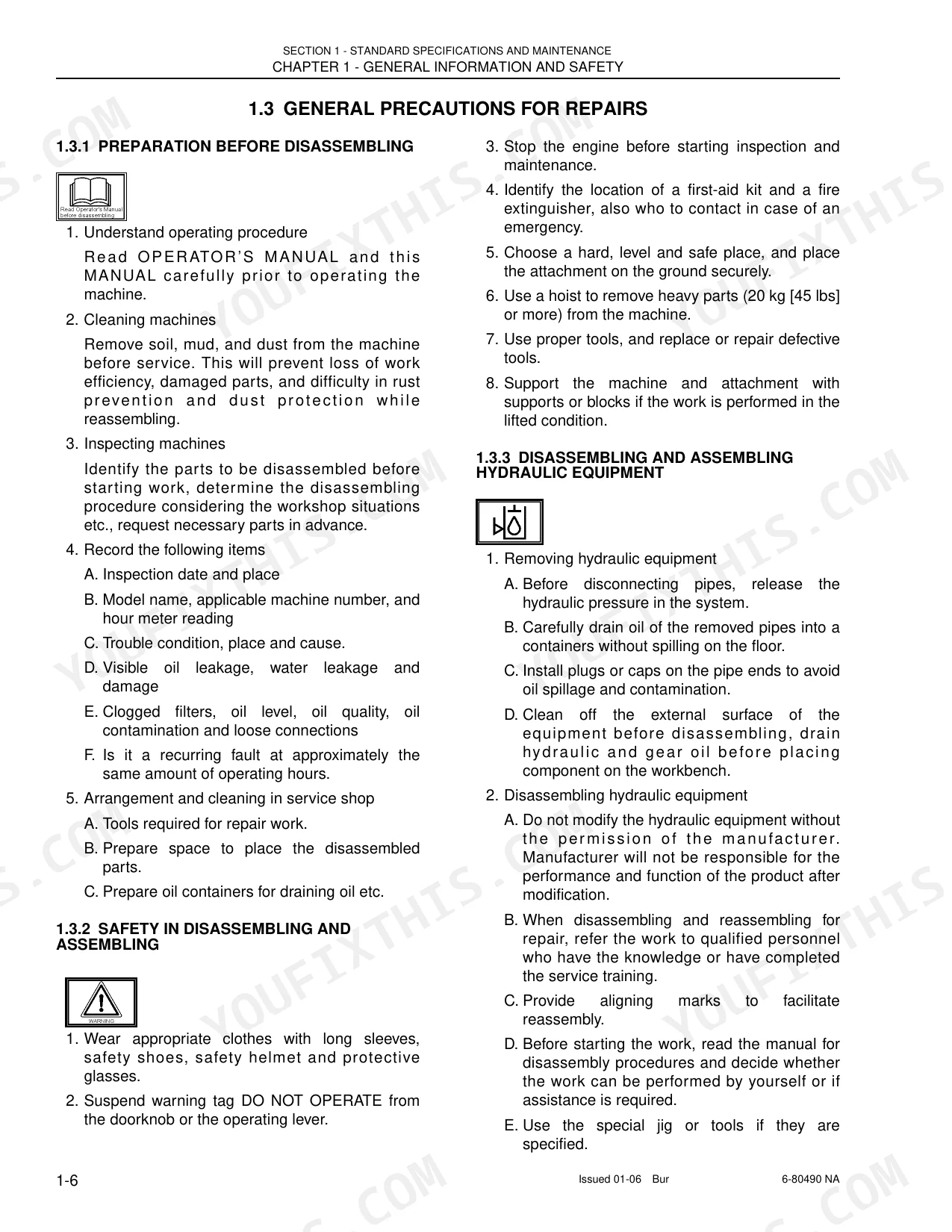

Manual Section: General Information and Safety p. 15Hydraulic hose fitting weeps oil at the flare connection after reassembly
Verify the fitting type before torquing; a 30 degree flare fitting at 1/2 thread size takes 78.5 Nm (58 lb ft) per page 635, while sleeve type tube fittings run 44±4.9 Nm (33±4 lb ft) as listed on page 65. Clean the mating surfaces first, hand-tighten to seat the flare, then torque with a calibrated wrench; overtightening deforms the flare and reopens the leak path.
Manual Section: Standard Specifications and Maintenance p. 64Bucket pin seized and won't drive out during attachment removal
Remove the retaining ring and capscrew securing pin (E) along with its shims as described on page 287, then support the bucket on blocks before driving. Never work under a raised bucket with the pin only partially removed. Check pin (H) clearance against page 289 spec of 0.1 to 0.5 mm; if the pin is galled beyond that range, replace it rather than forcing it out.
Manual Section: Disassembly and Assembly p. 287Attachment or slew function is slow, weak, or drifts off command

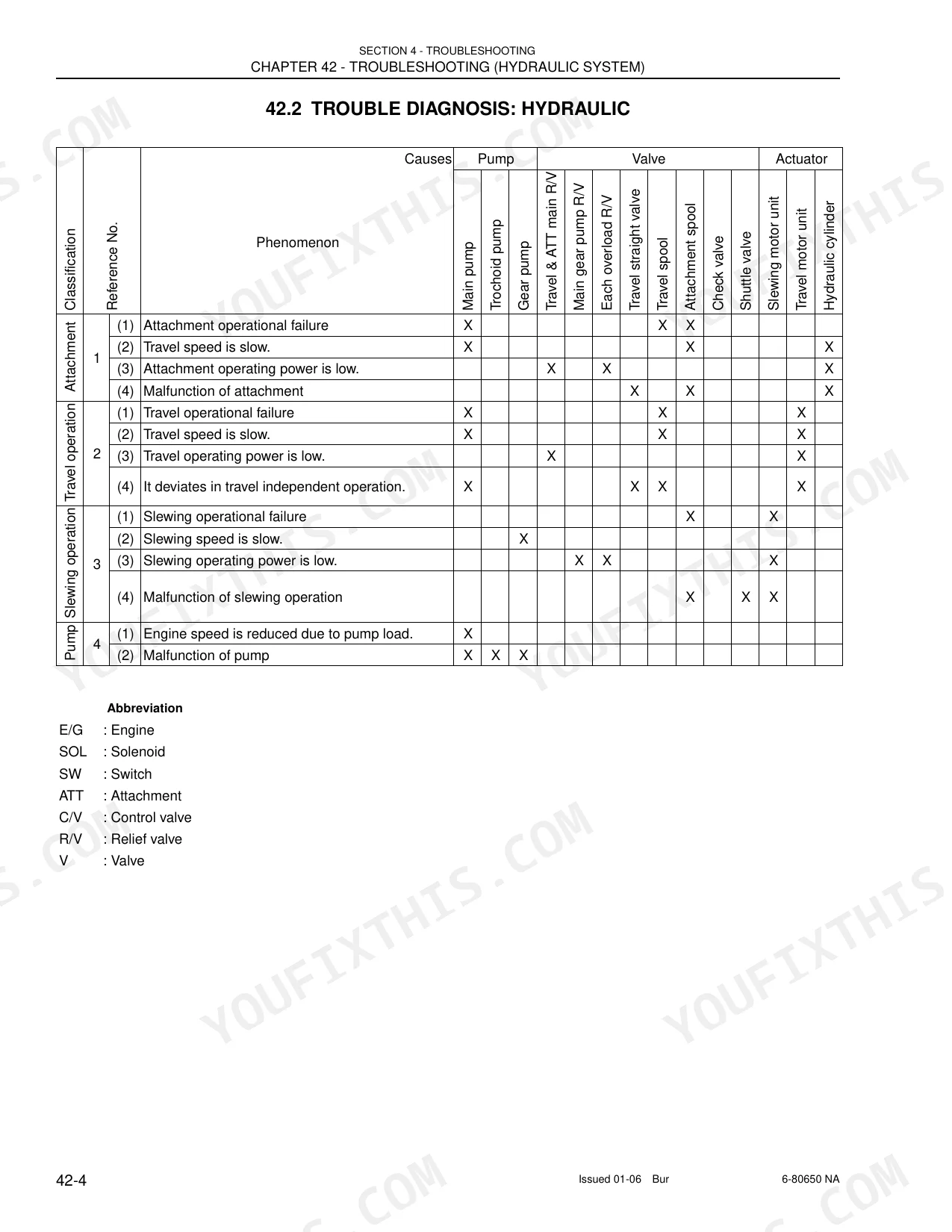

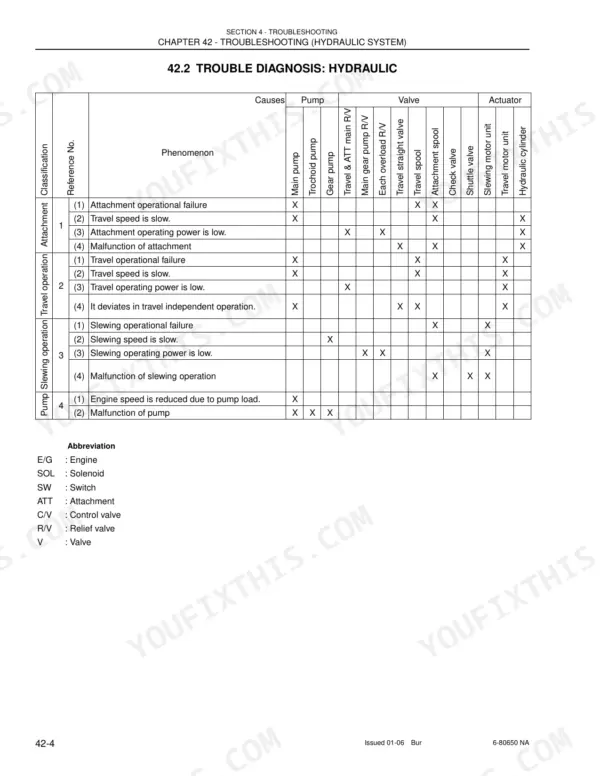

Work through the operational failure charts starting on page 488 before pulling any valve. Confirm the pilot relief valve holds 3.5 ± 0.4 MPa; if it's low, the spool won't shift fully and every function feels sluggish. Then check main relief pressure at ports P1 and P2 against the 23.0 +0.5 MPa spec on page 194 with a calibrated gauge, not by feel.
Manual Section: Hydraulic System Operational Failure p. 488Engine cranks fine but won't fire, or starts hard even with a warm battery
Run the starting trouble sequence beginning on page 517 before condemning the starter. Pull an injector and check nozzle opening pressure; on 3TNV82A through TNV88 CL engines it should read 19.6 to 20.6 MPa per page 587. A nozzle stuck open or dribbling below that range washes down cylinder walls and kills compression enough to prevent a clean start.
Manual Section: Engine Starting Trouble p. 517Machine runs hot and coolant temperature climbs steadily under load
Check the V-belt driving the water pump and alternator first; a new belt should deflect 8 to 12 mm under thumb pressure per the spec on page 571. A belt slipping outside that range starves the pump and fan of drive speed long before the gauge needle moves. Also confirm the alternator is putting out its rated 40 A on page 721 so the cooling fan motor isn't running on a weak charge.
Manual Section: Standard Specifications and Maintenance p. 571Frequently Asked Questions
What are the torque specifications for New Holland E27 hydraulic connections?
The manual provides torque specifications for hydraulic connections. For O-ring sealing type, a 1/8 PF nominal screw size requires a spanner size of 14 mm and a tightening torque of 17±2 Nm (12±1 lb ft). For hydraulic hoses (30 degree flare type), a 1/8 PF nominal screw size requires a spanner size of 17 mm and a tightening torque of 15±2.0 Nm (11±1 lb ft). p. 64
How do I reset the E27 hydraulic system after a fault or maintenance?
To reset the hydraulic system after a fault or maintenance, perform air bleeding. This involves loosening the upper drain plug of the hydraulic pump and slewing motor, running the engine at low idle until clear hydraulic oil is visible, then tightening the plug. For travel motor and hydraulic cylinders, run the engine for more than 5 minutes at low speed without load, and for pilot lines, perform a series of digging, slewing, and travel operations. p. 17
What is the total and effective engine oil capacity for the 3TNV82A model?
For the 3TNV82A engine model, the total oil pan capacity is 5.5 liters, and the effective oil volume is 1.9 liters. It is important to keep the oil level between the upper and lower limits on the dipstick to ensure proper lubrication. p. 568
What is the recommended V-belt tension (deflection) for a used V-belt in the A direction?
For a used V-belt, the recommended tension (deflection) in the A direction is between 10 mm and 14 mm when pressed with approximately 98N (10kgf) of force. This helps prevent slipping and ensures proper alternator and cooling pump function. p. 571
How will I receive this New Holland E27 & variants Shop Manual?
You get a 742-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Can I print specific sections of this New Holland E27 & variants Shop Manual?
Yes. The PDF has no DRM restrictions, so print any page or section you need for your shop. Works with any standard printer.
Can I find hydraulic circuit diagrams in this New Holland E27 & variants manual?

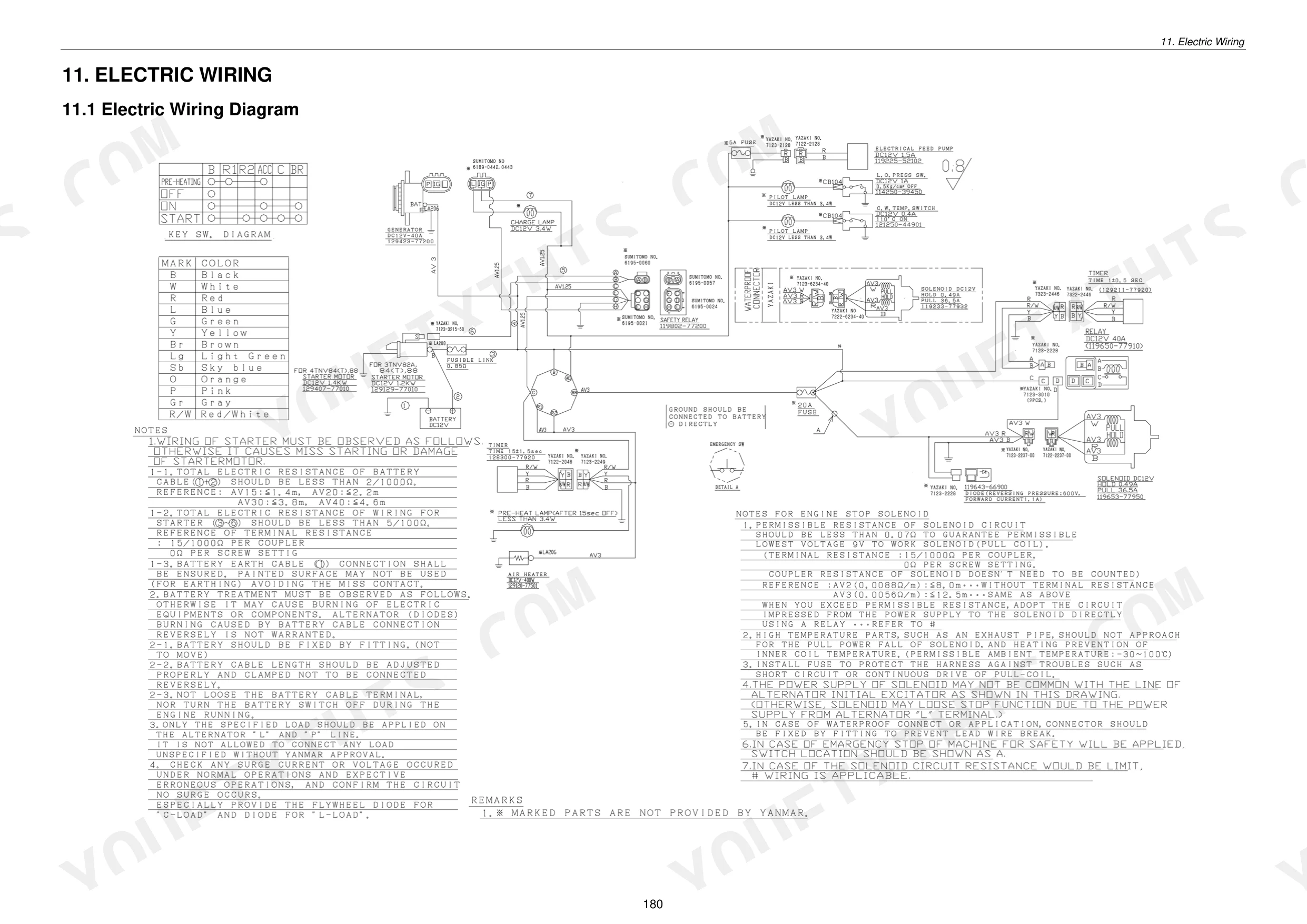

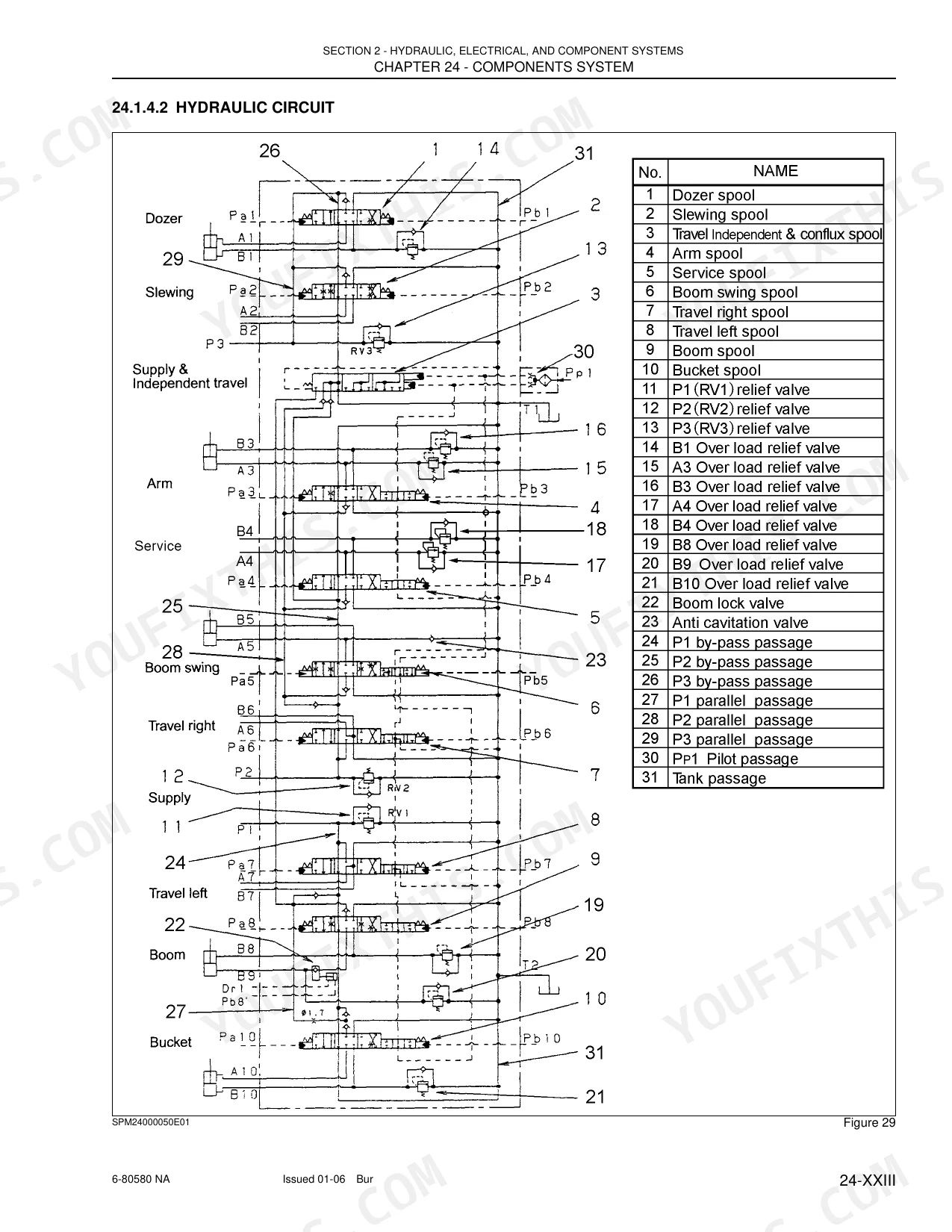

Yes, this New Holland E27 & variants Shop Manual includes hydraulic system diagrams, circuit schematics, and component specifications.
