Part of the New Holland Repair Manuals.
This 385-page New Holland H7230, H7330 Discbine Mower-Conditioner Service Manual (OEM #84301177) breaks down every gearbox, cylinder, and cutterbar procedure your machine will ever throw at you. Inside you get full wiring diagrams with socket pinouts for the lighting system, hydraulic schematics covering swing and tilt cylinder circuits, and a dedicated troubleshooting section for tracking down driveline and conditioning faults. You also get complete rotary disc cutting and flail conditioning procedures, from replacing conditioner drive belts to pulling and inspecting the rotor. Set standard torque values per the hydraulics chart, then check flotation spring tension before you send the header back into the field. No more cracking three different bulletins to find one gearbox spec. Bookmarked by system, so you can jump straight to Frame Positioning or Crop Processing without hunting through 385 pages. Download it, load it on your tablet, and get the Discbine running right the first time.
What's Inside This New Holland H7230, H7330, Discbine Mower-Conditioner Manual
| System | Pages | Key Topics |
|---|---|---|

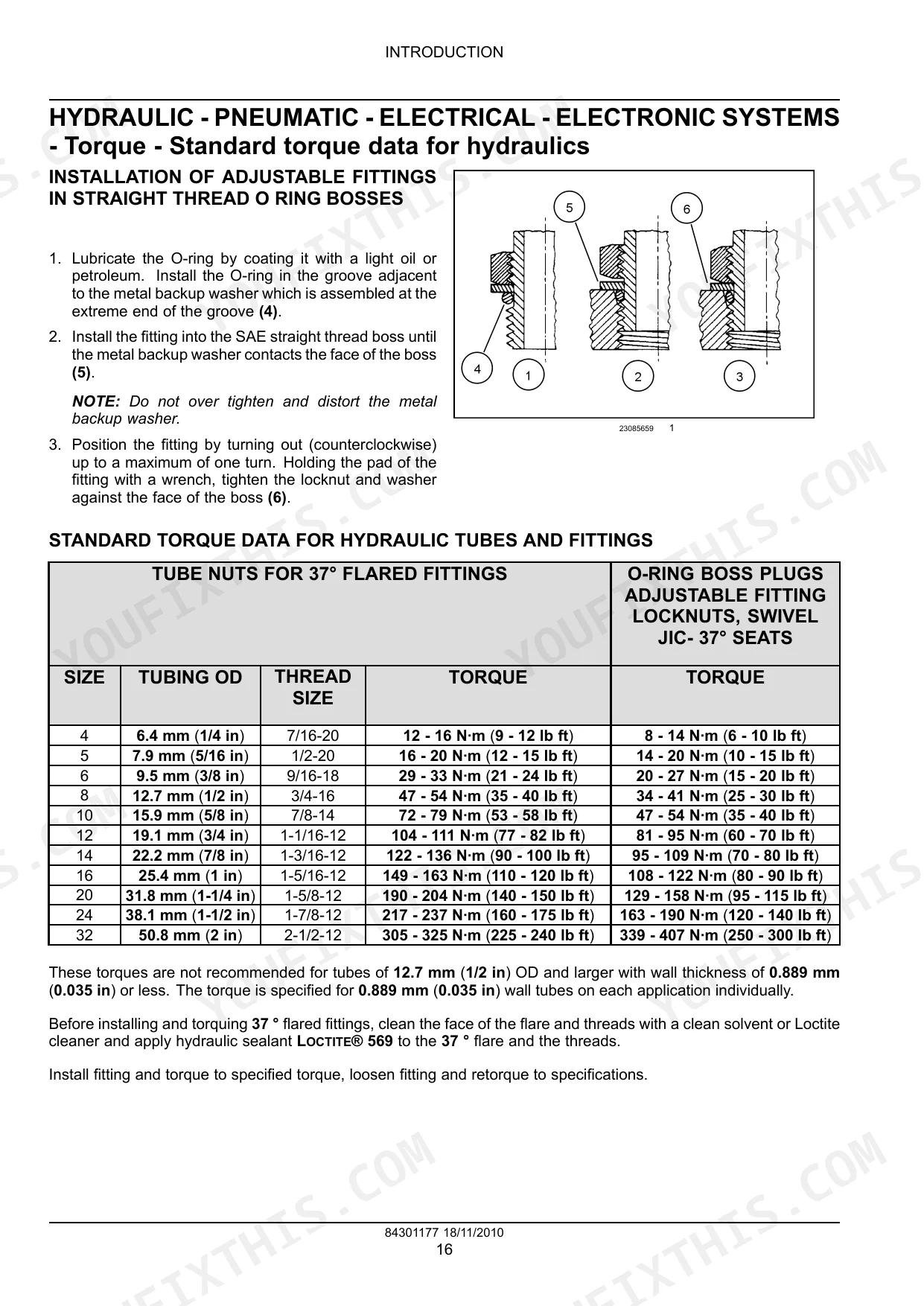

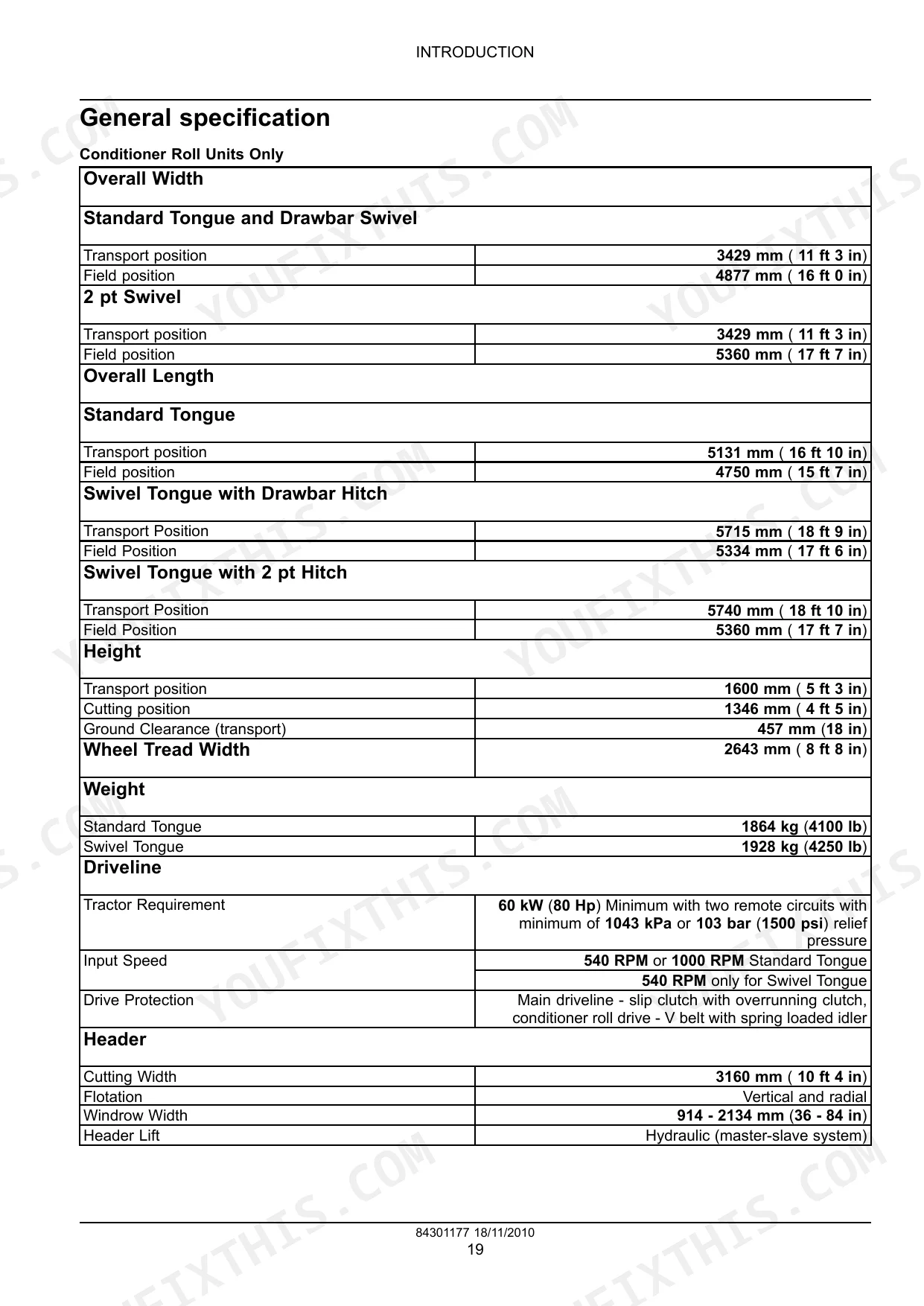

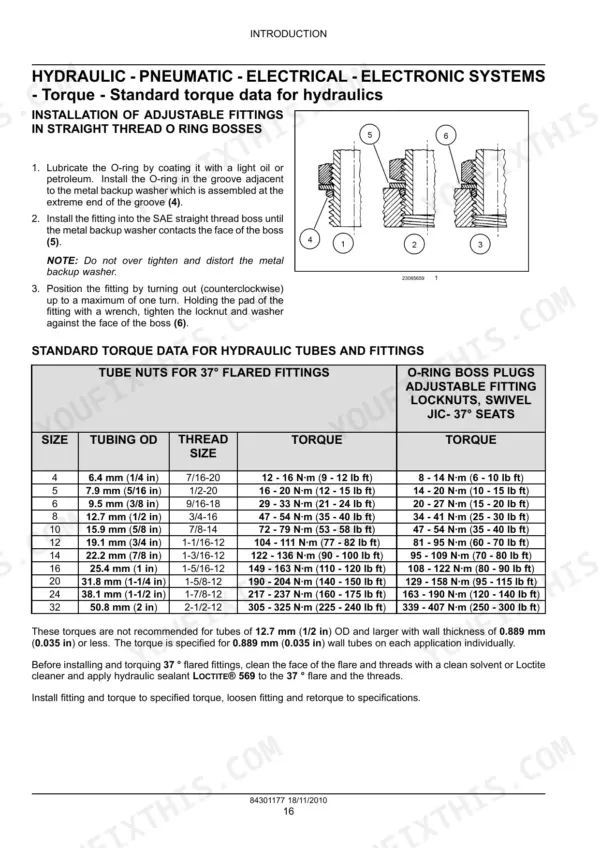

| Introduction | 4-84 | Shop and Assembly, Standard Torque Data for Hydraulics, General Specification, Product Identification, Product Overview, Lubrication and Maintenance Schedule |

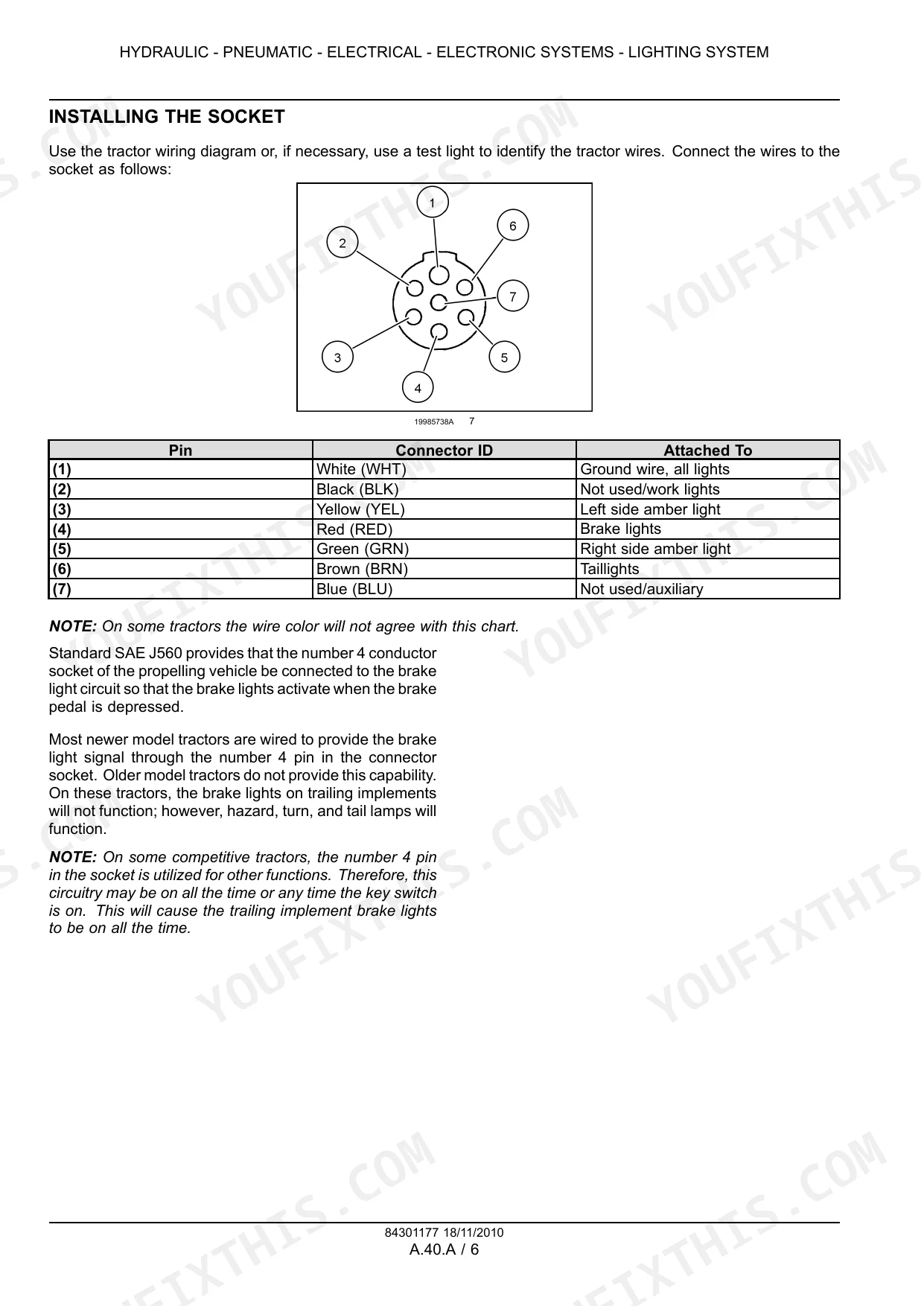

| Hydraulic, Pneumatic & Electrical Systems | 85-96 | Lighting System, Installation, Socket Wiring |

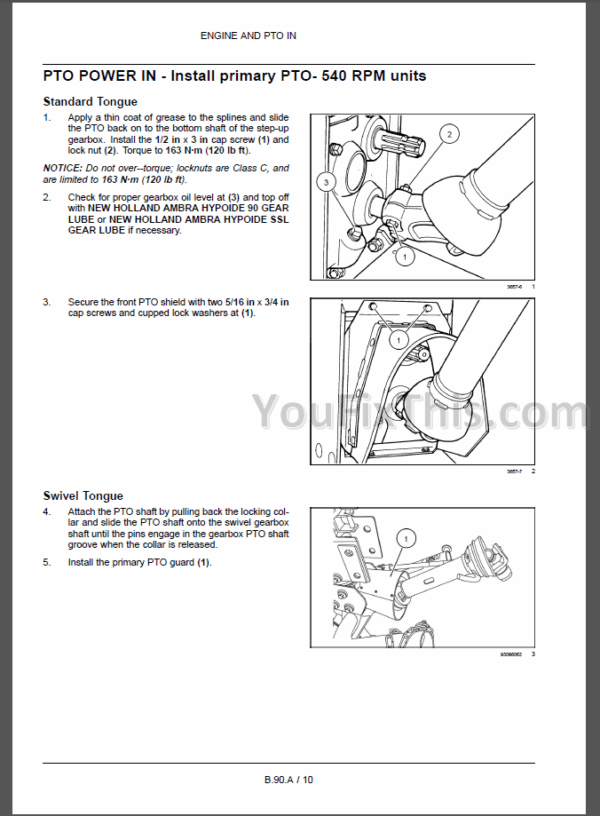

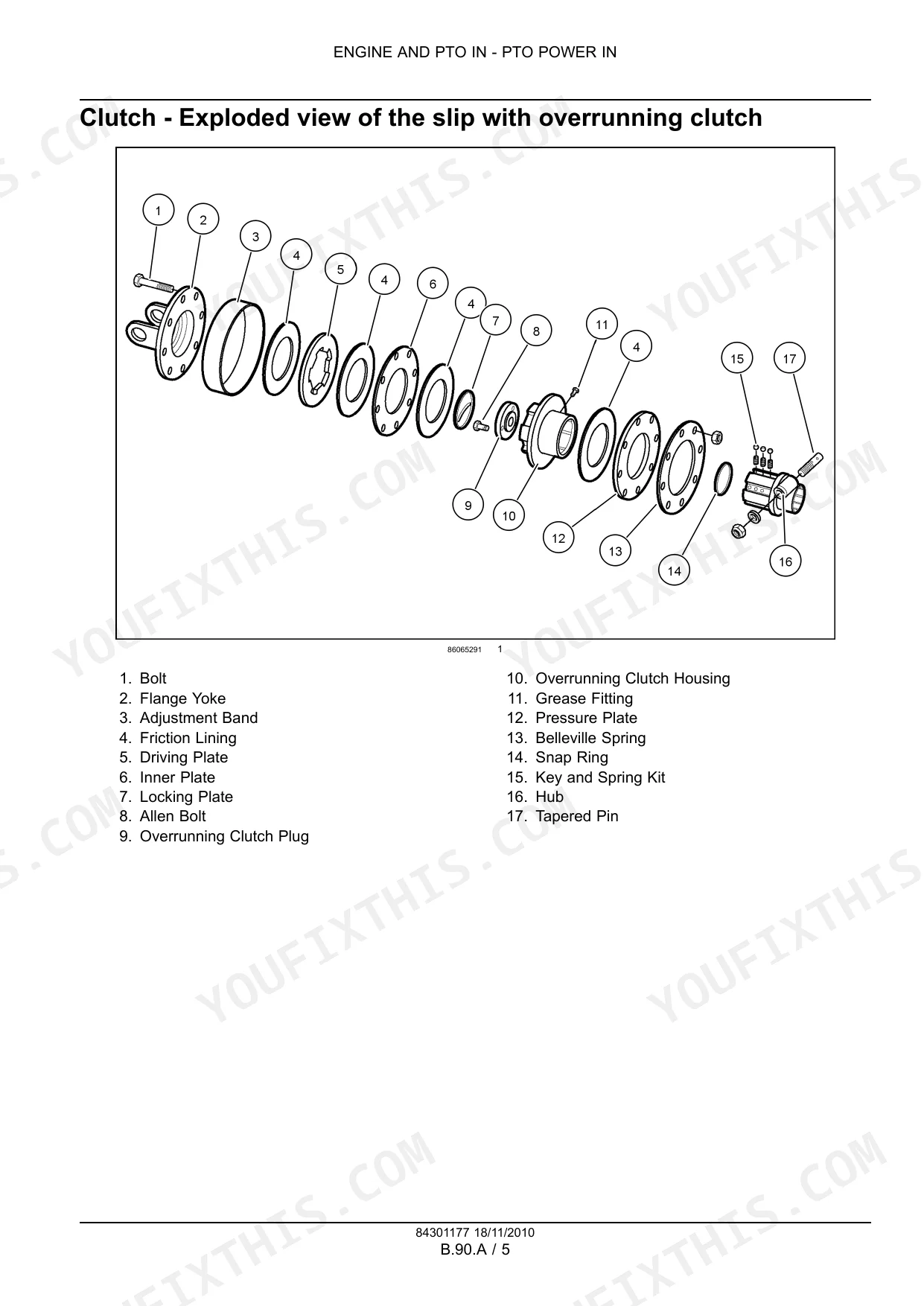

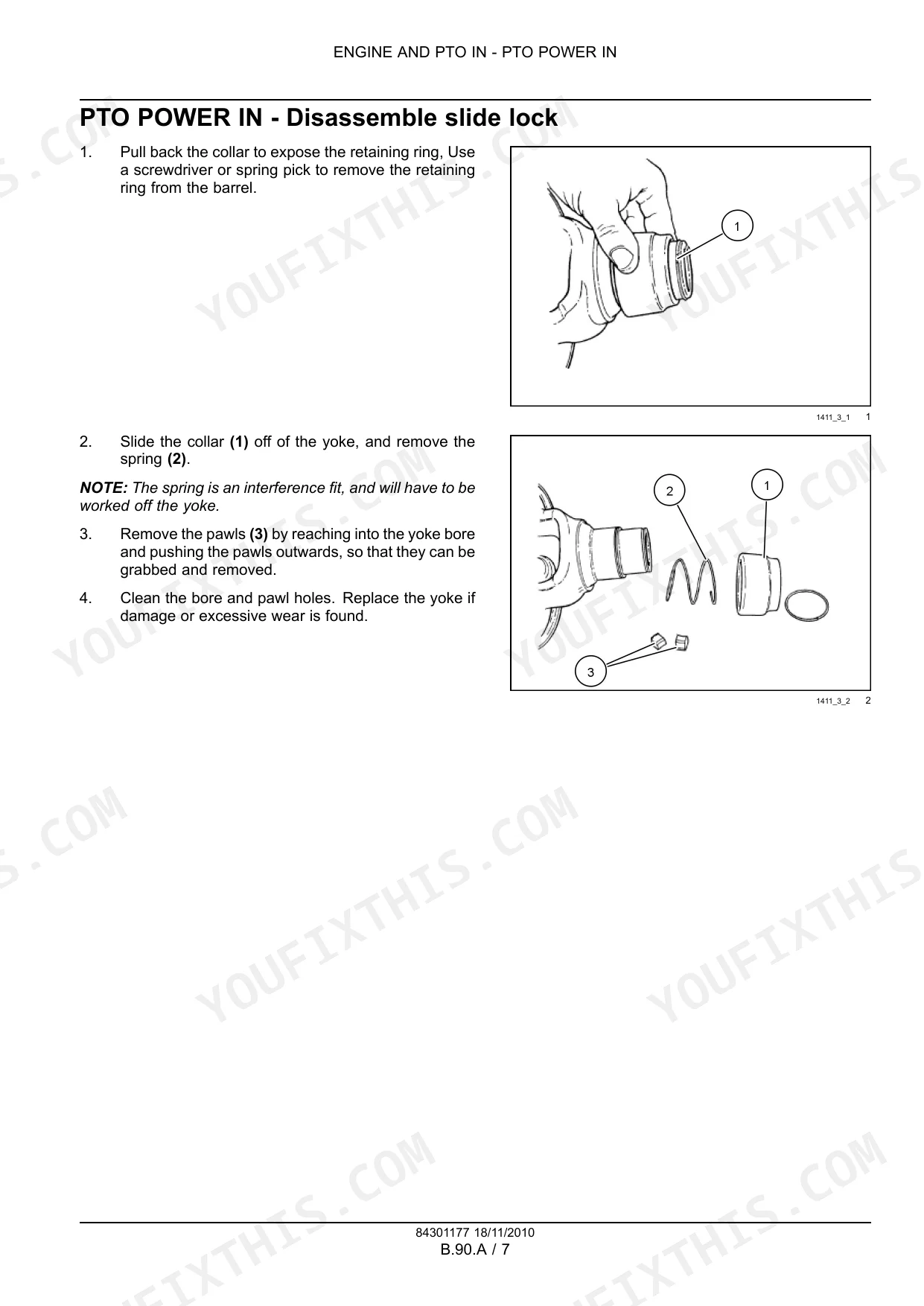

| Engine and PTO Input | 97-168 | PTO Power Take-Off Overview, Clutch, Universal Joint, Driveline Guards, Primary PTO Units, Secondary PTO Units |
| Transmission, Drive & PTO Output | 169-206 | Drive Shaft, Step-Up Gearbox Overview, Swivel Gearbox Exploded View, Gearbox Service Instruction, Disassemble Step-Up Gearbox, Assemble Swivel Gearbox |

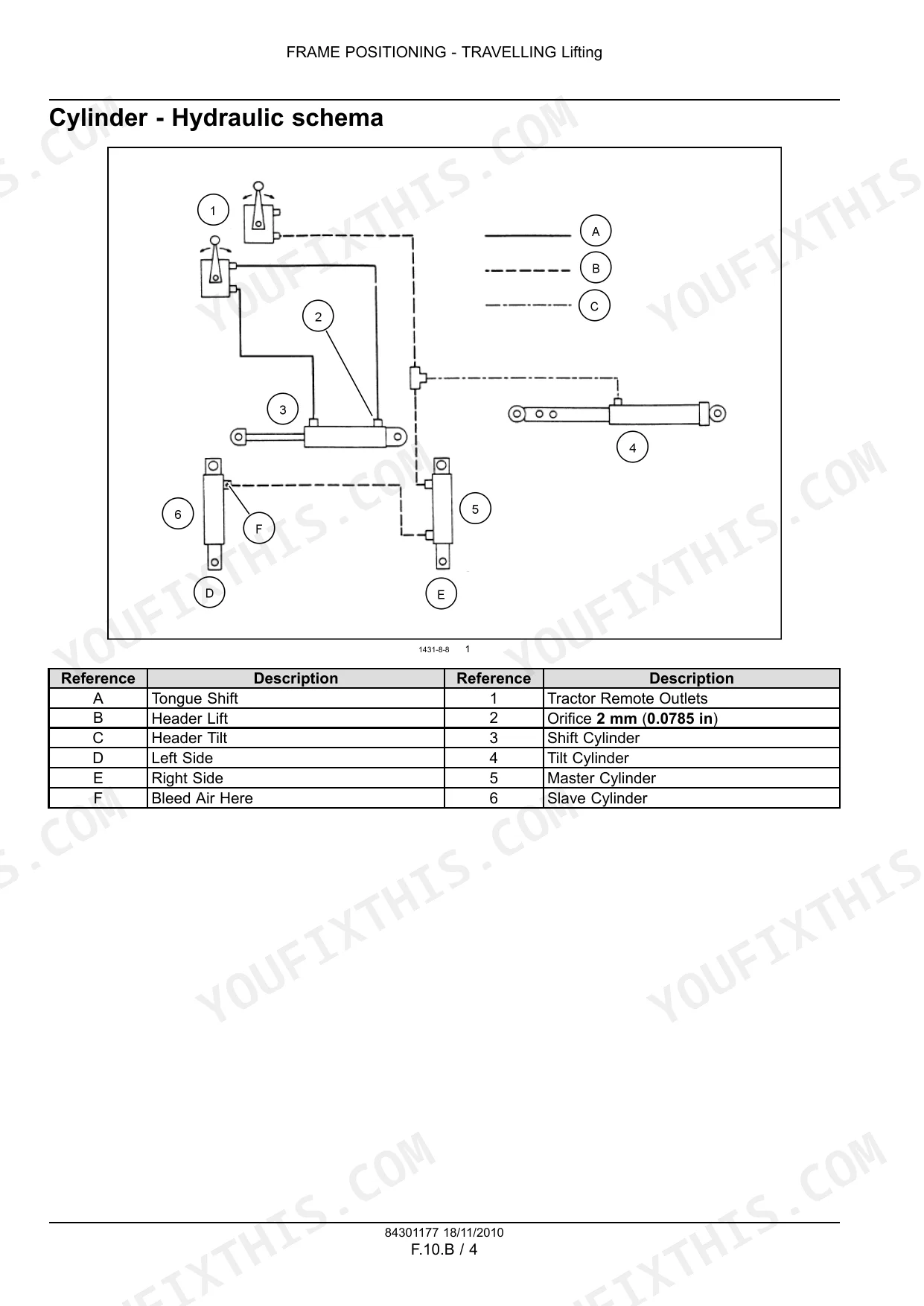

| Frame Positioning | 207-244 | Cylinder, Hydraulic Schema, Swing Cylinder, Flotation Springs, Flotation Spring Wrench |
| Tool Positioning | 245-256 | Tilt Cylinder, Remove Tilt Cylinder, Disassemble Tilt Cylinder, Inspect Tilt Cylinder, Assemble Tilt Cylinder, Install Tilt Cylinder |
| Crop Processing | 257-385 | Rotary Disc Cutting, Knives and Bolts, Cutter Bar Modules, Bevel Gearbox, Roll Conditioning, Flail Conditioning |
New Holland H7230, H7330, Discbine Mower-Conditioner Common Problems This Manual Covers
New Holland H7230 mower deck bolts shearing off after cutting on rough or uneven ground
Check the flotation spring tension in the Frame Positioning section on page 207. Loose springs let the header drag and shock-load the deck bolts. Adjust each spring per the flotation spring wrench procedure so the header floats just above the ground, then torque replacement bolts to the chart before returning to the field.
Manual Section: Frame Positioning - F p. 207Drive hubs shearing or failing under normal cutting load
Inspect the flotation spring adjustment before condemning the hub. An overtight or mismatched spring setting puts excessive torsion on the lift arm torsion bar and transfers shock straight into the drive hub. Rebalance both flotation springs evenly per page 207, replace the sheared hub, and torque the mounting bolts to the spec chart before restarting the PTO.
Manual Section: Frame Positioning - F p. 207Torsion bar stress causing PTO shaft or transmission damage on light frame tractors
Verify the tractor's 3-point hitch capacity matches the header weight; an undersized frame lets the torsion bar connecting the lift arms flex under load and feed vibration back into the PTO driveline. Check U-joint alignment and driveline guard clearance in the PTO section starting page 97, and confirm hitch geometry before engaging the PTO at full speed.
Manual Section: Engine and PTO in - B p. 97Cutter bar knives and bolts wearing or breaking prematurely
Remove the cutter bar modules and inspect knife edges and mounting bolts as outlined in the Crop Processing section on page 257. Replace any knife with a chipped or rolled edge and torque bolts to the value in the standard torque chart. Uneven wear across modules usually points back to the flotation adjustment on page 207, so recheck that setting during the same inspection.
Manual Section: Crop Processing - K p. 257Roll conditioner rolls slipping or not conditioning crop evenly

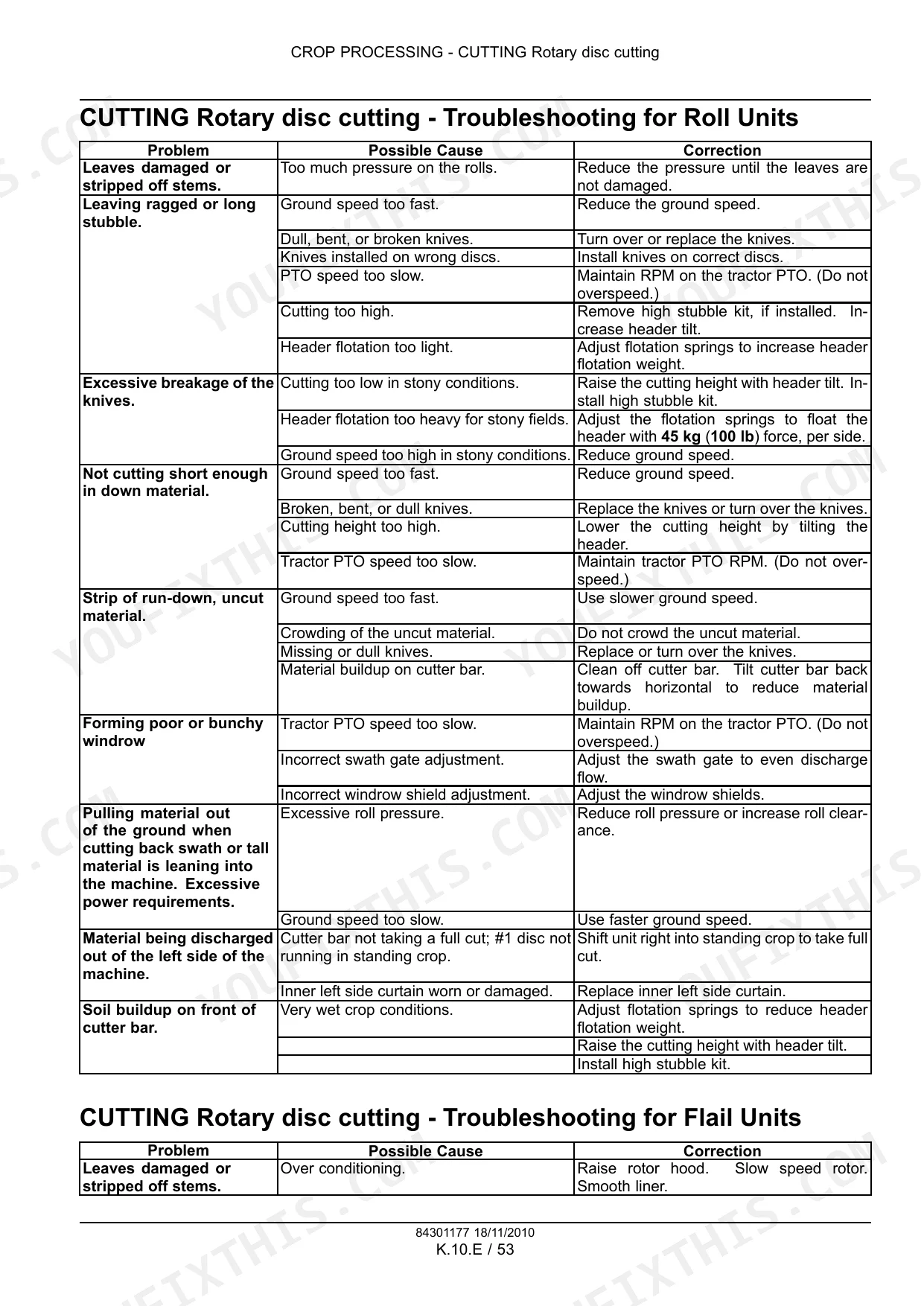

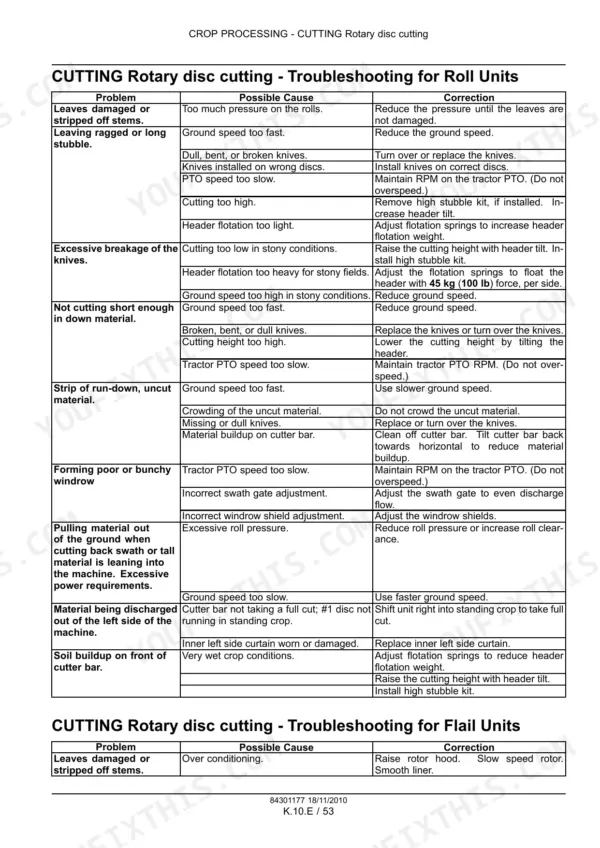

Run the roll unit troubleshooting procedure to isolate whether the fault is roll clearance, drive slip, or bevel gearbox wear. Adjust roll clearance evenly across both ends and check the slip clutch for glazing; a clutch that slips under normal load needs resurfacing before the rolls will condition crop consistently again.
Manual Section: Crop Processing - KHeader bounces or floats unevenly during transport or field operation
Bleed trapped air from both lift cylinders following the standard bleed procedure, then recheck flotation spring balance on page 207 since uneven float is often mistaken for a hydraulic fault. Cycle the lift cylinders fully several times after bleeding to confirm smooth, even movement before putting the header back to work.
Manual Section: Frame Positioning - FFrequently Asked Questions
What is the oil capacity and recommended oil type for the step-up gearbox?
The step-up gearbox holds 650 ml (22 US fl oz) of gear oil. It should be filled with NEW HOLLAND AMBRA HYPOIDE 90 GEAR LUBE or NEW HOLLAND AMBRA HYPOIDE SSL GEAR LUBE to the level of the check plug.
How will I receive this New Holland H7230, H7330, Discbine Mower-Conditioner?
A 385-page Service Manual in searchable PDF format (39 MB), available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Can I print this New Holland H7230, H7330, Discbine Mower-Conditioner manual?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.
Does this New Holland H7230, H7330, Discbine Mower-Conditioner manual include?
Yes. The manual includes hydraulic circuit diagrams, system schematics, and component specifications with pressure ratings.
